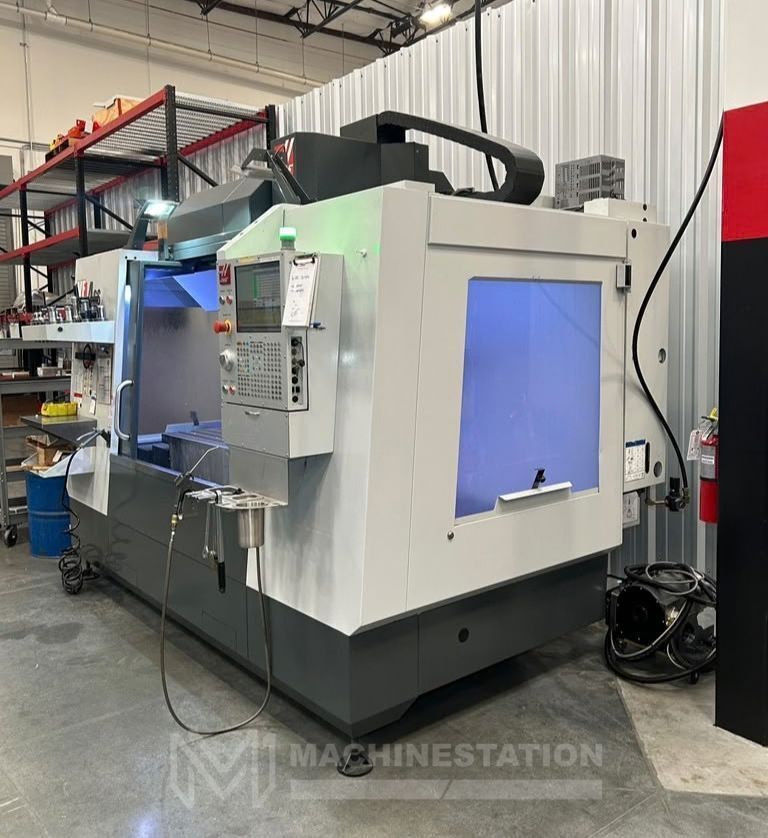

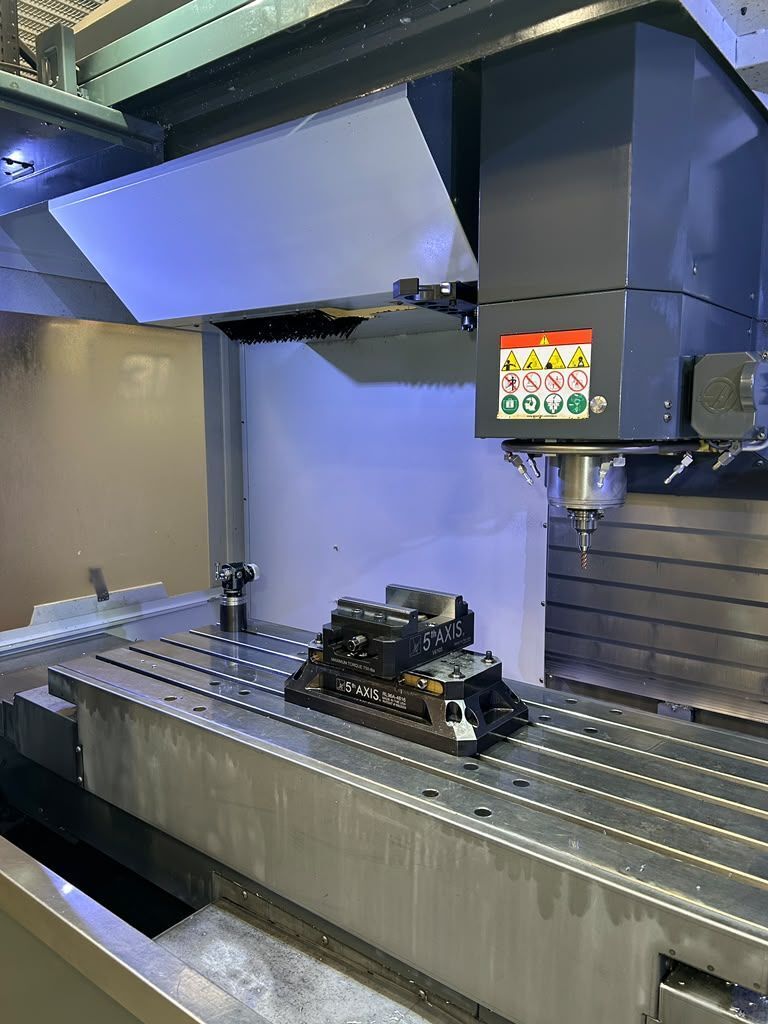

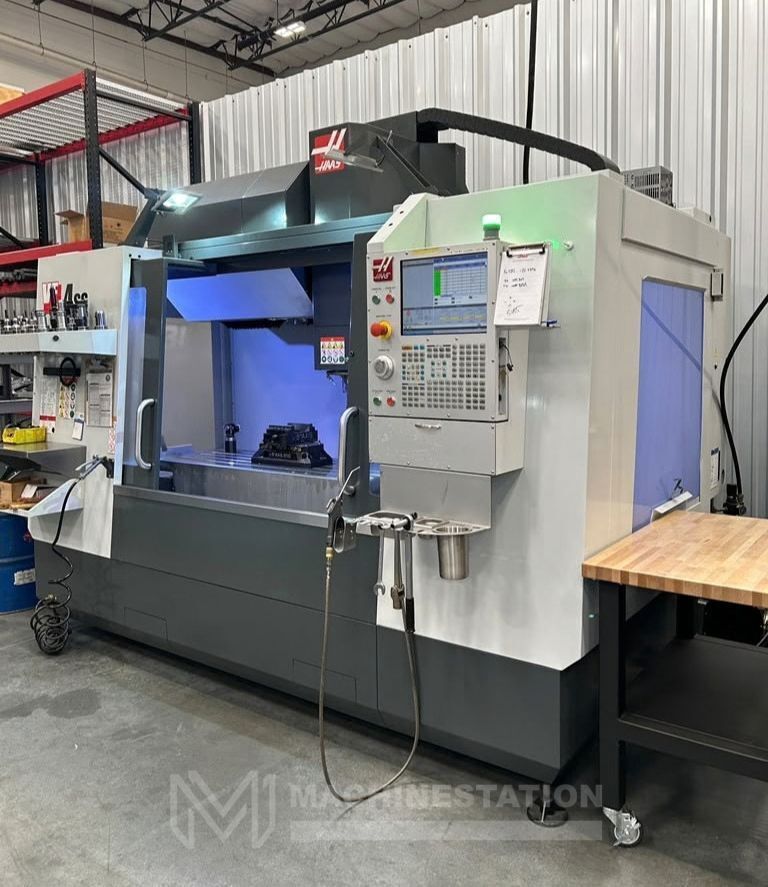

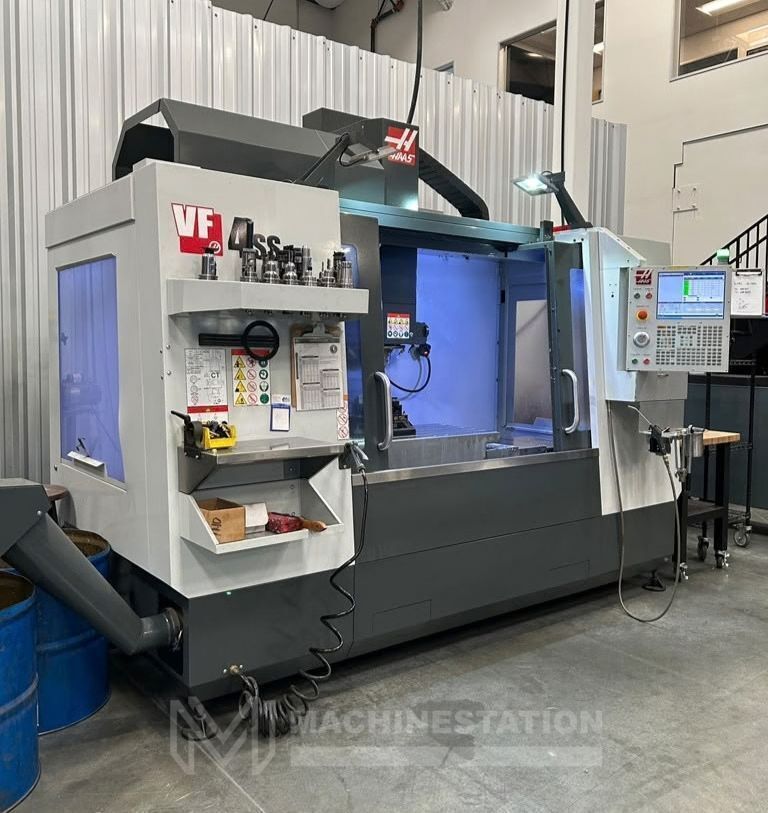

2020 Haas VF-4SS CNC Vertical Machining Center. Features WIPS, HSM, 4th Axis Drive and Rotary Table, 12,000 RPM spindle, and 30-Tool Changer. Ideal for multi-sided machining. High-intensity lighting and chip auger included.
“Replacement Cost Over $148,000 with Similar Options”
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

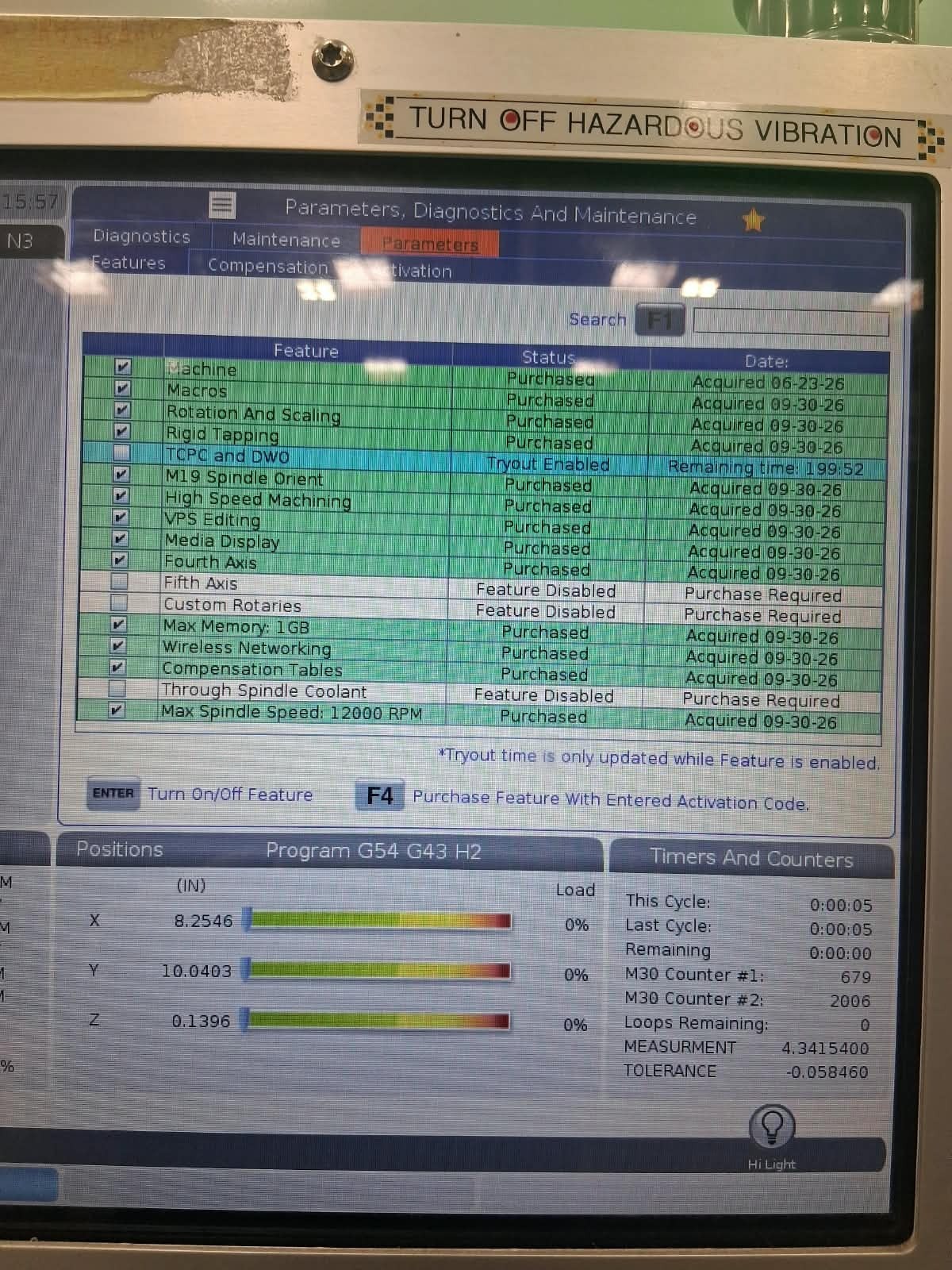

| Features: |
|---|

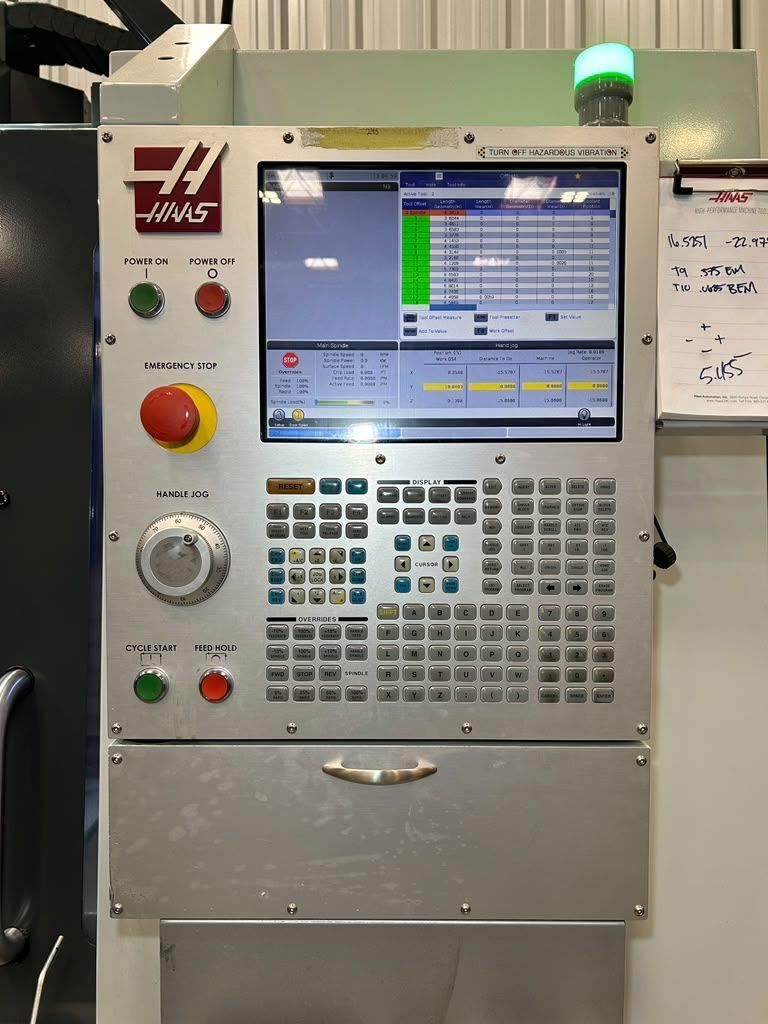

| Haas CNC Control |
| 4th Axis Drive and Wiring (Upgraded $3,795 Value Included) – Allows the Use of a 4th-Axis Haas Rotary Table for Multi-Sided Machining |

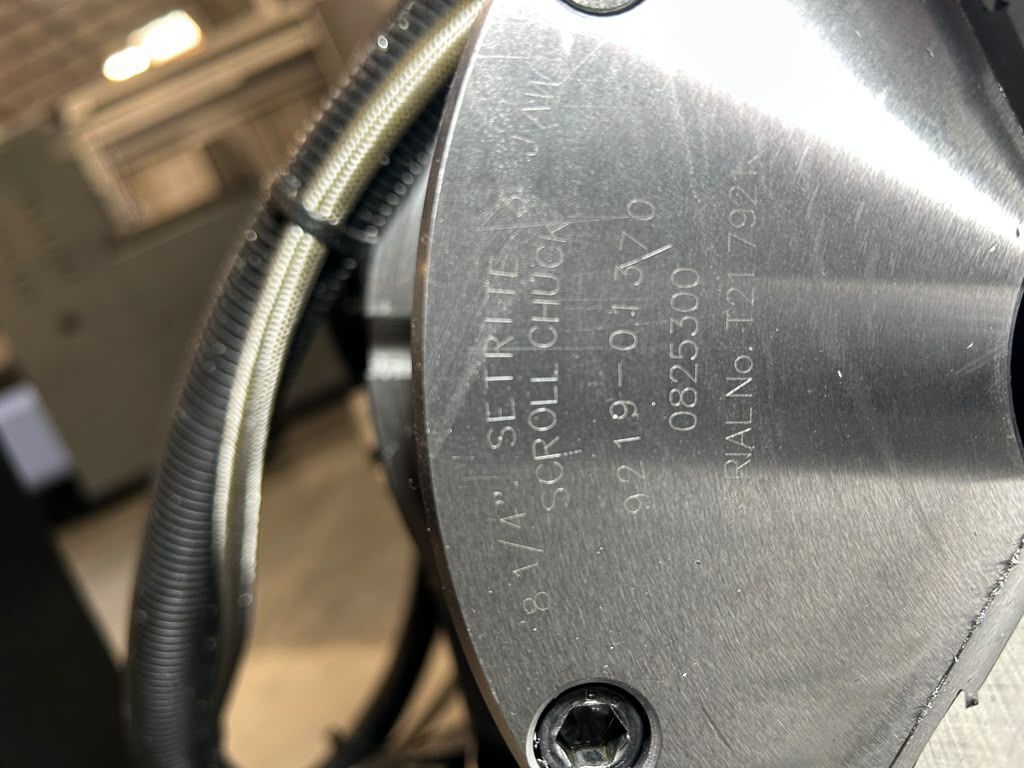

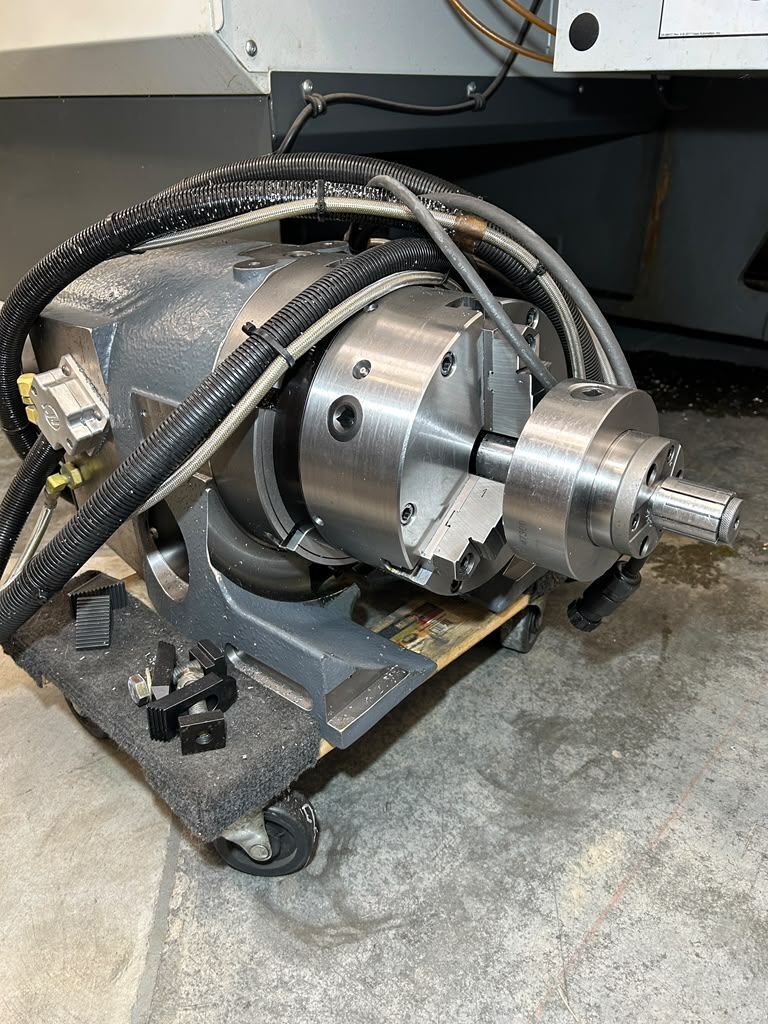

| Haas 4th Axis Rotary Table with 8-1/4″ 3-Jaw Chuck (Upgraded $17,495 Approx. Value Included) – 4th-Axis Haas Rotary Table for Multi-Sided Machining |

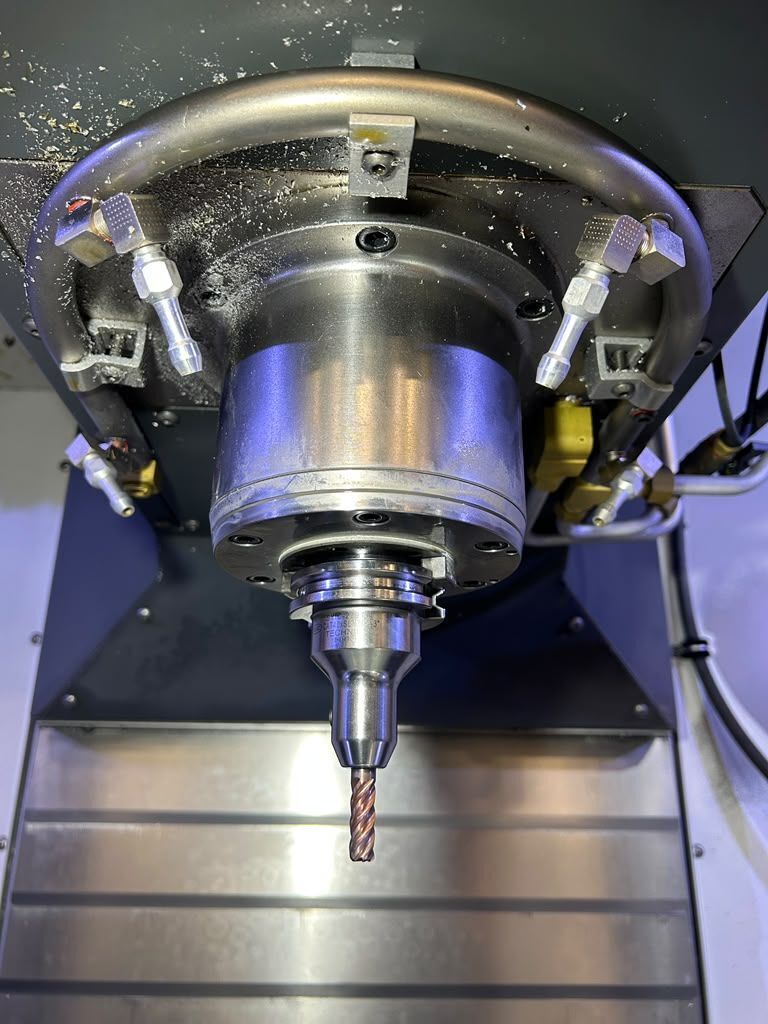

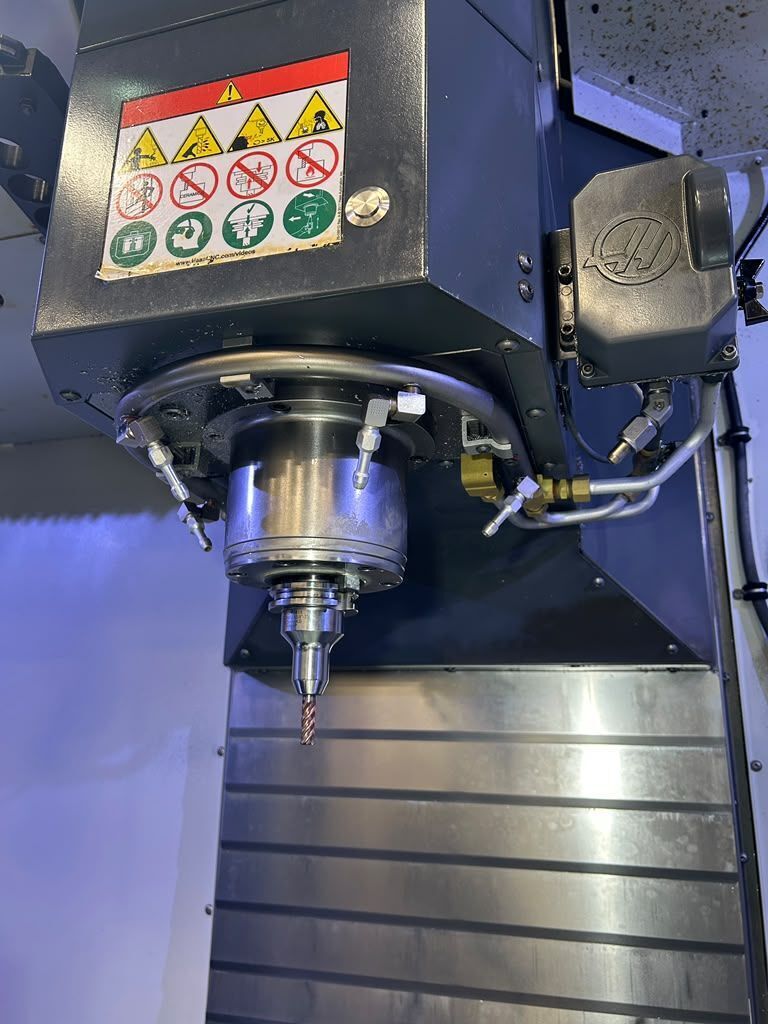

| 12,000 RPM Inline Direct Drive Spindle |

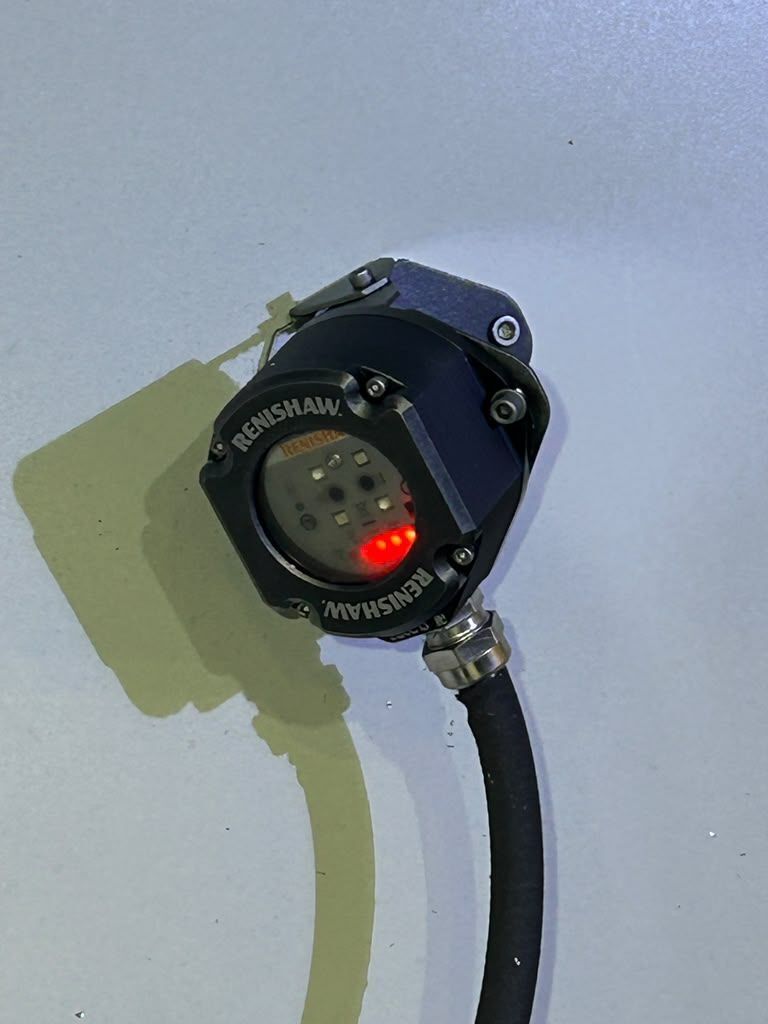

| WIPS-R Renishaw Probing System (Probe Included) (Upgraded $6,795 Value Included) – Reduced Scrap Rates, Minimized Downtime |

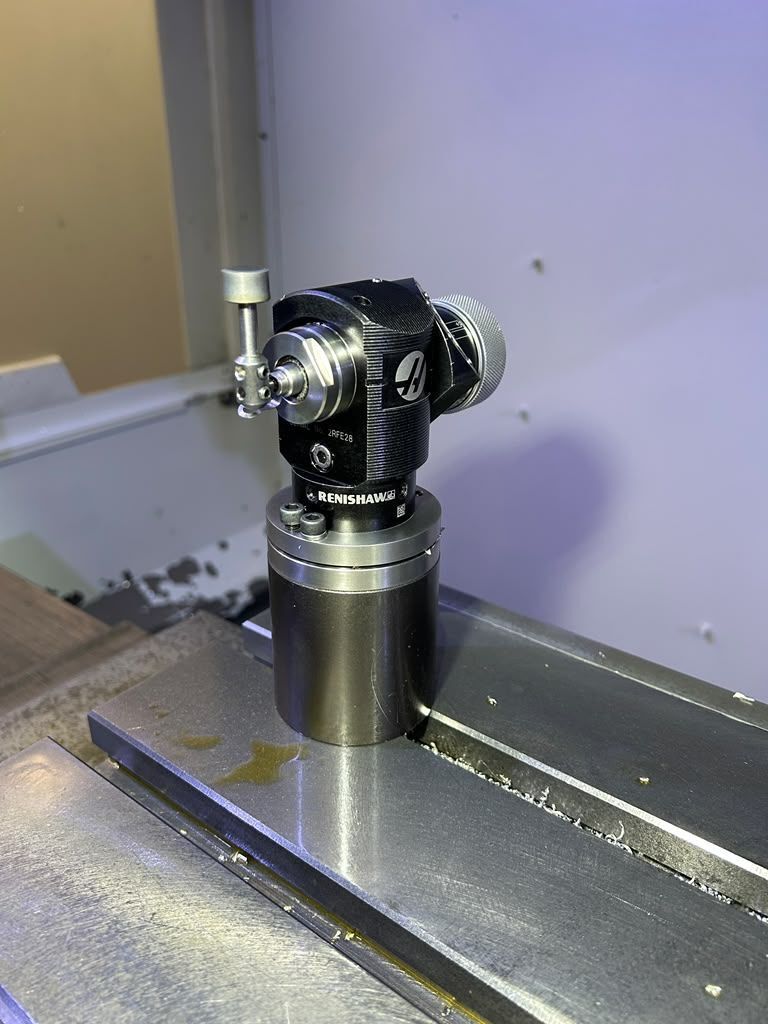

| Probe Riser Block (Upgraded $795 Value Included) – Provides Additional Height for the Tool Probe |
| 30 Station Super Speed Side Mount Tool Changer |
| Programmable Coolant Nozzle (Upgraded $2,595 Value Included) – Automatically Directs Coolant Precisely at the Cutting Tool |
| High Speed Machining (Upgraded $3,995 Value Included) – Allows Faster Feedrates and More Complex Toolpaths |
| 1,400 IPM Fast Rapid |
| User-Definable Macros |
| Coordinate Rotation and Scaling |
| Spindle Orientation |
| Rigid Tapping |
| VPS Editing |
| Media Display |
| 1 GB Max Memory |
| Wireless Networking |
| Compensation Tables |

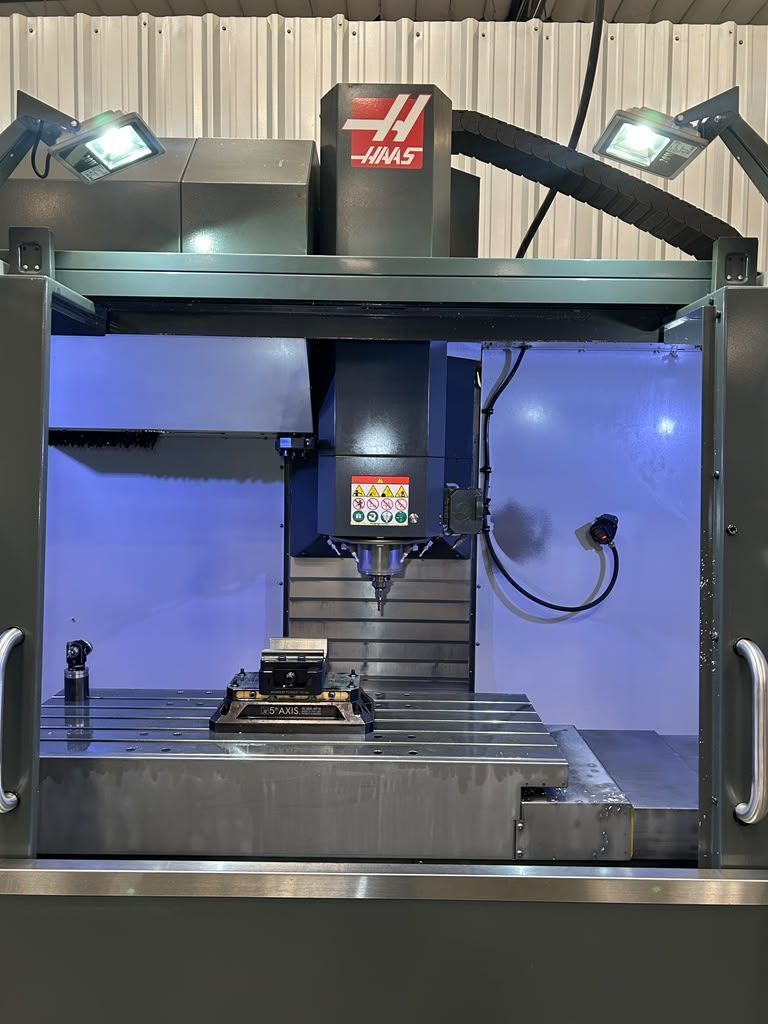

| High-Intensity Lighting (Upgraded $1,395 Value Included) |
| Coolant Tank |

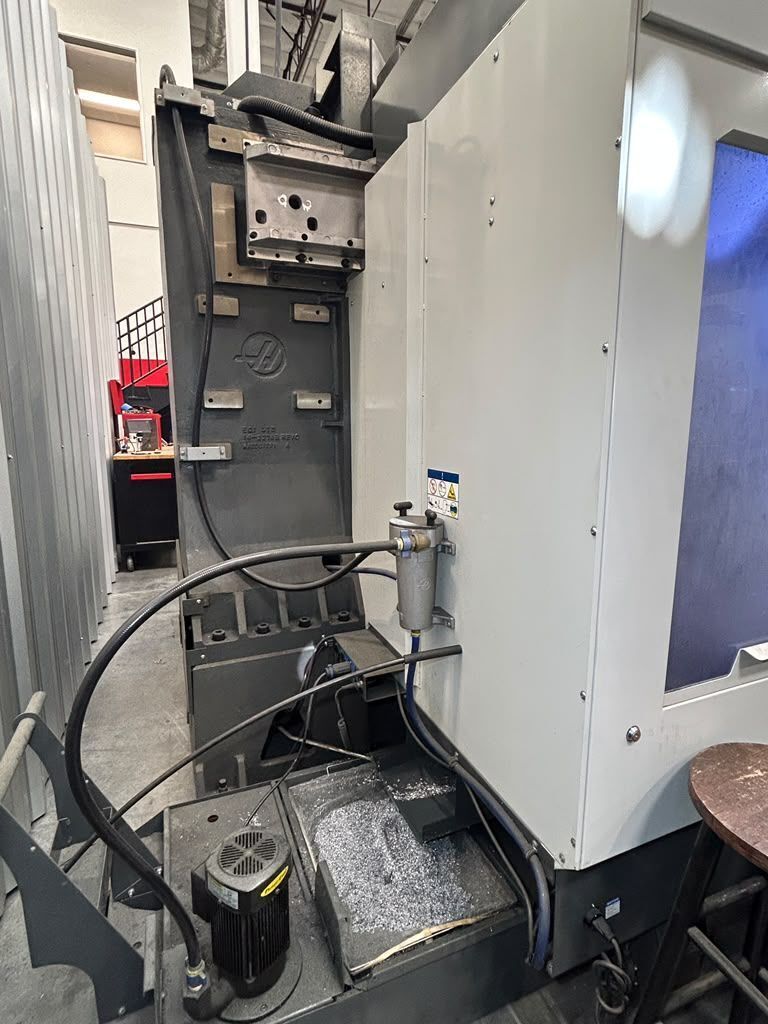

| Chip Auger (Upgraded $4,295 Value Included) – Automatically Removes Chips from the Machine |

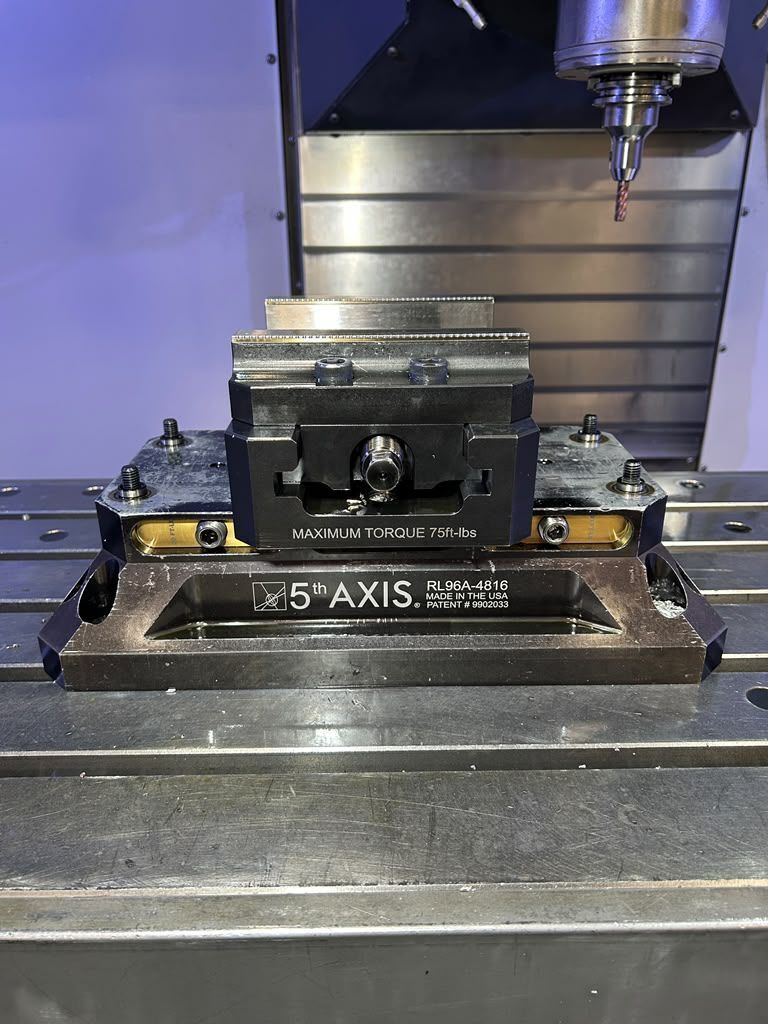

| Note: Tool Holders & Vice are Not Included with the Machine |
| Travels: |
|---|
| X-Axis: 50.0 inch |
| Y-Axis: 20.0 inch |
| Z-Axis: 25.0 inch |
| Rapid Traverse Rates Axis: 1,400 IPM |
| Cutting Feed Rates: 833 IPM |
| Spindle Nose to Table (Min.-Max.): 4.2 inch – 29.2 inch |

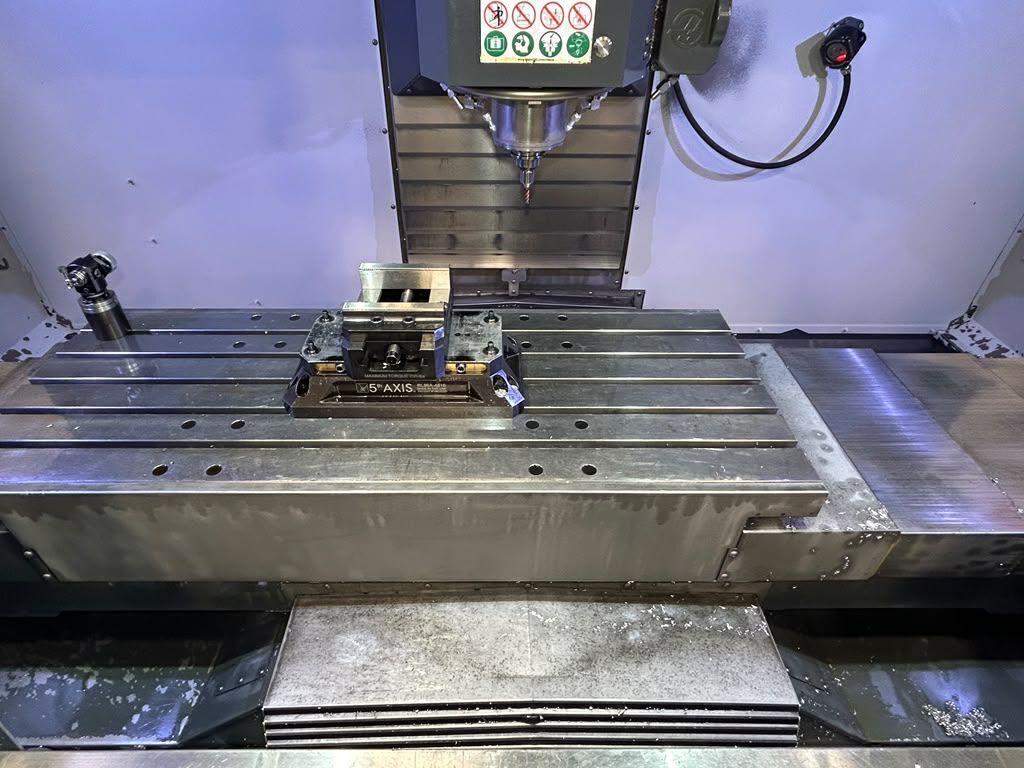

| Table: |
|---|
| Length: 52.0 inch |
| Width: 19.5 inch |
| Max Weight on Table: 1,750 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter: 2.5 inch – 5.0 inch |
| Max Tool Length: 13.0 inch |
| Tool Changing Time: 1.8 Seconds |
| General: |
|---|
| Air Required: 100 PSI, 4 SCFM |

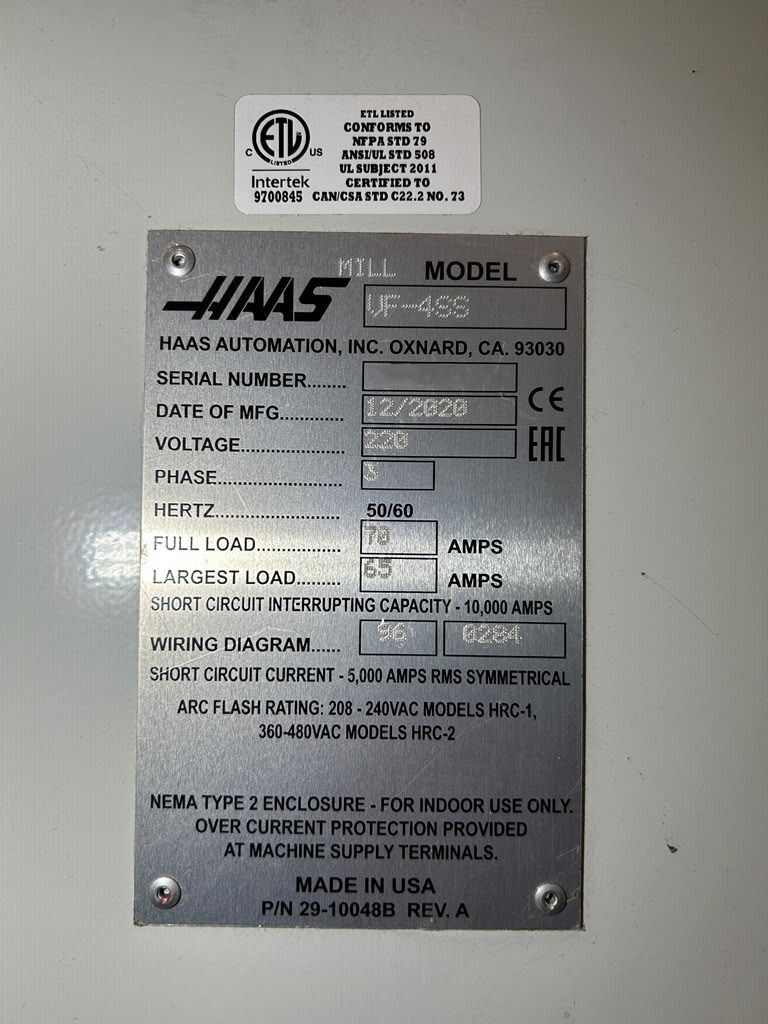

| Power: 220V / 66 FLA / 3-Phase |
| Overall Dimensions: 131 inch x 102 inch x 109 inch High |
| Weight: 13,500 lbs |
