*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

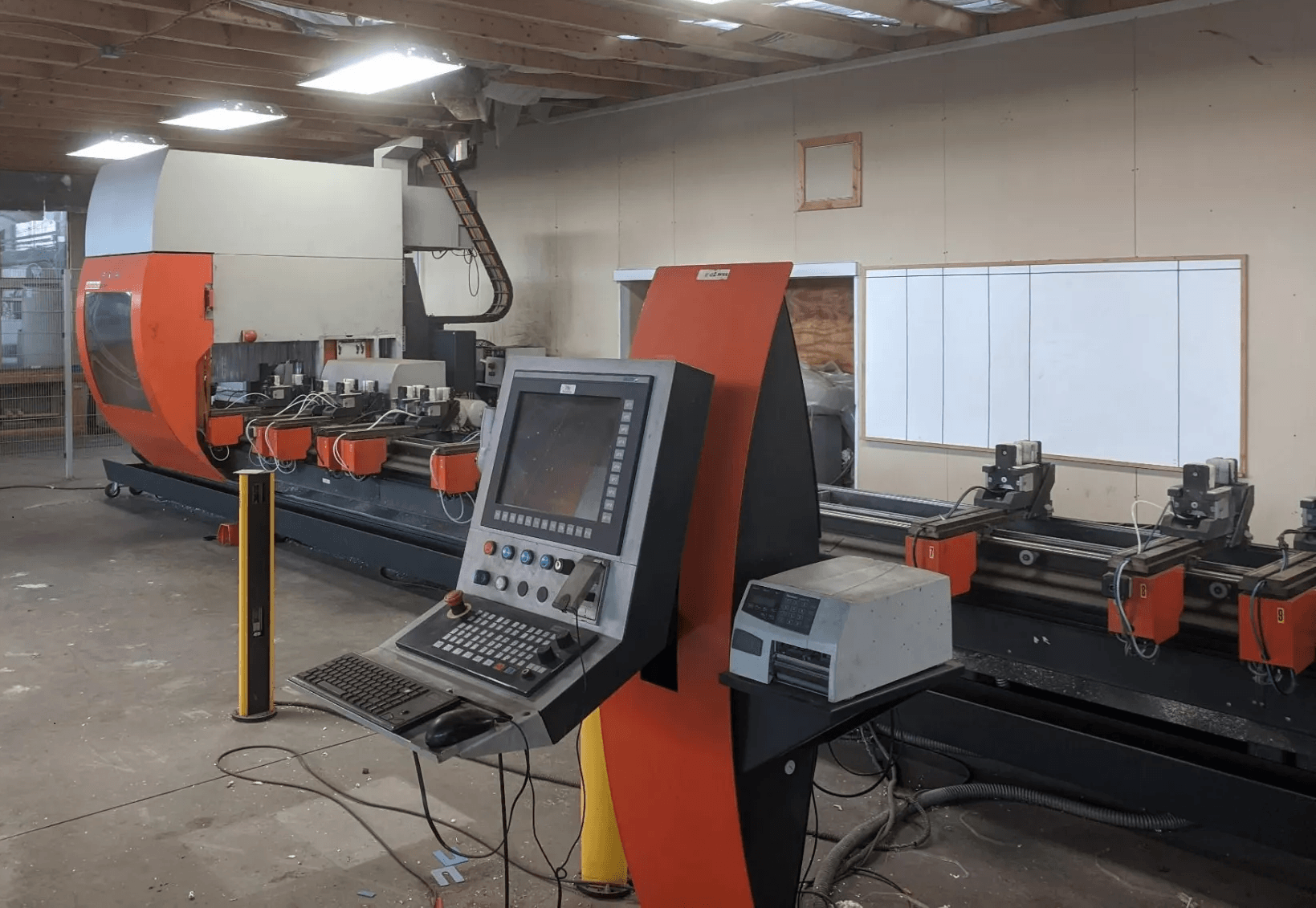

| Make: | Elumatec |
| Model No.: | SBZ 151 |
| Year: | 2009 |
| Condition: | Used |
| Machine Type: | 5-Axis CNC Profile Machining Center |
| Control: | Elumatec CNC Control |
| Country of Origin: | Germany |
| Features: |
|---|
| 5-Axis CNC Machining Capability |
| Mobile Operation Terminal with Start/Stop Speed Regulation |
| Network Connection PC |
| Cooling Device for Continuous Temperature Over 30°C |
| USV for IPC |
| Tapping Without Compensation |
| Independent Clamping Adjustment for 12 Clamps |
| Automatic Tool Changer |
| Integrated Profile Clamping System |
| Dust Extraction System |
| Safety Light Curtains |
| Full Enclosure |
| Barcode Scanner |
| Tool Support for Angle Router Head |
| Saw Blade Holder System |
| Quick-Action Chuck System |
| Assorted ER32 Collet Holders & Collets Included |
| Assorted Cutters Included |
| Travels: |
|---|
| X-Axis Stroke: 33.8′ |
| Y-Axis Stroke: 15.7″ |
| Z-Axis Stroke: 25.6″ |
| A-Axis Range: +/- 120 Degrees |
| C-Axis Range: +/- 360 Degrees |
| Machining Length: 33.8′ |
| Machining Width: 5.9″ |
| Machining Height: 4.1″ |
| Capacity: |
|---|
| Minimum Profile Length: 19.7″ |
| Maximum Profile Length: 33.8′ |
| Minimum Profile Weight: 1.3 lbs |
| Maximum Profile Weight: 330 lbs |

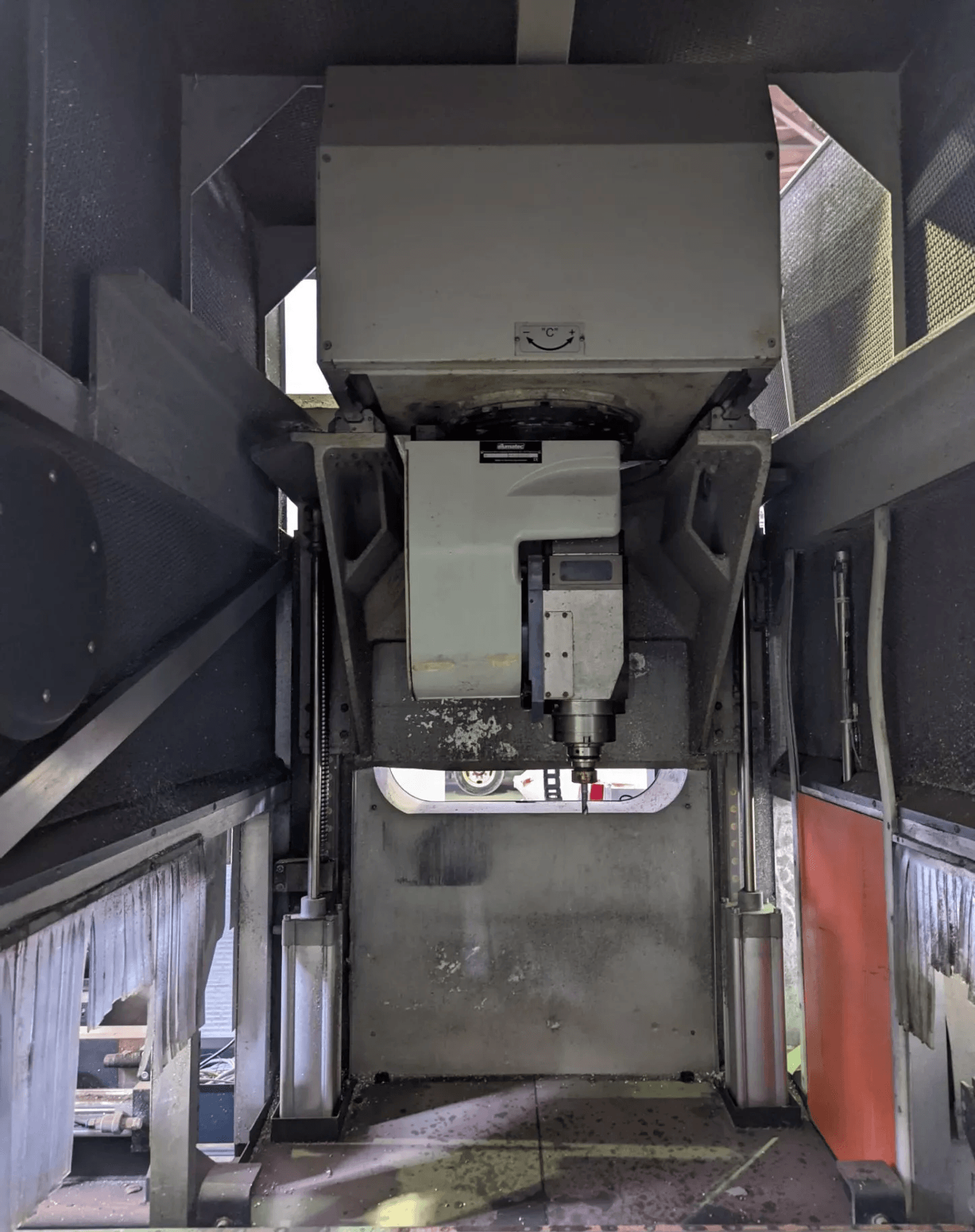

| Spindle: |
|---|
| Maximum Spindle Speed: 24,000 RPM |
| Main Spindle Power: 12.6 HP |
| Tool Holder Type: HSK-F63 |
| Number of Controlled Axes: 5 |
| Tool Changer: |
|---|
| Automatic Tool Changer Capacity: 8 Position |
| Maximum Tool Diameter: 9.8″ |
| Maximum Tool Length: 7.9″ |
| Tool Shank Diameter: 1.25″ |
| Tool Change Time: 6 Seconds |
| Feed Rates: |
|---|
| Maximum Feed Rate: 213 FPM |
| General: |
|---|
| Compressed Air Supply: 87 PSI |
| Dust Extraction Port Diameter: 4.9″ |
| Electrical: 480 VAC / 60 Hz / 3 Phase |
| Machine Weight: 17,637 lbs |
| Machine Dimensions: 57.4′ L x 9.8′ W x 8.2′ H |
