*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Amera Seiki |
| Model No.: | VB-3 |
| Year: | 2008 |
| Condition: | Used |
| Machine Type: | CNC Bridge Mill |

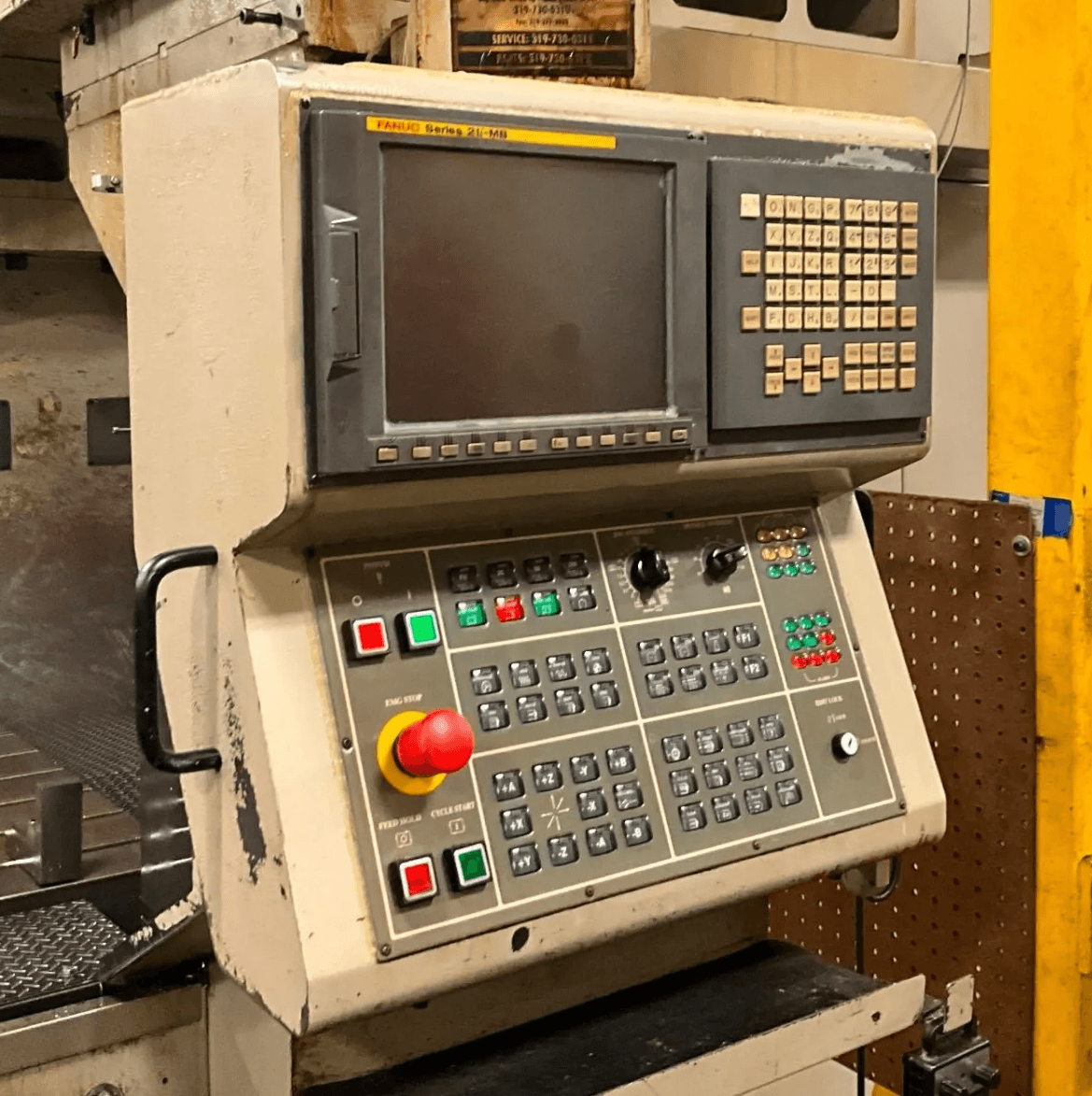

| Control: | Fanuc Series 21i-MB CNC Control |
| Country of Origin: | Taiwan |
| Features: |
|---|
| Fanuc Series 21i-MB CNC Control |
| 32 Position Automatic Tool Changer |
| CAT 50 Spindle Taper |
| Box Way Construction |
| Heavy Duty Bridge Construction |
| Chip Auger System |
| Flood Coolant System |
| Hydraulic Counterbalance |
| Way Covers |
| Work Lights |
| Pendant Control |
| Spindle Oil Cooler |
| Full Enclosure Splash Guarding |
| Travels: |
|---|
| X-Axis Travel: 126″ |
| Y-Axis Travel: 79″ |
| Z-Axis Travel: 35″ |

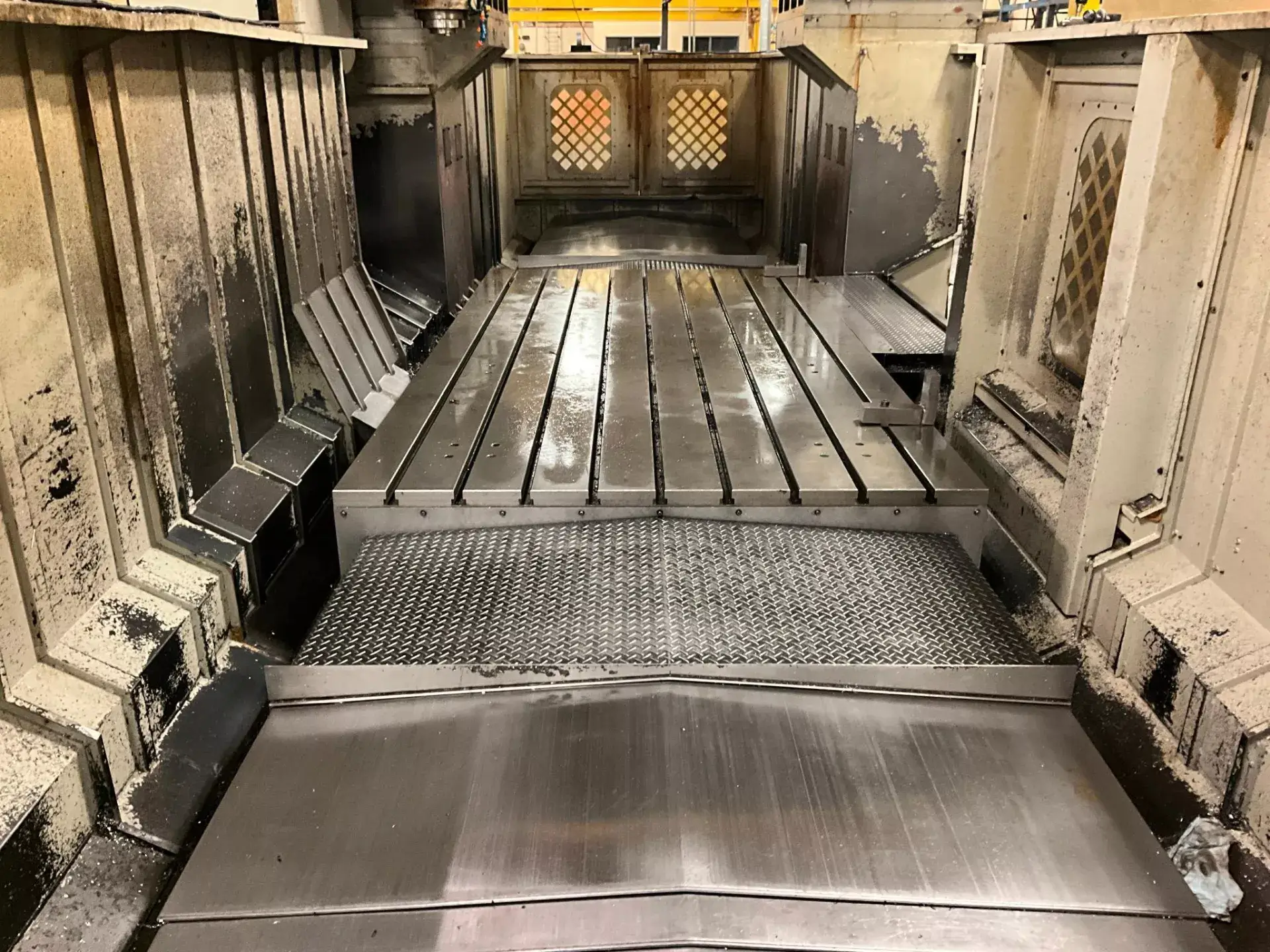

| Table: |
|---|
| Table Size: Approx. 126″ x 63″ |
| Table Capacity: Approx. 17,600 lbs |
| T-Slot Configuration: Multiple T-Slots |
| Spindle: |
|---|
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 30 HP |
| Spindle Taper: CAT 50 |
| Gear Head Spindle |
| Tool Changer: |
|---|
| Tool Magazine Capacity: 32 ATC |
| Automatic Tool Changer |
| General: |
|---|
| Voltage: 220 VAC |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Power: 40 kW |
| Full Load Current: 80A |
| Short Circuit Rating: 100A |
| Overall Dimensions: 332″ x 183″ x 176″ High |
| Approximate Machine Weight: 80,000 lbs |
| Machine Under Power |
