All specifications are approximations and are subject to verification.

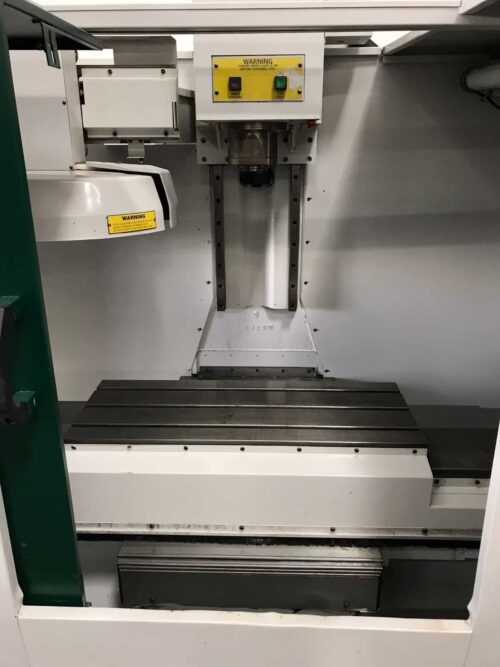

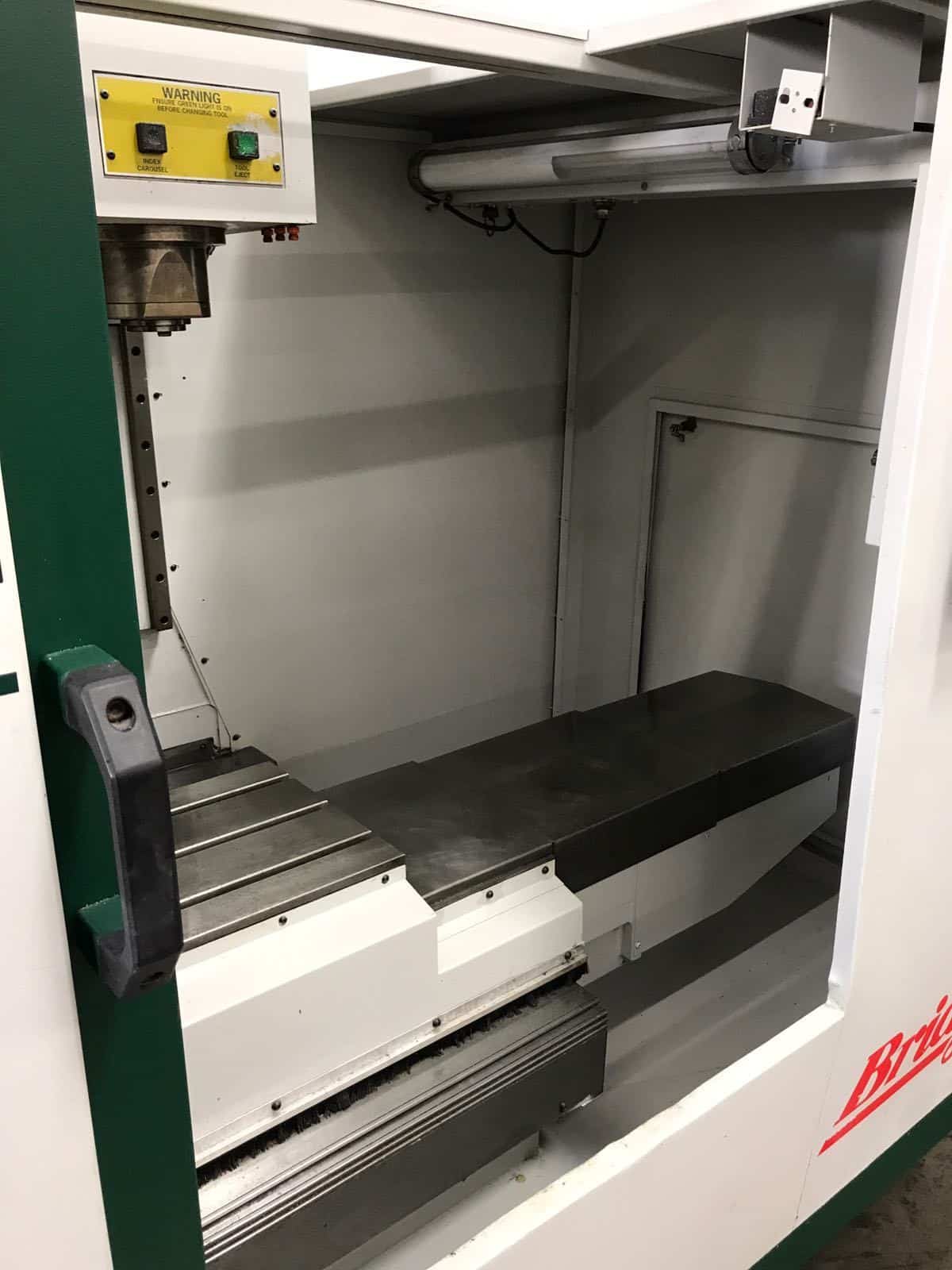

“This Machine has LOW Cutting Hours, Fanuc 21iM Control, 8000rpm, 22 tool changer, expanded Memory and many more features. On our Floor now fully powered / tested & is in Great working condition.”
-

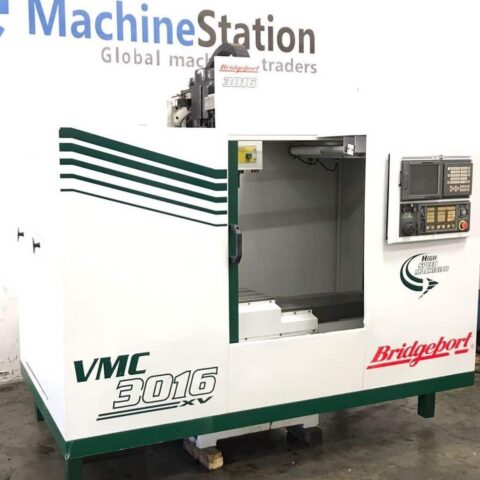

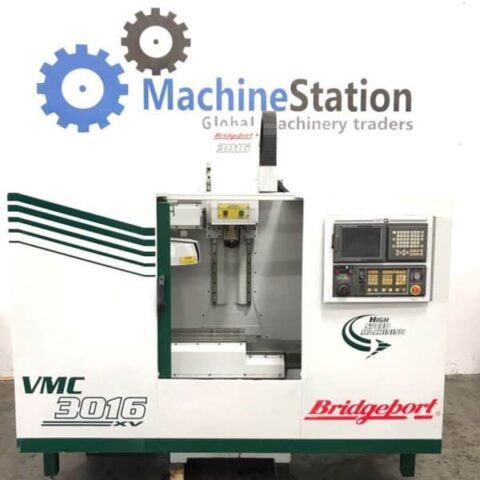

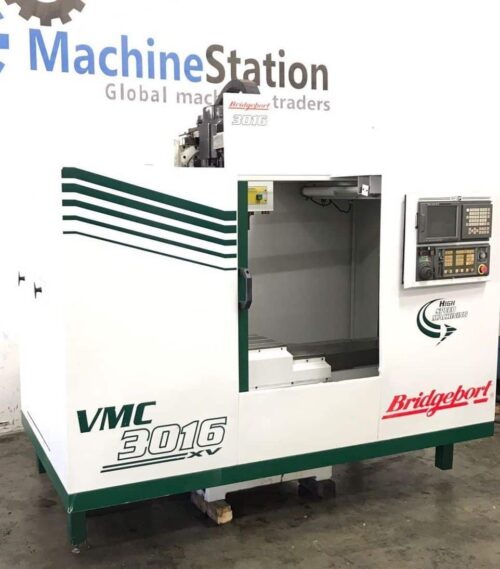

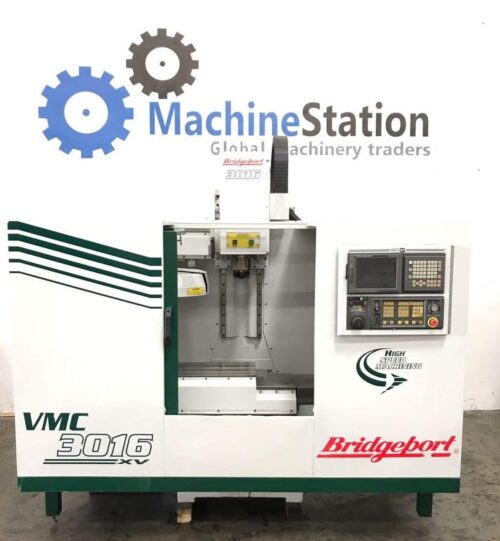

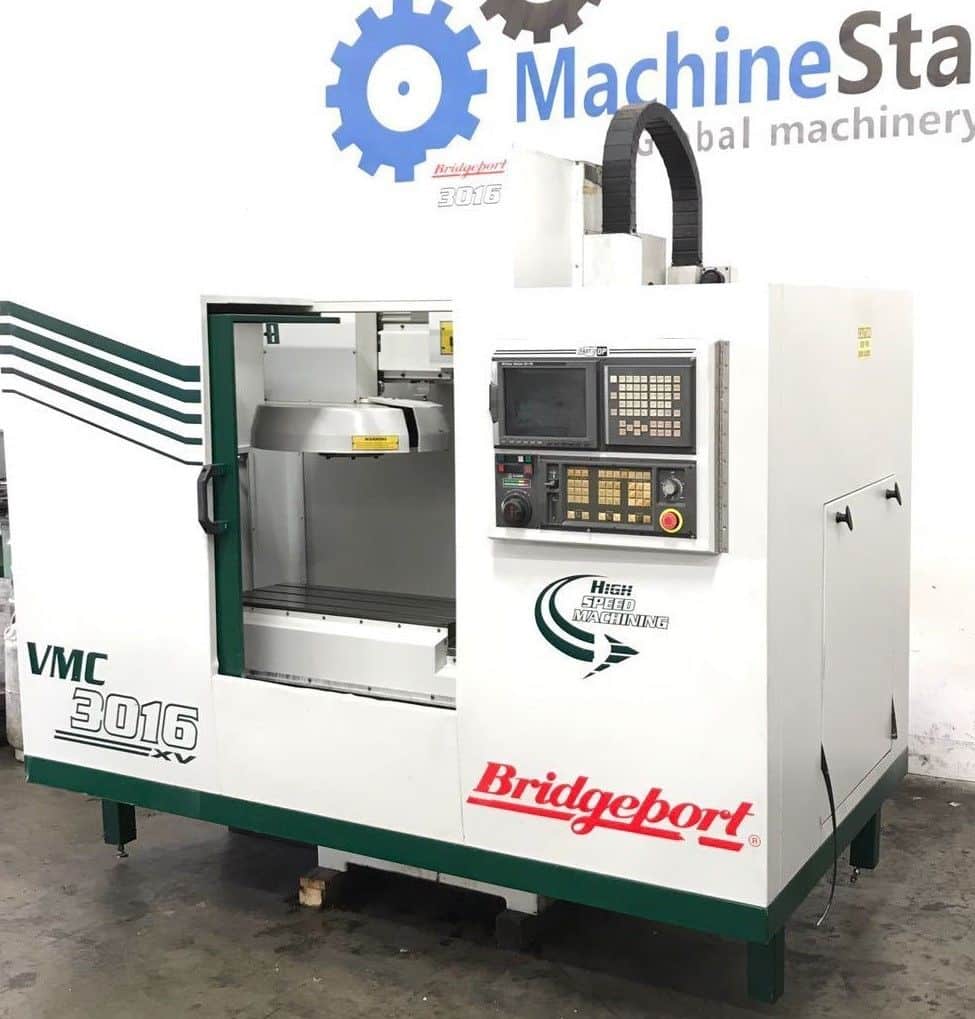

BRIDGEPORT VMC 3016 XV Features:

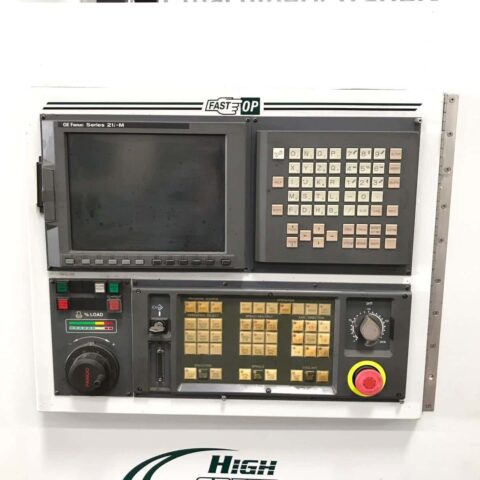

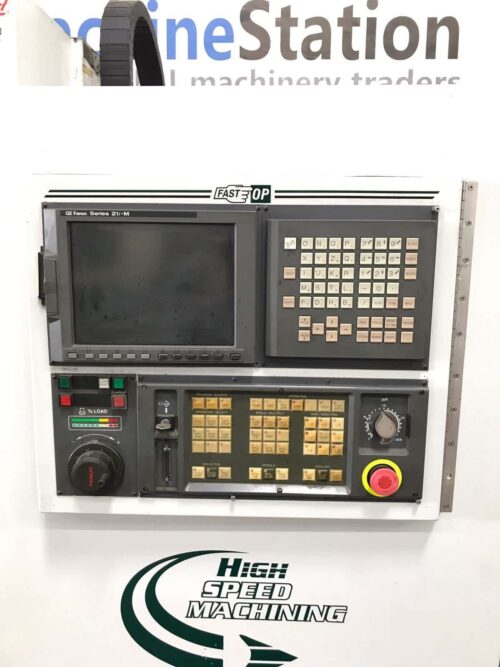

- Fanuc 21iM CNC Control
- PCMCIA Card Slot
- 22 Tools Tool Changer
- High precision 8,000 RPM Spindle
- Powerful high torque spindle motor
- 2 Speed Gearbox Spindle
- Manual Pulse Generator
- RS-232 Port
- Rigid Tapping
- Custom Micro B (User Definable)
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Books and Manuals
-
BRIDGEPORT VMC 3016 XV Specifications:
- Travels:
- X-Axis: 30.00″
- Y-Axis: 16.00″
- Z-Axis: 20.00″
- Rapid Feed Rate: 826 Inch Per Minute
-

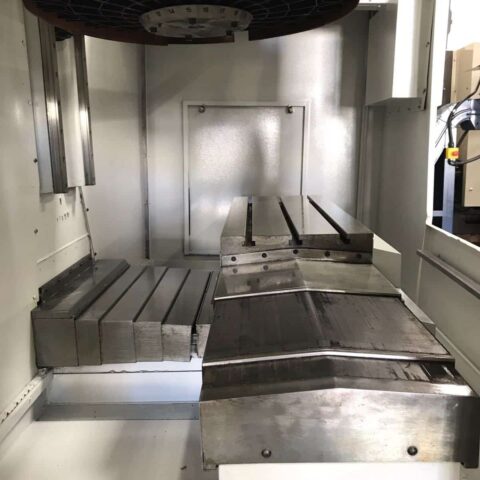

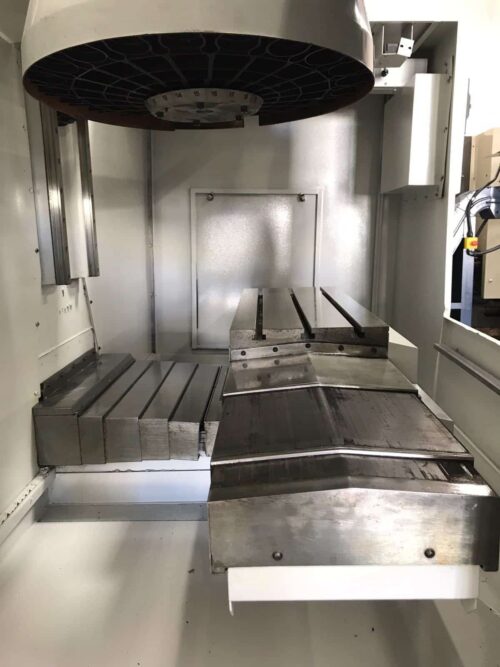

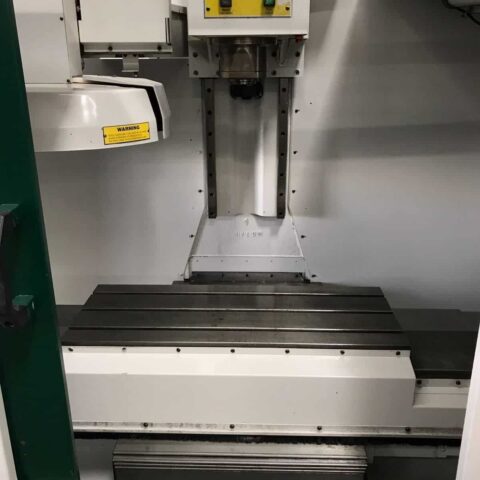

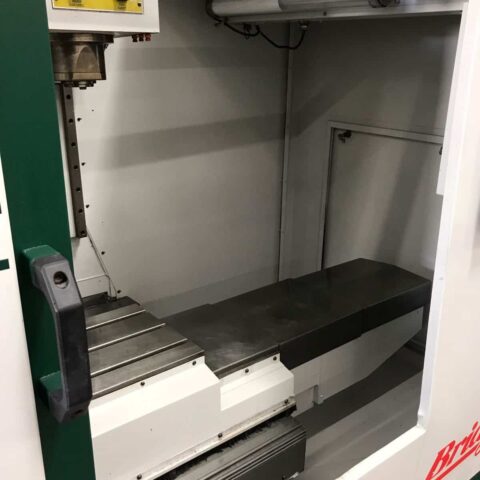

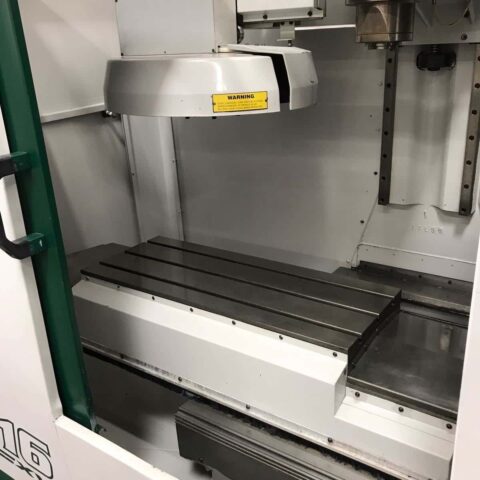

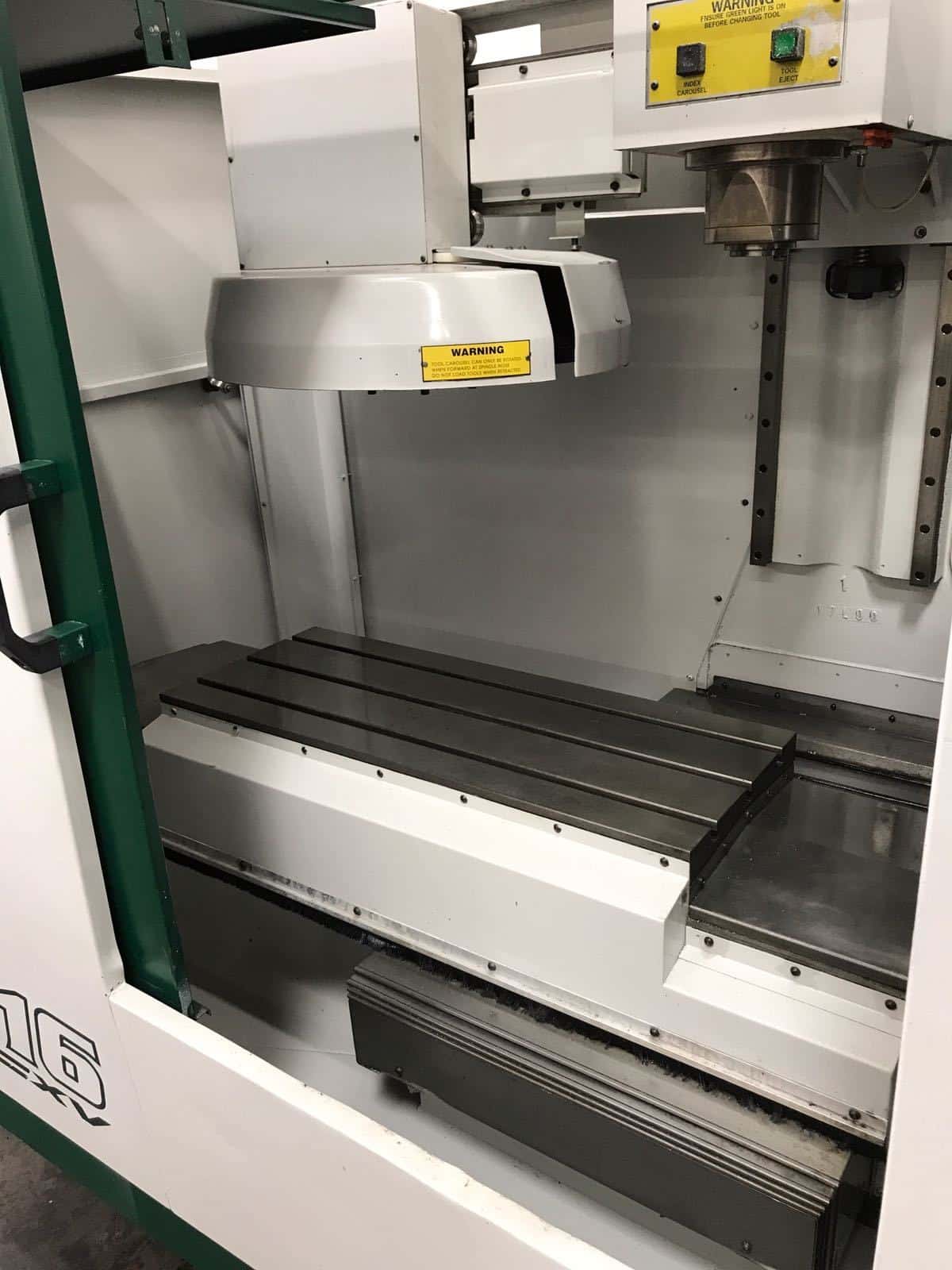

Table:
- Length: 36″
- Width: 14″
- Max Weight on Table: 2000 lbs
-

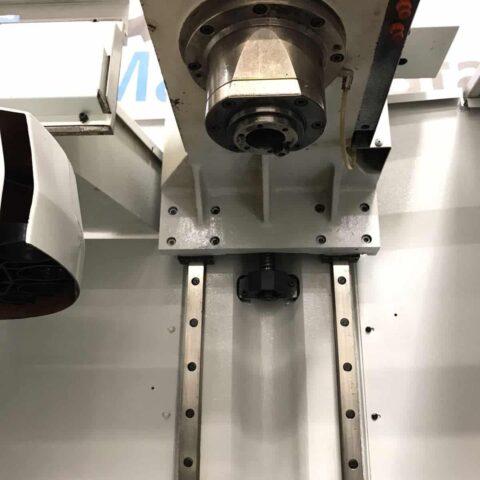

Spindle:
- Taper Size: 40
- Speed Range: 60 – 8,000 RPM
- Spindle Motor: 12 HP
-
Automatic Tool Changer:
- 40 Taper
- Capacity: 22
-
General:
- Air Required: 80 psi, 4 scfm
- Power: 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 110″ x 98″ x 100″ High
- Weight: 7500 lbs
