*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Century |
| Model No.: |
— |
| Year of Manufacture: |
2003 |
| Condition: |
Used – Excellent |
| Machine Type: |

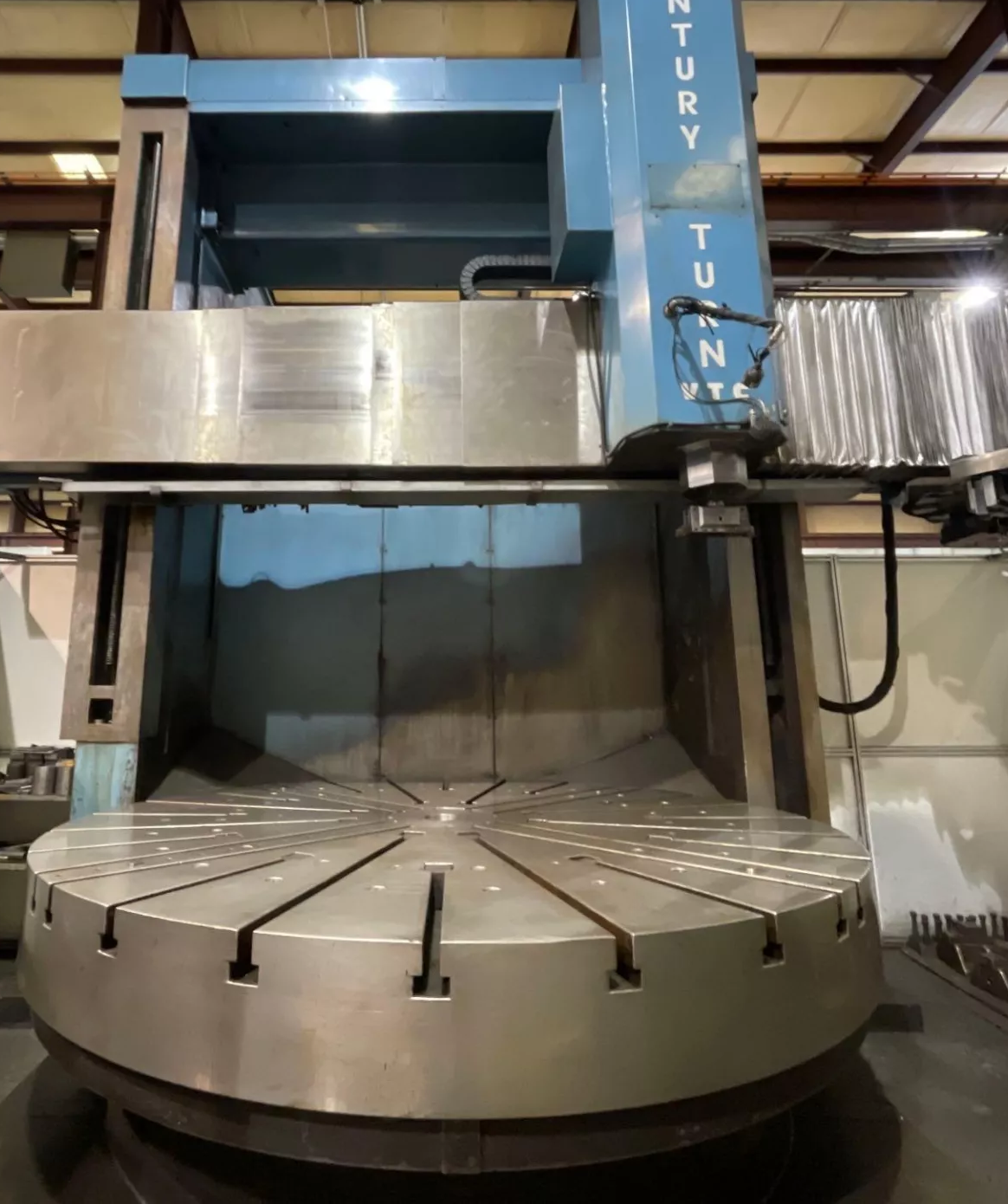

CNC Vertical Turning Lathe / Boring Mill |
| CNC Control: |

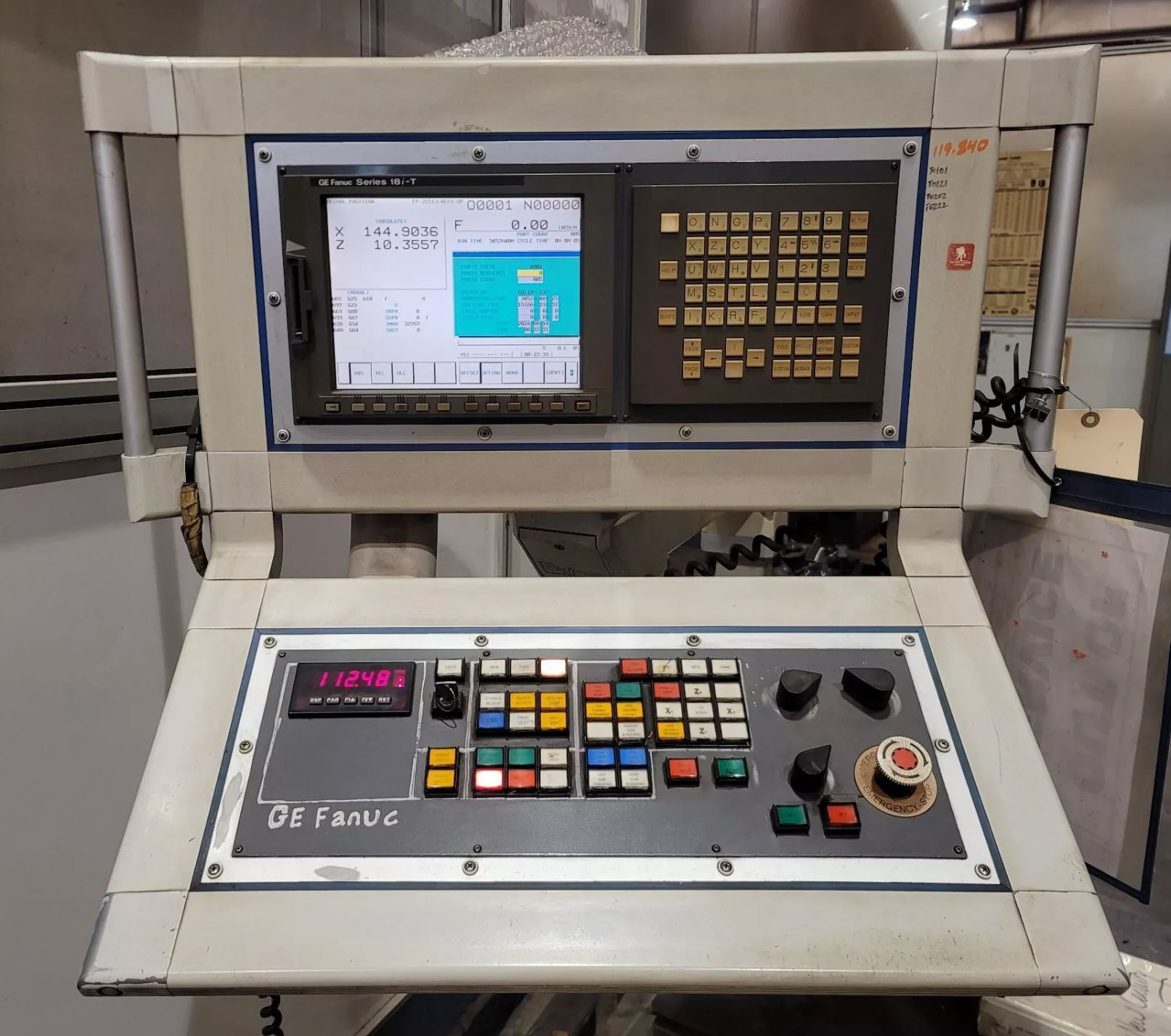

Fanuc Series 18i-TA CNC Control |
| Equipped With: |
| Fanuc 18i-TA CNC Control |
| 120″ Large Diameter Chuck |
| 12-Position Automatic Tool Changer (Sandvik Coromant – 80mm Taper) |
| Coolant Through Tool + Air Blast |
| Heavy-Duty Octagonal Ram |
| Walk-In Coolant & Chip Enclosure |
| (2) Chip Conveyors |
| Tool Holders / Tool Blocks |
| Capacity: |
| Chuck Size: 120″ |
| Maximum Turning Diameter: 126″ |
| Maximum Turning Height: 120″ |
| Maximum Table Load: 30 Ton |
| Travels: |
| X-Axis Travel: 90″ |
| Z-Axis Travel: 60″ |
| Spindle / Table: |
| Spindle Motor: 100 HP |
| Spindle Speed: 0 – 140 RPM |
| Gearbox: 2-Speed (ZF Germany – 4:1 Range) |
| Table Bearing: Heavy-Duty Timken Taper Roller Bearing |
| Construction & Rebuild Details: |
| Heavy-duty cast iron base, column, and cross rail |
| X-Axis: 55mm linear ways with 6 heavy-duty roller packs |
| Z-Axis Ram: 9″ Octagonal, 4142 heat-treated steel |
| Ball Screws: 63mm precision ground (X & Z) |
| Upgraded modern drive and mechanical systems |
| Electrical: |
| Voltage: 460V (Typical) |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| General: |
| Machine Type: Large Floor-Type VTL |
| Heavy Industrial Construction (Estimated 80,000+ lbs) |
| Features: |
| Fully rebuilt & modernized – major value advantage vs new |
| Massive 120″ chuck for large-diameter components |
| 100 HP high-torque spindle for extreme heavy cutting |
| 30-ton table capacity for large castings and rings |
| Sandvik tooling system with through-tool coolant |
| Precision linear ways + heavy ram design for accuracy & rigidity |
| Ideal for oil & gas, wind energy, mining, shipbuilding, and power generation |
