*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: |
CMS |
| Model: |
Ares-3618-TR-PX5 |
| Condition: |
Used – Good |
| Machine Type: |
5-Axis High-Speed CNC Machining Center |
| Country of Origin: |
Italy |
| Equipped With: |
- Full 5-Axis CNC Machining Capability
- HITECO High-Speed Spindle (PX Series)
- HSK-63F Tool Interface
- Liquid-Cooled Spindle
- Heavy-Duty Moving Gantry Design
- Large Aluminum T-Slot Vacuum Table
- Fully Enclosed Safety Guarding
- Industrial Dust / Chip Extraction Capability
- High-Speed Linear Axes
- Precision Ballscrews & Linear Guides
- CE-Compliant Electrical & Safety System
|
| Travels (Approx.): |
- X-Axis Travel: 141.7″ (3,600 mm)
- Y-Axis Travel: 70.9″ (1,800 mm)
- Z-Axis Travel: Approx. 31.5″ (800 mm)
- 5-Axis Configuration: Linear X / Y / Z with Rotary A & C Axes via Head
|

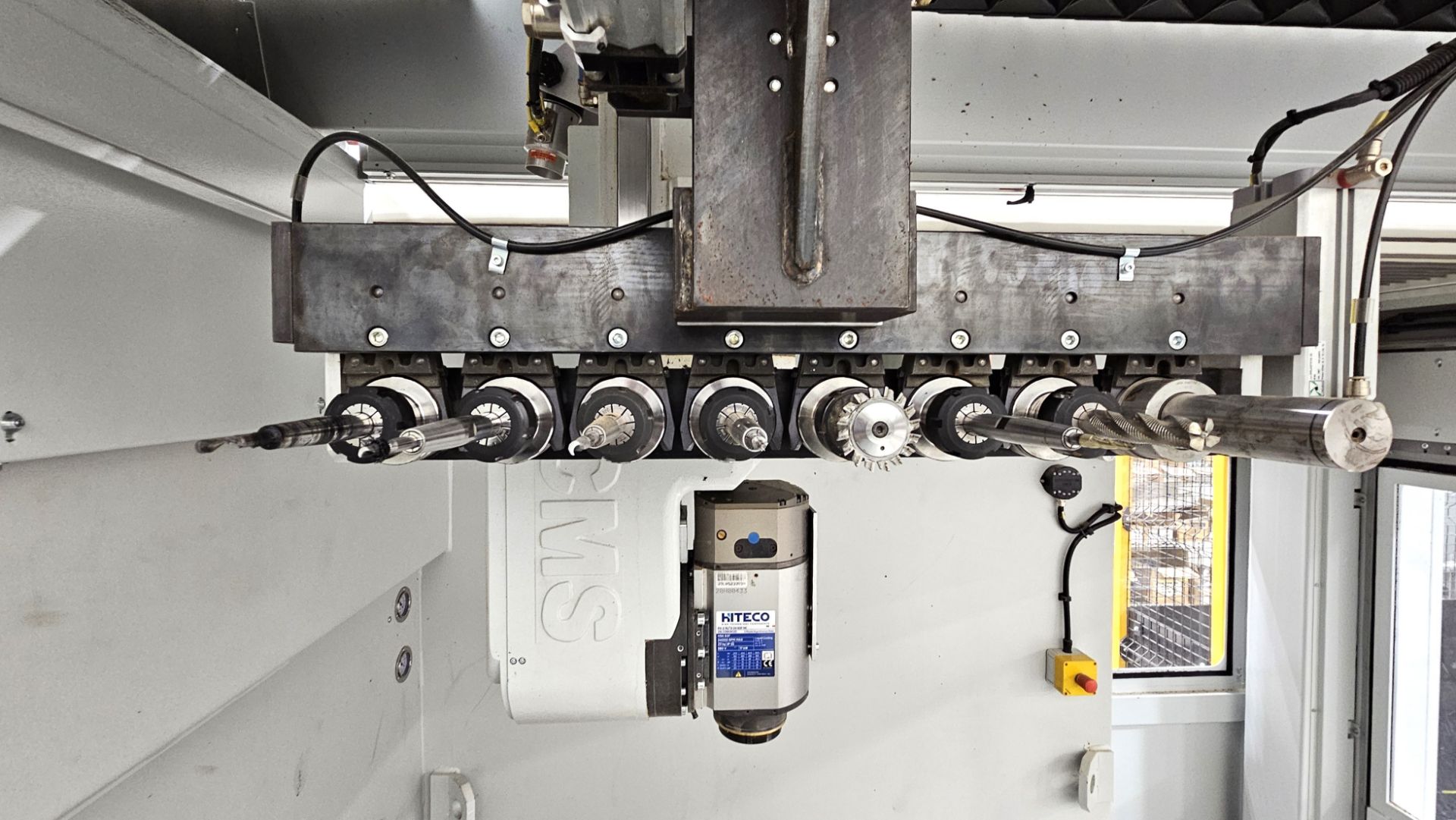

| Spindle (HITECO – From Machine Plate): |
- Spindle Manufacturer: HITECO (Italy)
- Spindle Model: PX-215 / 12 24 63F NC
- Spindle Taper: HSK-63F
- Maximum Spindle Speed: 24,000 RPM
- Spindle Power: 17 kW
- Cooling: Liquid-Cooled
- Motor Type: 3-Phase Asynchronous
- Protection Rating: IP55
|
| Table / Work Area: |
- Large Fixed Aluminum T-Slot Table
- Vacuum Fixturing Ready
- Suitable for Composite & Aluminum Machining
- Ideal for Automotive, Aerospace & Mold Applications
|
| Feedrates: |
- High-Speed Rapid Traverse on All Linear Axes
- Optimized for Continuous 5-Axis Contouring
- Excellent Surface Finish at High Feedrates
|
| Electrical: |
- Power Supply: 380 – 400V / 3-Phase / 50 – 60 Hz
- Spindle Power Consumption: 17 kW

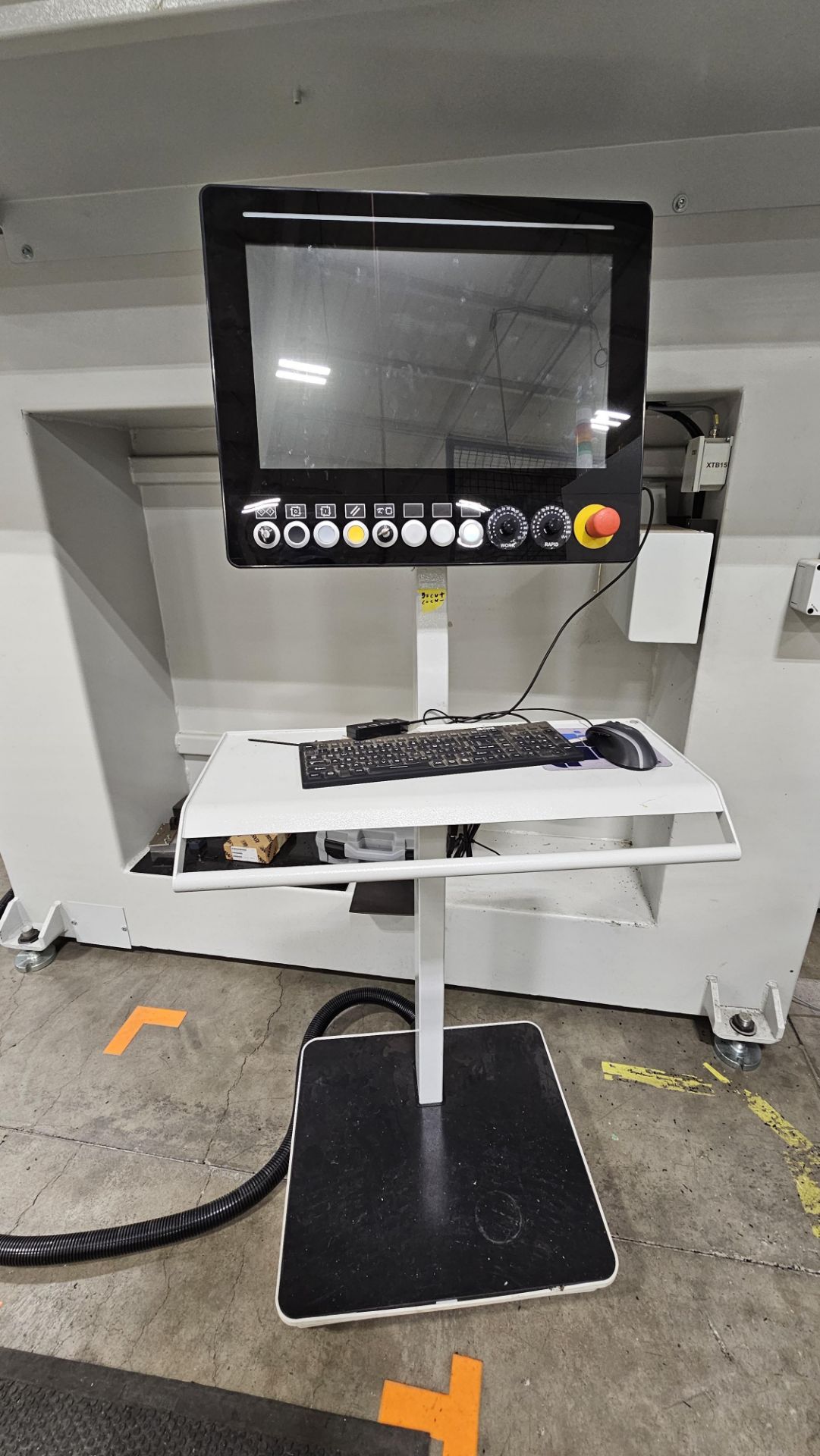

- Industrial CNC Electrical Cabinet
- CE Certified
|
| General: |
- Heavy Gantry-Style Construction for Rigidity
- Designed for High-Speed, High-Accuracy Machining
- Low Vibration Spindle System
- Excellent Surface Finish Capability
- Ideal for Complex Large 5-Axis Parts
|
| Typical Applications: |
- Automotive Interior & Exterior Components
- Aerospace Composite Structures
- Plastic & Aluminum Molds
- Thermoforming Tools
- Large Complex 5-Axis Contour Machining
|
