*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

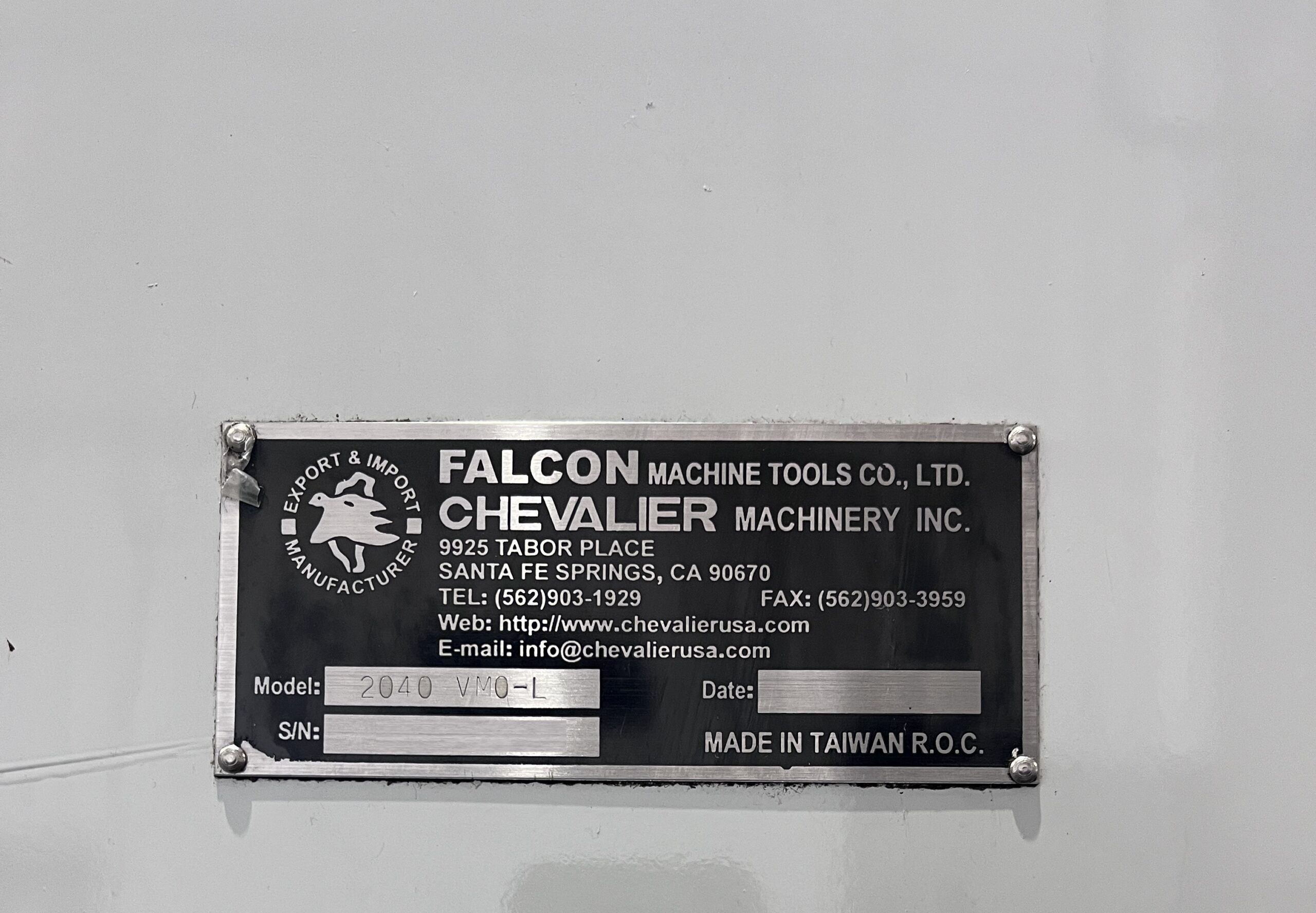

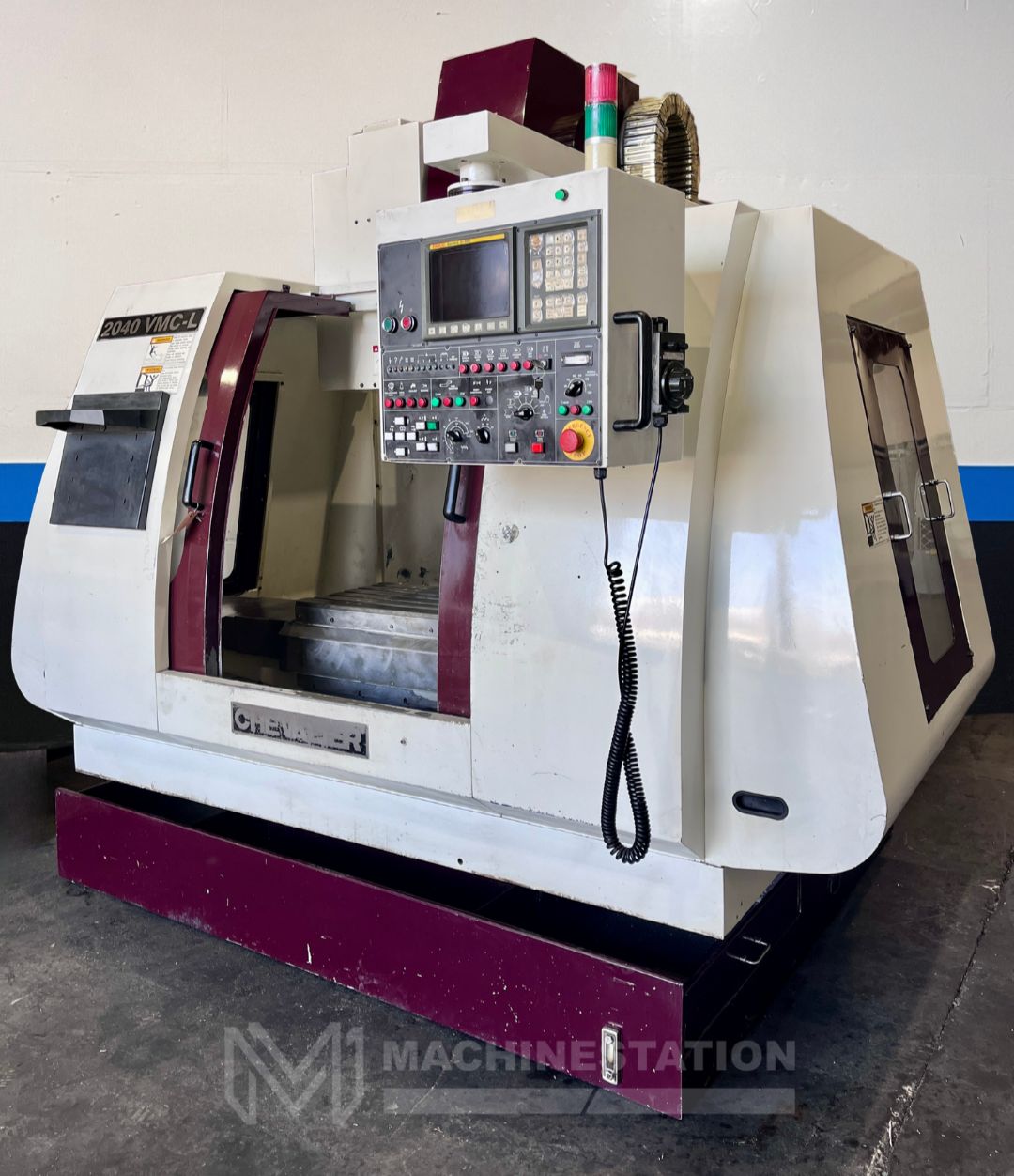

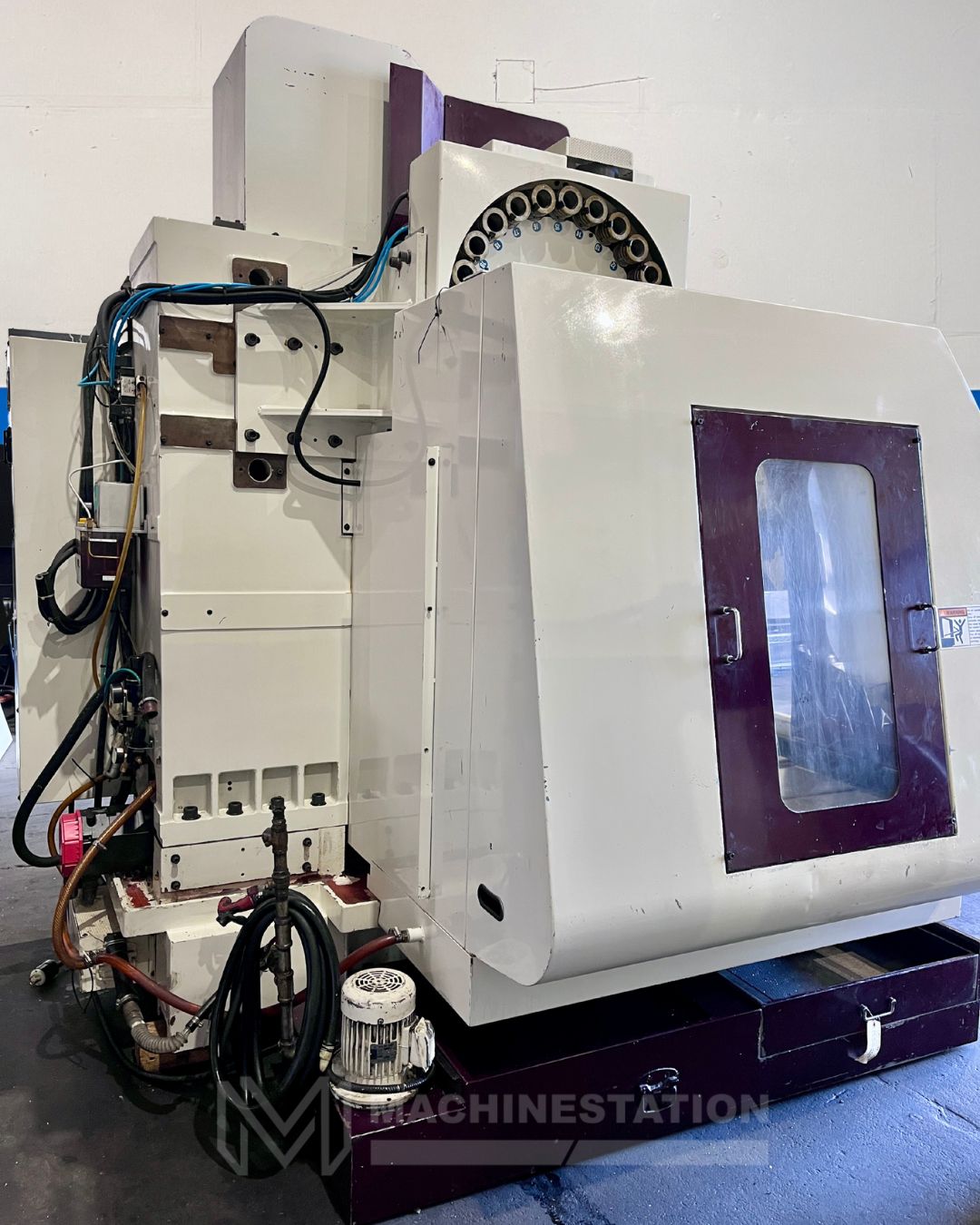

| Make: | Chevalier |
| Model: | 2040 VMC-L |
| Year: | 2000 |
| Condition: | Used – Good |
| Key Features of the Chevalier 2040 VMC-L: |
|---|

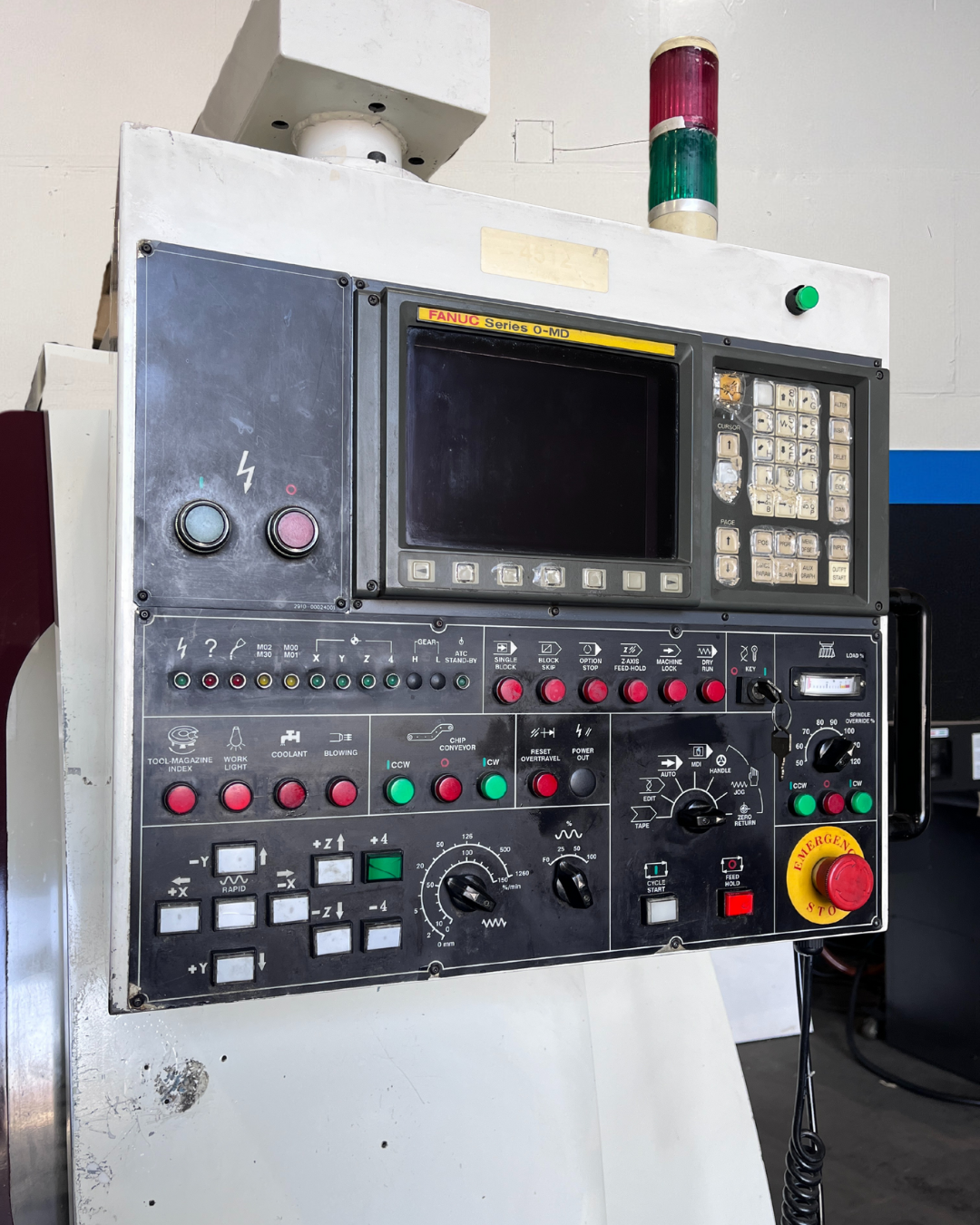

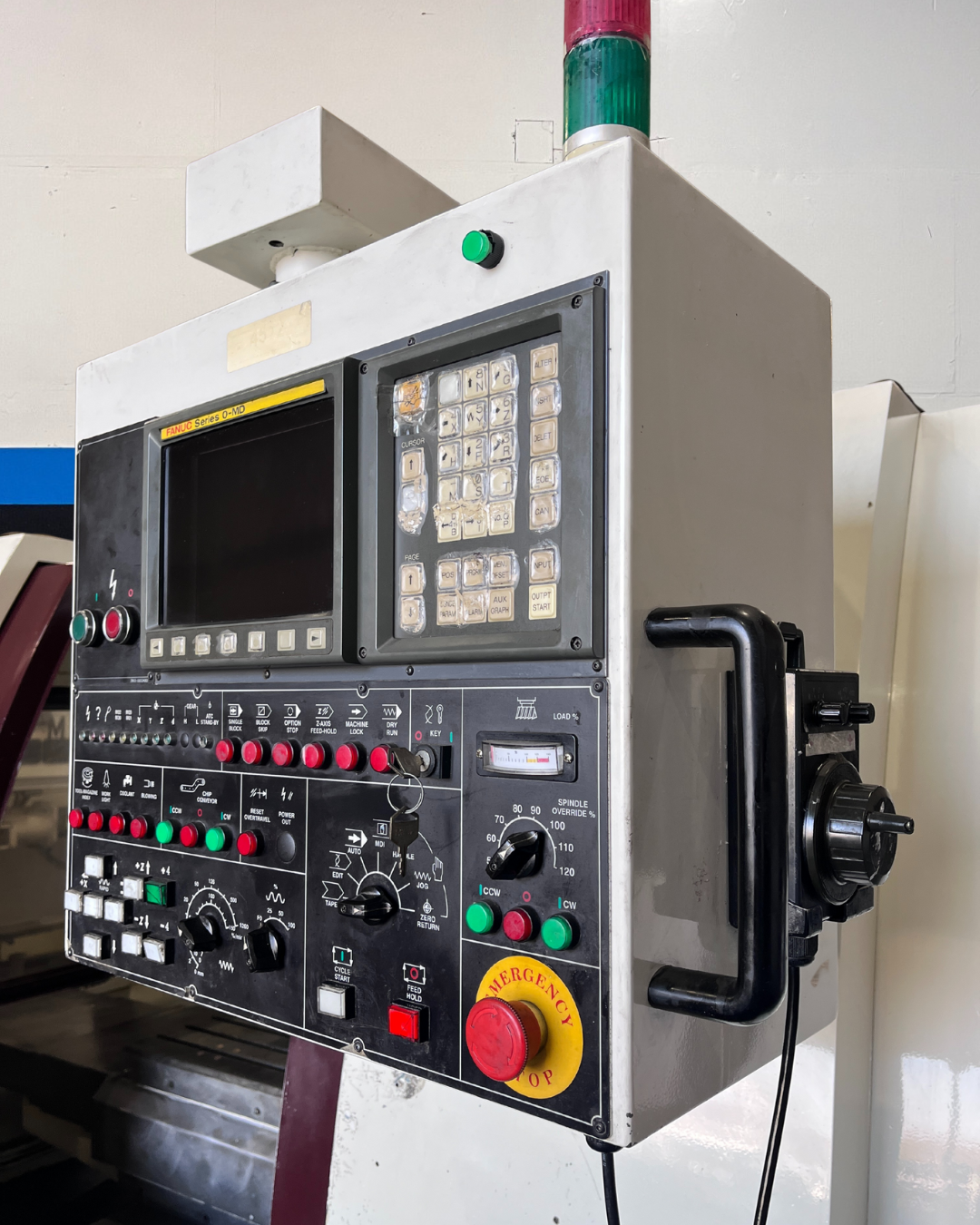

| Fanuc OM-D CNC Control |
| 8,000 RPM High-Speed Spindle |
| 24 Station Automatic Tool Changer |
| 15 HP High Torque Spindle |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Coolant System |
| Automatic Lubrication System |
| Travel: |
|---|
| X-Axis: 40.2″ |
| Y-Axis: 20.1″ |
| Z-Axis: 20.1″ |
| Rapid Traverse Rates: 944 Inch Per Minute |
| Cutting Feedrates: 393 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.1″ – 25.2″ |

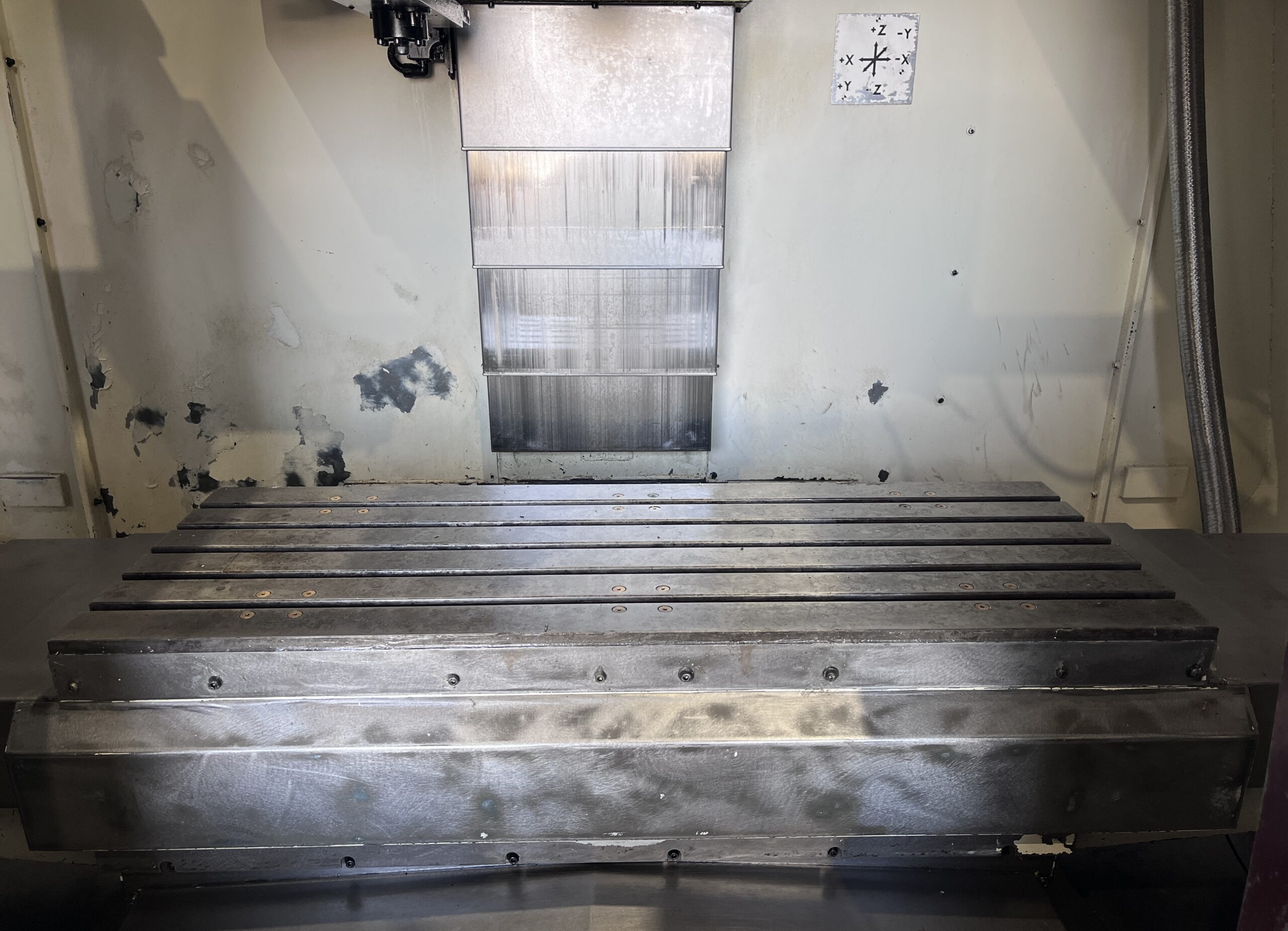

| Table: |
|---|
| Length: 40.2″ |
| Width: 20.1″ |
| Number of Std T-Slots: 5 |
| Max Weight on Table: 1102 lbs |

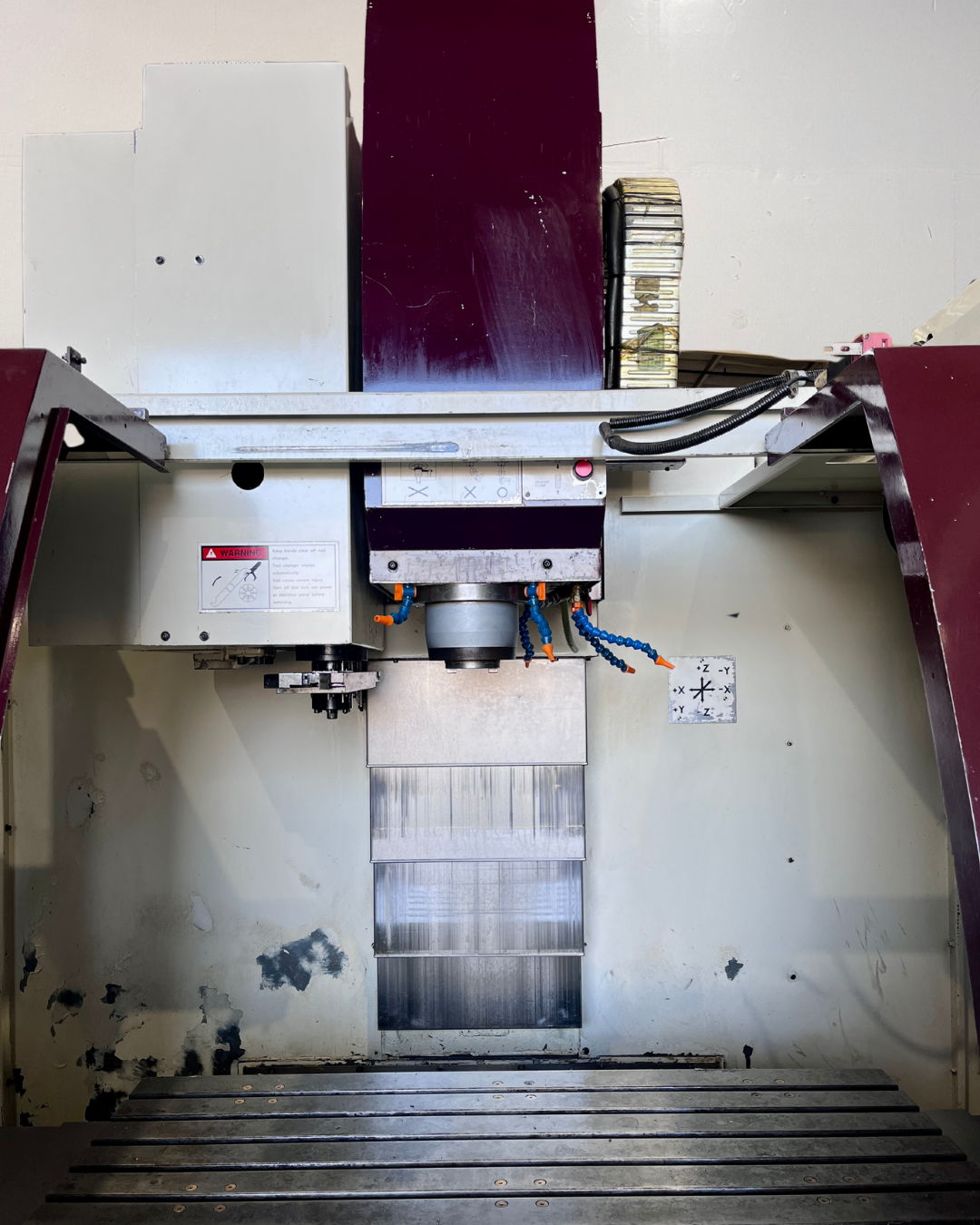

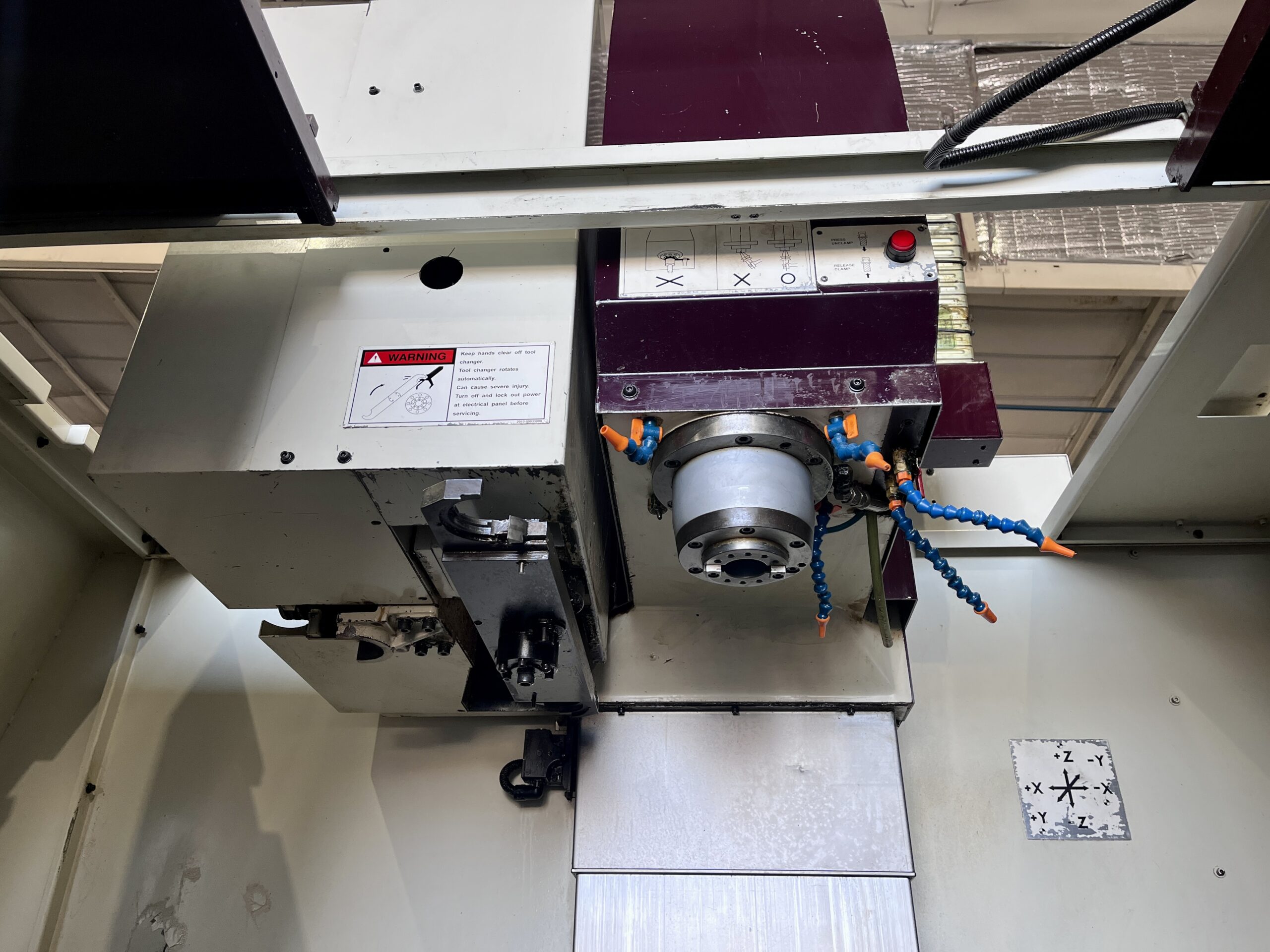

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 8,000 RPM |
| Spindle Power: 15 HP |

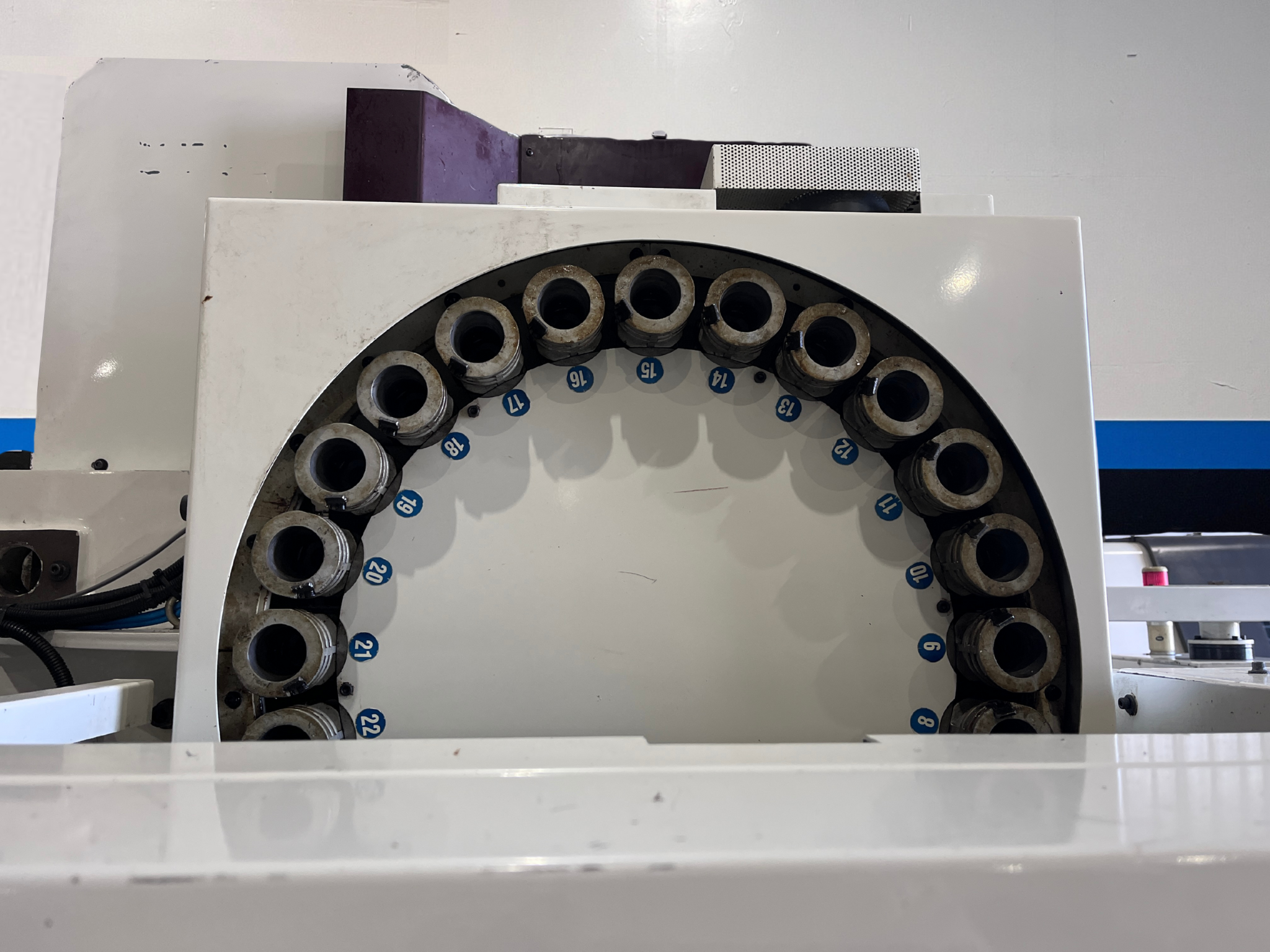

| Automatic Tool Changer: |
|---|
| Capacity: 24 Tools |
| Max Tool Weight: 15.4 lbs |
| Max Tool Dia: 3.1″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 3 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 3-Phase |
| Overall Dimensions: 107″ x 91″ x 95″ High Approx. |
| Weight: 11,023 lbs Approx. |
