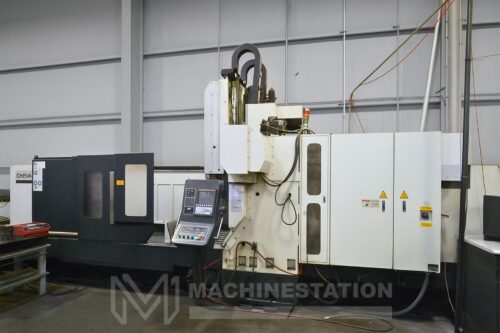

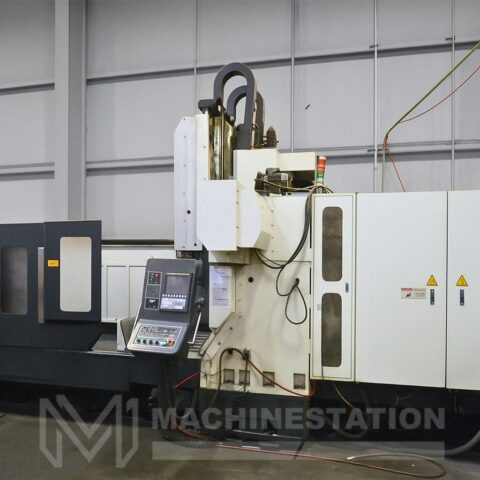

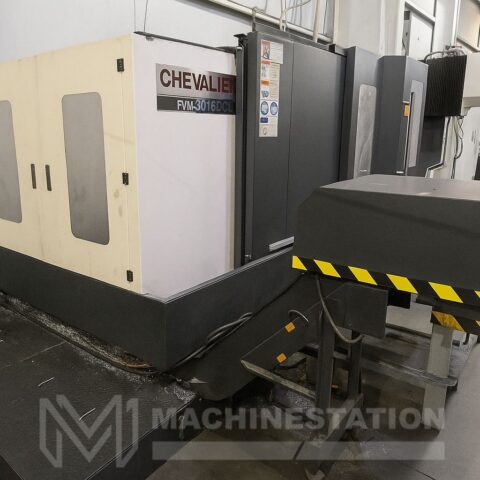

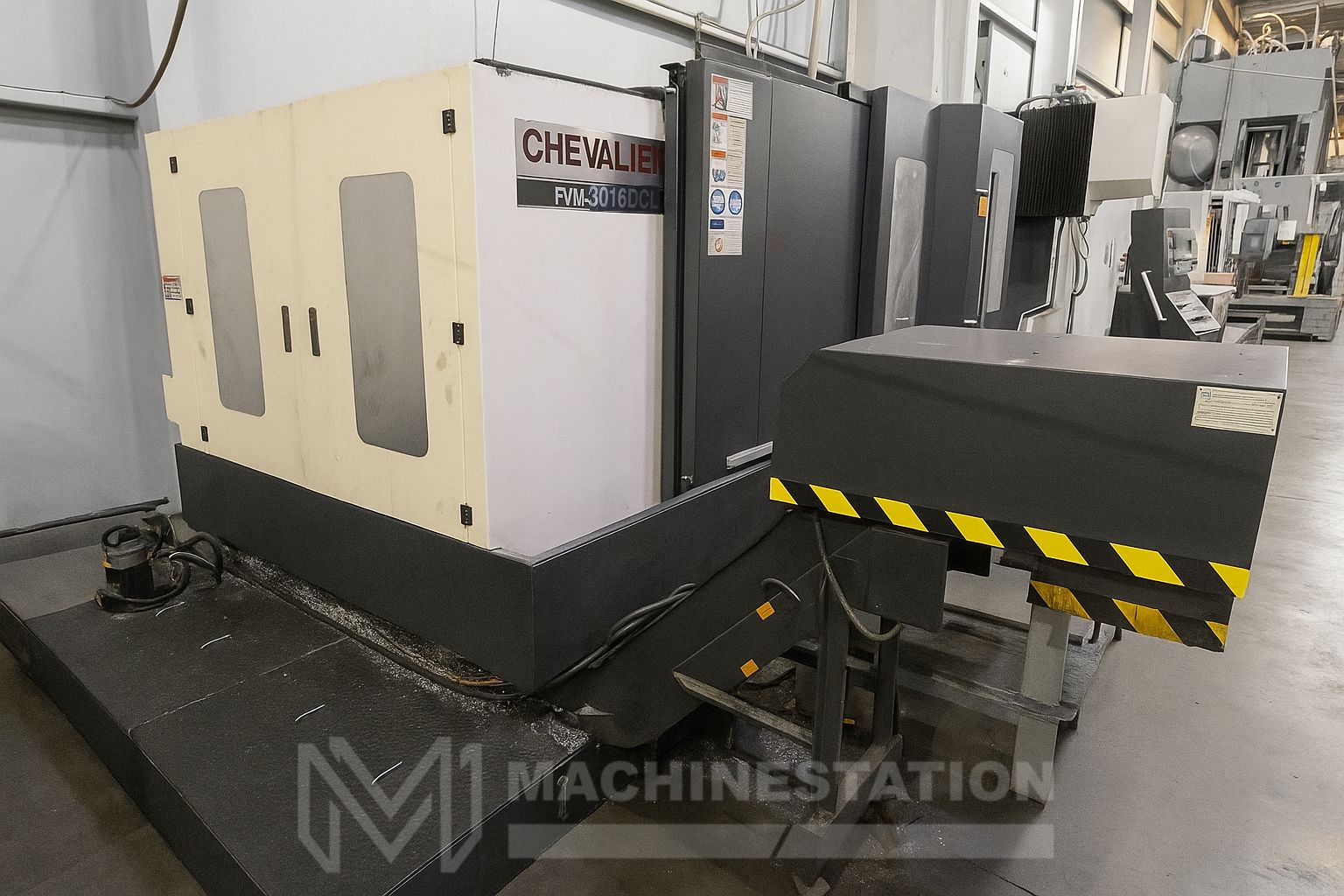

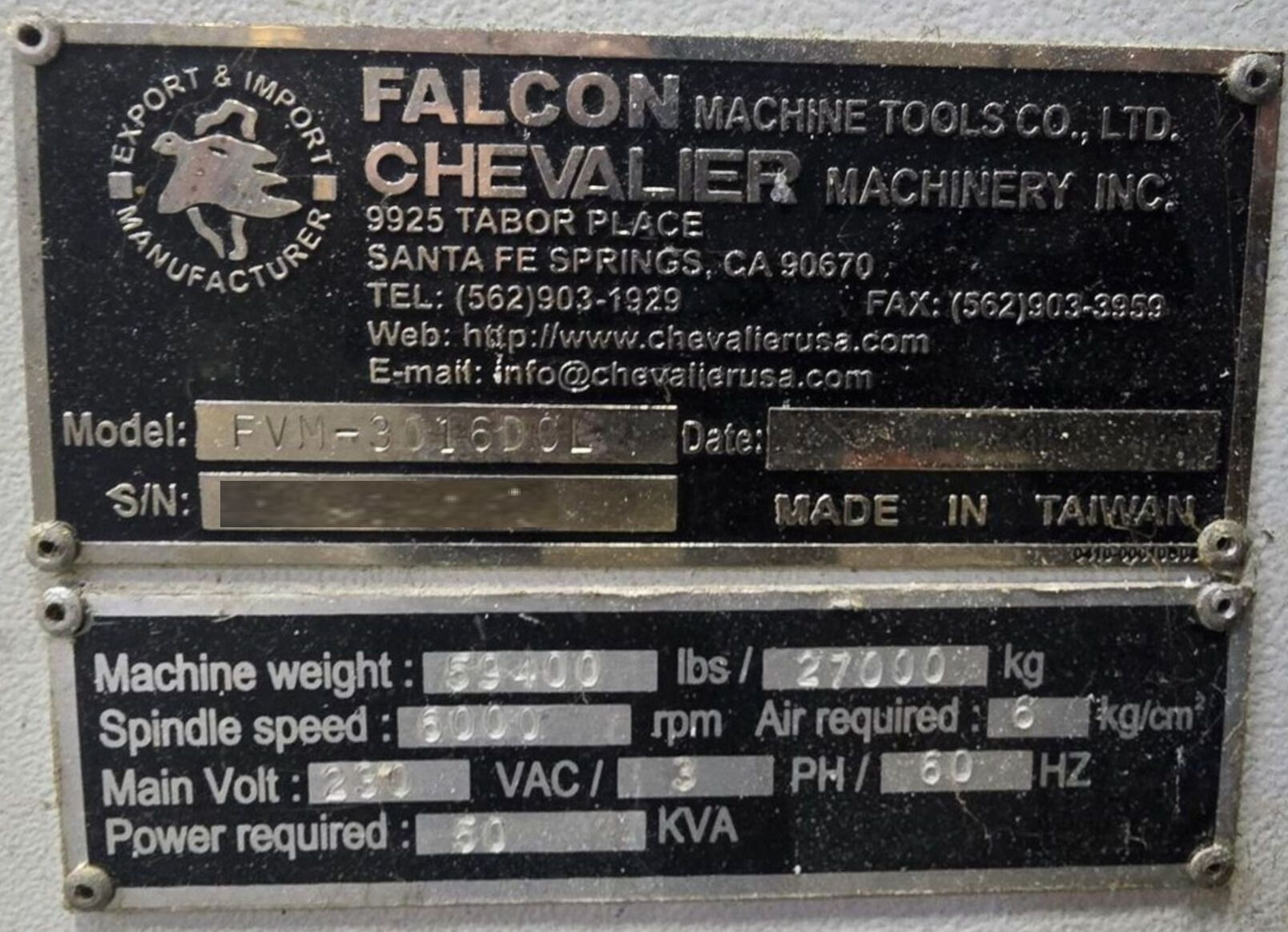

| Make: | Chevalier |
| Model: | FVM3016DCL |
| Year: | 2015 (Installed in 2018) |
| Equipped With: |
|---|

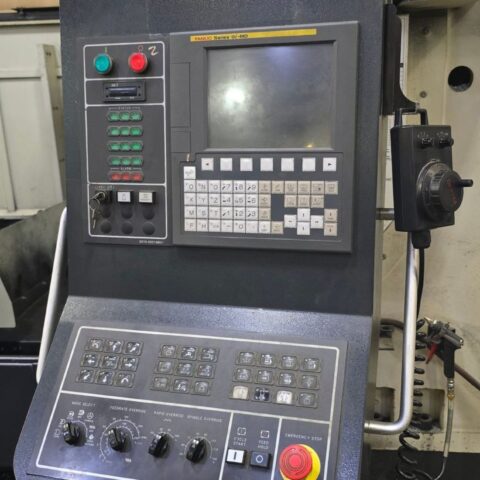

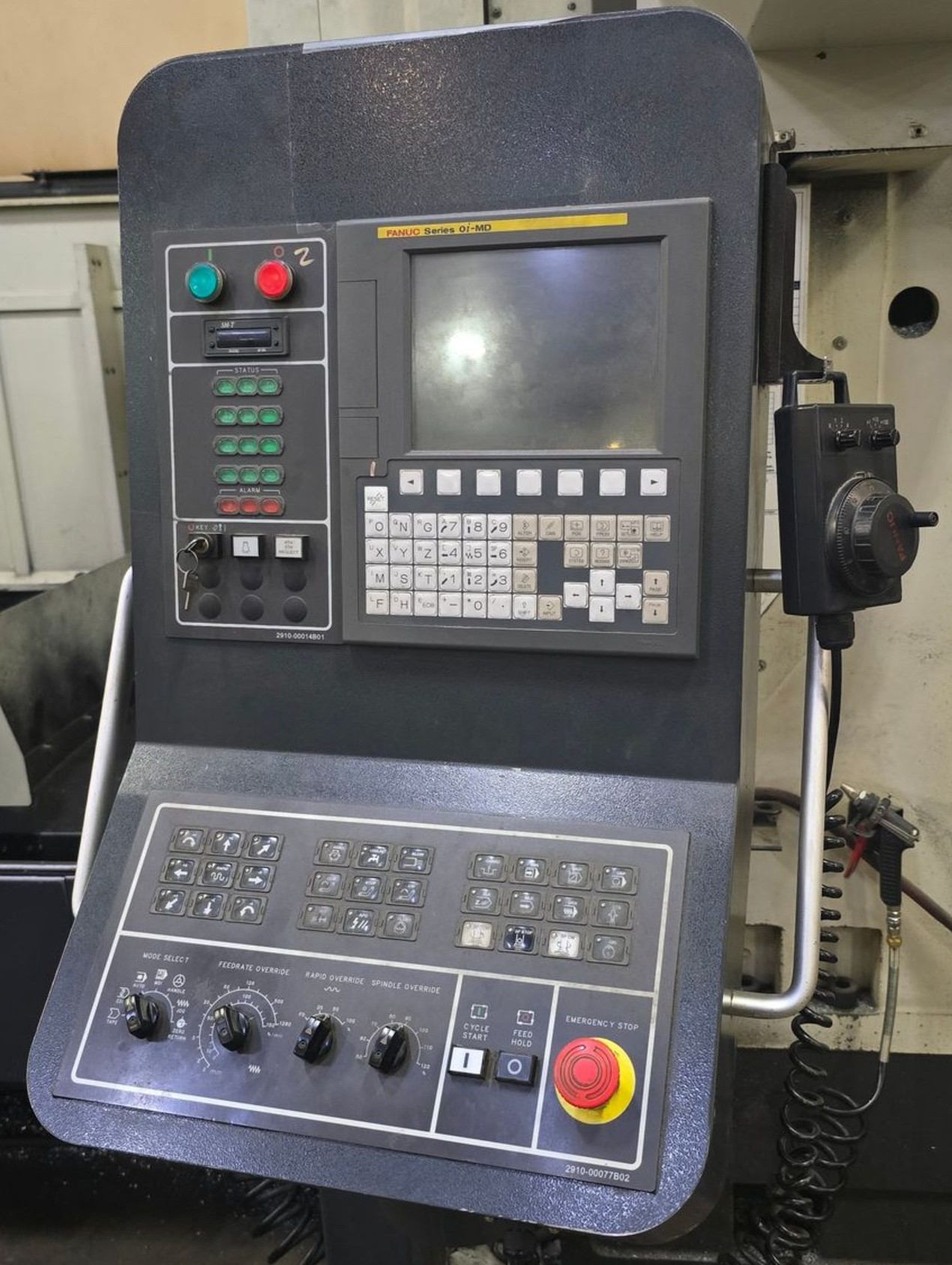

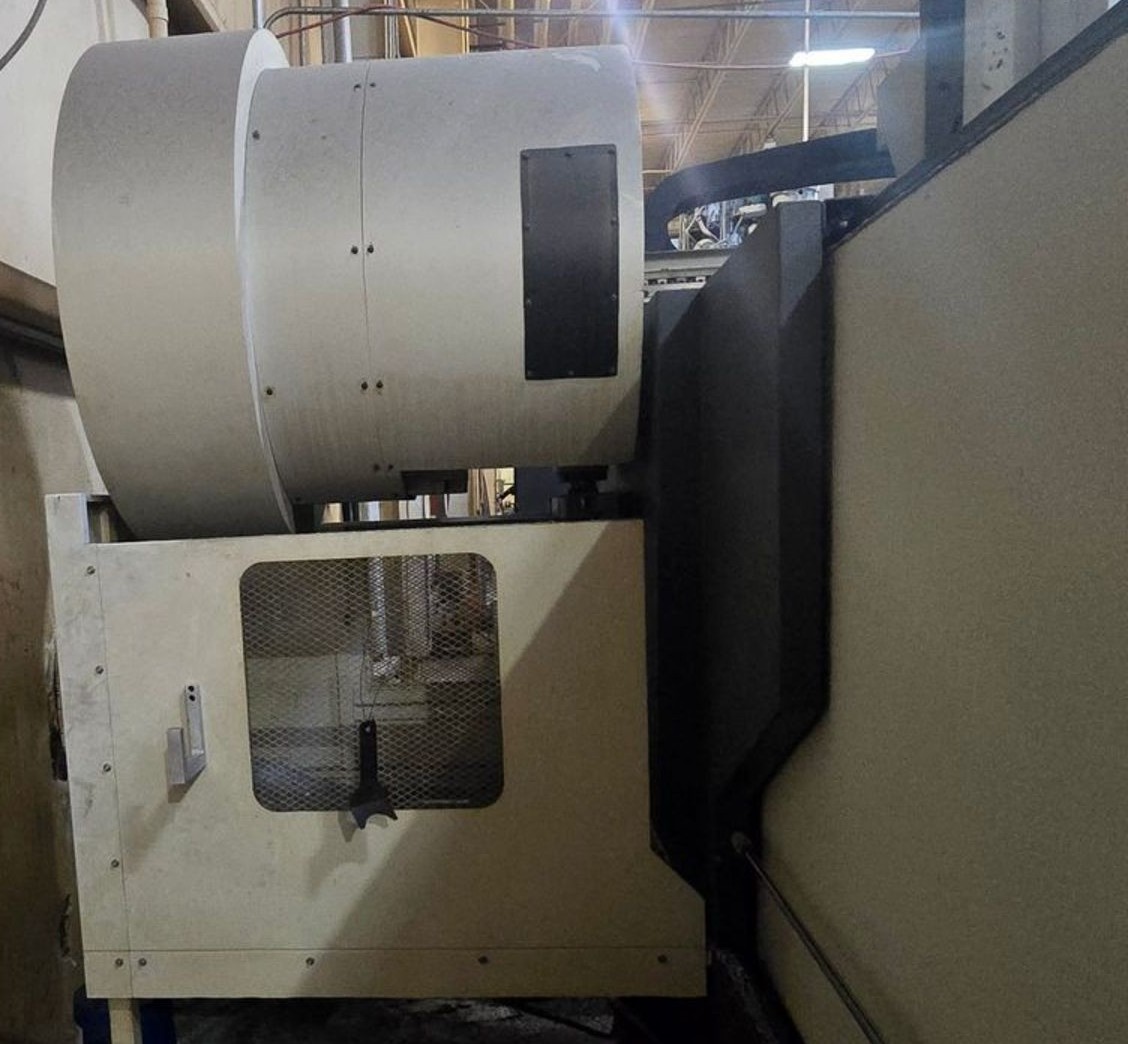

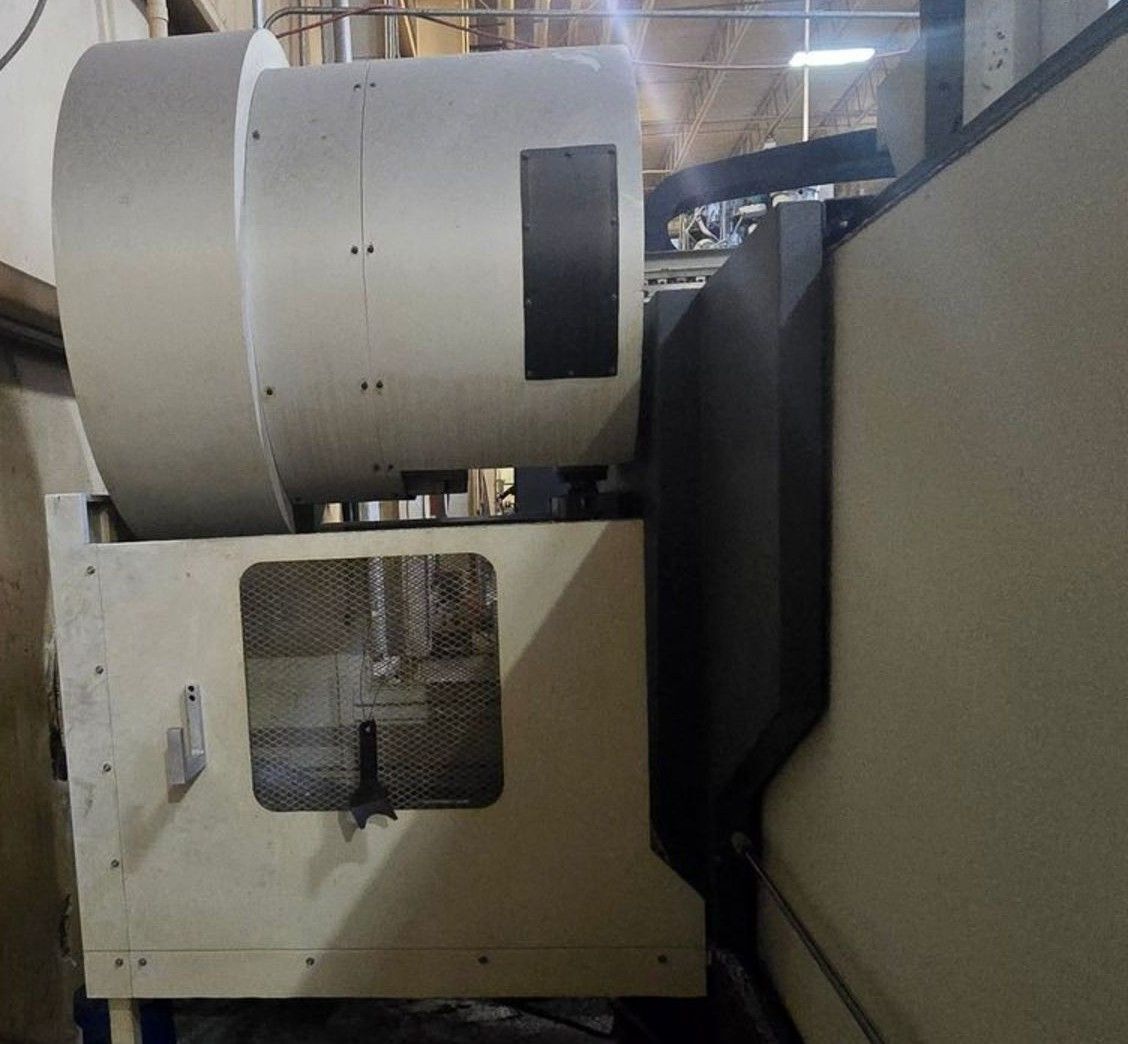

| Fanuc Oi-MD CNC Control |
| 122″ X 57″ Table |
| 20 Station Side Mount Tool Changer |

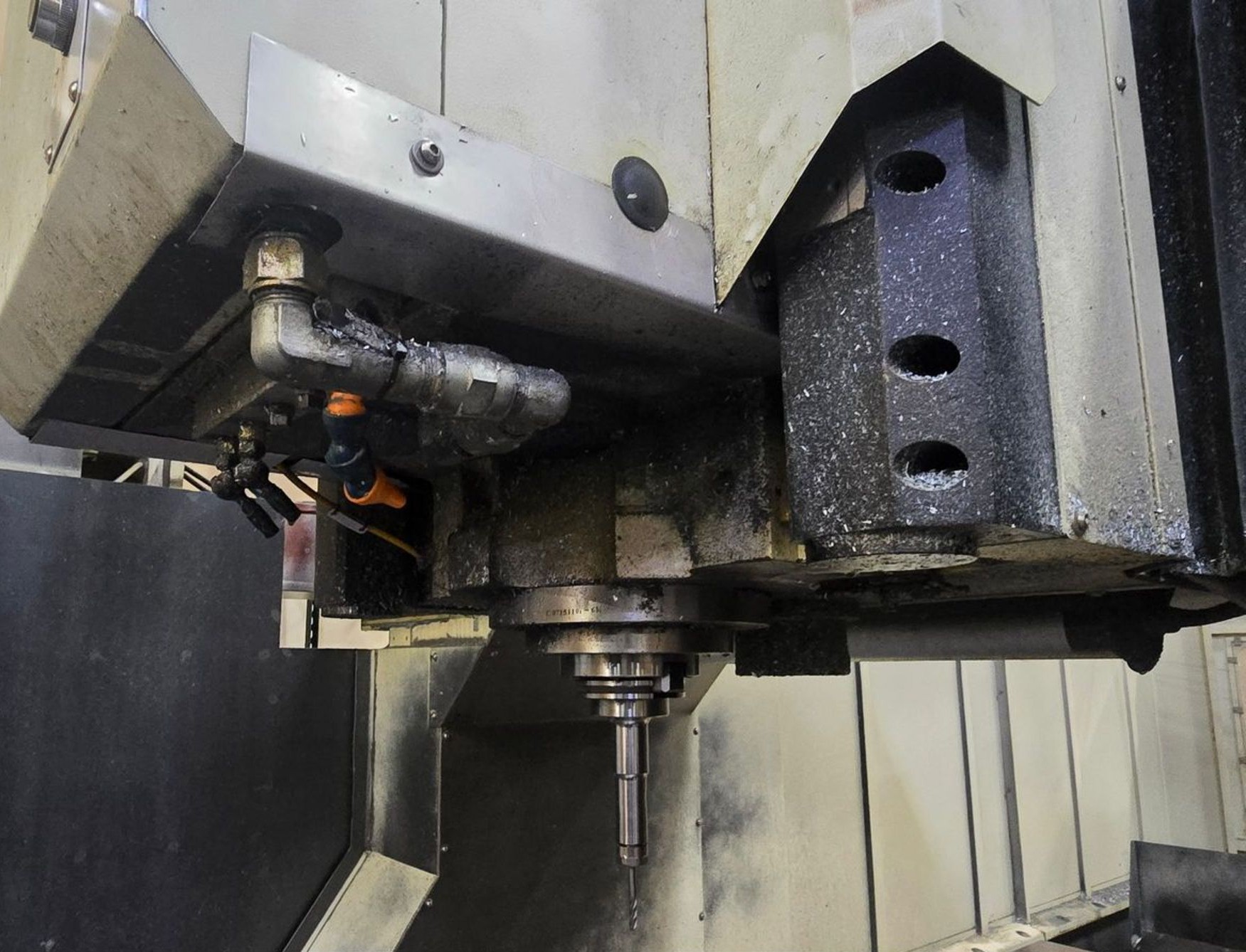

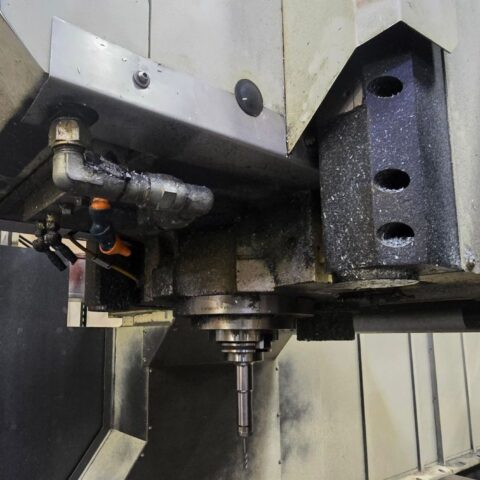

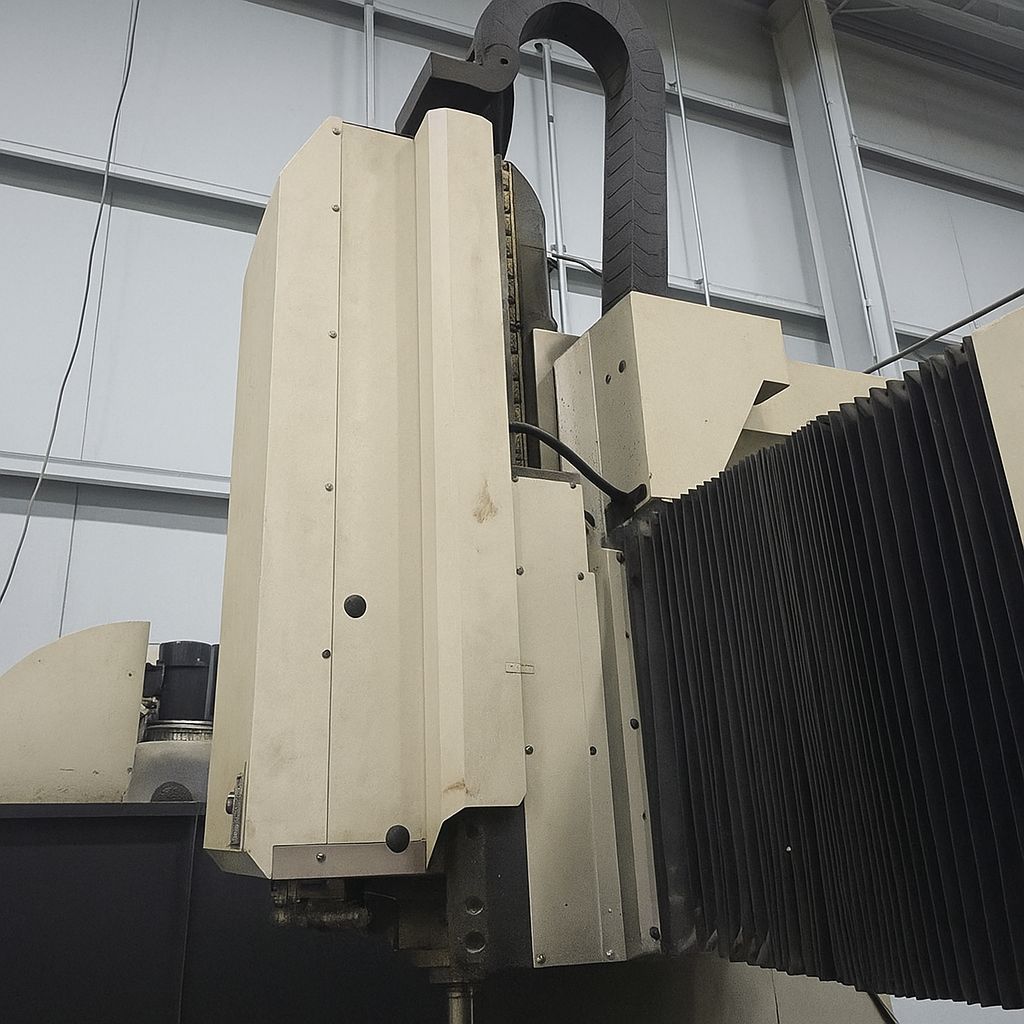

| 50 Taper Gear Head 6000 RPM Spindle |
| Powerful 30 HP high torque spindle motor |
| Through Spindle Coolant – Ready (Pump Needed) |
| PCMCIA Card Slot |
| Rigid Tapping |
| Remote Jog Control |
| Coolant System |
| Base Flush Chip Disposal with Dual Auger |
| Chip Conveyor |

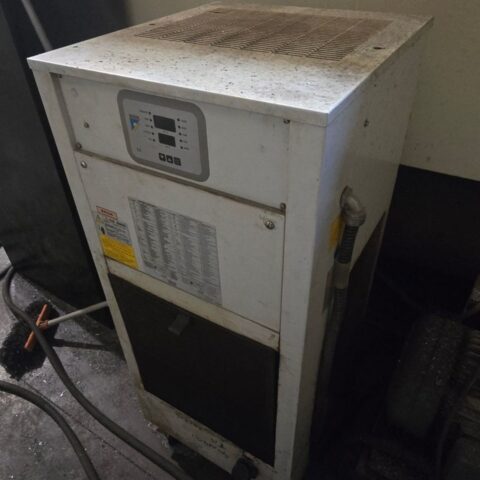

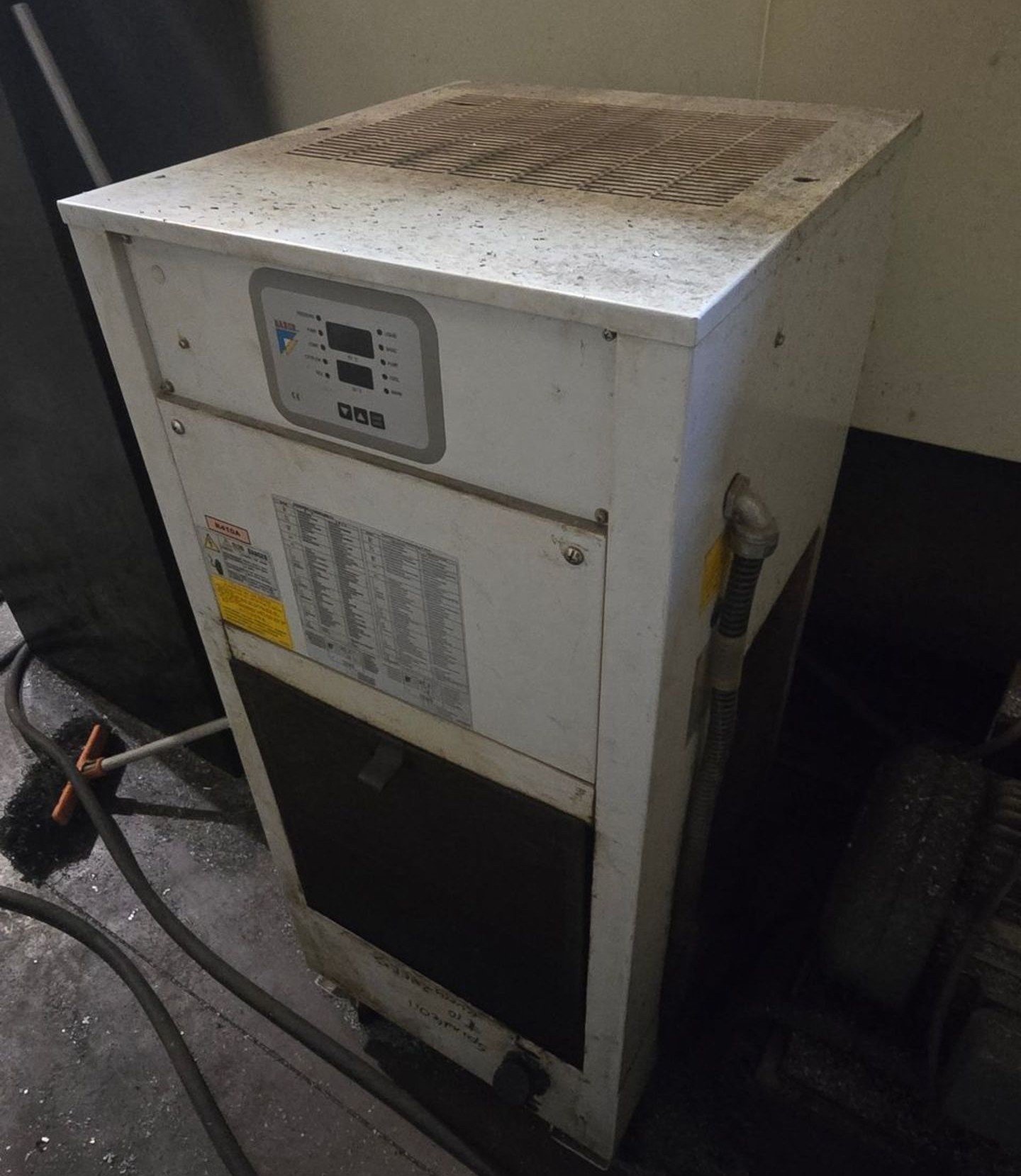

| Chiller Unit |
| Travels: |
|---|
| X-Axis: 122″ |
| Y-Axis: 59″ |
| Z-Axis: 30.7″ |
| Distance Between Columns: 67″ |
| Spindle Nose to Table (Min.- Max.): 7.87″- 34.64″ |
| Rapid Feedrate X, Y & Z Axis: 591 IPM |
| Cutting Feedrate: 276 IPM |
| Table: |
|---|
| Length: 122″ |
| Width: 57″ |
| T-Slot(Size X Number X Pitch): 0.86″ X 7 X 7.08″ |
| Max Weight on Table: 14,330 lbs |
| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 6000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| CAT-50 Taper |
| Capacity: 20 Tools |
| Max Tool Weight: 33 lbs |
| Max Tool Length: 11.81″ |
| Max Tool Dia.: 4.9 – 9.05″ |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 230v / 60 Hz / 3-Phase / 50 Kva |
| Overall Machine Dimensions: 391″ x 178″ x 160″ High |
| Weight: 59,400 lbs. |
