*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Cincinnati |
| Model: | 350PF |
| Condition: | Used – Good |
| Country of Origin: | USA |
| Features: |
|---|
- Hydraulic Press Brake – PF (Proform) Series
- Heavy-Duty Industrial Forming Machine

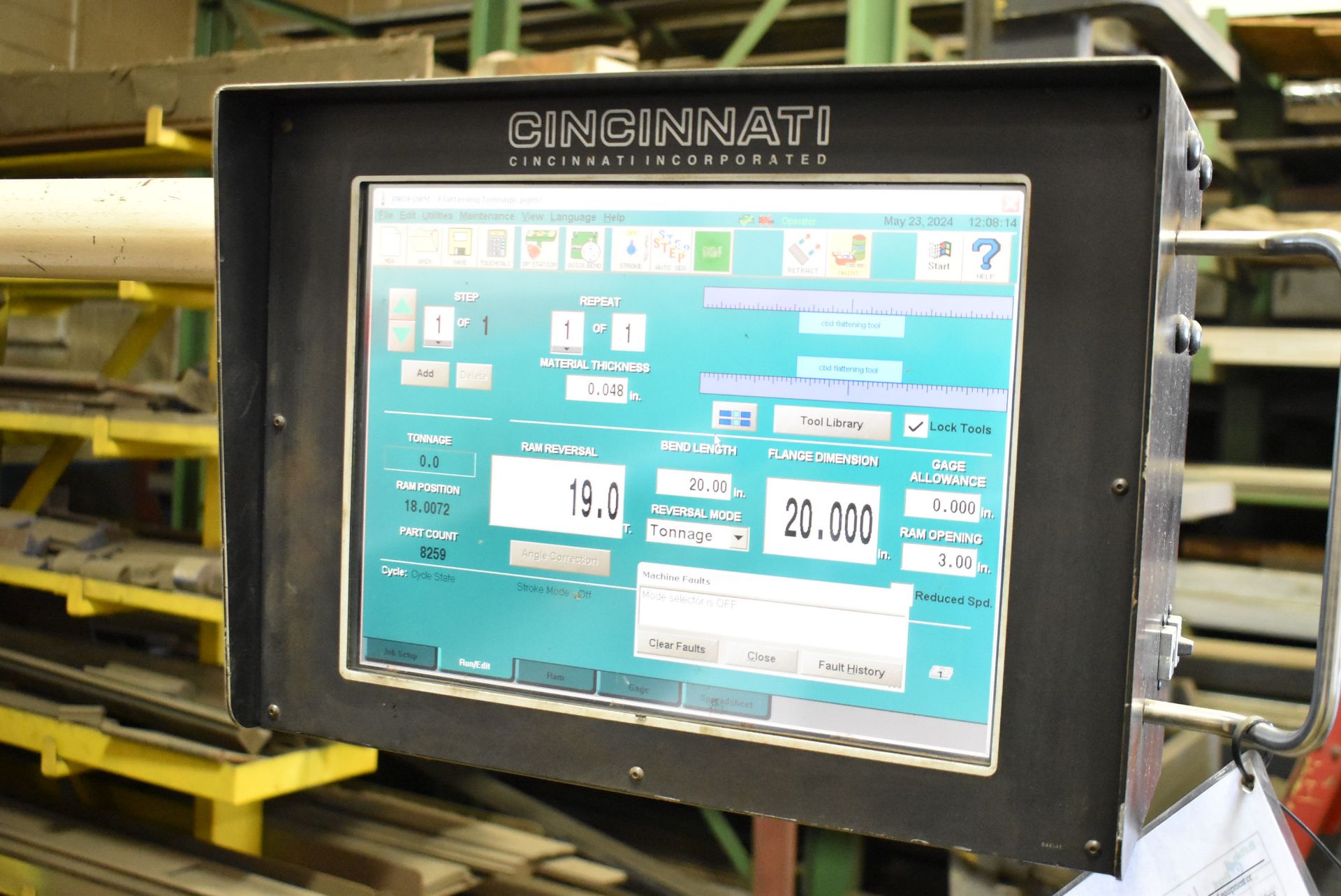

- CNC / NC Ready (Control Varies by Configuration)
- High-Tonnage Hydraulic Bending System
- Precision Ram Guidance System
- Full-Length Bed for Large Sheet Forming
- Adjustable Stroke & Shut Height
- Emergency Stop & Safety Interlocks
- Industrial Electrical Control Panel
- Overcurrent Protection at Panel Supply Terminals
- Designed for High-Accuracy Repetitive Bending
|
| Capacity & Forming Specifications: |
|---|
- Maximum Forming Capacity: 350 Tons
- Overall Bed Length: 14 ft (168″)
- Maximum Bending Length: 14 ft
- Maximum Stroke Length: 10″
- Tonnage Rating: 350 PF (Proform Series)
|
| Ram & Bed: |
|---|
- Ram Type: Hydraulic
- Ram Guidance: Precision Guided
- Stroke Adjustment: Yes
- Bed Type: Heavy-Duty Machined Bed
- Suitable for Large & Thick Plate Forming
|

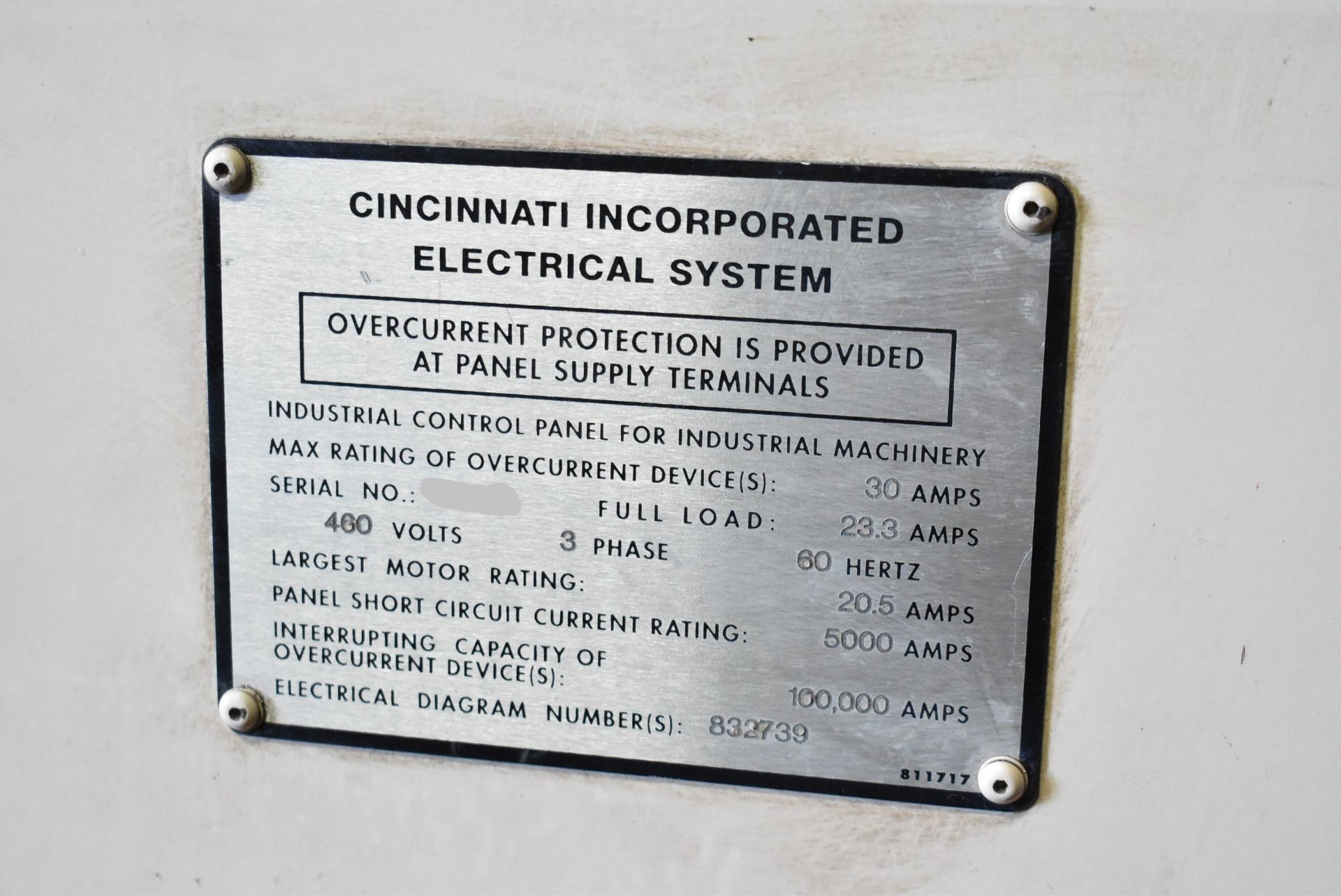

| Electrical Specifications: |
|---|
- Power Supply: 460 Volts
- Phase: 3-Phase
- Frequency: 60 Hz
- Full Load Current: 23.3 Amps
- Largest Motor Rating: 20.5 Amps
- Maximum Overcurrent Device Rating: 30 Amps
|
| Electrical Safety & Protection: |
|---|
- Panel Short Circuit Current Rating: 5,000 Amps
- Interrupting Capacity of Overcurrent Device: 100,000 Amps
- Electrical Diagram Number: 832739
- Industrial Control Panel – NEMA Rated
- Overcurrent Protection Provided at Panel Supply Terminals
|
| Machine Dimensions & Weight: |
|---|
- Overall Length: Approx. 14 ft Bed
- Machine Weight: Not Listed (Typical 350 Ton Press Brake ≈ 60,000 – 70,000 lbs)
|
