*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

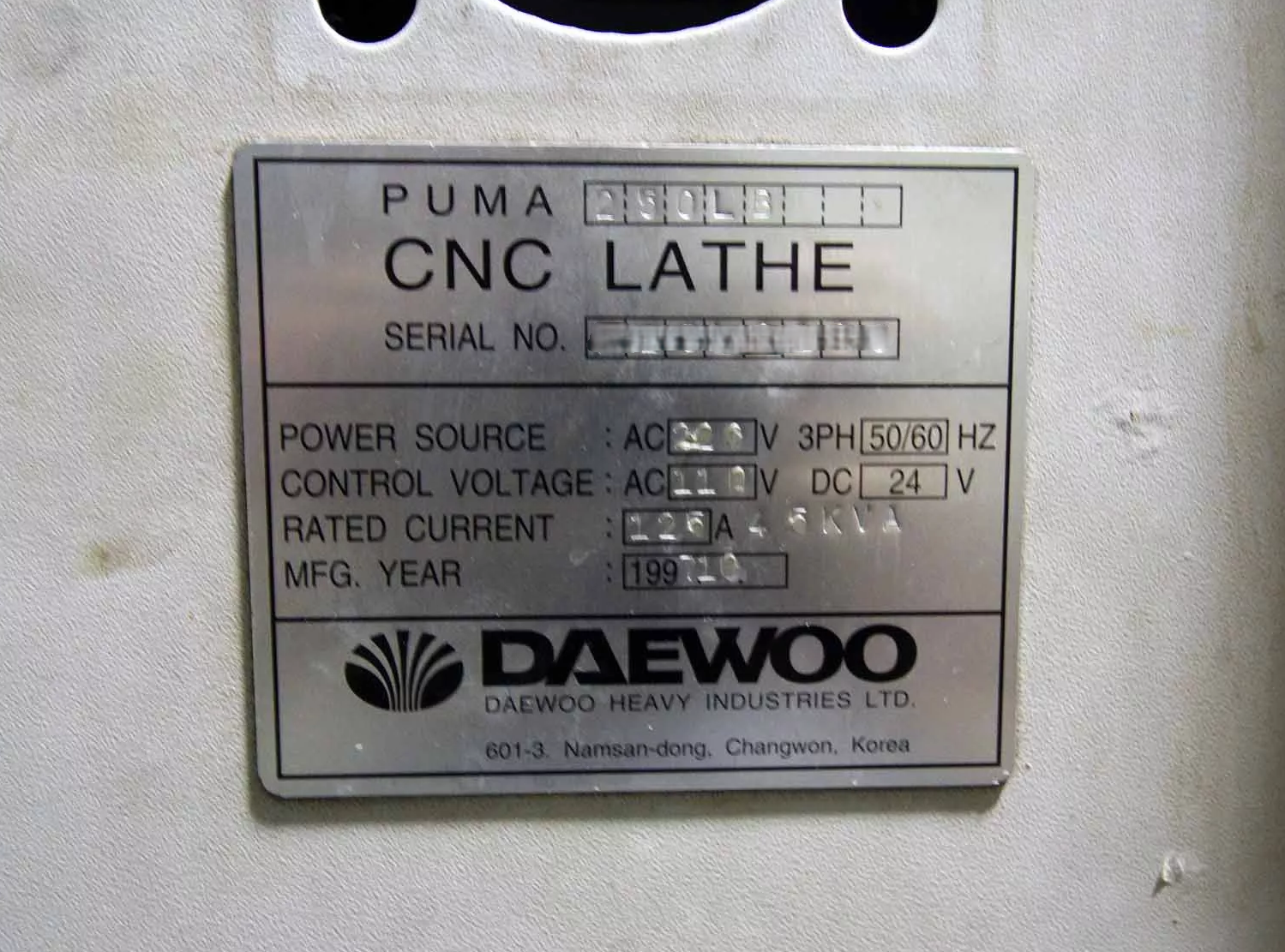

| Make: | Daewoo |
| Model: | Puma 250LB |
| Year: | 1997 |
| Machine Type: | CNC Turning Center |

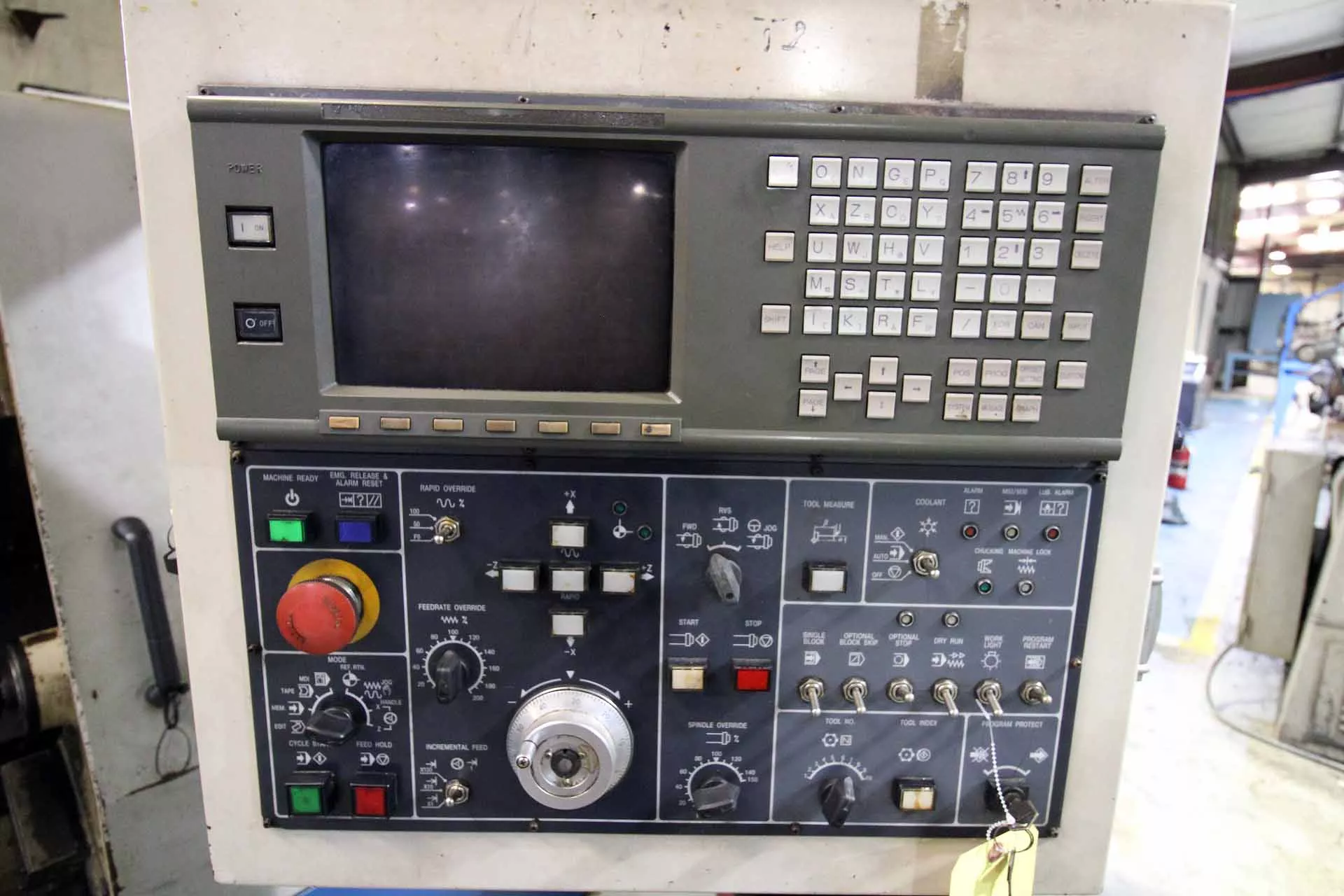

| Control: | Fanuc 18T CNC Control |
| Equipped With: |
|---|
| Fanuc 18T CNC Control |

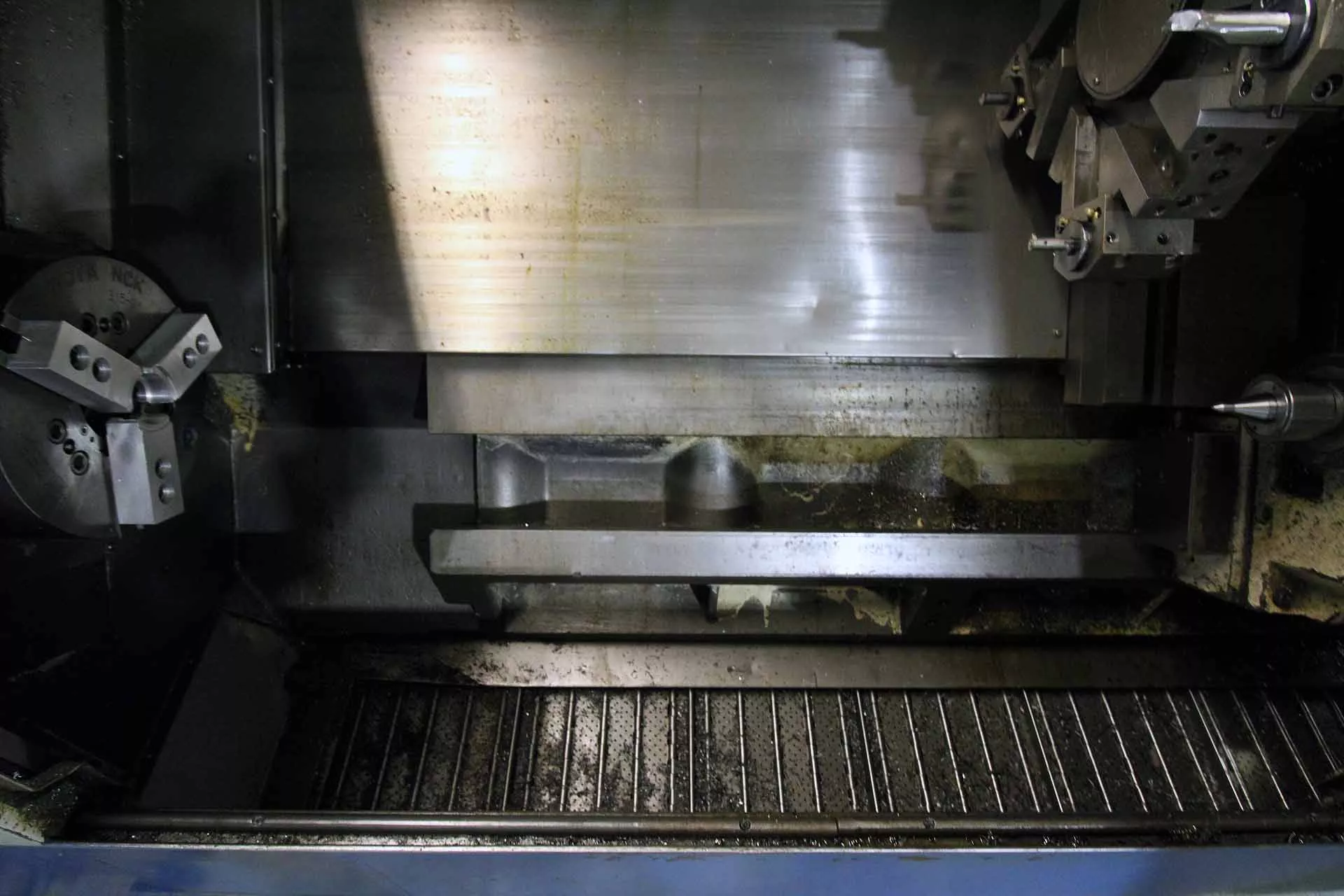

| 10 Position Turret |
| Schunk 15″ 3-Jaw Hydraulic Power Chuck |
| Programmable Tailstock |
| Chip Conveyor |
| Coolant System |
| Full Enclosure |
| Automatic Lubrication System |
| Capacity: |
|---|
| Max Swing Over Bed : 22.4″ |
| Max Turning Diameter : 15.7″ |
| Max Turning Length : 46″ |
| Bar Capacity : Approx. 3.0″ |
| Distance Between Centers : Approx. 50″ |
| Travels: |
|---|
| X Axis Travel : Approx. 11.0″ |
| Z Axis Travel : Approx. 47.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis : Approx. 787 IPM |
| Rapid Traverse Z Axis : Approx. 945 IPM |
| Spindle: |
|---|
| Spindle Nose : A2-8 |
| Spindle Speed : Approx. 3,000 RPM |
| Spindle Bore : Approx. 3.15″ |
| Main Motor : Approx. 30 HP |
| Chuck Size : 15″ |
| Turret: |
|---|
| Turret Capacity : 10 Stations |
| Tool Size : Approx. 1.25″ |
| Boring Bar Capacity : Approx. 2.0″ |
| Tailstock: |
|---|
| Tailstock Type : Programmable Hydraulic |
| Tailstock Taper : MT-5 |
| Quill Diameter : Approx. 3.9″ |
| Quill Travel : Approx. 3.9″ |
| General: |
|---|
| Power Source : AC 220V / 3-Phase / 50/60 Hz |
| Machine Dimensions : Approx. 140″ x 75″ x 80″ High |
| Machine Weight : Approx. 16,000 lbs |
