*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

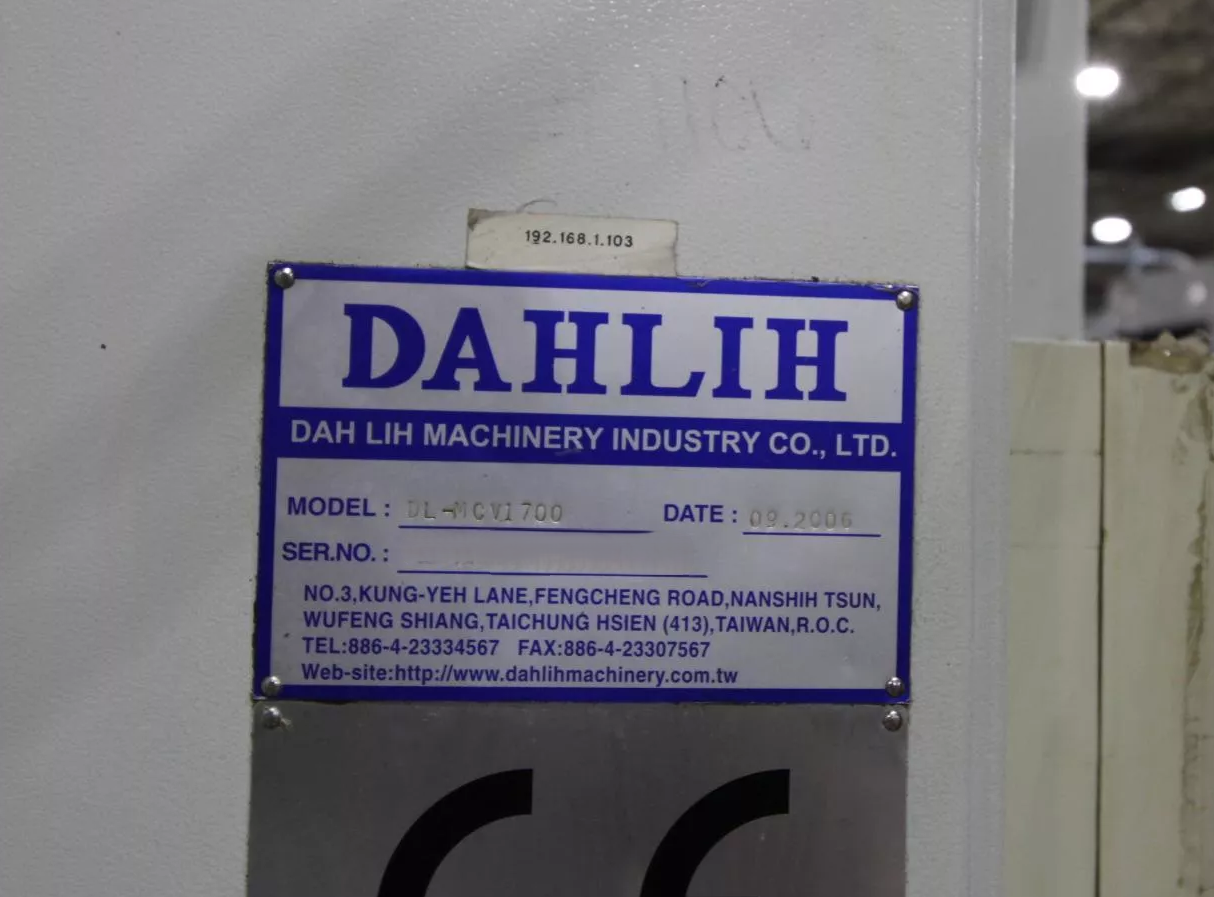

| Make: | DAHLIH |
| Model: | MCV-1700 |
| Year: | 2006 |
| Condition: | Used – Good |
| Features: |
|---|

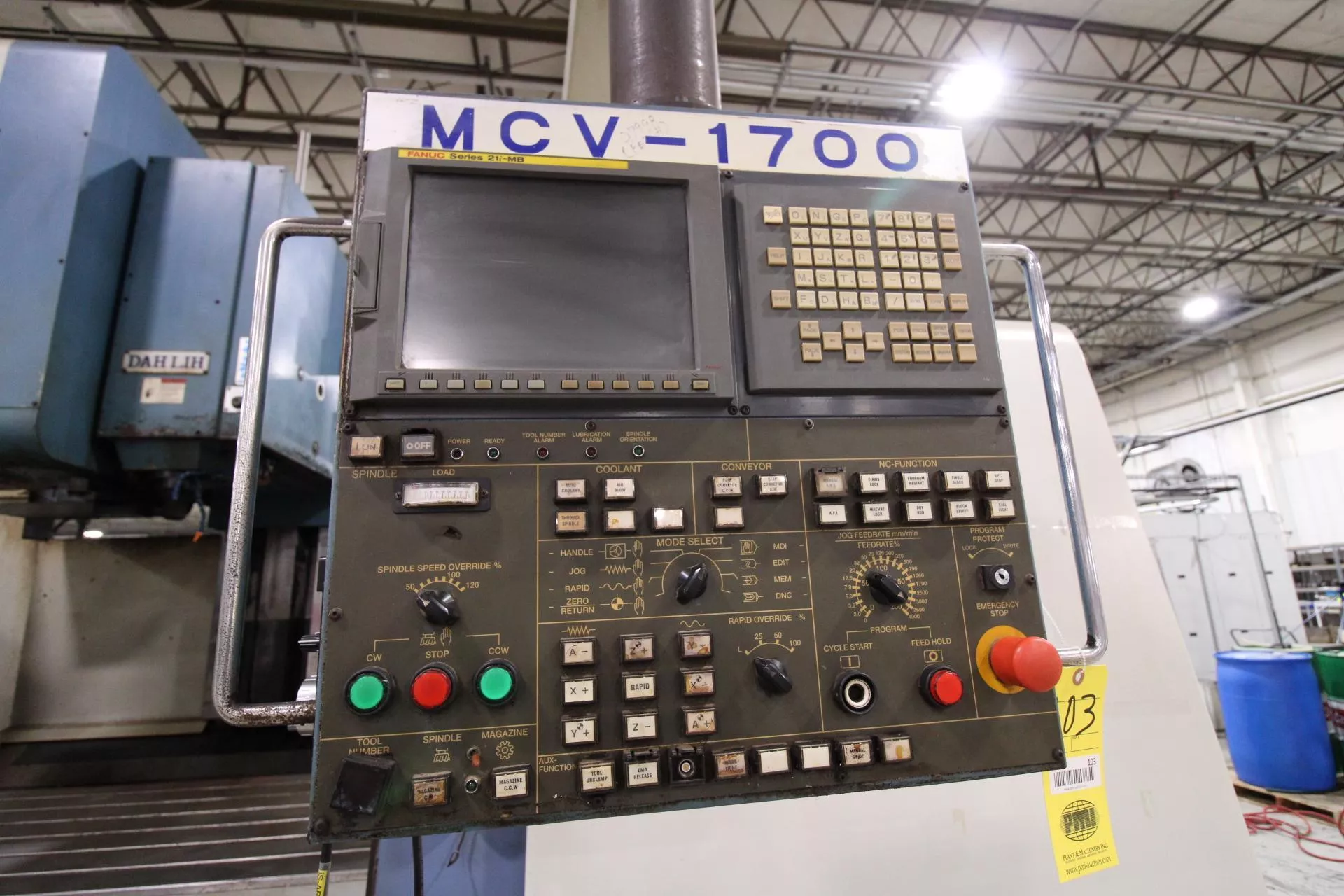

| Fanuc Series 21i-MB CNC Control |
| 40″ × 75″ Work Table |
| CAT 50 Spindle |
| 30 Position Automatic Tool Changer |
| Box Way Construction |
| Flood Coolant System |
| Chip Conveyor |
| Rigid Tapping |
| Fully Enclosed Splash Guard |
| Work Light |
| Automatic Lubrication System |
| Capacity: |
|---|

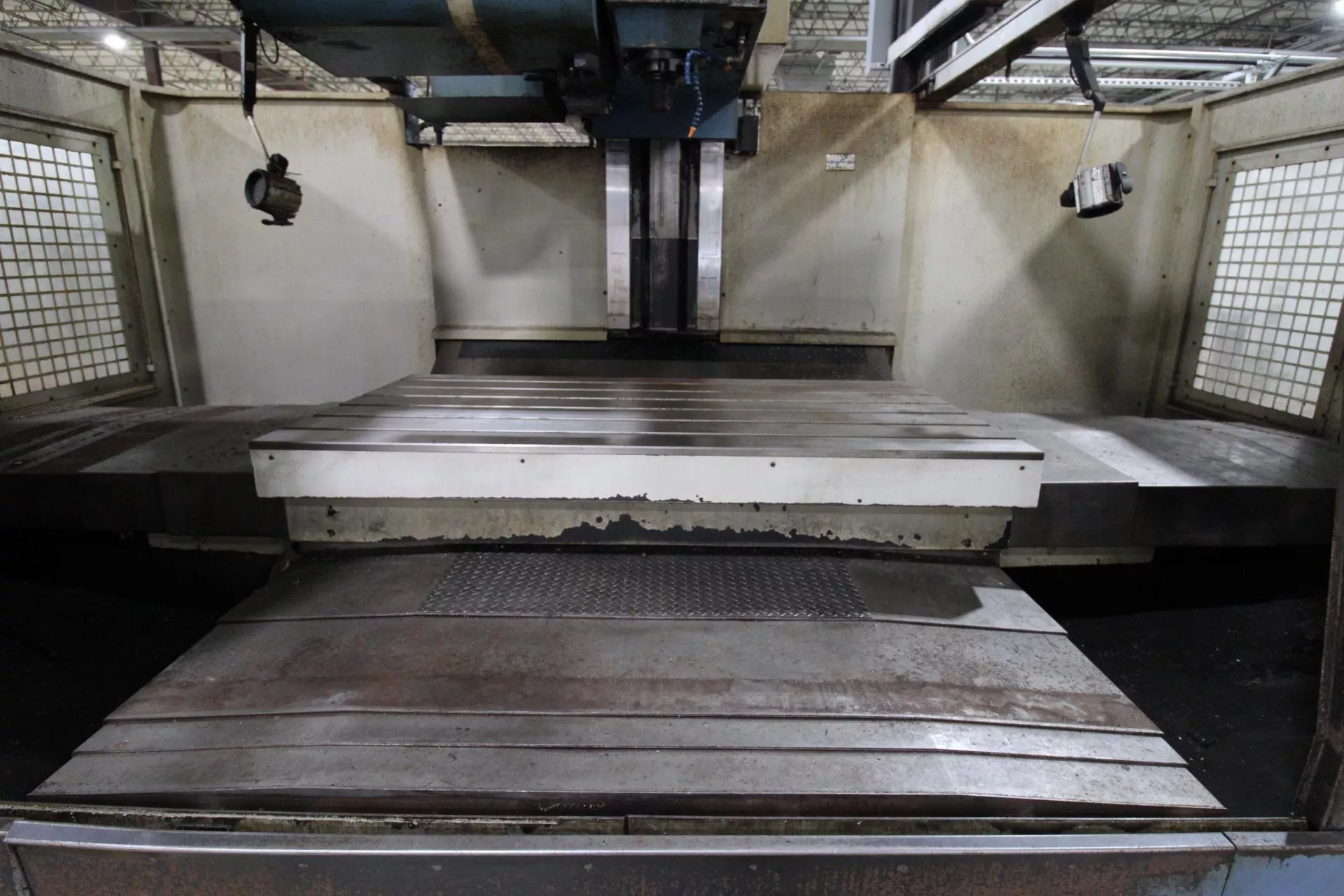

| Table Size: 40.0″ × 75.0″ |
| Table Load Capacity: 6,600 lbs |
| T-Slots: 7 × 0.71″ |
| Distance Between T-Slots: 5.0″ |
| Travels: |
|---|
| X Axis Travel: 66.93″ |
| Y Axis Travel: 31.44″ |
| Z Axis Travel: 29.53″ |
| Rapid Traverse X/Y Axis: 787 IPM |
| Rapid Traverse Z Axis: 591 IPM |
| Spindle: |
|---|
| Spindle Taper: CAT 50 |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 20 HP |
| Spindle Drive: Gear Head |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 30 Tools |
| Tool Change Type: Automatic |
| Max Tool Diameter: 4.92″ |
| Max Tool Weight: 33 lbs |
| General: |
|---|
| Power Source: 220V / 3-Phase / 60 Hz |
| Machine Dimensions (Approx.): 190″ × 140″ × 145″ High |
| Machine Weight (Approx.): 30,900 lbs |
