*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

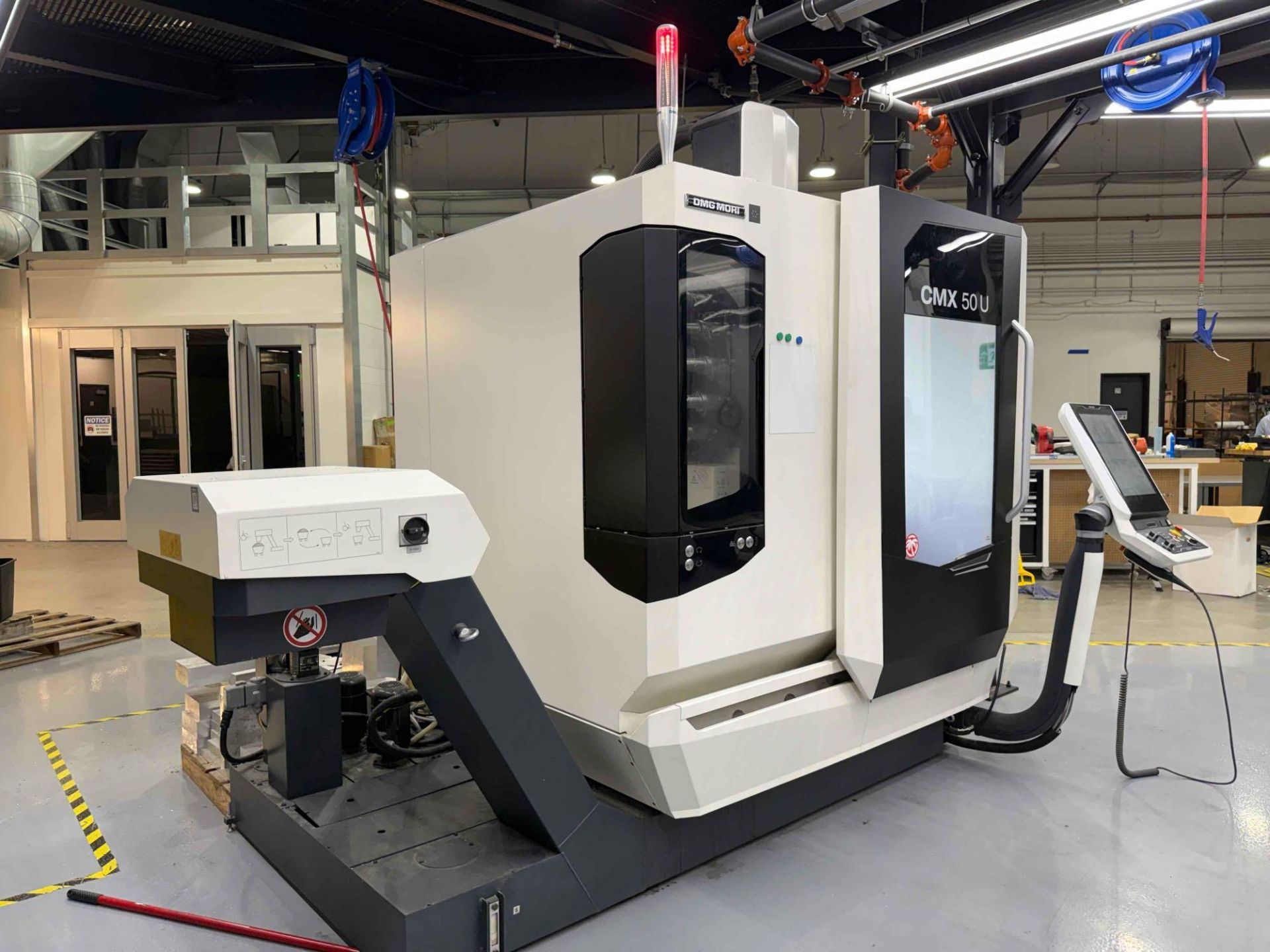

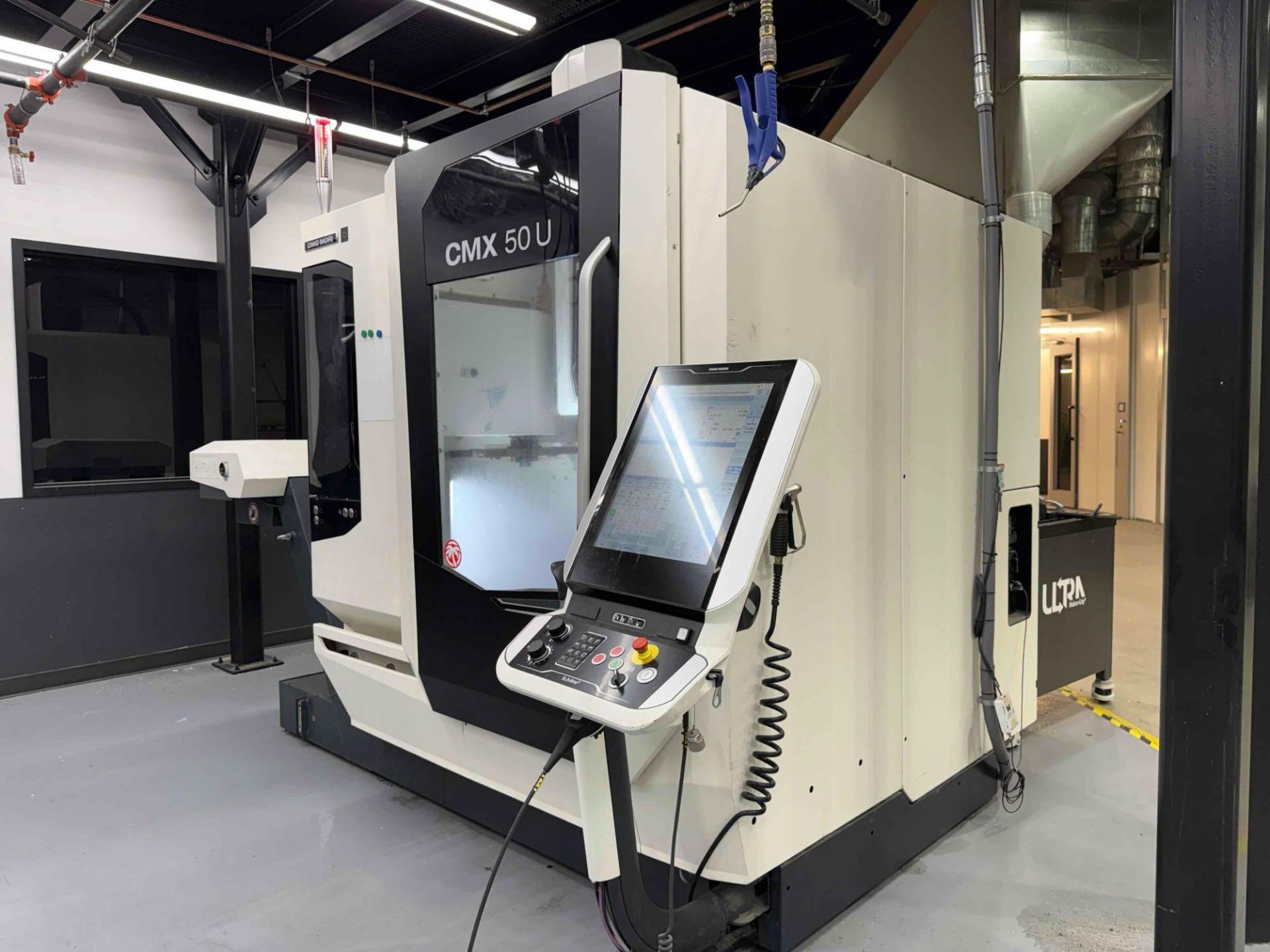

| Make: | DMG MORI |
| Model: | CMX 50U |
| Condition: | Used – Good |
| Equipped With: |
|---|

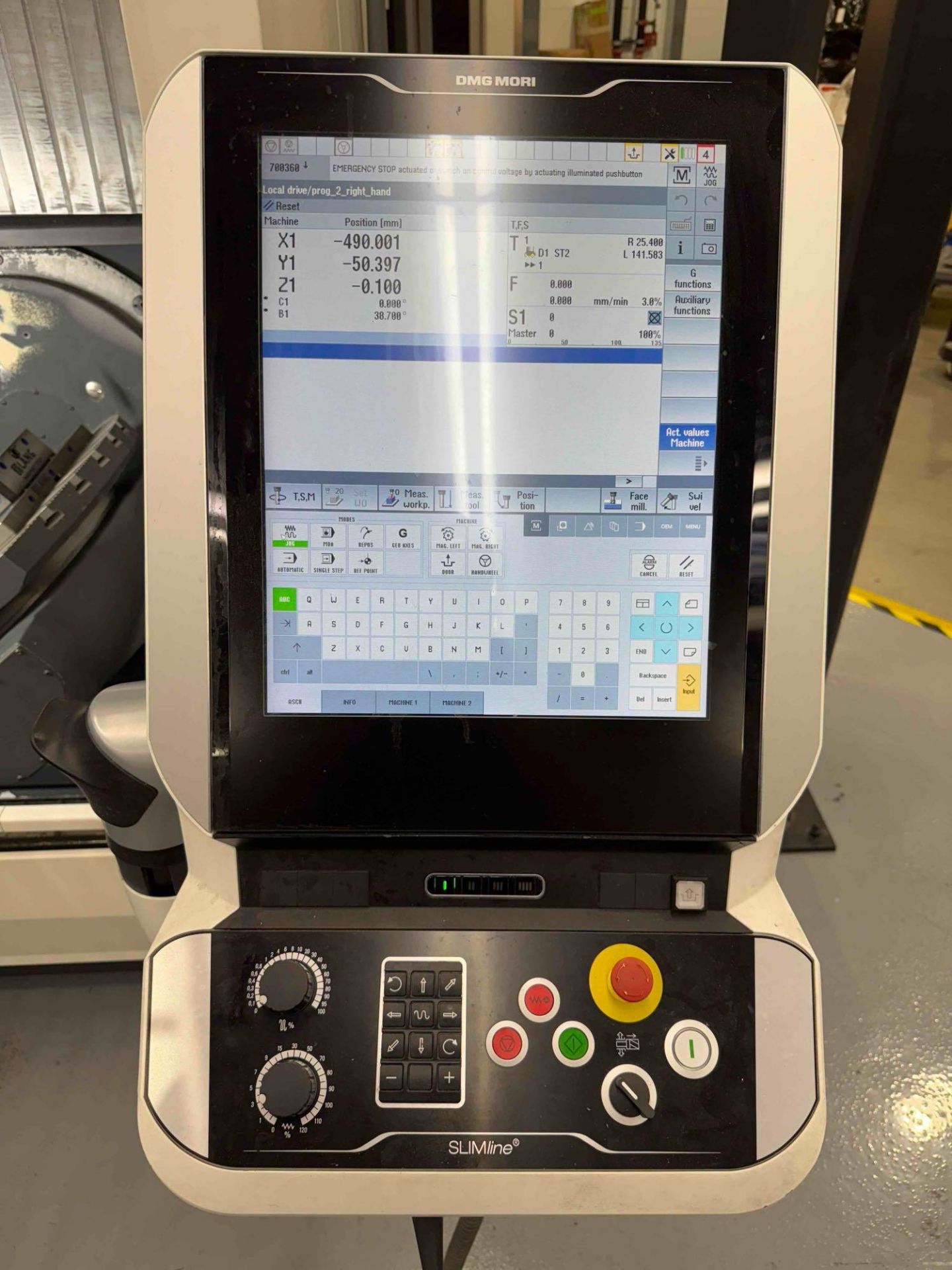

| SIEMENS 840D SL / CELOS Control (Standard) |
| 5-Axis Simultaneous Machining |
| Rigid Machine Construction (CMX U-Series) |
| Ergonomic Front-Loading Door |
| Compact Footprint |
| Coolant System |
| Signal Lamp |
| Capacity: |
|---|
| Max Workpiece Diameter: 19.7″ |
| Max Workpiece Height: 15.7″ |
| Max Table Load: 661 lbs |
| Travels: |
|---|
| X-Axis Travel: 23.6″ |
| Y-Axis Travel: 17.7″ |
| Z-Axis Travel: 18.9″ |
| A-Axis (Tilt): –5° to +110° |
| C-Axis (Rotation): 360° |
| Table: |
|---|
| Table Size: 19.7″ Diameter |
| Table Load Capacity: 661 lbs |
| T-Slot Size: Standard DMG Mori Metric Pattern |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Power: 20 HP |
| Spindle Taper: BT40 |
| Standard Spindle Type: Intdne |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 1,181 IPM |
| Feedrate (Cutting): 0 – 394 IPM |
| Tool Changer: |
|---|
| Tool Capacity: 30 Tools |
| Max Tool Length: 11.8″ |
| Max Tool Diameter: 3.1″ |
| Max Tool Weight: 15 lbs |
| Accuracy: |
|---|
| Positioning Accuracy: 0.0002″ |
| Repeatabitdty: 0.0001″ |
| General: |
|---|

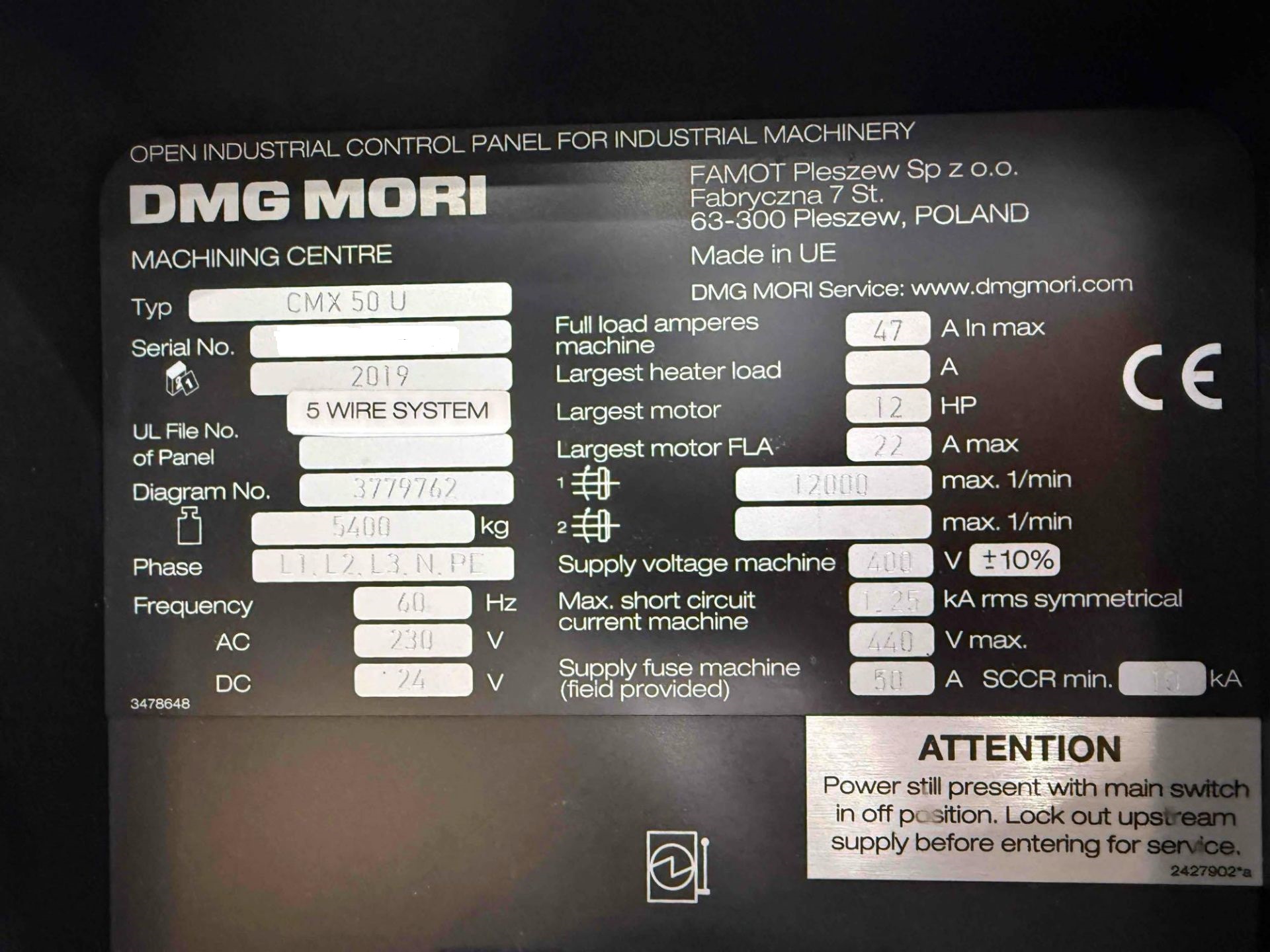

| Power Requirement: 35 kVA, 220V, 3-Phase |
| Machine Dimensions (Approx.): 108″ × 79″ × 102″ |
| Machine Weight (Approx.): 9,920 lbs |
