*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112949 |
| Make: | Mori Seiki |

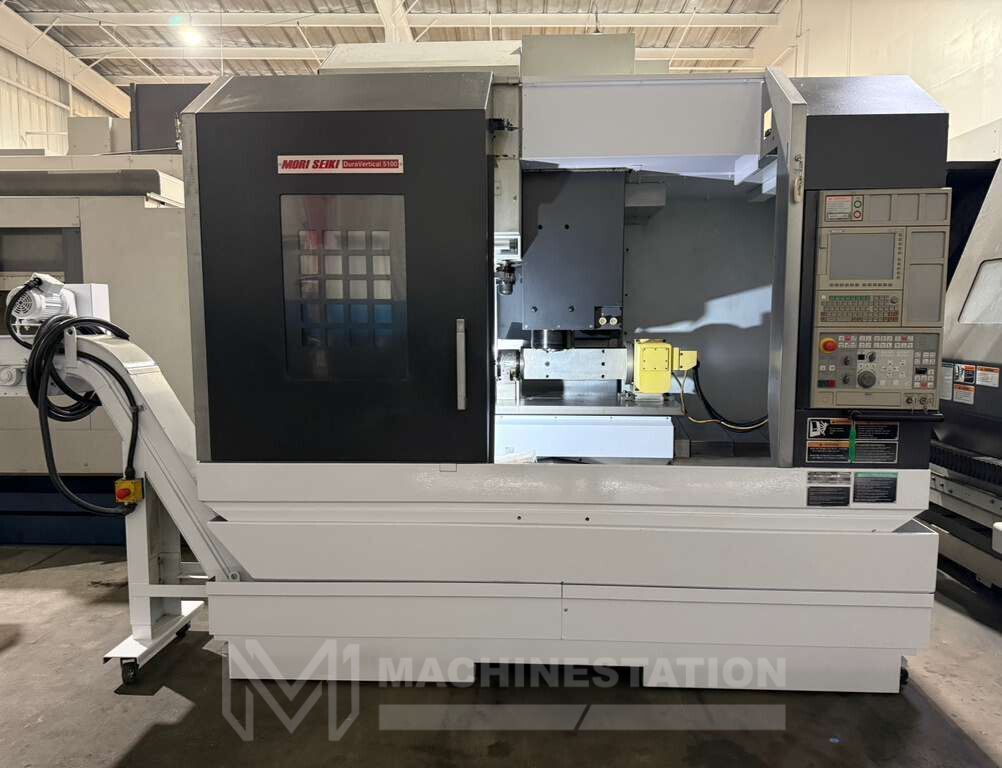

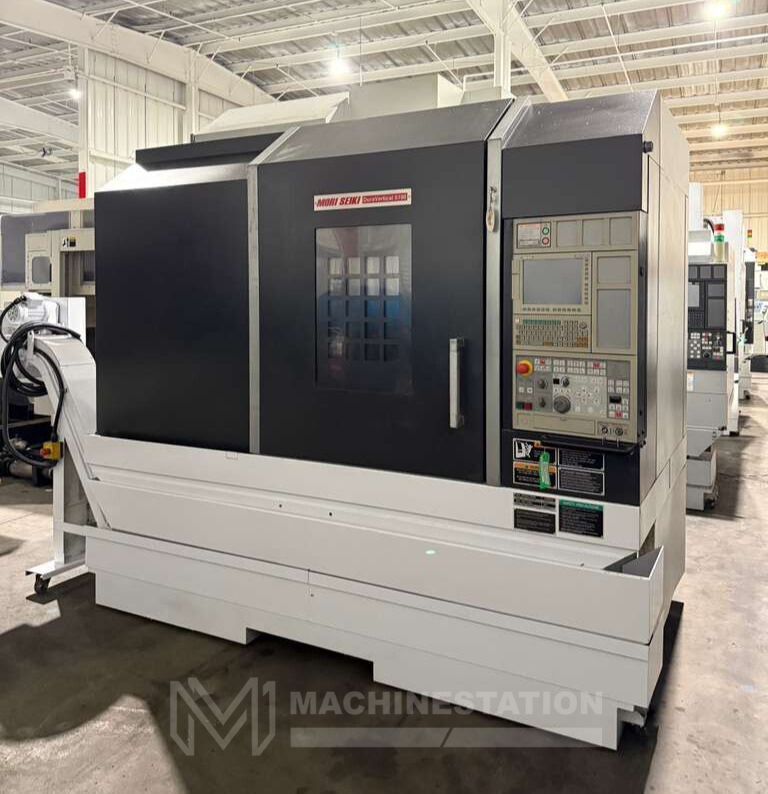

| Model: | DuraVertical 5100 |
| Year: | 2011 |
| Features: |
|---|

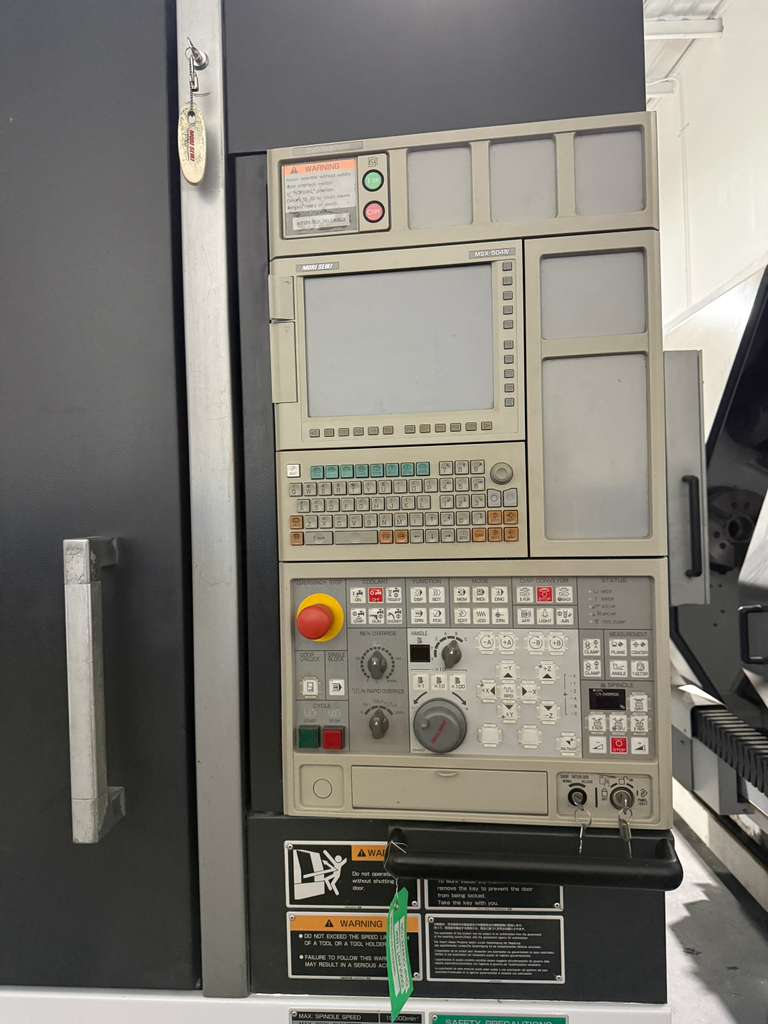

| Mori Seiki MSX-504IV (Fanuc Oi-MD) Series CNC Control |

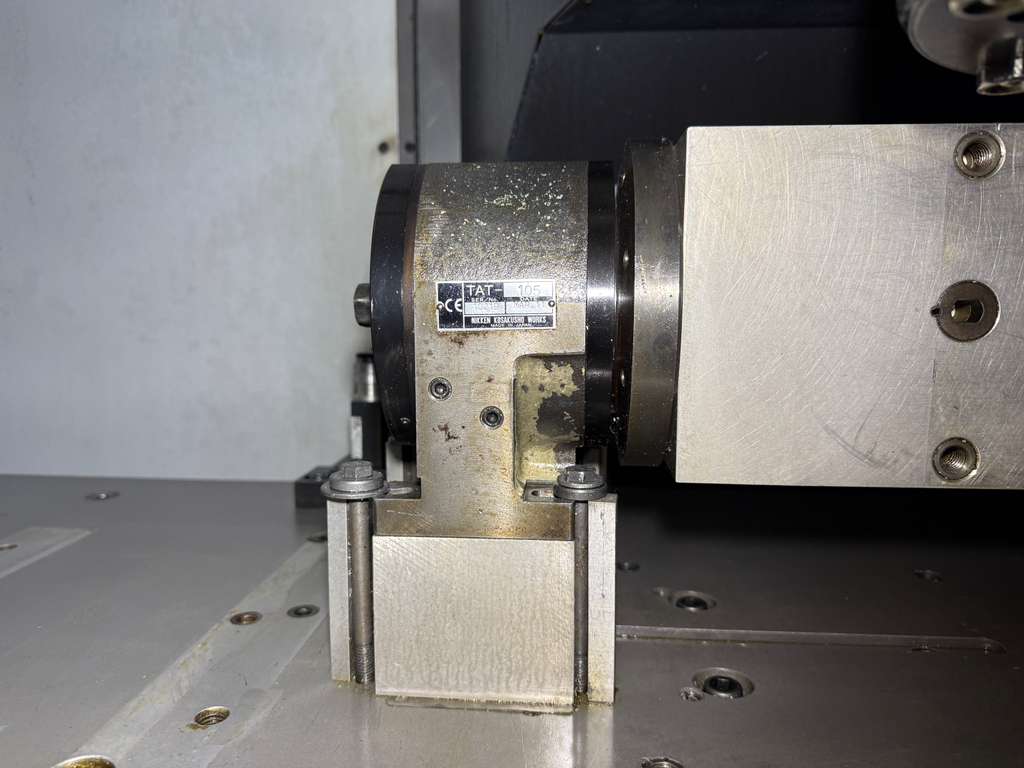

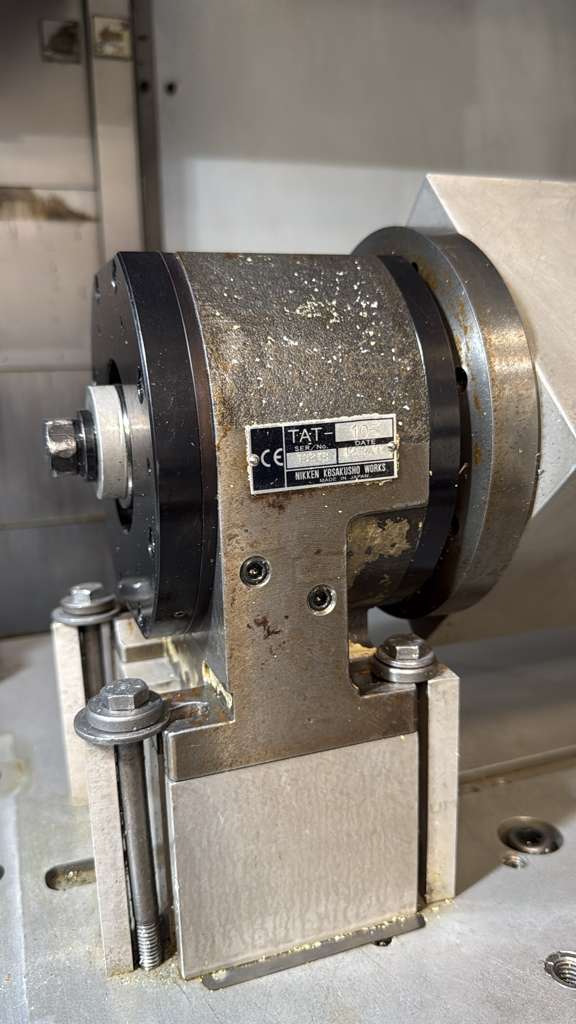

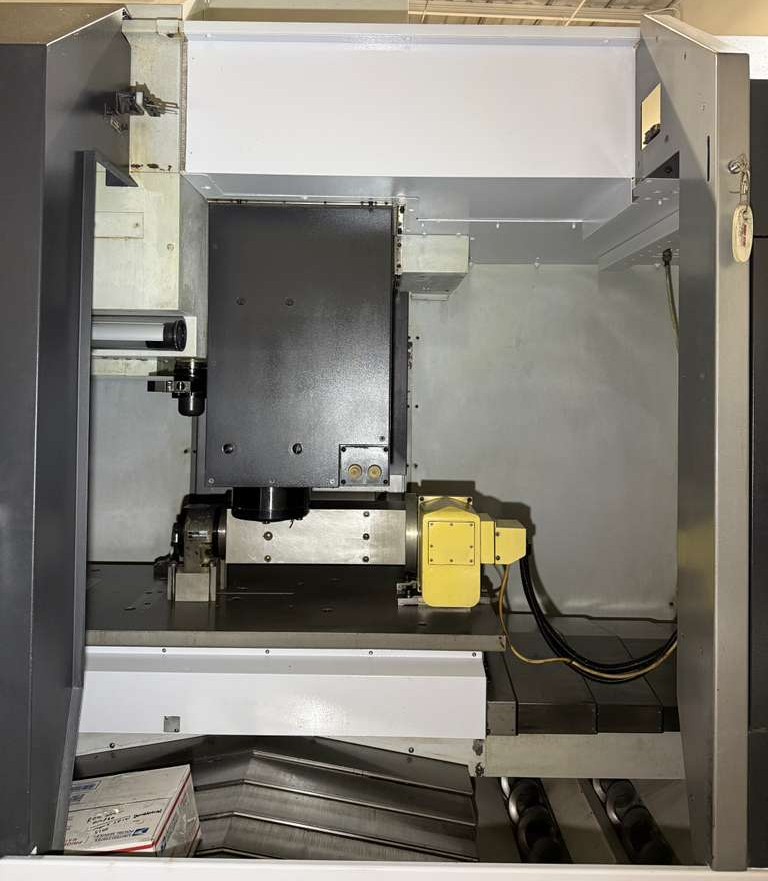

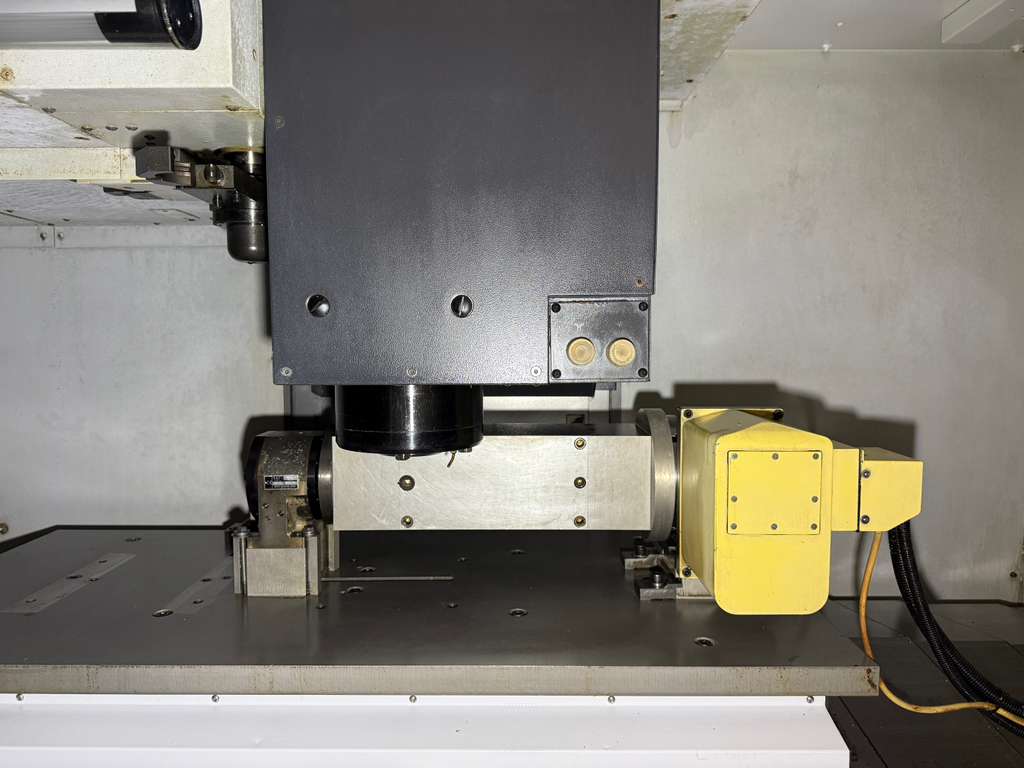

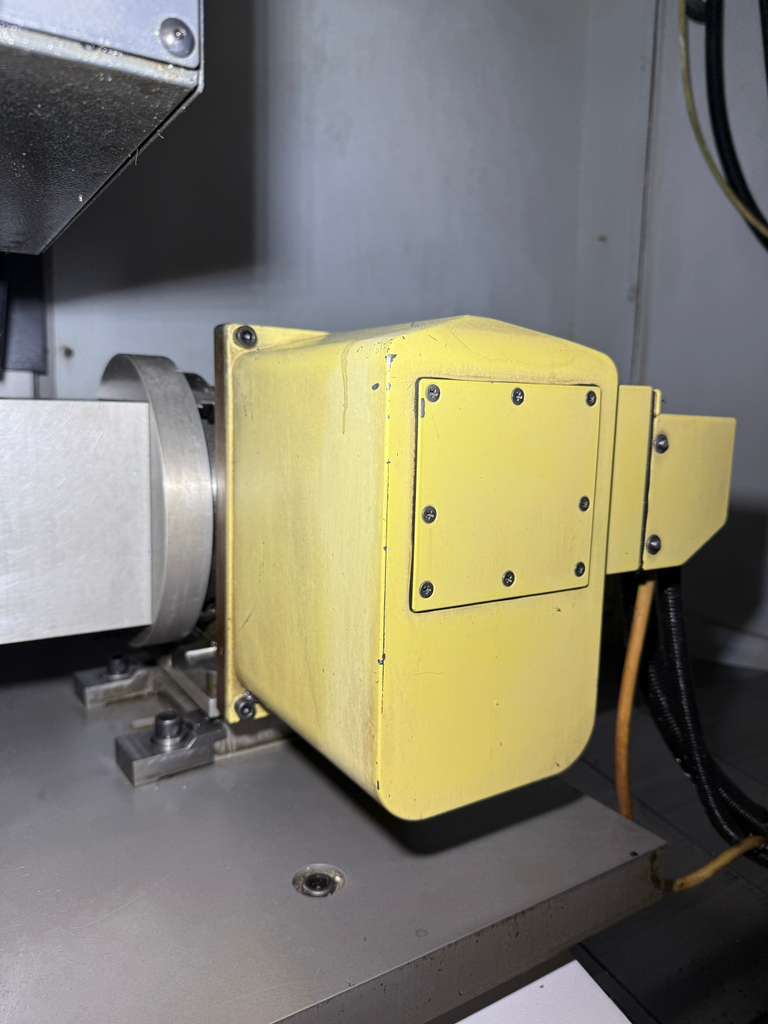

| Nikken TAT-105 Tilting 4th Axis Rotary Table |
| 10,000 RPM Precision Spindle |
| CAT-40 Spindle Taper |

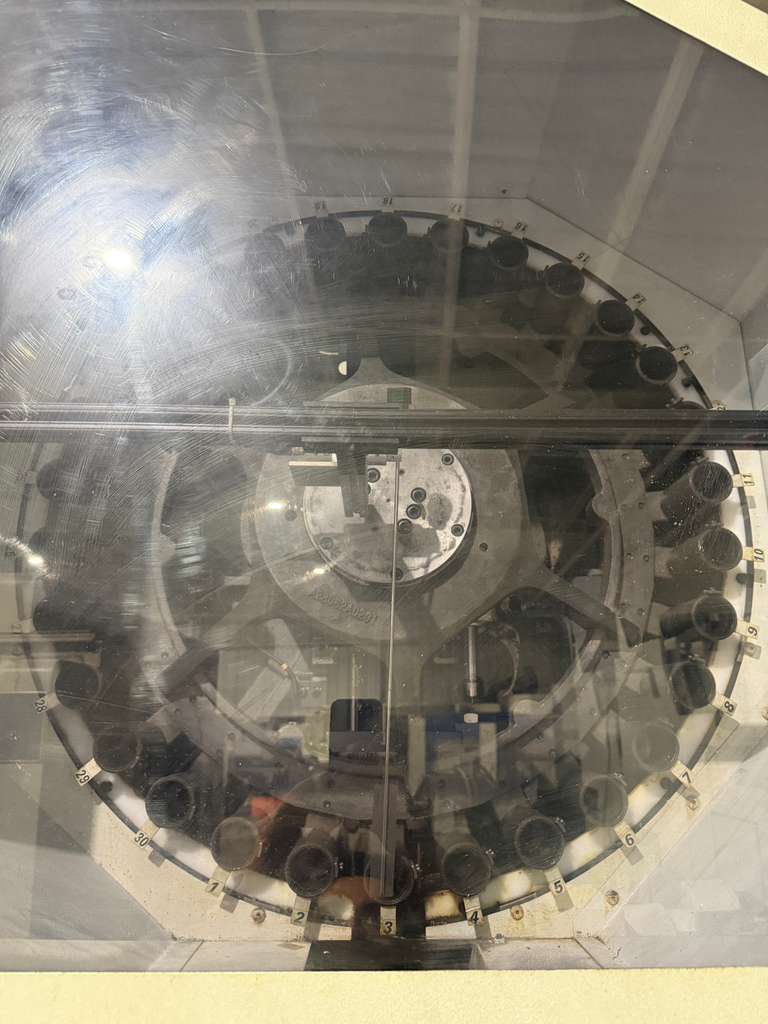

| 30 Station Side Mounted Tool Changer |

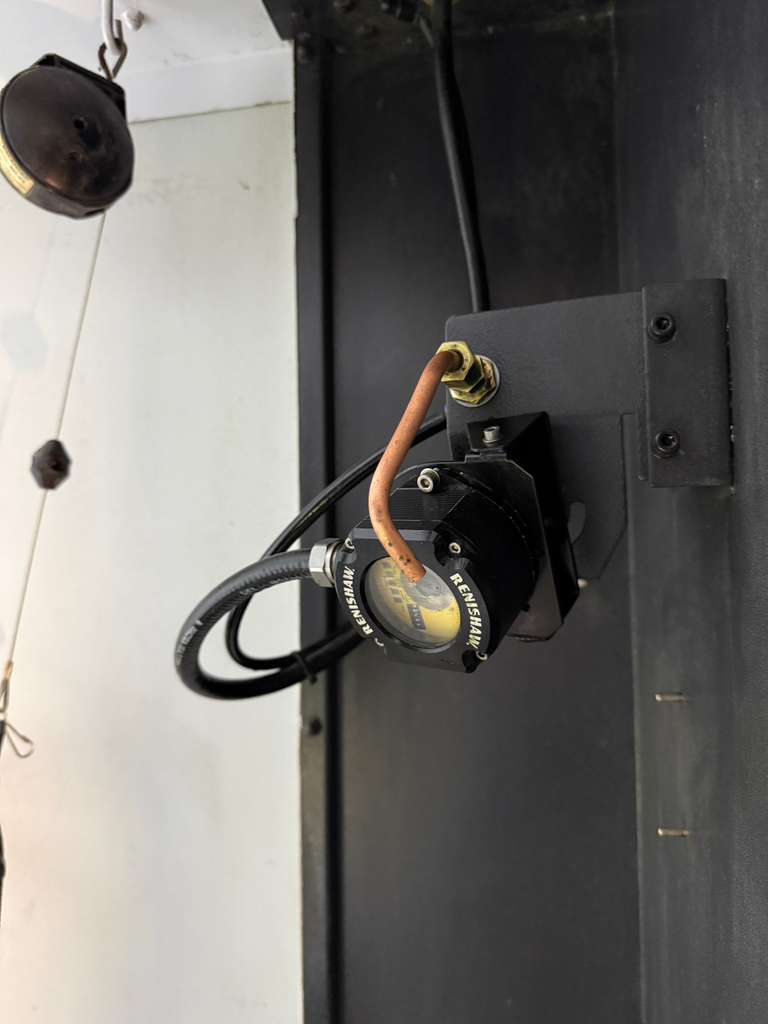

| Renishaw Probing System (Probe Included) |

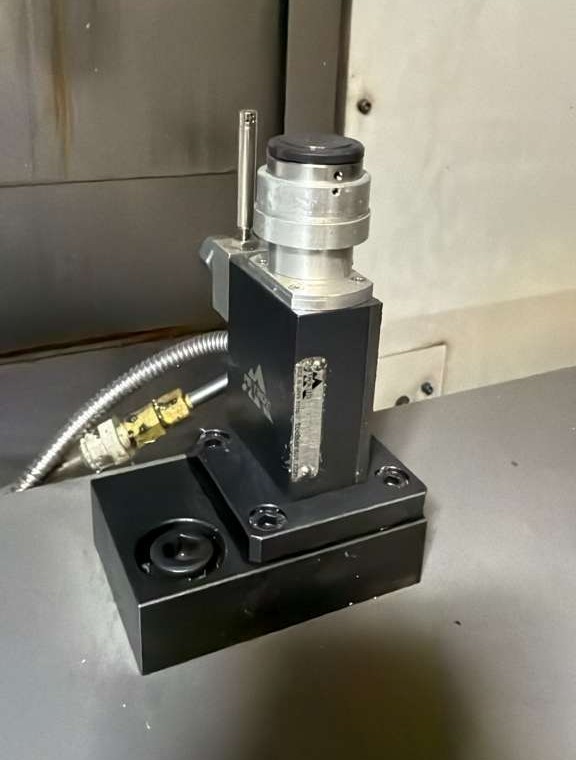

| Tool Breakage Monitoring System |

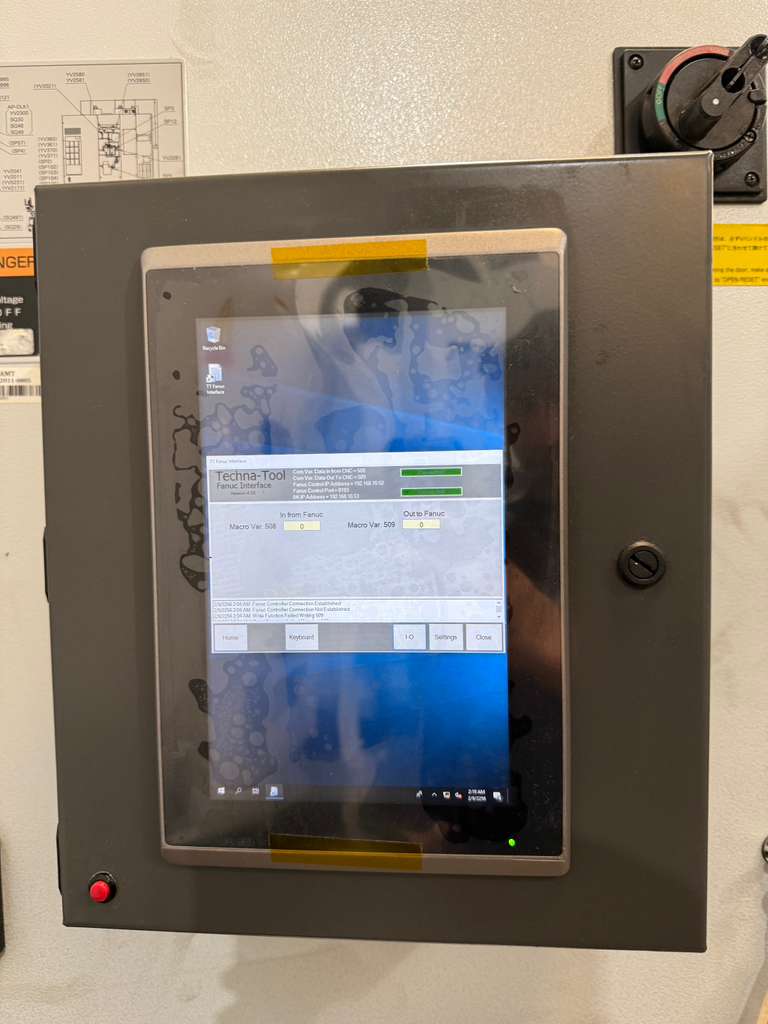

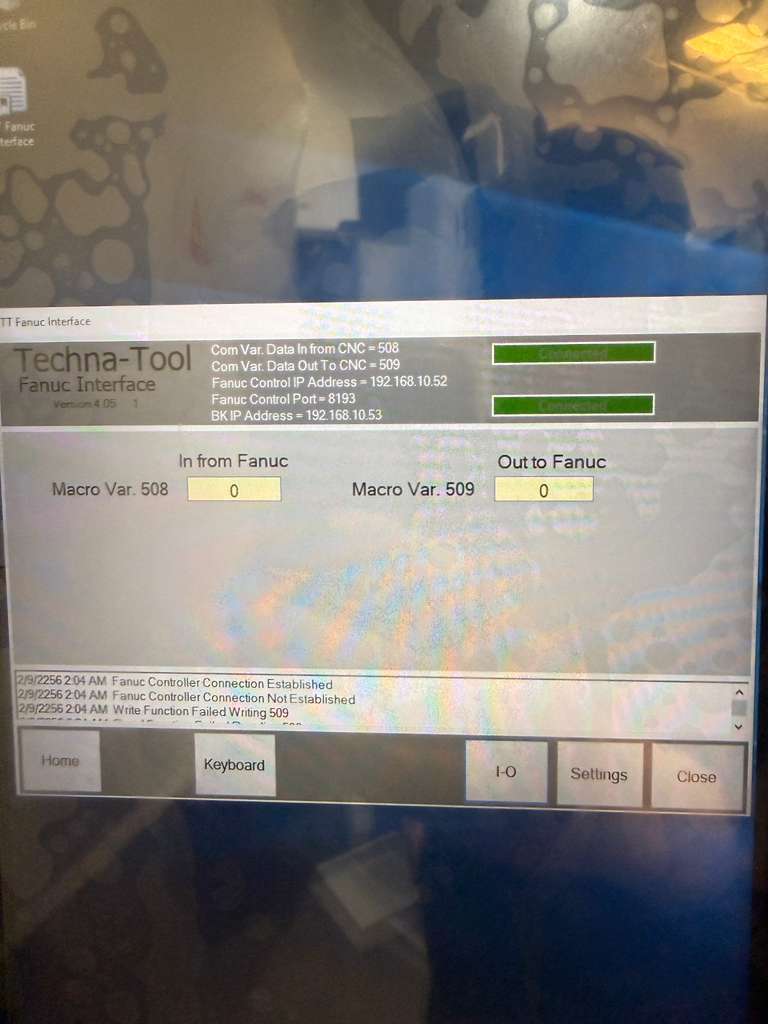

| Wireless Communication System (Techna-Tool Fanuc Interface) |
| Through Spindle Coolant Ready (Pump & Motor Needed) |
| Spindle Chiller Unit |
| PCMCIA Card Slot |
| USB Port & RS-232 Port |
| Rigid Tapping |

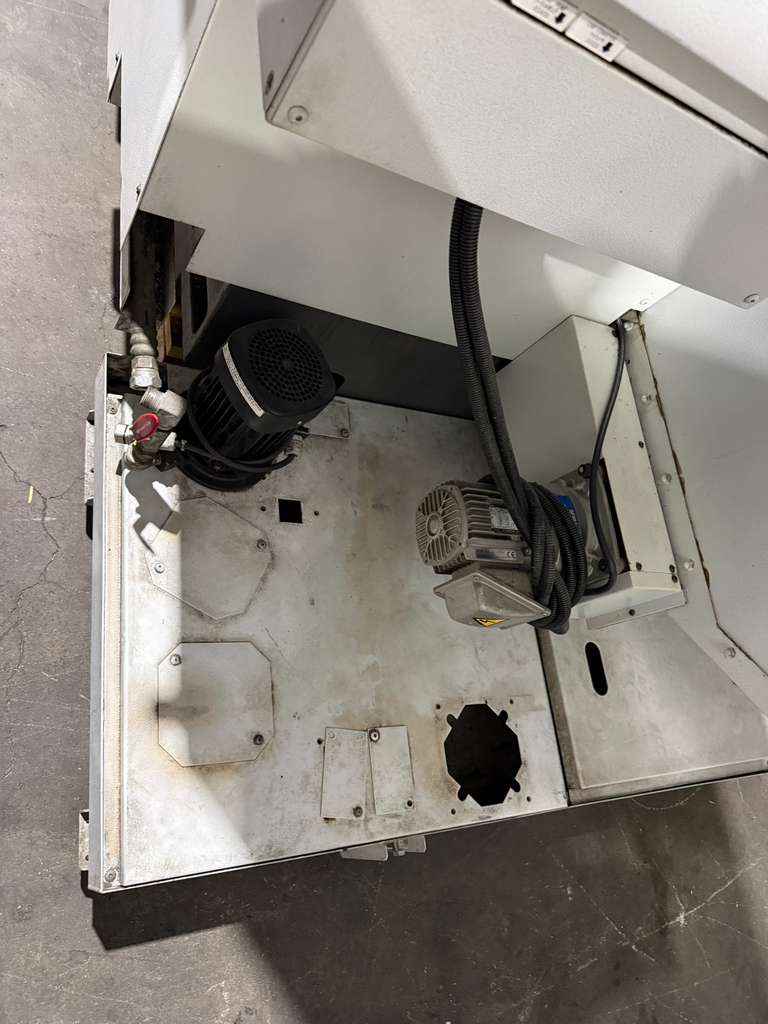

| Coolant System |
| LNS Chip Conveyor |
| Travels: |
|---|
| X-Axis: 41.3″ |
| Y-Axis: 20.9″ |
| Z-Axis: 20.1″ |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″ |
| Table: |
|---|
| Length: 53.1″ |
| Width: 23.6″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2645 lbs |
| Spindle: |
|---|

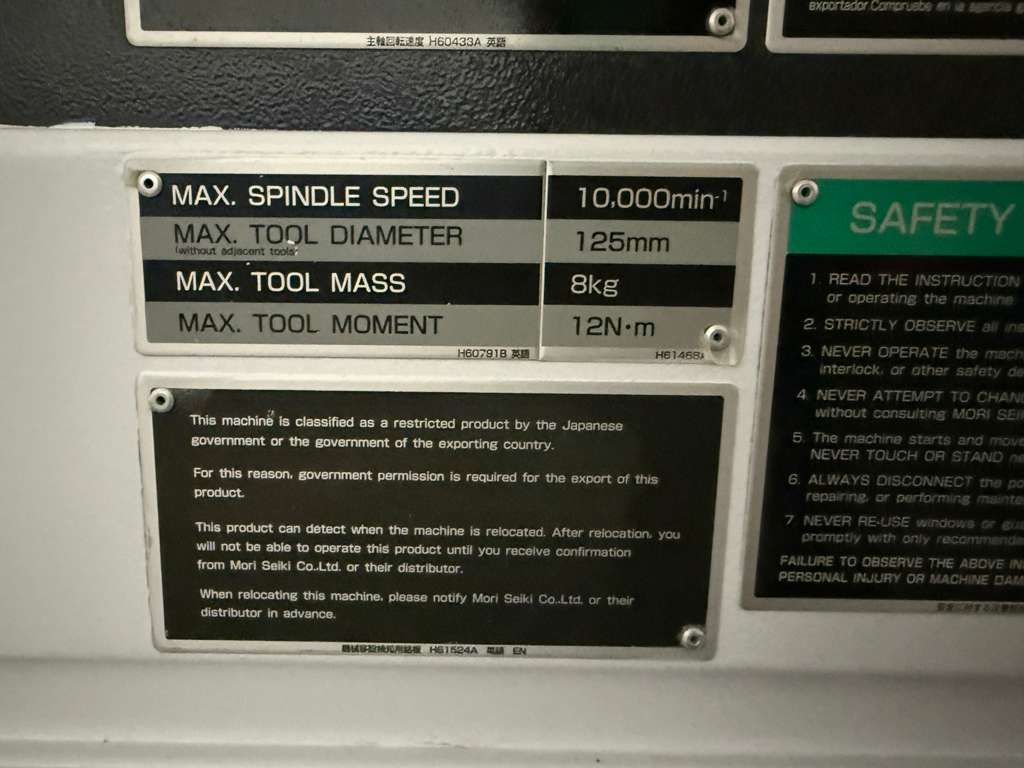

| Spindle: Taper Size: CAT-40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station |
| Tool Weight: 17.63 lbs |
| Max Tool Dia: 4.9″ |
| Max Tool Length: 11.8″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

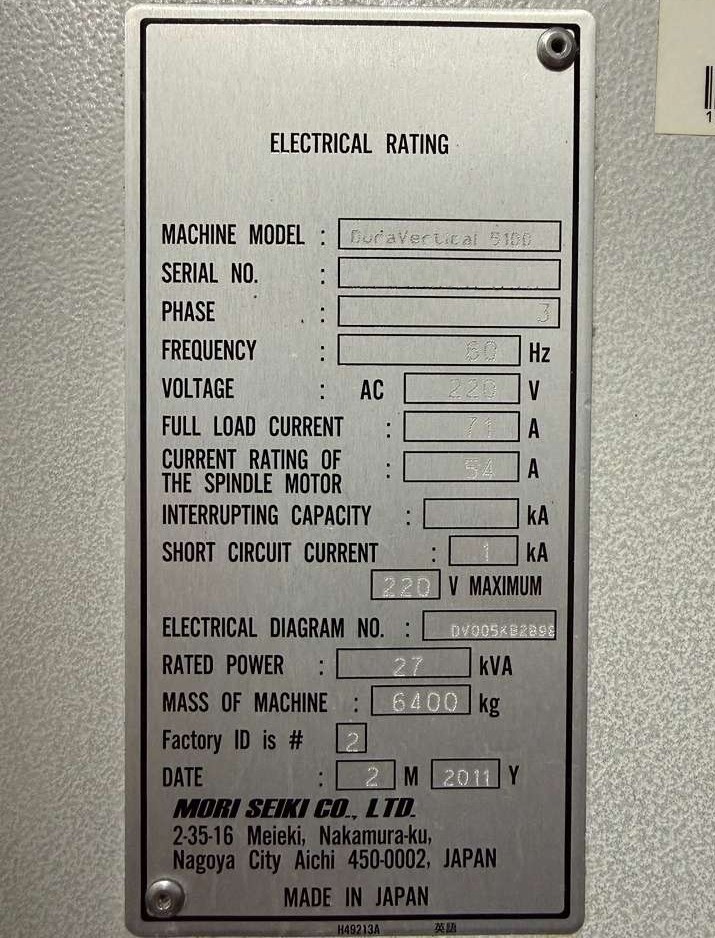

| Power: 220v / 3-Phase / 60 Hz / 27 kva |
| Overall Dimensions: 132″ x 95″ x 105″ High |
| Weight: 14,110 lbs |
