*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

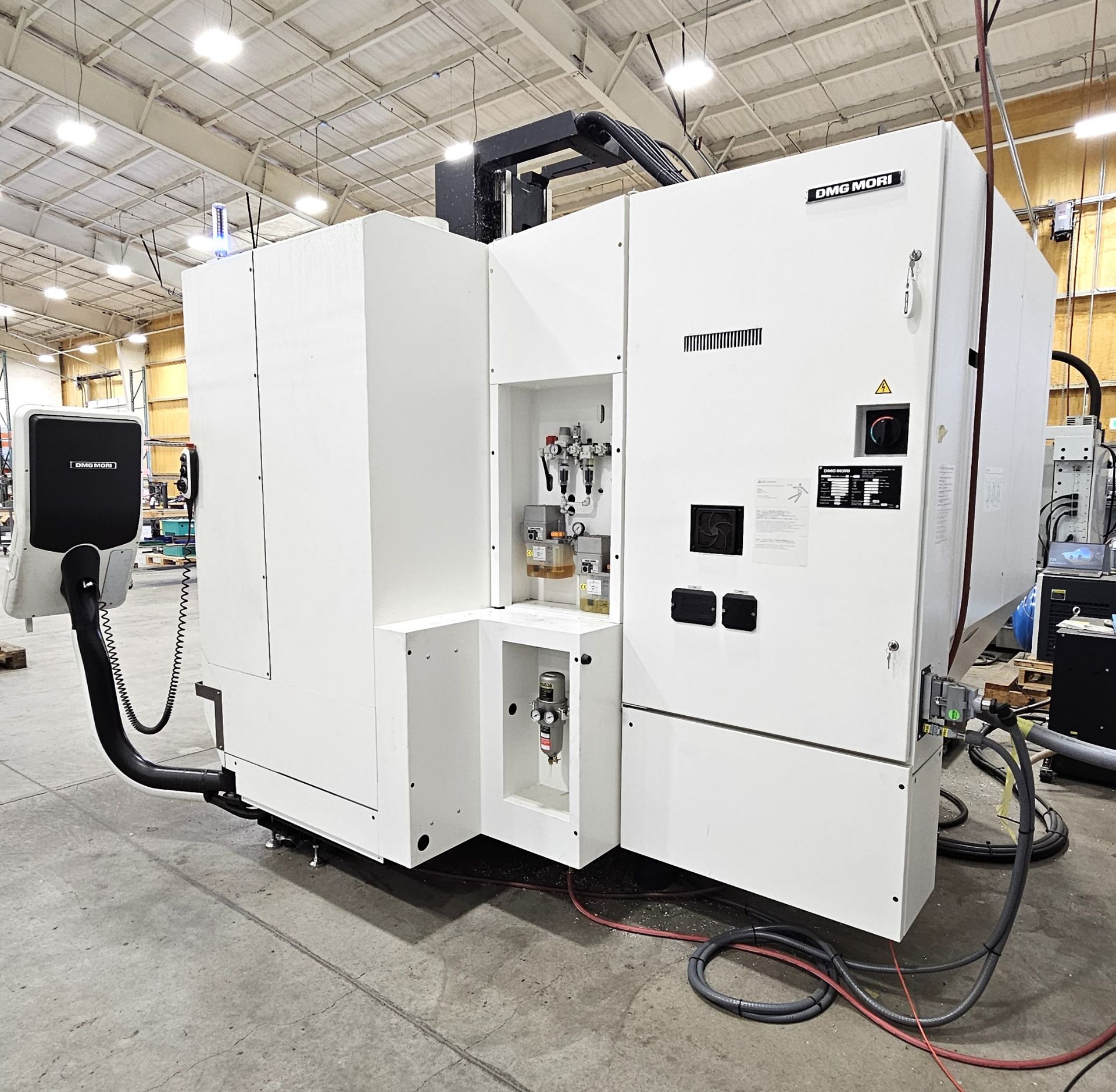

| Make: | DMG MORI |
| Model: | CMX 1100V |
| Year: | 2021 |
| Condition: | Used – Excellent |
| Machine Type: | CNC Vertical Machining Center (4-Axis Ready) |
| Country of Origin: | Assembled in USA |
| Equipped With: |
|---|

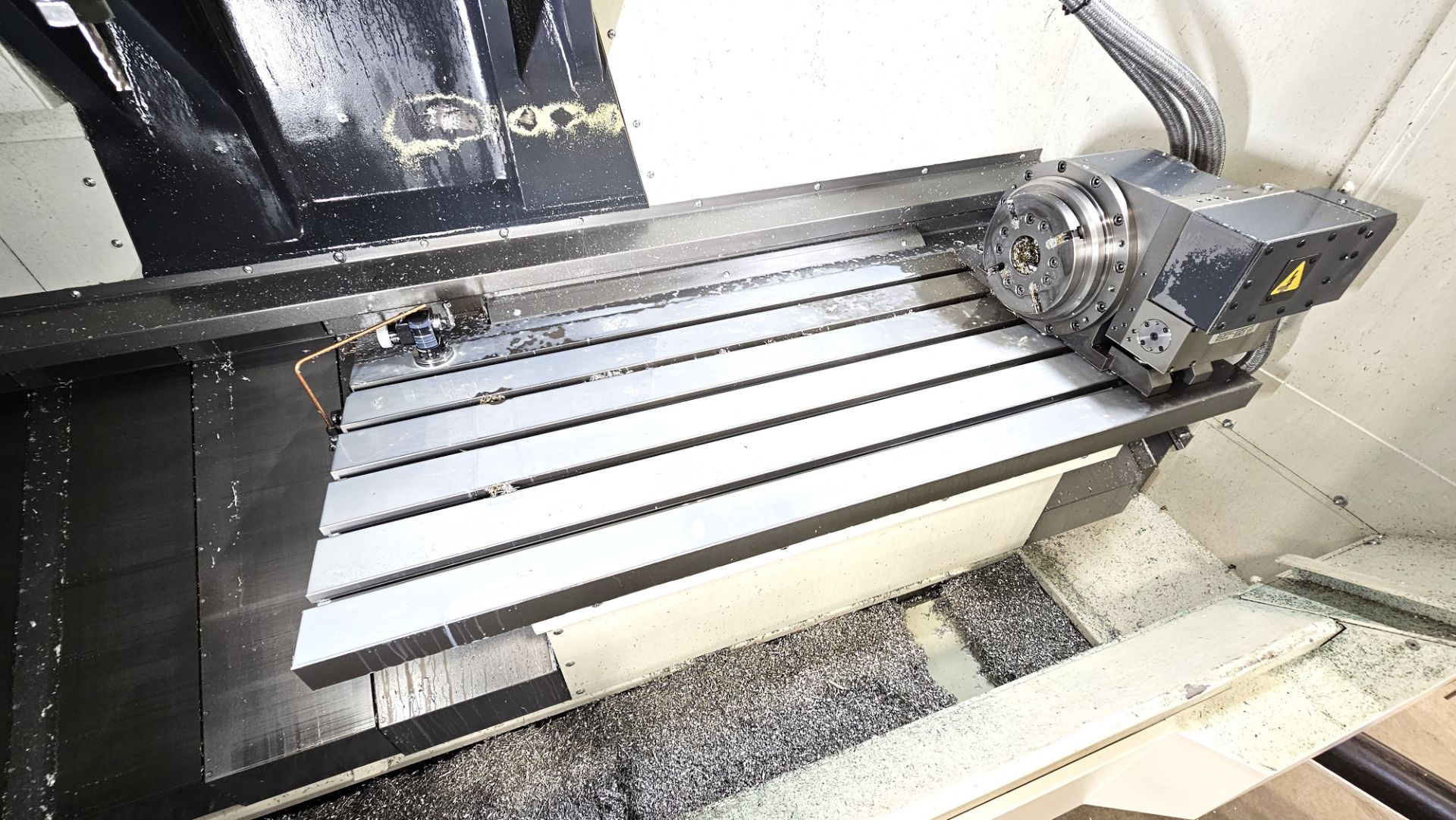

- 4th Axis Rotary Table (Indexing / Continuous – Machine Dependent)
- DMG MORI CELOS CNC Control (MAPPS Interface)

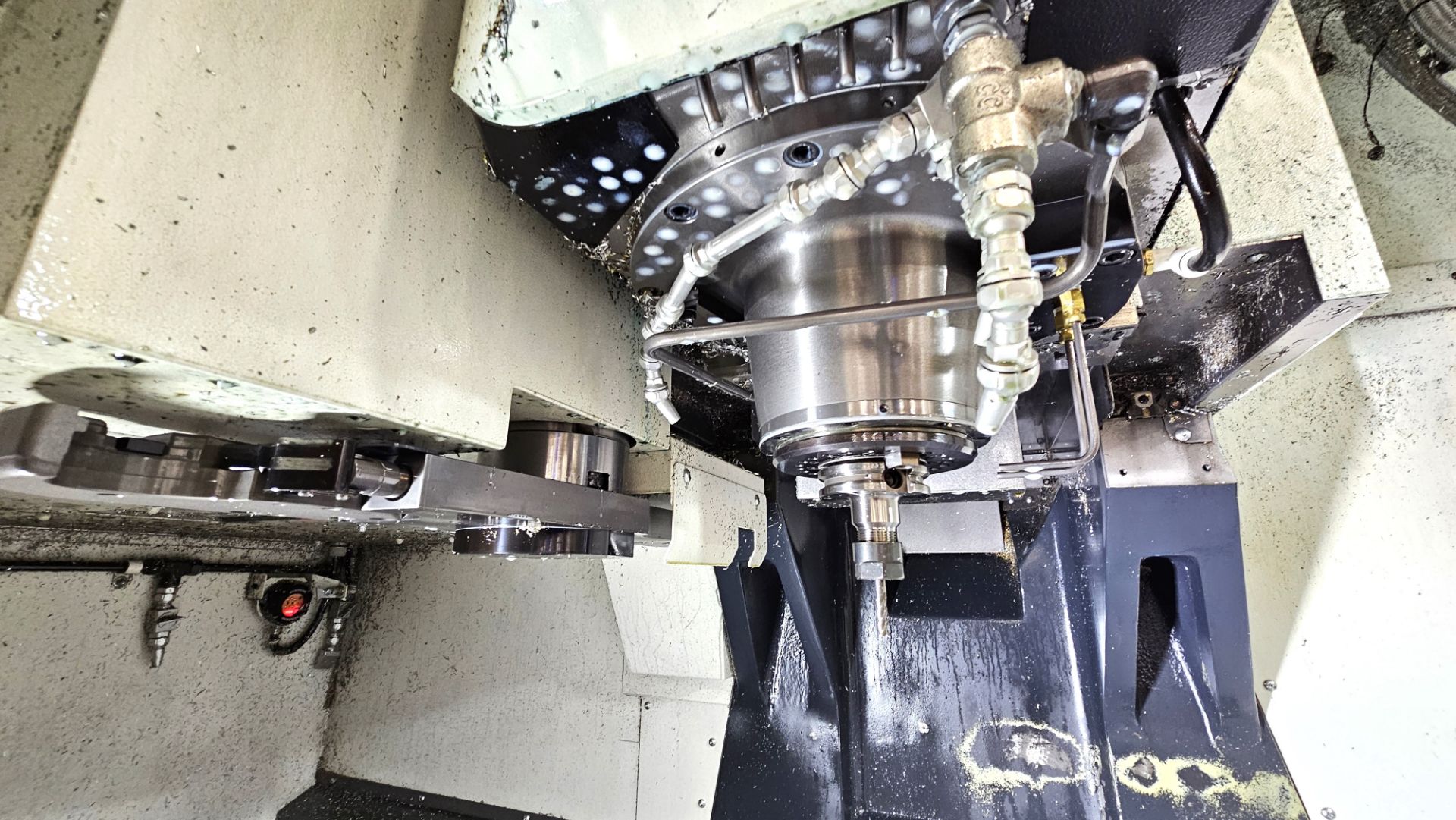

- High-Speed Direct Drive Spindle
- Automatic Tool Changer
- Rigid Tapping
- Spindle Chiller
- Flood Coolant System
- Chip Conveyor
- Fully Enclosed Guarding
- Hydraulic System
- Work Light
- Door Interlock Safety System
|
| Travels: |
|---|
- X-Axis Travel: 43.3″ (1,100 mm)
- Y-Axis Travel: 22.0″ (560 mm)
- Z-Axis Travel: 20.1″ (510 mm)
- Rapid Traverse (X / Y / Z): Approx. 1,417 IPM (36 m/min)
|
| Table: |
|---|
- Table Size: 55.1″ × 22.0″ (1,400 × 560 mm)
- Maximum Table Load: Approx. 2,200 lbs (1,000 kg)
- 4th Axis Mounting: Integrated / Plug-and-Play
|
| Spindle: |
|---|
- Spindle Taper: CAT 40
- Maximum Spindle Speed: 15,000 RPM
- Spindle Motor Power: Approx. 20 HP (15 kW)
- Drive Type: Direct Drive
- Cooling: Oil-Air / Spindle Chiller
|
| Automatic Tool Changer: |
|---|
- Tool Capacity: 30 Tools
- Tool Type: CAT 40
- Tool Change Time: Approx. 1.6 Seconds
- Maximum Tool Weight: Approx. 17.6 lbs (8 kg)
|
| Feedrates: |
|---|
- Rapid Traverse (X / Y / Z): Approx. 1,417 IPM
- Maximum Cutting Feedrate: Up to Approx. 1,181 IPM
- High-Precision Servo Drives on All Axes
|
| CNC Control: |
|---|
- DMG MORI CELOS CNC Control (MAPPS)
- Large Color Touchscreen Display
- Conversational & G-Code Programming
- Ethernet / USB / Network Ready
- Advanced Diagnostics & Monitoring
- Tool Management & 4th Axis Support
|

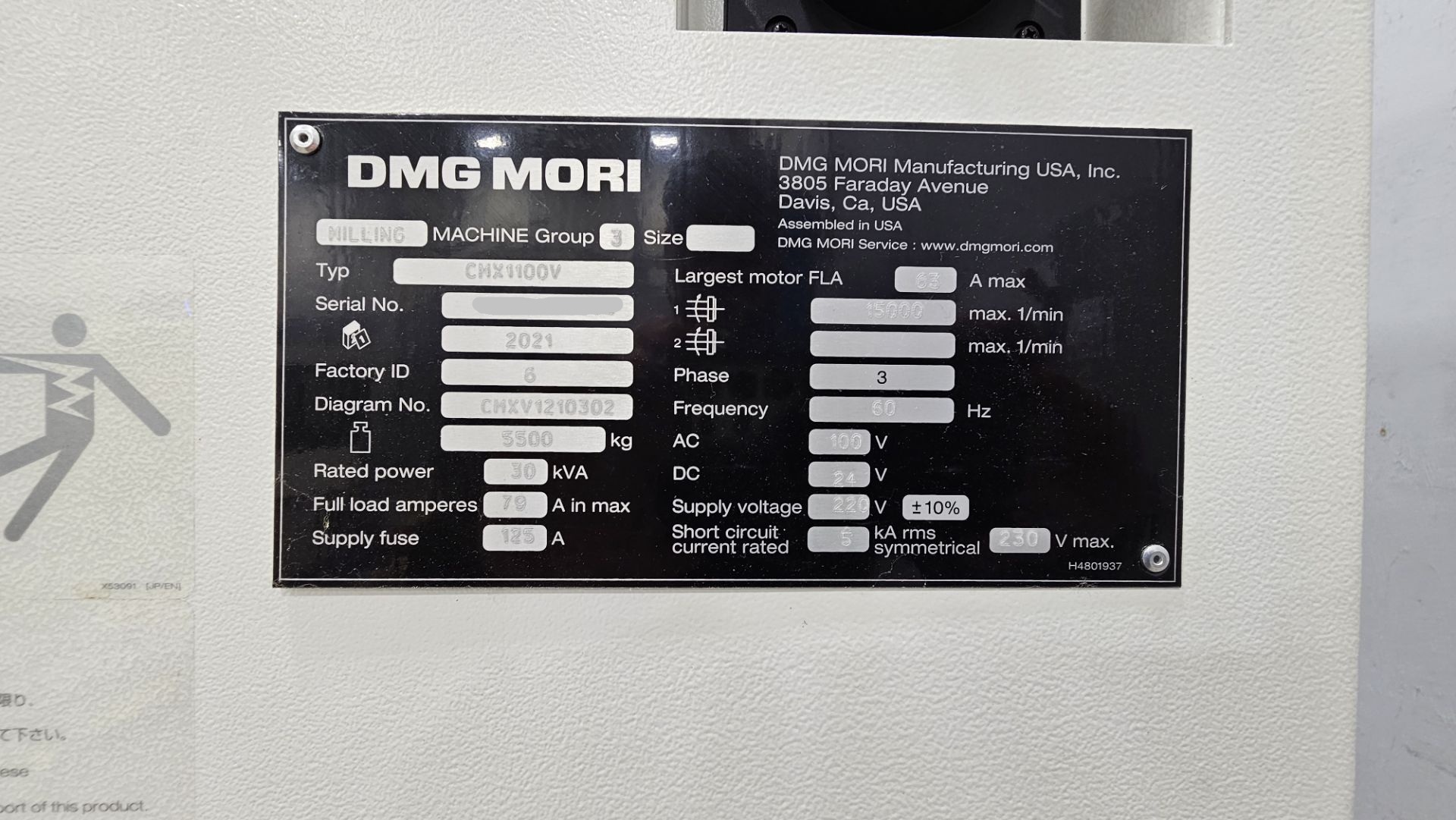

| Electrical: |
|---|
- Power Requirement: 220V ±10% / 3-Phase
- Frequency: 60 Hz
- Rated Power: 30 kVA
- Full Load Current: Approx. 79 Amps
- Control Voltage: AC 100V / DC 24V
- Short Circuit Rating: 5 kA
|
| Machine Dimensions & Weight: |
|---|
- Approx. Machine Weight: 12,100 lbs (5,500 kg)
- Compact Footprint with Large Work Envelope
|
| General: |
|---|
- Excellent Thermal Stability
- High Accuracy & Surface Finish
- Ideal for Aerospace, Medical, Automotive & Job Shop Work
|
