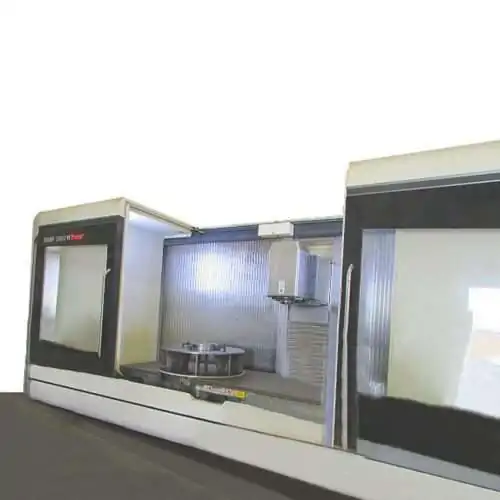

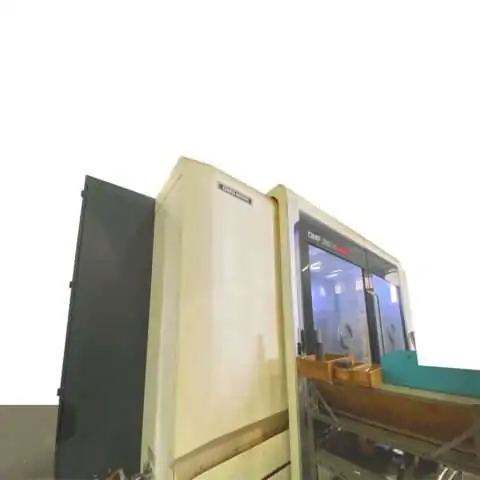

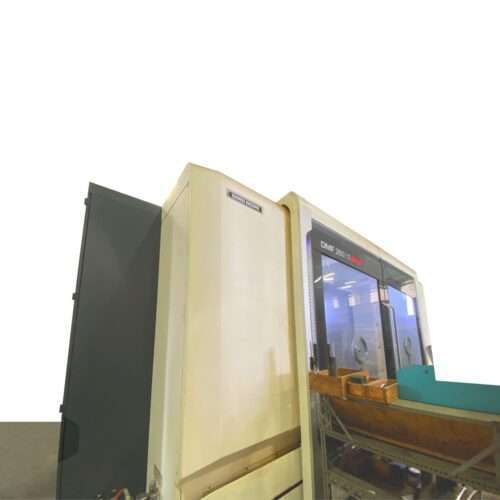

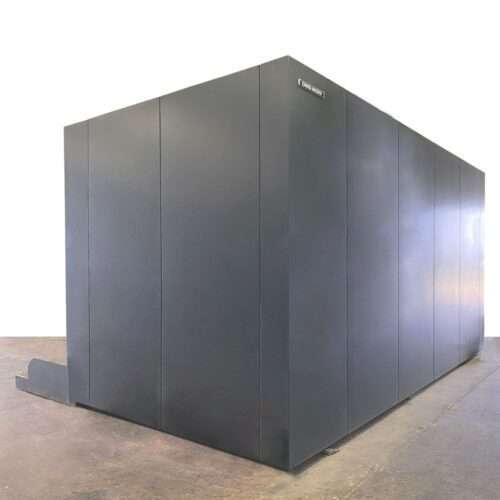

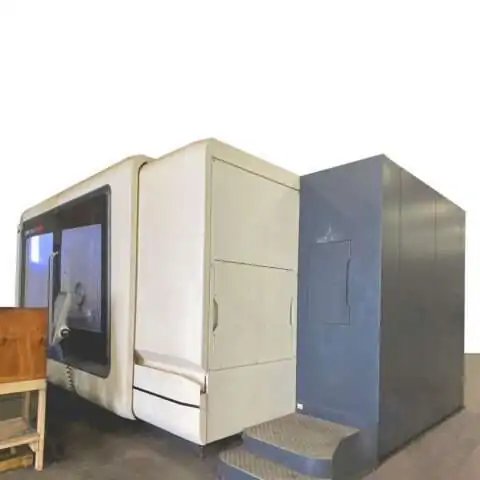

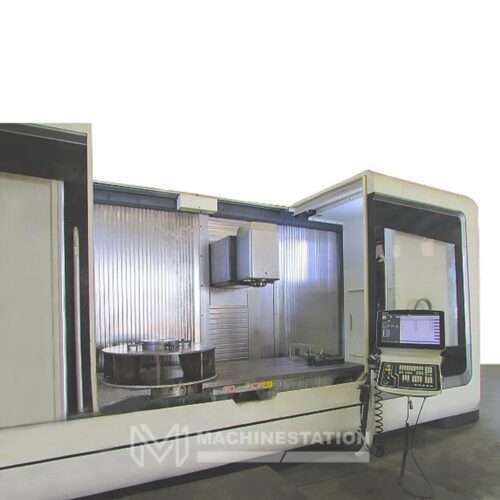

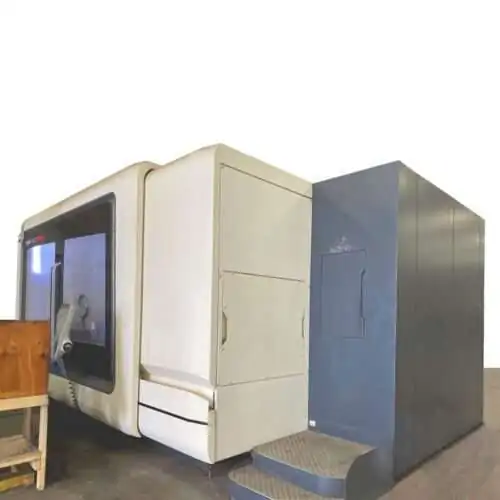

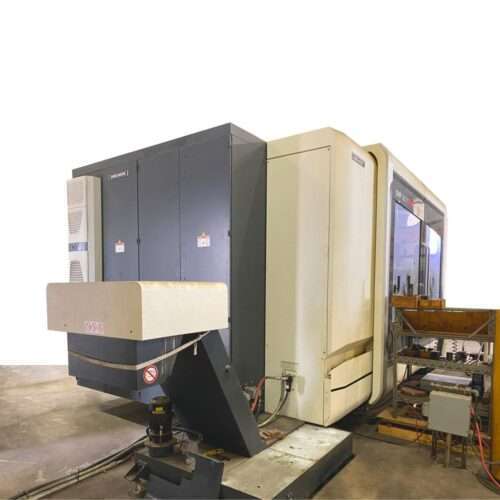

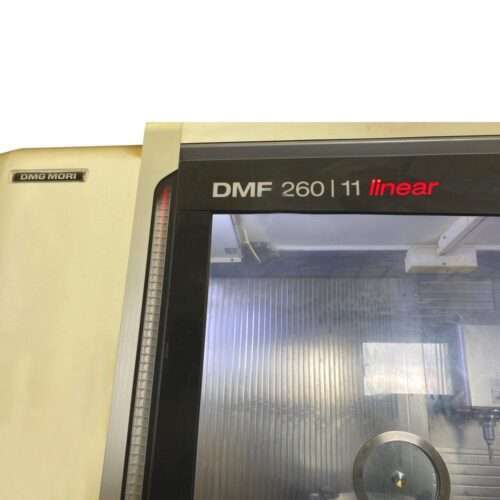

DMG Mori DMF 260/11 Linear CNC Multi Axis Machine Center

Out of stock

DMG Mori DMF 260/11 Linear CNC Multi Axis Machine Center for Sale.

Location: Houston, TX
SKU: 7001
Make: Dmg Mori
Model No: DMF 260/11 Linear
Video:
SKU: 7001

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 7001
Make/Model: Dmg Mori DMF 260/11 Linear
Year: 2015/2016



Equipped With:

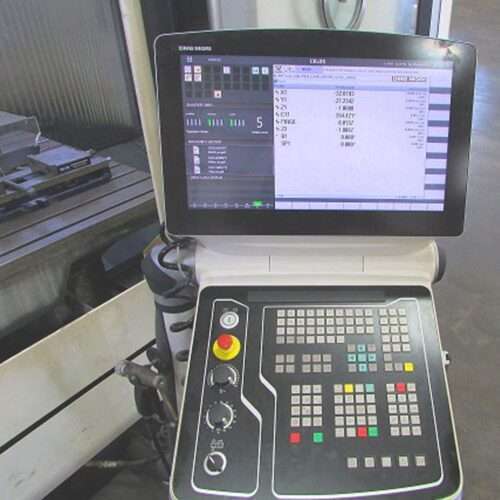

DMG Mori ERGOnline Control (5 Axis Simultaneous Contouring Control)
Articulating Spindle Head
Linear Guide Ways Construction

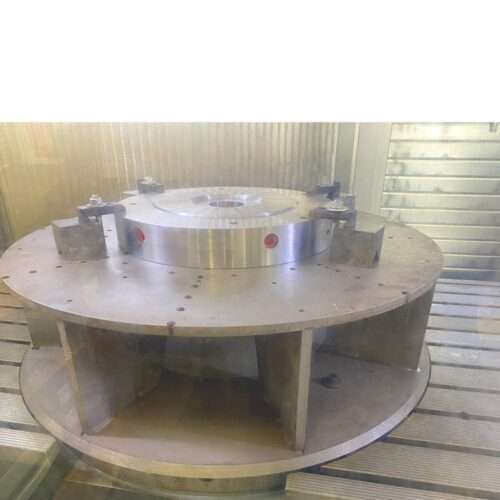

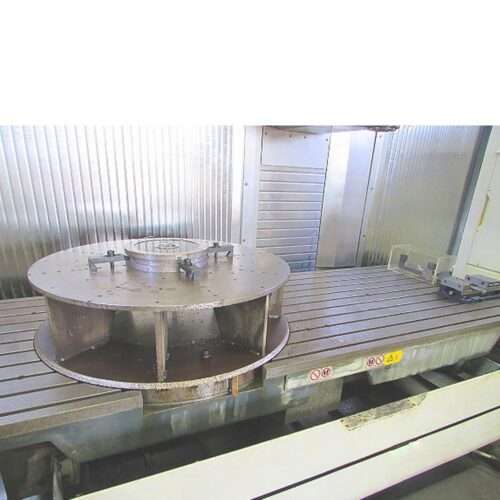

41.3″ Diameter Integrated NC Rotary Table
126” x 43.3” Fixed Table
69.7 HP High Torque Spindle Motor
120 Station Automatic Tool Changer
HSK A100 Taper 10000 RPM Spindle
Through Spindle Coolant

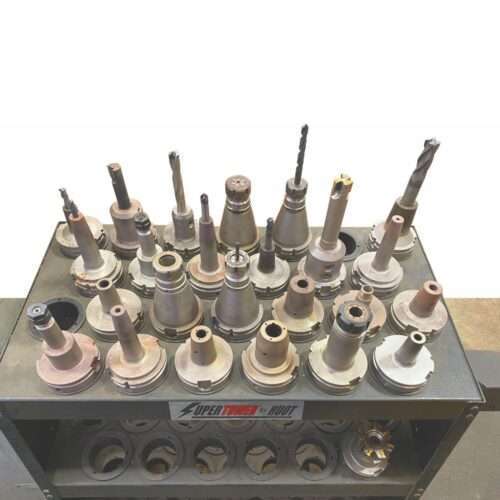

Lot of Tool Holders
MPG Control
Rigid Tapping
USB Drive
Telescopic way covers

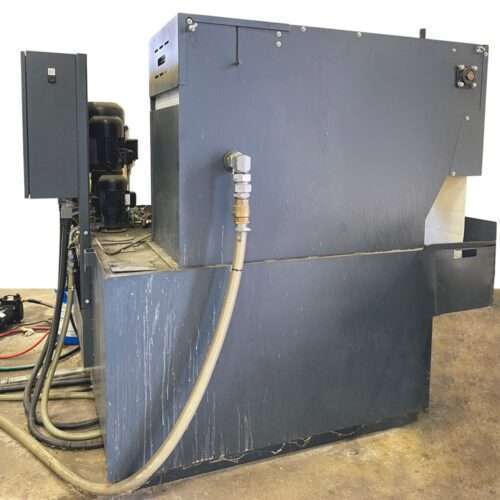

Coolant System

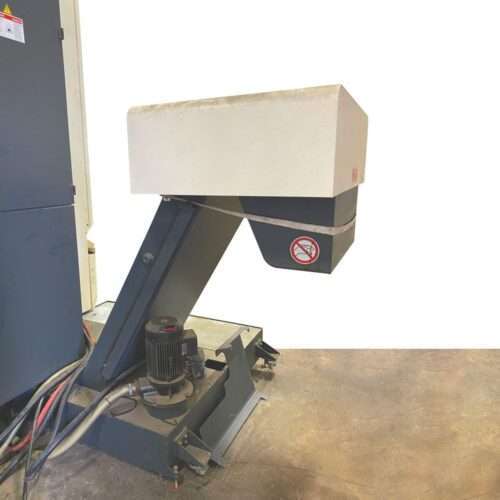

Chip Conveyor
Books and Manuals



Travels:
X-Axis: 120.0″
Y-Axis: 52.0″
Z-Axis: 30.0″



Feedrates:
Rapid Traverse Rates X, Y, Z Axis: 1575 Inch Per Minute
Cutting Feed Rates X, Z Axis: 472 Inch Per Minute
Cutting Feed Rates Y Axis: 393 Inch Per Minute



Table:
Length: 126.0″
Width: 43.3″
Max Weight on Table: 8,818 lbs
Integrated NC Rotary Table:
Diameter: 41.3″
Max Weight on Table: 2,645 lbs



Spindle:
Taper Size: HSK A100
Speed Range: 10000 RPM
Spindle Power: 69.7 HP



Automatic Tool Changer:
Capacity: 120 Station
Taper Size: HSK A100
Max Tool Weight: 33 lbs
Max Tool Length: 16.1″
Max Tool Diameter: 4.5″



General:
Air Required: 100 psi, 4 scfm

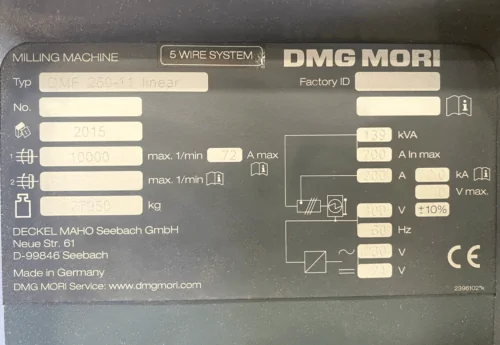

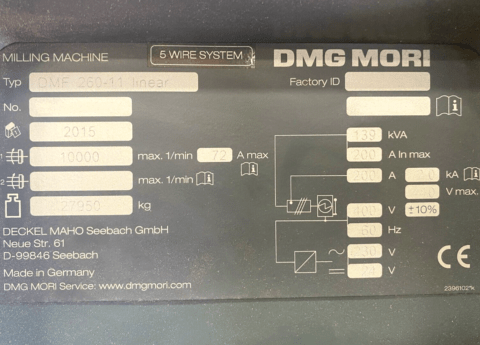

Power: 230v / 139kva / 3-Phase
Overall Dimensions: 320″ x ” x 245″ High
Weight: 66,619lbs

Introducing the DMG Mori DMF 260/11 Linear CNC Multi Axis Machine Center , a powerhouse of precision and versatility. This cutting-edge machining center is designed to deliver exceptional performance and optimize your manufacturing processes.

Equipped with the DMG Mori ERGOnline Control, the DMG Mori DMF 260/11 offers advanced 5-axis simultaneous contouring control, enabling complex machining operations with ease. The articulating spindle head provides flexibility and allows for multi-angle machining, expanding the range of applications.

Built with linear guideways construction, this machining center focuses stability, rigidity, and superior accuracy during machining operations. The 41.3″ diameter integrated NC rotary table and the 126″ x 43.3″ fixed table provide ample workspace and the ability to handle various workpieces.

The DMG Mori DMF 260/11 Multi Axis Milling Center is equipped with a high torque spindle motor, generating 69.7 HP, and a 10000 RPM spindle with HSK A100 taper, offering efficient material removal and optimal cutting performance. The through-spindle coolant feature enhances machining capabilities, keeping temperatures under control and prolonging tool life.

With a 120-station automatic tool changer, this machining center enables seamless tool management and rapid tool changes, minimizing downtime and optimizing productivity. The DMG Mori DMF 260/11 Multi Axis Milling comes with a lot of tool holders, allowing versatility and compatibility with a wide range of cutting tools.

Convenient features like MPG Control, Rigid Tapping, and USB Drive further enhance the machining process, providing ease of operation and flexibility in programming and data transfer. The inclusion of telescopic way covers protects critical components from debris and contaminants, enabling long-lasting performance and minimizing maintenance.

This multi axis machining center is equipped with a coolant system and a chip conveyor, facilitating efficient chip management and maintaining a clean work environment. Books and manuals are provided to assist users in getting the most out of their machine and assist in proper operation.

Operating at 100 psi and requiring 4 scfm, the DMF 260/11 requires minimal air supply. It operates on 230V power, with a rating of 139 kVA and 3-Phase configuration. With overall dimensions of 320″ x ” x 245″ (H) and a weight of 66,619 lbs, this machining center is built to handle heavy-duty machining tasks.

Experience precision and versatility at its finest with the DMG Mori DMF 260/11 Linear CNC Multi Axis Machine Center . Elevate your manufacturing capabilities, optimize productivity, and achieve outstanding machining results with this cutting-edge solution.
