*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

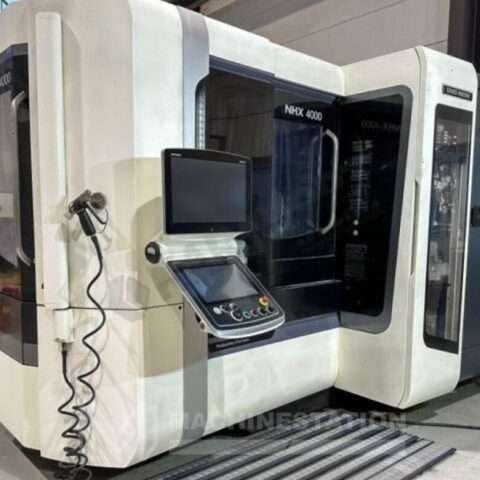

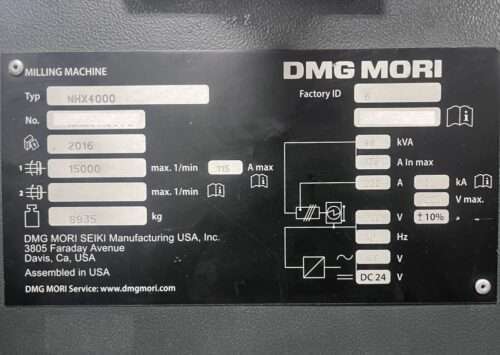

| Make: | DMG Mori |

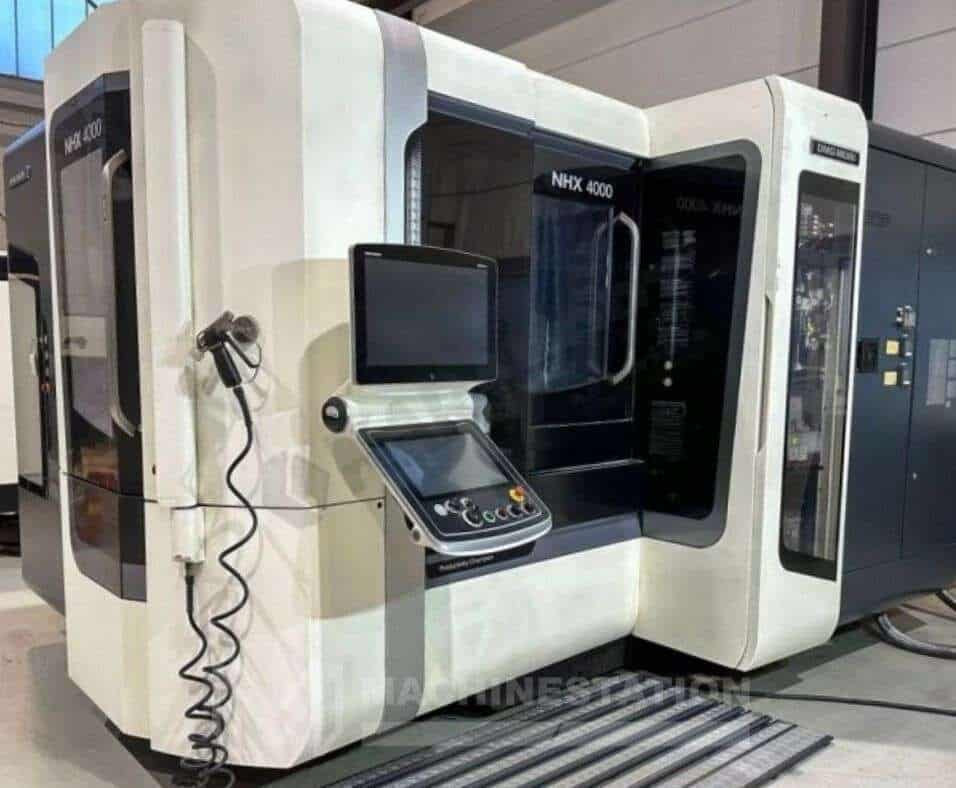

| Model: | NHX-4000 |
| Year: | 2016 |
| Condition: | Used – Excellent |
| Features: |
|---|

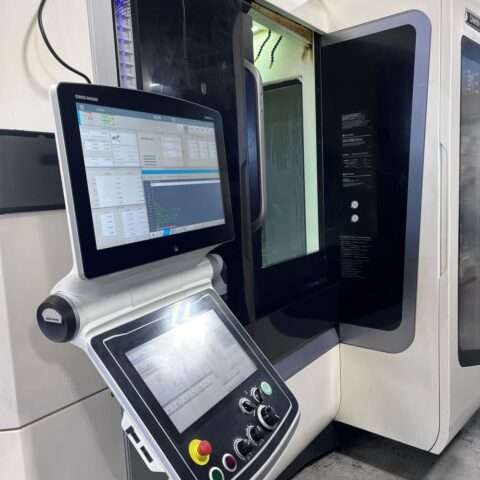

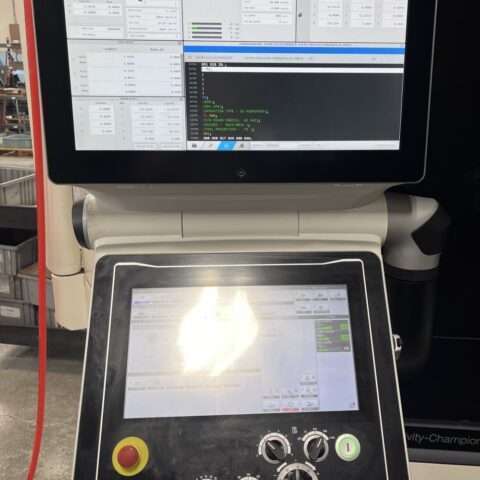

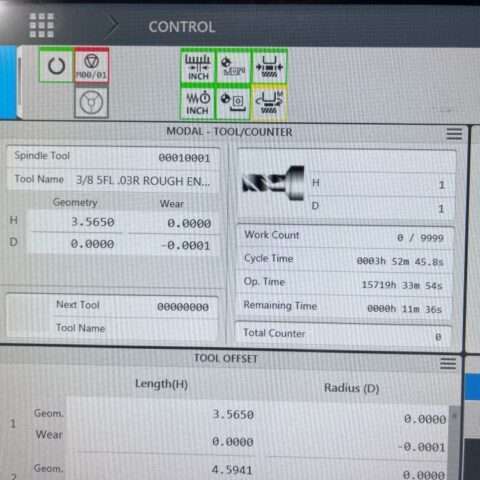

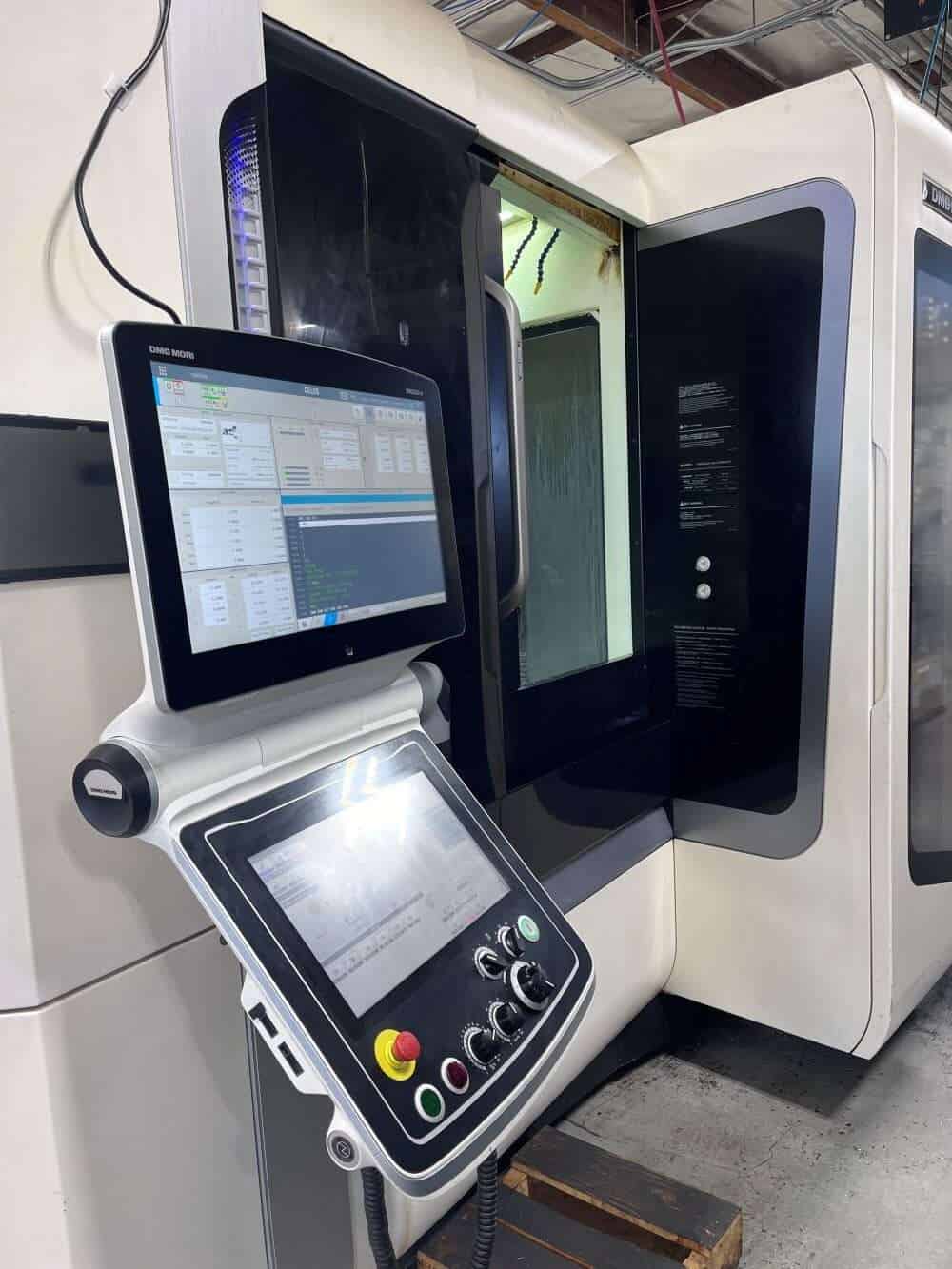

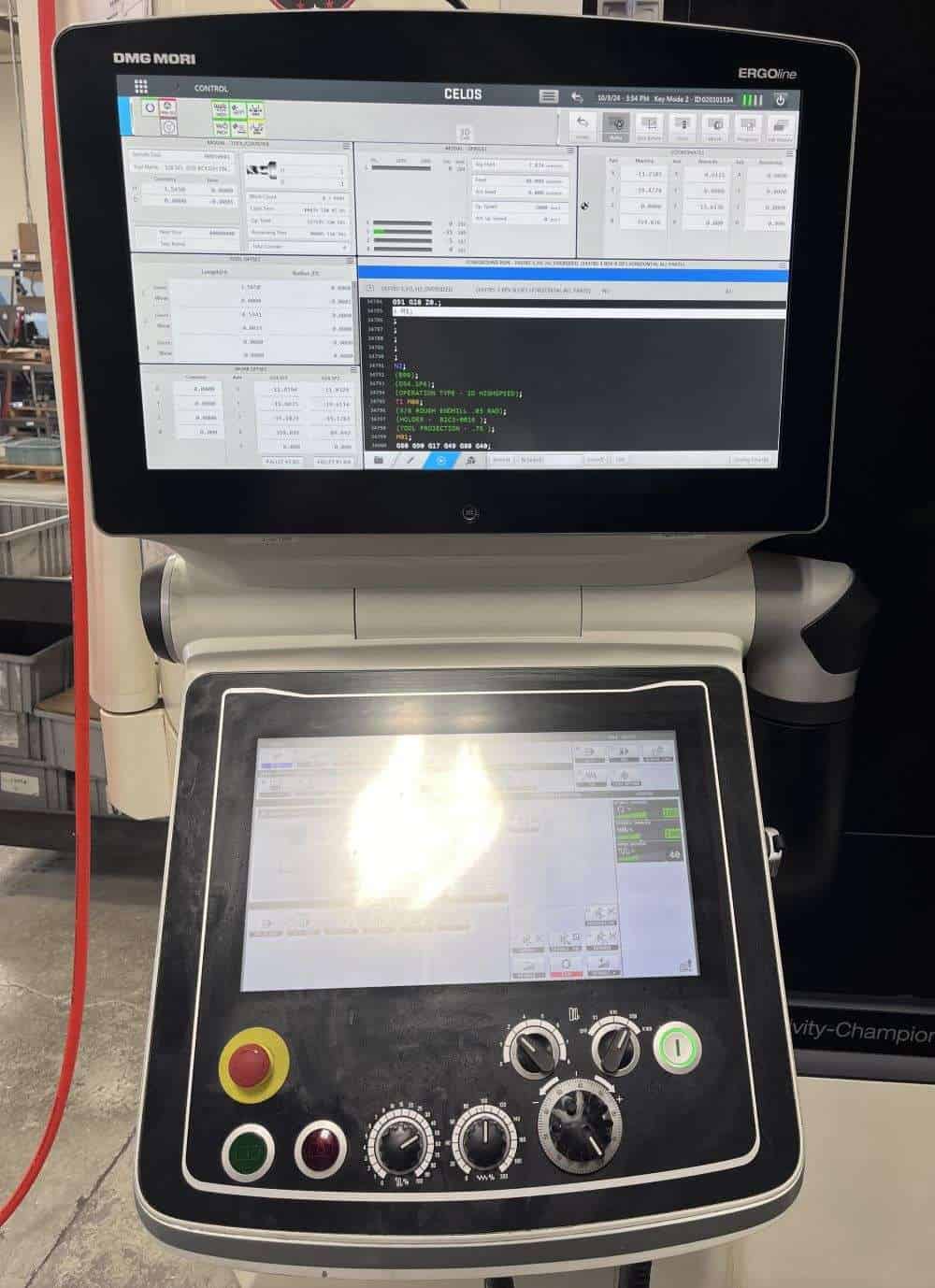

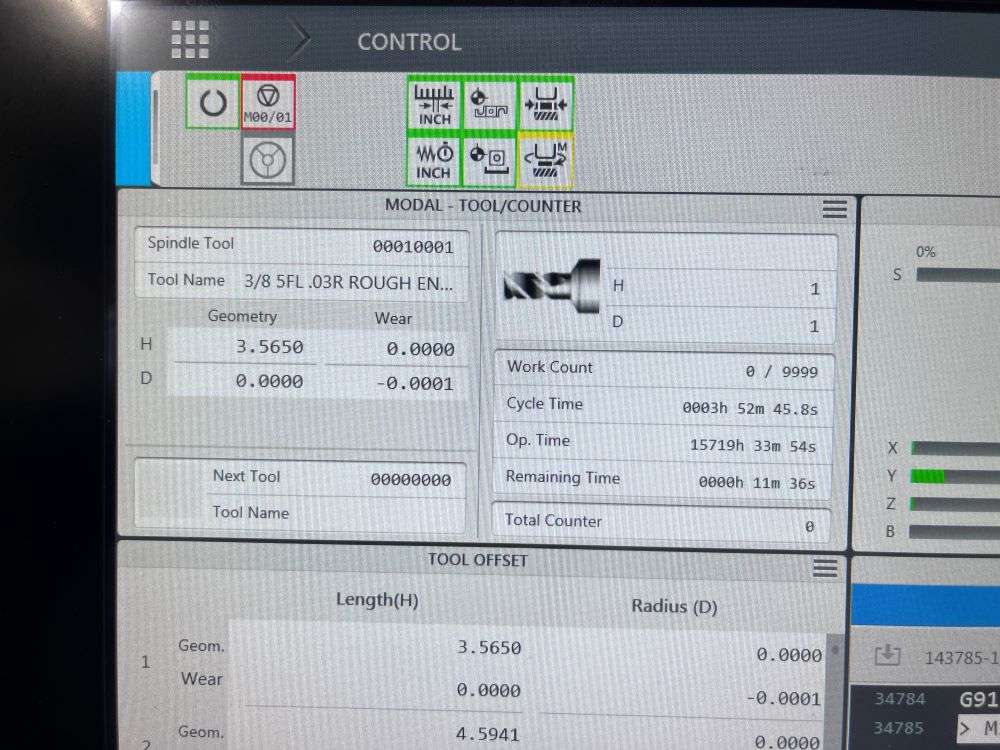

| DMG Mori CELOS ERGOline CNC Control |

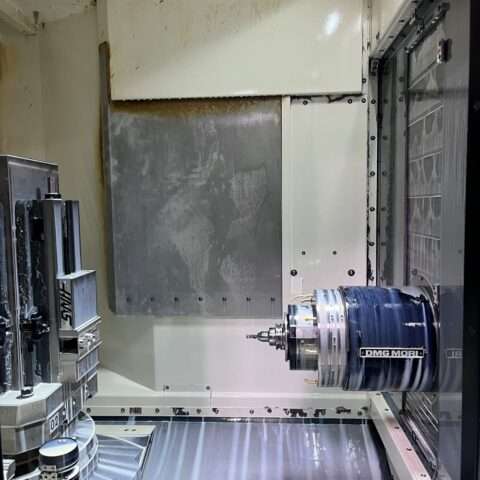

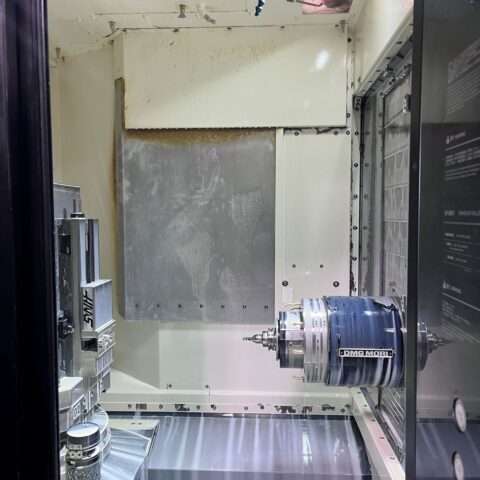

| Full 4th Axis |

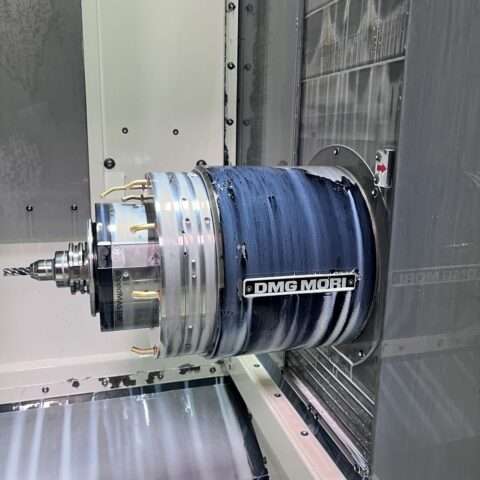

| 15,000 RPM High Precision Spindle |
| Coolant through Spindle |
| Twin Pallet Changer |

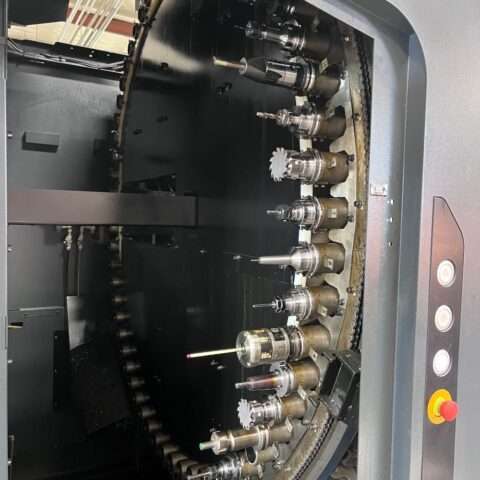

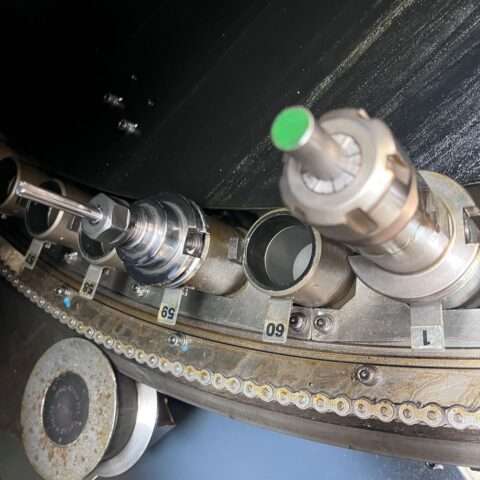

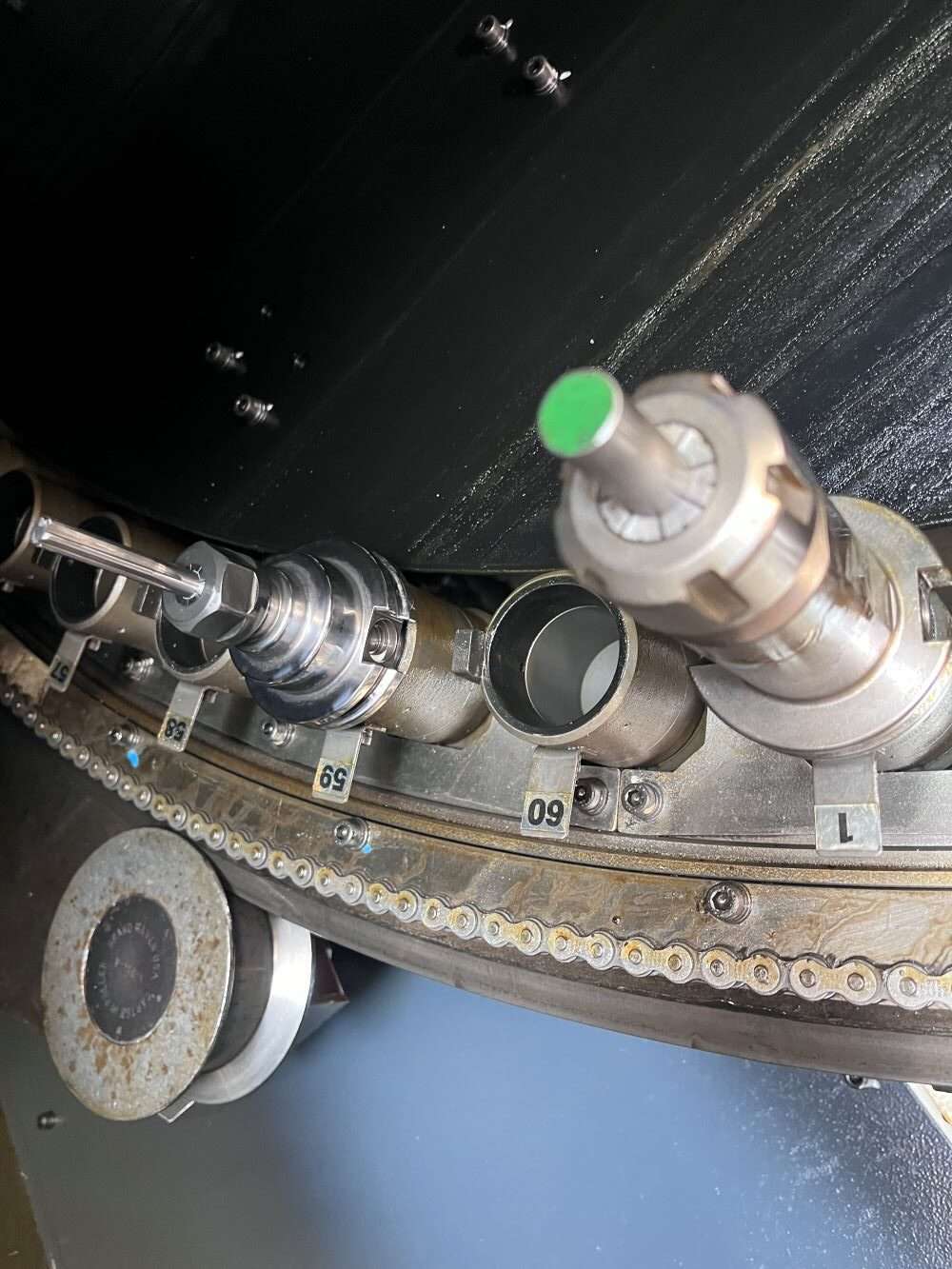

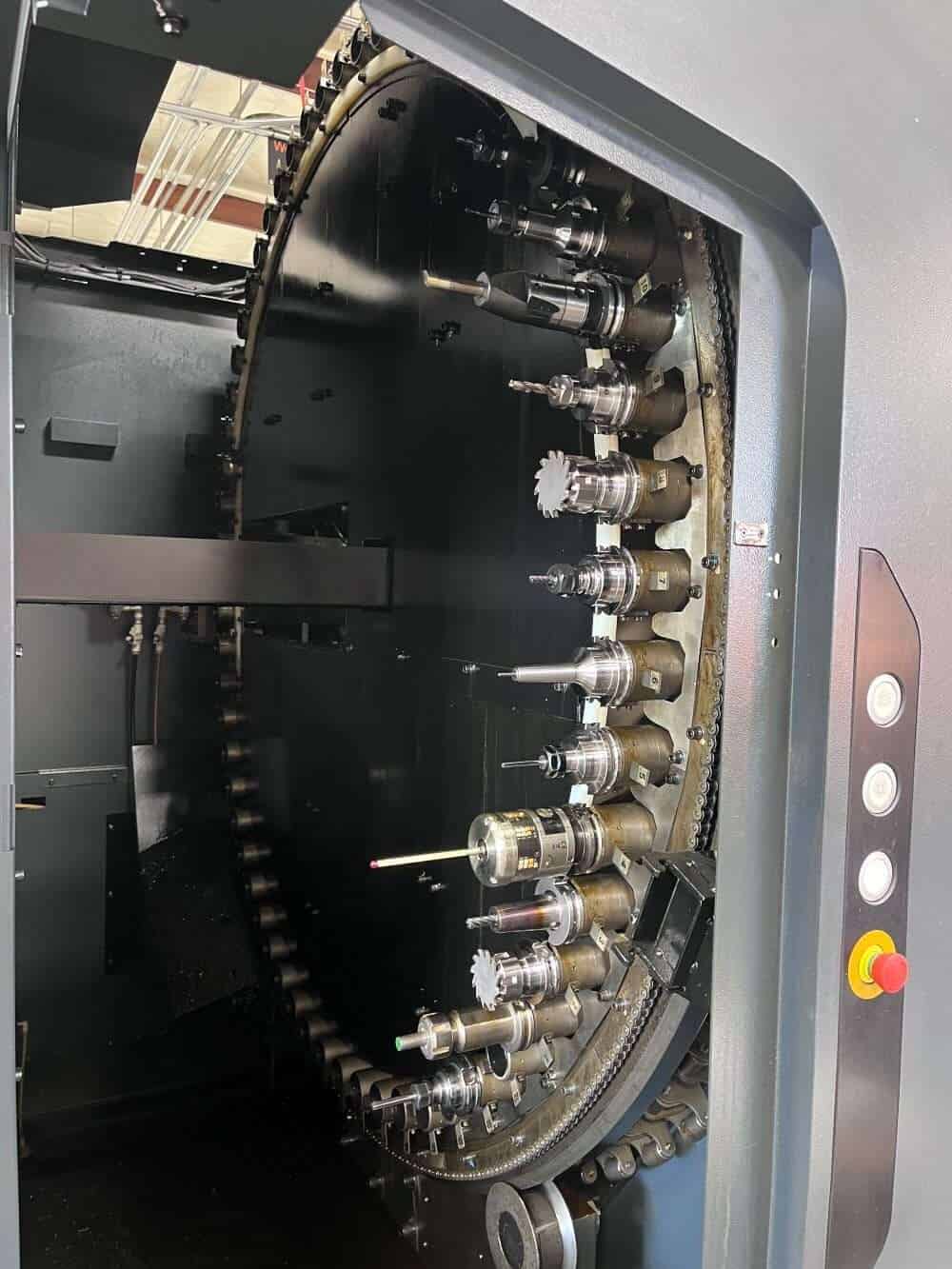

| 60 Station Automatic Tool Changer |
| USB Ports |
| Pallet Seat Detection |
| Spindle Orientation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |

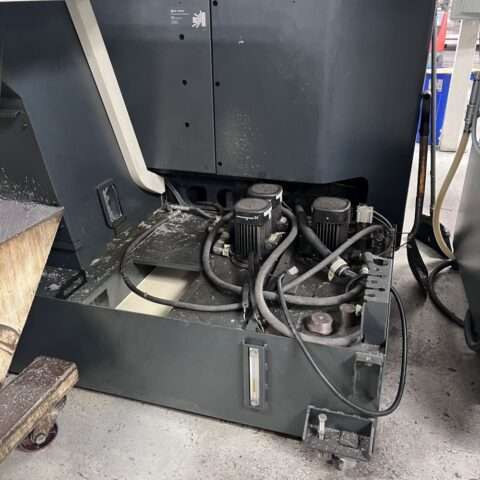

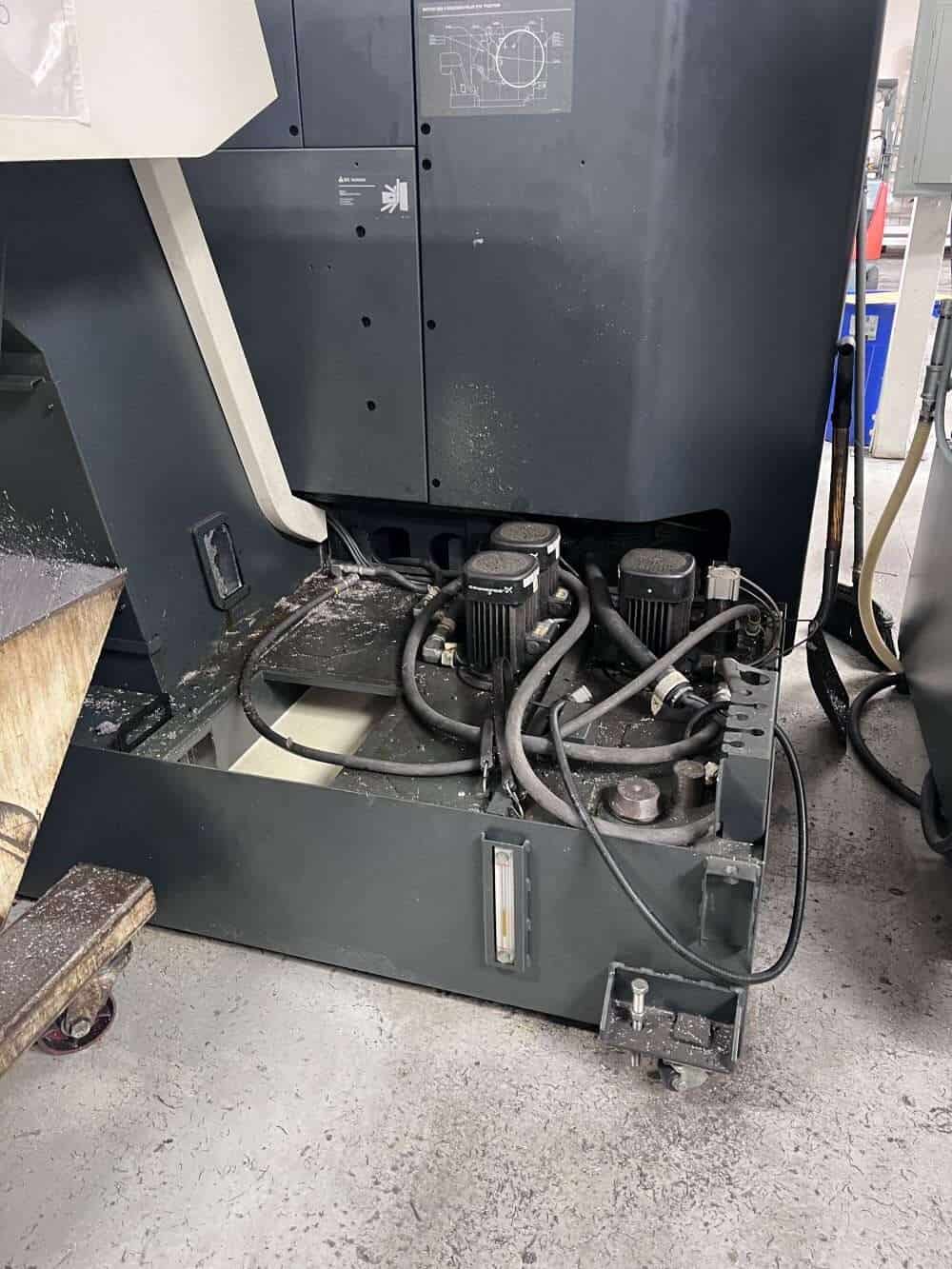

| Coolant System |
| Chip Conveyor |

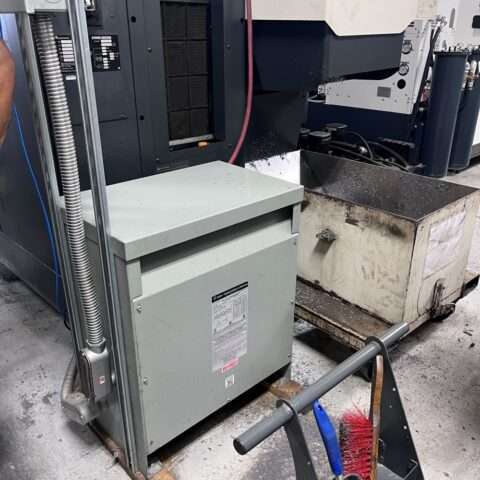

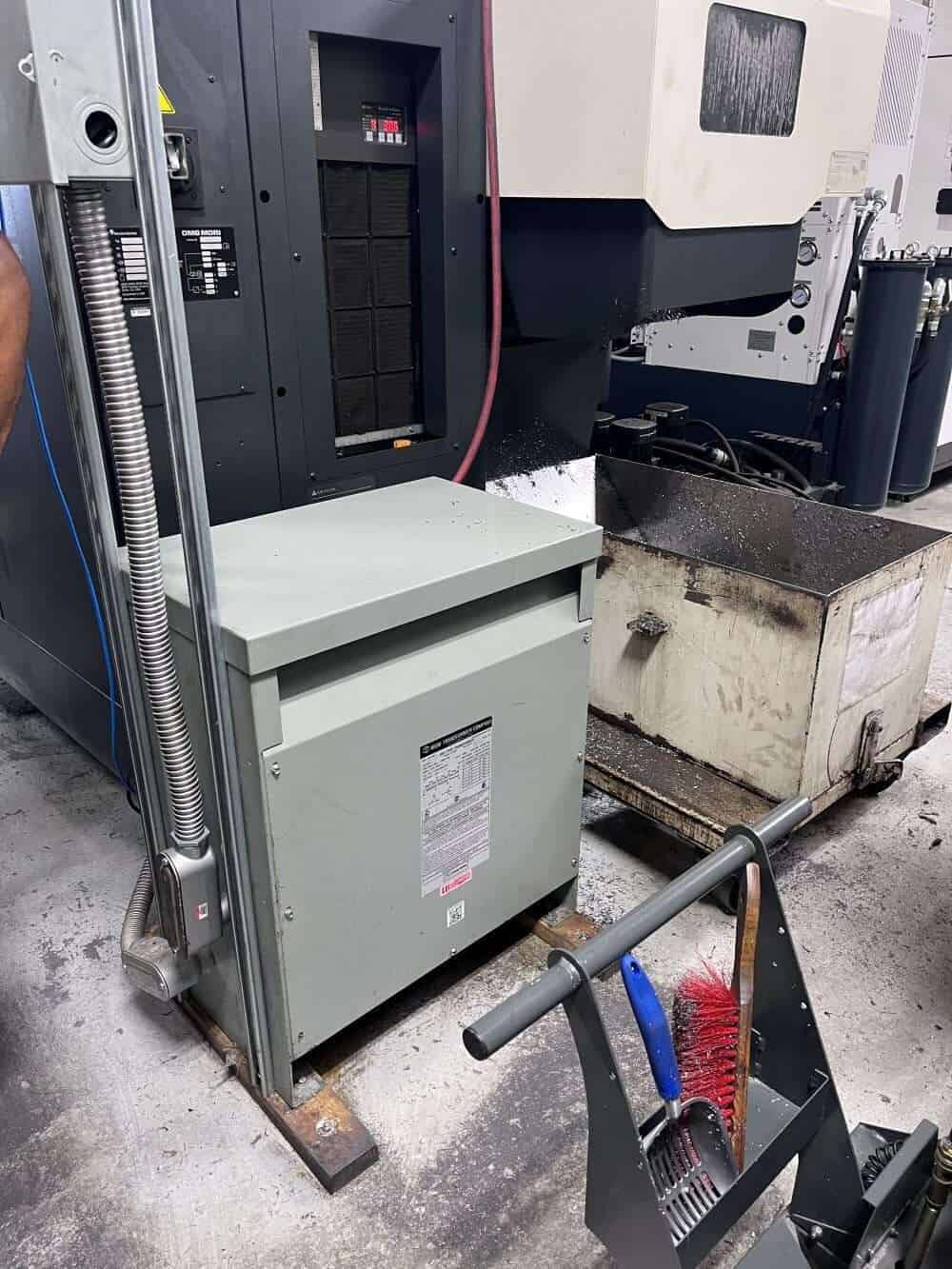

| Transformer |
| Travels: |
|---|
| X Axis: 22.0″ |
| Y Axis: 22.0″ |
| Z Axis: 26.0″ |
| B Axis: 0.001° ( Full 4th ) |
| Table: |
|---|
| Length: 15.7″ |
| Width: 15.7″ |
| Max Weight on Table: 882 lbs |
| Max Workpiece Height: 35.4″ |
| Index Time: 8 seconds |

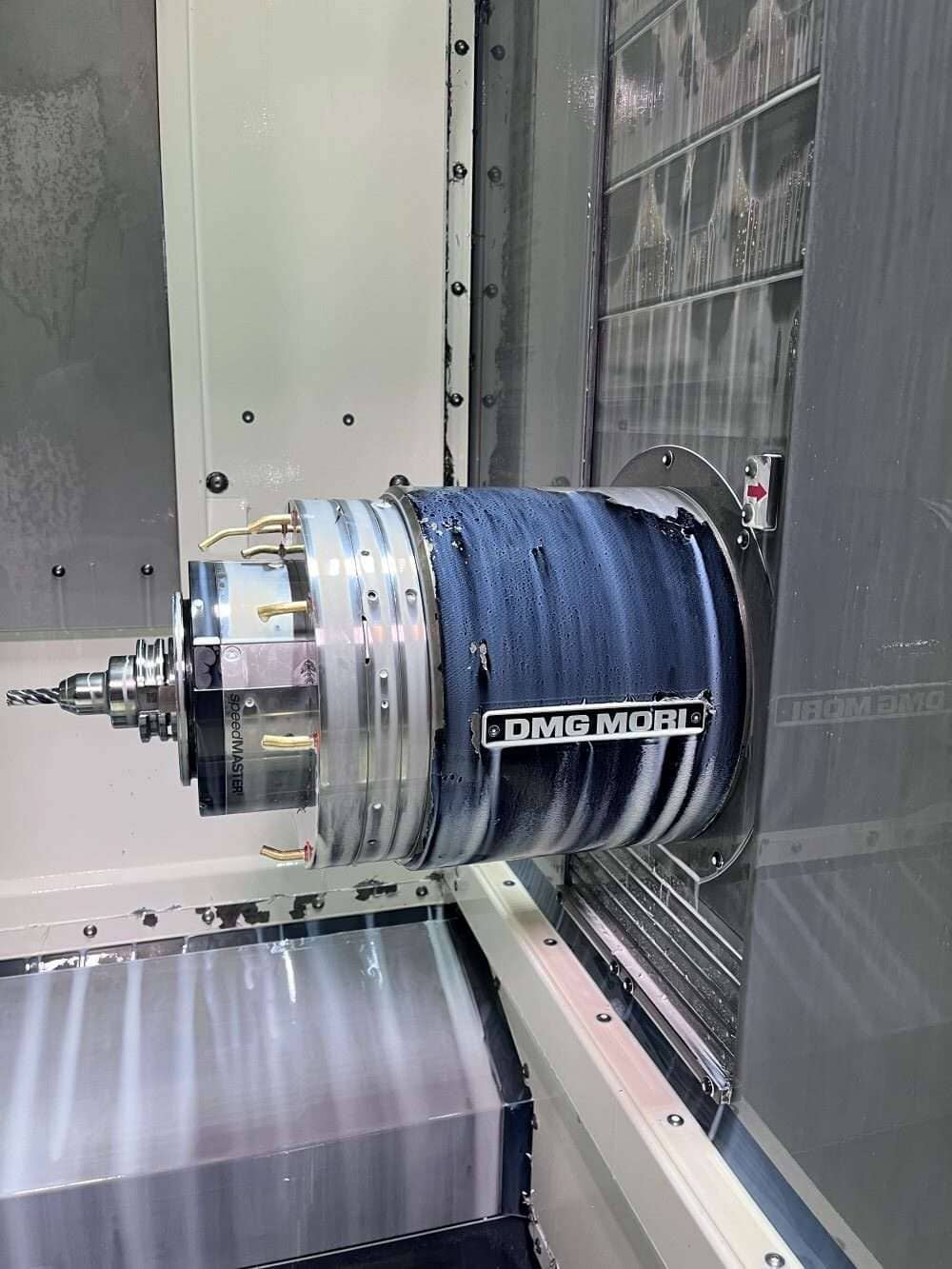

| Spindle: |
|---|
| Taper Size: 40 |
| Max. Speed: 15,000 RPM |
| Power: 40 HP |
| Torque: 76.7 ft/lbs |
| Feed rates: |
|---|
| Rapid X & Y : 2352 Inch Per Minute |
| Rapid Z : 2352 Inch Per Minute |
| Cutting Feedrate : 984 Inch Per Minute |
| Tool changer: |
|---|
| Capacity: 60 Tools |
| Taper: 40 |

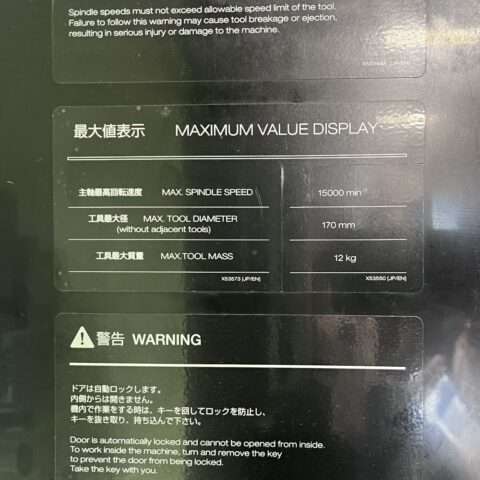

| Max Tool Size: 6.69″ |
| Max Tool Length: 17.7″ |
| Max Tool Weight: 26.45 lbs. |
| Tool Change Time: 0.9 Second |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

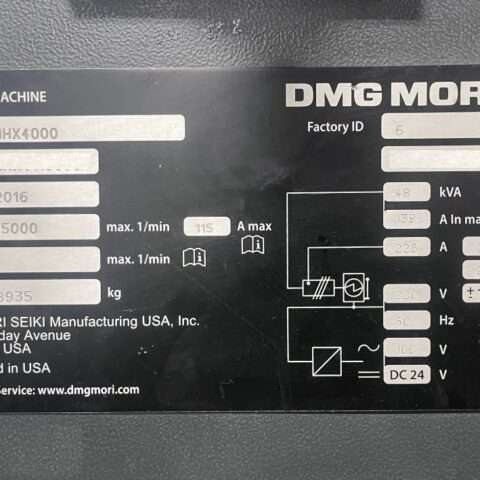

| Power: 48 kva / 205-220v / 3-Phase |
| Overall Dimensions: 165″ X 105″ x 100″ High |
| Weight: 19,700 lbs |
