*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

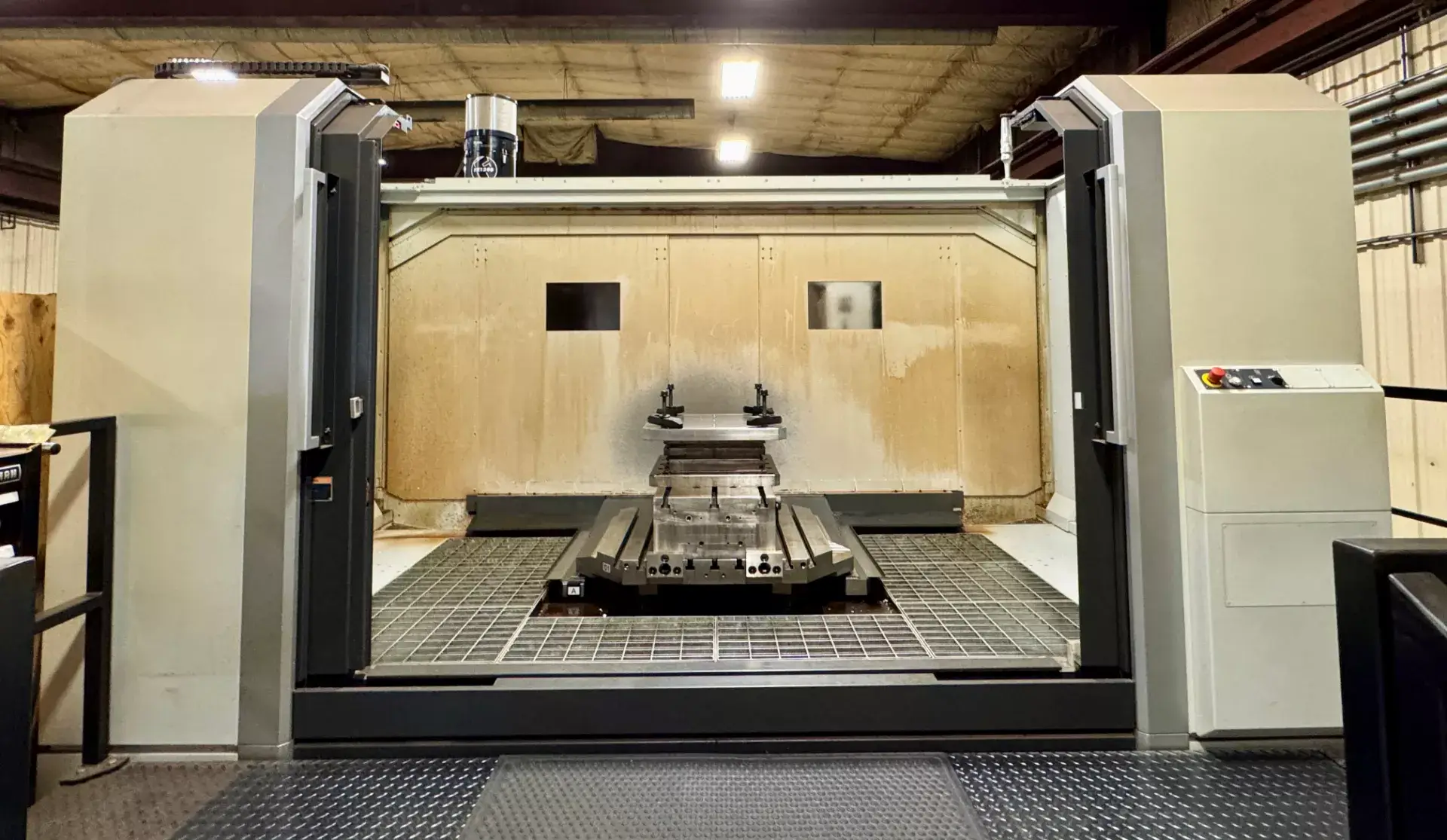

| Make: |
DMG MORI |
| Model: |
NHX 10000 |
| Year: |
2017 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Horizontal Machining Center |
| CNC Control: |
MAPPS V (Fanuc Based) |
| Country of Origin: |
Japan |
| Equipped With: |

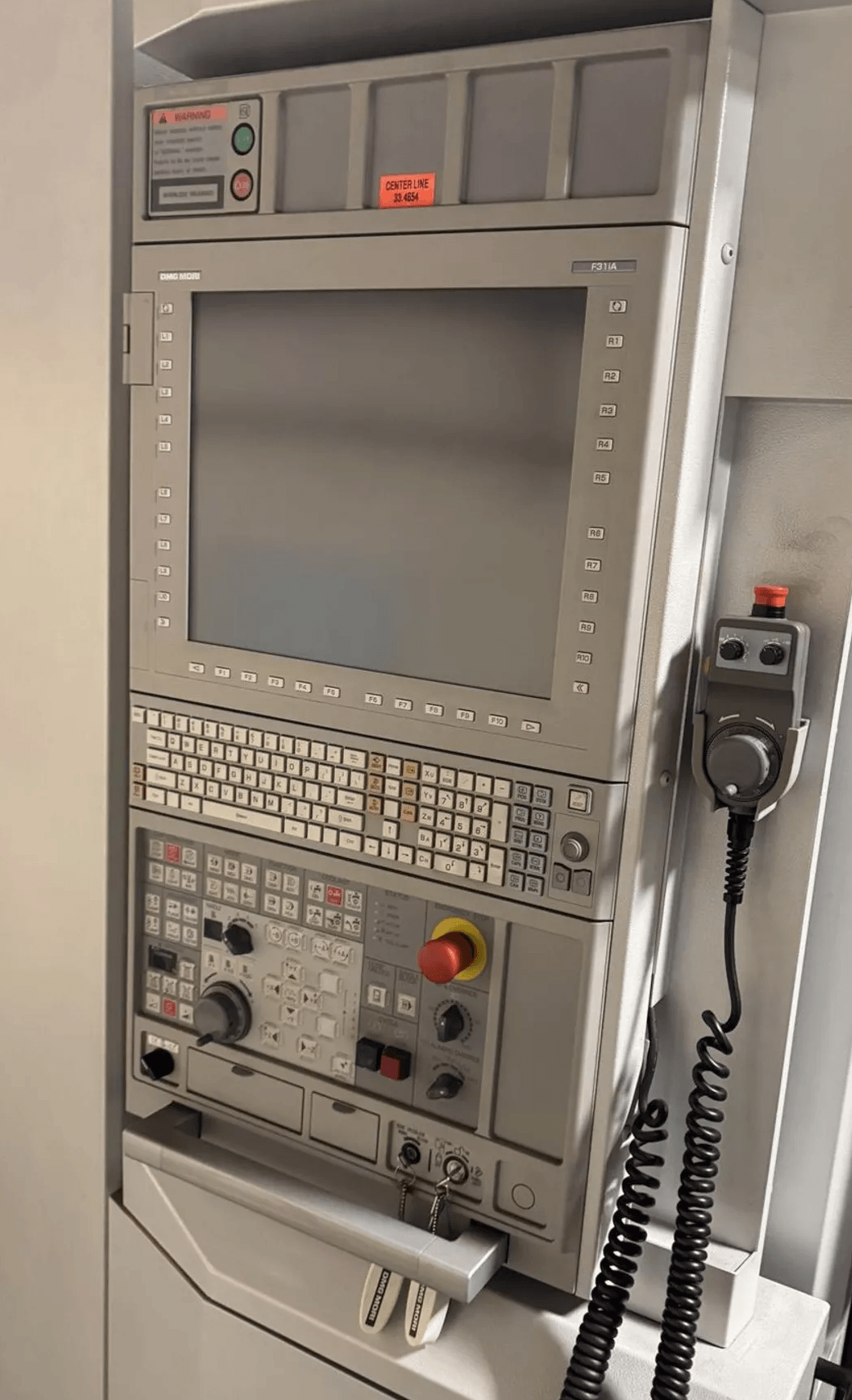

| MAPPS V CNC Control |

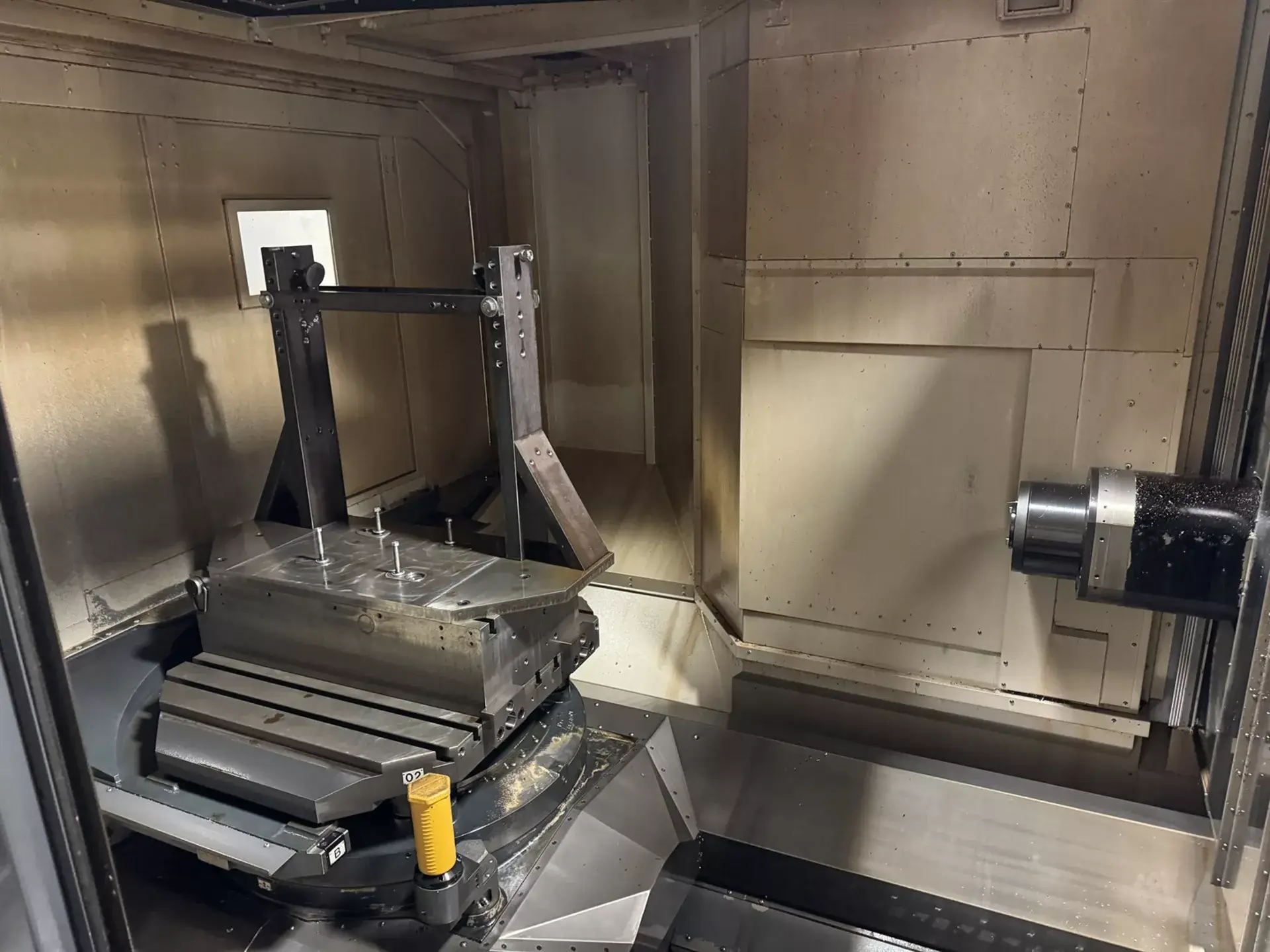

| 2-Pallet Automatic Pallet Changer (APC) |
| High Speed Spindle |
| Through Spindle Coolant (if equipped) |
| Chip Conveyor |
| Coolant System |
| Rigid Tapping |
| Full Enclosure |
| Manual Pulse Generator (MPG) |
| Capacity: |
| Pallet Size: 39.4″ x 39.4″ (1000 x 1000 mm) |
| Pallet Load Capacity: 6,600 lbs |
| Max Workpiece Diameter: 55.1″ |
| Max Workpiece Height: 51.2″ |
| Travels: |
| X-Axis Travel: 63″ |
| Y-Axis Travel: 55.1″ |
| Z-Axis Travel: 55.1″ |
| B-Axis: 360° Indexing (0.001° Increment) |
| Spindle: |
| Spindle Speed: 6,000 RPM (Standard) |
| Optional Speed: Up to 10,000 RPM |
| Spindle Taper: CAT50 / BT50 |
| Spindle Motor: 50 HP (Approx.) |
| Tool Changer: |
| Tool Capacity: 60 ATC (Typical) |
| Optional ATC: 120 / 180 / 240 Tools |
| Tool Change Time: Approx. 1.5 – 2.0 Seconds |
| Max Tool Diameter: 7.9″ |
| Max Tool Length: 31.5″ |
| Max Tool Weight: 66 lbs |
| Feed Rates: |
| Rapid Traverse (X/Y/Z): Approx. 2,362 IPM |
| B-Axis Rapid Speed: High Speed Indexing |
| Cutting Feed Rate: Programmable |

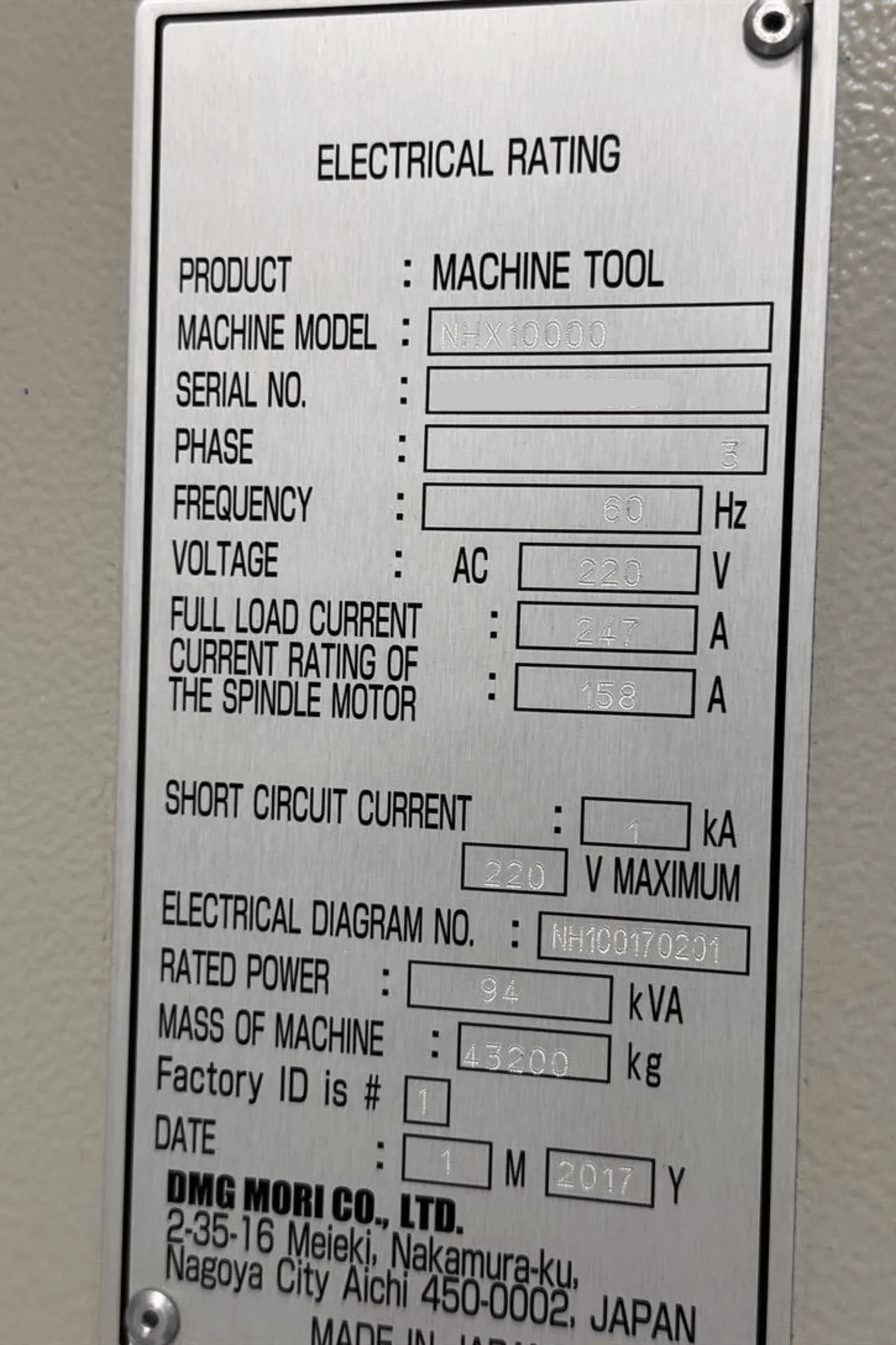

| Electrical: |
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Power: 94 kVA |
| General: |
| Machine Weight: Approx. 95,200 lbs (43,200 kg) |
| Construction: Heavy-Duty Box Way / Roller Guide Hybrid |
| High Accuracy & High Production Capability |
