*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

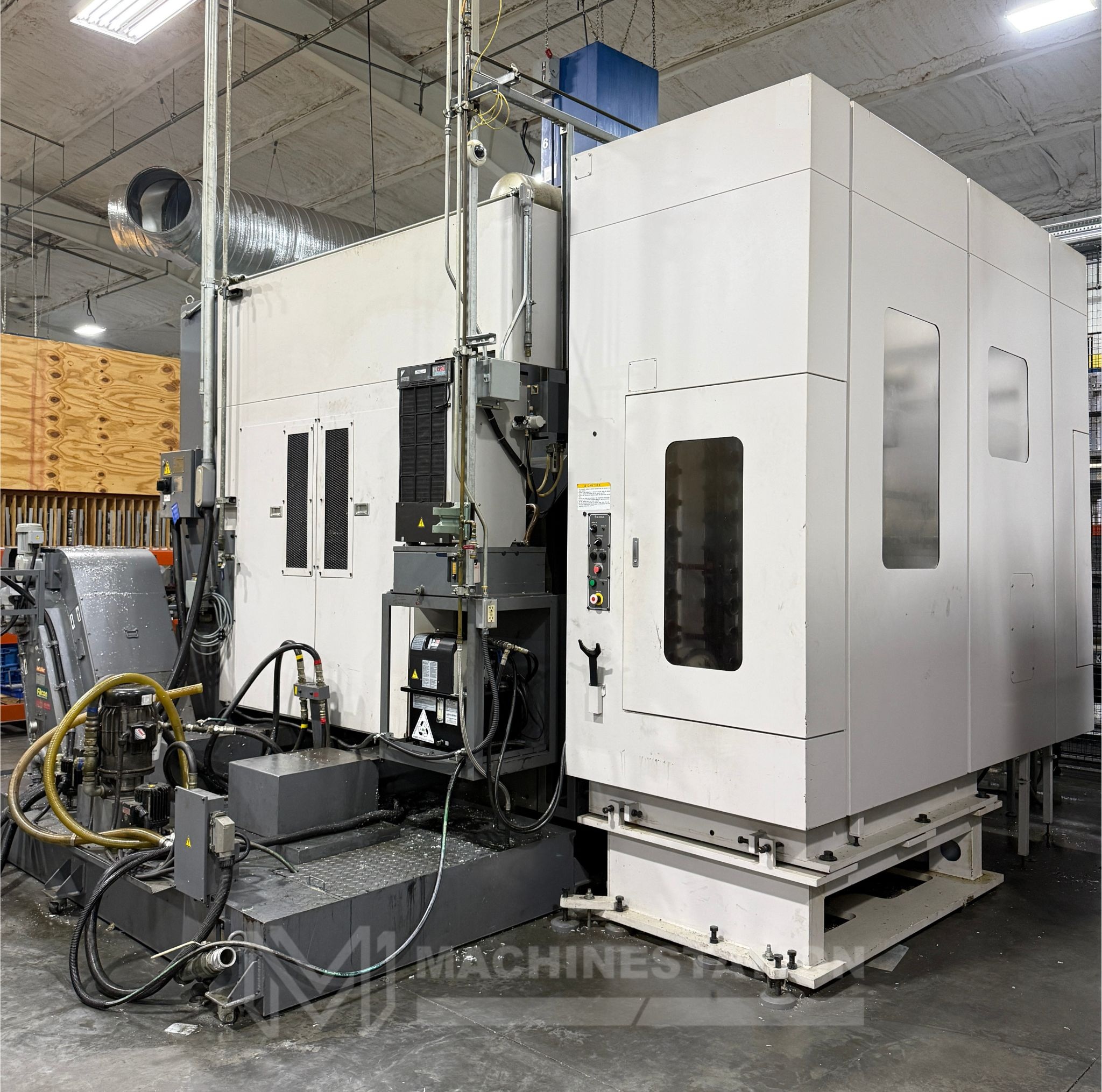

| Make: | Okuma |
| Model: | Millac 800VH |
| Year: | 2008 |
| Features: |
|---|

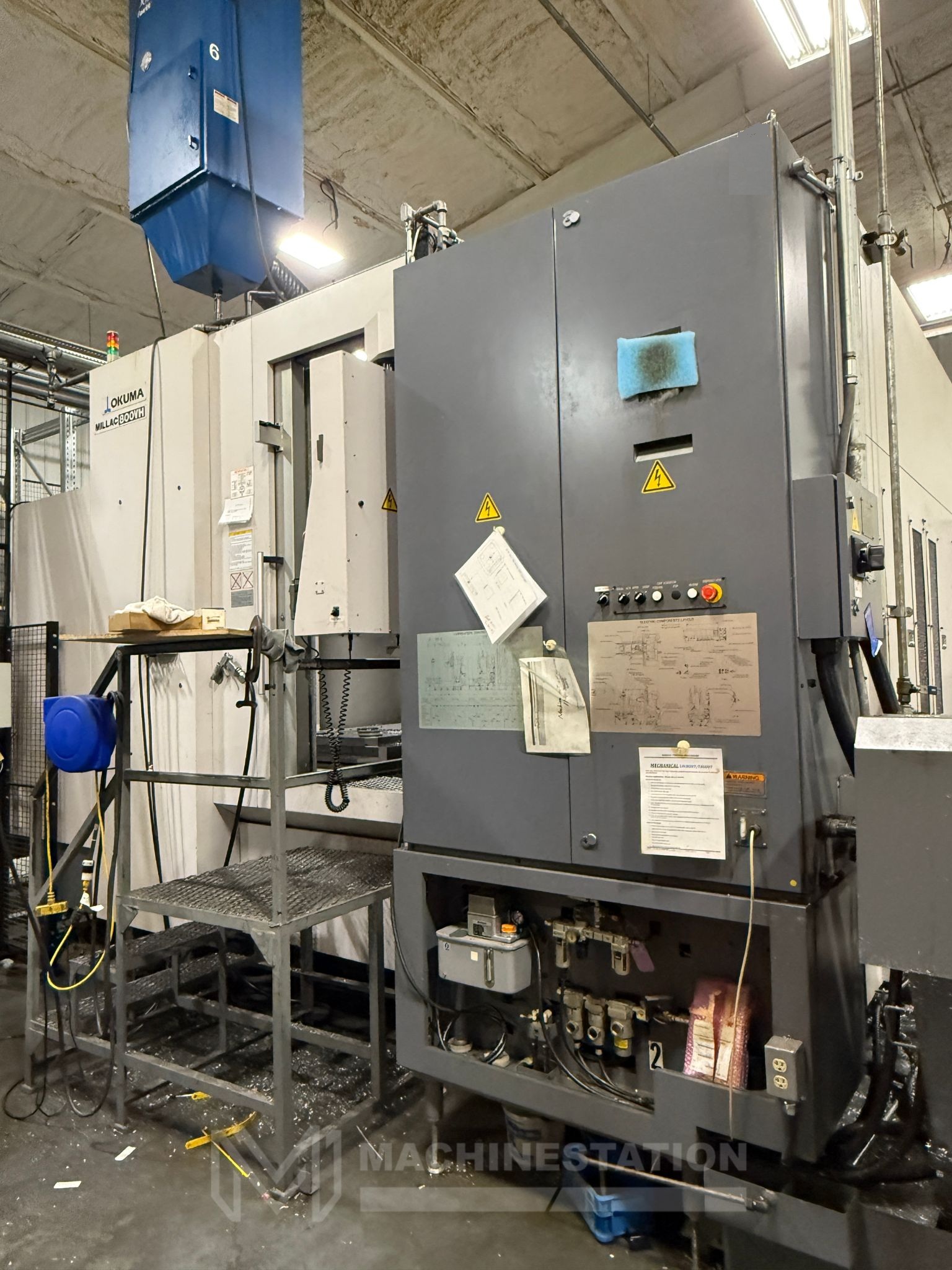

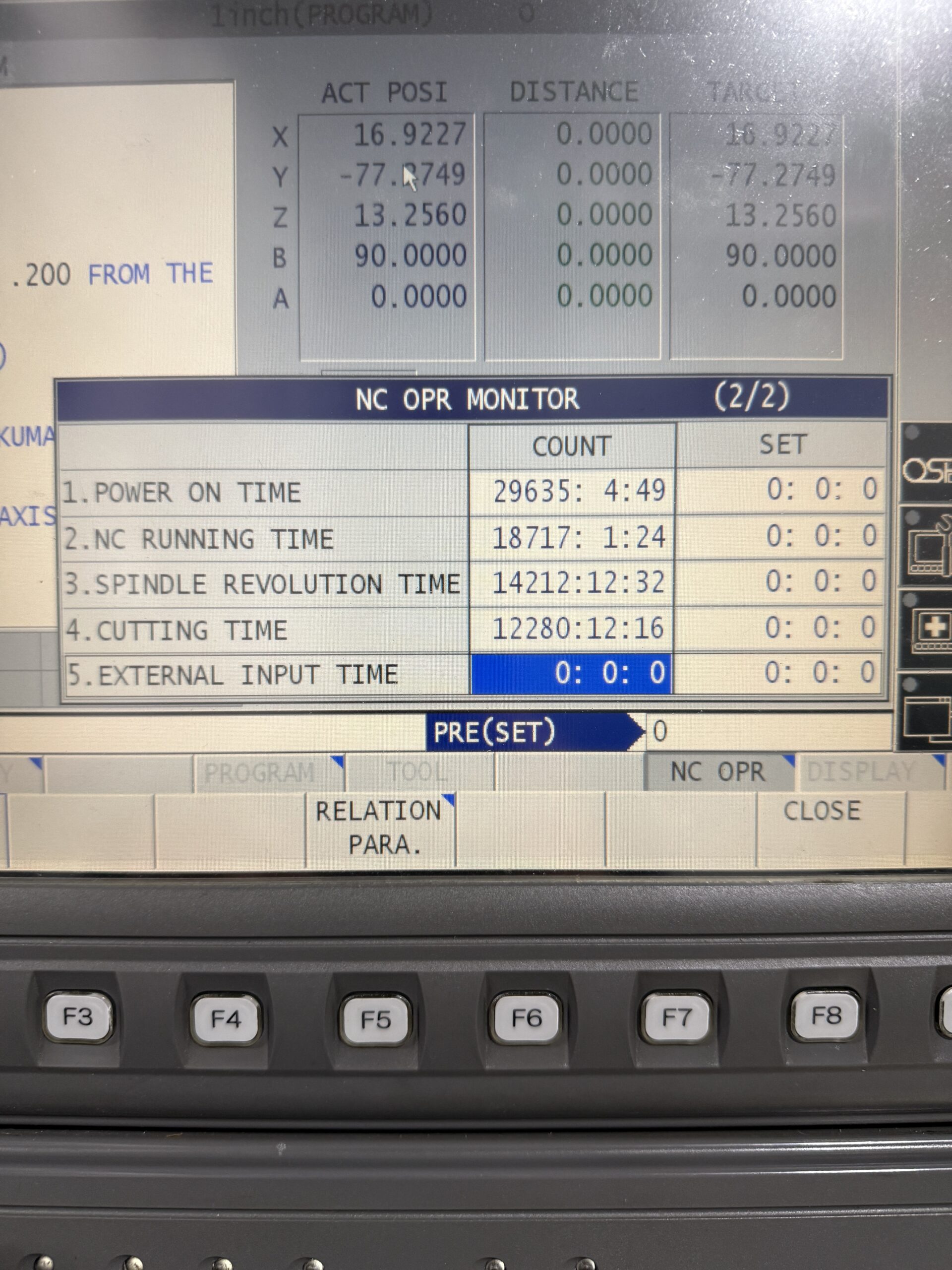

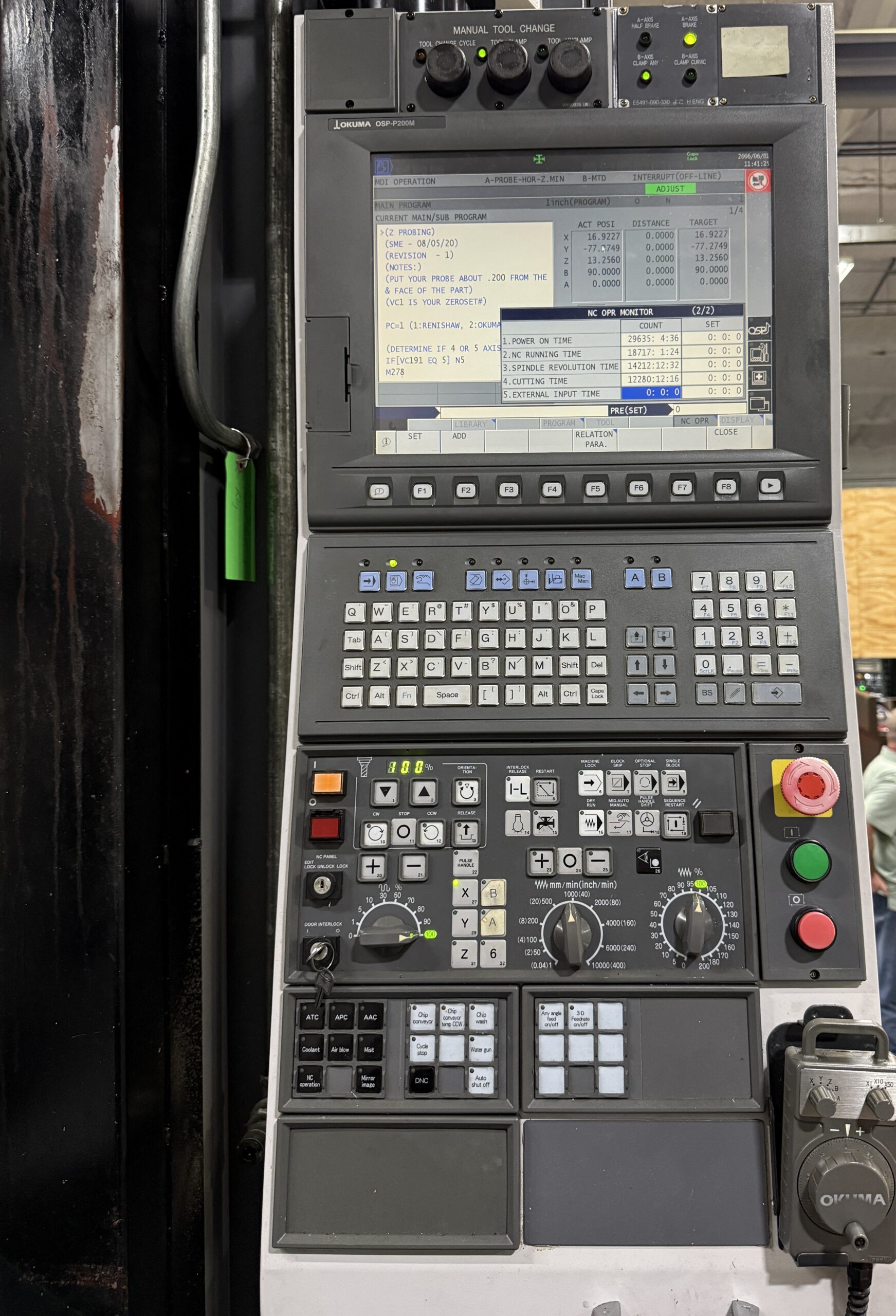

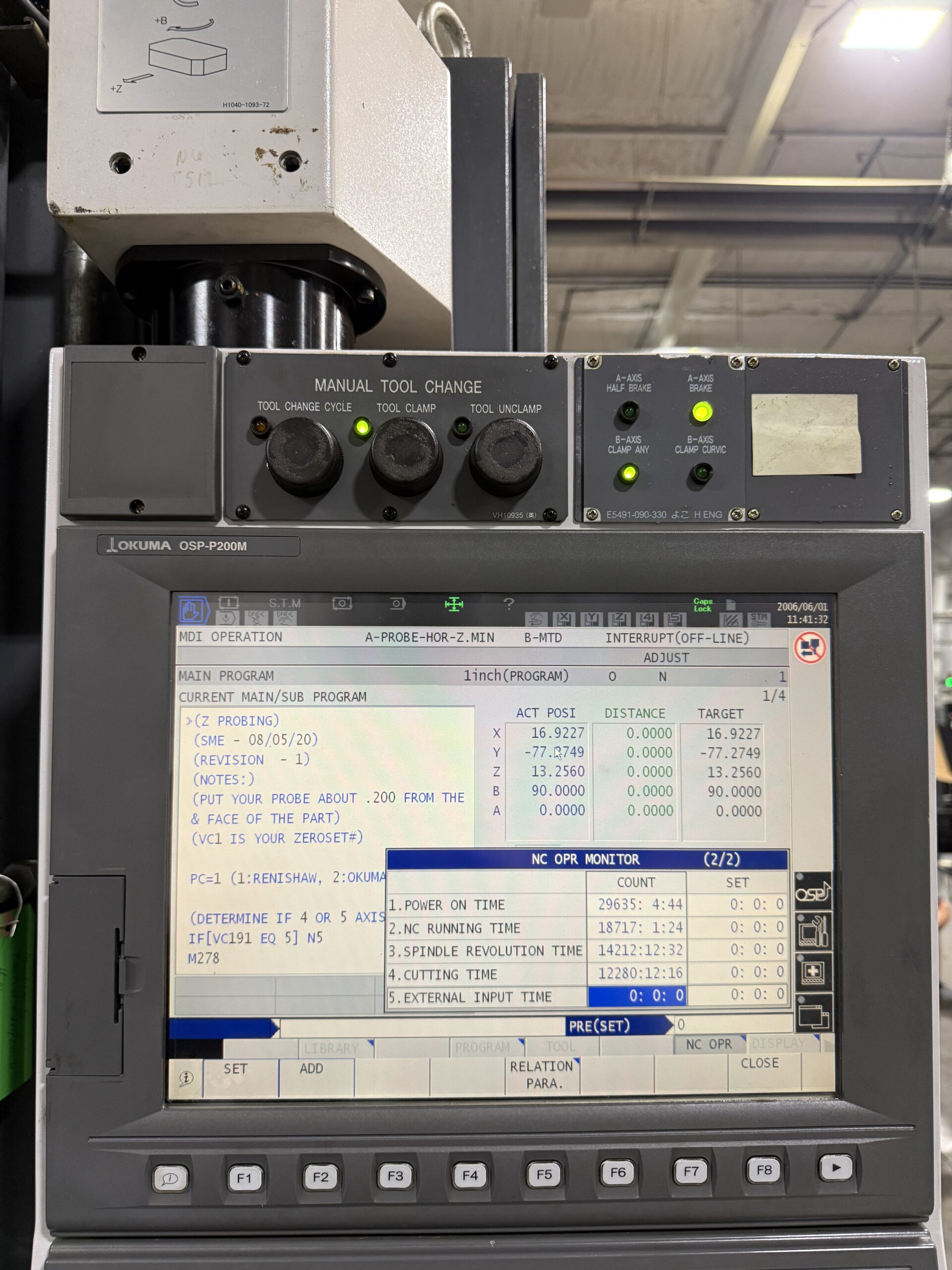

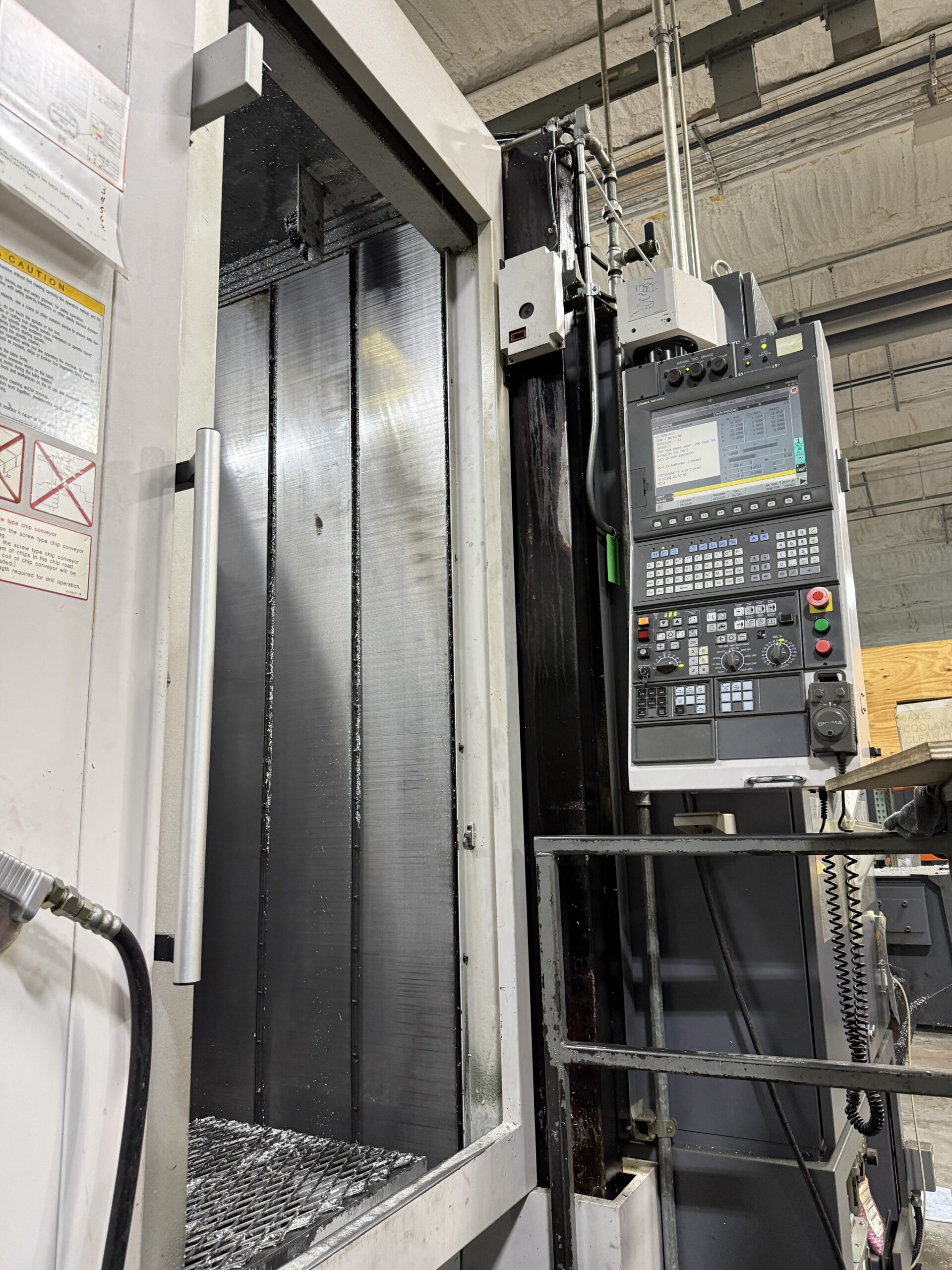

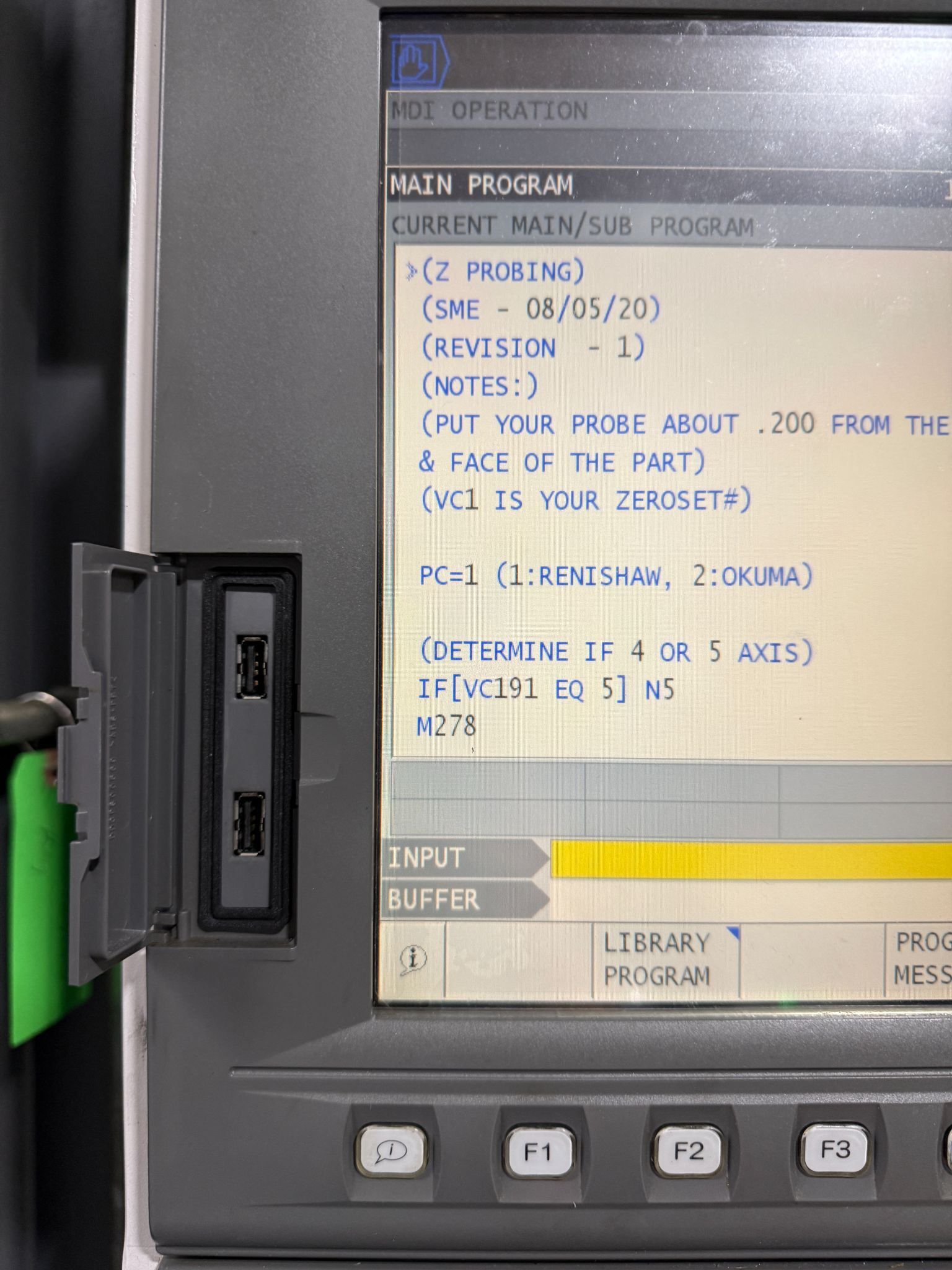

| Okuma OSP-P200M CNC Control |
| Simultaneous 5-Axis Machining |
| Heavy-Duty Box Way Construction |

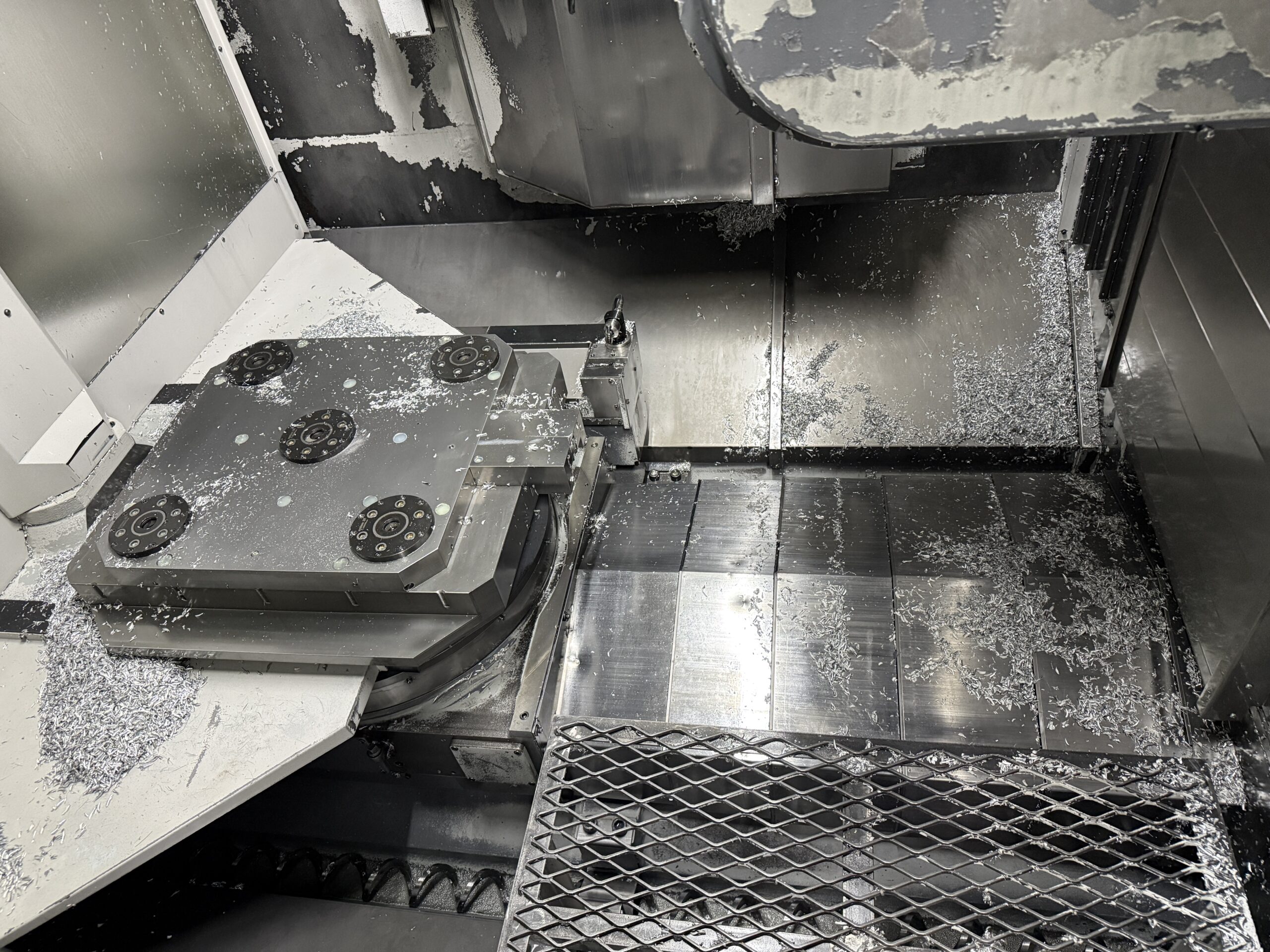

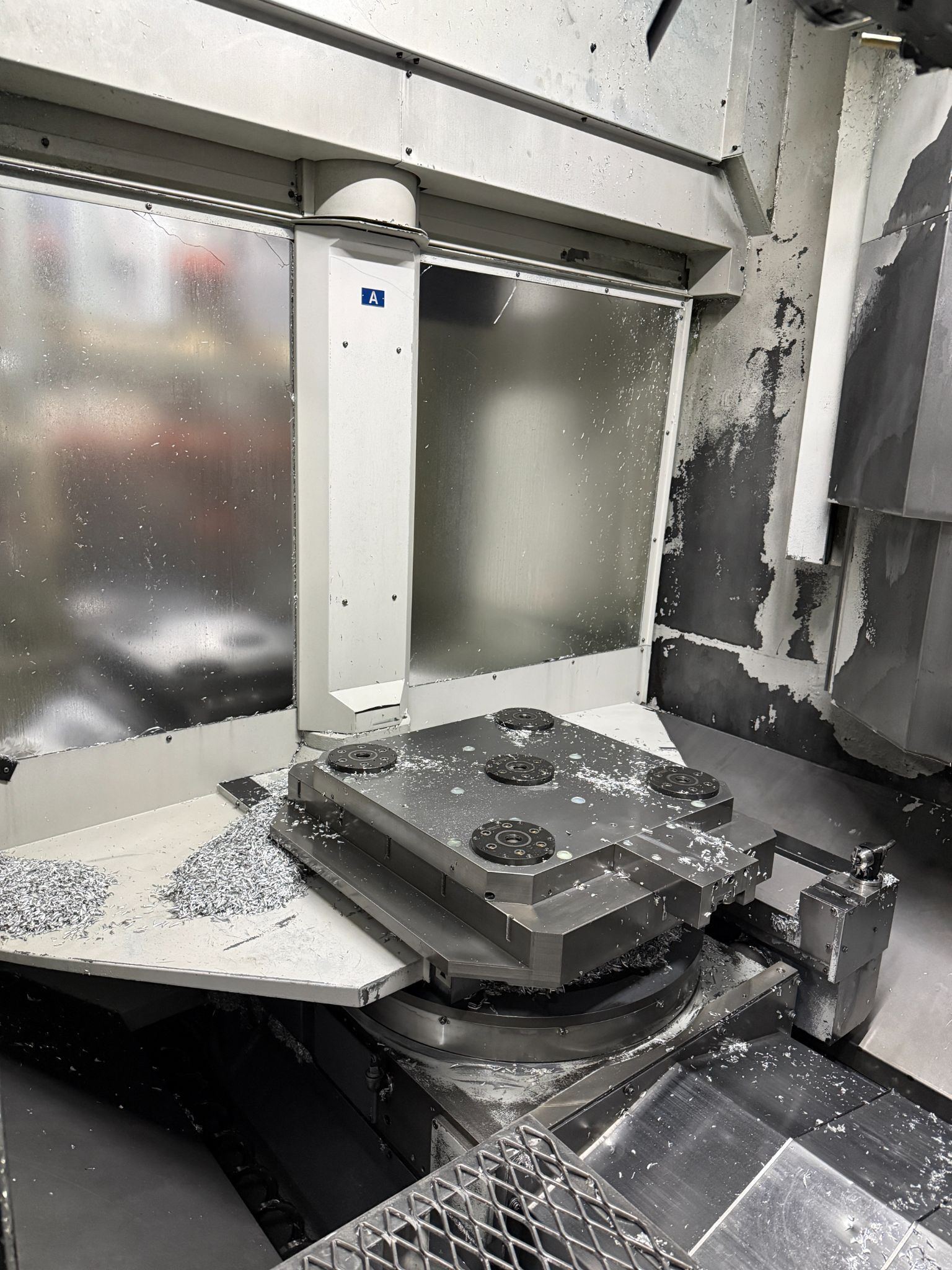

| 31.49″ × 31.49″ Rotary Pallet |
| Automatic 2-Pallet Changer |

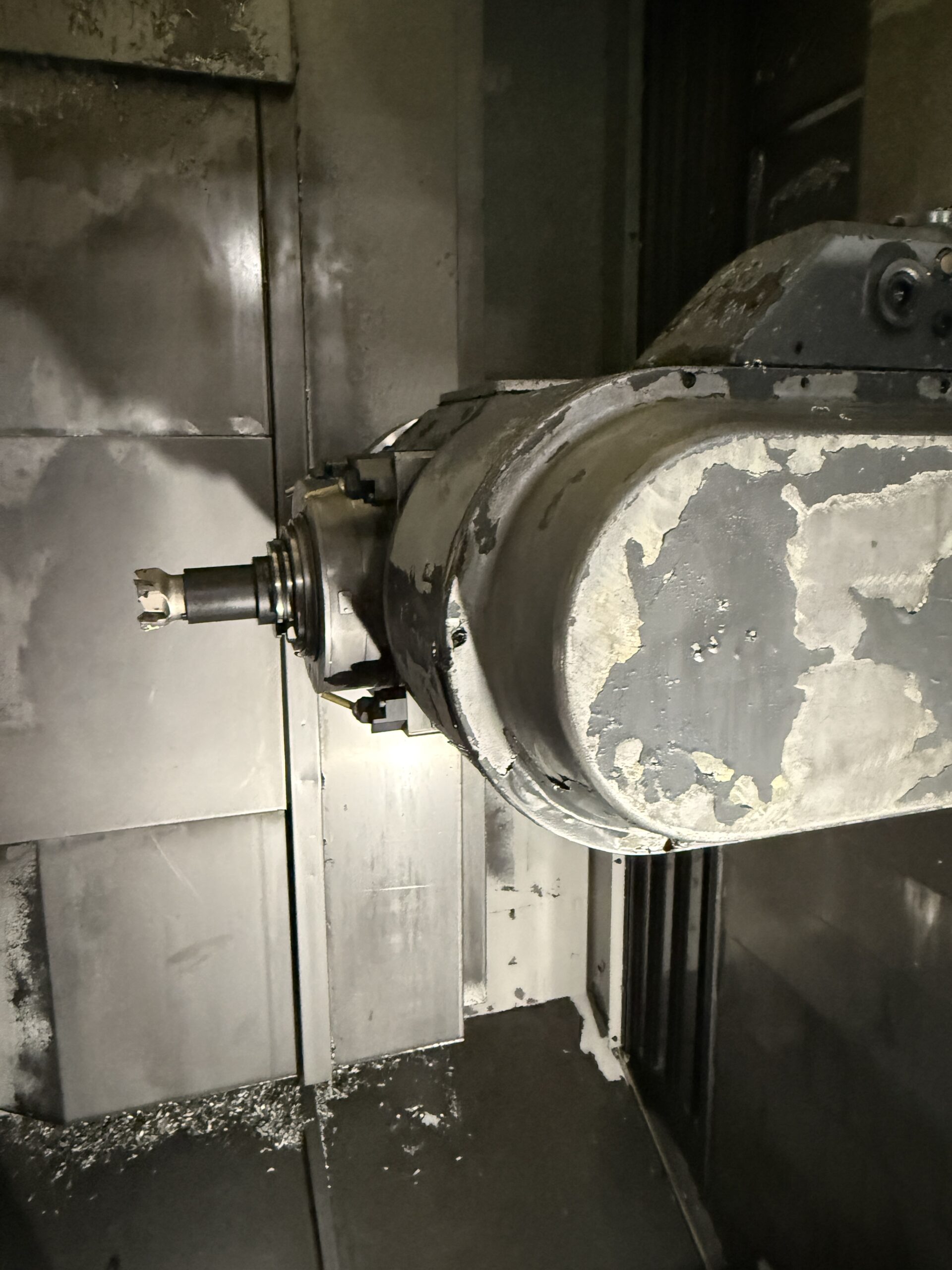

| Swivel Spindle Head (A-Axis) |

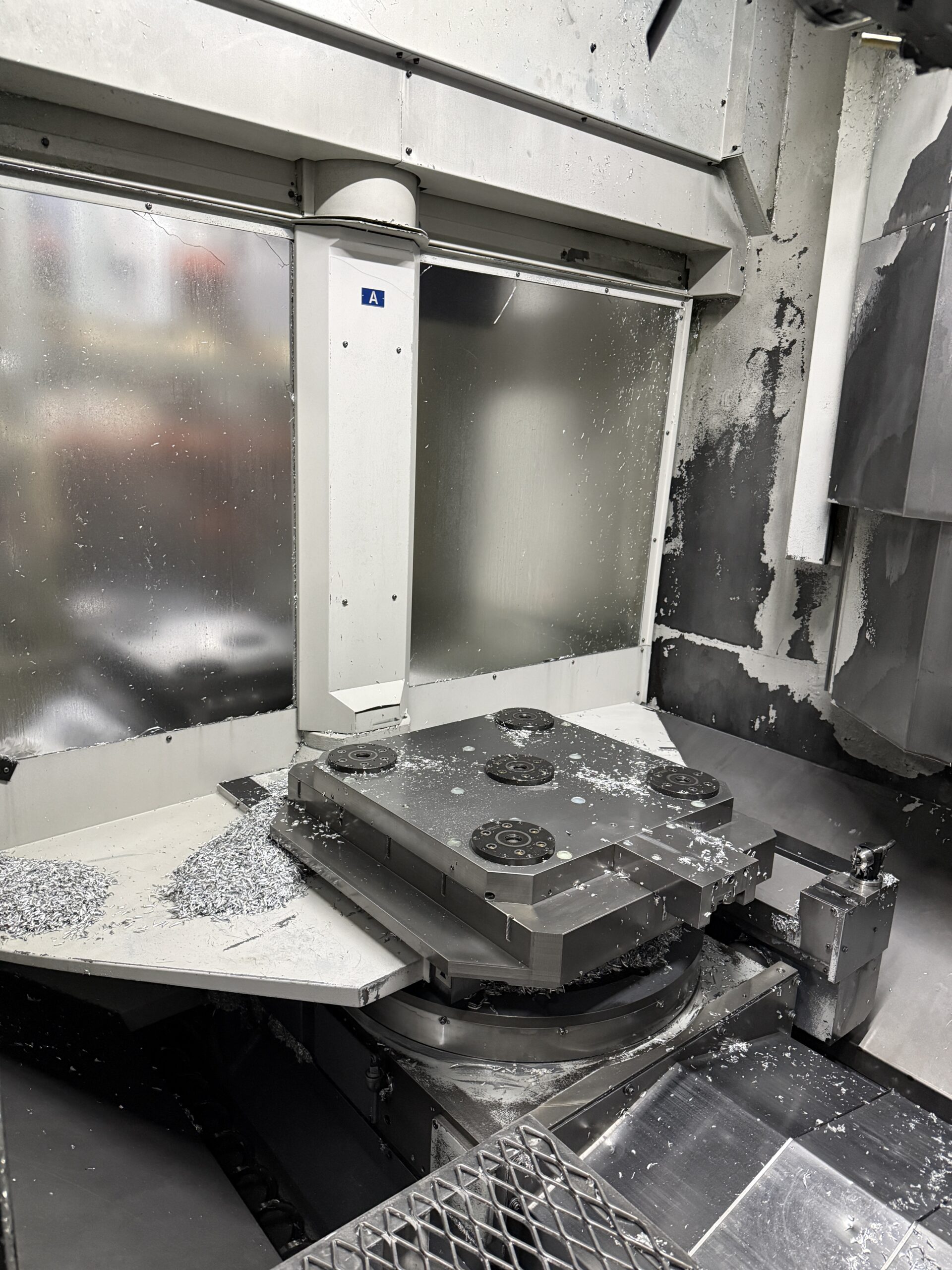

| Full Rotary Table (C-Axis) |
| 10,000 RPM Spindle |
| CAT-50 Taper Spindle |

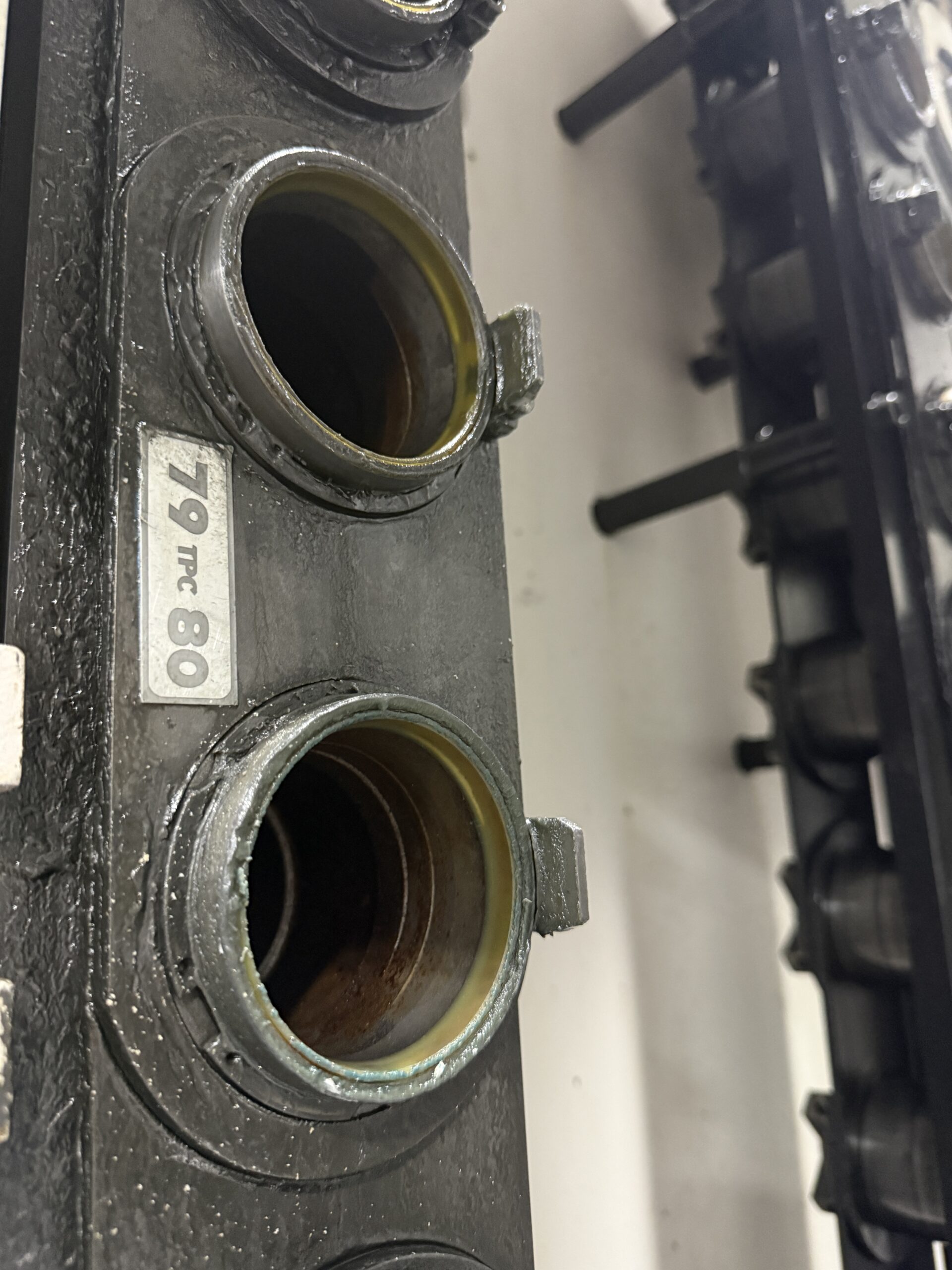

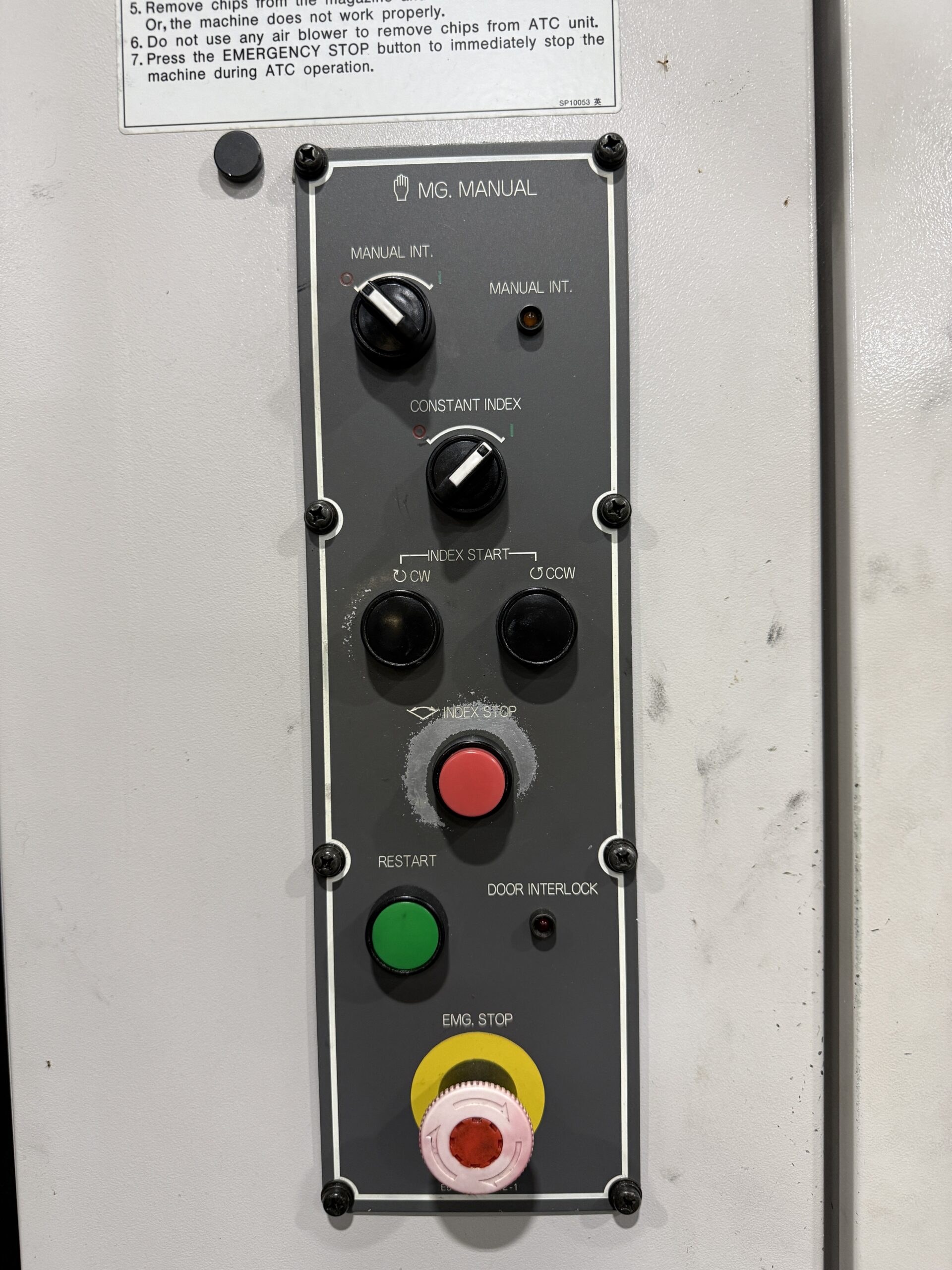

| 80 Station Automatic Tool Changer |

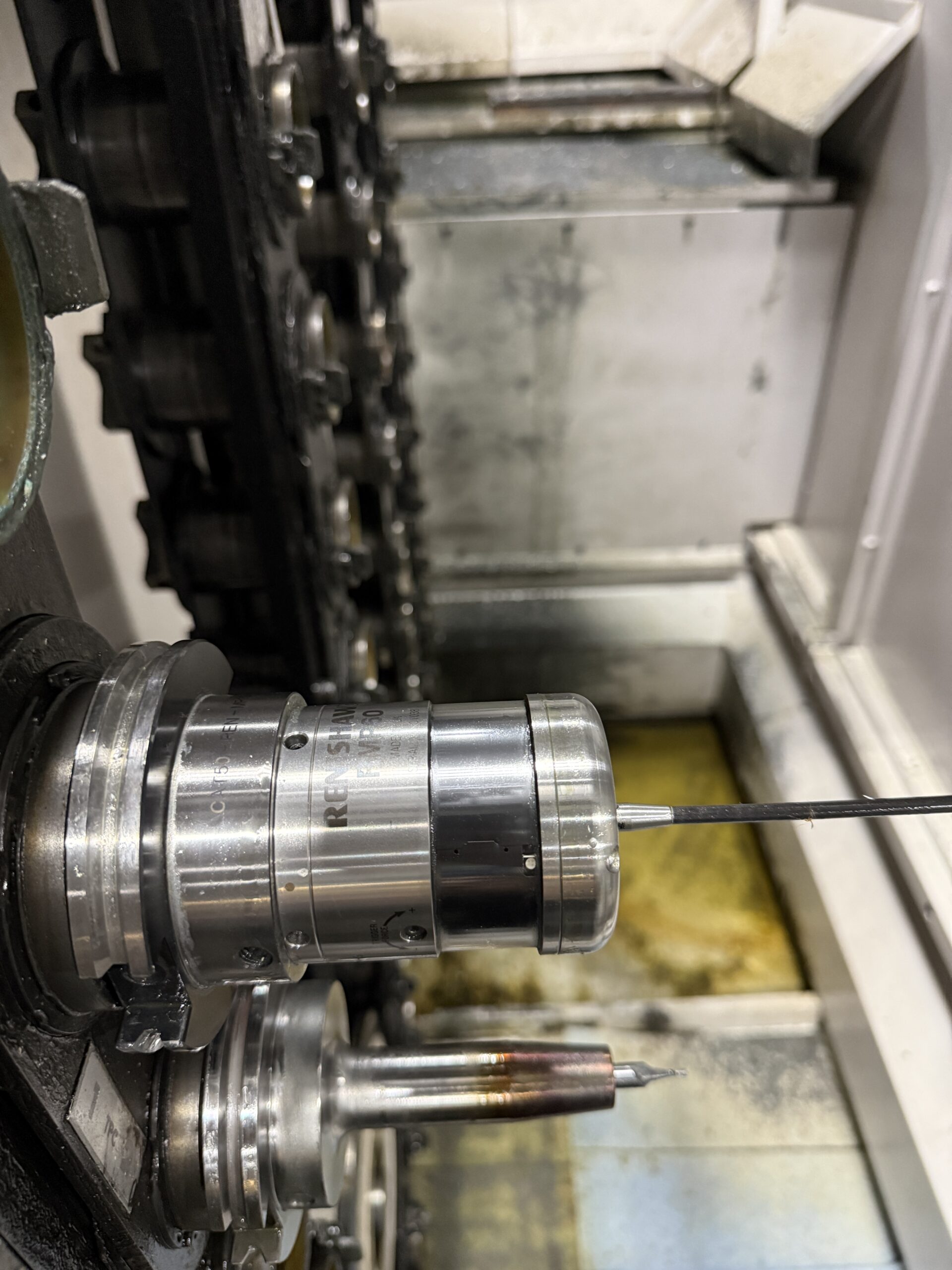

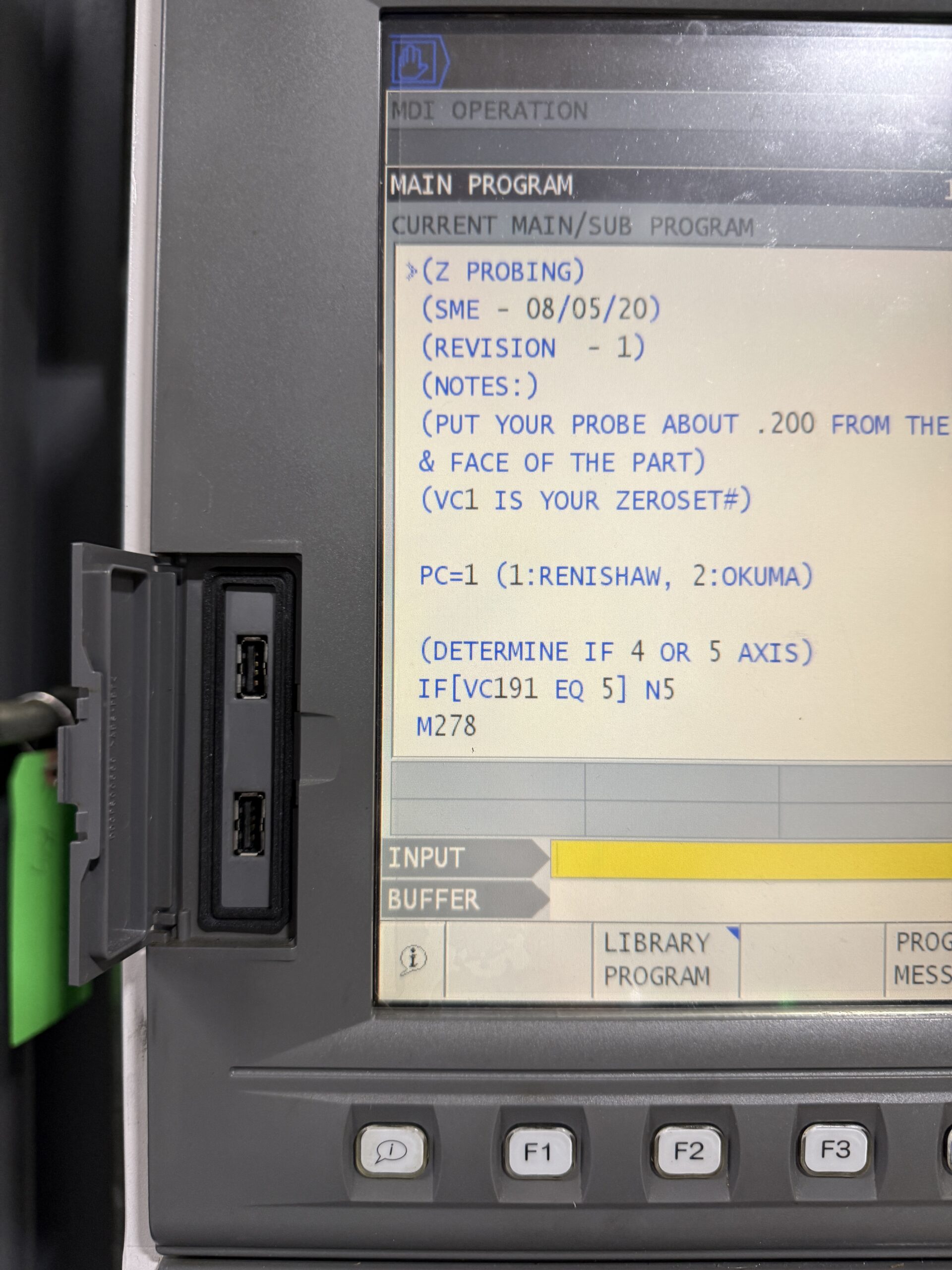

| Renishaw Probing System (Probe Included) |

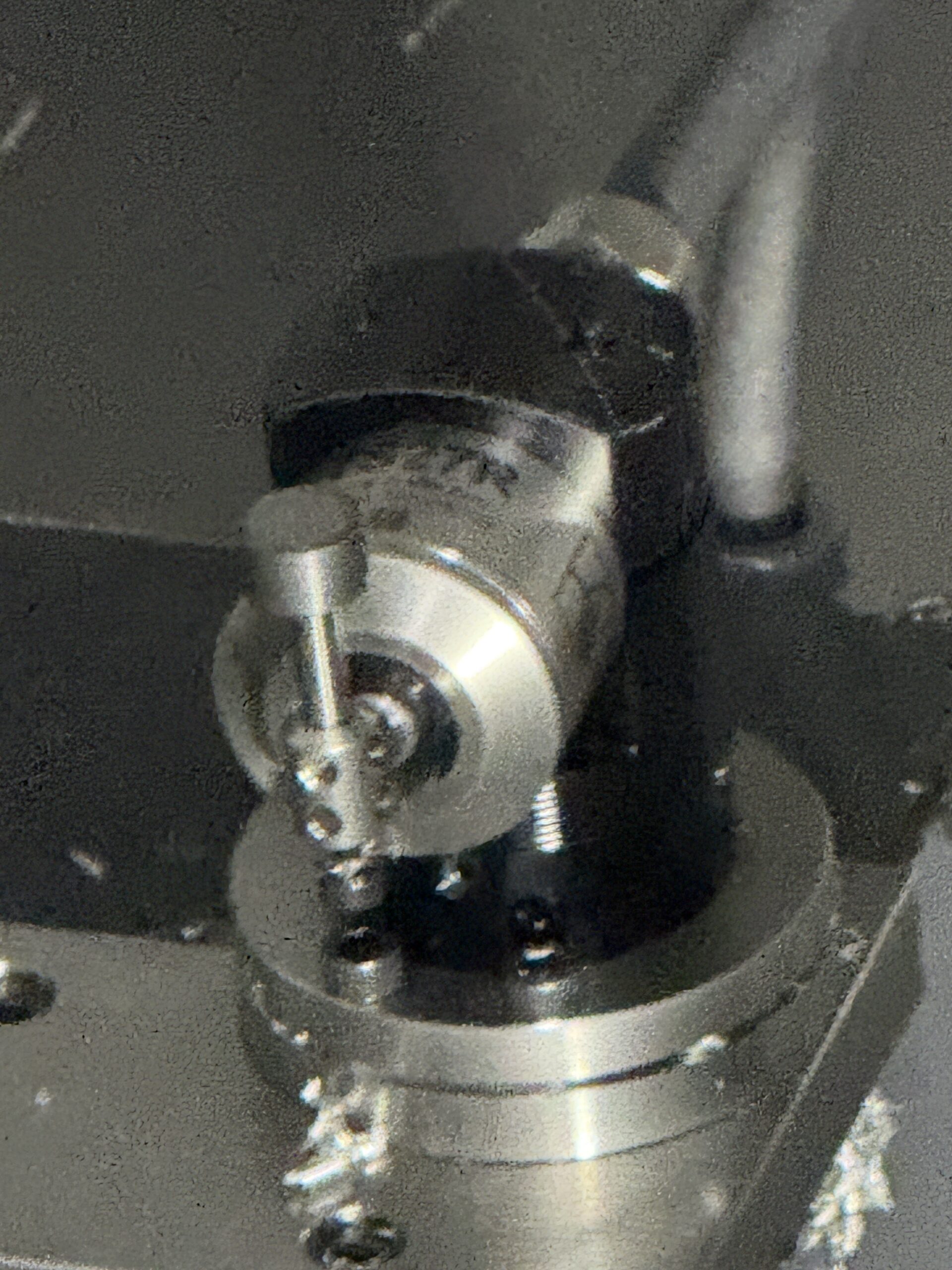

| Tool Presetter |
| Through-Spindle Coolant Ready – 1000 psi (High Pressure Coolant Pump Needed) |

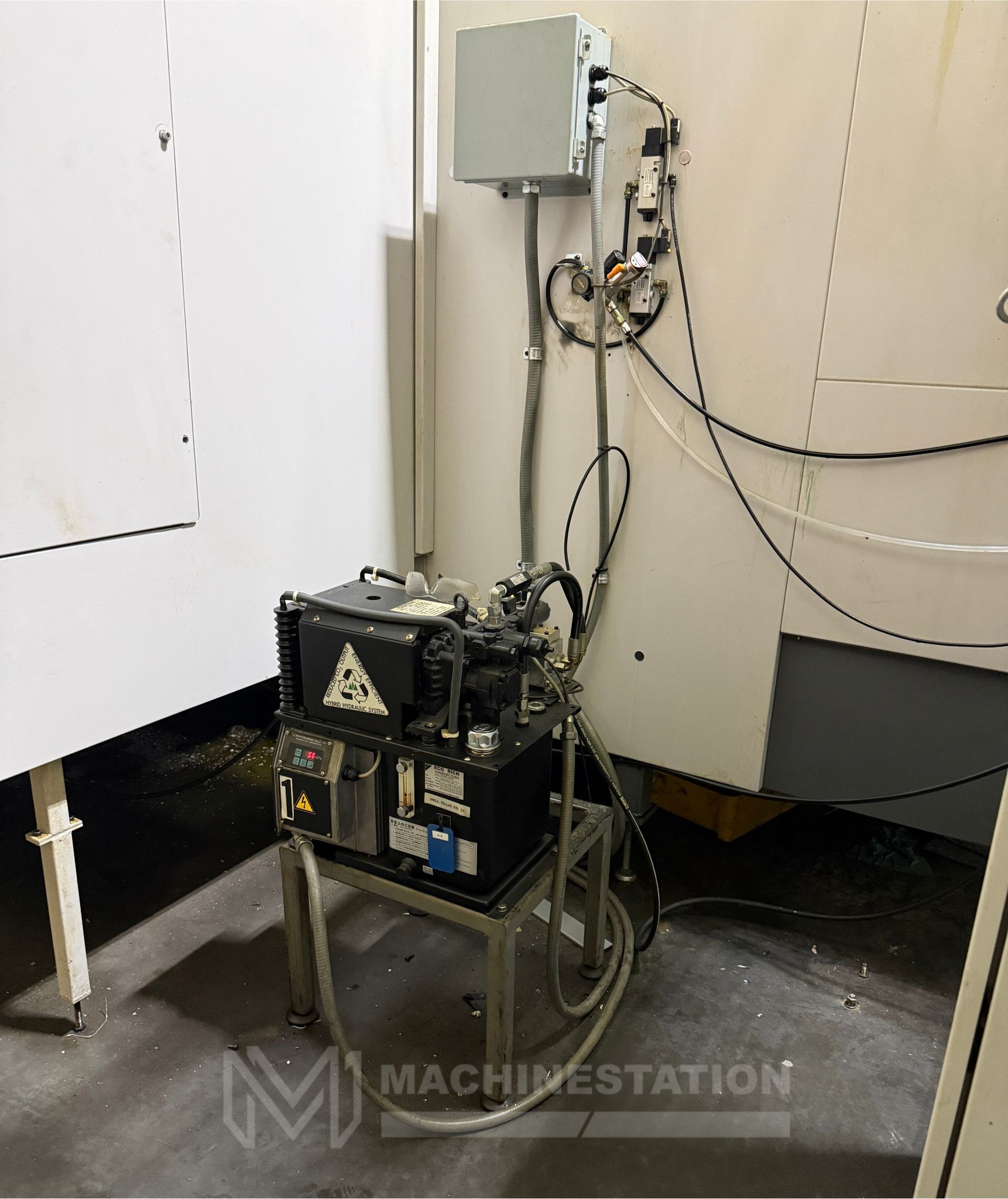

| Spindle Chiller Unit |

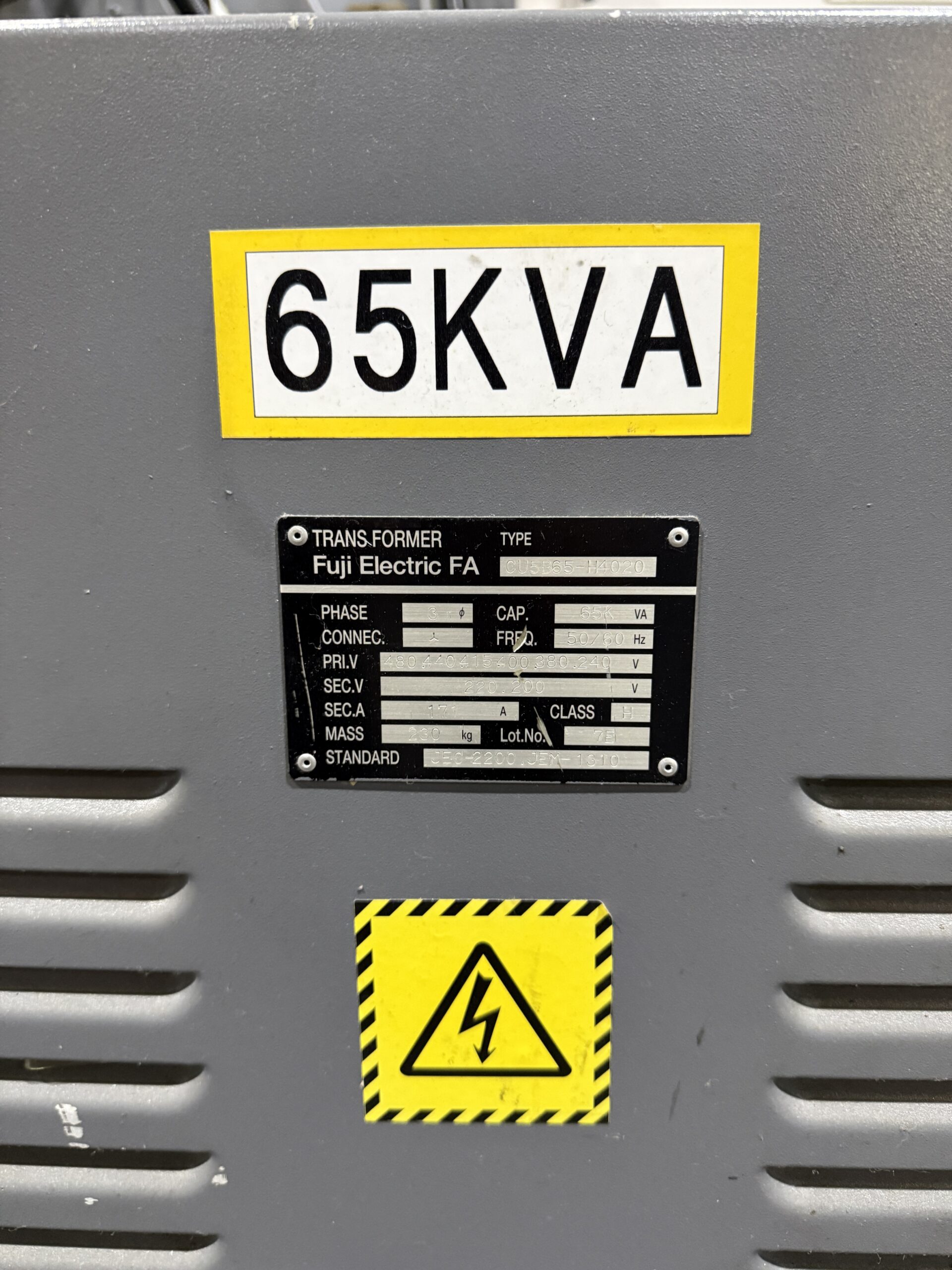

| 65 KVA Transformer |

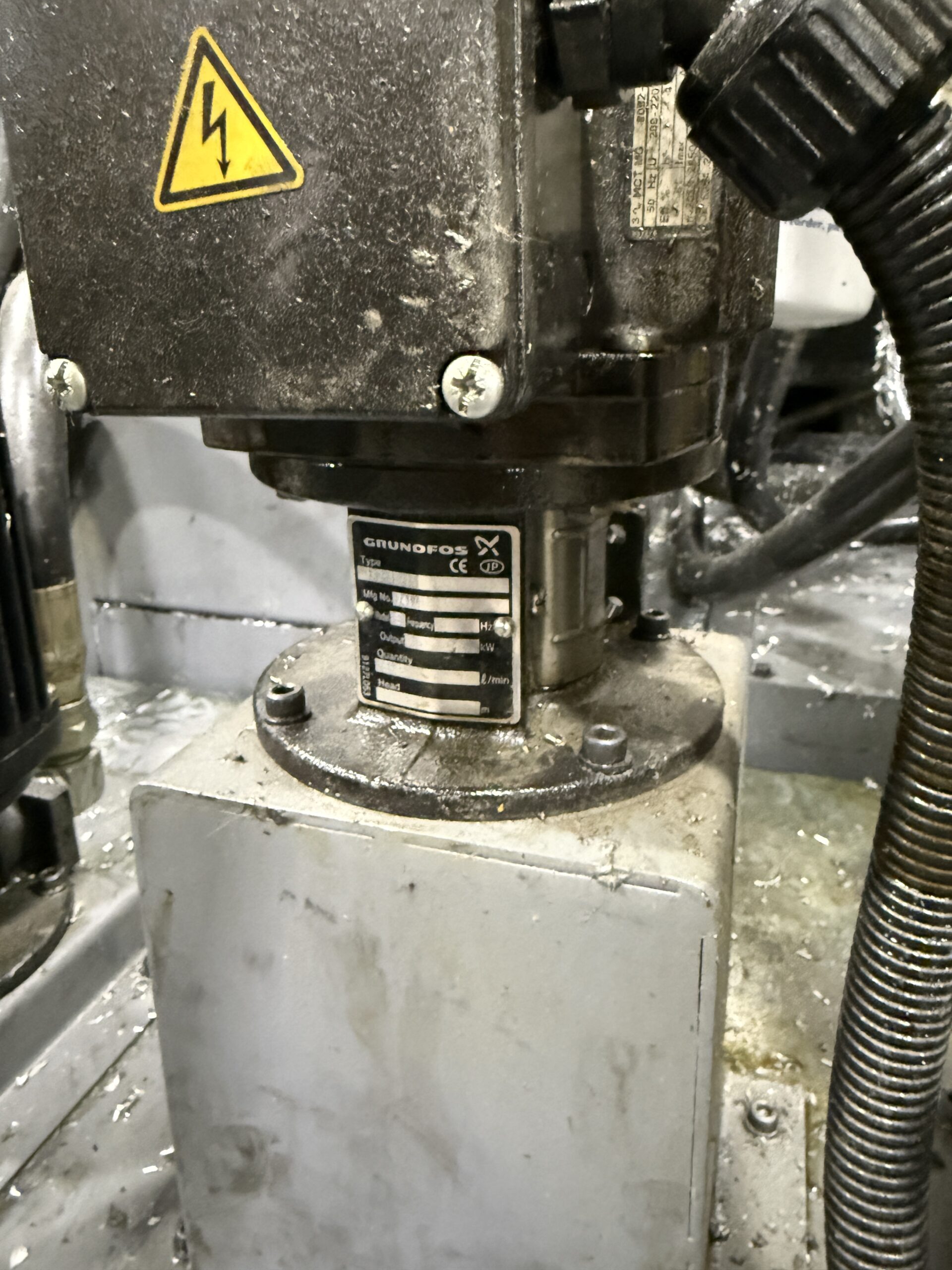

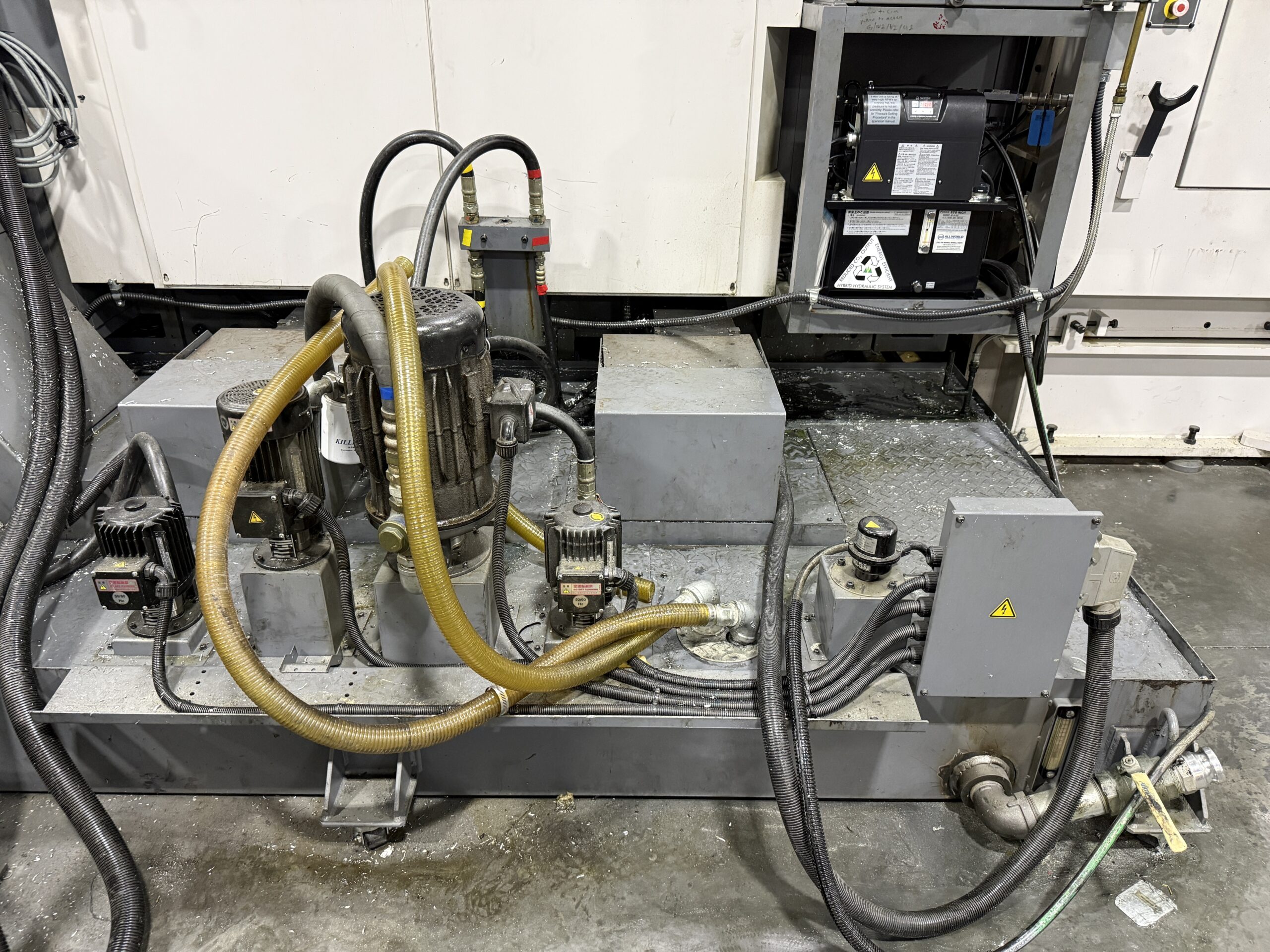

| Coolant Filtration System |
| Chip Conveyor |
| Note: Machine was connected with centralized high pressure through spindle cooling systems, so machine is capable of 1000 psi. Would require a separate unit. |
| Note: Fixtures and chuck on the pallet are not included With the Machine |
| Travels: |
|---|
| X-Axis Travel: 40.16″ |
| Y-Axis Travel: 40.16″ |
| Z-Axis Travel: 40.16″ |
| A-Axis Swivel Range: –100° to +150° |
| C-Axis Rotation: 360° |
| Rapid Traverse (X/Y/Z): 1,181 Inches Per Minute |
| Cutting Feedrate (X/Y/Z): 472 Inches Per Minute |
| Table: |
|---|

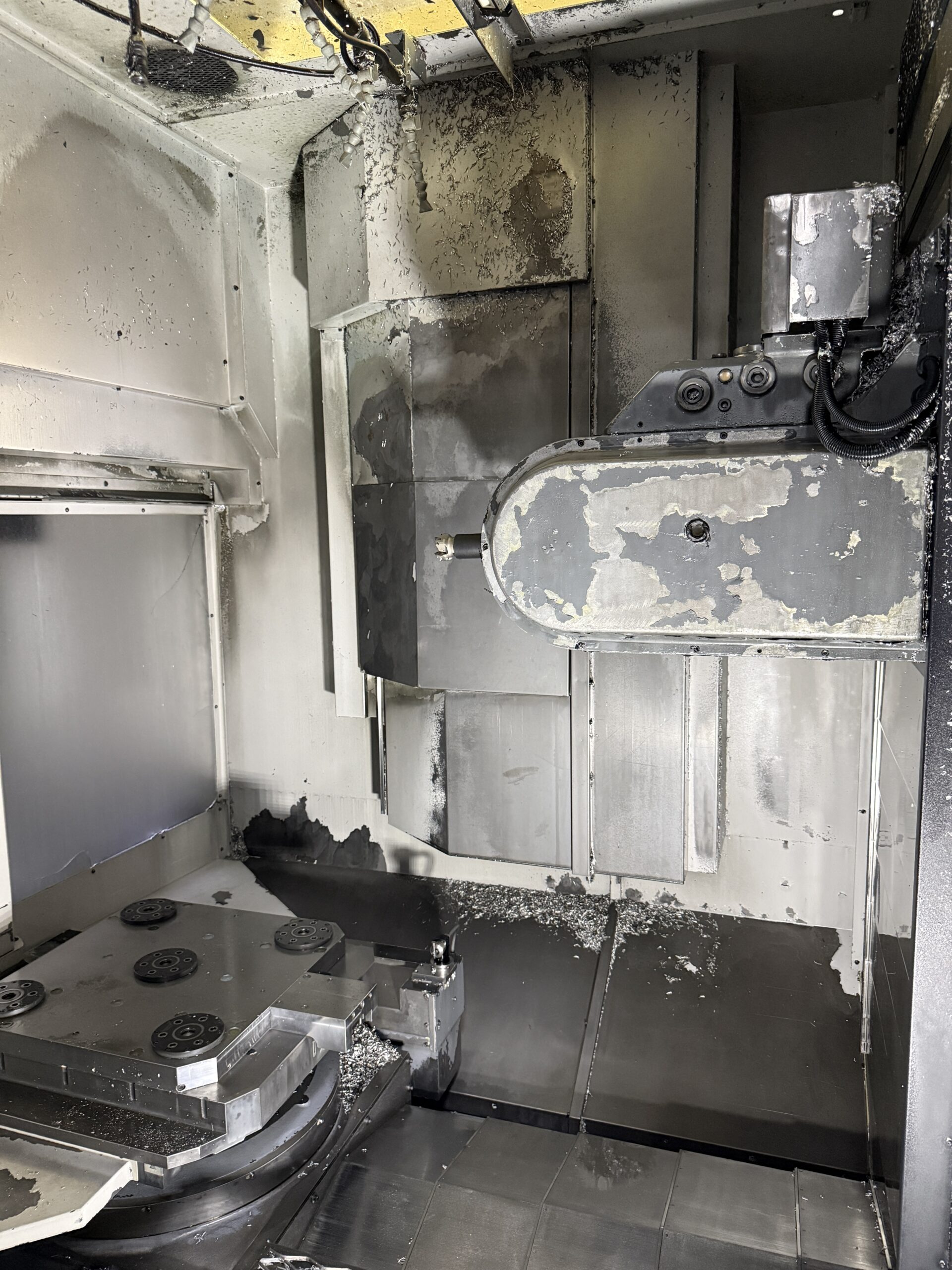

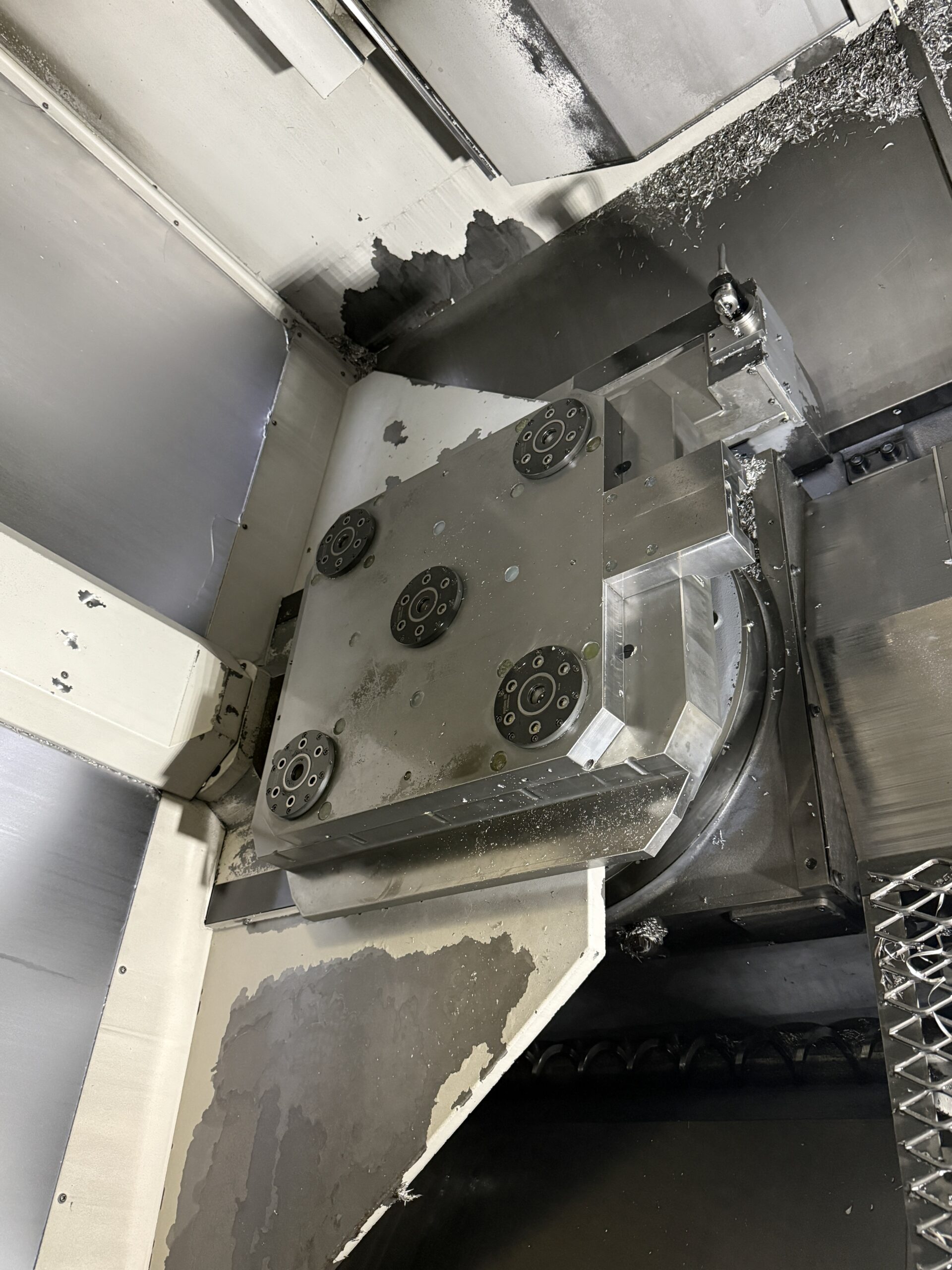

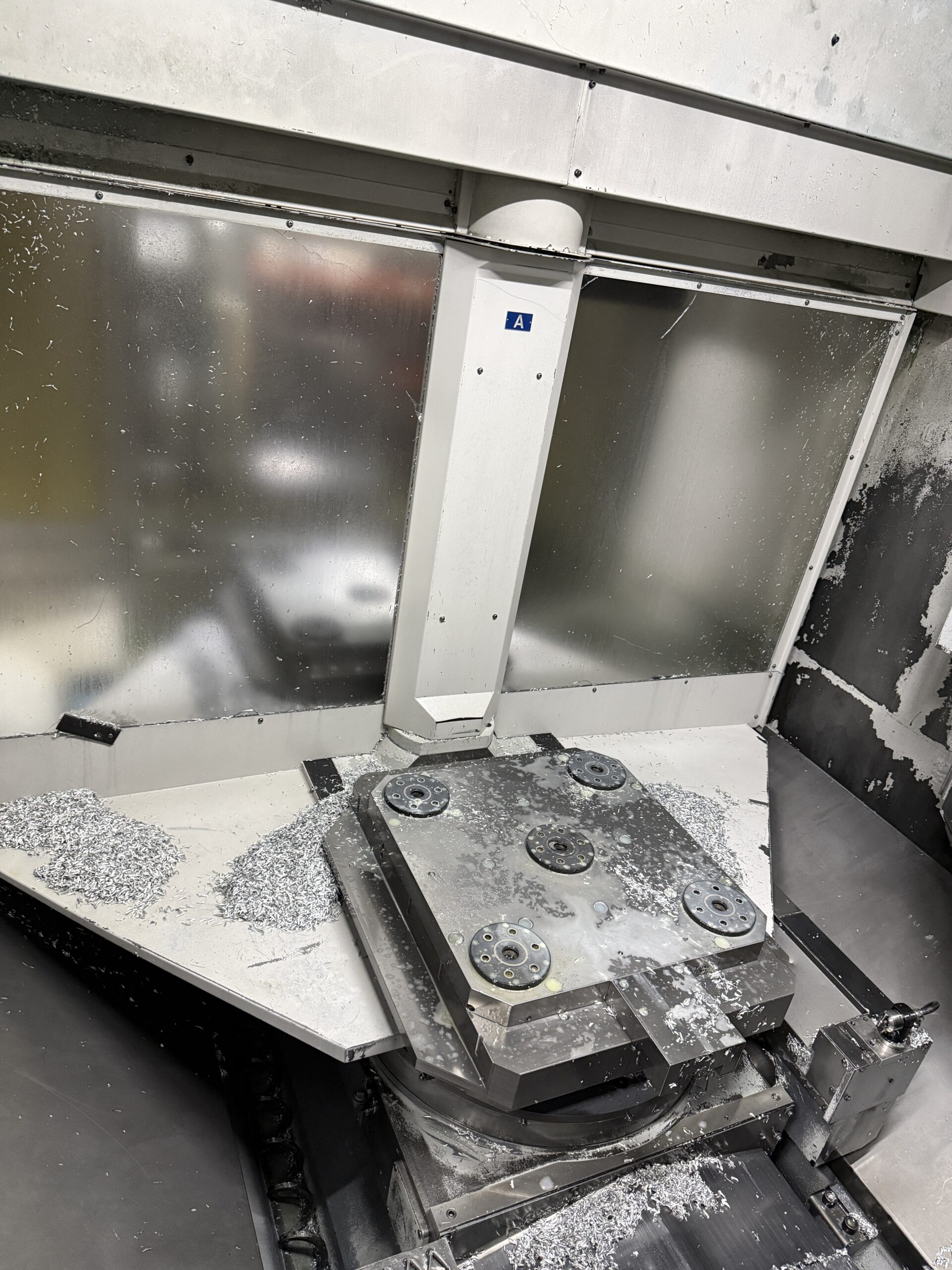

| Table Size (Pallet): 31.49″ × 31.49″ |
| Maximum Table Load: 2,200 lbs |
| Maximum Workpiece Diameter: 48.43″ |
| Indexing: 0.001° |
| Number of Pallets: 2 |
| Spindle: |
|---|
| Spindle Speed: 10,000 RPM |
| Spindle Taper: CAT-50 |
| Spindle Motor Power: 30 HP |
| A-Axis Swivel Range: –100° to +150° |
| C-Axis Rotation Range: 360° |
| Automatic Tool Changer: |
|---|

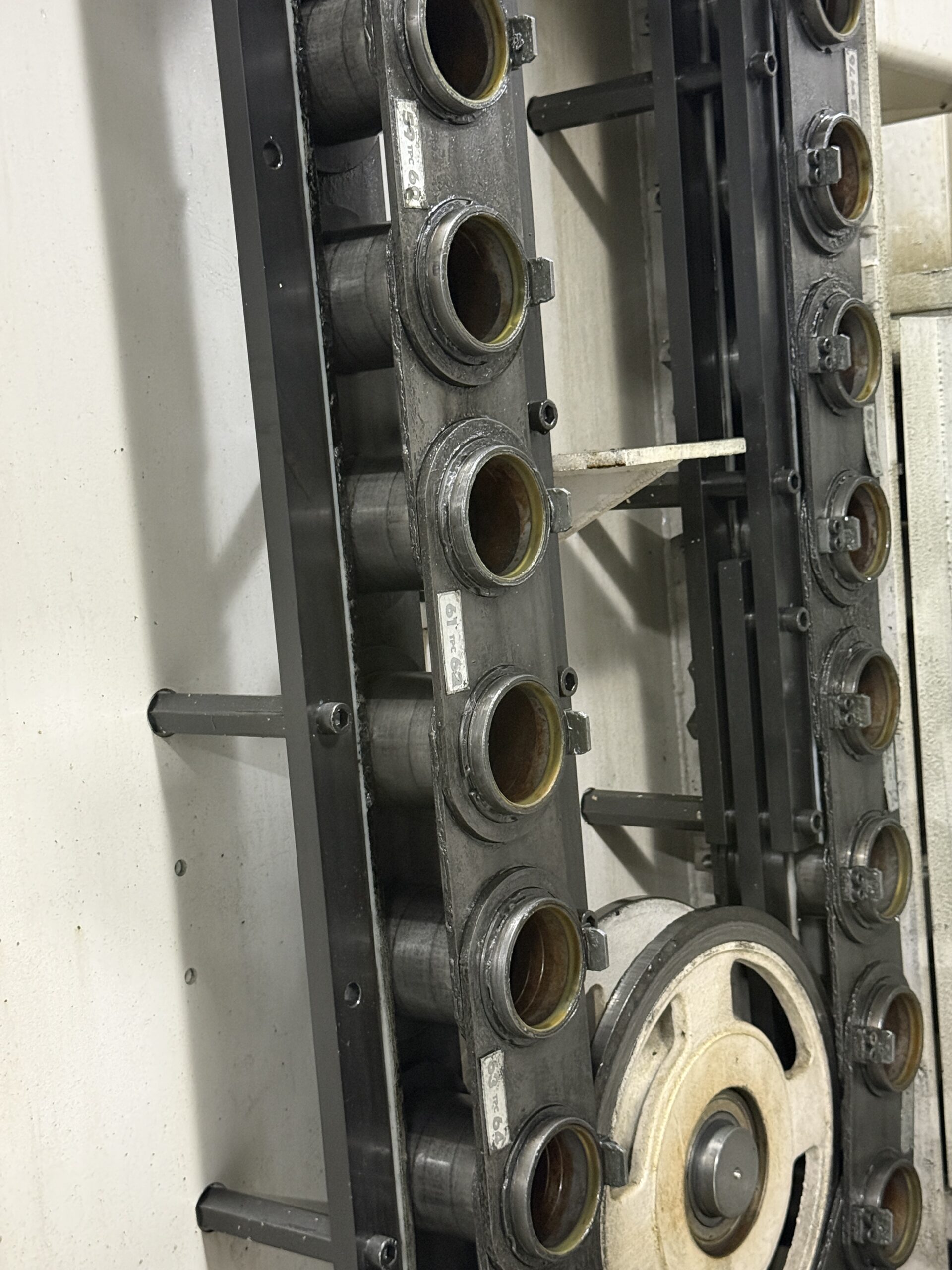

| Tool Capacity: 80 Tools |
| Max Tool Diameter (Adjacent Tools): 4.92″ |
| Max Tool Diameter (No Adjacent Tools): 7.87″ |
| Max Tool Length: 15.74″ |
| Max Tool Weight: 44 lbs |
| Tool-to-Tool Time: 4.5 Seconds |
| General: |
|---|

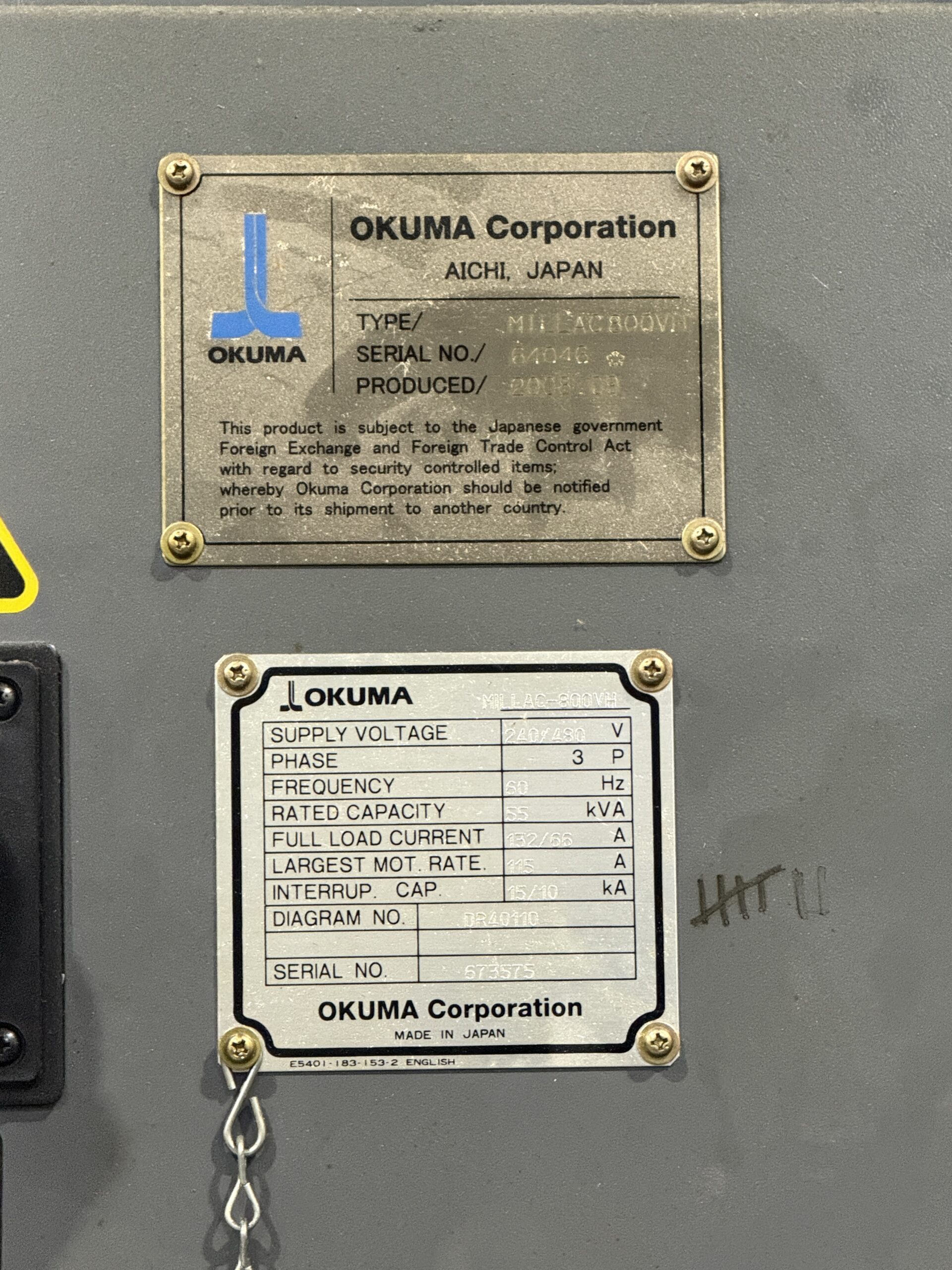

| Power Requirement: 240/480v / 3-Phase / 60 Hz / 55 kVA |
| Machine Dimensions: 187″ × 248″ × 130″ High Approx. |
| Machine Weight: 48,400 lbs Approx. |
