*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DMG MORI |
| Model: | NHX5500 |
| Year: | 2013 |
| Machine Type: | Horizontal Machining Center (HMC) |

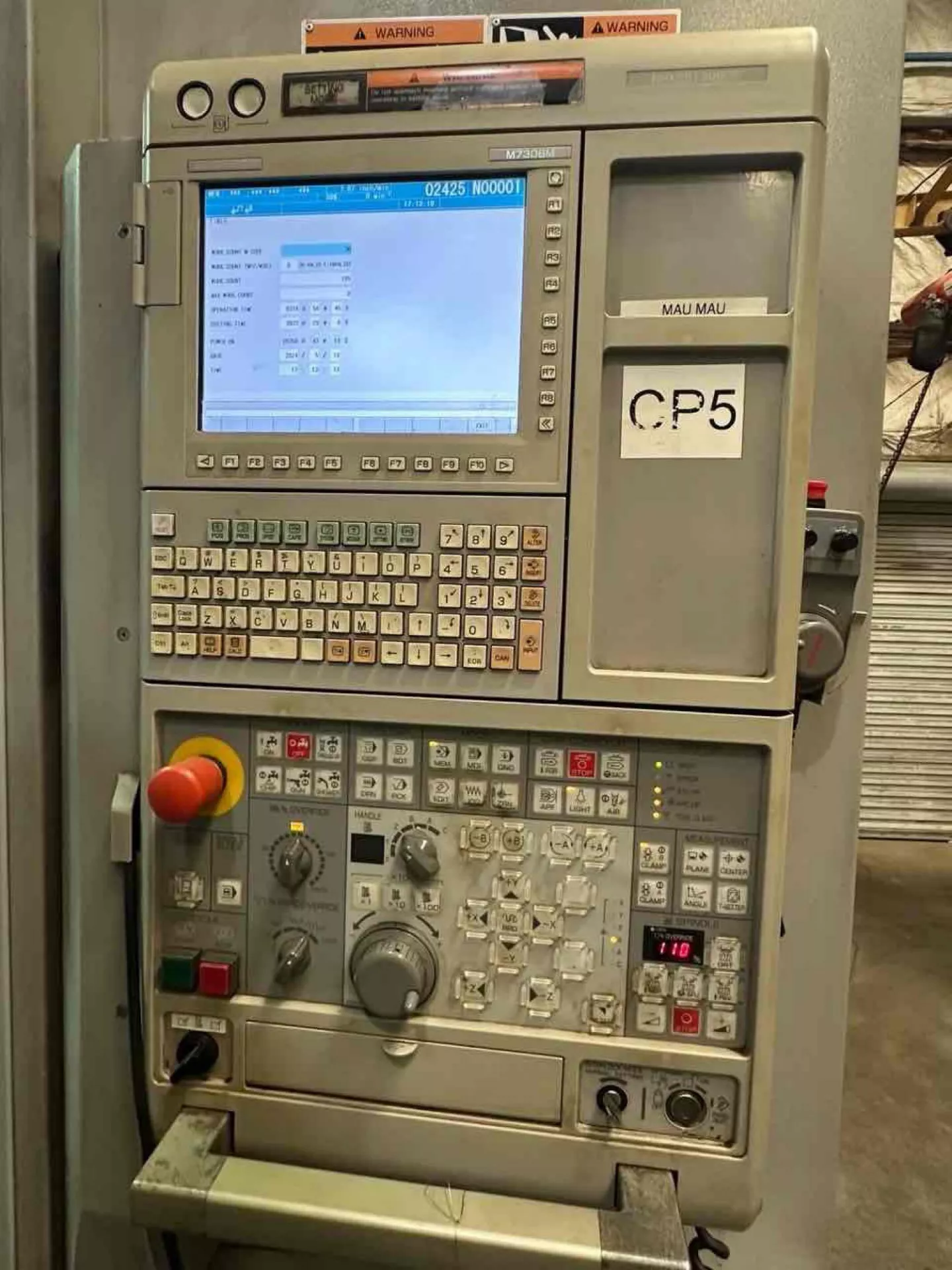

| Control: | Mori Seiki M730BM CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Mori Seiki M730BM CNC Control |
| Full 4th Axis Rotary Table (360,000 Degree) |
| CAT 50 Spindle |
| 8,000 RPM Spindle |
| 20″ Twin Pallets |
| Rotary Pallet Changer |
| 60 Position Ring Type Automatic Tool Changer |
| Renishaw Probe Ready |
| Through Spindle Coolant (CTS) |
| Flood Coolant System |
| Rear Discharge Chip Conveyor |

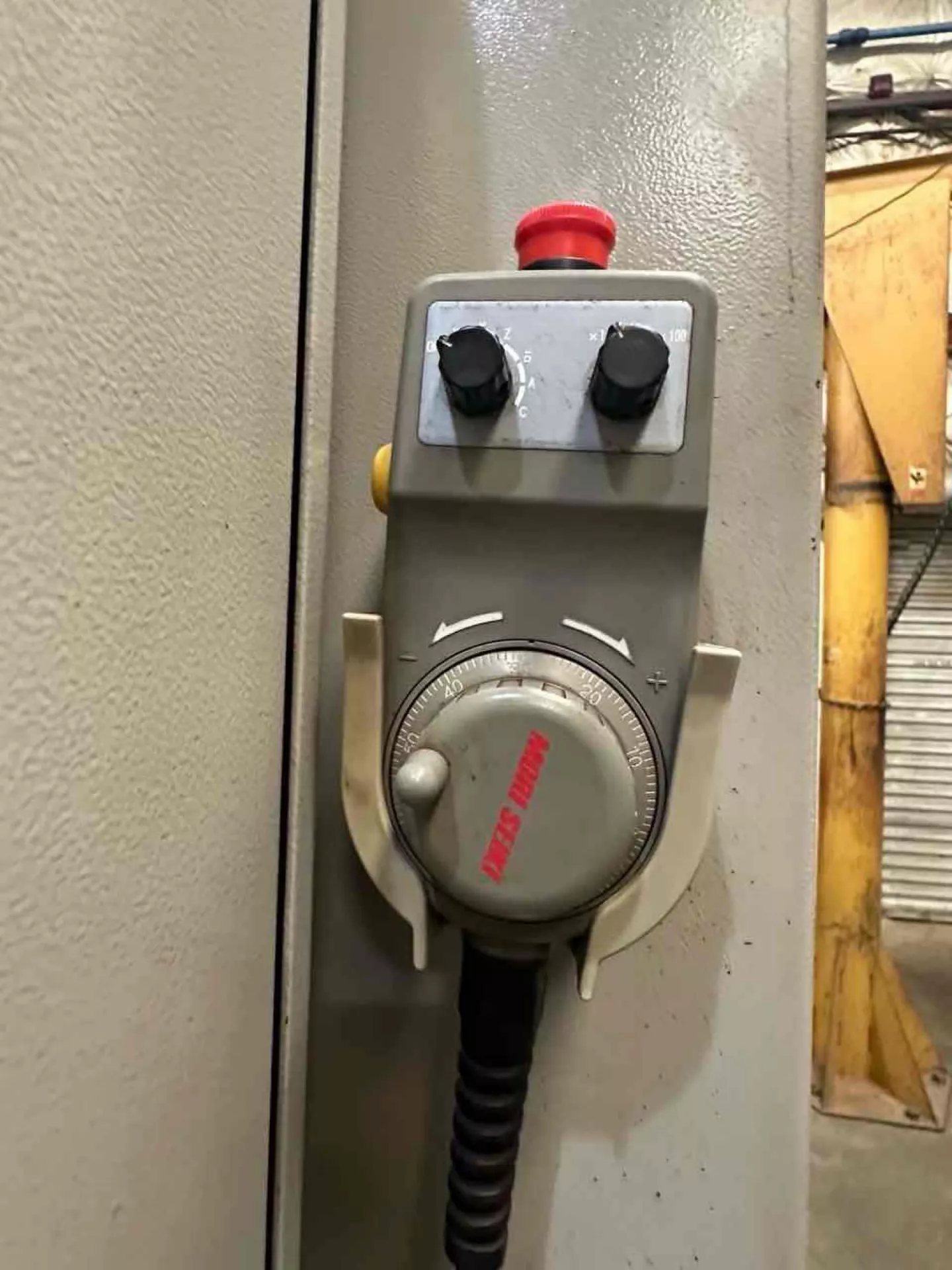

| Manual Pulse Generator |
| Full Enclosure |
| Capacity: |
|---|
| X-Axis Travel: Approx. 31.5″ |
| Y-Axis Travel: Approx. 31.5″ |
| Z-Axis Travel: Approx. 33.5″ |

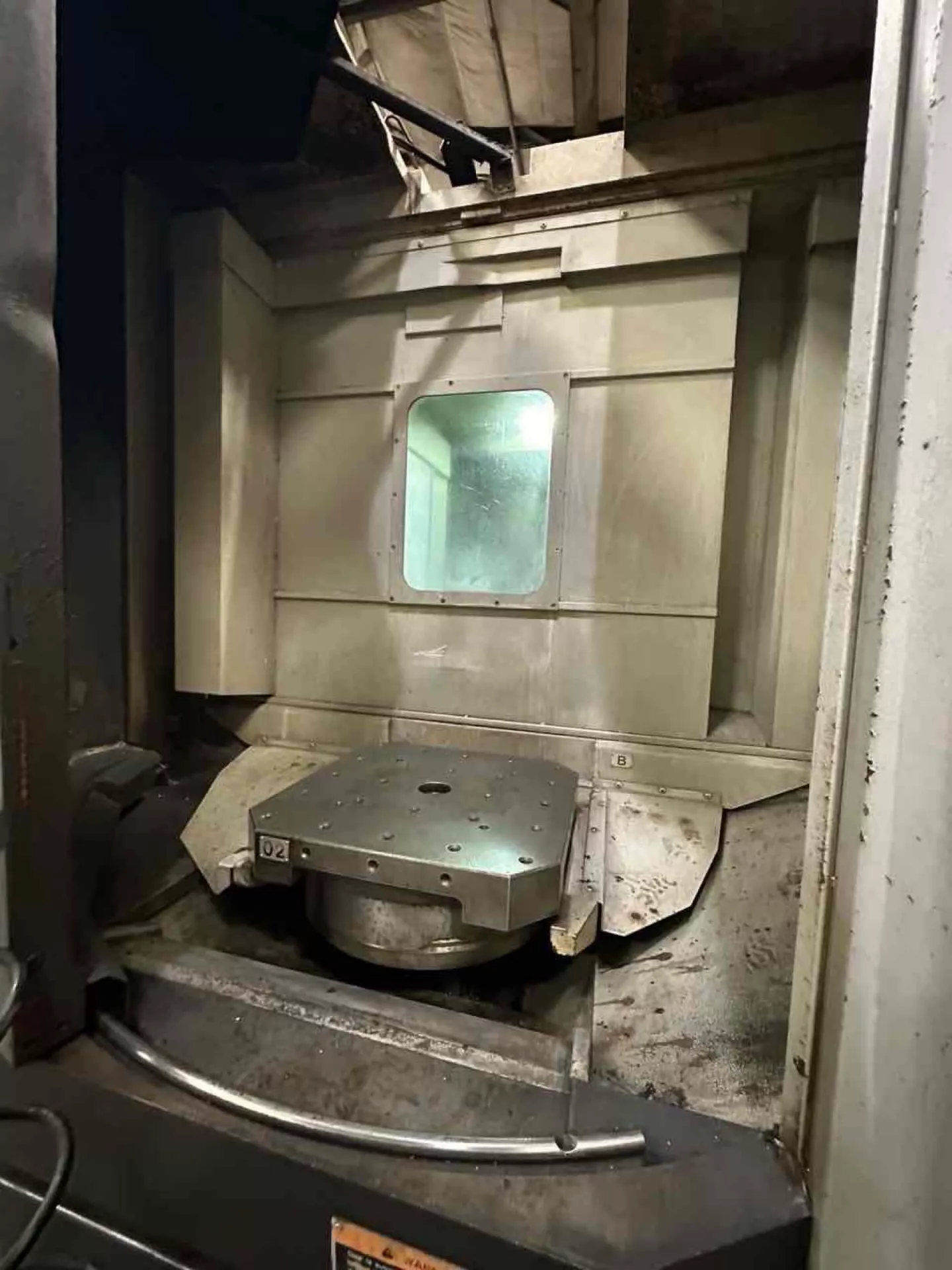

| Pallet Size: 19.7″ x 19.7″ |
| Maximum Workpiece Diameter: Approx. 31.5″ |
| Maximum Workpiece Height: Approx. 39.4″ |
| Maximum Table Load Capacity: Approx. 1,540 Lbs |
| B-Axis Indexing: 0.001° |
| Spindle: |
|---|
| Spindle Taper: CAT 50 |
| Spindle Speed: 8,000 RPM |
| Spindle Motor: Approx. 40 HP |
| Rapid Traverse Rate: Approx. 2,362 IPM |
| Automatic Tool Changer: |
|---|
| 60 Position Ring Type ATC |
| Maximum Tool Diameter: Approx. 5.1″ |
| Maximum Tool Length: Approx. 21.6″ |
| Maximum Tool Weight: Approx. 66 Lbs |
| Pallet Changer: |
|---|
| Automatic Twin Pallet Changer |
| Pallet Quantity: 2 |
| Pallet Size: 19.7″ x 19.7″ |

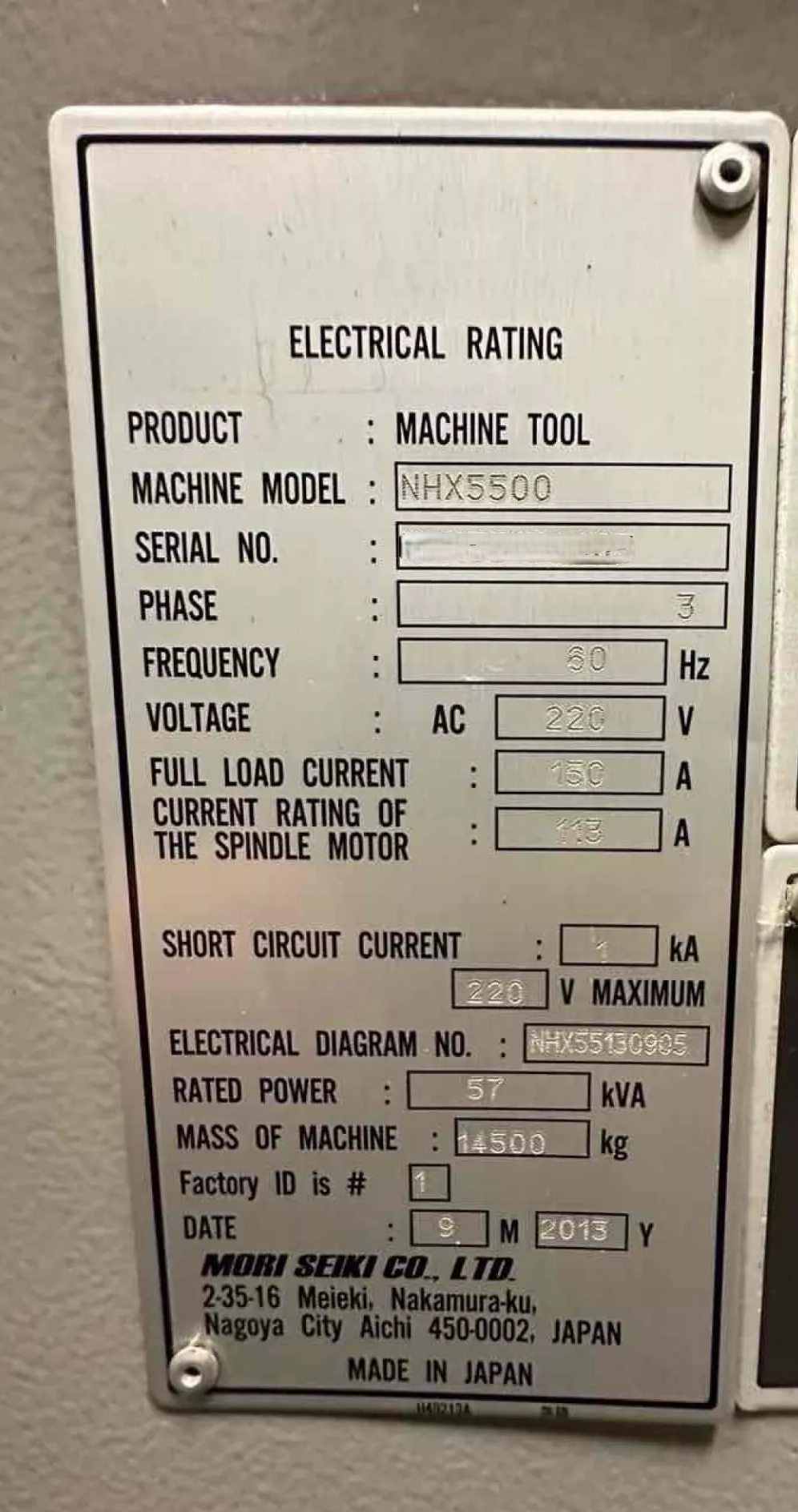

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Rated Power: 57 kVA |
| General: |
|---|
| Machine Weight: Approx. 31,900 Lbs |
| Overall Dimensions: Approx. 220″ x 140″ x 130″ |
| Made In: Japan |
