*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | DMG MORI |
| Model: | NLX 2500/700 |
| Year: | 2018 |
| Condition: | Used – Good |
| Machine Type: | CNC Milling & Turning Center |
| Country of Origin: | Japan |
| Equipped With: |
|---|

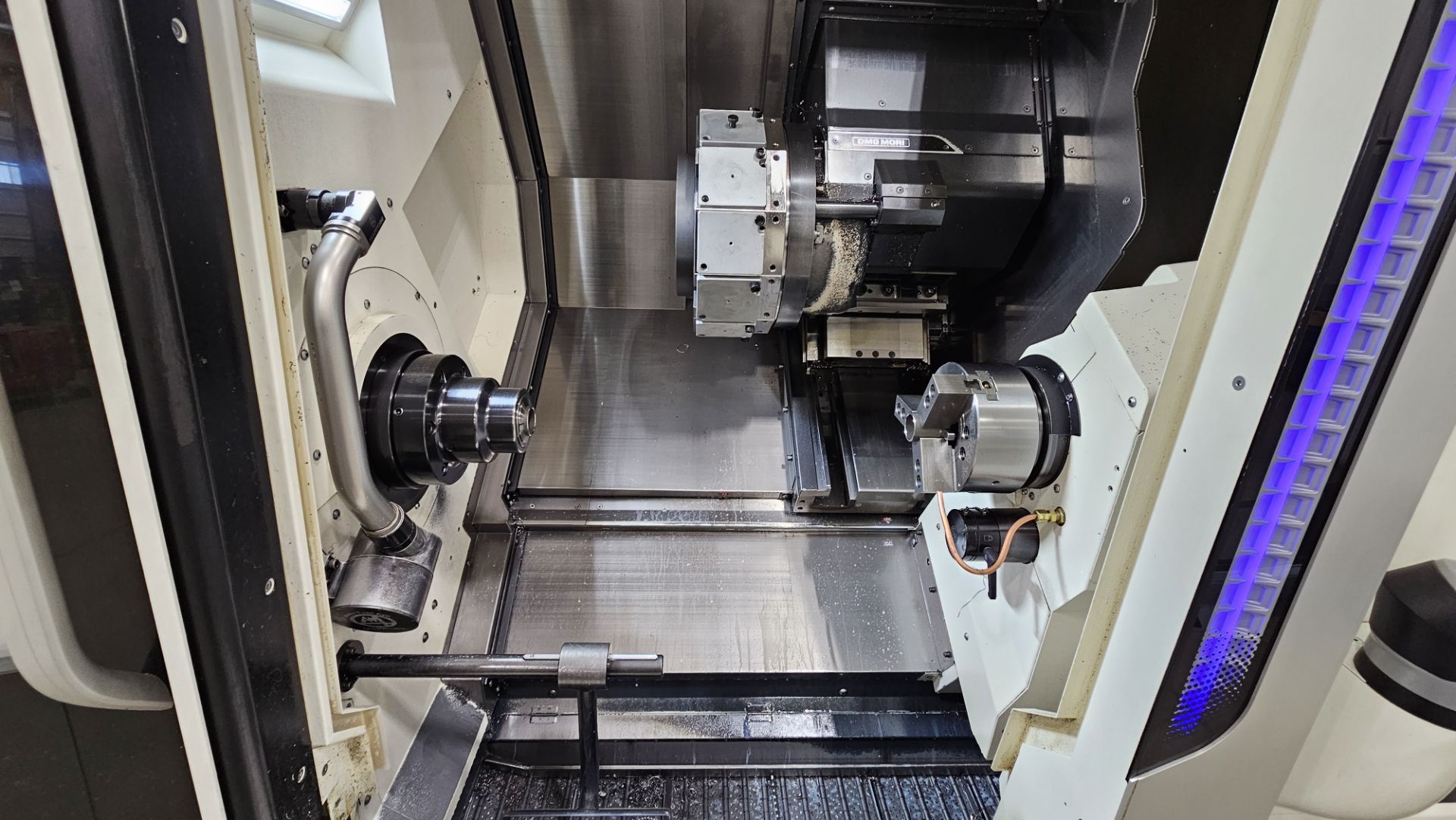

- Twin-Spindle CNC Turning Center with Milling Capability
- DMG MORI CNC Control (CELOS / MAPPS Platform – Machine Dependent)
- Live Tooling Capability
- Y-Axis for Full Milling Operations
- Sub-Spindle for Complete Part Machining
- Rigid Tapping
- Automatic Tool Changer
- High-Torque Main & Sub Spindles
- Fully Enclosed Guarding
- Hydraulic System
- Coolant System
- Chip Conveyor
- Work Light
- Door Interlock Safety System
|
| Travels & Axis Specifications: |
|---|
- X-Axis Travel: Approx. 10.6″ (270 mm)
- Y-Axis Travel: Approx. 4.1″ (±52 mm)
- Z-Axis Travel: Approx. 31.5″ (800 mm)
- C-Axis: Full Interpolation on Main & Sub Spindles
|
| Workholding / Capacity: |
|---|
- Maximum Turning Diameter: Approx. 14.8″
- Maximum Turning Length: Approx. 27.6″ (700 mm)
- Bar Capacity: Approx. 3.0″ (Chuck Configuration Dependent)
|
| Spindles: |
|---|
- Main Spindle
- Maximum Spindle Speed: 4,000 RPM
- High-Torque AC Spindle Motor
- C-Axis Indexing & Interpolation
- Sub-Spindle
- Maximum Spindle Speed: 6,000 RPM
- Full Part Transfer Capability
- C-Axis Interpolation
|
| Milling Capability: |
|---|
- Live Tooling: Yes
- Y-Axis Machining: Yes
- Rigid Tapping
- Drilling, Milling & Tapping on Main & Sub Spindles
|
| Automatic Tool Changer: |
|---|
- Turret Type: Servo-Driven
- Number of Stations: 12
- Live Tool Stations: Selectable
- Fast Tool Indexing for Production Machining
|
| Feedrates & Rapids: |
|---|
- Rapid Traverse (X / Z): High-Speed Servo Driven
- Rapid Traverse (Y): Independent Y-Axis Drive
- High-Accuracy Ballscrews & Linear Guides
|

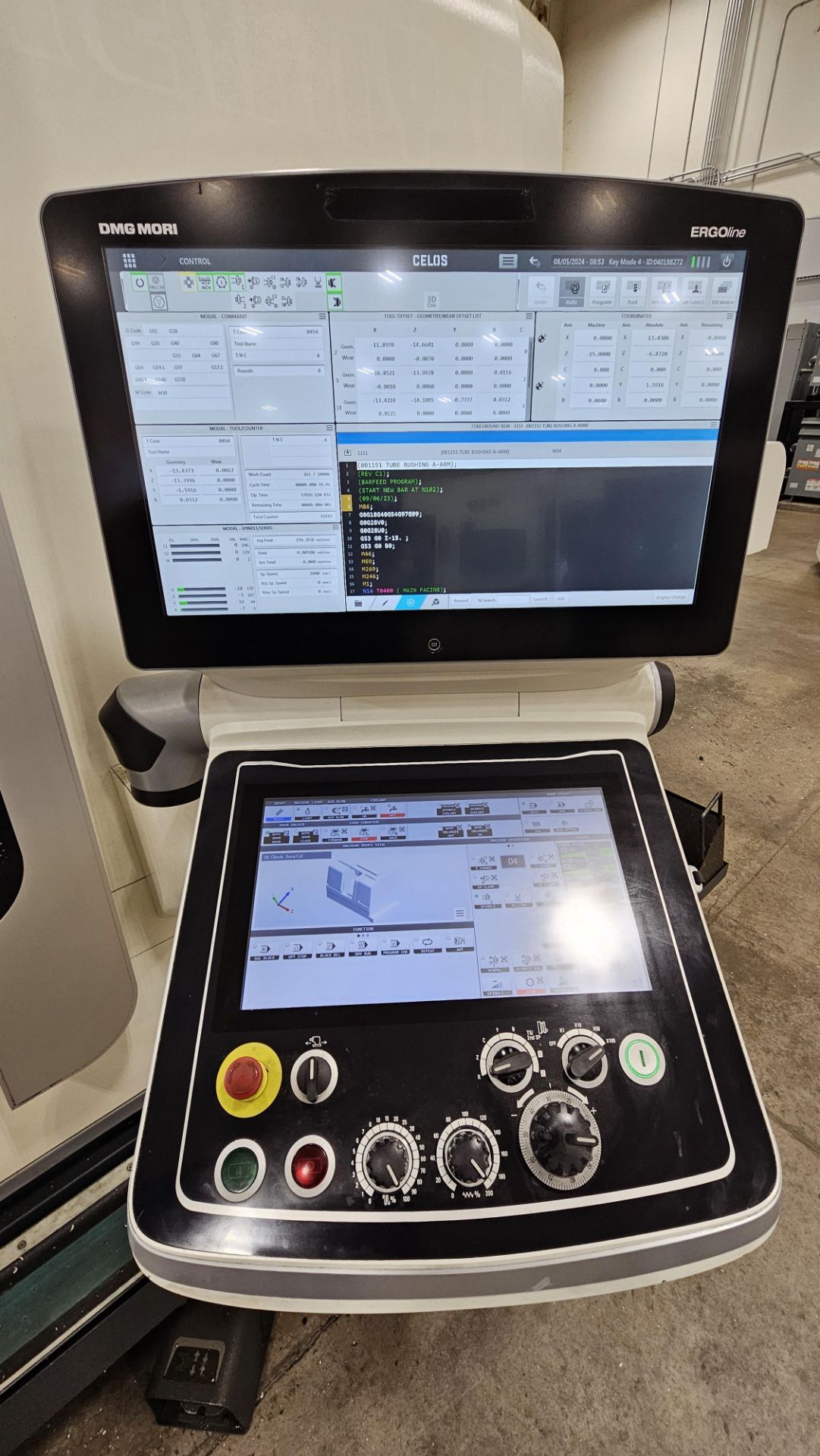

| CNC Control: |
|---|
- DMG MORI CNC Control (MAPPS / CELOS Interface)
- Large Color Display
- Conversational & G-Code Programming
- Ethernet / USB / Network Ready
- Advanced Diagnostics & Alarm Monitoring
|
| Electrical & Utilities: |
|---|
- Power Supply: 220V ±10% / 3-Phase
- Frequency: 60 Hz
- Rated Power: 41 kVA
- Full Load Current: Approx. 108 Amps
- Control Voltage: AC 100V / DC 24V
- Short Circuit Rating: 5 kA
|
| Machine Dimensions & Weight: |
|---|
- Approx. Machine Weight: 13,250 lbs (6,360 kg)
- Compact Footprint for High Productivity
|
| General: |
|---|
- Excellent Thermal Stability
- Ideal for High-Precision Production Turning & Milling
- Suitable for Automotive, Aerospace & General Machining
|
