*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
DMG MORI |
| Model No.: |
NLX2500SY/700 |
| Year of Manufacture: |
2016 |
| Condition: |
Used – Excellent |
| Machine Type: |
CNC Turning Center (Mill-Turn) |
| CNC Control: |
DMG MORI ERGOline (MAPPS) |
| Country of Origin: |
Japan |
| Equipped With: |

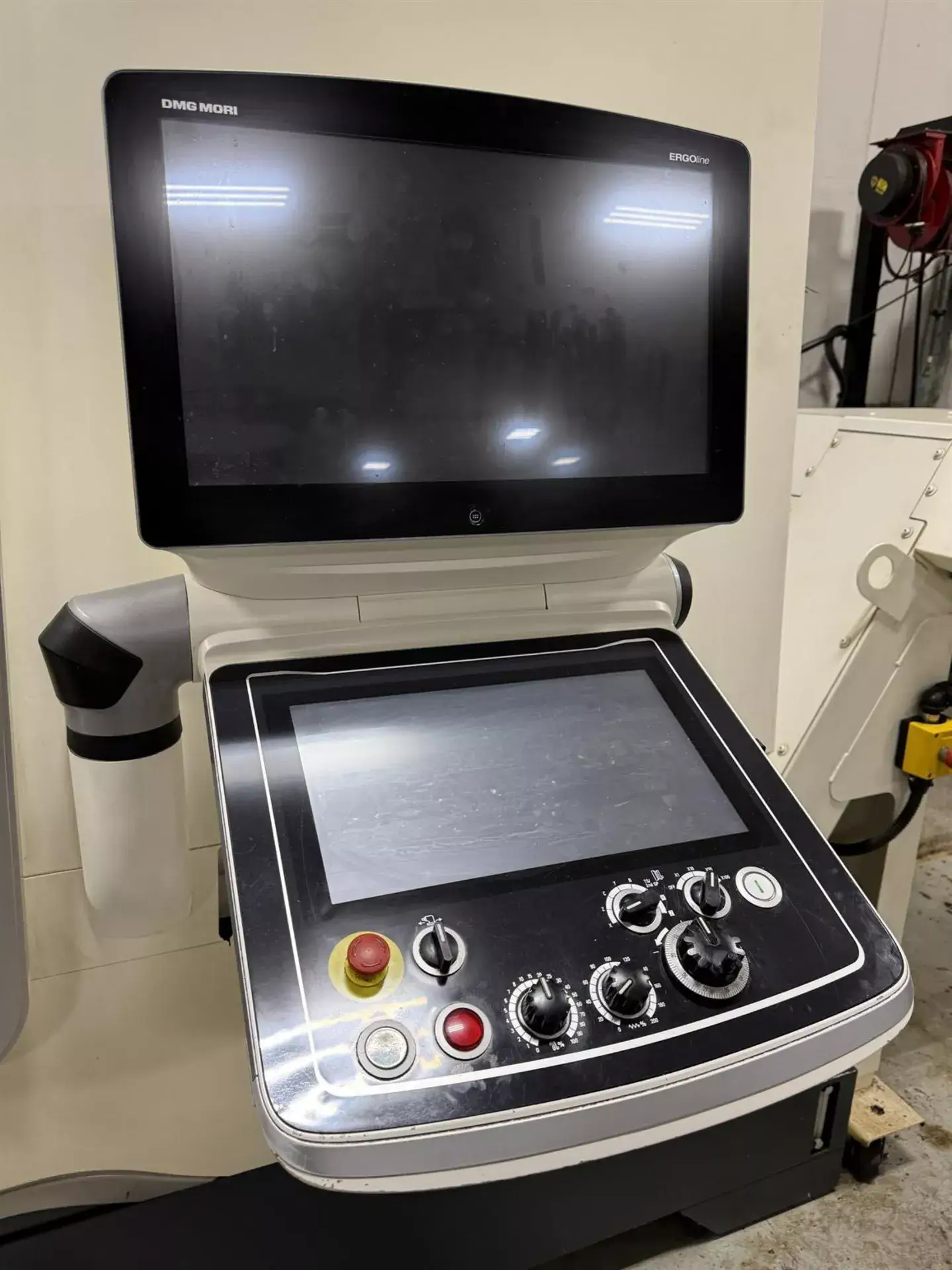

| ERGOline Touchscreen Control (MAPPS) |
| Y-Axis Capability |

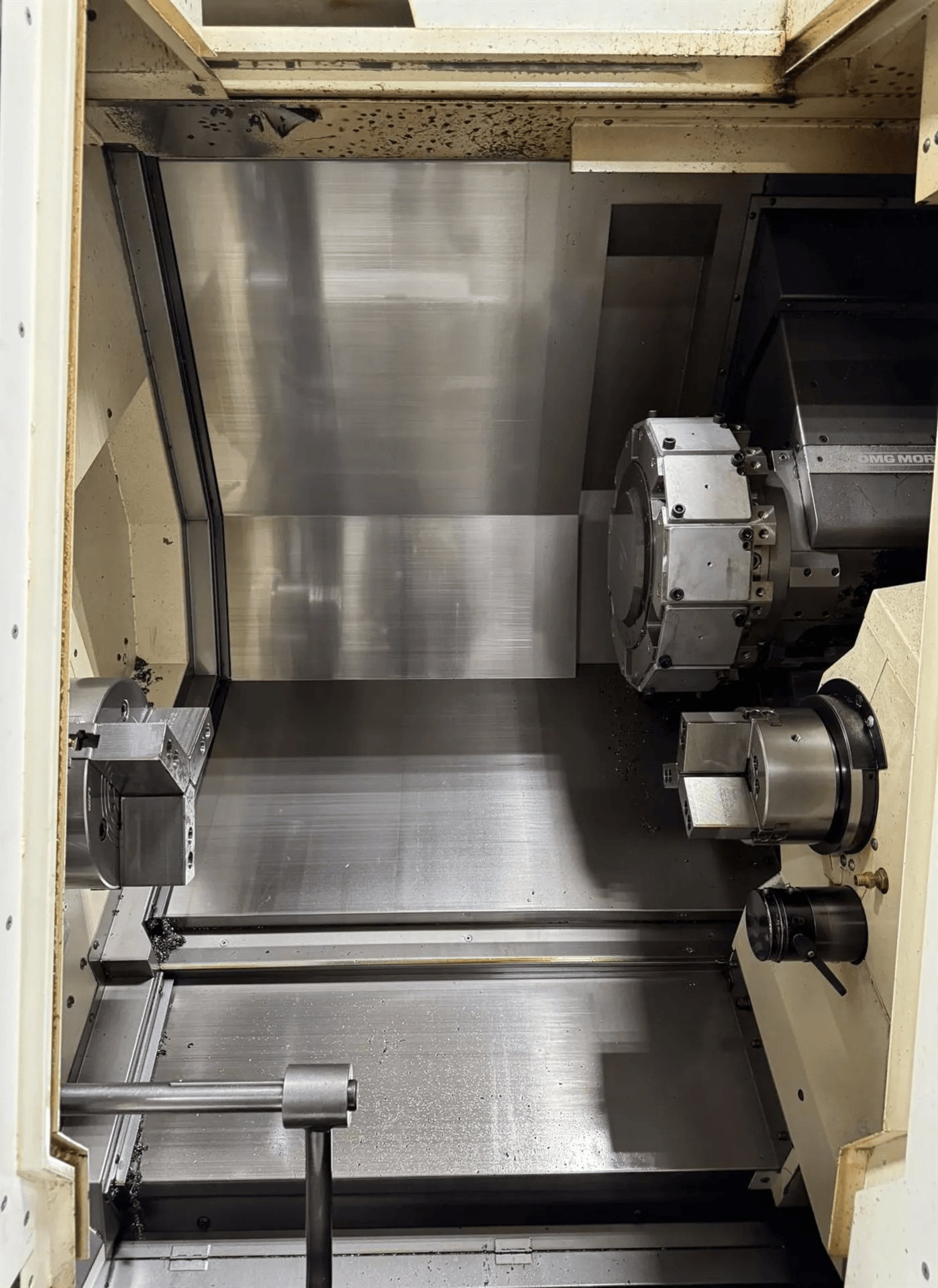

| Sub-Spindle (Secondary Spindle) |
| Live Tooling |
| C-Axis Spindle Control |
| Automatic Tool Changer Turret |
| Chip Conveyor |
| Coolant System |
| Parts Catcher |
| Bar Feed Interface |
| Full Enclosure |
| Capacity: |
| Max Turning Diameter: ~14.6″ (370 mm) |
| Max Turning Length: ~27.6″ (700 mm) |
| Bar Capacity: ~3.1″ (80 mm) |
| Chuck Size: 10″ |
| Travels: |
| X-Axis Travel: ~10.2″ |
| Y-Axis Travel: ±2″ |
| Z-Axis Travel: ~31.5″ |
| B-Axis (Sub-Spindle): Programmable |
| Spindle: |
| Main Spindle Speed: 4,000 RPM |
| Sub-Spindle Speed: 4,000 RPM |
| Spindle Nose: A2-6 |
| Main Spindle Motor: ~25 HP |
| Turret / Tooling: |
| Tool Capacity: 12 Station Turret |
| Live Tool Speed: Up to 6,000 RPM |
| Tool Holder Type: VDI / BMT (Varies) |
| Feed Rates: |
| Rapid Traverse (X/Z): High-Speed (Approx. 1,200 IPM) |
| Cutting Feed Rate: Programmable |
| Electrical: |
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| General: |
| Power Requirement: Approx. 48 kVA |
| Air Required: 90-100 PSI |
| Weight: Approx. 13,000 – 15,000 lbs |
