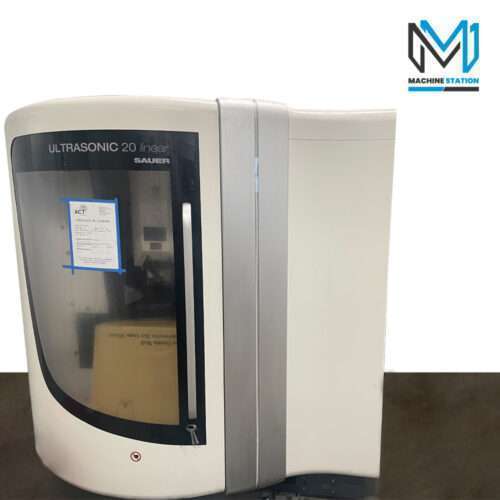

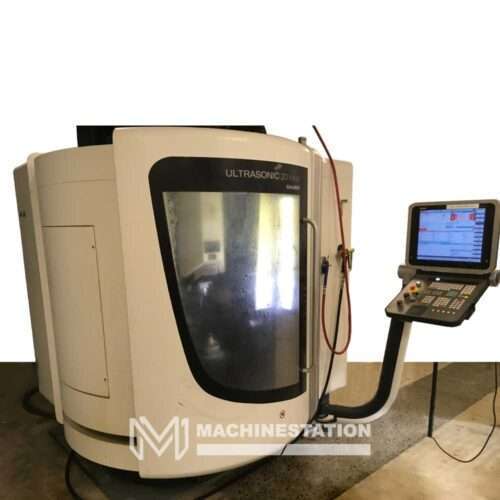

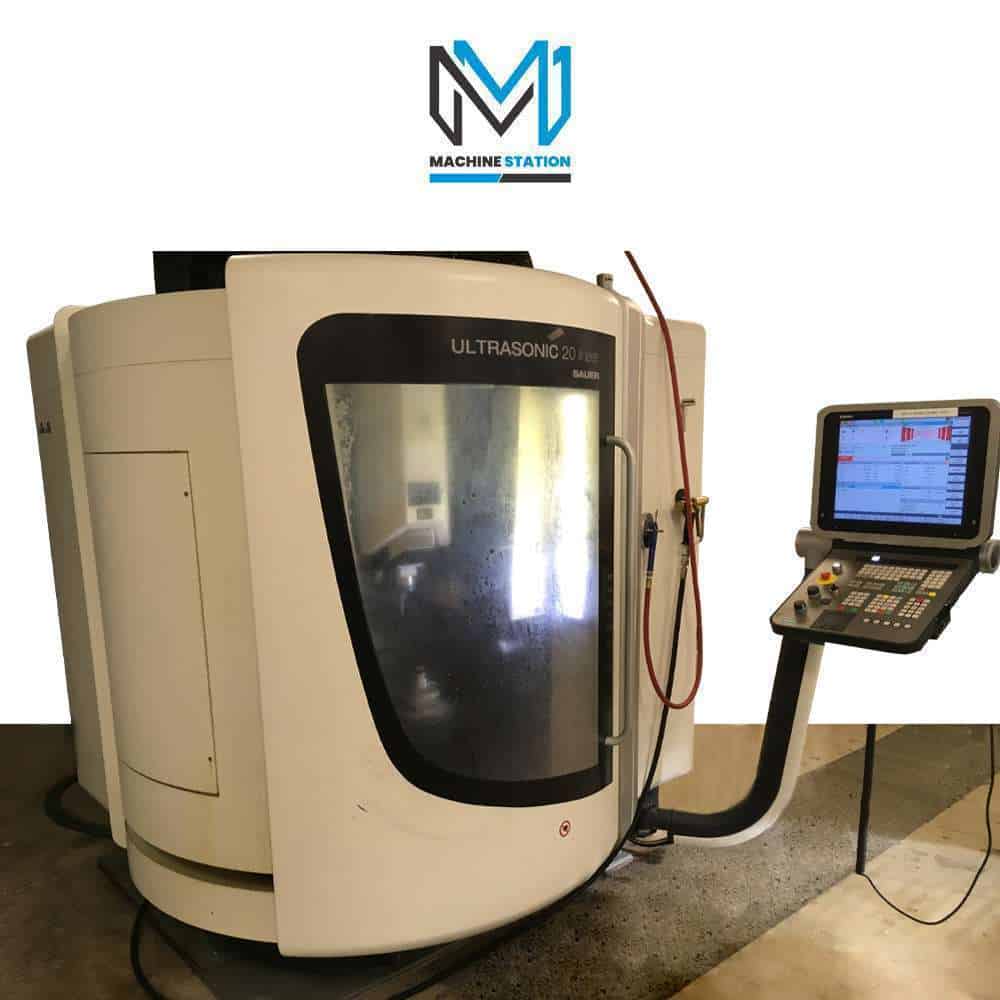

DMG Ultrasonic 20 Linear 5 Axis CNC Vertical Machining Center

Out of stock

Used DMG Ultrasonic 20 Linear 5 Axis CNC Vertical Machining Center For Sale

SKU: 7032
Make/Model: DMG Ultrasonic 20 Linear
Year: 2011
Video: No Video



SKU: 7032

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: DMG
Model: Ultrasonic 20 Linear
Year: 2011
Condition: Used – Good



Features:
Siemens 840D CNC Control
Programmable Swiveling Trunnion Table
5 Axis Simultaneous Machining
42,000 RPM High Speed Spindle
High Speed Machining
20 HP Spindle Power
24 Station Automatic Tool Changer
Through Spindle Coolant
MPG Handwheel Control
Rigid Tapping
Spindle Orientation
Telescopic Way Covers

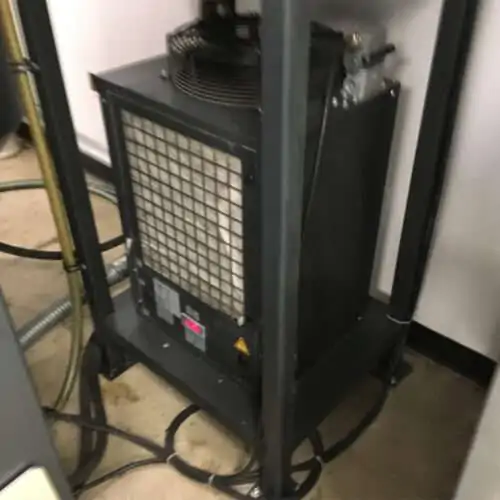

Chiller Unit

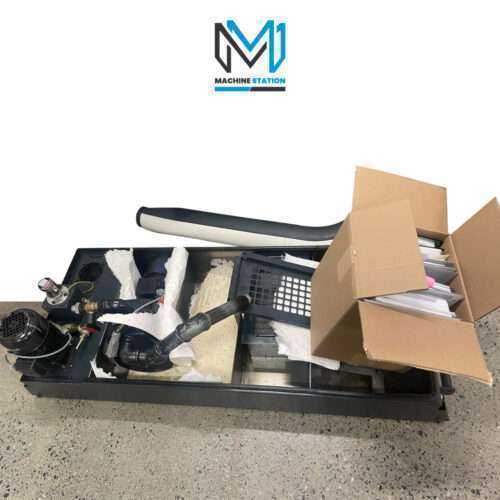

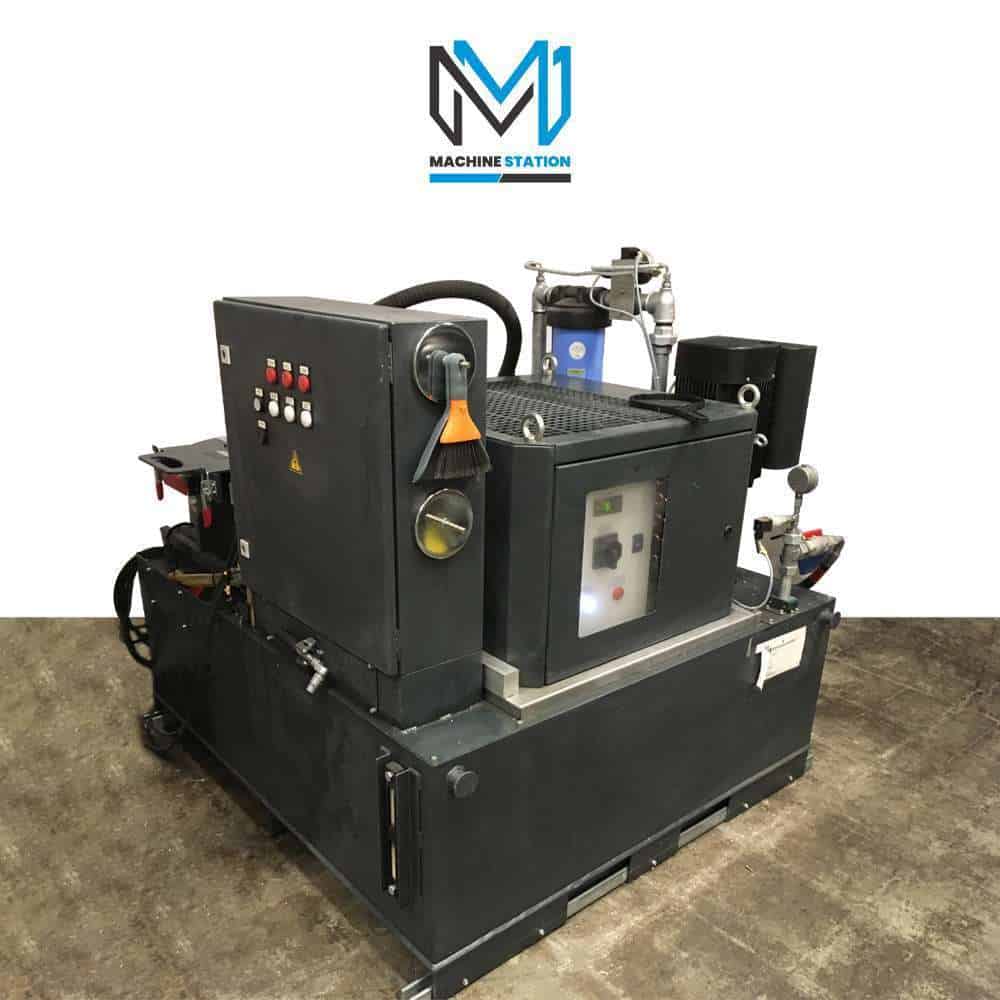

Coolant Recycler Unit

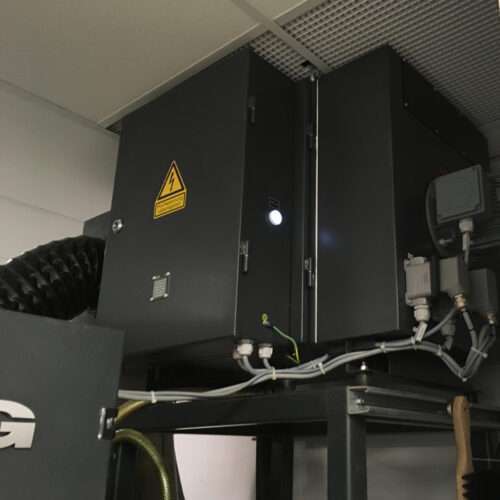

Mist Collector
Coolant System
Books & Manuals



Travels:
X-Axis: 7.87″
Y-Axis: 8.66″
Z-Axis: 11.02″
A-Axis (Table Tilt): + 130° – 15°
C-Axis (Rotation): 360°
Rapid Traverse Rates: 1574 Inch Per Minute



Trunnion Table:
Clamping Surface Table: 14.56″ x 12.59″
Max Table Load: 220 lbs
Clamping Surface NC Swivel Rotary Table Diameter: 7.87″
Max Table Load: 33 lbs
Max Speed Rotation Axis (A/C): 150/50 RPM



Spindle:
Taper Size: HSK 40
Speed Range: 42000 RPM
Spindle Power: 20 HP



Automatic Tool Changer:
Capacity: 24 Station
Max Tool Weight: 12 lbs
Max Tool Diameter : 4.0″
Max Tool Length: 7.87″
Tool Changing Time: 10 Seconds



General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 80″ x 65″ x 93″ High
Weight: 8250 lbs
