*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | DMG |
| Model: | Ultrasonic 20 Linear |
| Year: | 2012 |
| Features: |
|---|

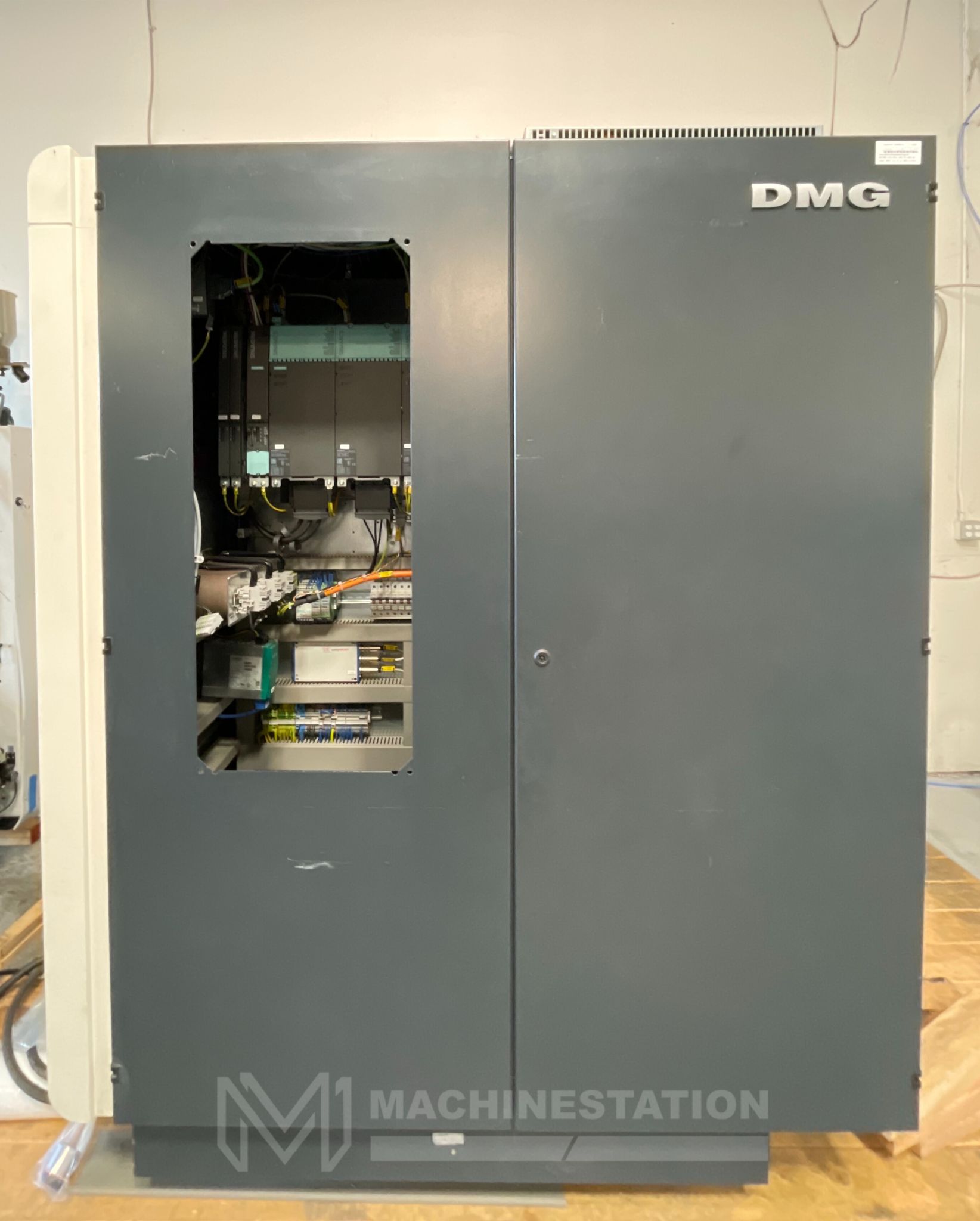

| Siemens ERGOline 840D CNC Control |
| Programmable Swiveling Trunnion Table |
| 5 Axis Simultaneous Machining |
| 42,000 RPM High Speed Spindle |
| High Speed Machining |
| 20 HP Spindle Power |
| 24 Station Automatic Tool Changer |
| Through Spindle Coolant |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |

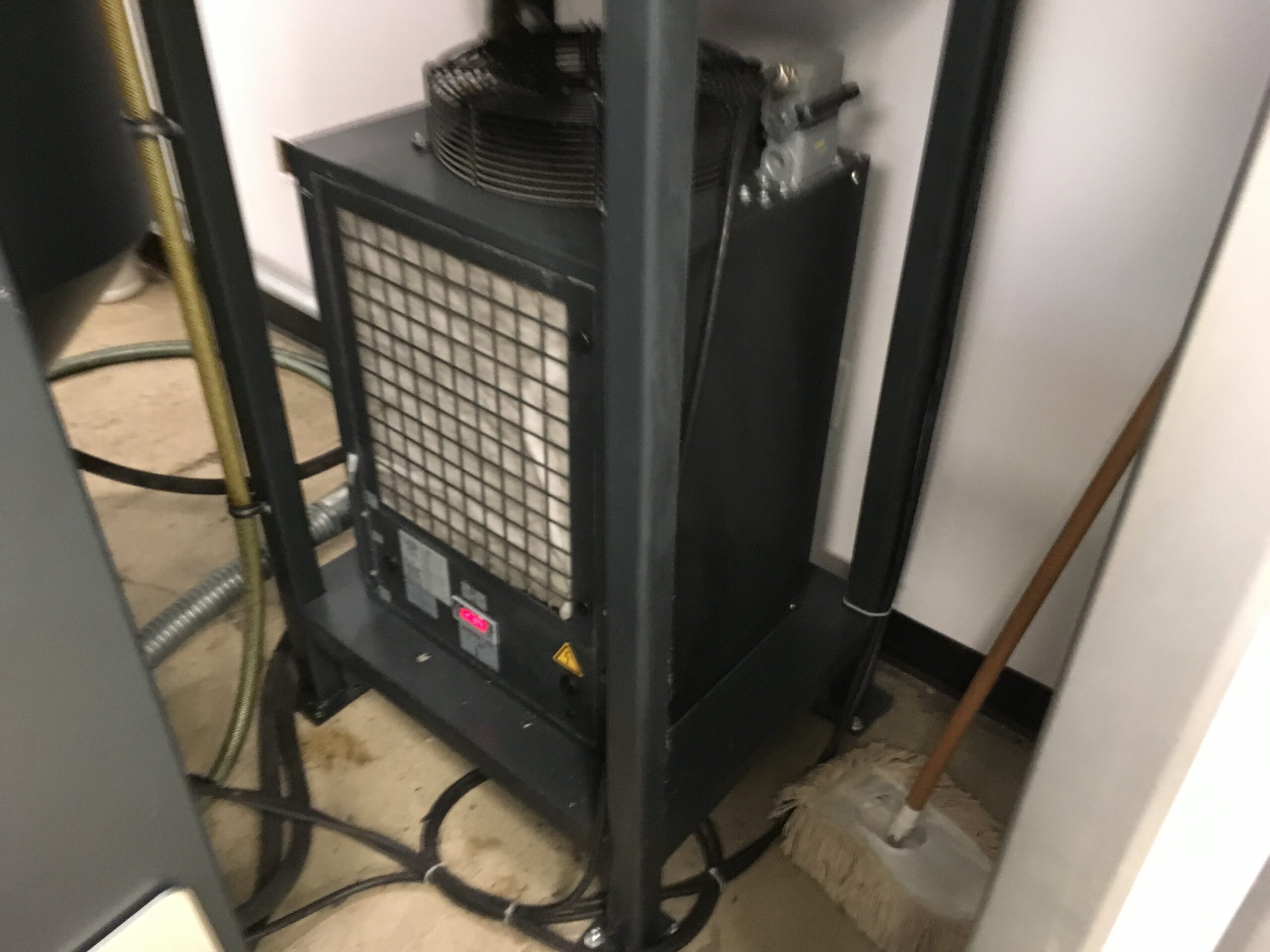

| Chiller Unit |

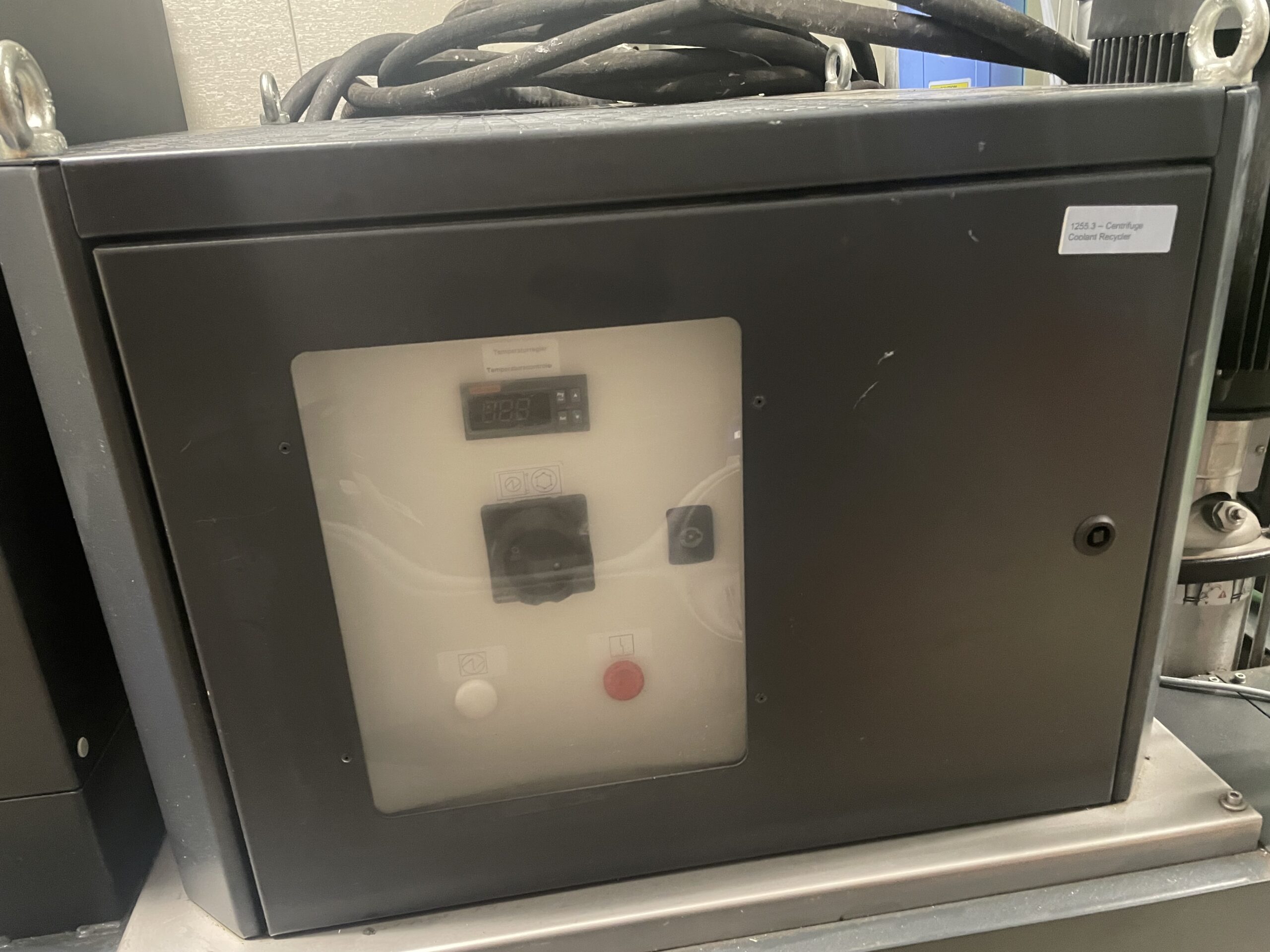

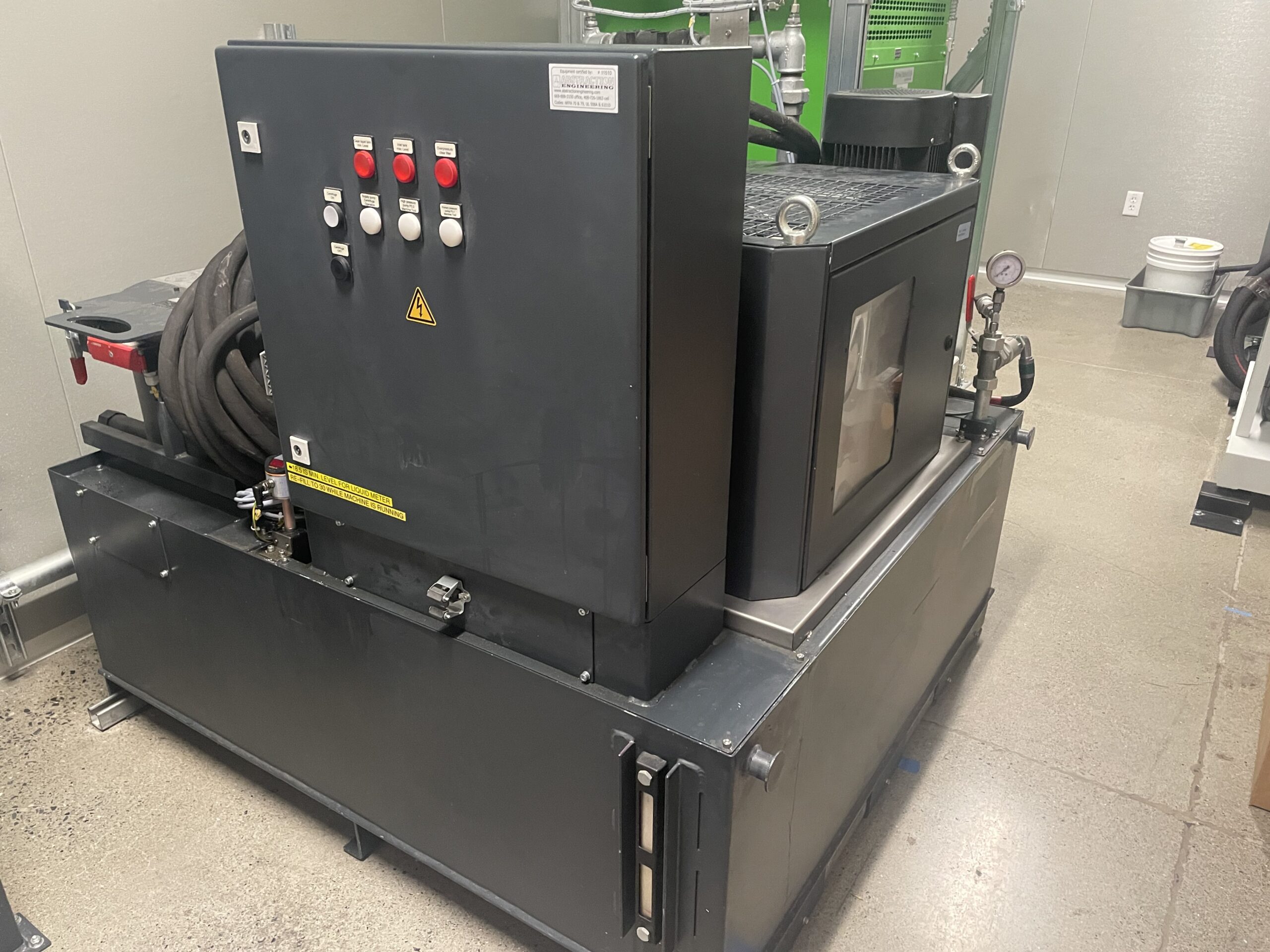

| Coolant Recycler Unit |
| Mist Collector |
| Coolant System |
| Books & Manuals |
| Travels: |
|---|
| X-Axis: 7.87″ |
| Y-Axis: 8.66″ |
| Z-Axis: 11.02″ |
| A-Axis (Table Tilt): + 130° – 15° |
| C-Axis (Rotation): 360° |
| Rapid Traverse Rates: 1574 Inch Per Minute |

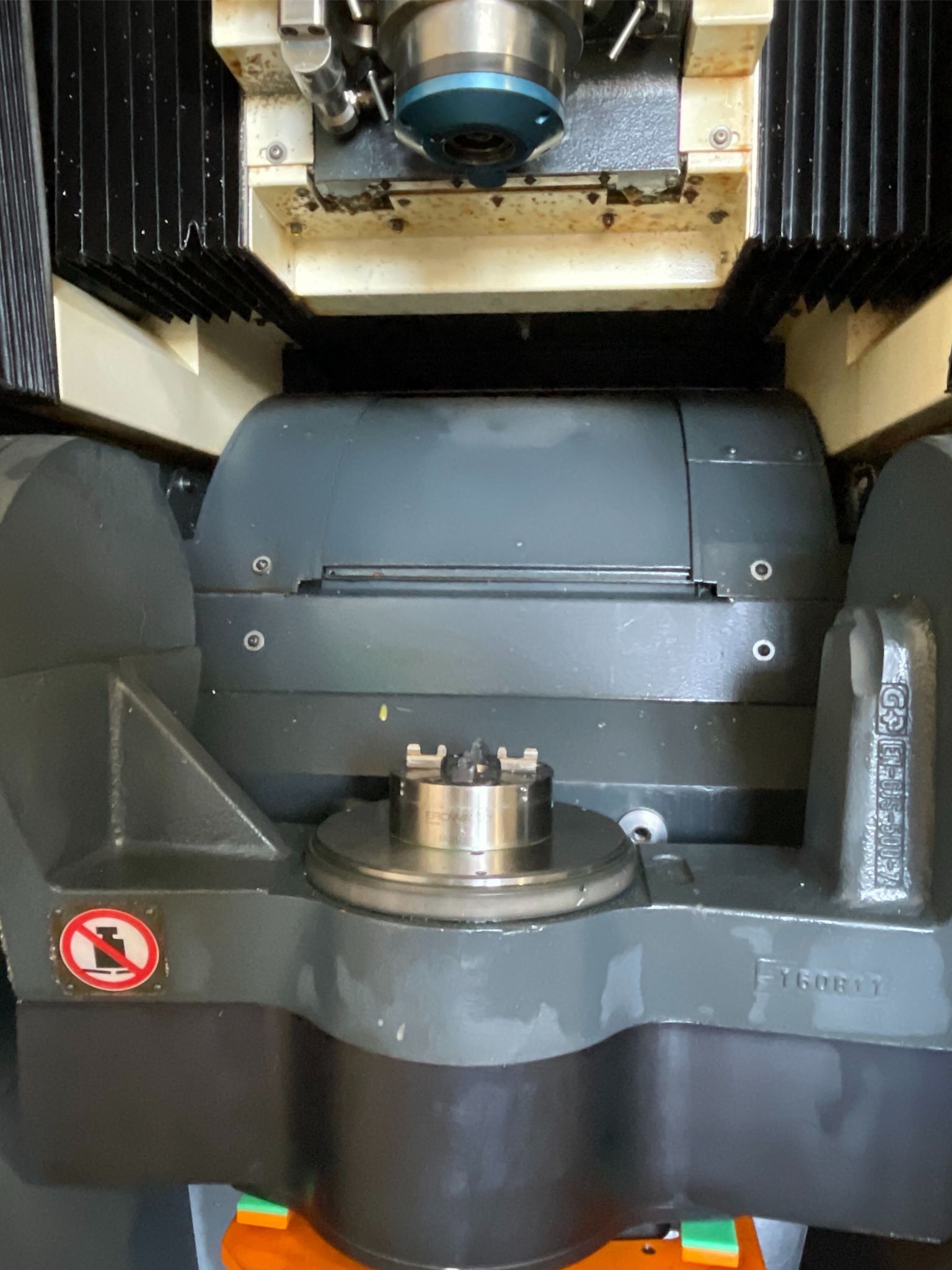

| Trunnion Table: |
|---|
| NC Swivel Rotary Table Diameter: 7.87″ |
| Max Table Load: 220 lbs |
| Max Table Load: 33 lbs |
| Max Speed Rotation Axis (A/C): 150/50 RPM |
| Spindle: |
|---|
| Taper Size: HSK 40 |
| Speed Range: 42000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter : 4.0″ |
| Max Tool Length: 7.87″ |
| Tool Changing Time: 10 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 80″ x 65″ x 93″ High |
| Weight: 8250 lbs |
