Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

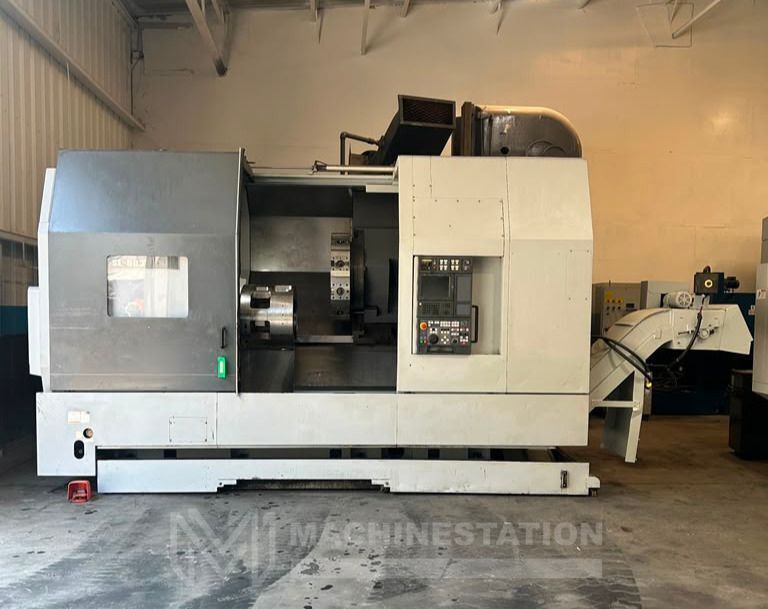

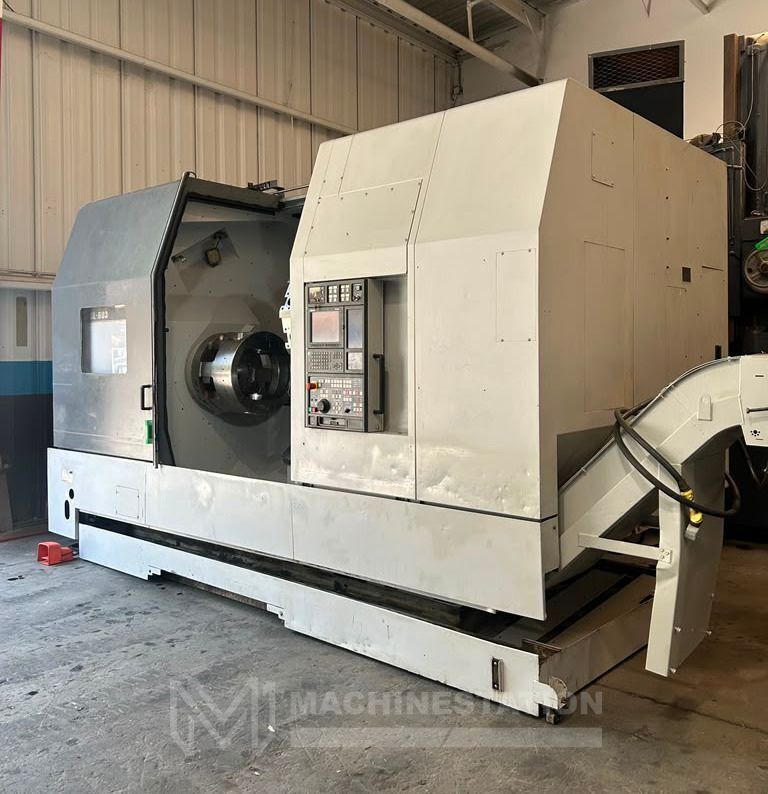

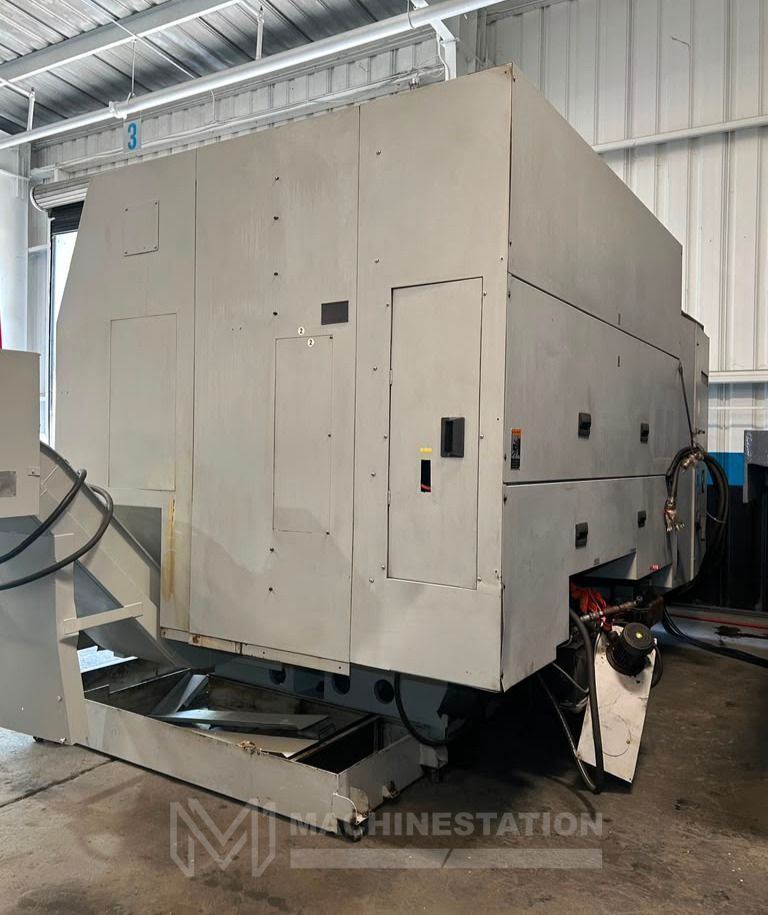

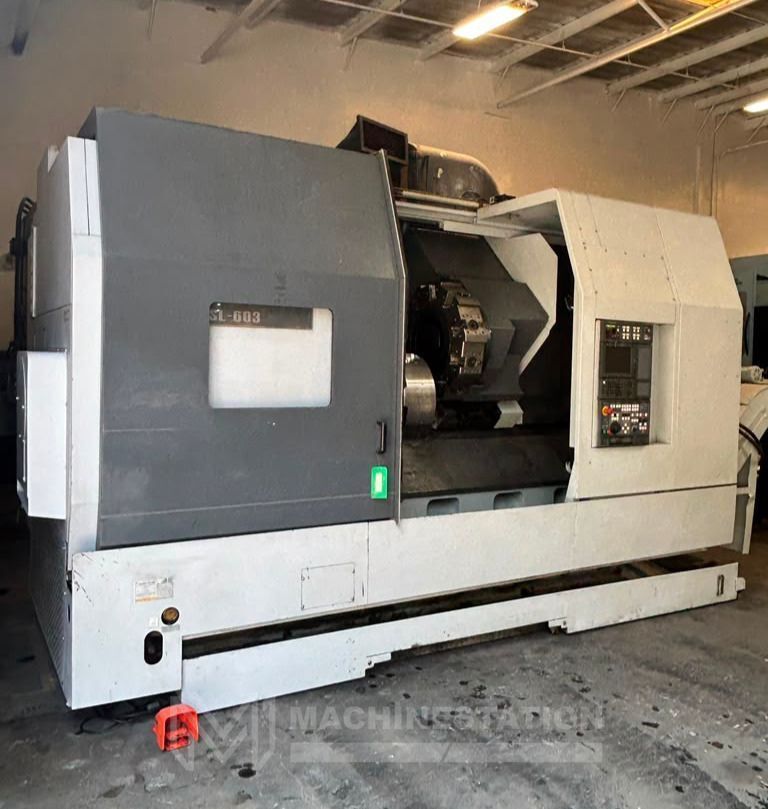

| Make: | Mori Seiki |
| Model: | SL-603B/1000 |
| Year: | 2004 |
| Equipped With: |
|---|

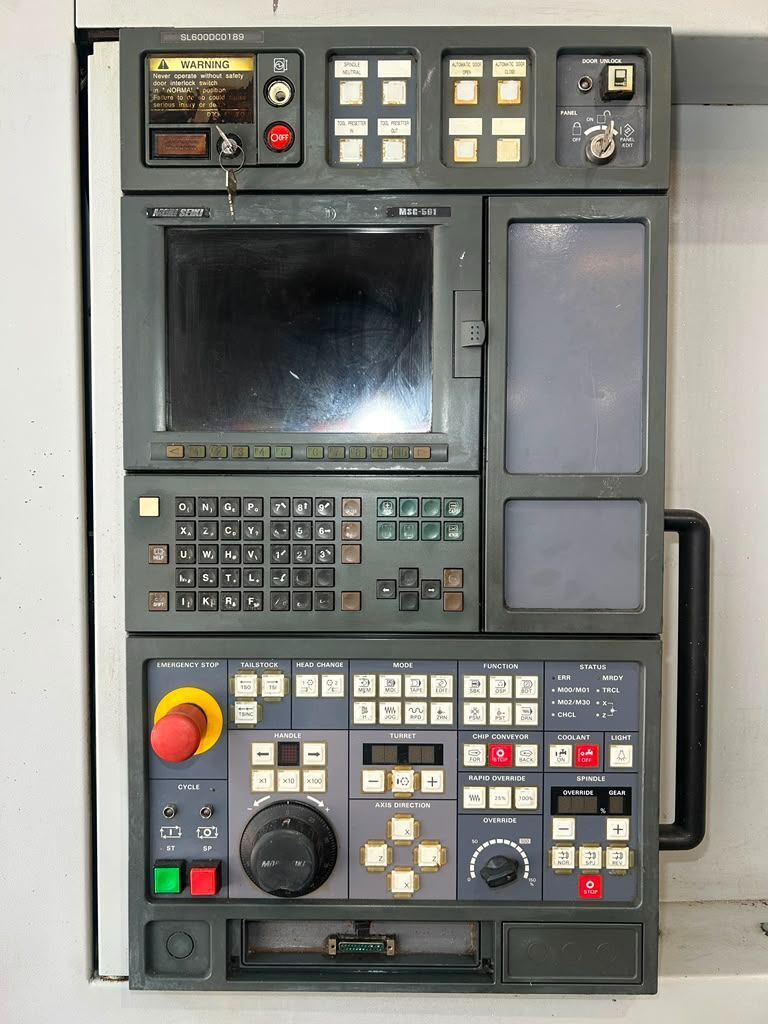

| Mori Seiki MSG-501 (Fanuc) CNC Control |

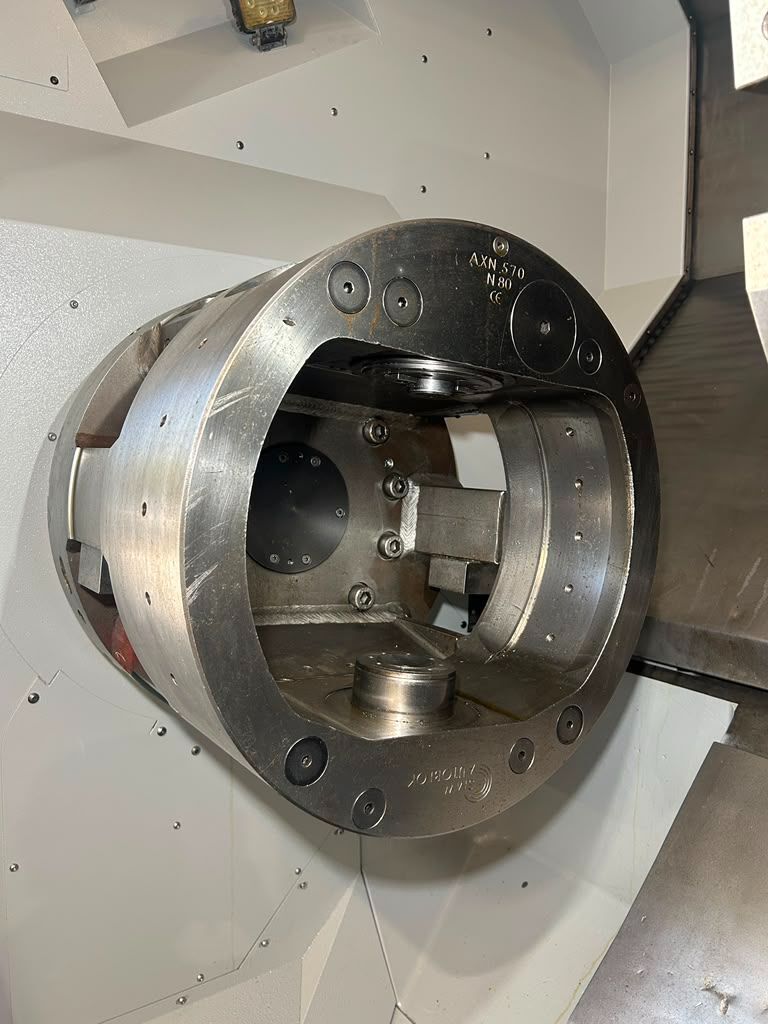

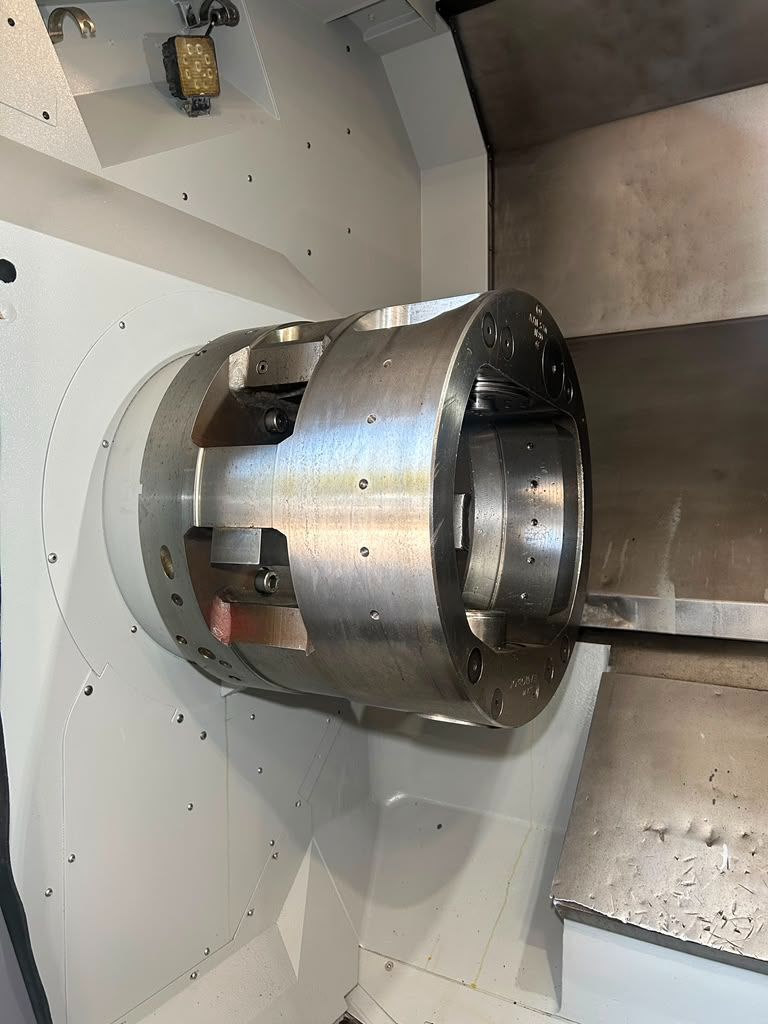

| 22.4″ SMW Autoblock AXN-570 Automatic Indexing Chuck |
| A2-15 Spindle Nose |
| 1,500 RPM Spindle |

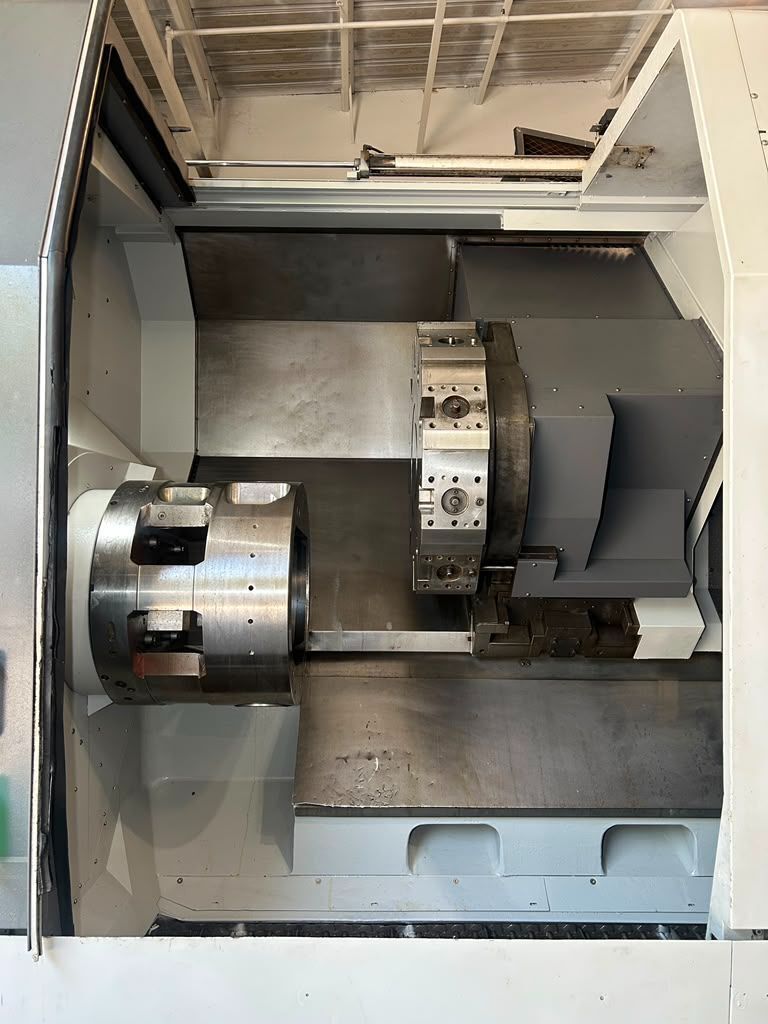

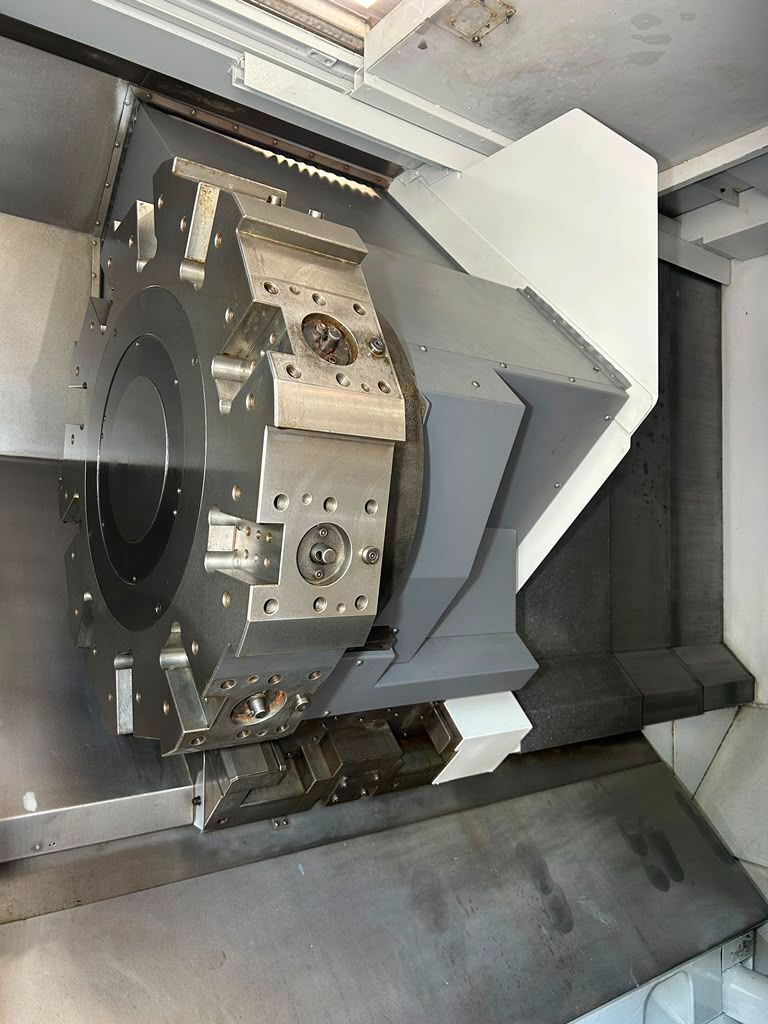

| 10-Station Automatic Turret |
| Coolant Tank |

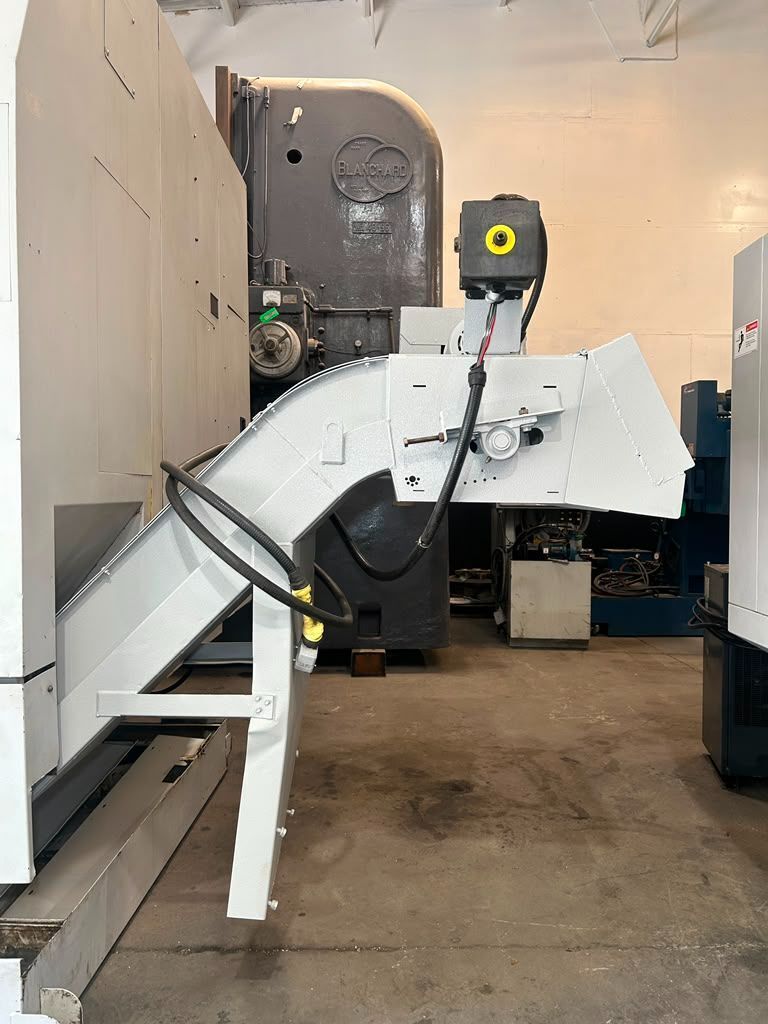

| Chip Conveyor |
| Foot Switch |
| Capacity: |
|---|
| Maximum Turning Diameter: 35.4″ |
| Maximum Turning Length: 39.3″ |
| Swing Over Bed: 40.6″ |
| Swing Over Cross Slide: 28.9″ |
| Distance Between Centers: 51.2″ |
| Travels: |
|---|
| X-Axis Travel: 19.1″ |
| Z-Axis Travel: 45.3″ |
| Feed Rates: |
|---|
| Rapid Traverse X-Axis: 787.4 IPM |
| Rapid Traverse Z-Axis: 787.4 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Speed: 1,500 RPM |
| Spindle Motor: 40 HP |
| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Index Time: 0.4 Seconds |
| Turning Tool Size: 1.25″ |
| Boring Tool Diameter: 2.6″ |
| General: |
|---|

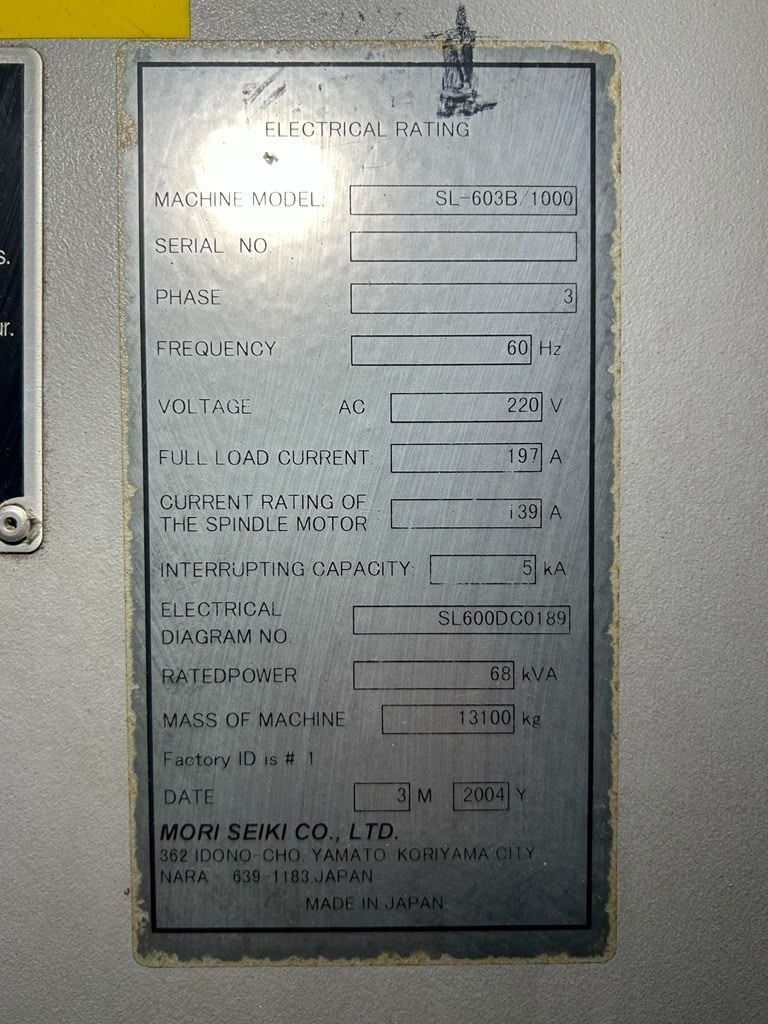

| Power Source: AC 220V / 3-Phase / 60 Hz |
| Power Requirement: 68 kVA |
| Overall Dimensions: 196″ × 121″ × 114″ High Approx. |
| Machine Weight: 28,880 lbs Approx. |
