Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.

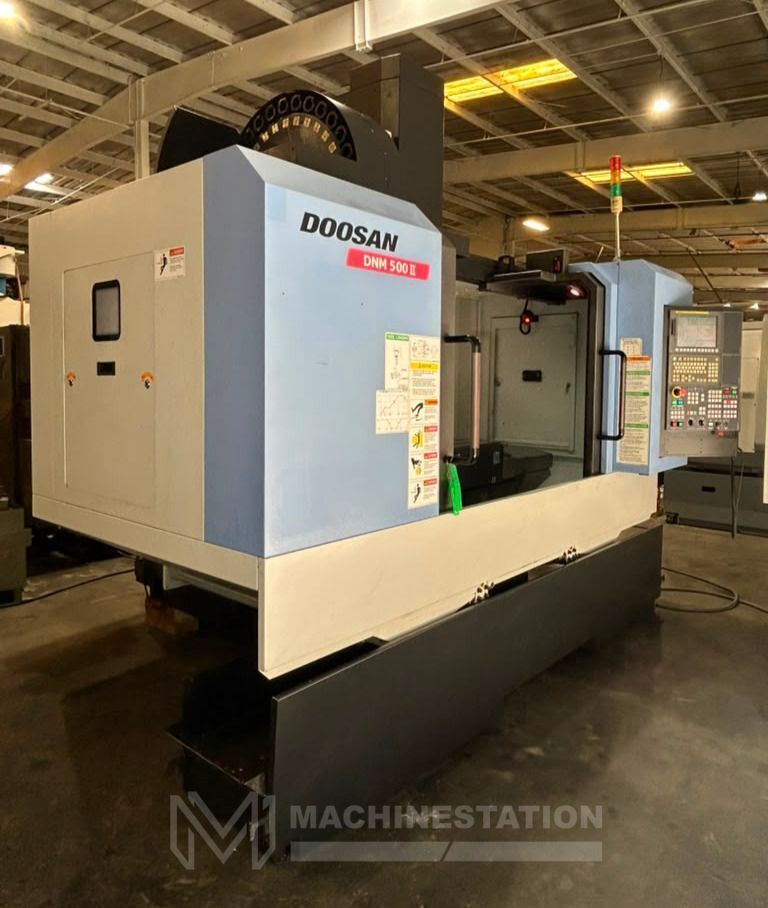

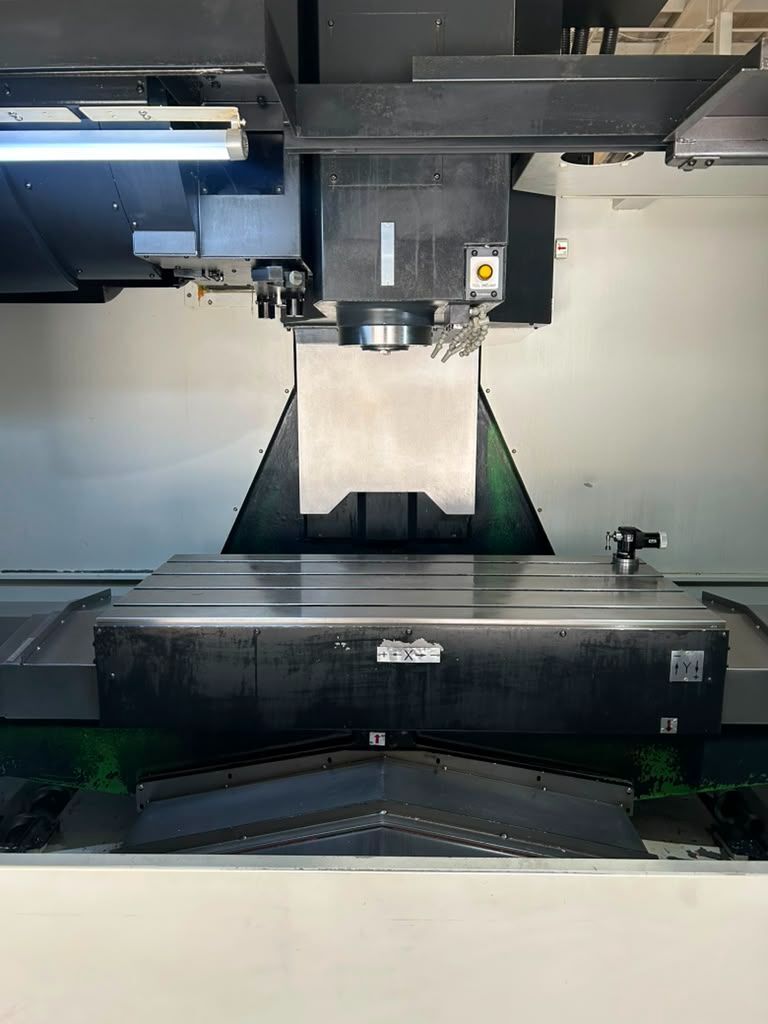

| Make: | Doosan |
| Model: | DNM-500II |
| Year: | 2013 (Sold & Installed in 2014) |
| Features: |
|---|

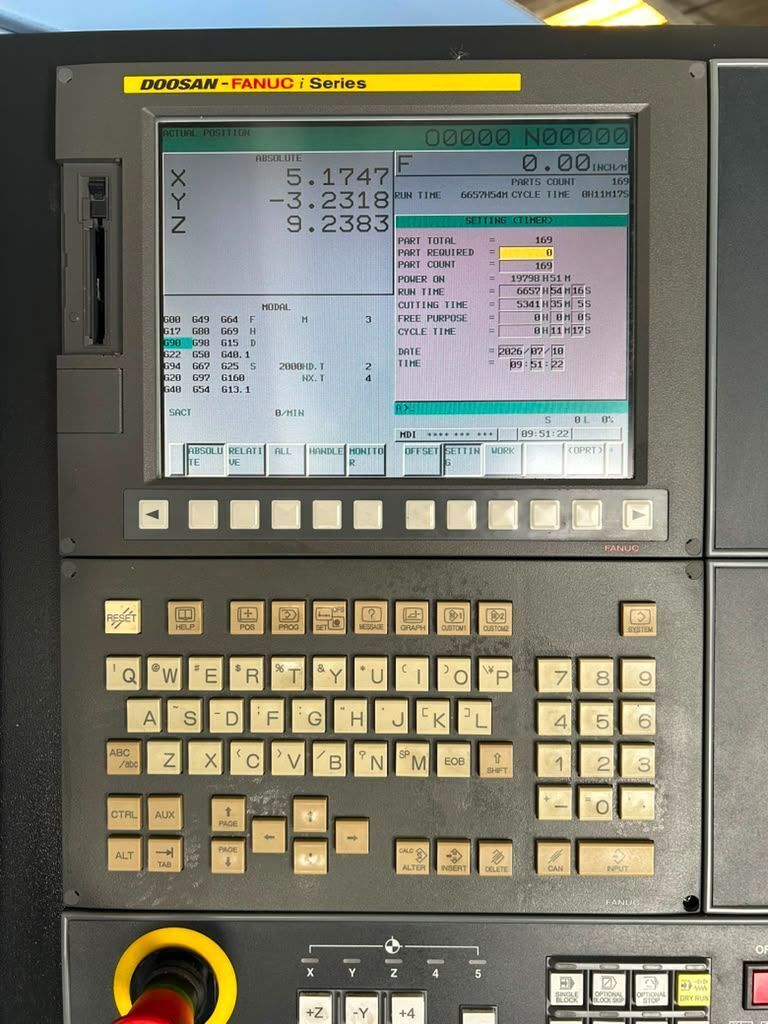

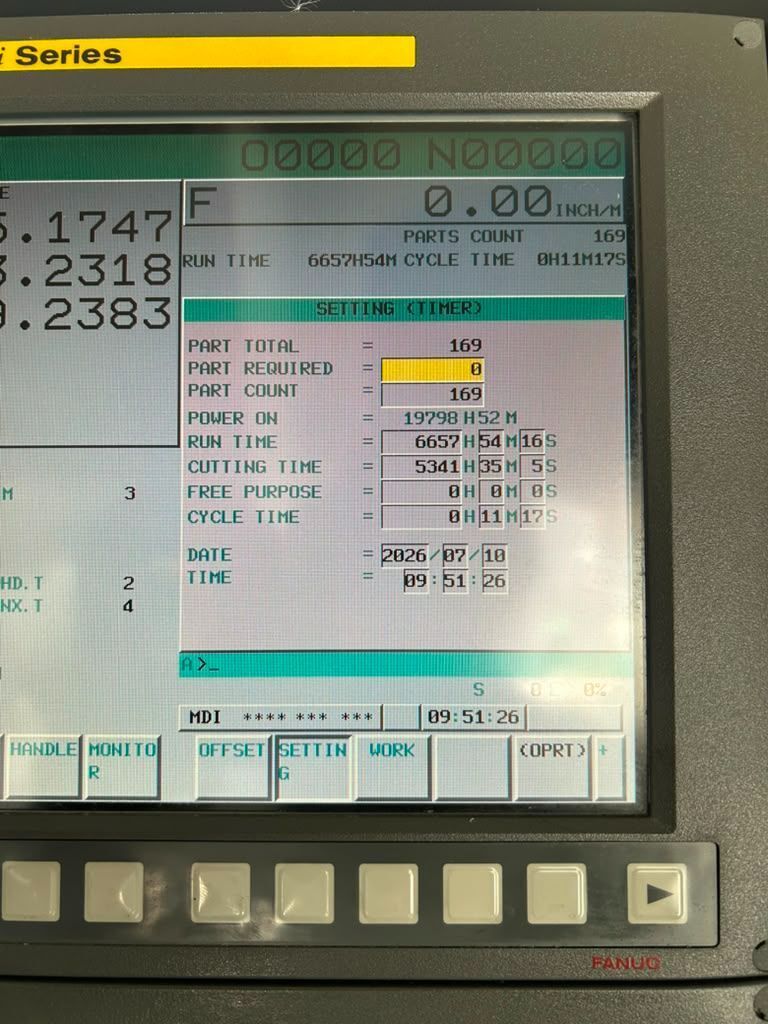

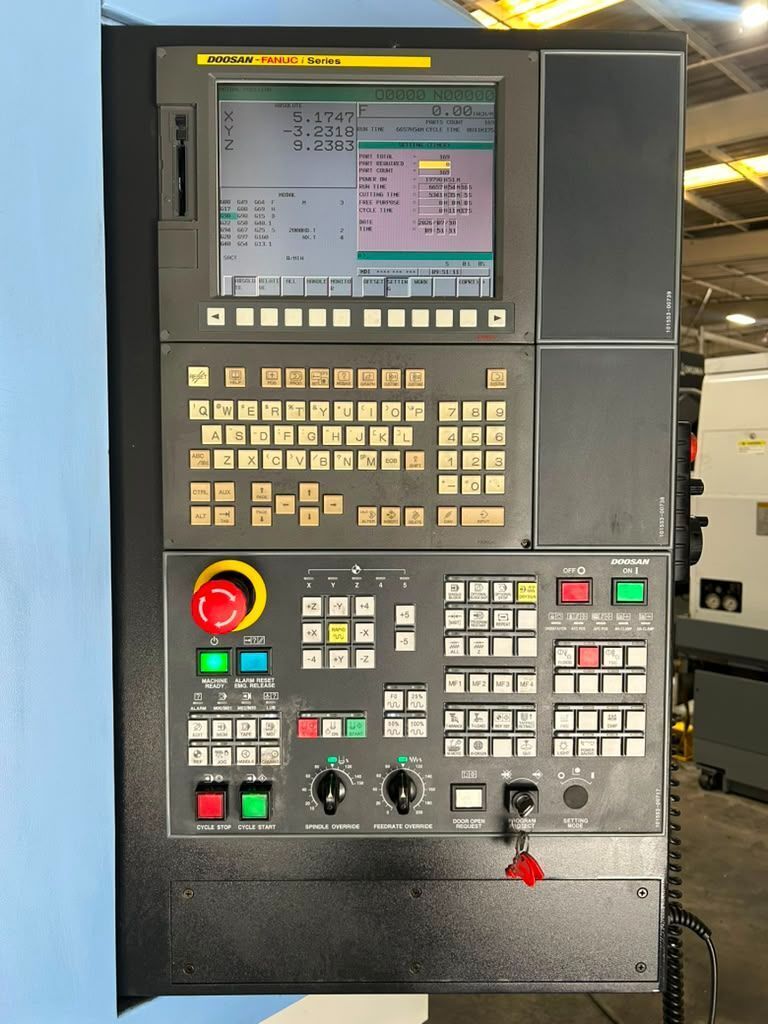

| Doosan Fanuc i-Series CNC Control |
| 12,000 RPM High-Speed Spindle |
| Through Spindle Coolant |

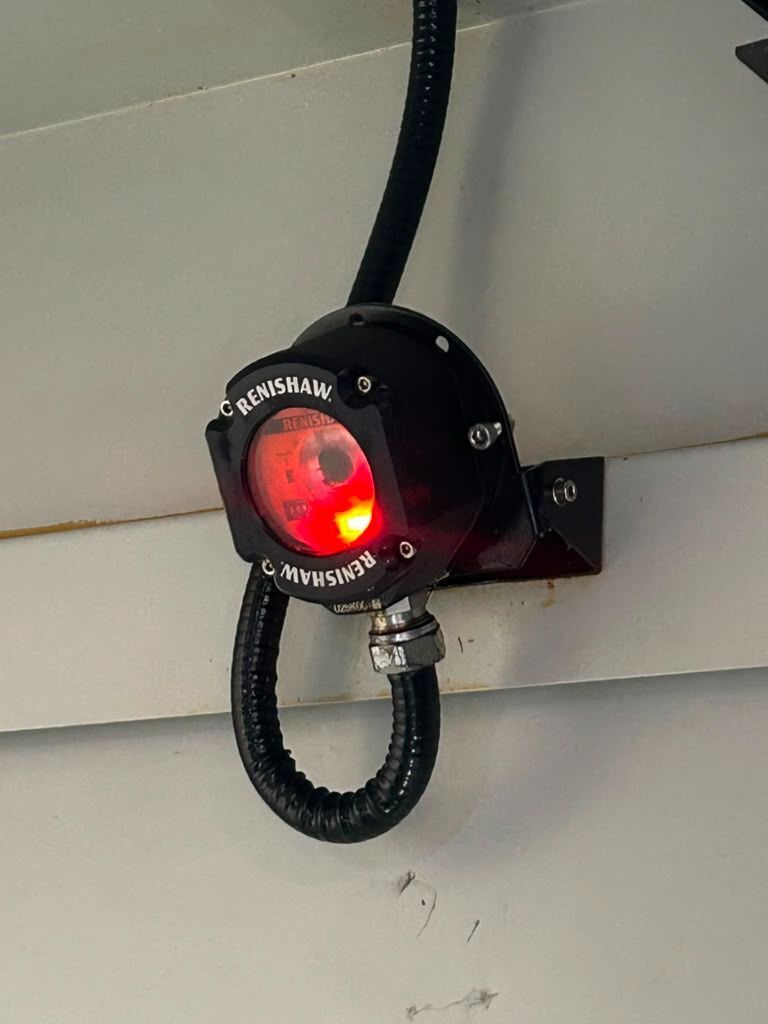

| Renishaw Receiver Installed |

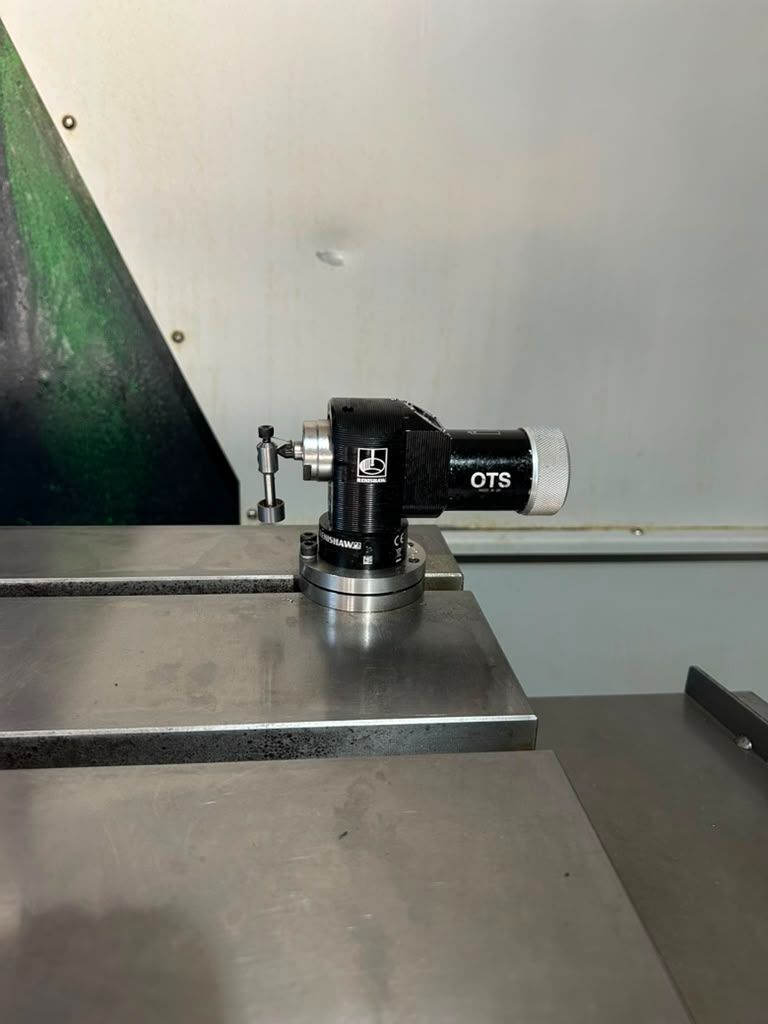

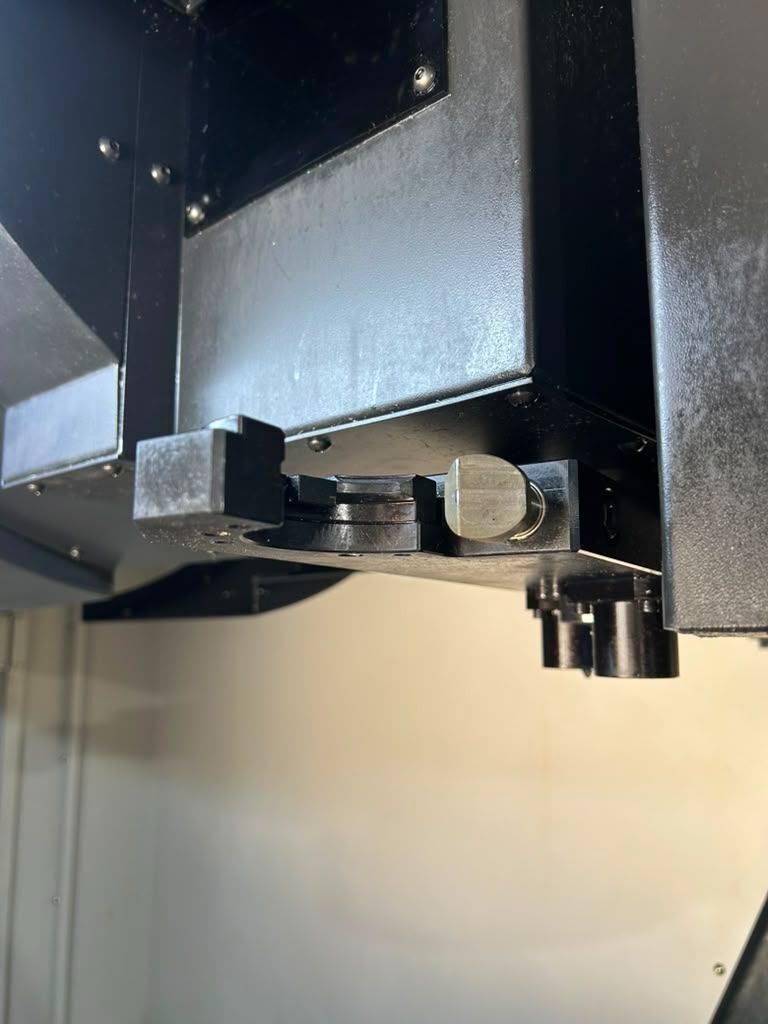

| Tool Presetter |
| 30-Station Automatic Tool Changer |
| CAT-40 Taper Spindle |
| USB Drive |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Automatic Lubrication Unit |
| Rigid Tapping |

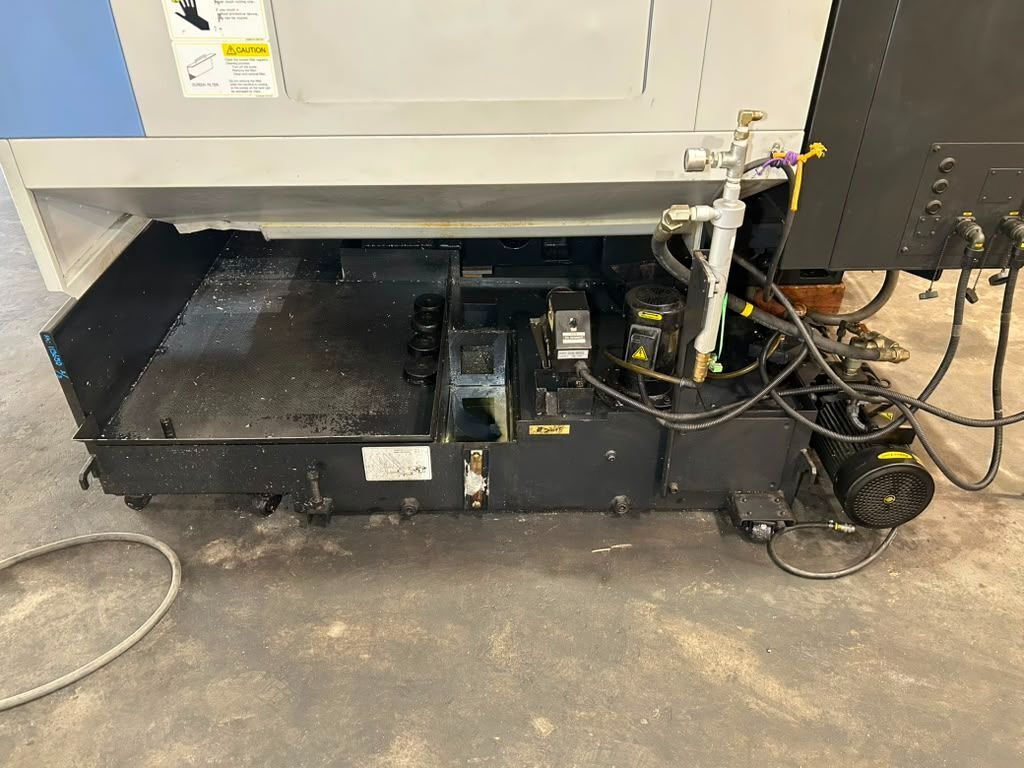

| Coolant Tank |

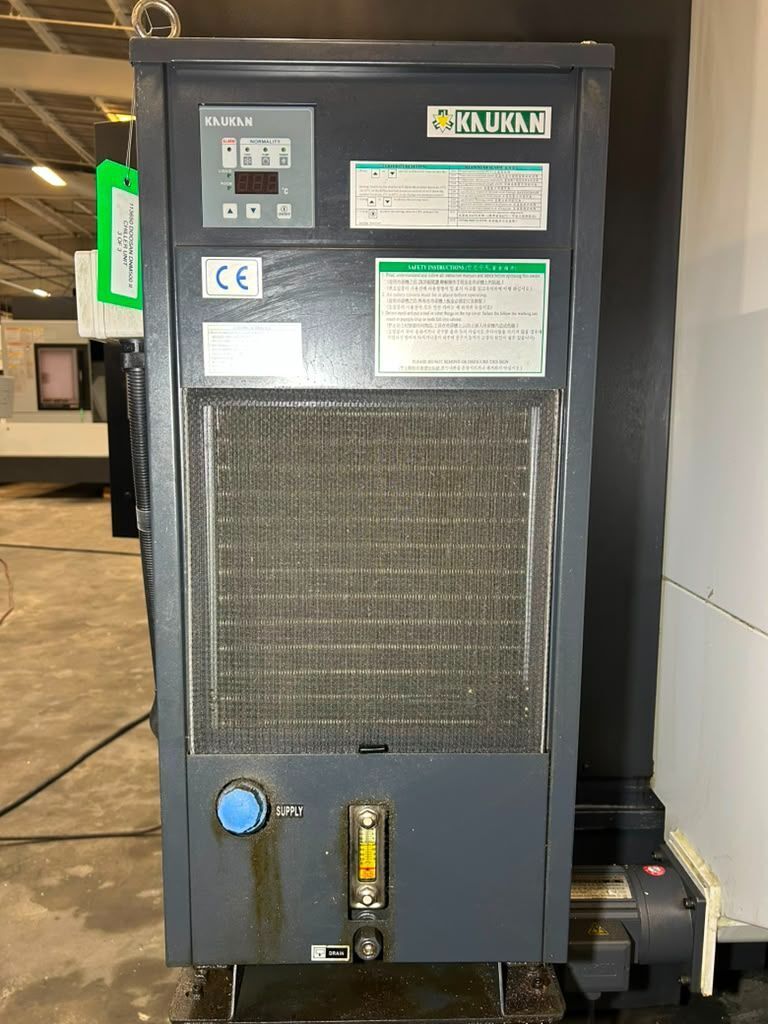

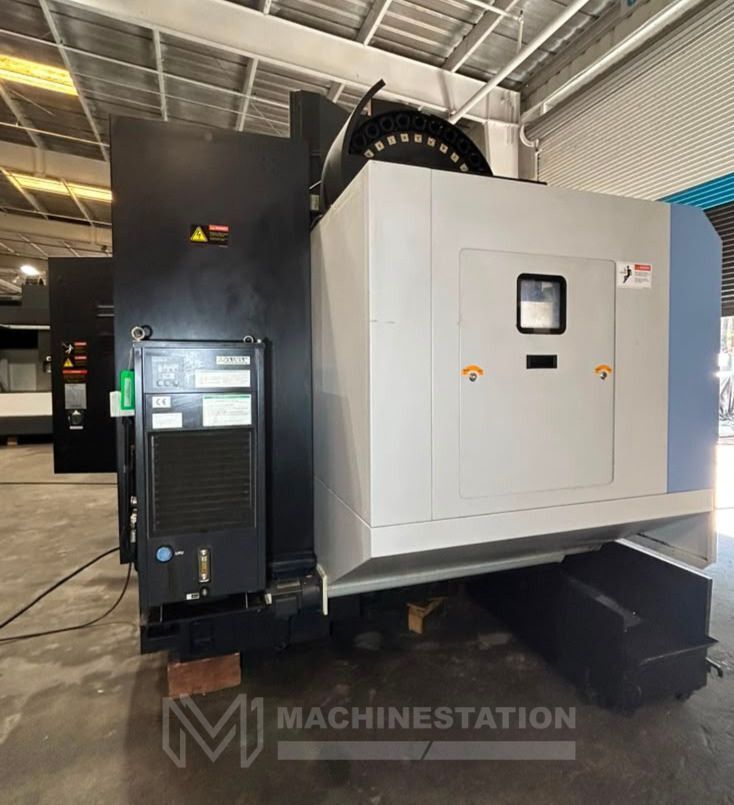

| Spindle Chiller Unit |

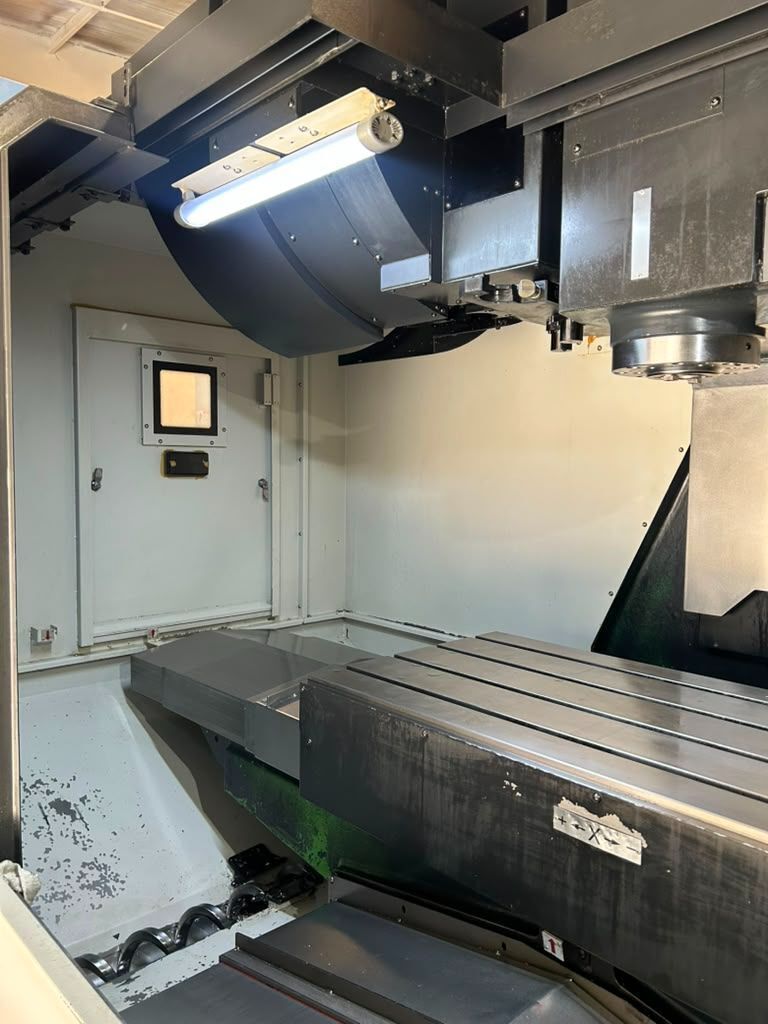

| Dual Chip Augers |
| Travels: |
|---|
| X-Axis: 40.2″ |
| Y-Axis: 21.3″ |
| Z-Axis: 20.1″ |
| Rapid Traverse Rates X & Y Axis: 1,417 IPM |
| Rapid Traverse Rate Z Axis: 1,181 IPM |
| Cutting Feed Rate: 590 IPM |
| Spindle Nose to Table (Min.-Max.): 5.9″ – 26.0″ |

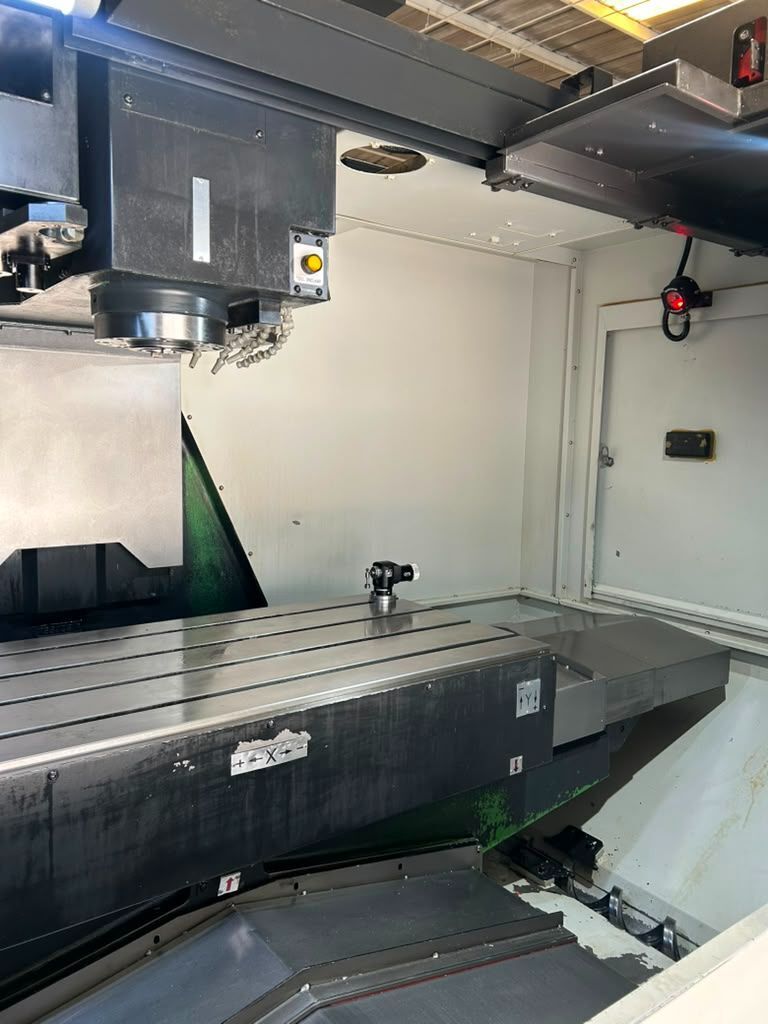

| Table: |
|---|
| Length: 47.2″ |
| Width: 21.3″ |
| Number of Standard T-Slots: 4 |
| T-Slot Size: 4.9″ × 0.7″ |
| Maximum Weight on Table: 1,764 lbs |

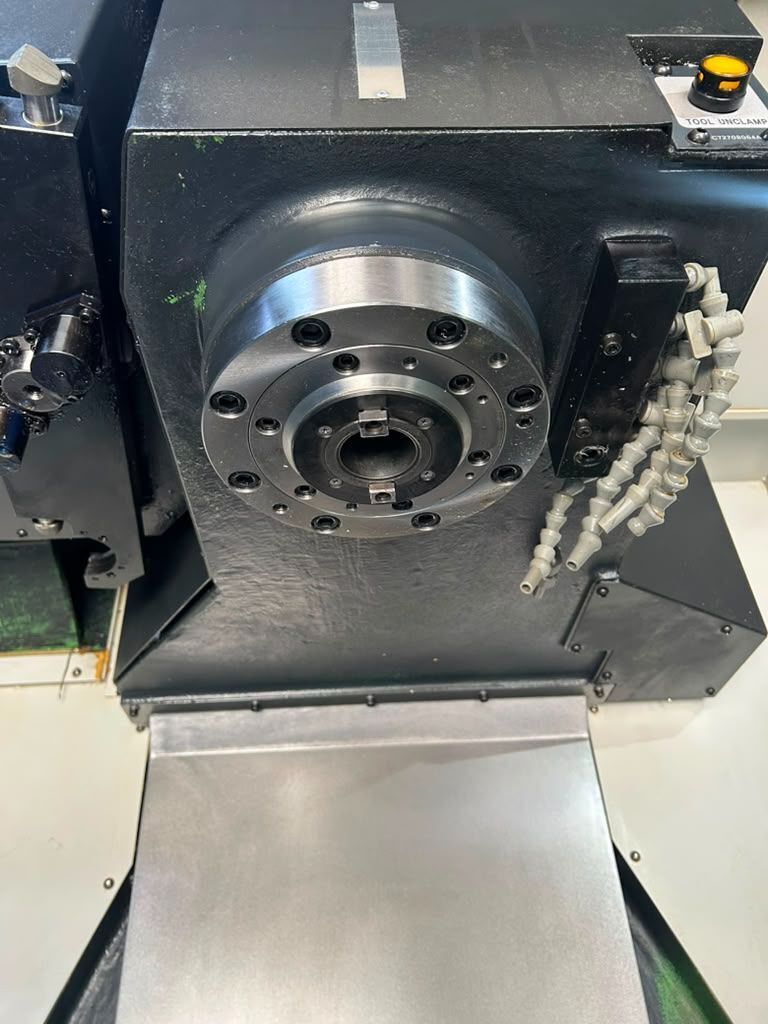

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30-Station Side Mounted |
| Maximum Tool Weight: 17.6 lbs |
| Maximum Tool Diameter: 3.1″ – 4.9″ |
| Maximum Tool Length: 11.81″ |
| Tool Changing Time: 1.3 Seconds |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

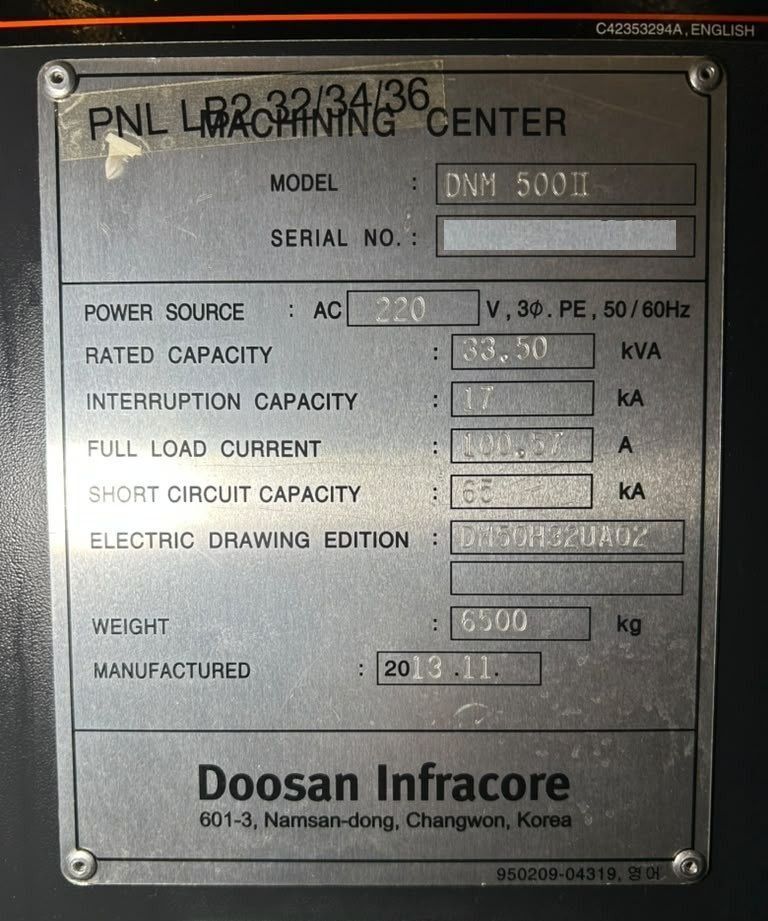

| Power: 220V / 3-Phase / 50/60 Hz / 33.5 kVA |
| Overall Dimensions: 116″ × 96″ × 107″ High |
| Weight: 14,330 lbs |
