Doosan DNM-5700S CNC Vertical Machining Center – 2018 15,000 RPM Mill
Reserve your machine by paying: $999 (Refundable)
(We’ll hold it for 7 business days while you inspect or finalize your purchase)
$999
1 in stock
Used Doosan DNM 5700S CNC Vertical Machining Center For Sale
*Replacement Cost Over $140,000 With Similar Options*
| SKU: | 115125 |
| Make/Model: | Doosan DNM-5700S |
| Year: | 2018 |
| Condition: | Used – Good |

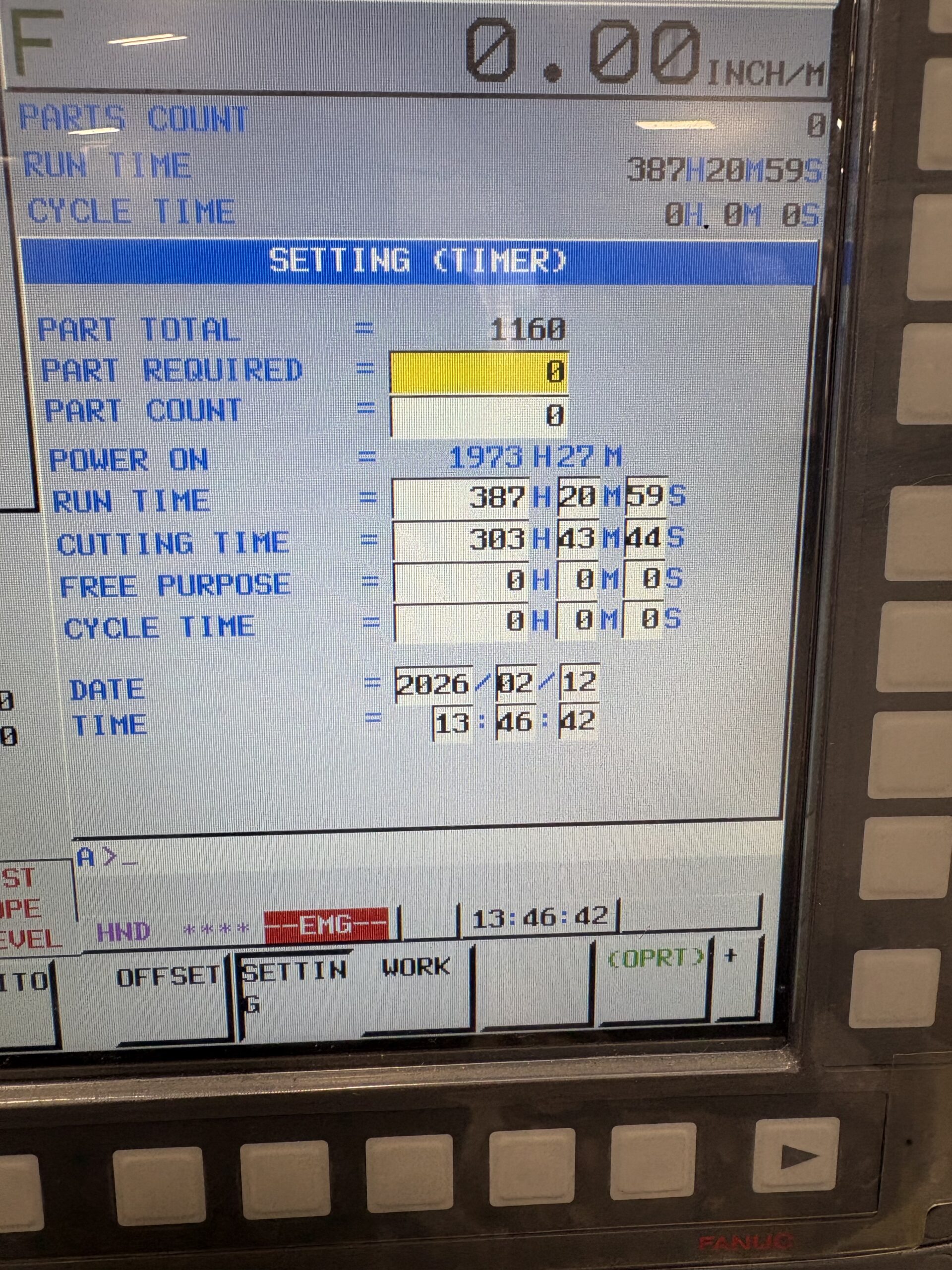

| Cutting Time: | 303 Hours |
| Video: | No Video |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | DNM-5700S |
| Year: | 2018 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|
| Doosan-Fanuc i Series CNC Control |
| 15,000 RPM High Speed Spindle |
| 40 Station High Speed Automatic Tool Changer |
| Renishaw Probing System (Probe Included) |
| Tool Presetter |
| CAT-40 Taper Spindle |
| 1654 IPM Fast Rapids Traverse Rate |
| USB Drive |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Rigid Tapping |
| Coolant System |
| LNS Turbo Chip Conveyor |
| Travels: |
|---|
| X-Axis: 41.3″ |
| Y-Axis: 22.4″ |
| Z-Axis: 20.1″ |
| Rapid Traverse Rates X & Y Axis: 1654 IPM |
| Rapid Traverse Rates Z Axis: 1417 IPM |

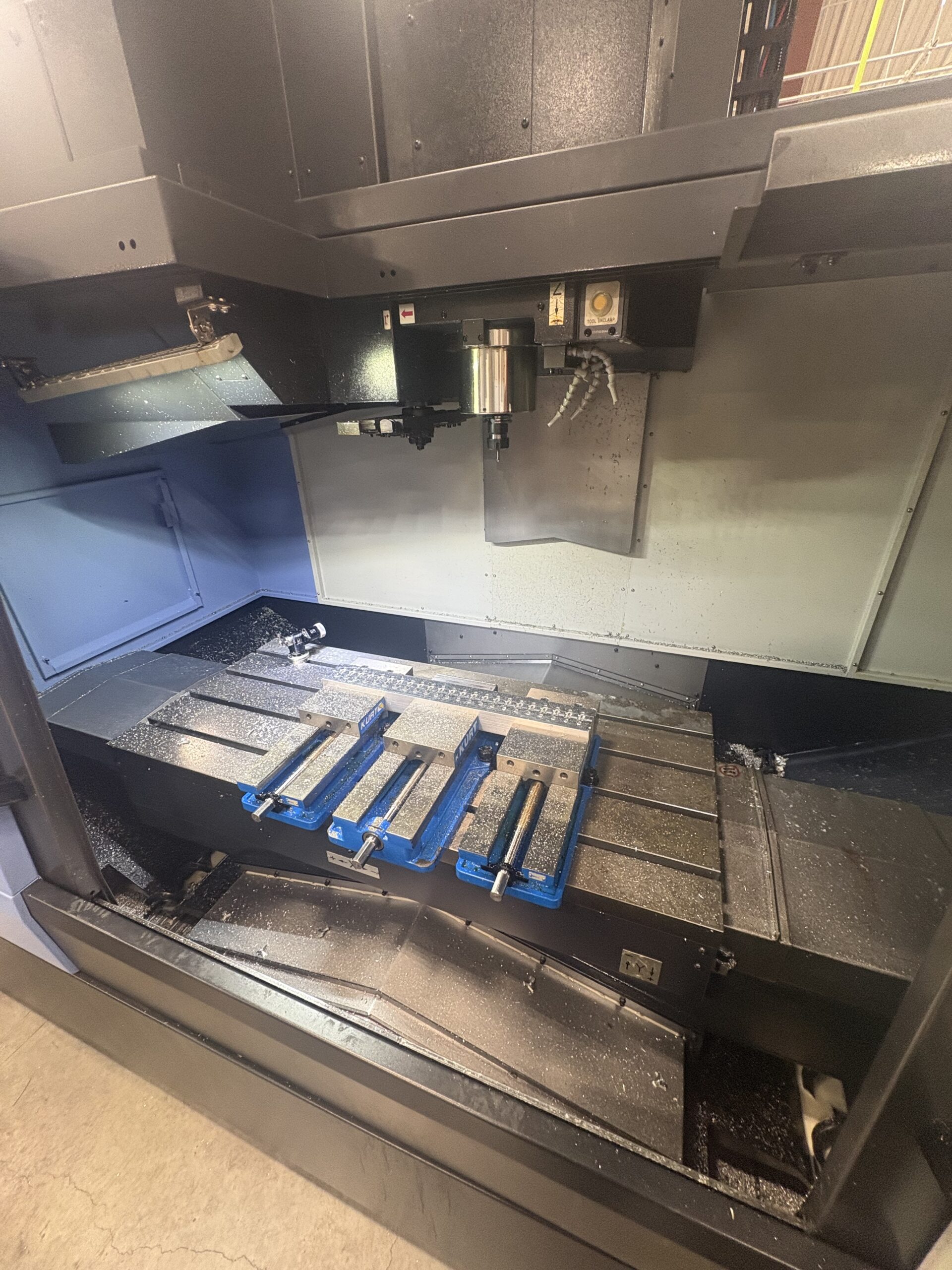

| Table: |
|---|
| Length: 51.2″ |
| Width: 22.4″ |
| Number of Std T-Slots: 4 |
| T-Slot Width: 4.9″ x 0.7″ |
| Max Weight on Table: 1764 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 15,000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 40 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.1″ -4.9″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time : 1.2 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 35 kva / 3-Phase |
| Overall Dimensions: 122.4″ x 95″ x 117.5″ High |
| Weight: 14,330 lbs |
| Make | |
|---|---|
| Model | DNM-5700 |
| Categories | CNC Vertical Machining Center |
