*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | VM1260 |
| Equipped With: |
|---|
| Fanuc CNC Control |
| Rigid Vertical Machining Center Design |
| Box Guideway Construction |
| Automatic Tool Changer |
| Spindle Thermal Stabilization |
| Coolant System |

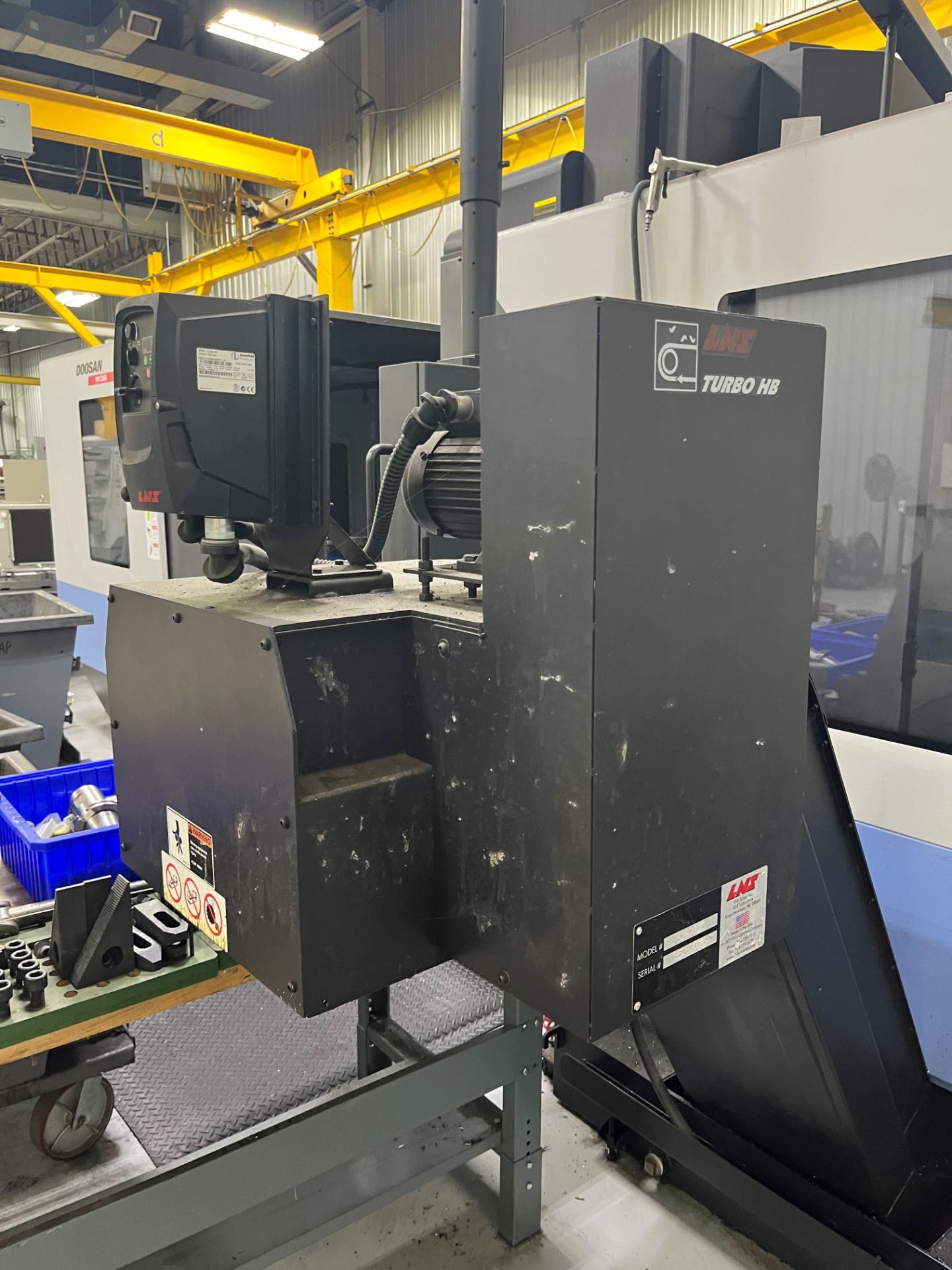

| Chip Conveyor |

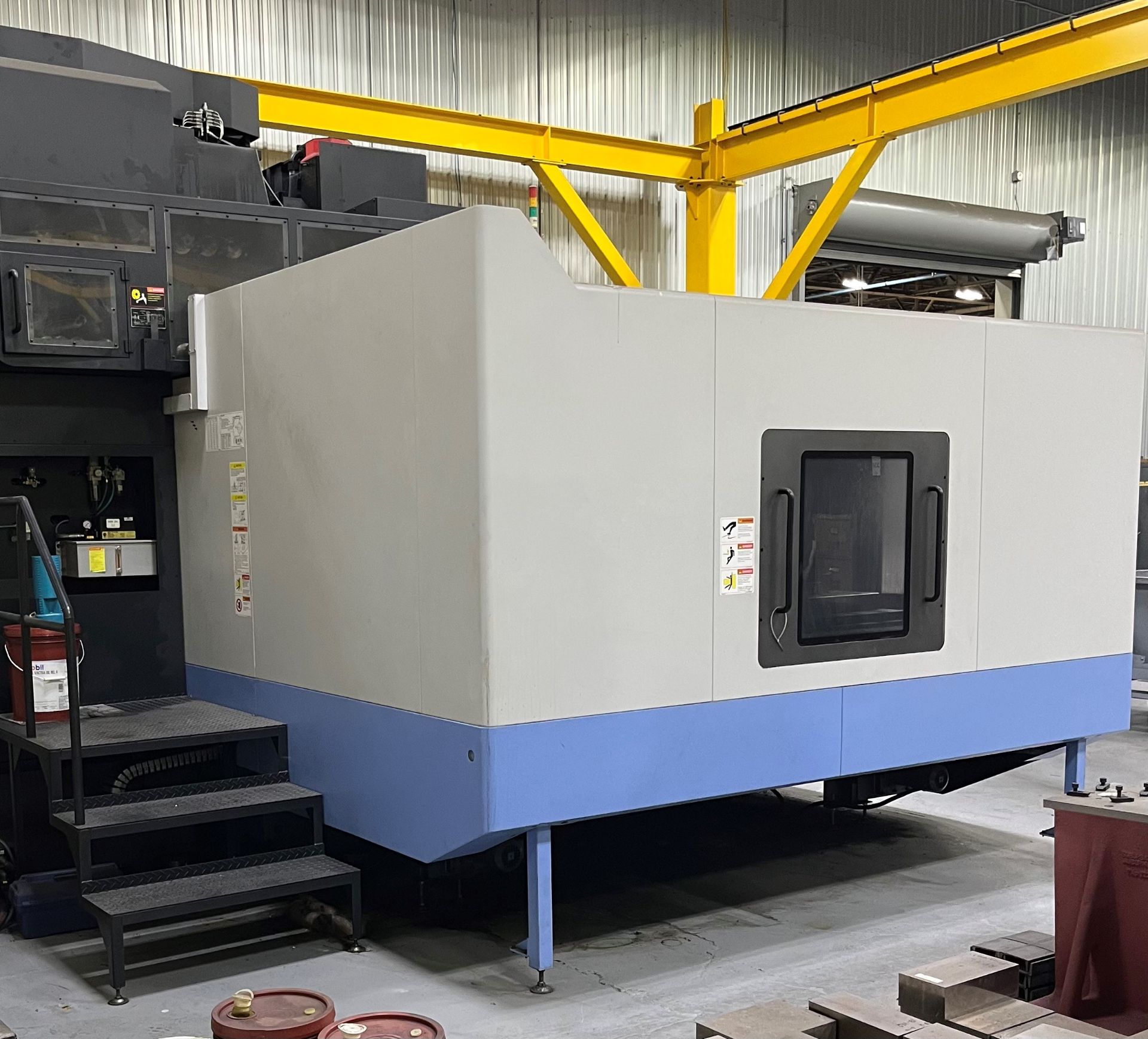

| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 50.0″ |
| Y-Axis Travel: 25.6″ |
| Z-Axis Travel: 25.6″ |
| Spindle Nose to Table: 7.9″ – 33.5″ |
| Table: |
|---|
| Table Size: 59.1″ × 25.6″ |
| Max Table Load: 3,307 lbs |
| Spindle: |
|---|
| Spindle Taper: BT40 |
| Spindle Speed: 10,000 RPM |
| Spindle Motor: 30 HP |
| Spindle Drive: Direct Drive |
| Feedrates: |
|---|
| Rapid Traverse X/Y/Z: 1,181 IPM |
| Cutting Feedrate: 394 IPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 24 Tools |
| Max Tool Diameter: 3.5″ (adjacent empty) |
| Max Tool Length: 11.8″ |
| Max Tool Weight: 18 lbs |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Weight (Approx.): 17,600 lbs |
| Overall Dimensions (Approx.): 140″ × 108″ × 120″ |
