Sold

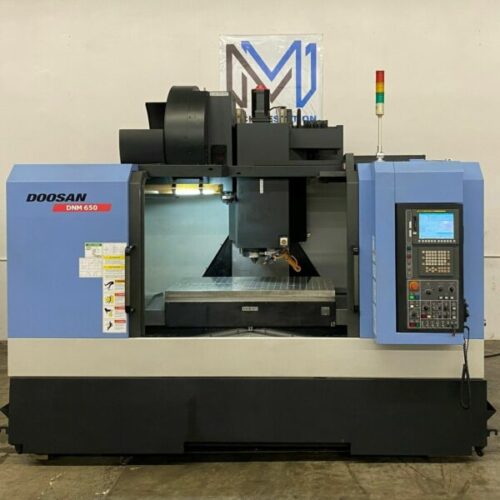

Doosan DNM-650 Vertical Machining Center
Out of stock
| Location: | Lake Elsinore, CA |
| SKU: | 105913 |
| Make/Model: | DOOSAN DNM-650 |
| Condition: | Used-Good |
| Video: | On Request |
| Make | DOOSAN |
| Model No. | DNM-650 |
| Year | 2012 |
| Condition | Used-Good |
| Cutting Hours: | 1844 |
| Doosan DNM-650 Features: |
|---|
| Doosan Fanuc Oi-series CNC Control |
| Through Spindle Coolant |
| 12,000 RPM Precision Spindle |
| 1417 Inch Per Min Rapids |
| PCMCIA Card Slot |
| MPG Control |
| Jig Table Installed |
| Rigid Tapping |
| Spindle Orientation |
| Brushless servo drive motors on all axis |
| 30 Automatic high speed tool changer |
| High Pressure Flood Coolant |
| Telescopic way covers |
| Spindle Chiller Unit |
| Flood Coolant system |
| Levelling Pads |
| Manuals & Books |
| Specifications: |
|---|
| Travels |
| X-Axis: 50.7″ |
| Y-Axis: 26.1″ |
| Z-Axis: 25.0″ |
| Rapid Traverse Rates: 1417″ Per Minute |
| Feed Rates: 590″ Per Minute |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 30.9″ |
| Table: |
|---|
| Length: 51.2″ |
| Width: 26.37″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2200 lbs |
| Spindle: |
|---|
| Spindle: Taper Size: 40 |
| Speed Range: 0 – 12,000 RPM |
| Spindle Type: Belt Drive |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 |
| Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.54″ |
| Max Tool Length: 11.8″ |
| Tool Changing Time: 1.3 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 35 kva / 3-Phase |
| Overall Dimensions: 140″ x 100″ x 110″ High |
| Weight: 16500 lbs |
