*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: | Doosan (DN Solutions) |

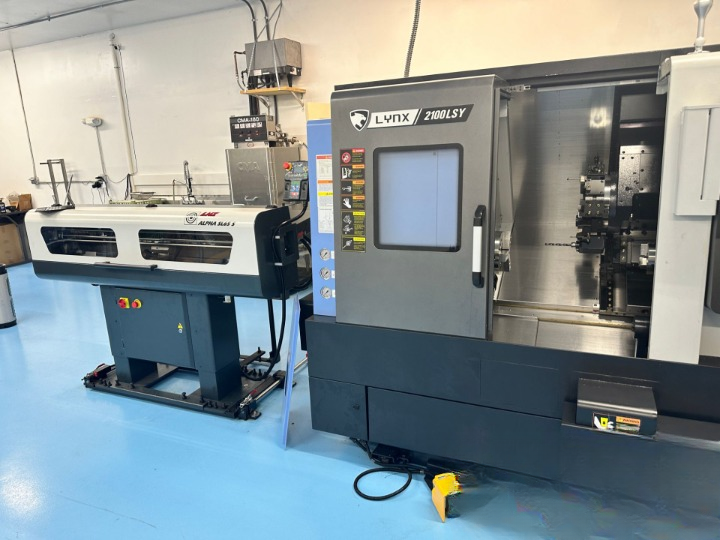

| Model: | Lynx 2100LSYB |
| Year: | 2022 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |
| Country of Origin: | South Korea |
| Net Weight: | 9,260 lbs |
| Features: |
|---|
- DN Solutions FANUC i Series Plus CNC Control
- True Y-Axis Milling Capability
- Sub-Spindle for Complete Back-Side Machining
- C-Axis on Main & Sub Spindle
- Live Tooling
- 12-Station BMT Servo Turret
- Rigid Tapping
- Fully Enclosed Machining Area
|
| Capacity: |
|---|
- Max Turning Diameter: 11.8″
- Max Turning Length: 20.1″
- Max Swing Diameter: 23.6″
- Swing Over Carriage: 15.7″
- Bar Capacity: 2.6″
|
| Axis Travels & Rapids: |
|---|
- X-Axis Travel: 8.1″ | Rapid: 1,181 IPM
- Y-Axis Travel: ±2.1″ | Rapid: 394 IPM
- Z-Axis Travel: 22.0″ | Rapid: 1,417 IPM
|
| Main Spindle: |
|---|
- Chuck Size: 8″ Hydraulic
- Spindle Nose: A2-6
- Spindle Bore: 2.6″
- Max Spindle Speed: 4,500 RPM
- Spindle Motor: 20 HP
- Max Torque: 125 ft-lbs
- Full C-Axis (0.001° Indexing)
|
| Sub-Spindle: |
|---|
- Chuck Size: 5″
- Max Speed: 6,000 RPM
- Spindle Bore: 1.7″
- Motor Power: 10 / 7.5 HP
- Full C-Axis (0.001° Indexing)
- Automatic Part Transfer
|
| Turret & Tooling: |
|---|
- Servo-Driven BMT Turret
- 12 Stations (24 Tool Positions)
- Live Tooling Capability
- Max Live Tool Speed: 6,000 RPM
- Tool Shank Size: 20 × 20 mm
- Boring Bar Capacity: Ø32 mm
- Indexing Time: ~0.11 sec
|
| Milling Capability: |
|---|
- Milling Motor Power: 10.4 HP
- Milling Spindle Speed: 6,000 RPM
- Simultaneous X, Y, C Interpolation
- Off-Center Milling & Cross Drilling
- Keyway, Slot & Polygon Machining
|
| Control: |
|---|
- DN Solutions FANUC i Series Plus Control
- 15″ Color LCD Display
- Full QWERTY Keyboard
- USB Interface
- iHMI Touch Interface
- EZ-Guide i Conversational Programming
- Graphic Tool Path Simulation
- Tool Life Management
- Collision Avoidance
|
| Coolant & Chip Handling: |
|---|
- Flood Coolant System
- Coolant Gun & Level Monitoring
- Chip Conveyor (Optional)
- Oil Skimmer (Optional)
- Coolant Chiller (Optional)
- Through-Spindle Coolant (Optional)
|

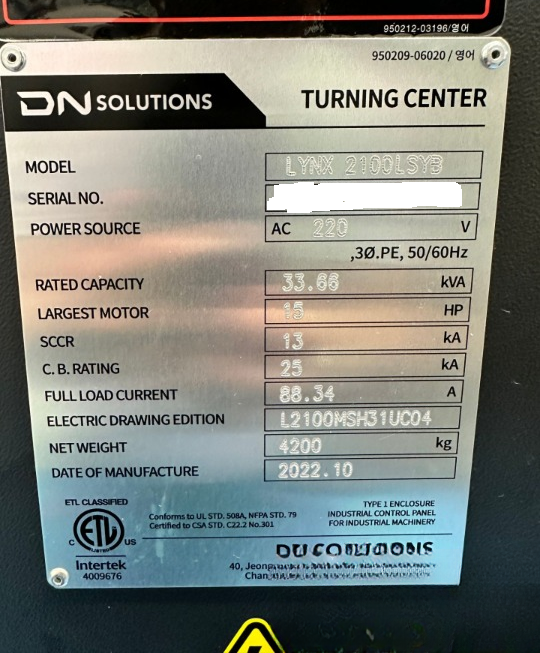

| Electrical: |
|---|
- Voltage: 220 VAC
- Phase: 3-Phase
- Frequency: 50 / 60 Hz
- Rated Capacity: 33.66 kVA
- Full Load Current: 88.34 Amps
- SCCR: 13 kA
- Circuit Breaker Rating: 25 kA
- Enclosure: Type 1 Industrial Panel
|
| Machine Dimensions: |
|---|
- Length: 113.4″
- Width: 67.4″
- Height: 75.6″
- Installation Length (with Conveyor): ~151″
- Machine Weight: 9,260 lbs
|
