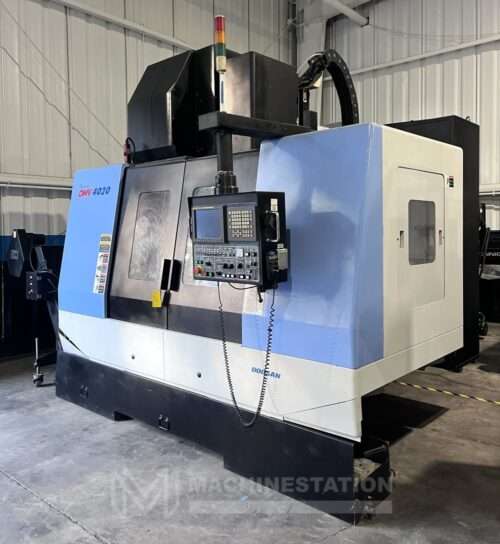

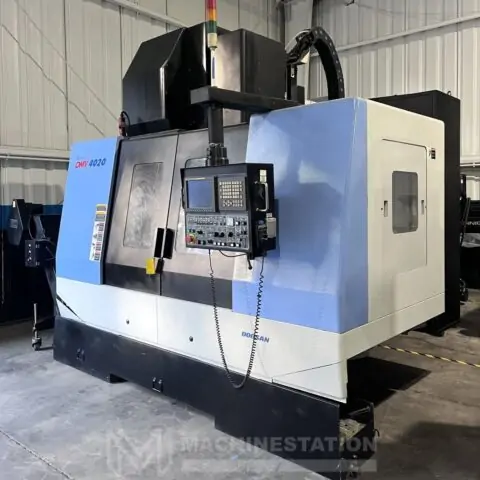

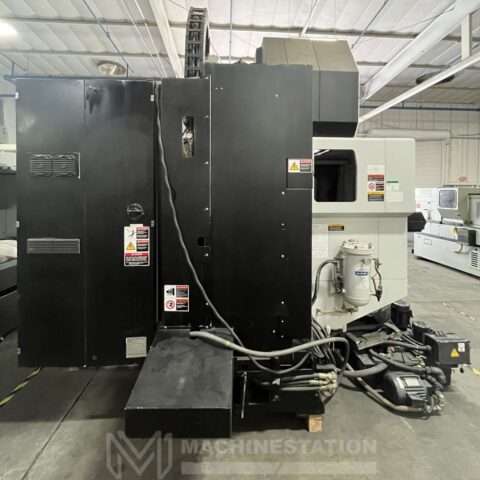

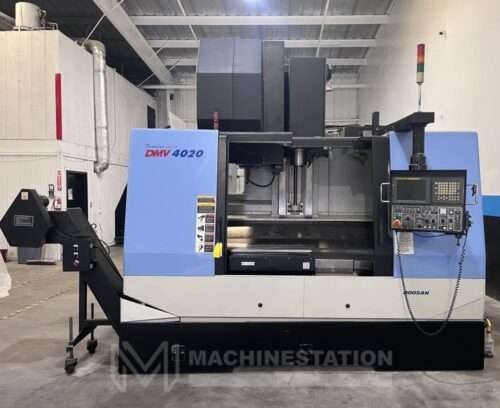

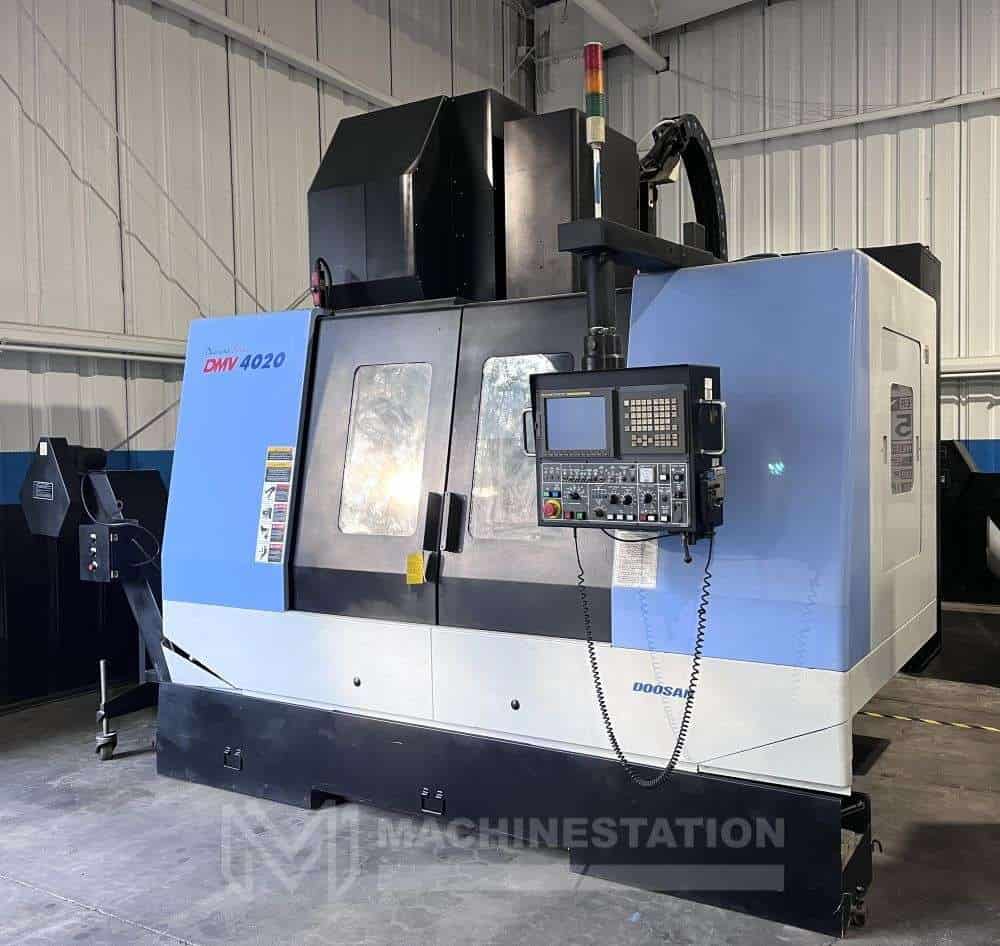

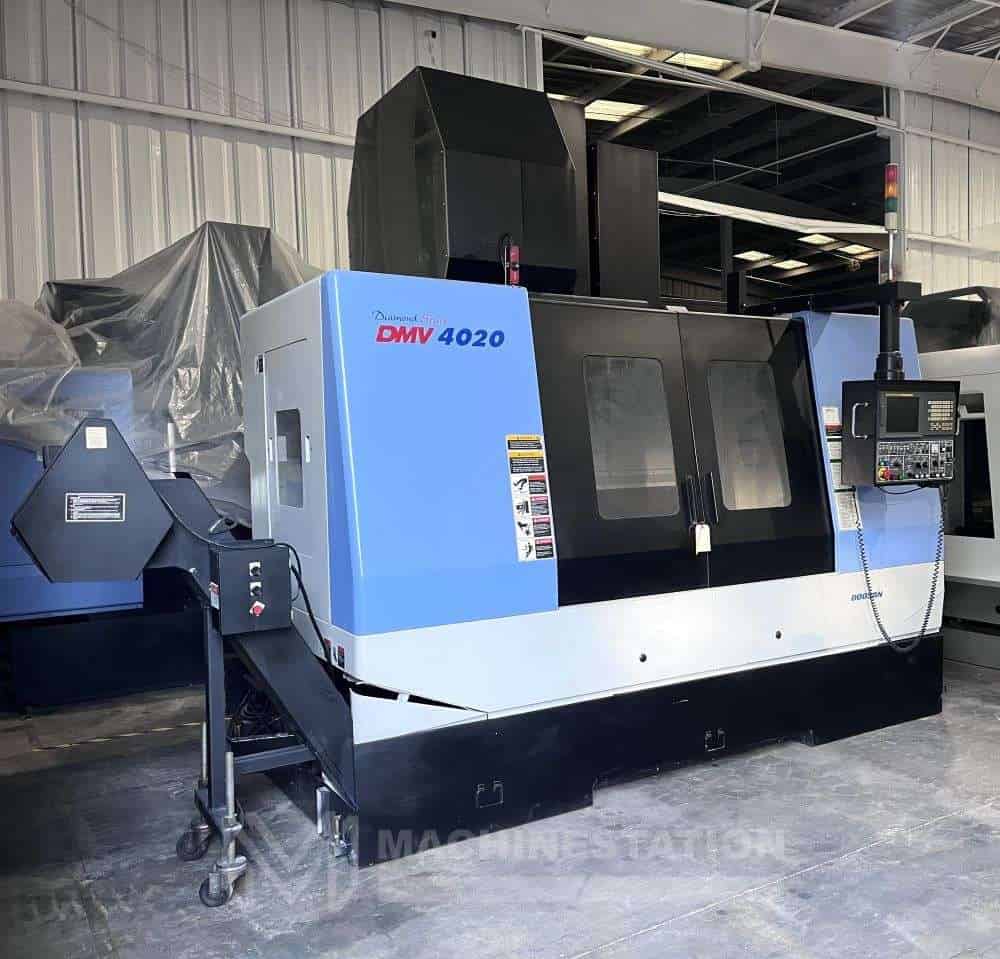

Doosan DMV-4020/50 CNC Vertical Machining Center – Mill

$47,700.00

1 in stock
Location: Lake Elsinore, CA
SKU: 2272
Make/Model: DOOSAN DMV-4020/50
Video: On Request
SKU: 2272

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

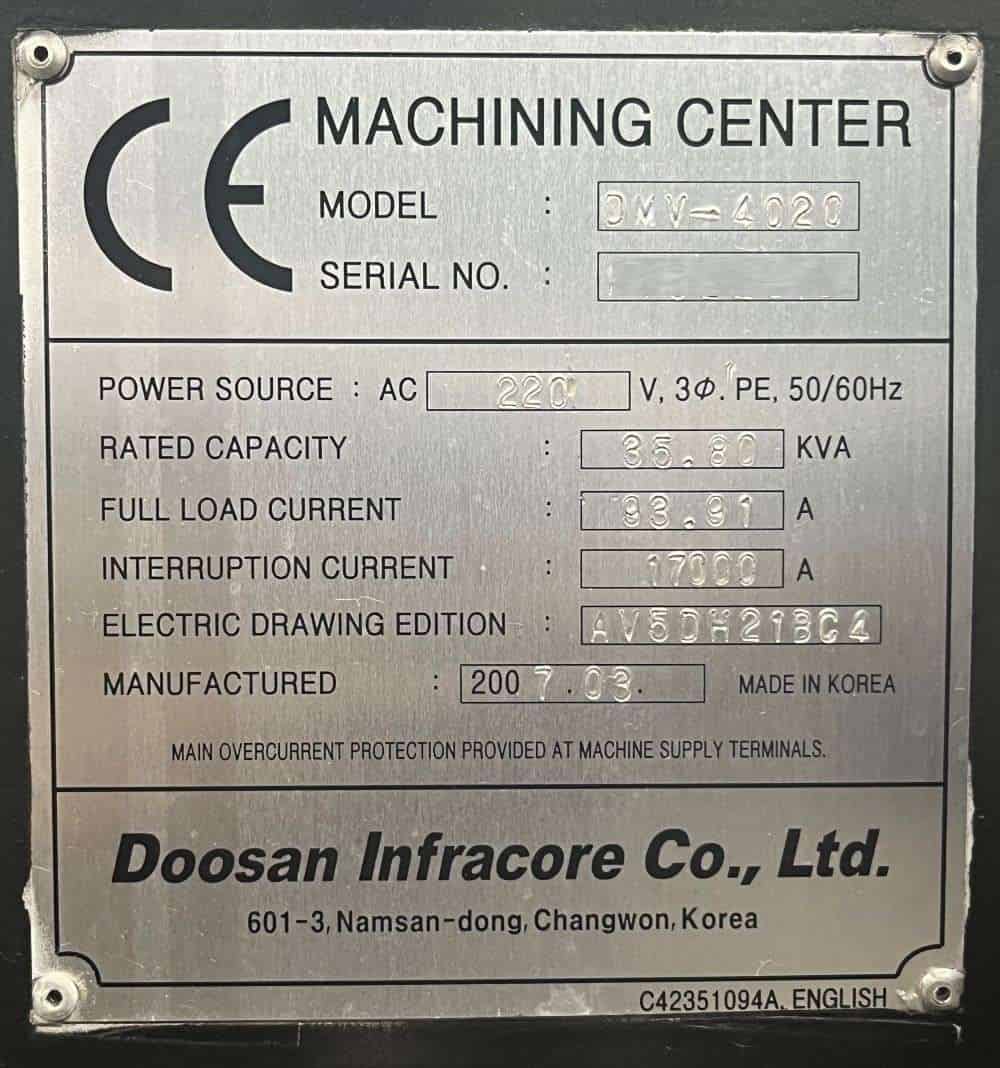

Make: DOOSAN
Model: DMV-4020/50
Year: 2007
Condition: Used – Good



Features:

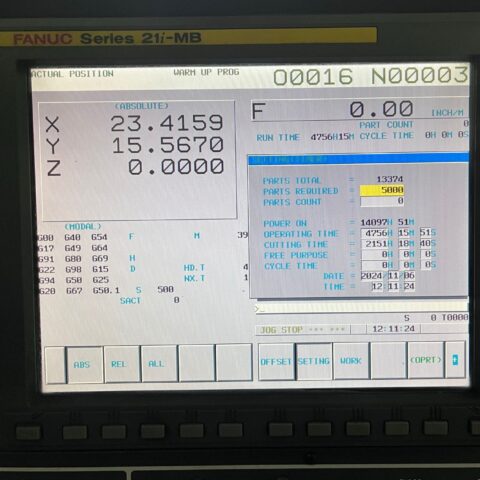

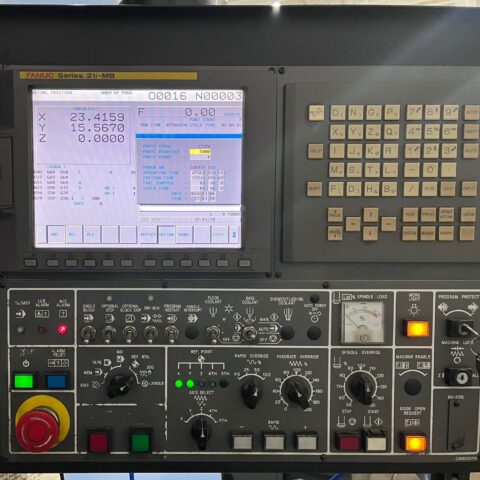

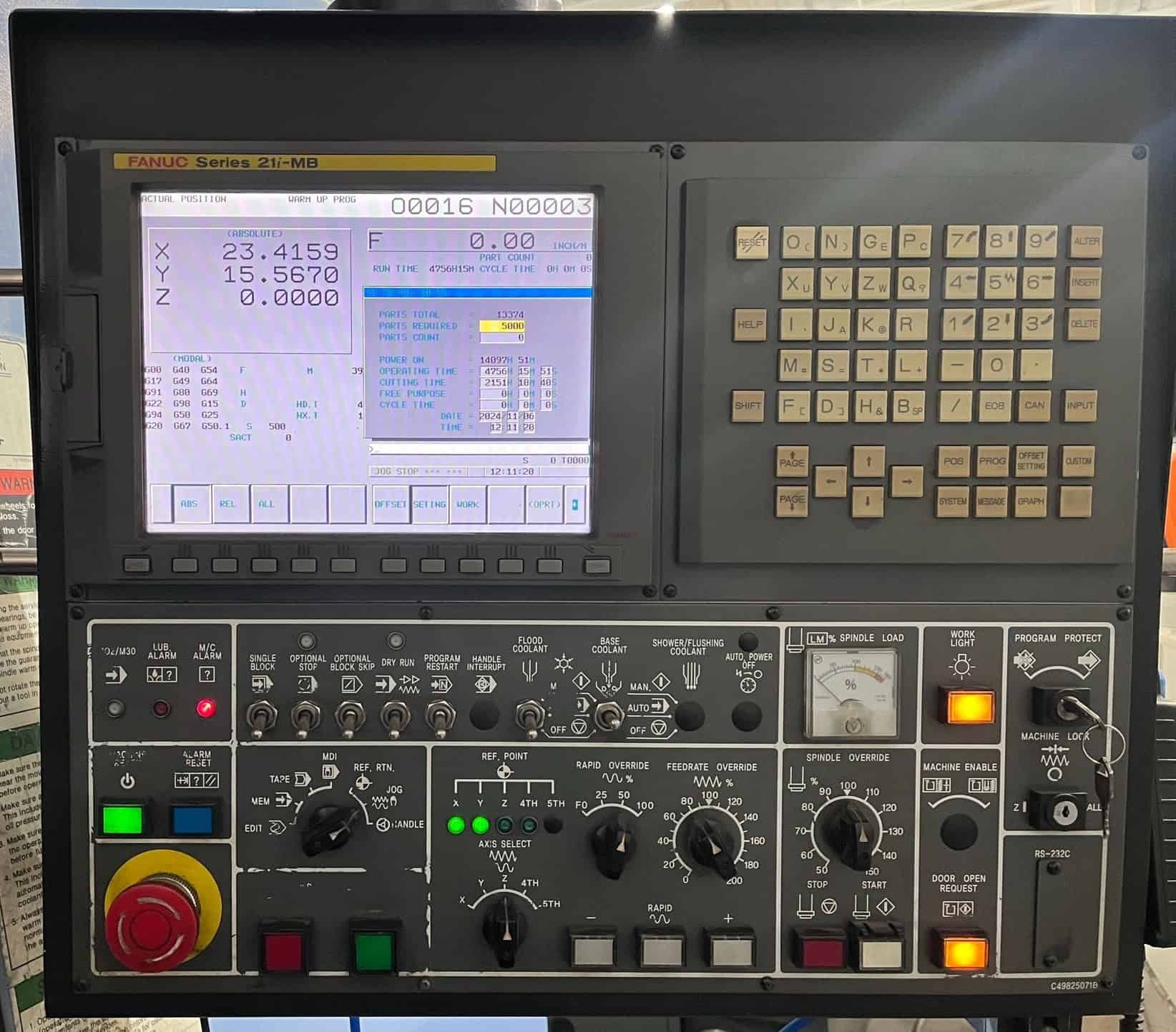

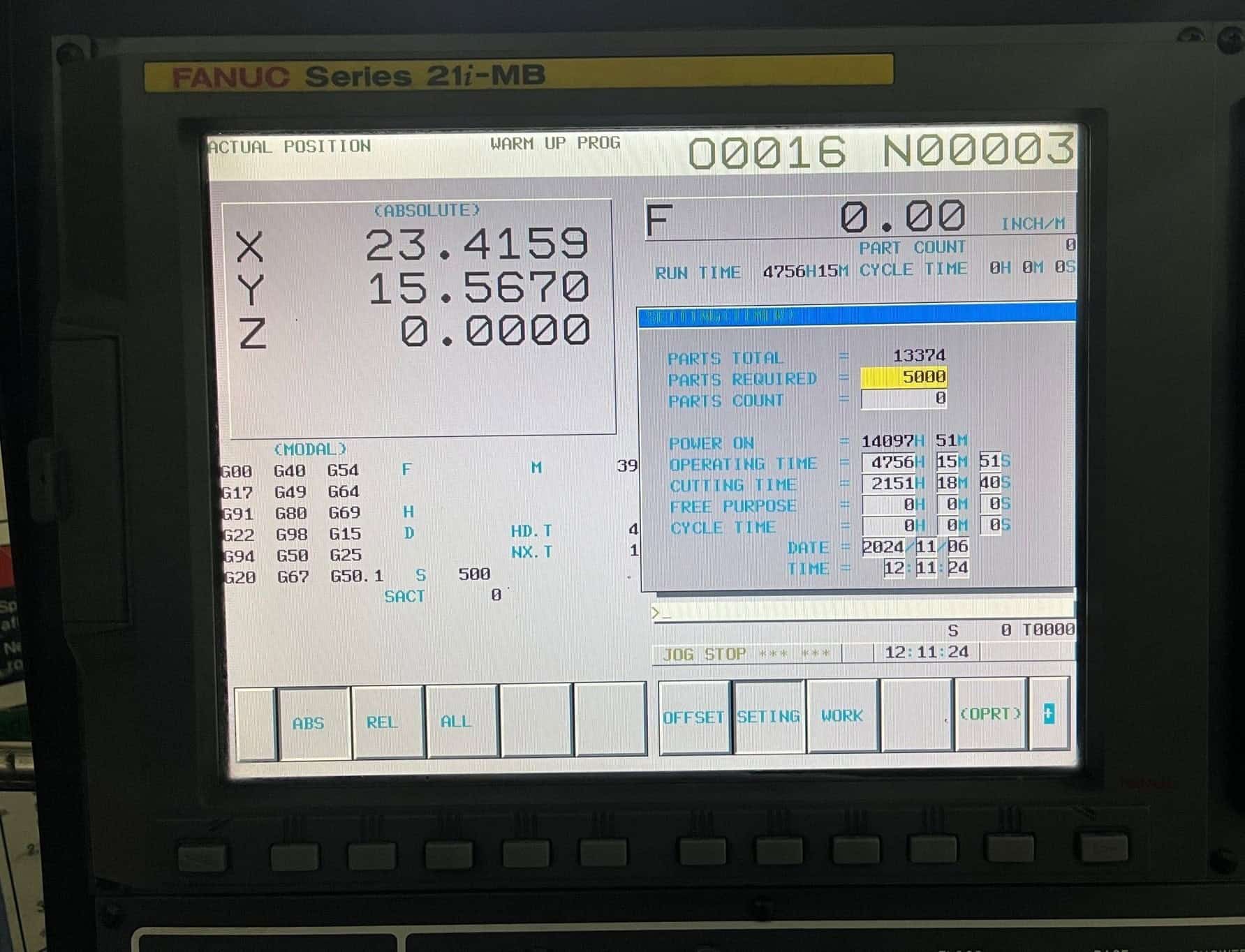

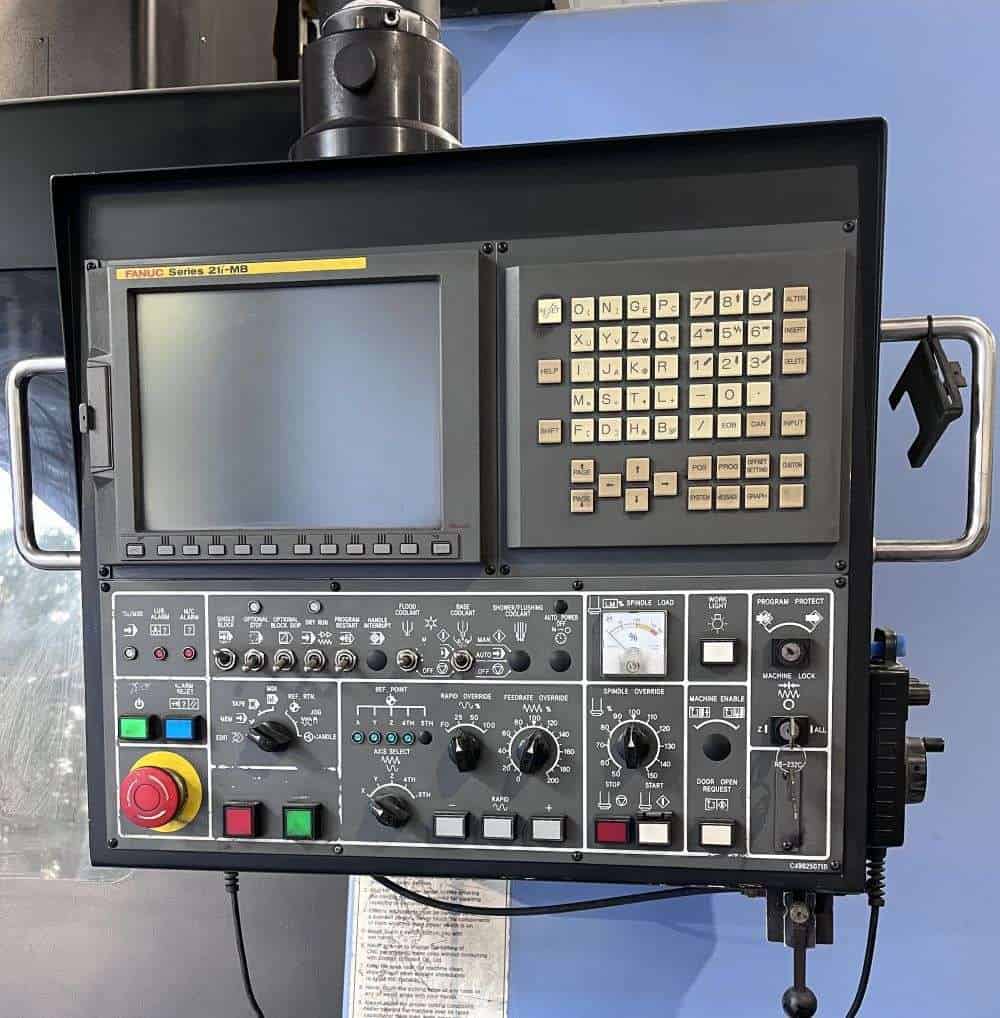

Fanuc 21i-M CNC Control
Box Way Construction

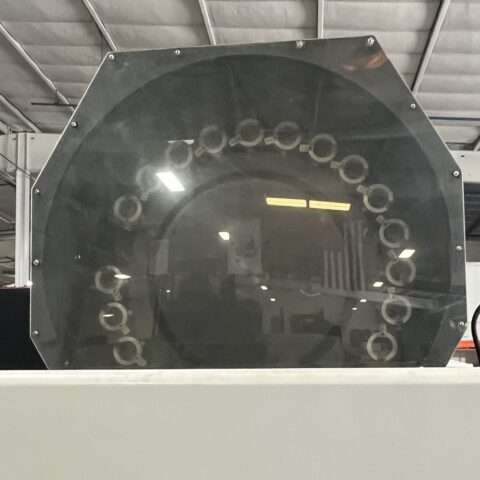

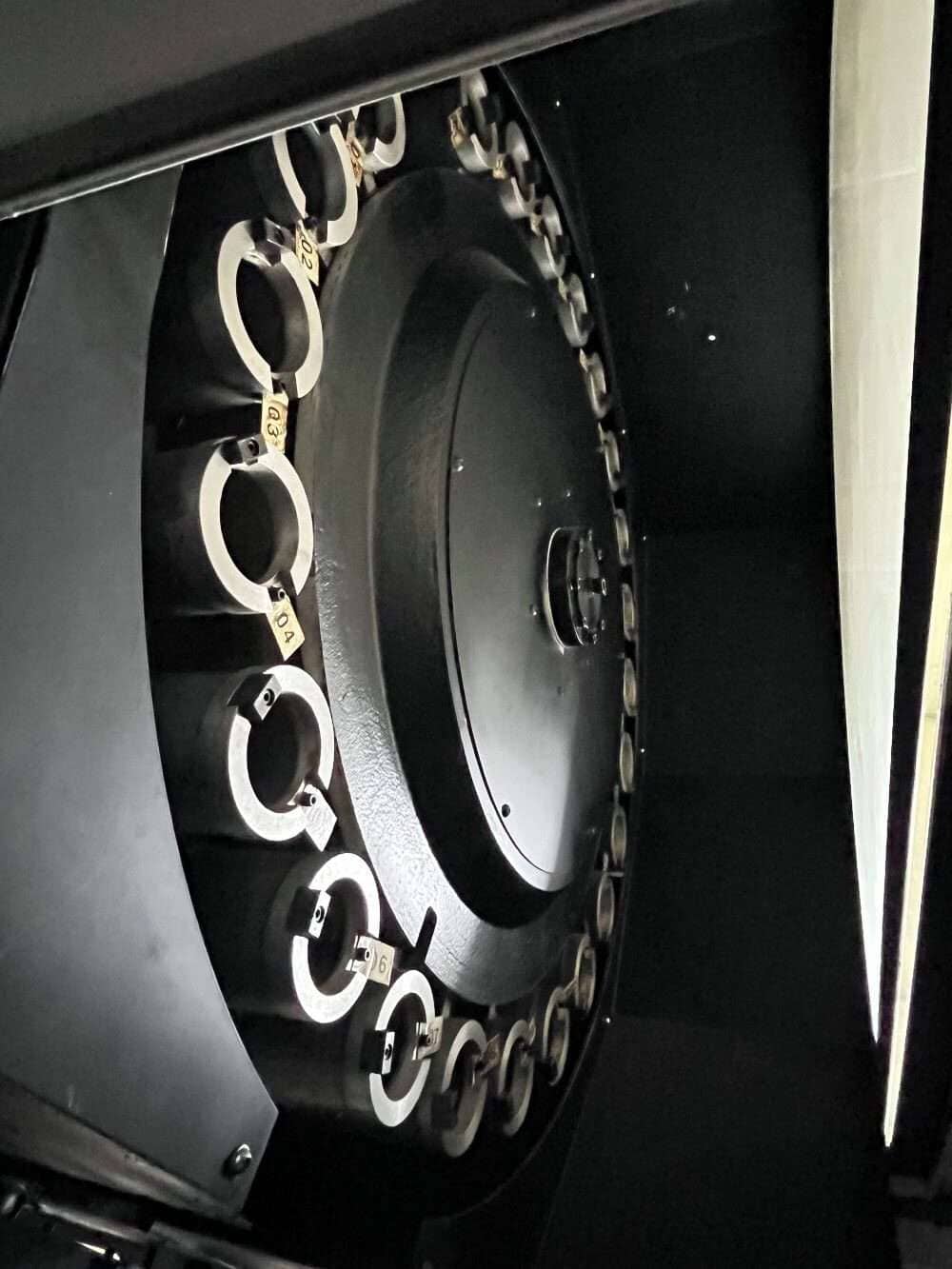

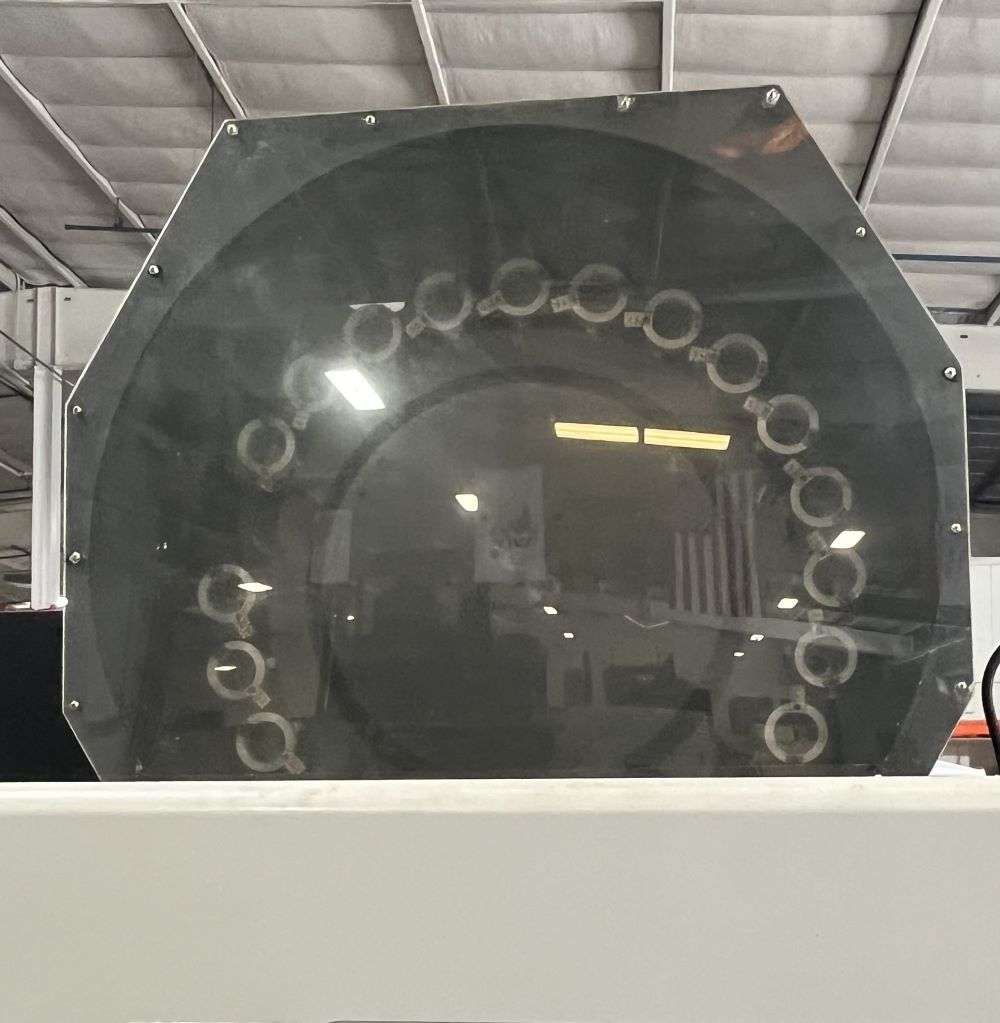

24 Station Side Mounted Automatic tool changer
Through Spindle coolant
50 Taper Spindle
Powerful 25 hp High Torque Spindle Motor
Hand Wheel MPG Control
Rigid Tapping
Spindle Orientation
Fast Rapid Traverse Rate
PCMCIA Card Slot
RS-232 Port
Telescopic way covers

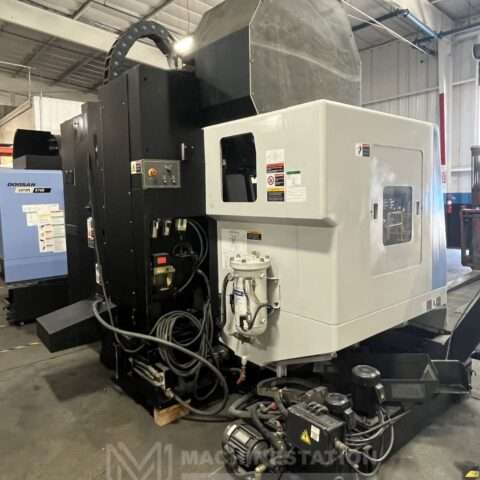

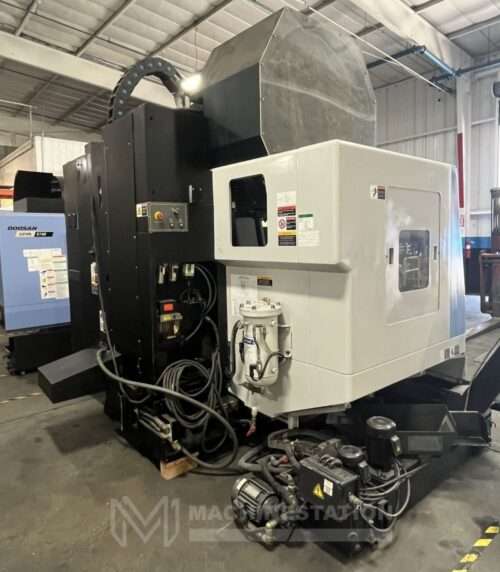

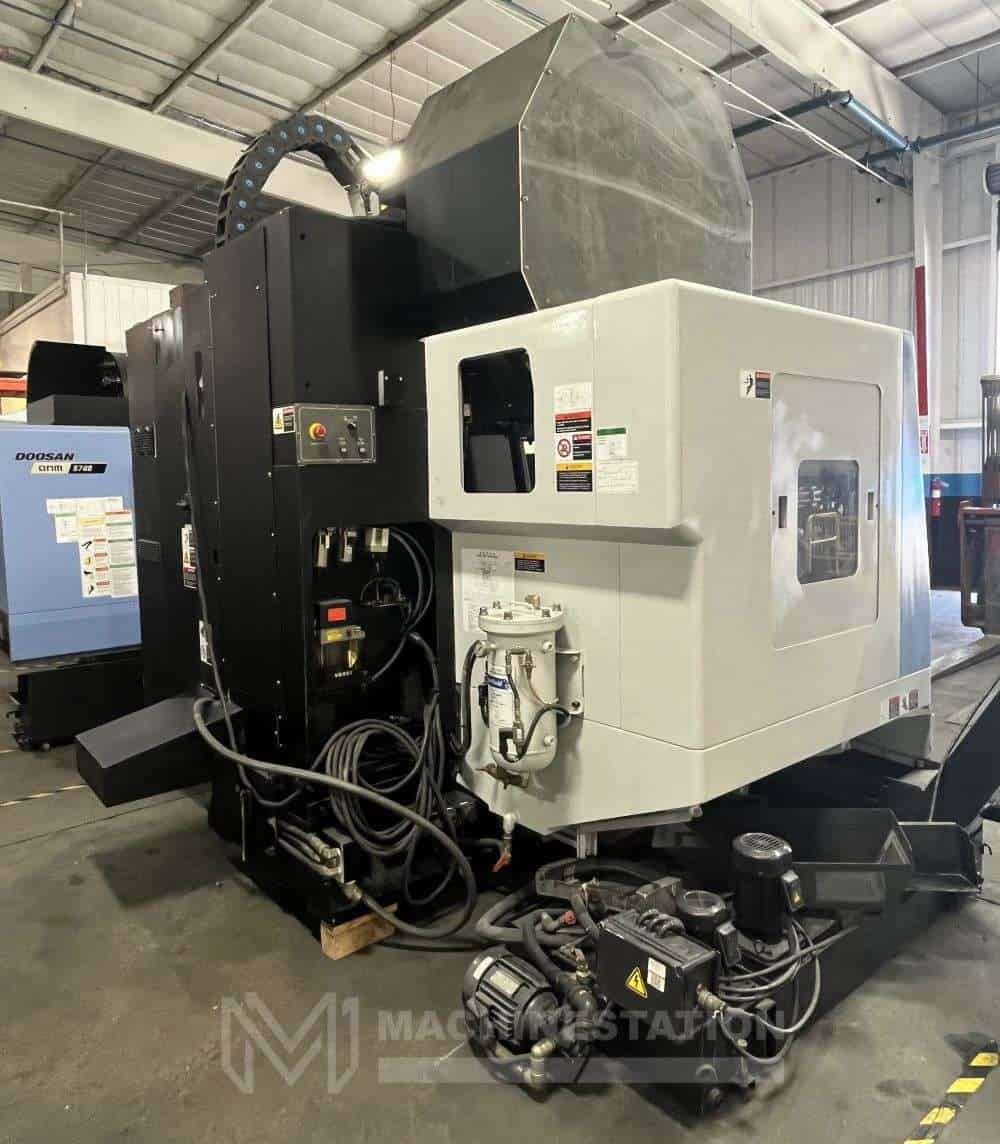

Profluid Coolant Filtration System
Chip conveyor
Books & Manuals



Travels:
X-Axis: 40.2″
Y-Axis: 20.1″
Z-Axis: 24.6″
Rapid Traverse Rates : 1181 Inch Per Minute
Cutting Feed Rates: 787 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.87″ – 26.3″

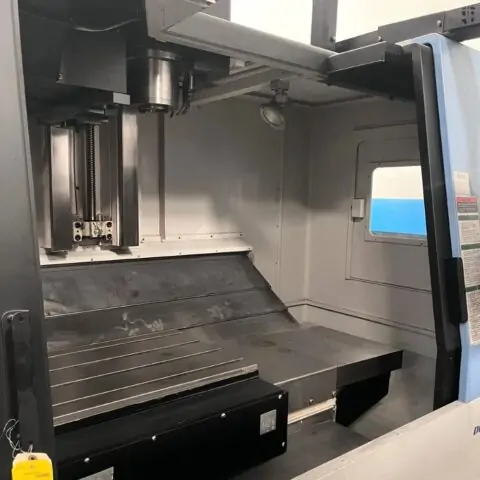

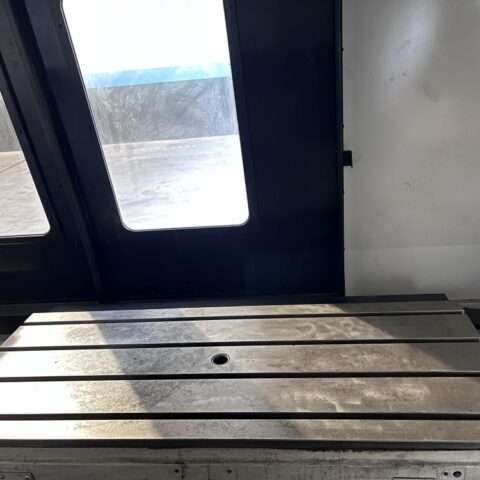

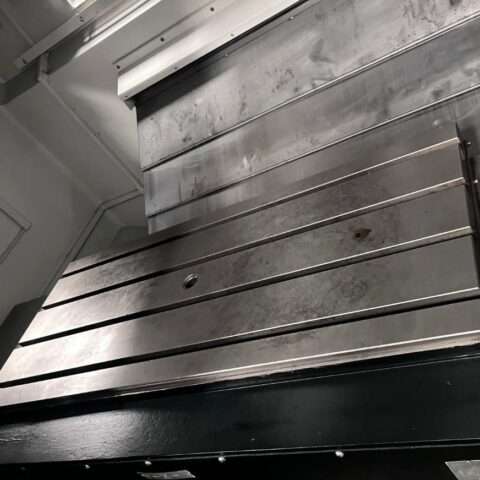

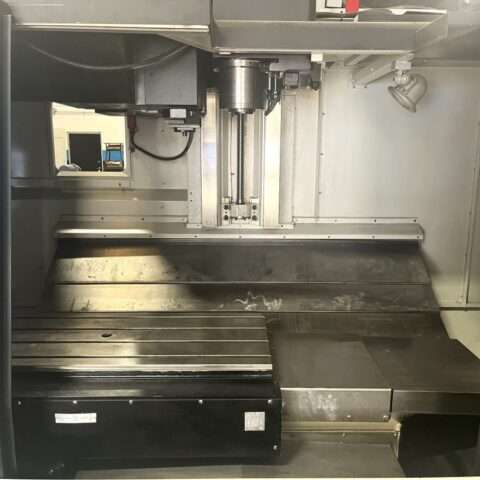

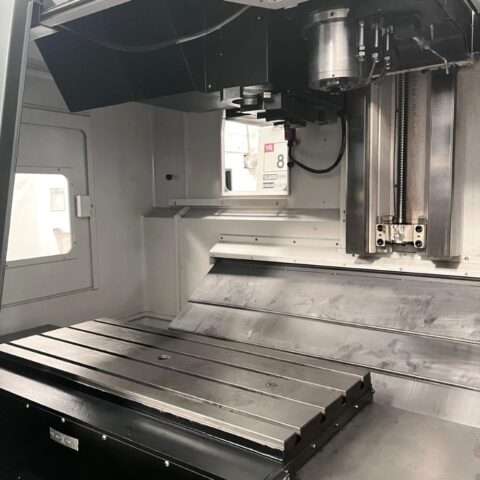

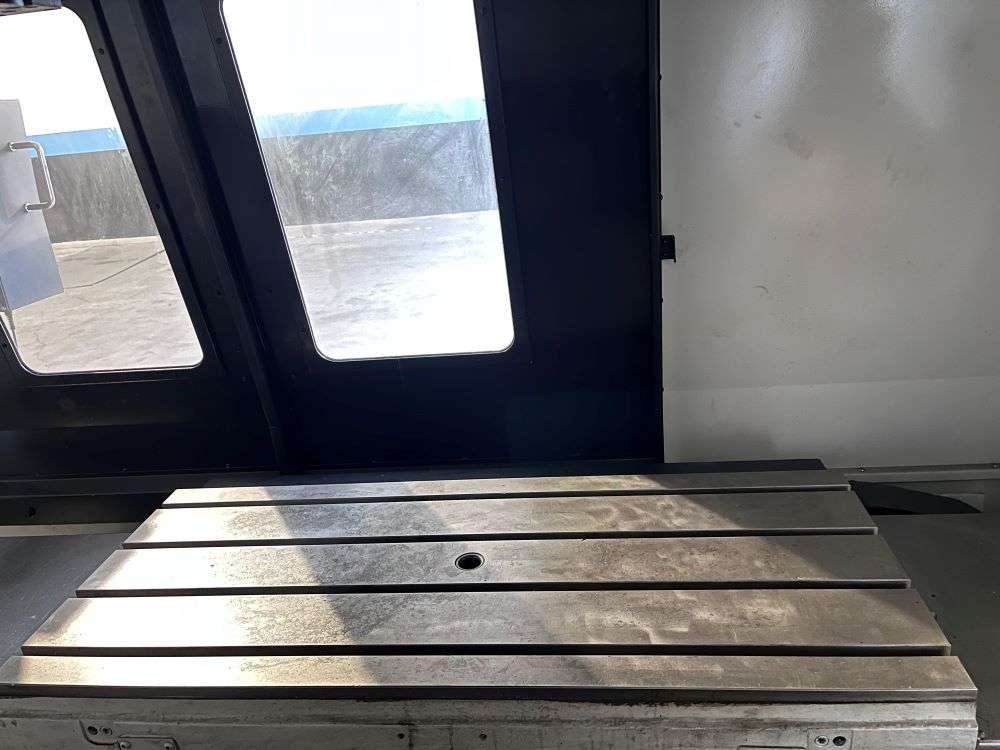

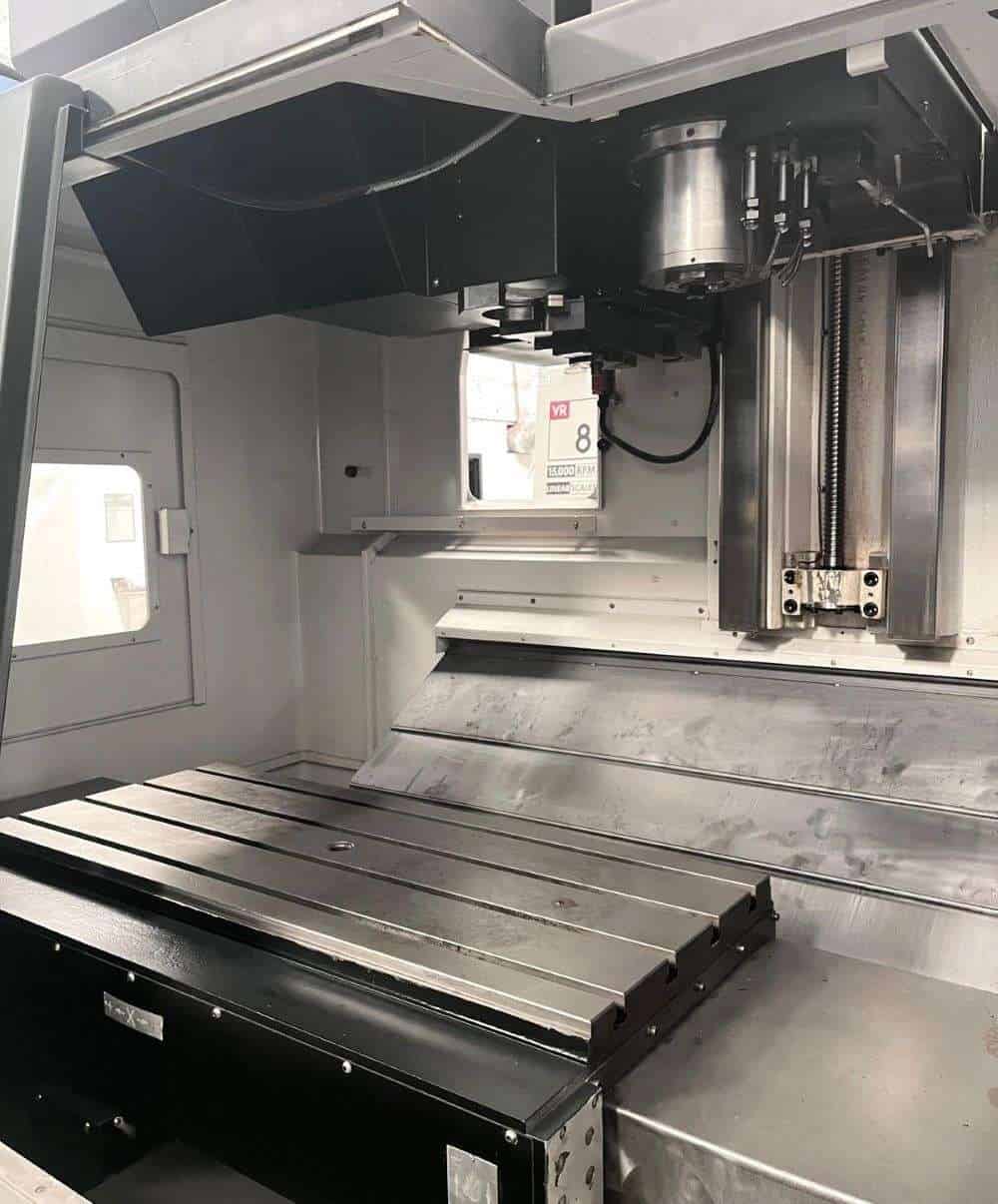

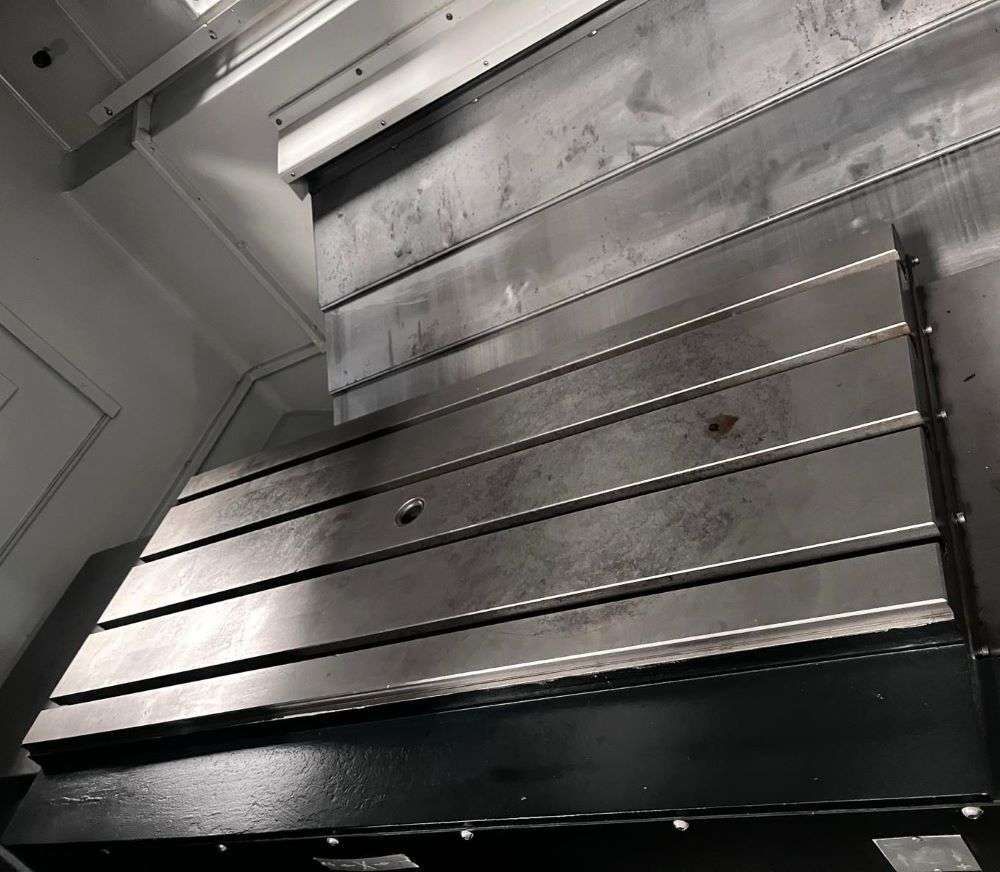

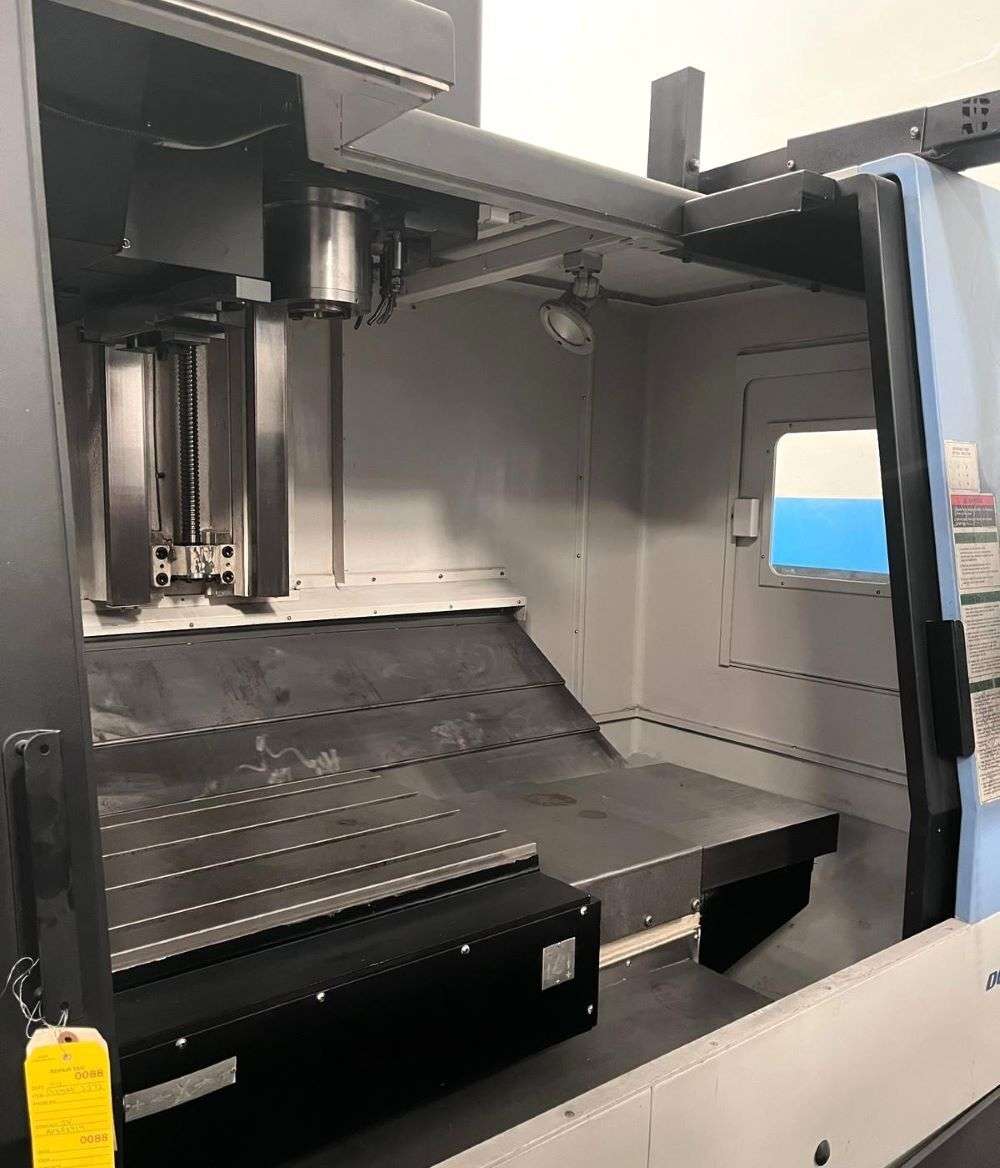

Table:
Length: 47.2″
Width: 19.7″
Number of Std T-Slots: 5
T-Slot Width: 0.7″ X 4″
Max Weight on Table: 1760 Ibs



Spindle:
Spindle: Taper Size: 50
Speed Range: 6,000 RPM
Spindle Power: 25 HP

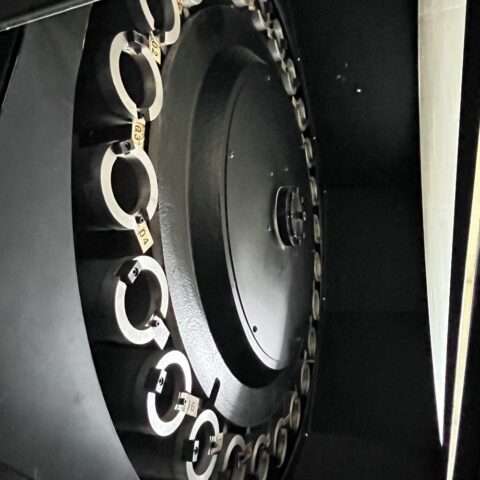

Automatic Tool Changer:
Capacity: 24 Station Side Mounted
Tool Weight: 15 lbs
Max Tool Dia: 5.90″
Max Tool Length: 11.81″
Tool Changing Time: 1.5 Seconds



General:
Air Required: 80 psi, 4 scfm

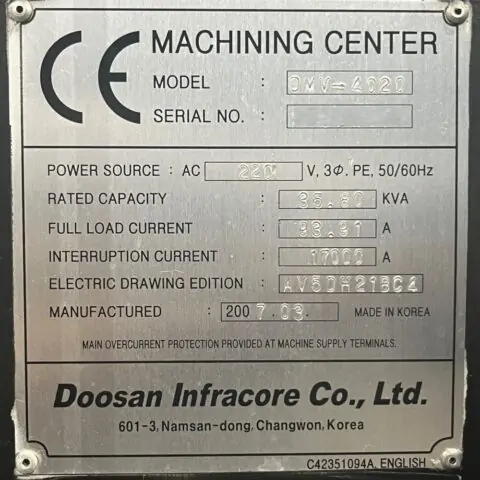

Power: 220v / 50.8 kva / 3-Phase
Overall Dimensions: 132″ x 116″ x 110″ High
Weight: 16,500 lbs
