*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Doosan |
| Model: |
Puma 2600SYII |
| Year: |
2018 |
| Condition: |
Used – Excellent |
| Equipped With: |

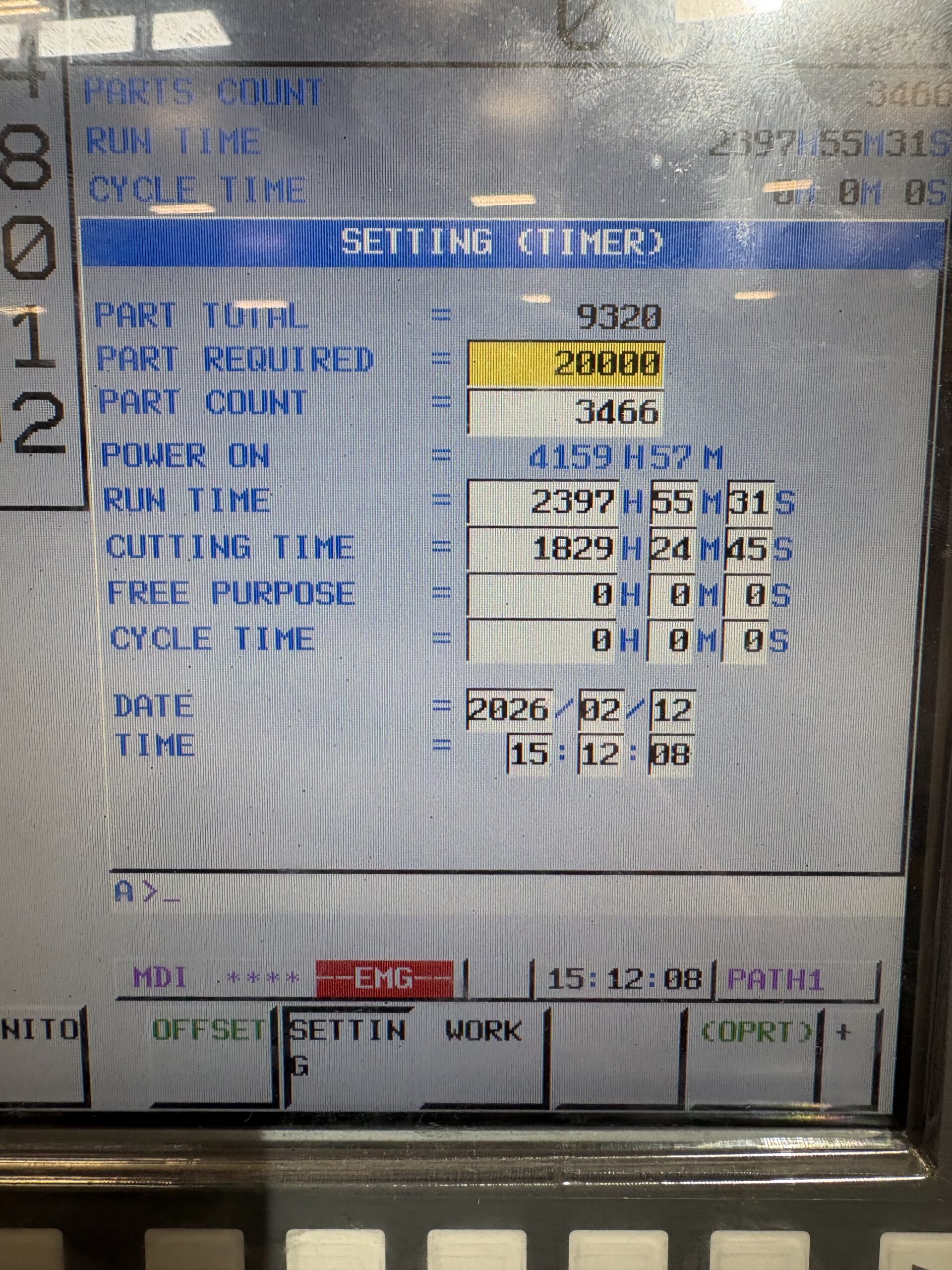

| Fanuc Oi-TF Series CNC Control |

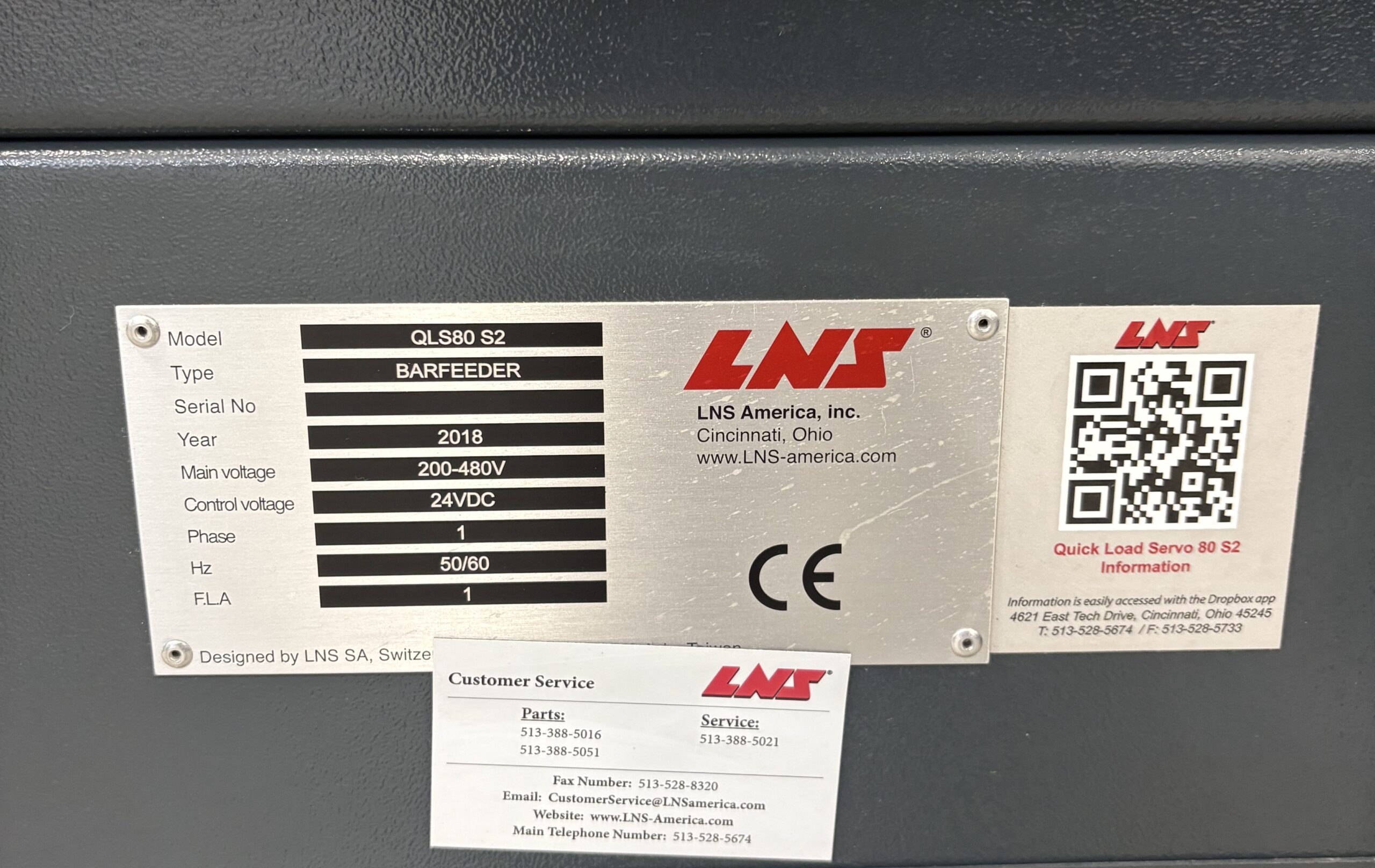

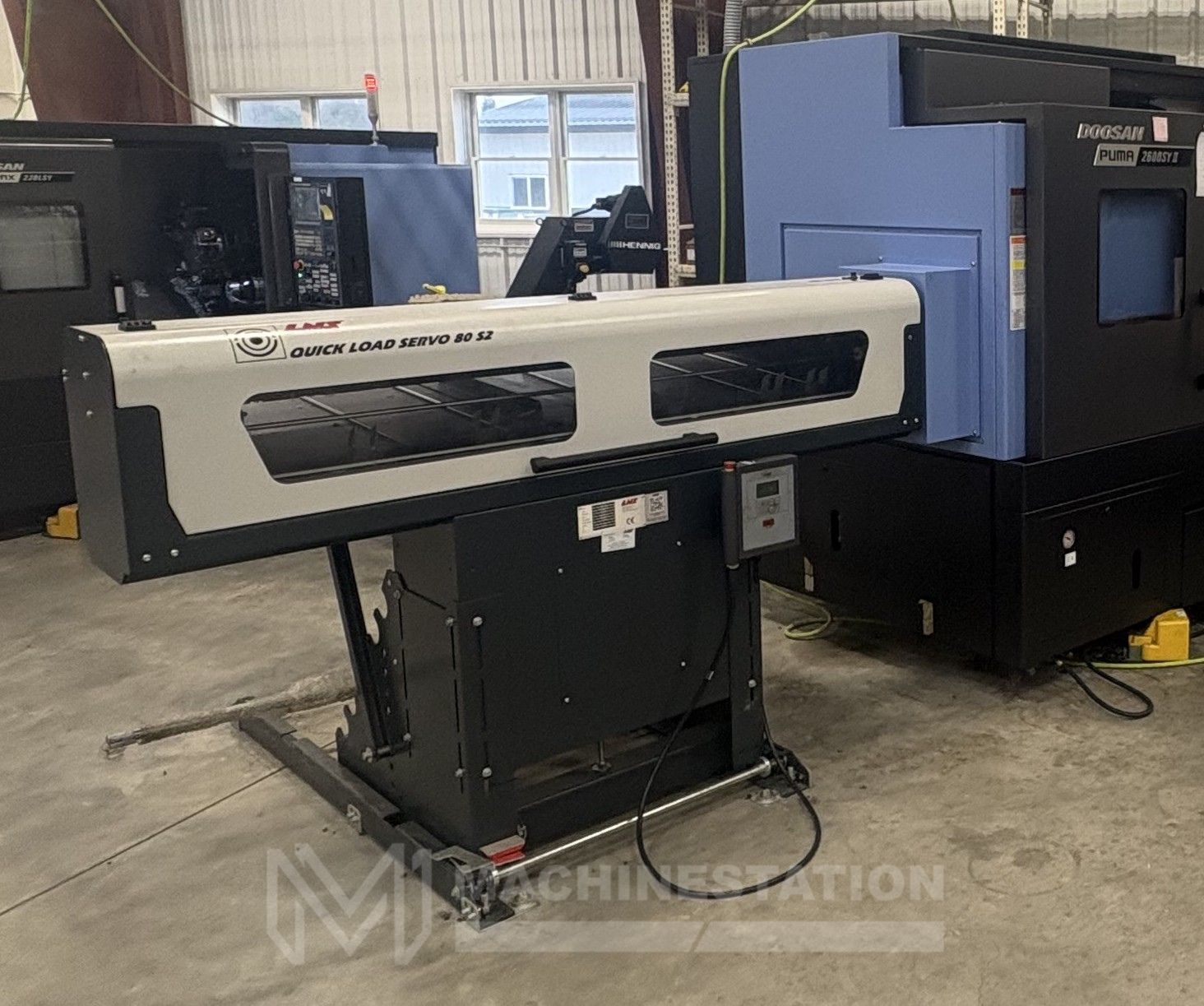

| Comes With LNS Quick Load Servo 80 S2 Bar Feeder |
| Royal Quick Grip 80 Collet Chuck Main Spindle |
| Royal Quick Grip 42 Collet Chuck Sub Spindle |
| Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |

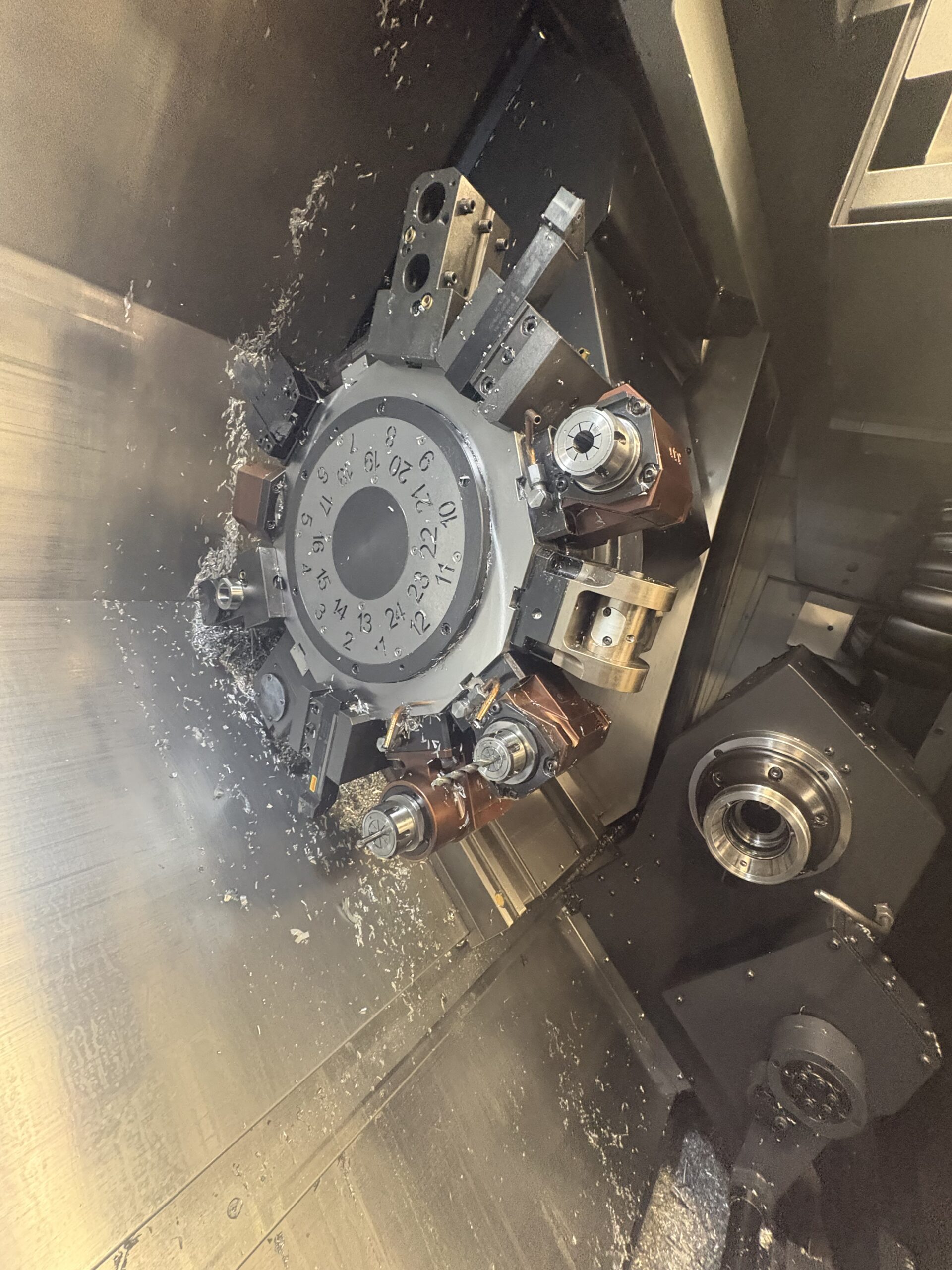

| 12-Station (24 Positions) Live Tool Turret |
| Y Axis Capable |
| Tool Presetter |
| Parts Catcher |
| Parts Conveyor |
| LNS Fox Mist Collector |
| Additional Hard and Soft Jaws |
| Coolant System – 14 PSI Coolant Pump |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |

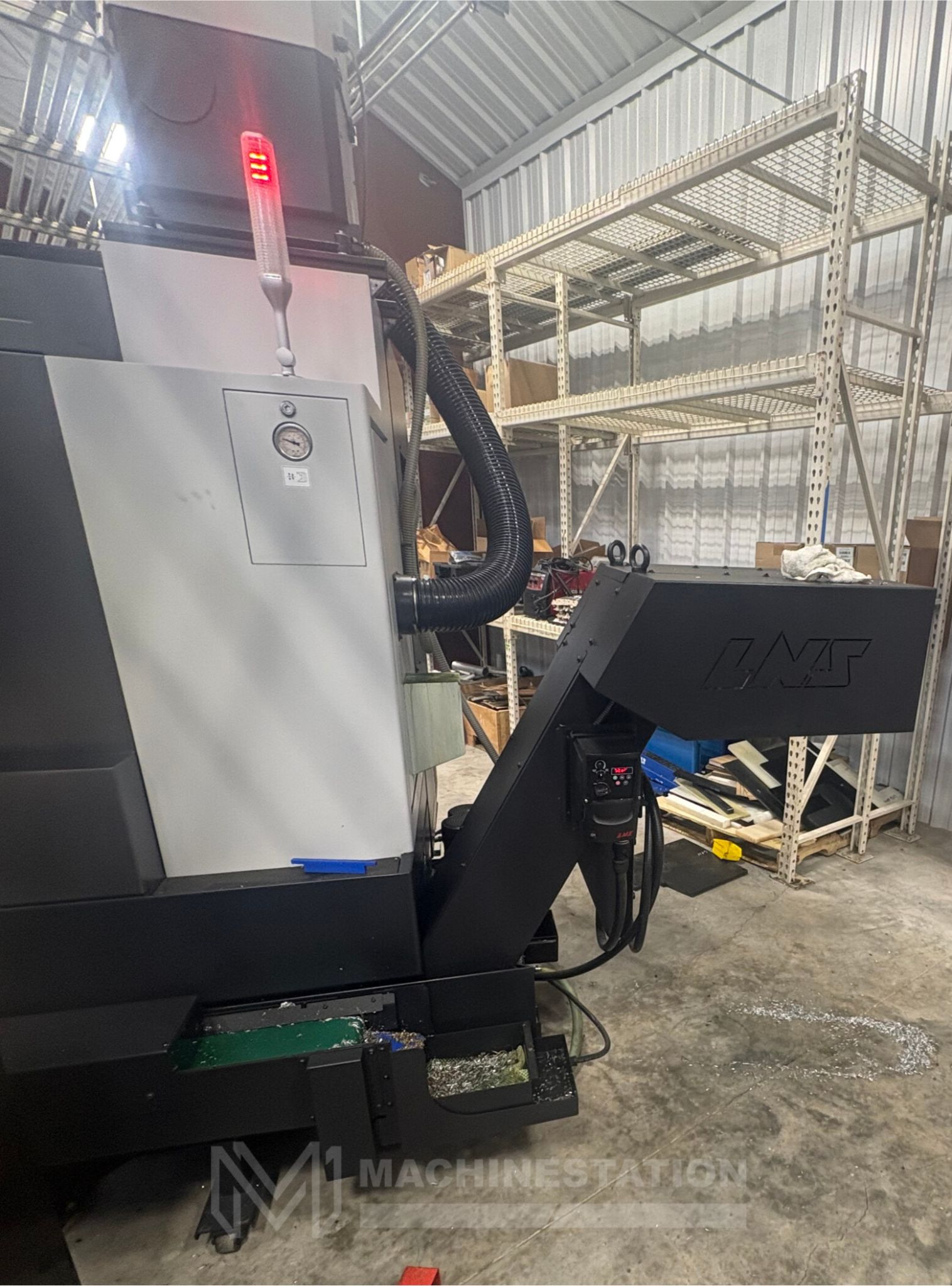

| Turbo Side Discharge Chip Conveyor with Chip Stripper bar |
| Misc. Tools Holders |
| Capacity: |
| Max Turning Diameter: 14.80″ |
| Max Turning Length: 29.90″ |
| Swing Over Bed: 30.70″ |
| Swing over the Saddle: 24.80″ |
| Max Bar Capacity: 3.20″ |
| Travels: |
| X Axis Travel: 10.20″ |
| Z Axis Travel: 32.70″ |
| Y Axis Travel: 4.10″ (+ 2.10″ – 2.10″) |
| B Axis Travel: 32.70″ (Sub Spindle) |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Rapid Traverse Y Axis: 394 IPM |
| Rapid Traverse B Axis: 1181 IPM |
| Rapid Traverse C Axis: 200 RPM |
| Spindle: |
| Main Spindle Nose: A2-8 |
| Main Spindle Bore: 3.60″ |
| Main Spindle Bar Capacity: 3.20″ |
| Main Spindle Speed: 4,000 RPM |
| Main Spindle Power: 30 HP |

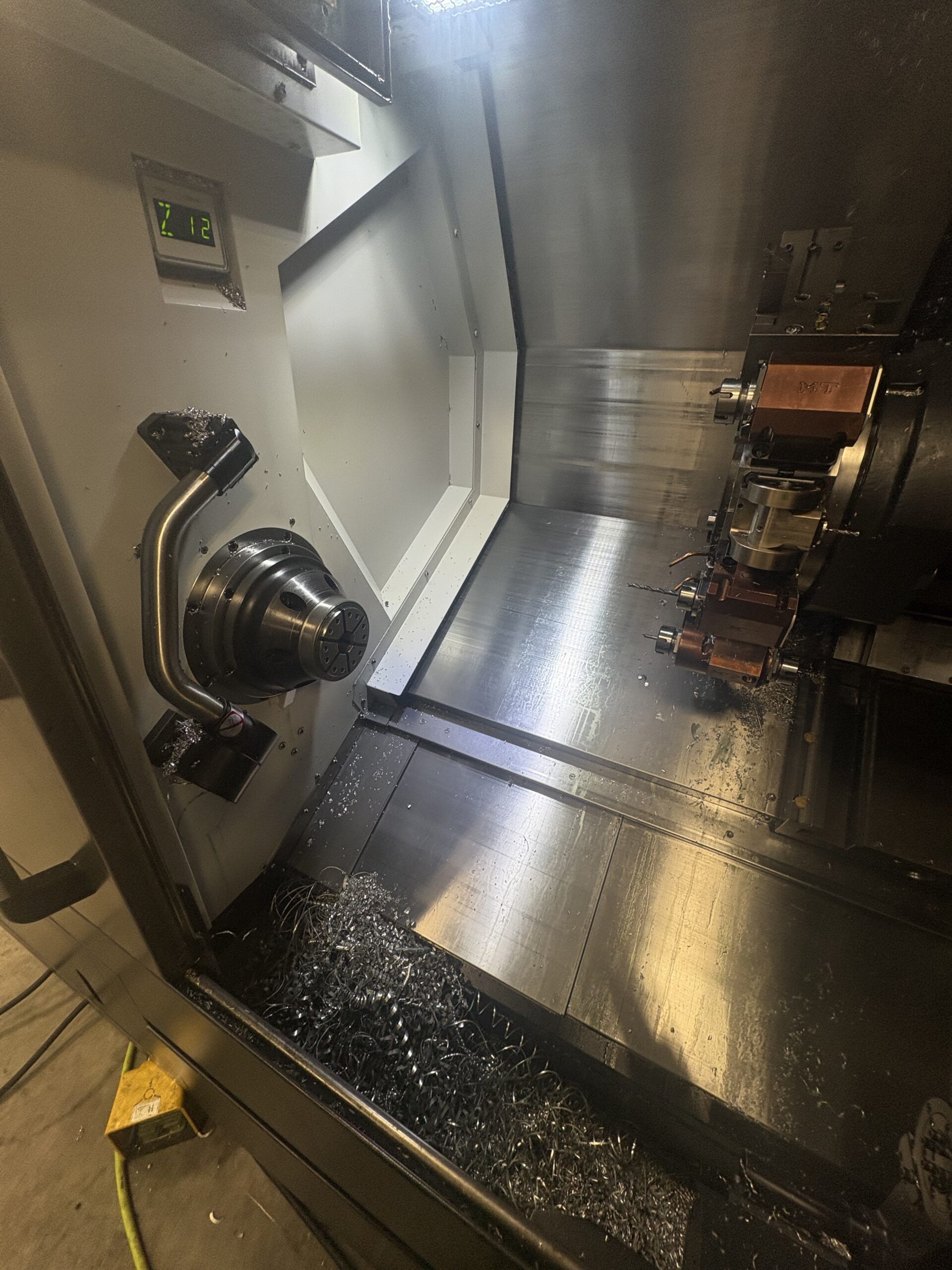

| Sub Spindle: |
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 2.40″ |
| Sub Spindle Bar Capacity: 1.96″ |
| Sub Spindle Speed: 6,000 RPM |
| Sub Spindle Power: 20 HP |
| Turret: |
| Capacity: 12 Stations (24 Positions |
| Turret Index Time: 0.15 Second |
| Live Tool Speed: 5,000 RPM |
| Live Tool Spindle Power: 10 HP |
| Tool Holders Type: BMT-65 |
| General: |

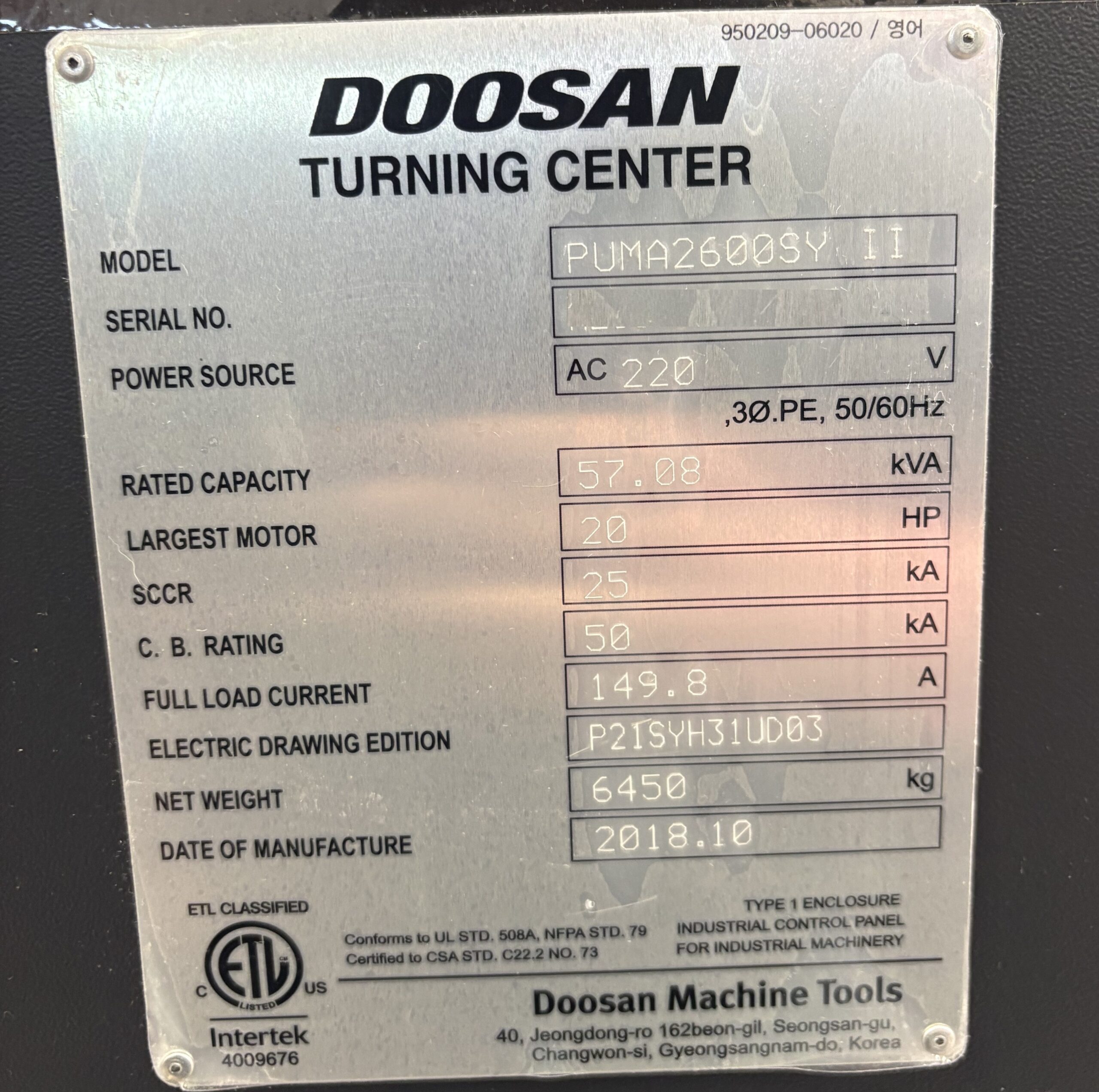

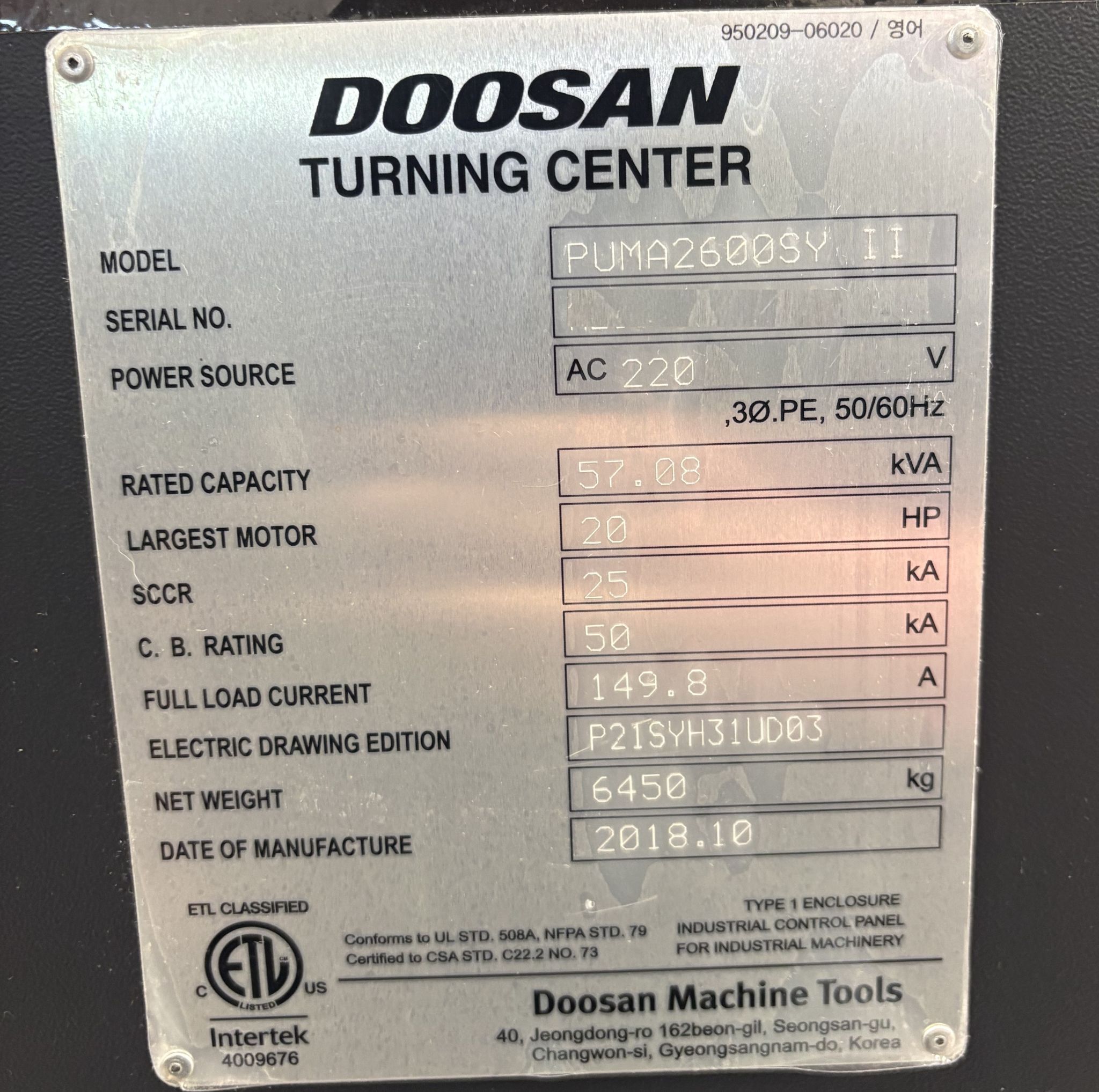

| Power Source: 220v / 3-Phase / 60 Hz/ 57.08 kva |
| Overall Dimensions: 142″ x 75″ x 85″ High Approx. |
| Weight: 14,220 lbs Approx. |
