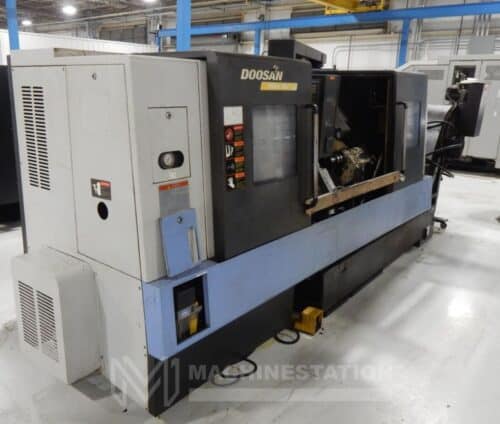

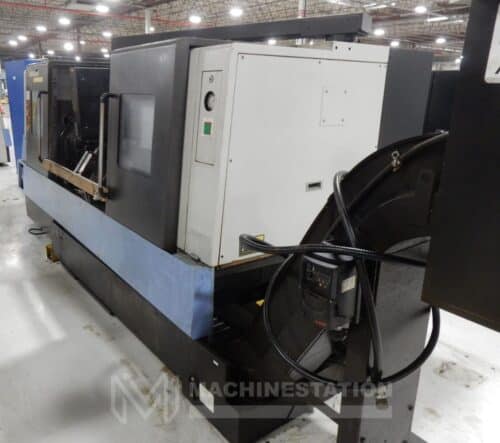

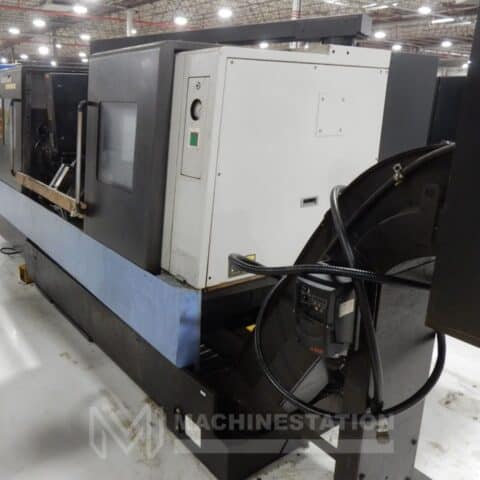

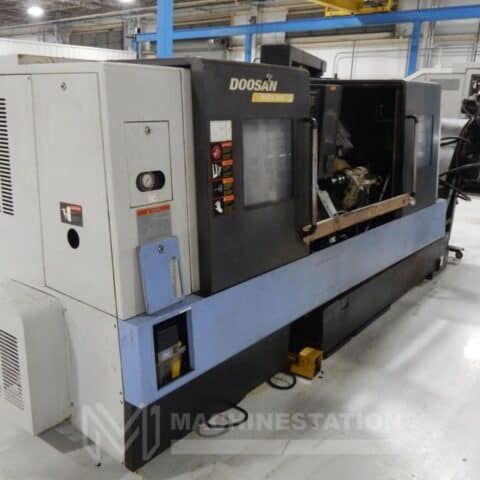

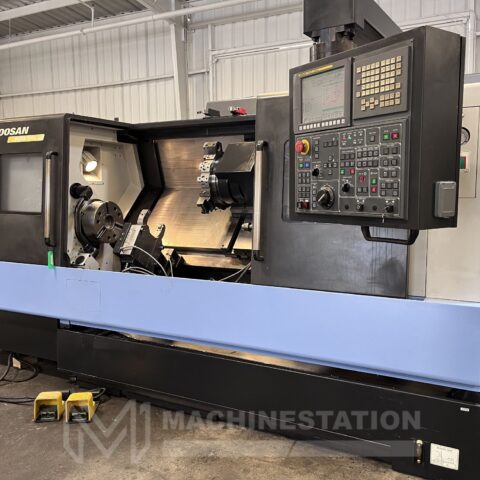

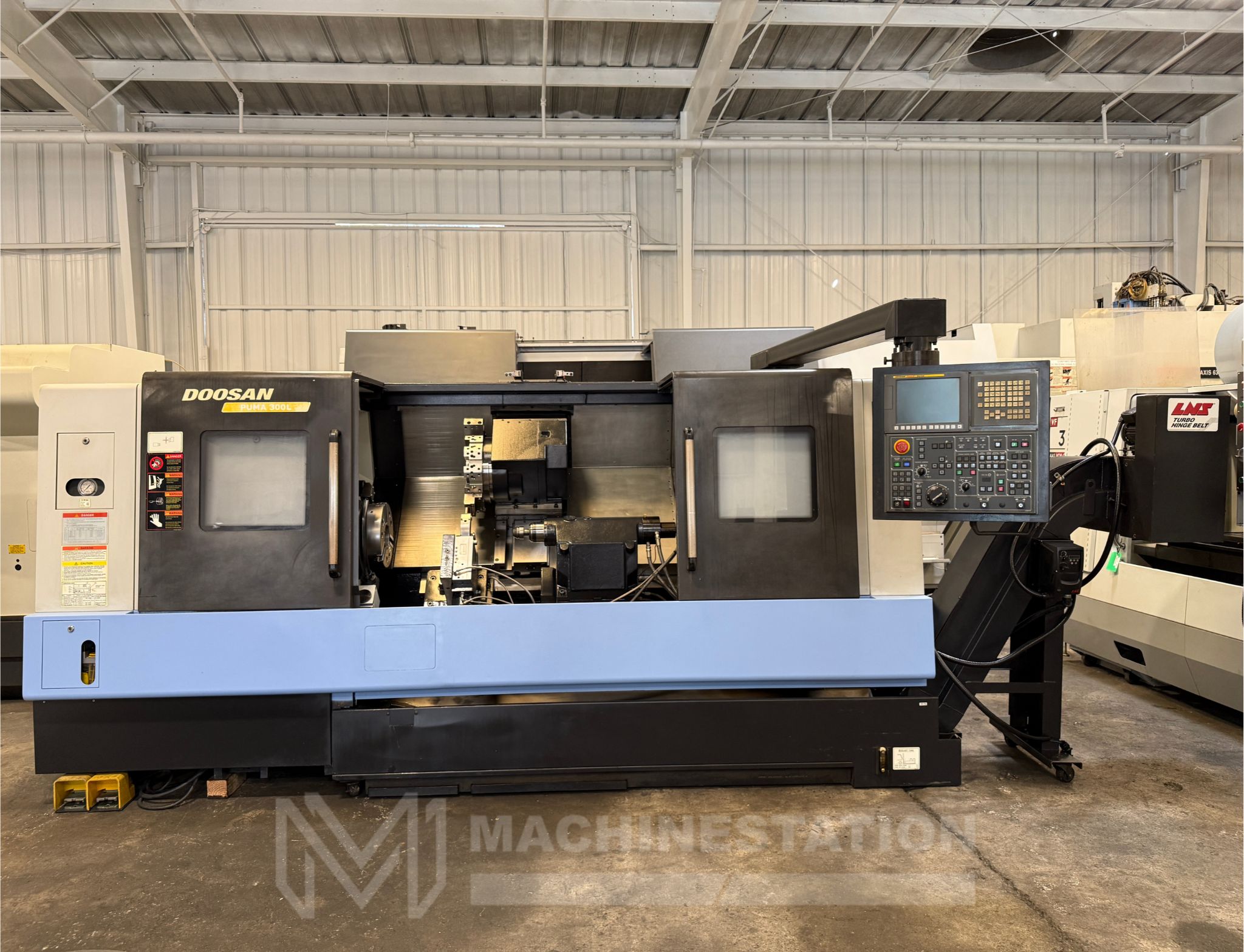

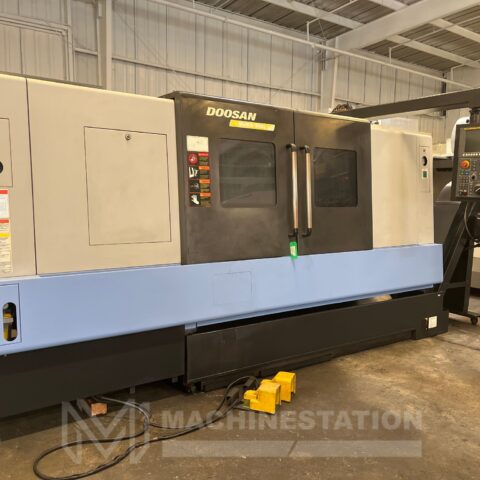

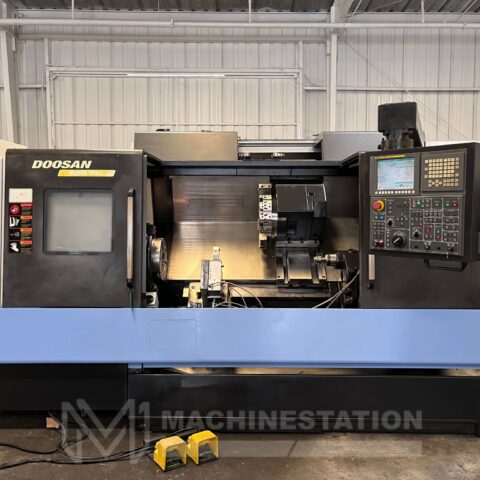

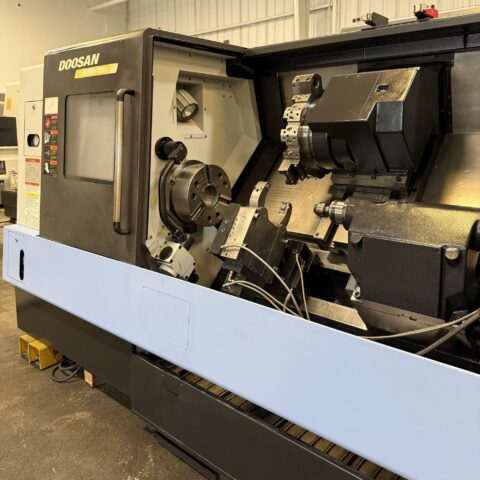

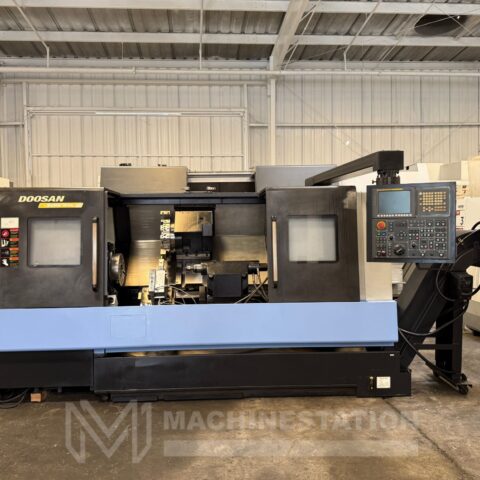

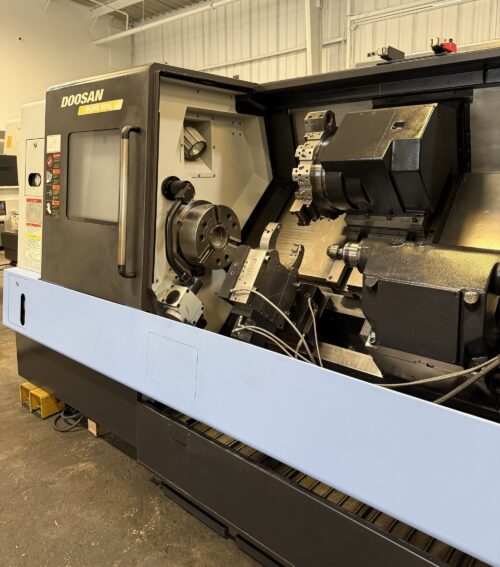

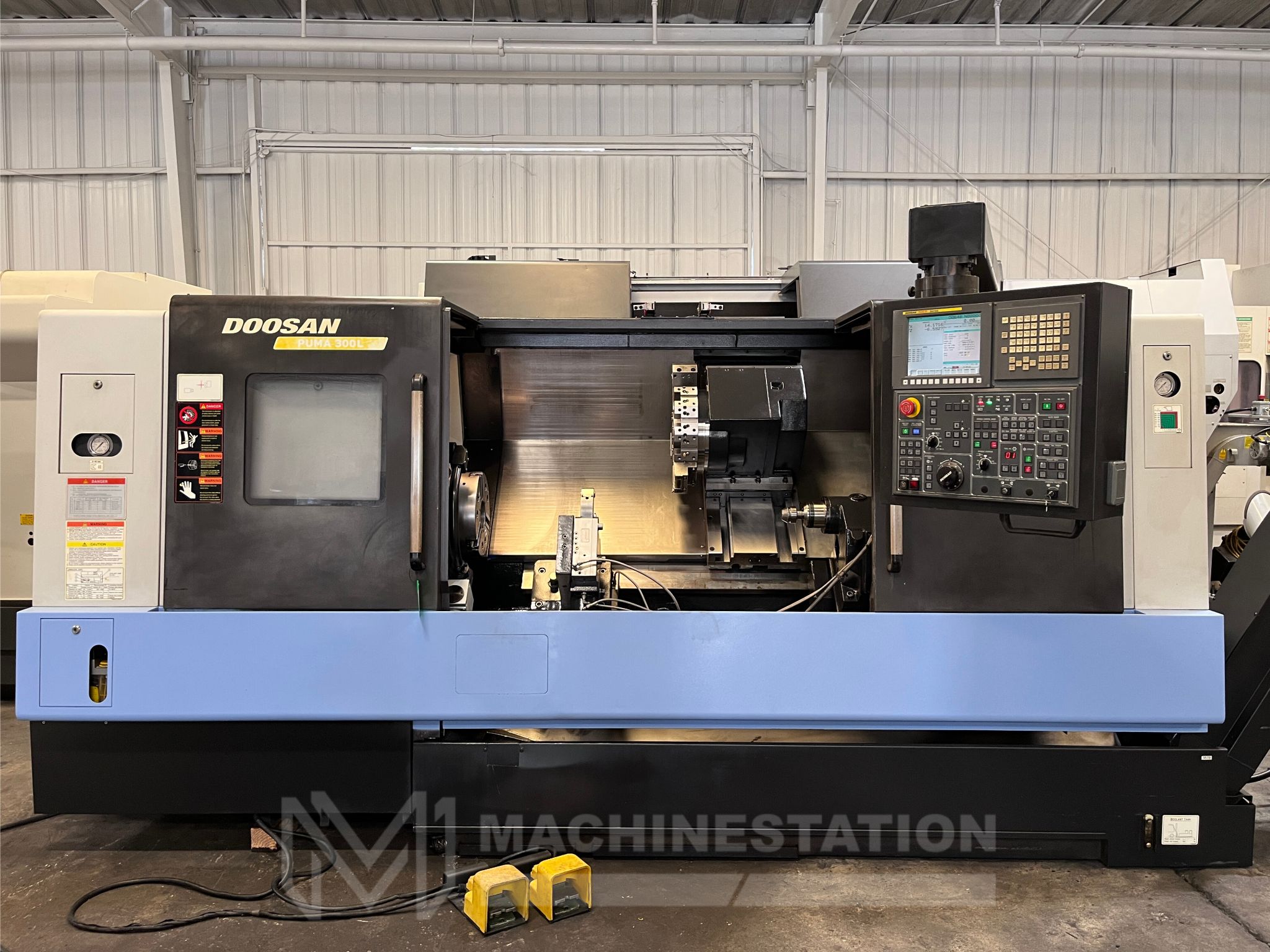

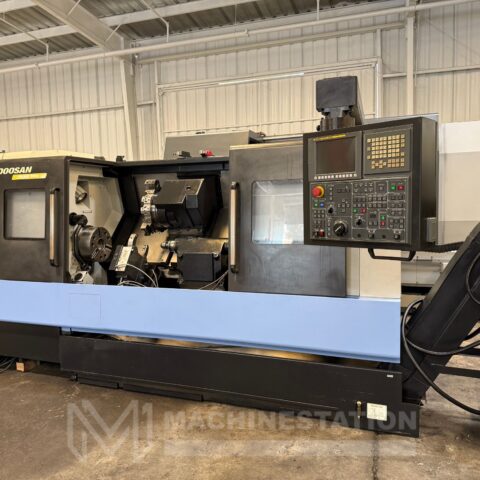

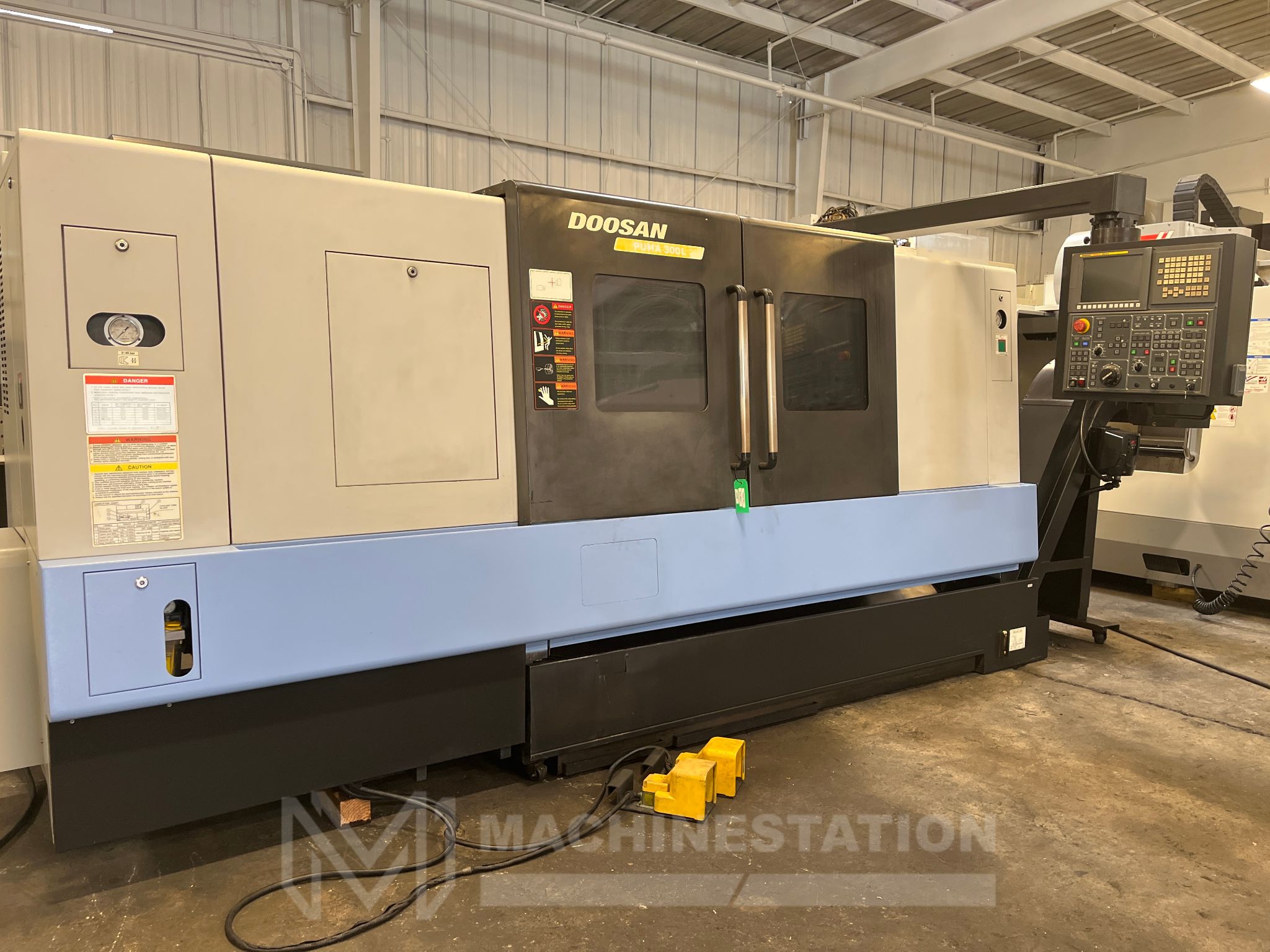

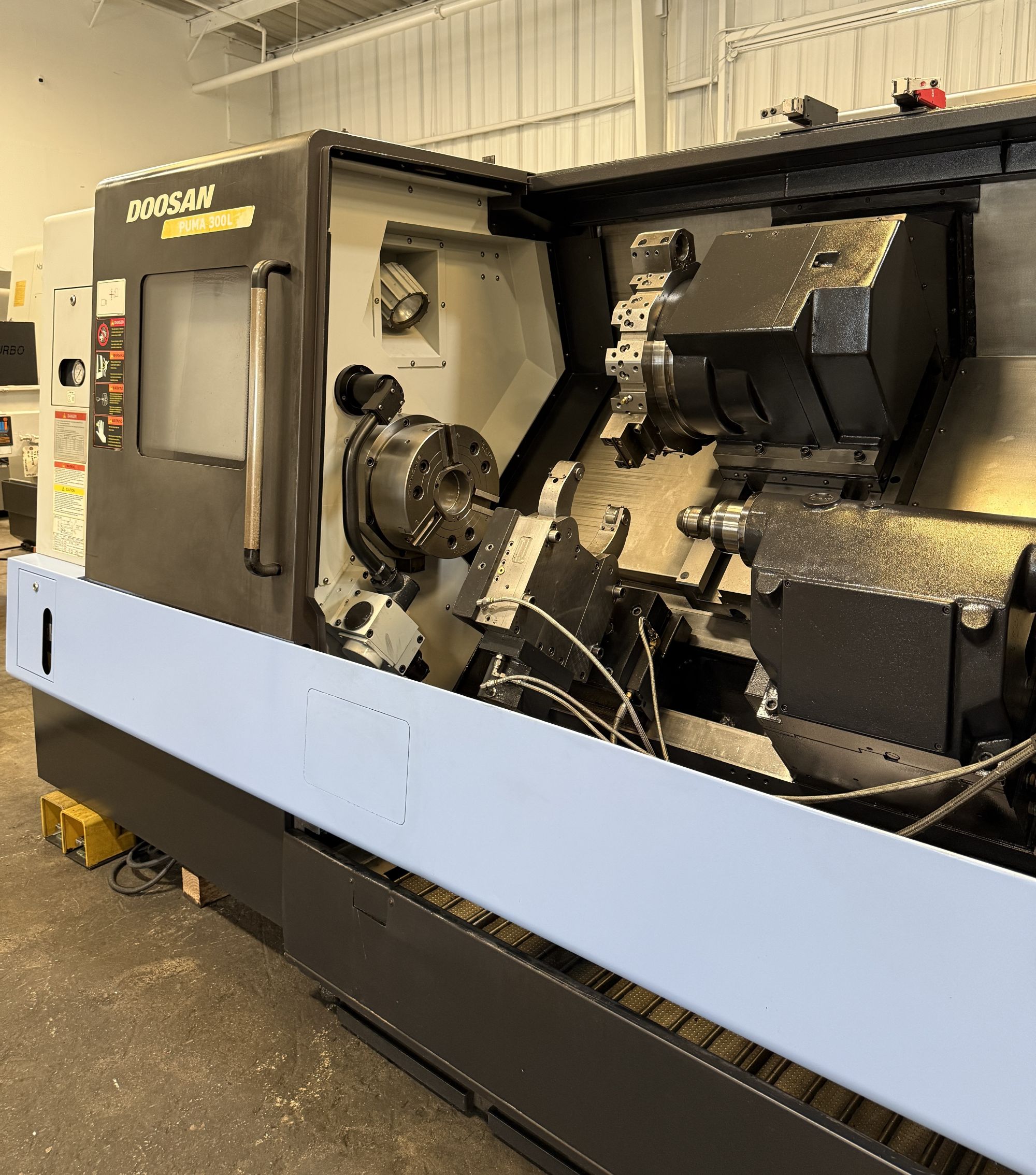

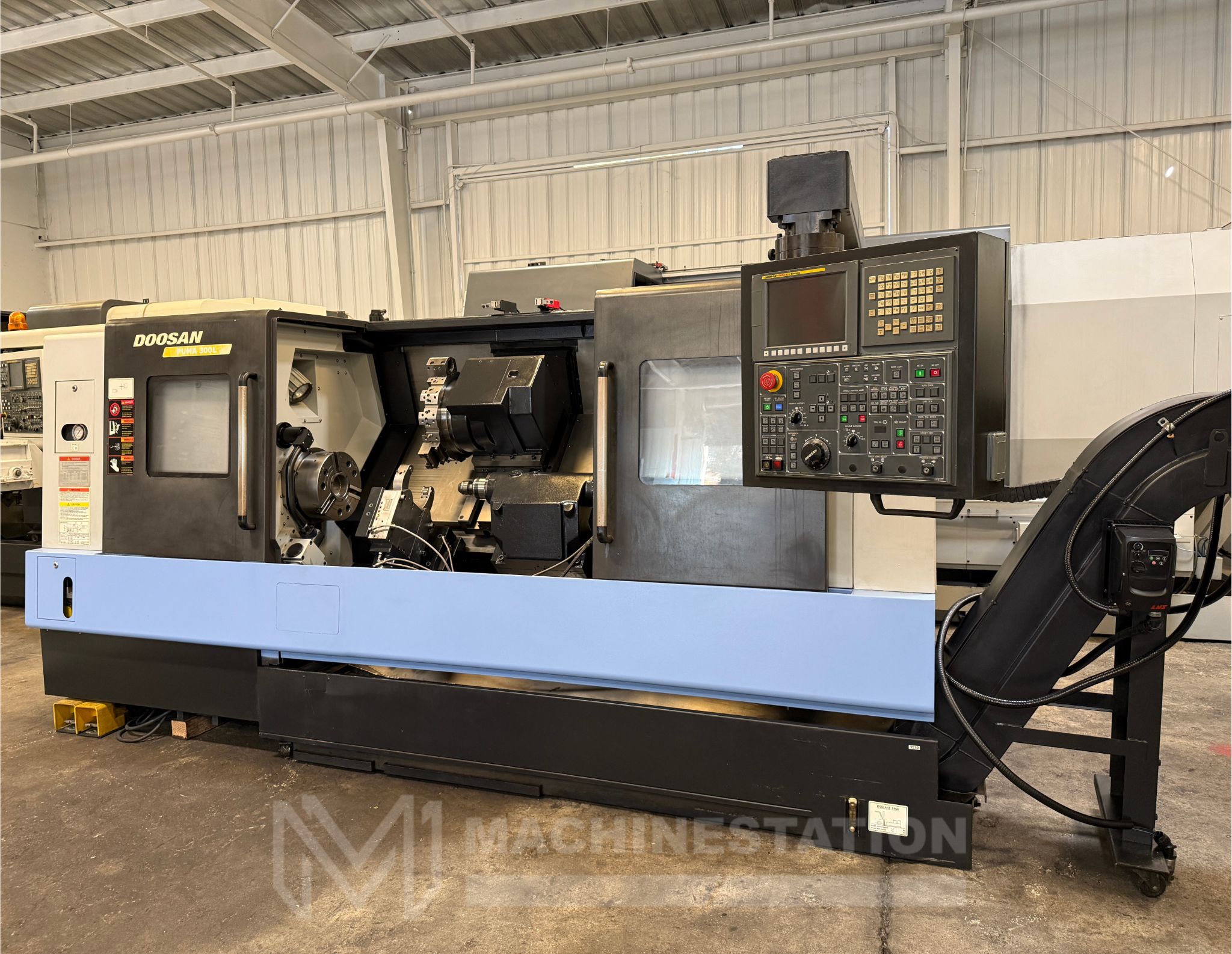

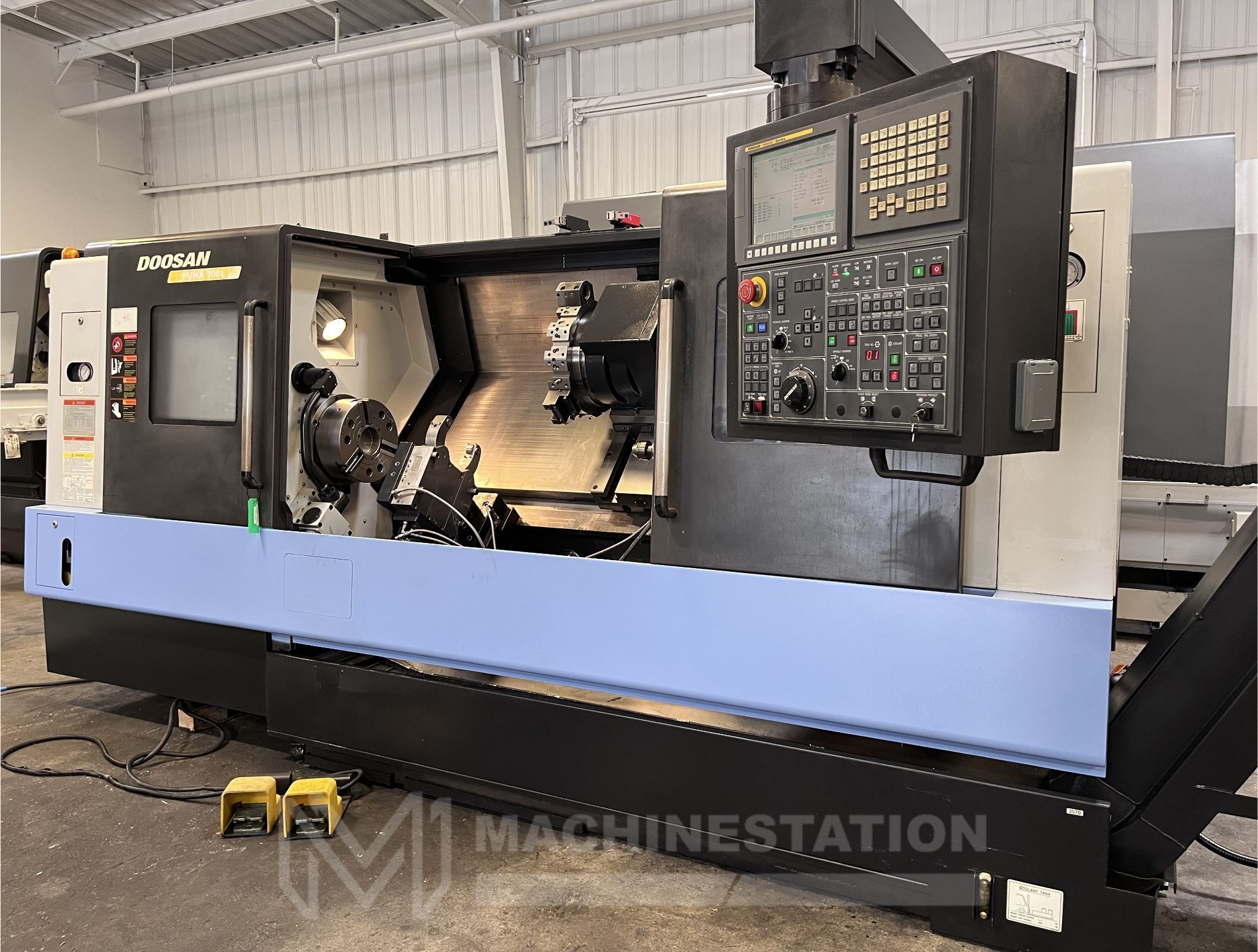

Doosan Puma 300LC CNC Turning Center – 12″ Chuck Long Bed Lathe
1 in stock
Used Doosan Puma 300LC CNC Turning Center for Sale.
| SKU: | 112800 |
| Make/Model: | Doosan Puma 300LC |
| Year: | 2011 |
| Condition: | Used – Good |
| Cutting Time: | 6,802 |
| Video: | No Video |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112800 |
| Make: | Doosan |
| Model: | Puma 300LC |
| Year: | 2011 |
| Condition: | Used – Good |
| Equipped With: |
|---|

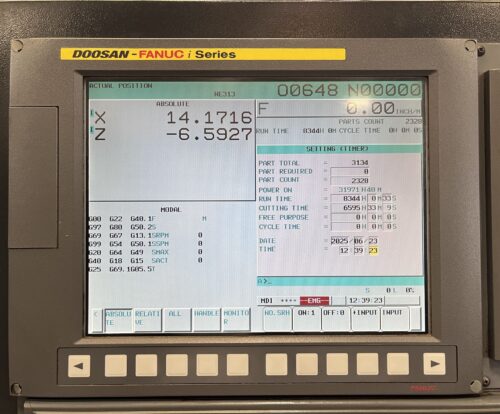

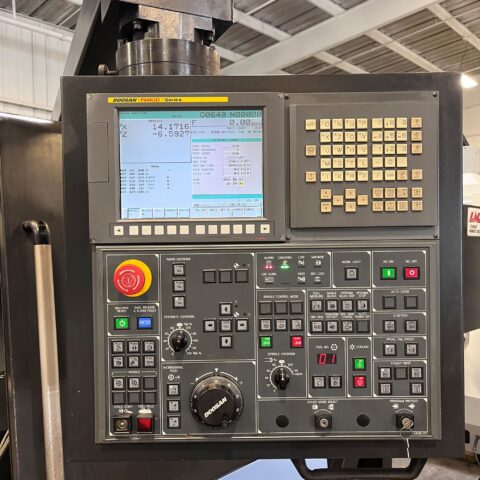

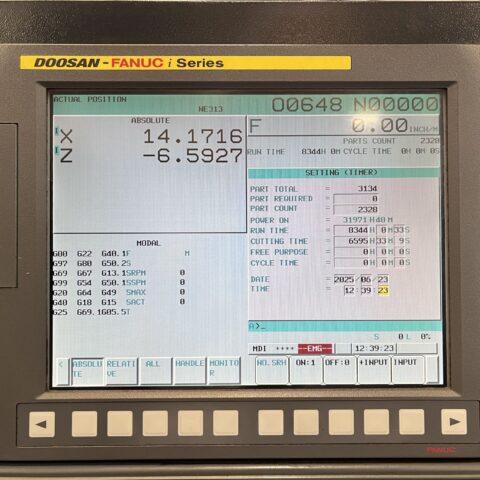

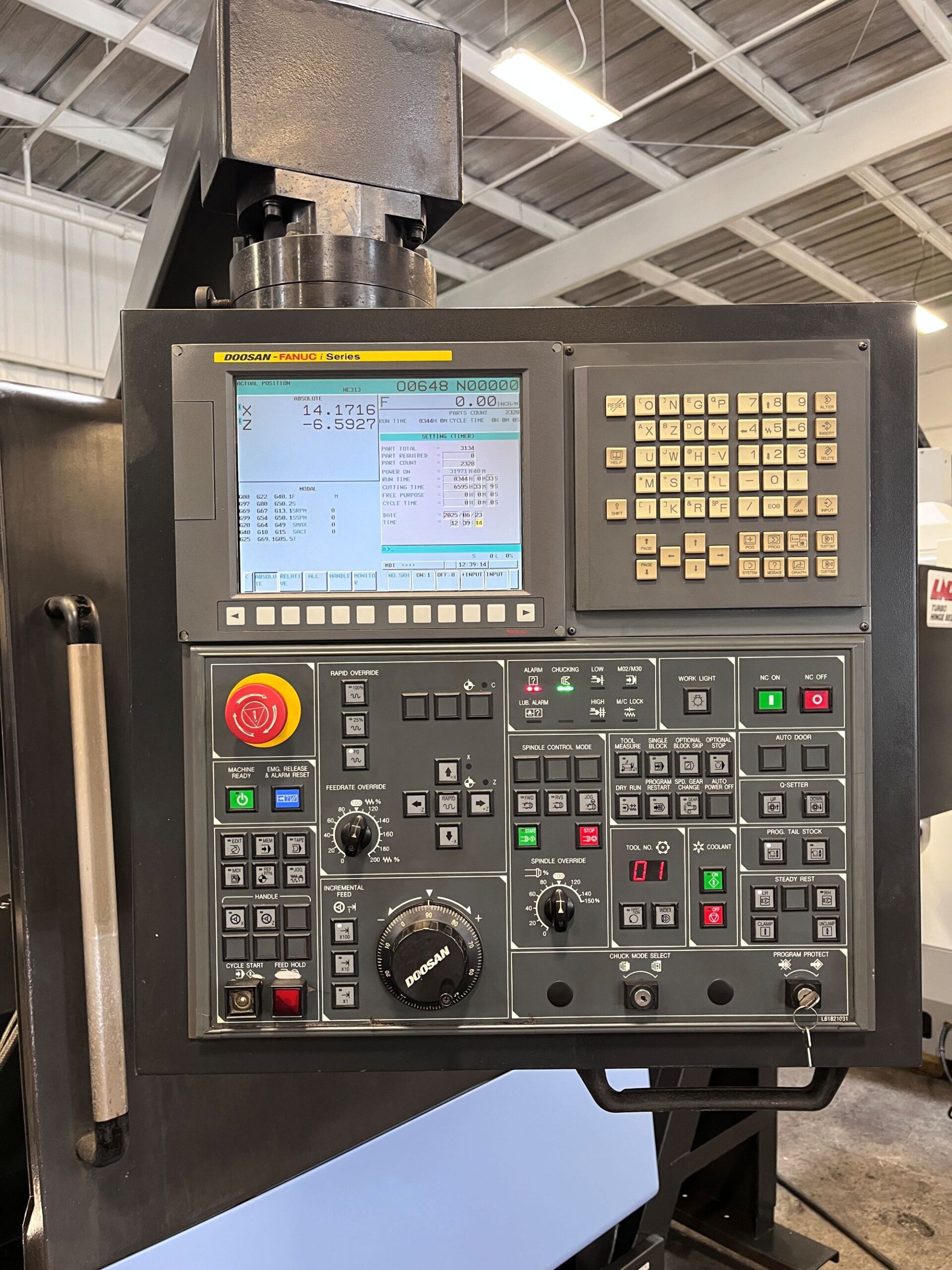

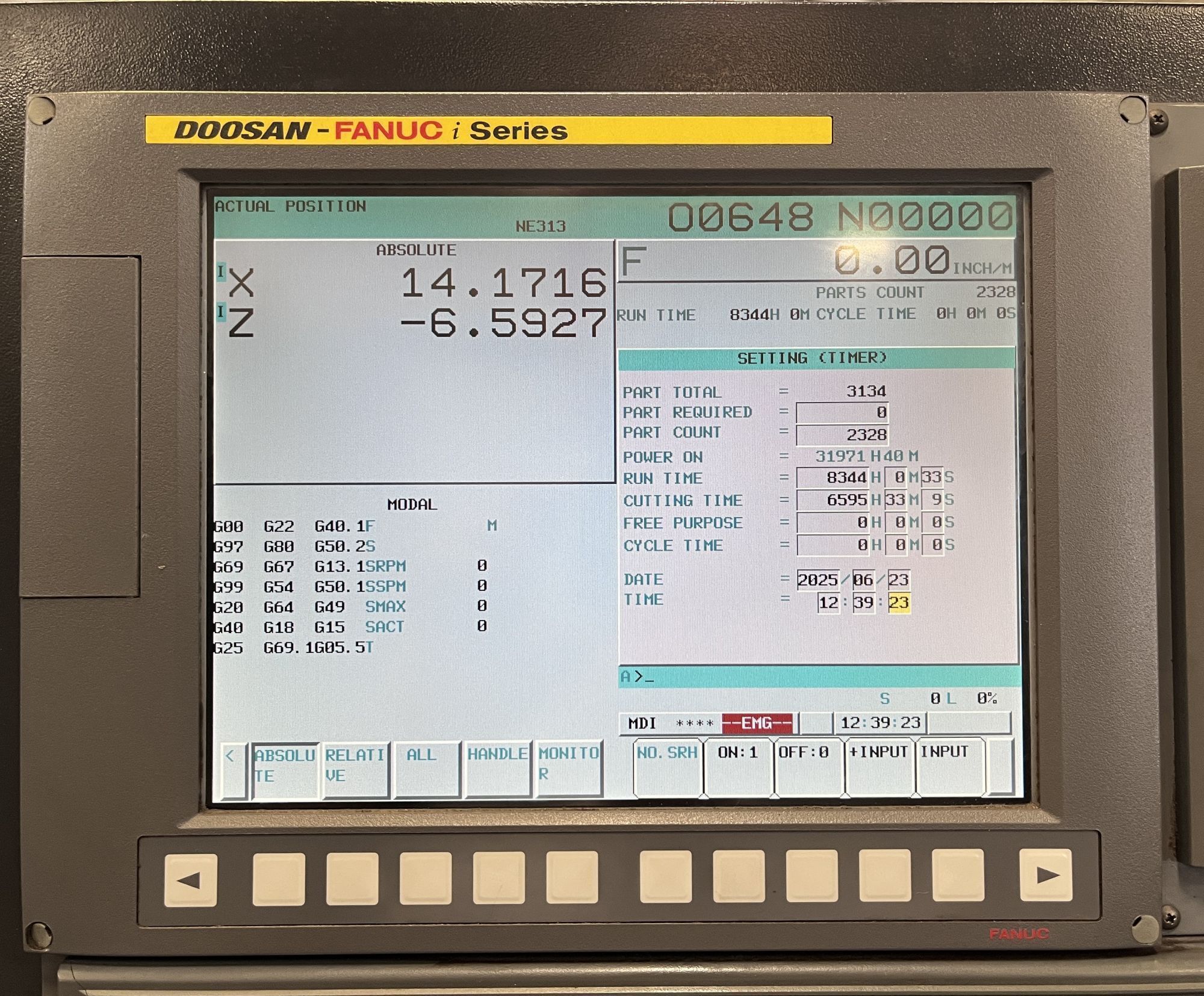

| Doosan-Fanuc i-series CNC Control |
| Heavy Duty Box Way Construction |

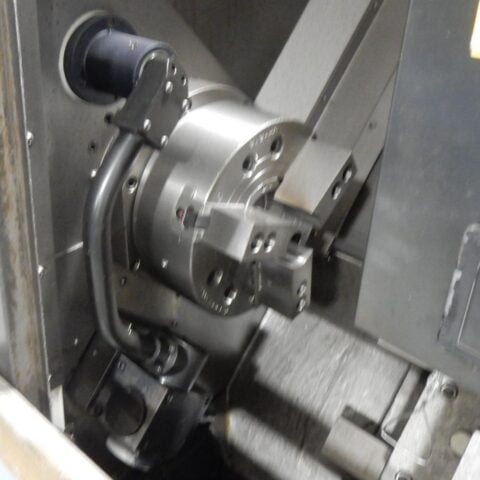

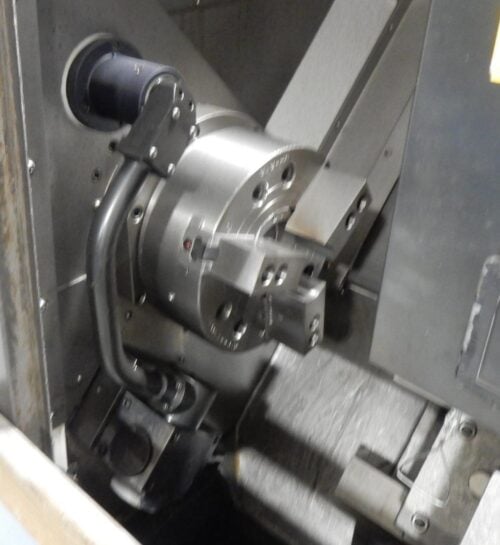

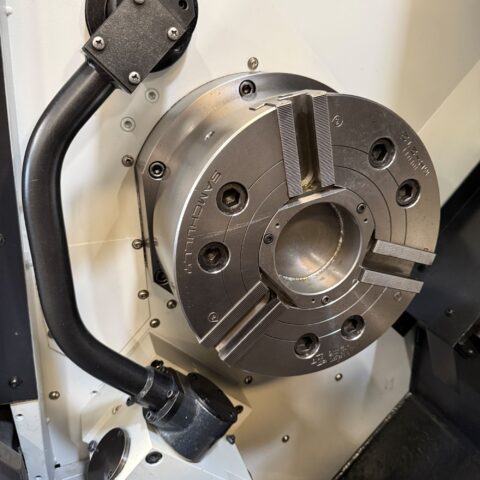

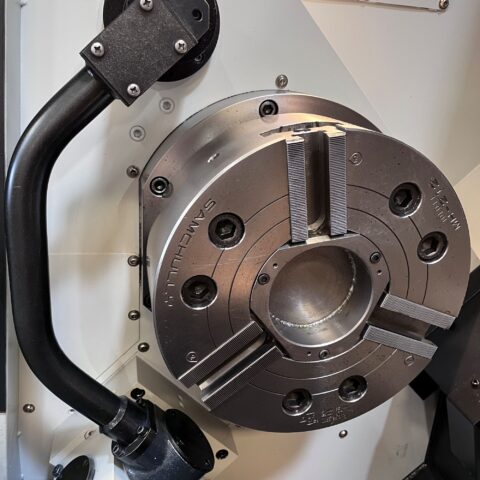

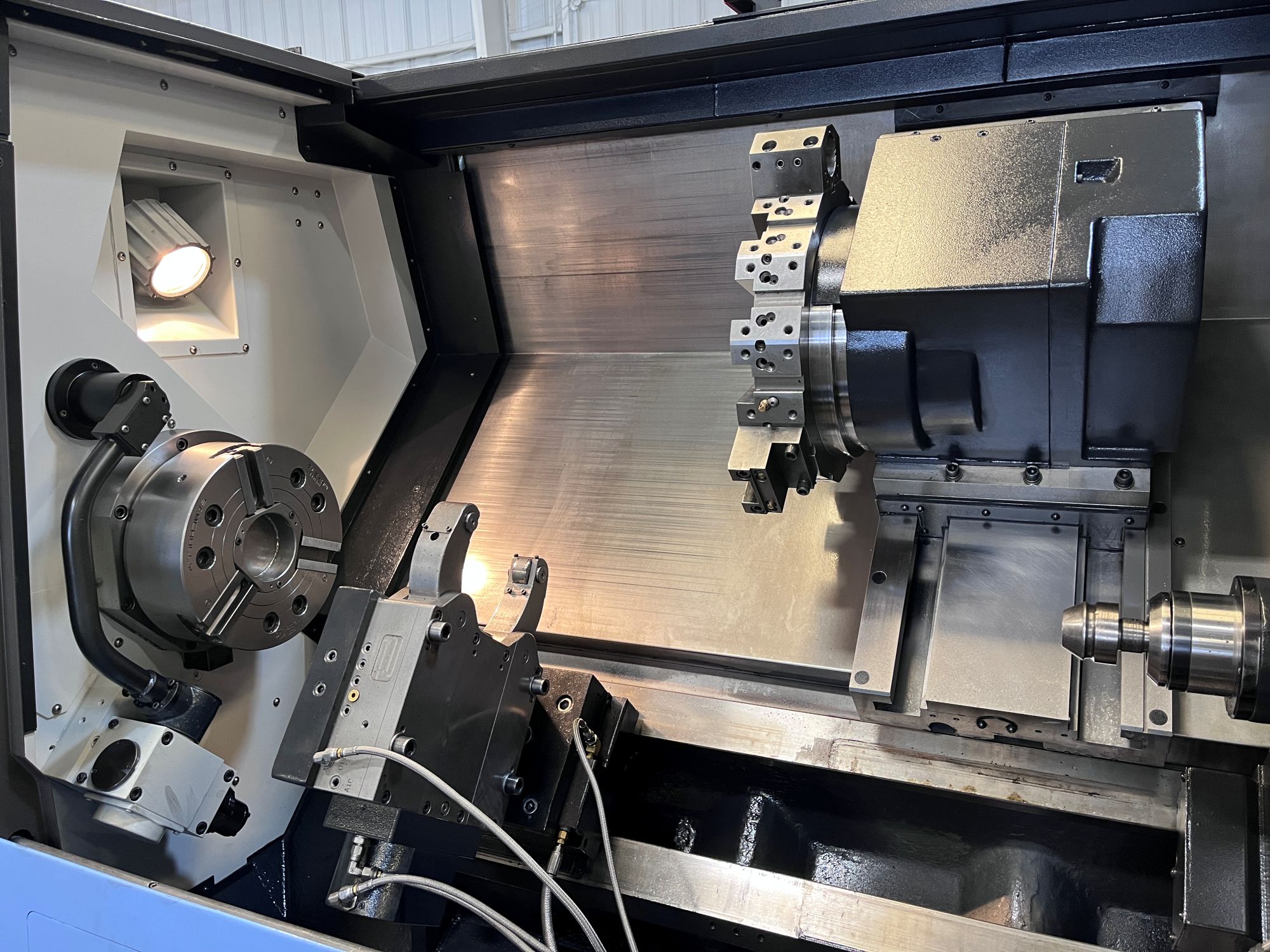

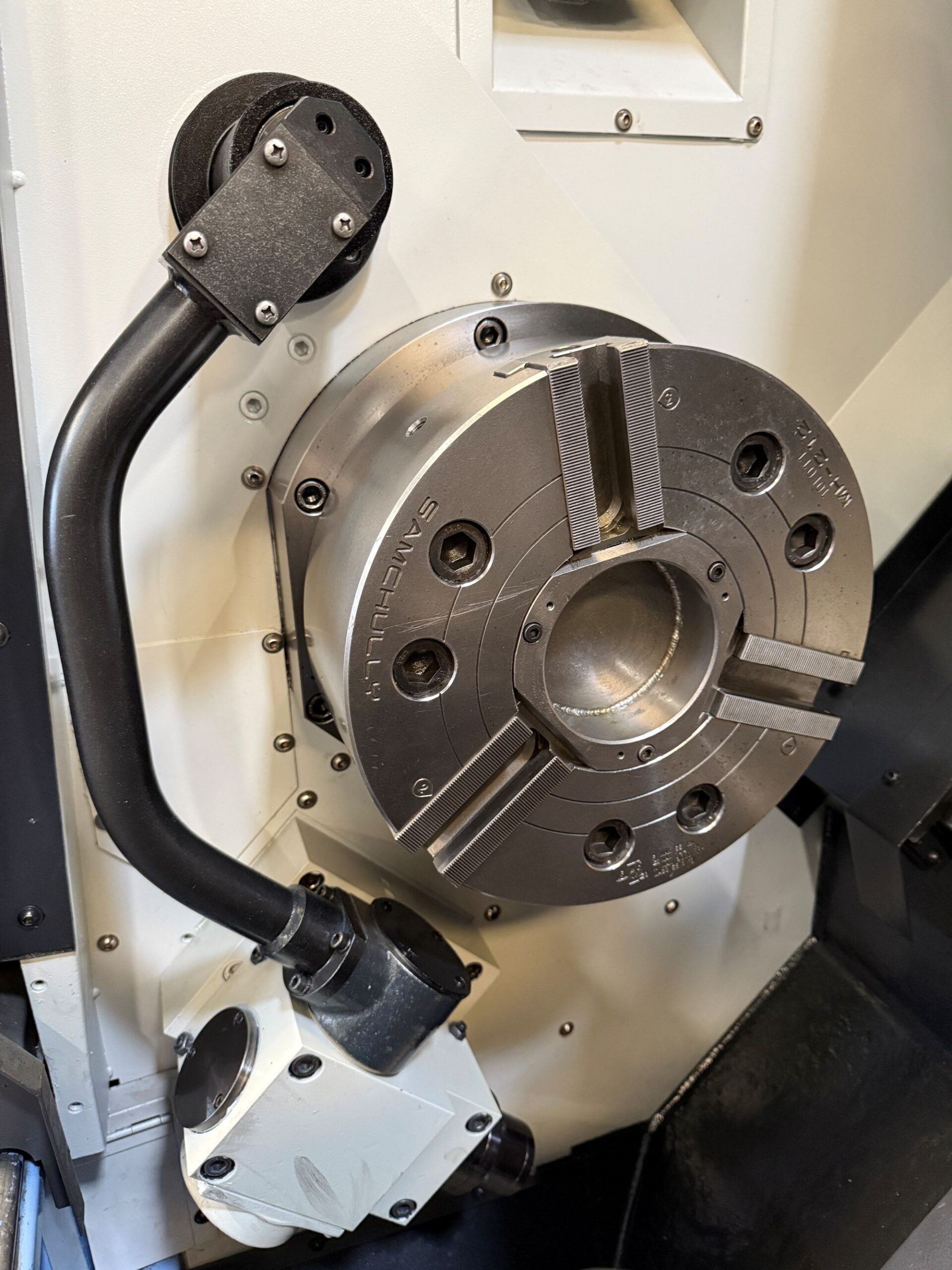

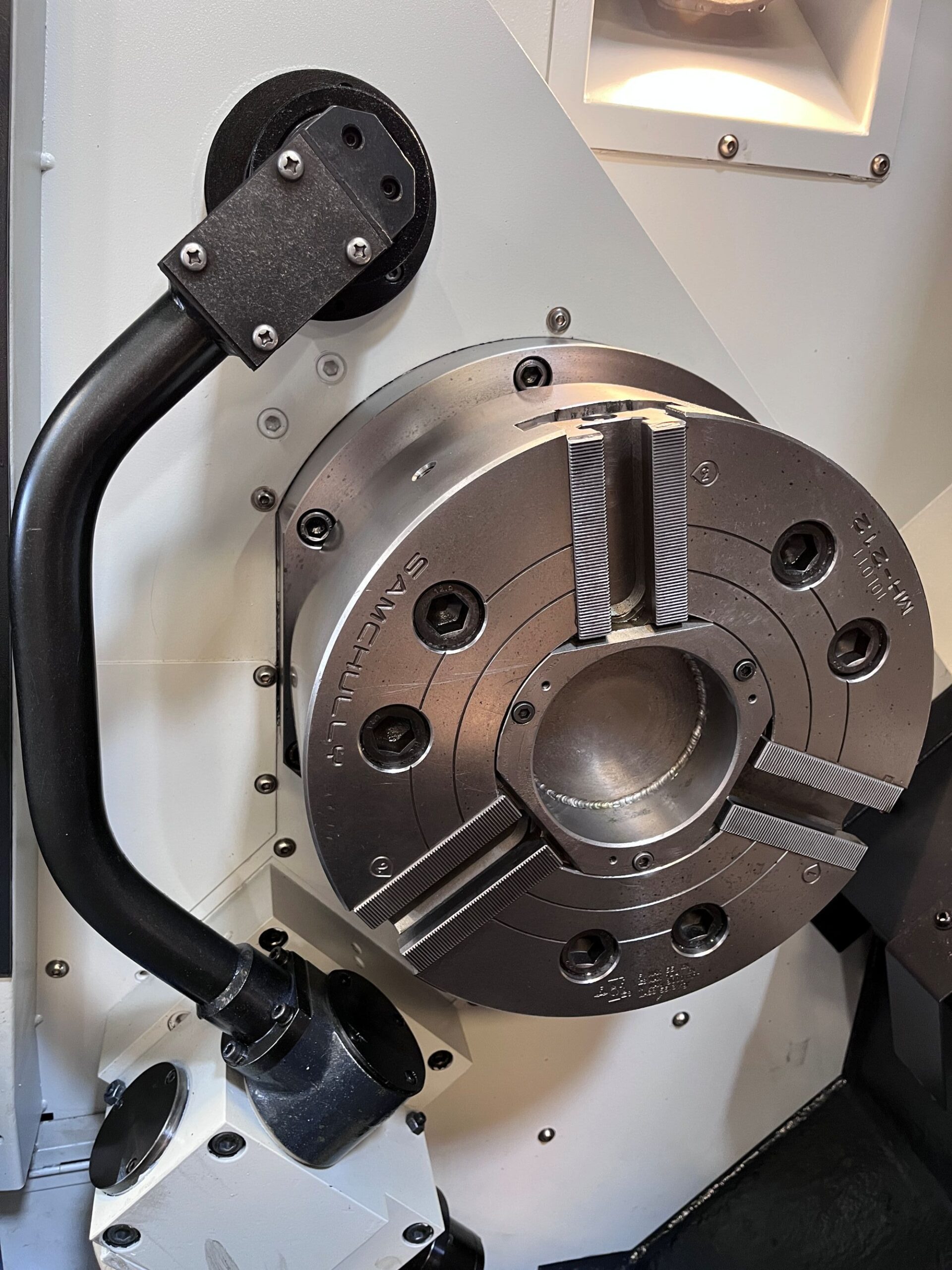

| 12″ 3-Jaw Hydraulic Chuck |
| 4.52″ Bore A2-11 Spindle |

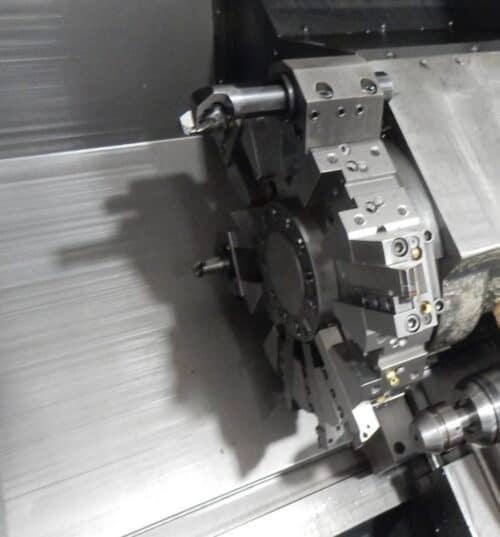

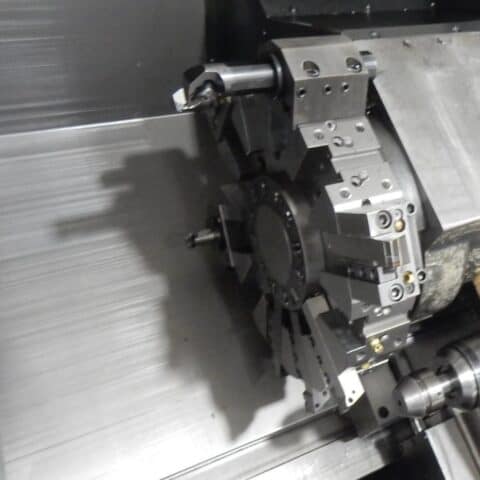

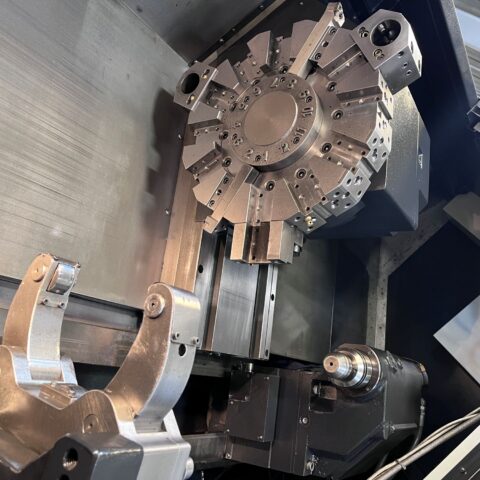

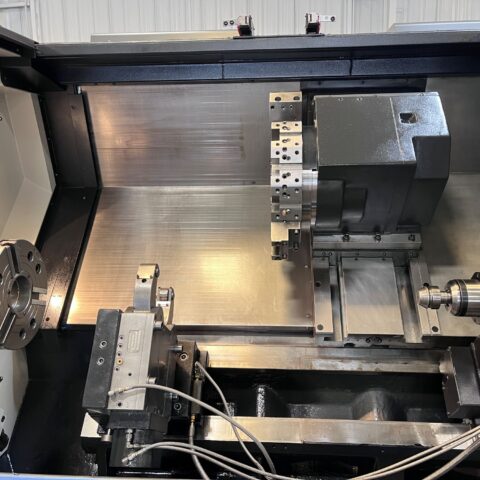

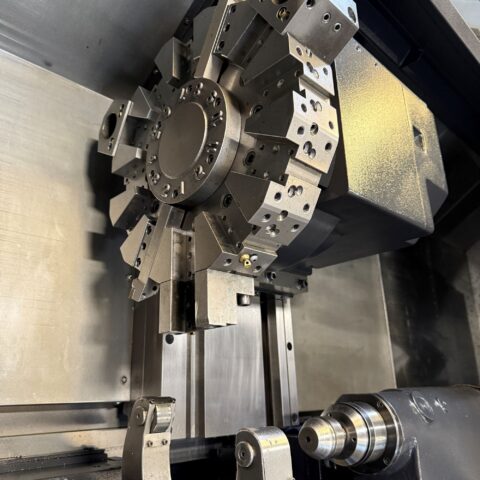

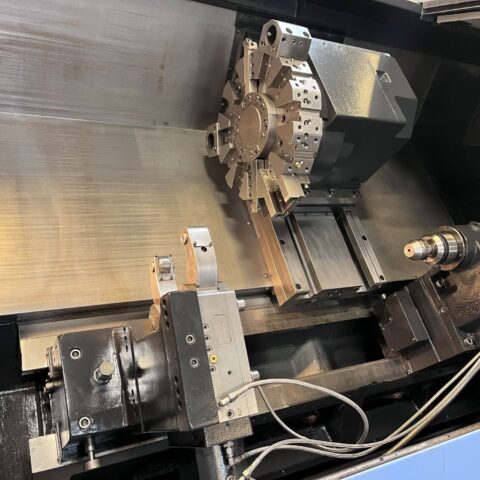

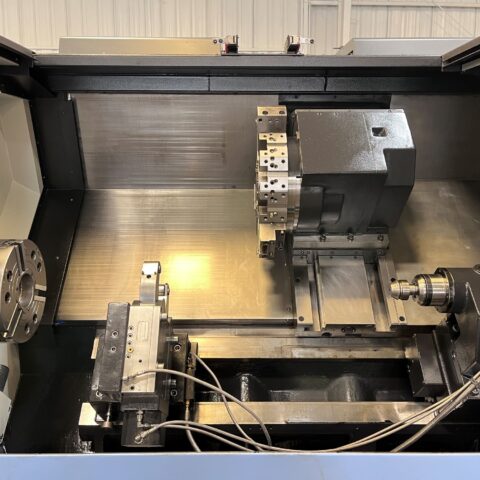

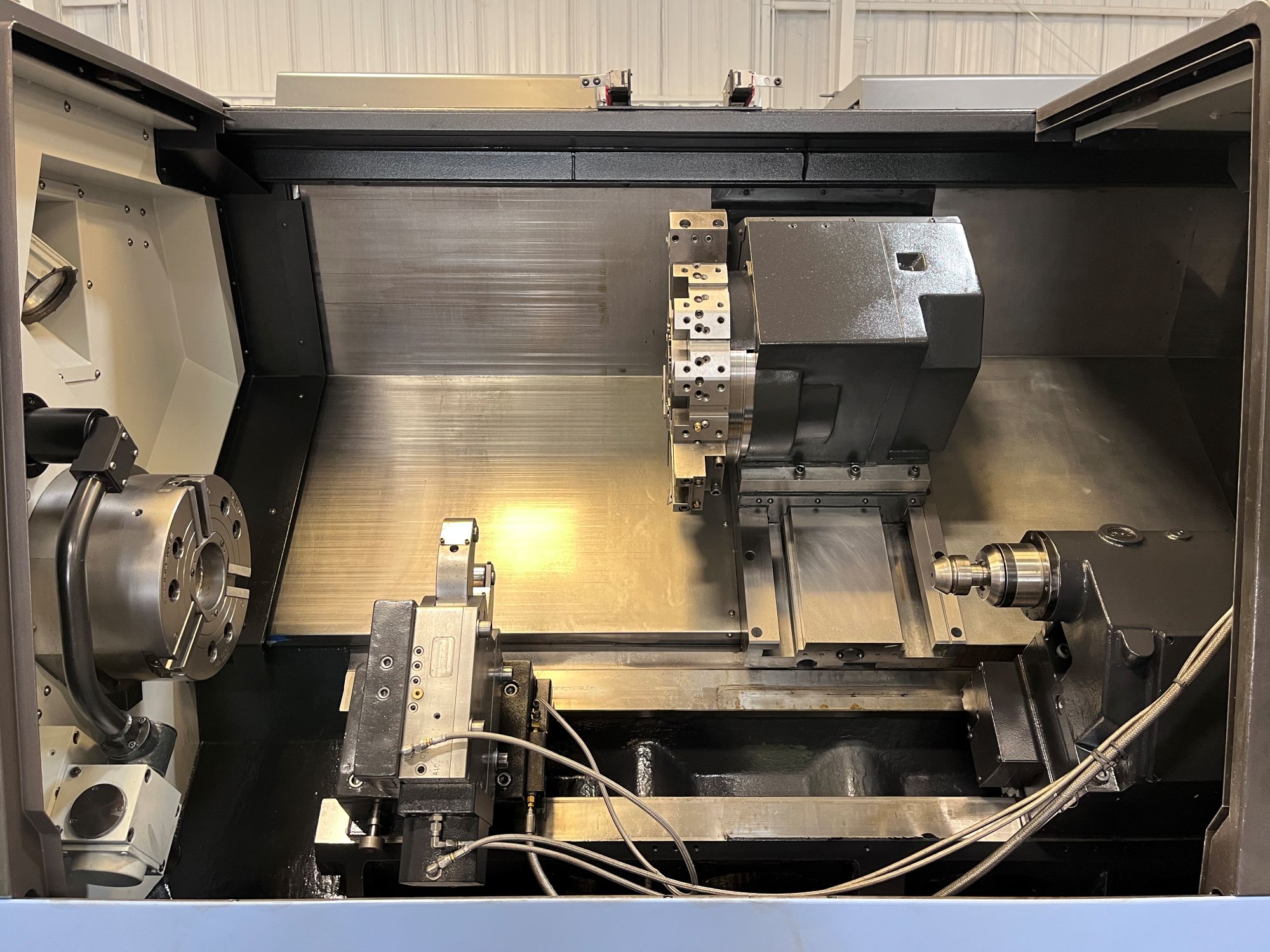

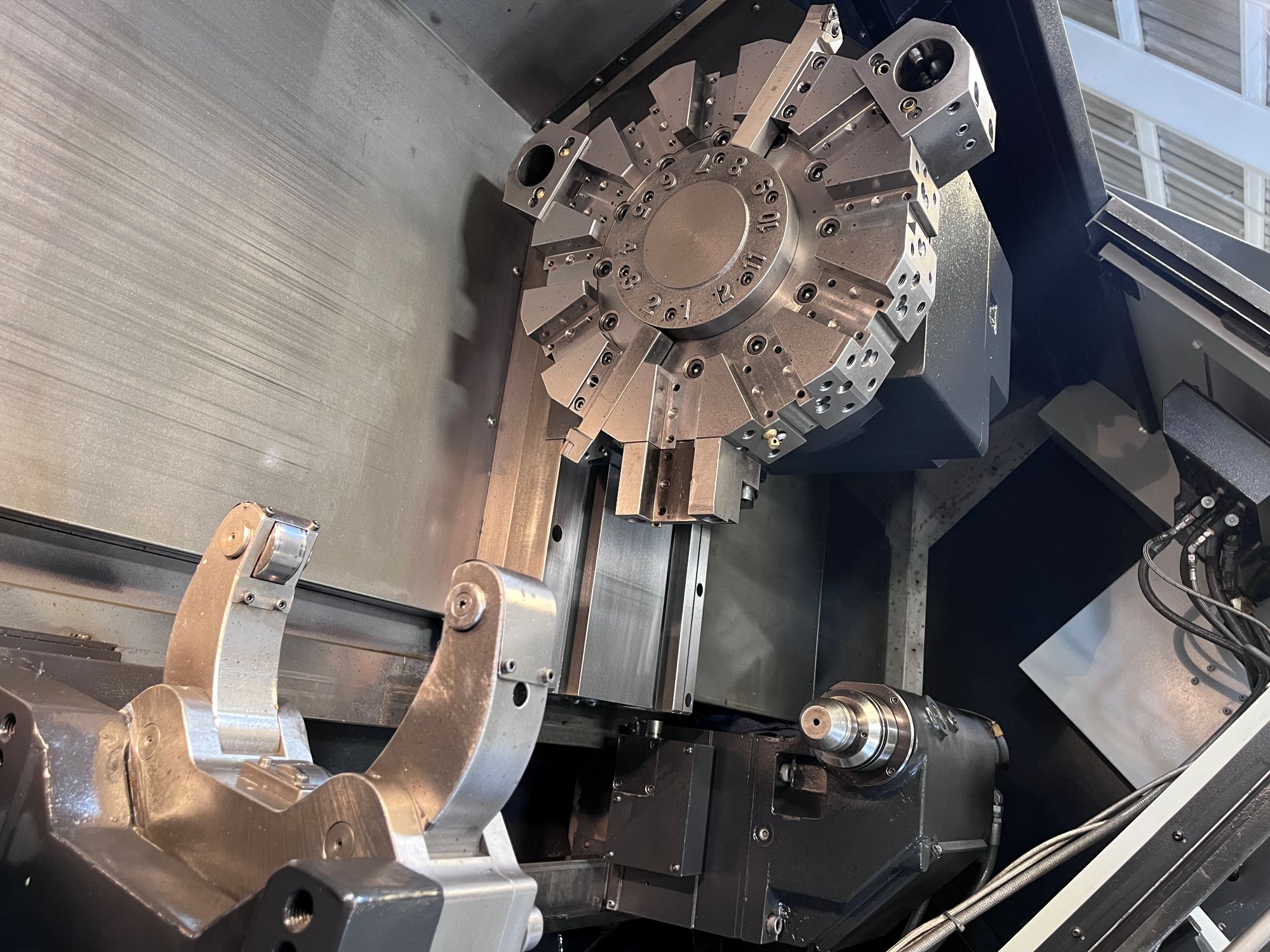

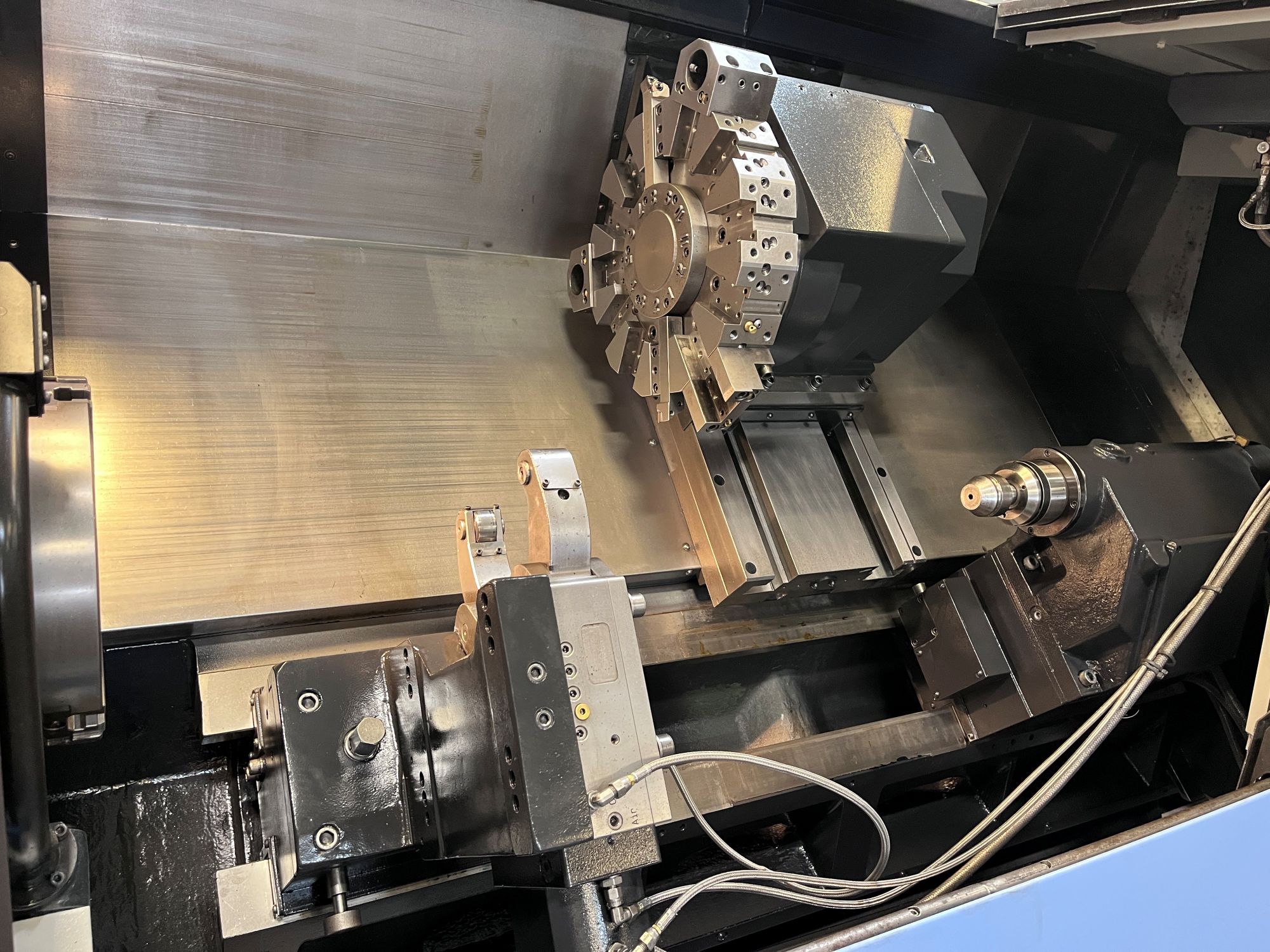

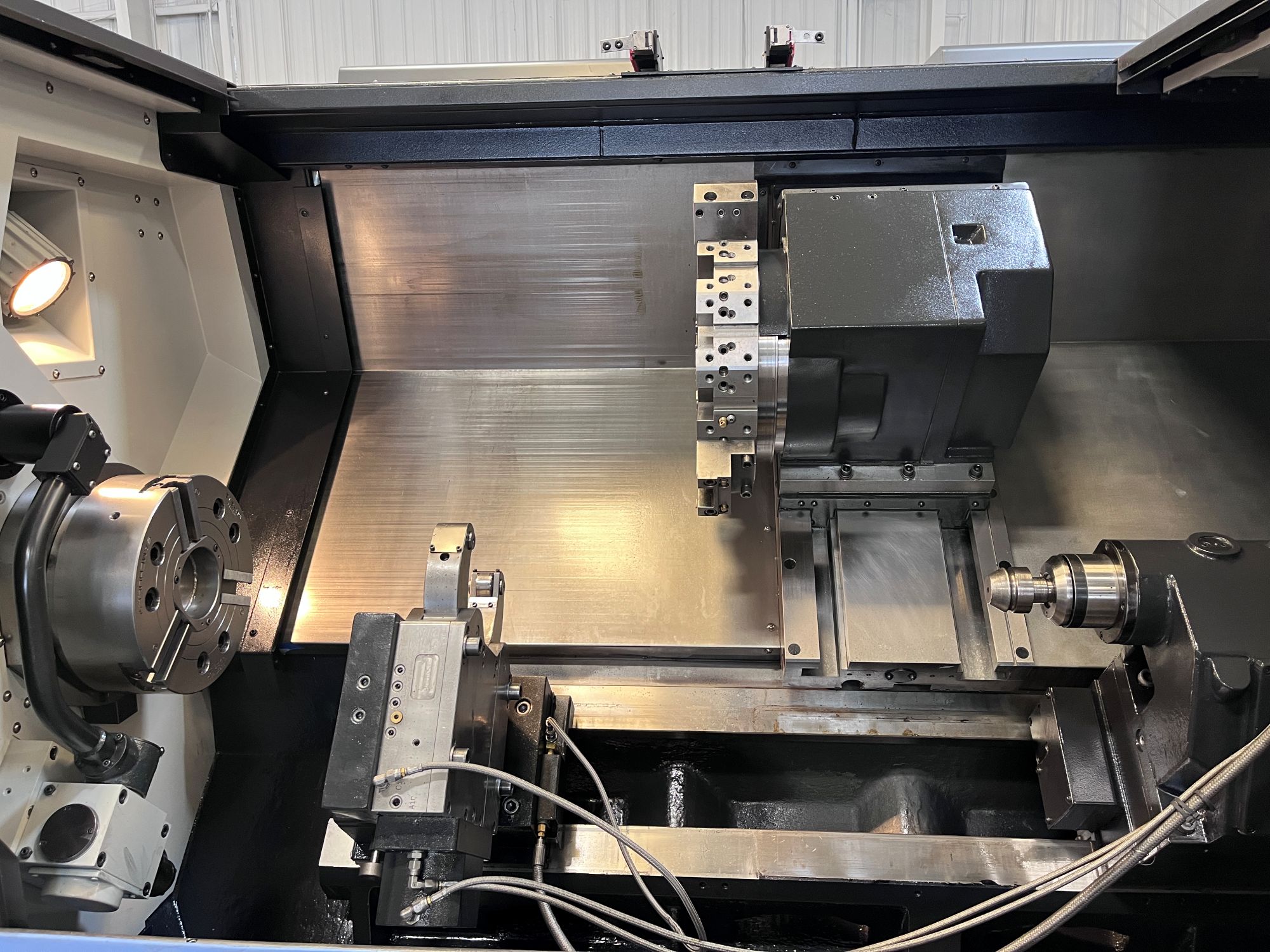

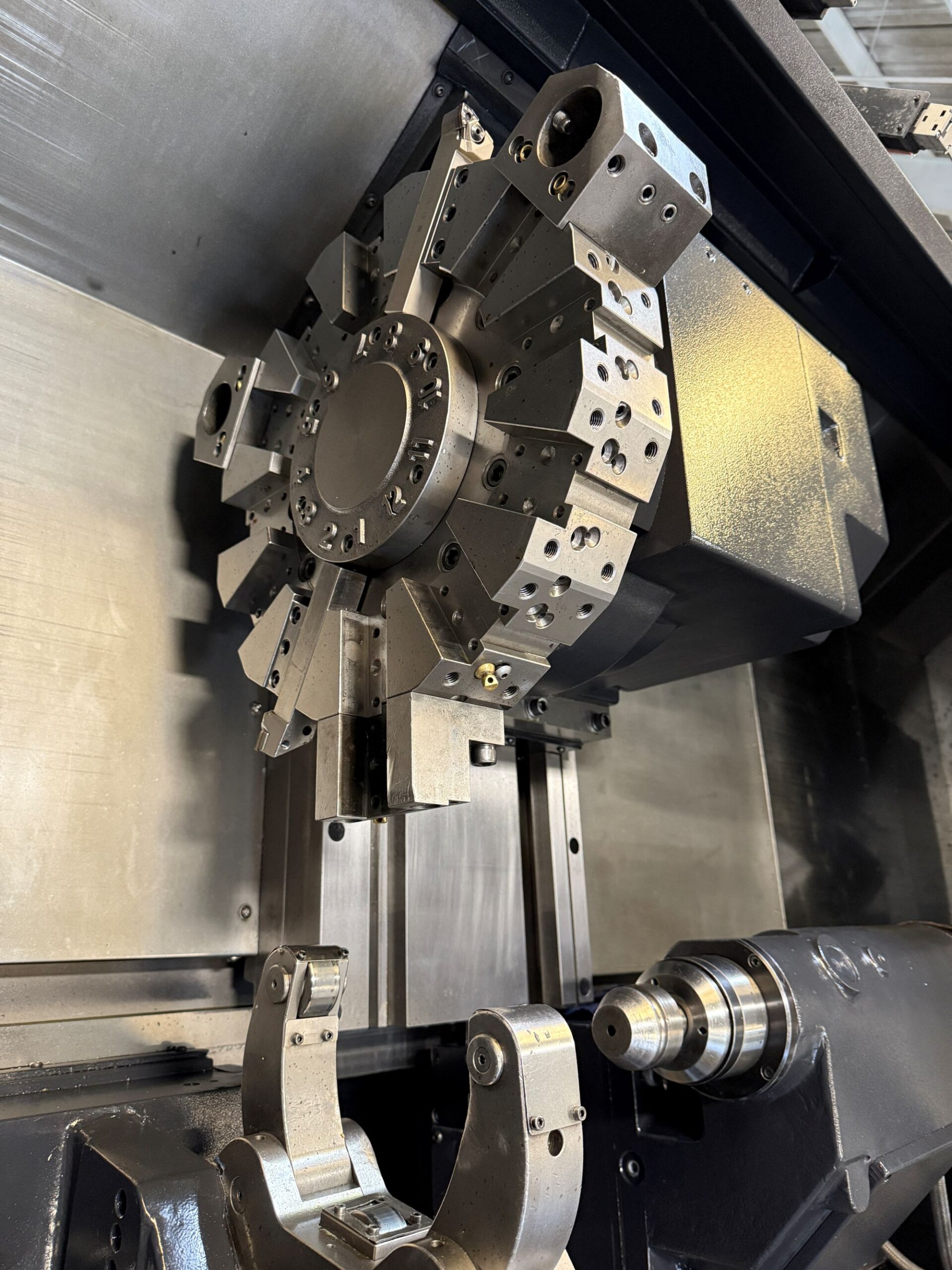

| 12 Station Automatic Turret |

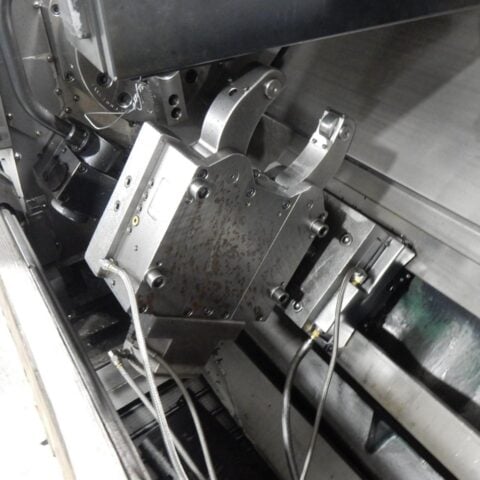

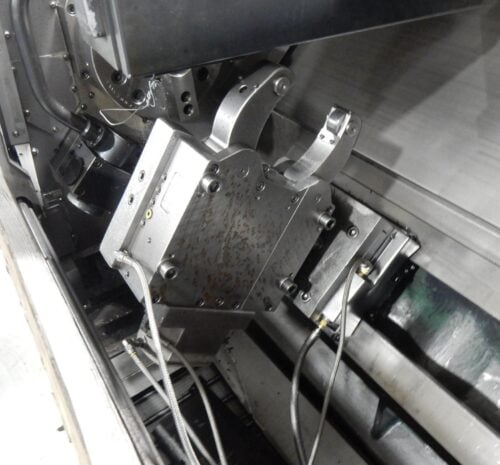

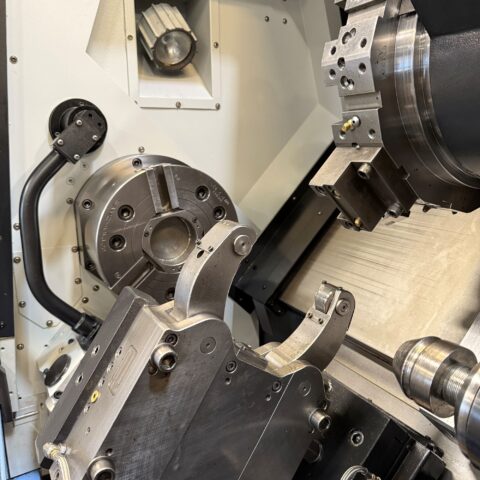

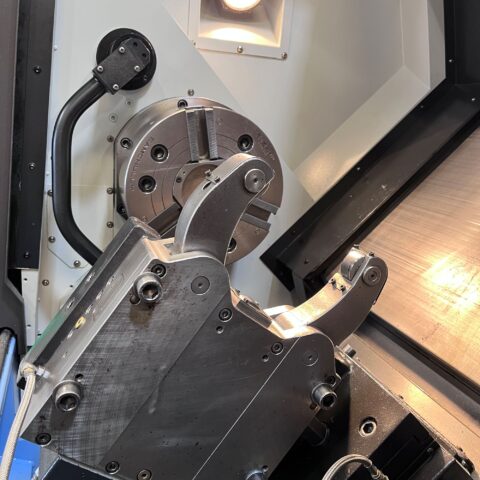

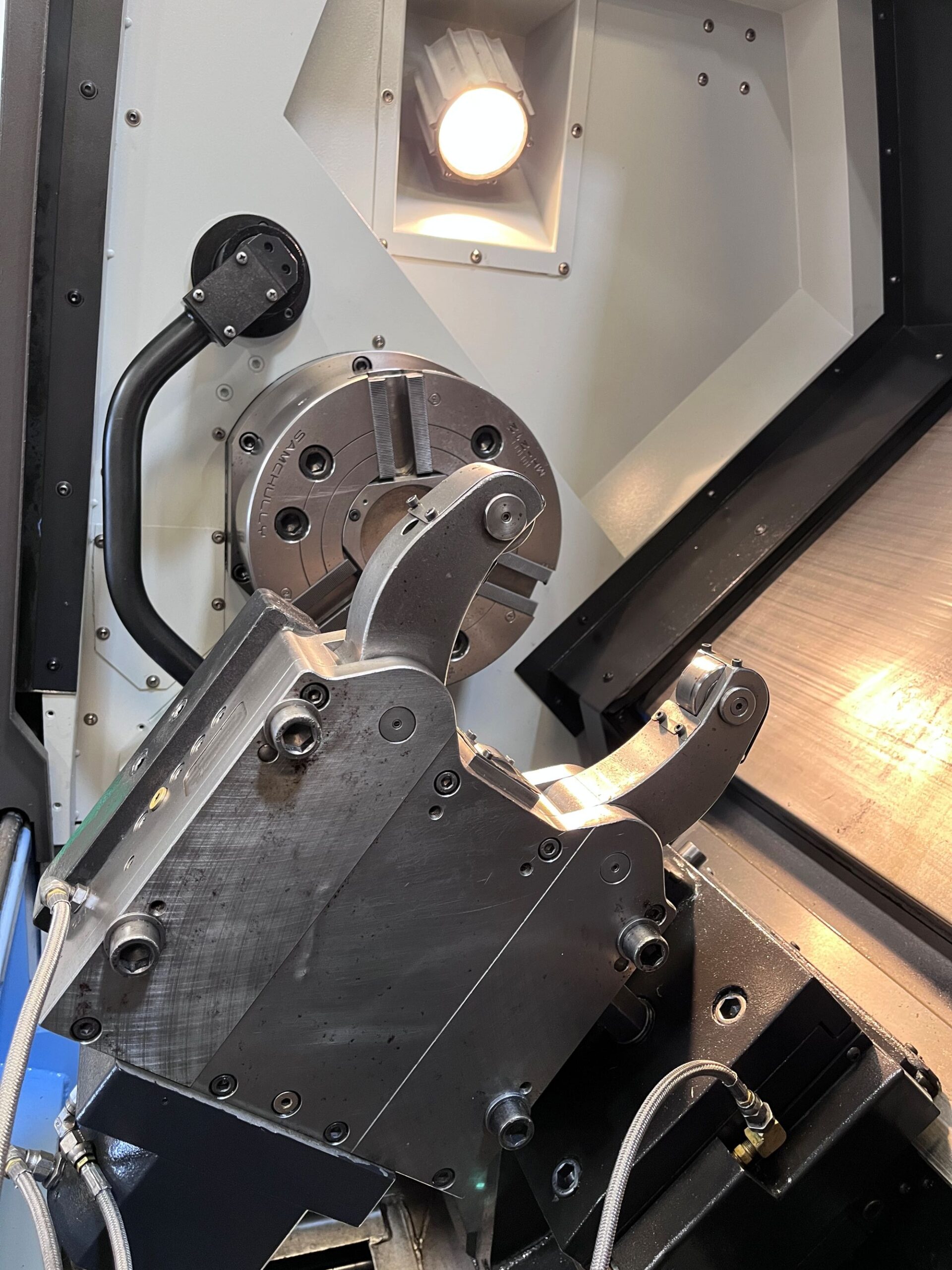

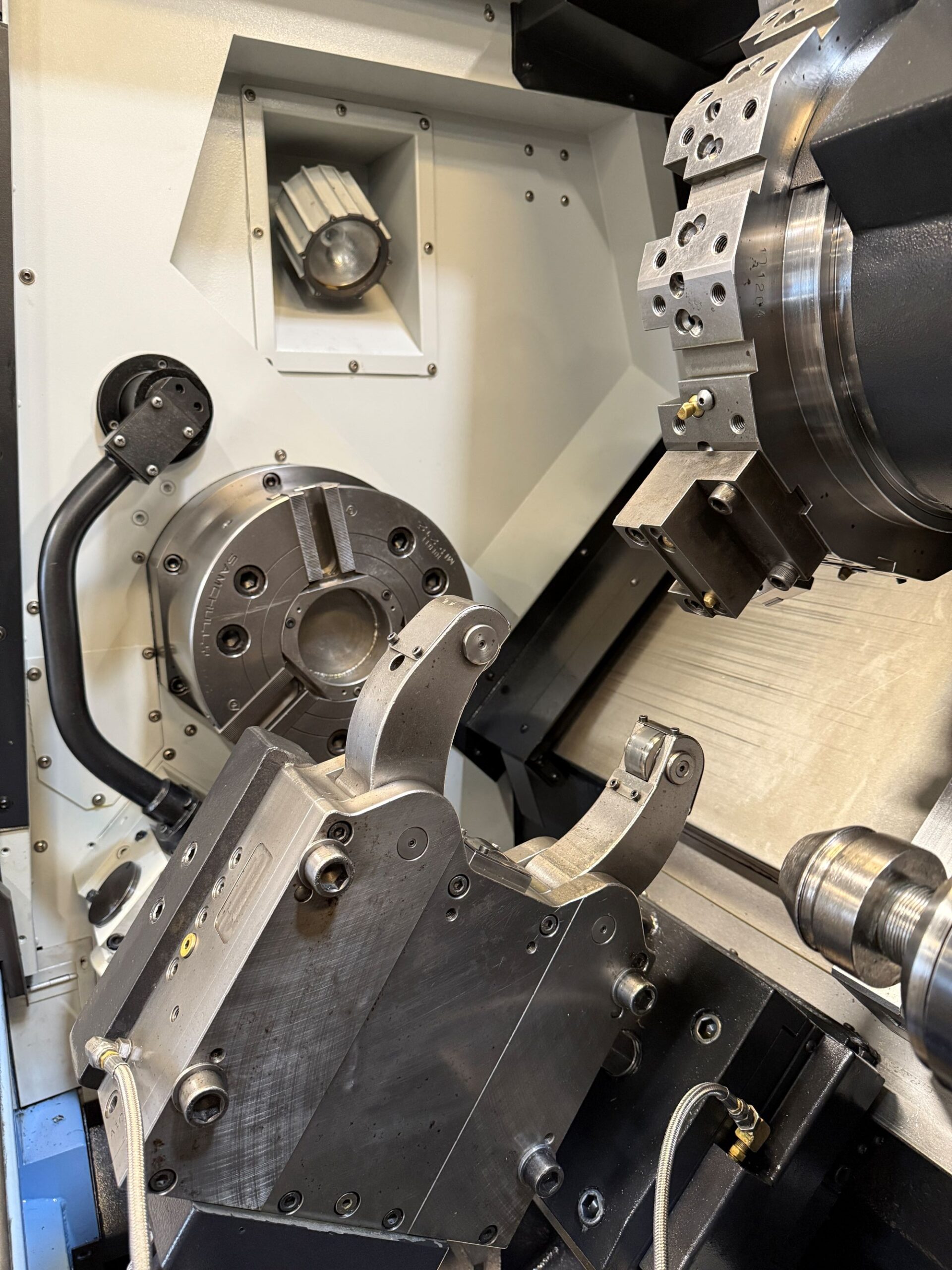

| Hydraulic Steady Rest |
| Tool Presetter |
| Tailstock |
| PCMCIA Card Interface |
| Coolant System |
| Chip Conveyor |
| Foot Switch |
| Specifications: |
|---|
| Max Turning Diameter: 15.74″ |
| Max Turning Length: 50.39″ |
| Swing Over Bed: 22.44″ |
| Swing Over Saddle: 14.56″ |
| Max Bar Capacity: 4.01″ |
| Travel: |
|---|
| X Axis Travel: 11.10″ |
| Z Axis Travel: 52.36″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 4.52″ |
| Spindle Speed: 2800 RPM |
| Spindle Motor: 35 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.15 Second |
| OD Tool Size: 1.0″ |
| Boring Bar Diameter: 1.57″ |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 3.93″ |
| Tailstock Quill Travel: 3.93″ |
| General: |
|---|

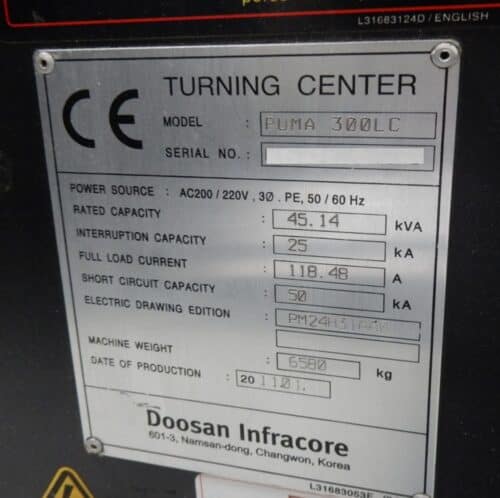

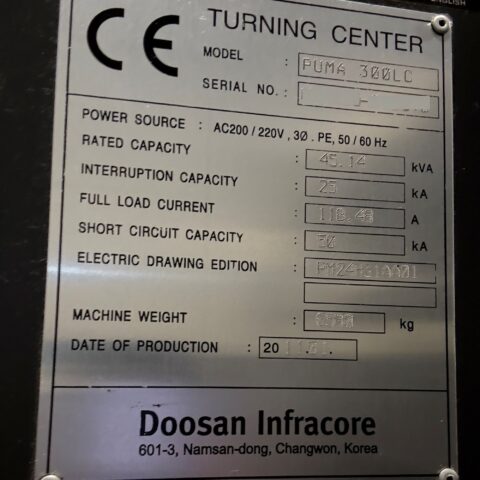

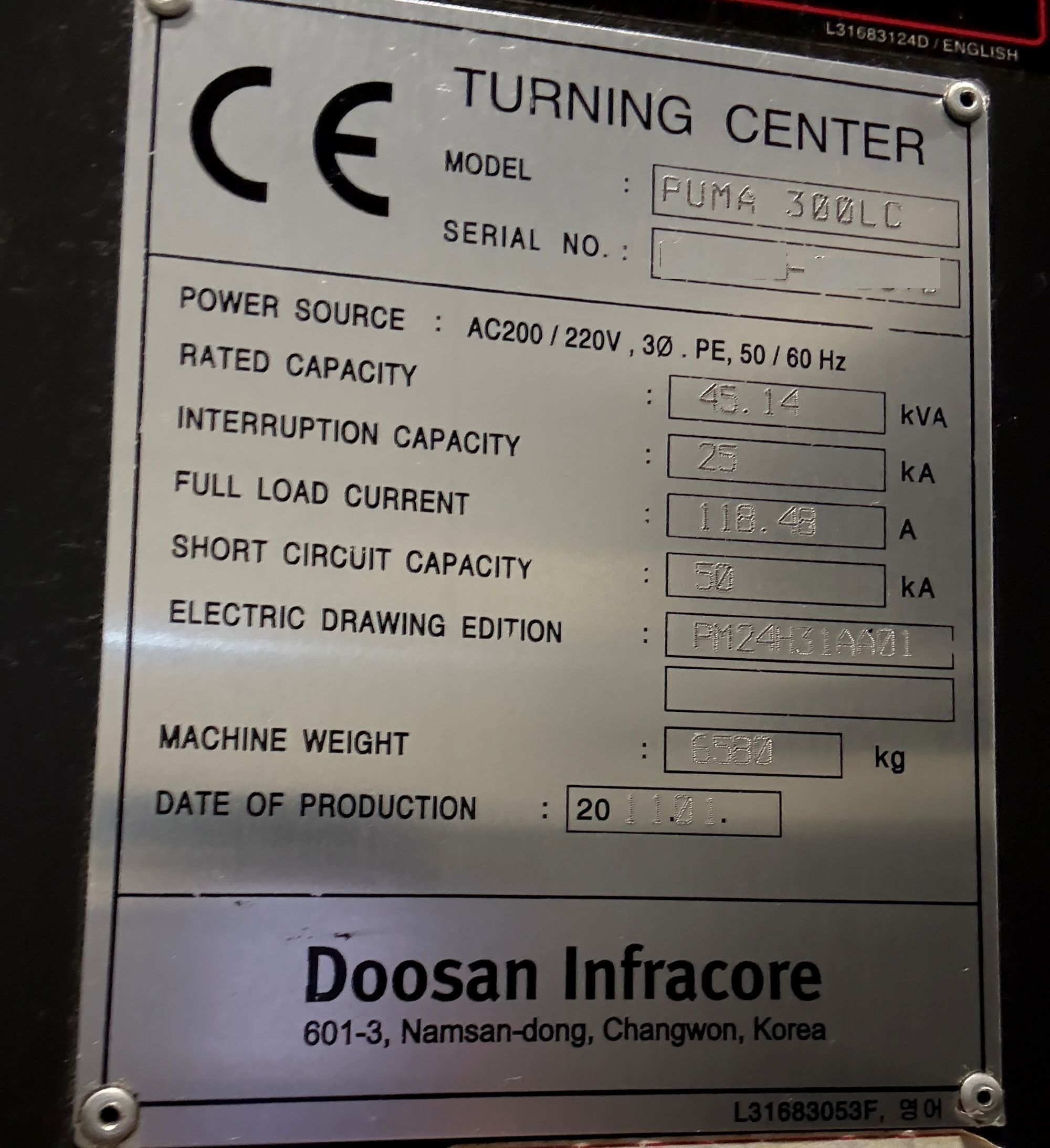

| Power: 200v – 220v / 3-Phase / 45.14 kva / 50/60 Hz |
| Overall Dimensions: 160″ x 75″ x 82″ High Approx. |
| Weight: 14,506 lbs Approx. |
| Make | |
|---|---|
| Model | PUMA 300LC |
| Categories | CNC Lathes & Turning Centers |
