*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

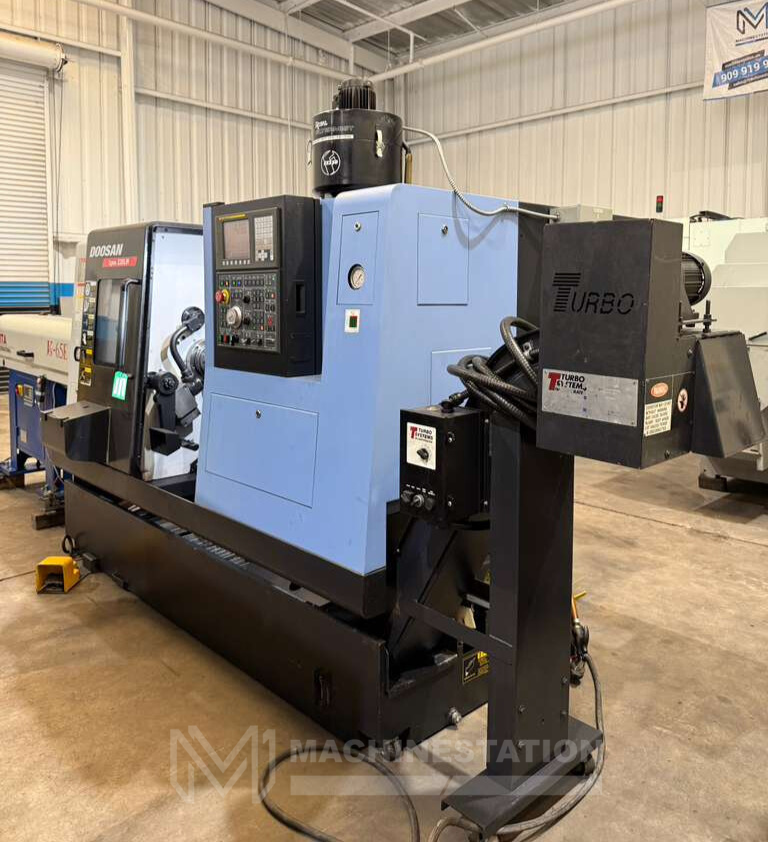

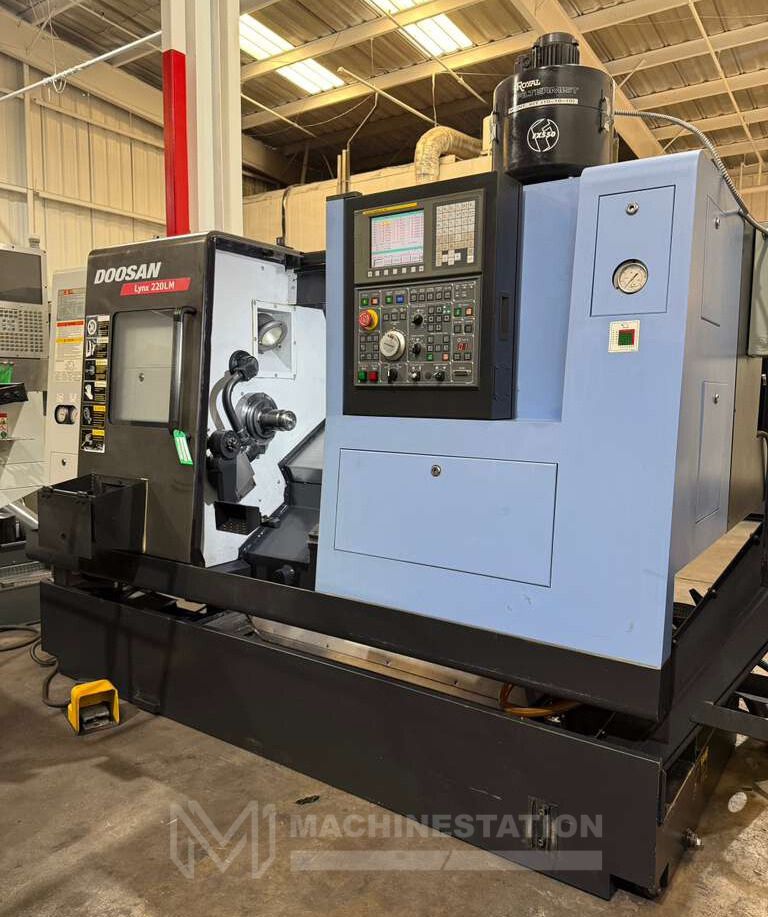

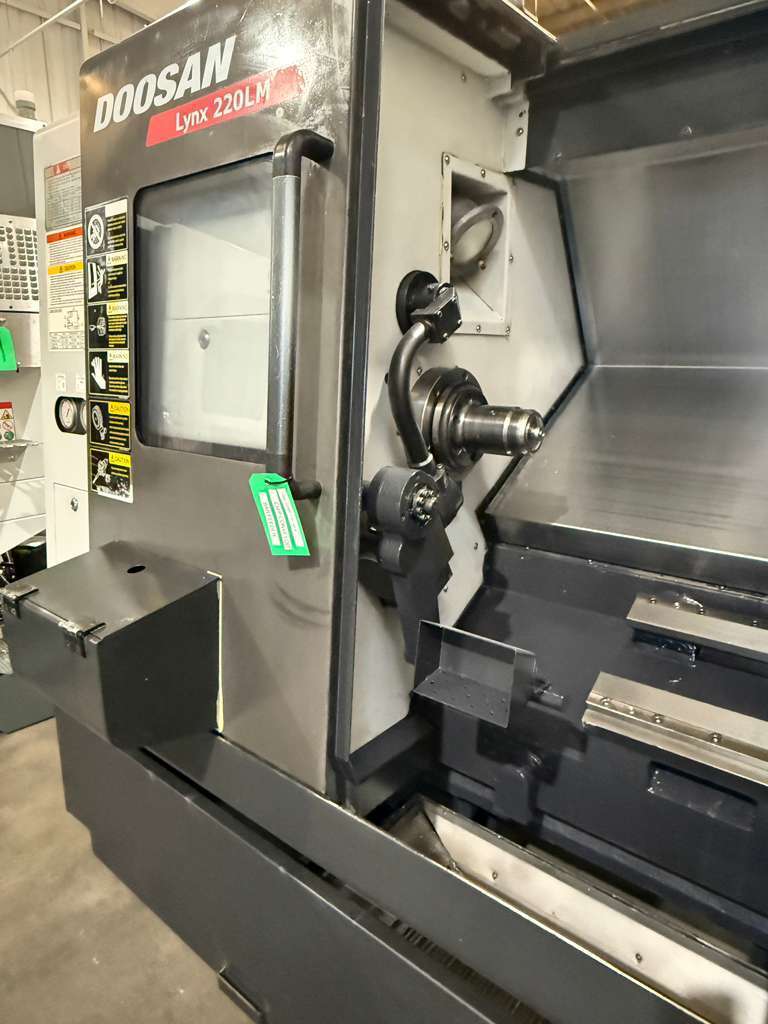

| Make: | Doosan |
| Model: | Lynx 220LMA |
| Year: | 2007 |
| Equipped With: |
|---|

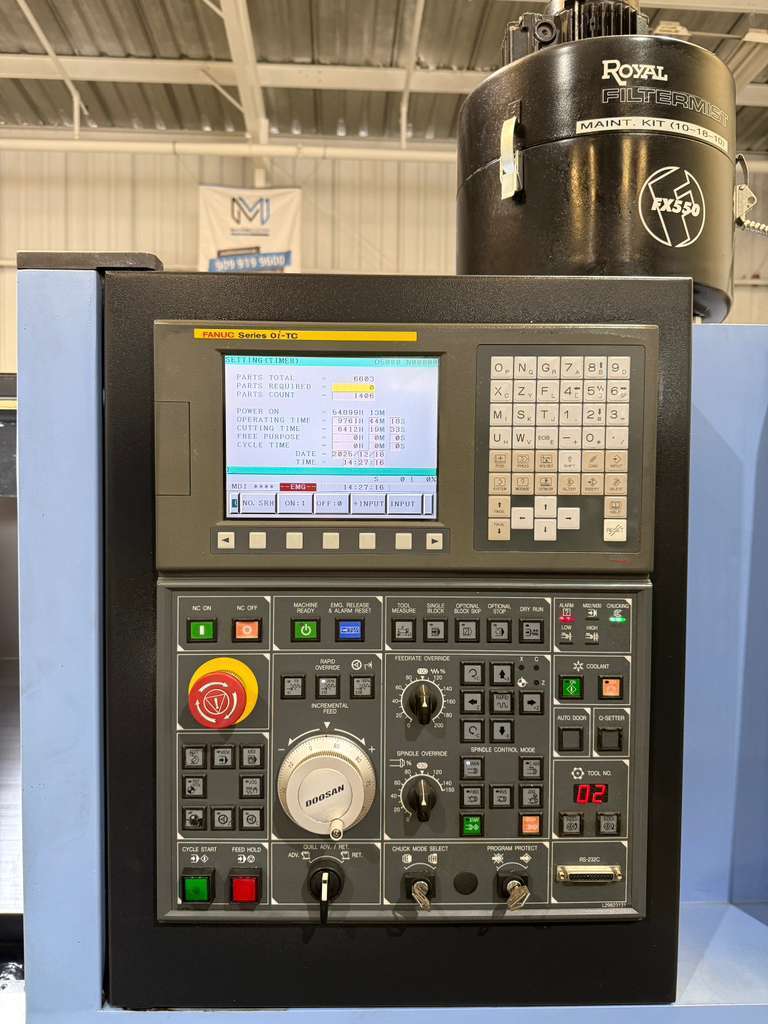

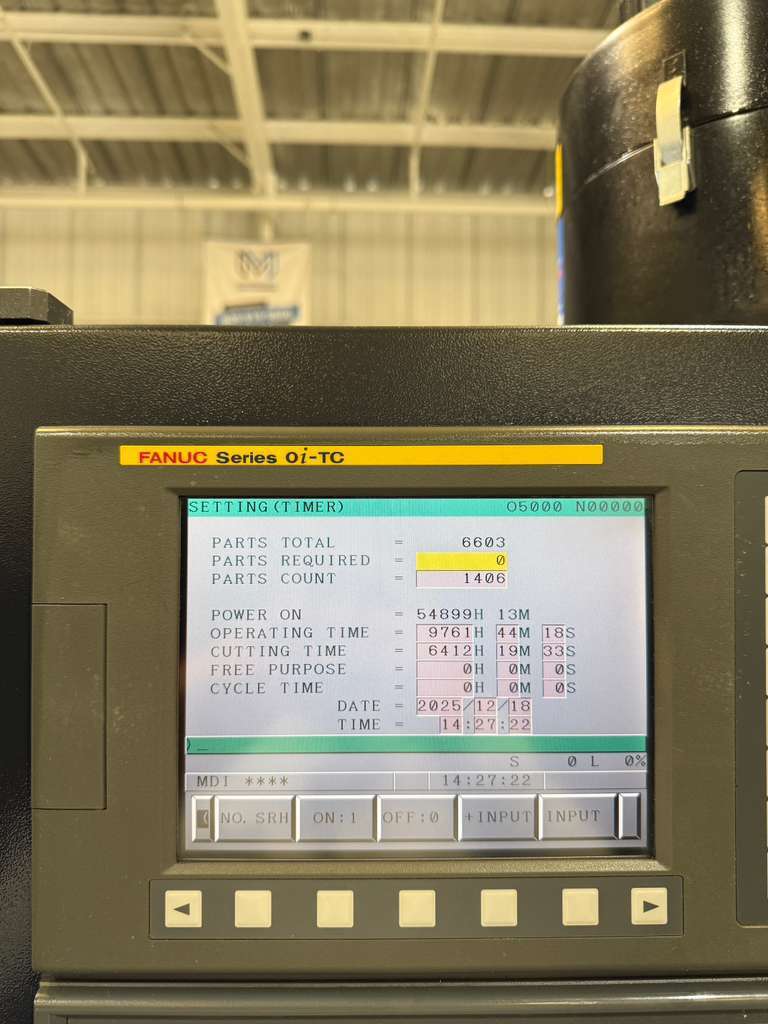

| Doosan-Fanuc i series CNC Control |

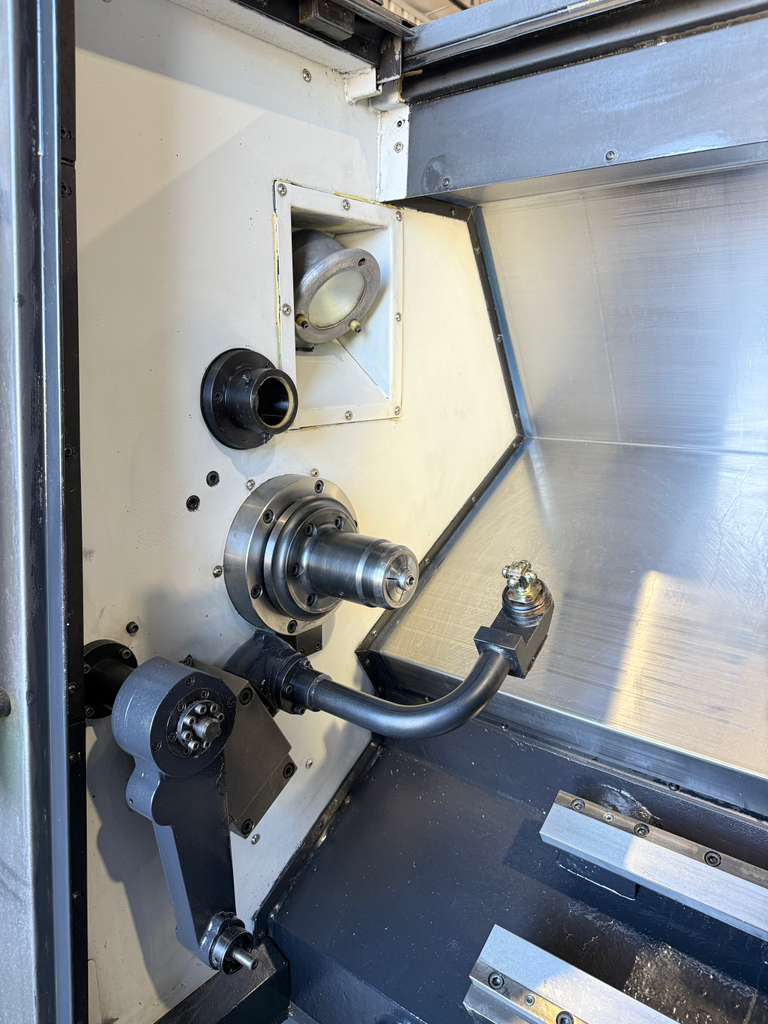

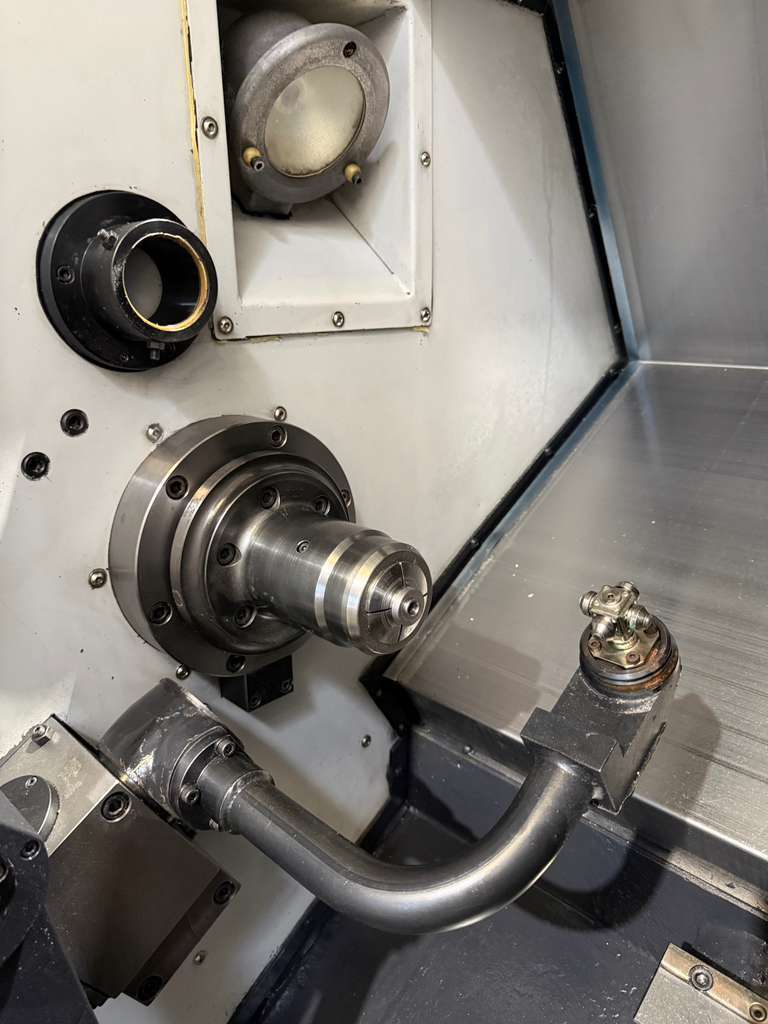

| Collet Chuck (Capable 6″ Chuck) |

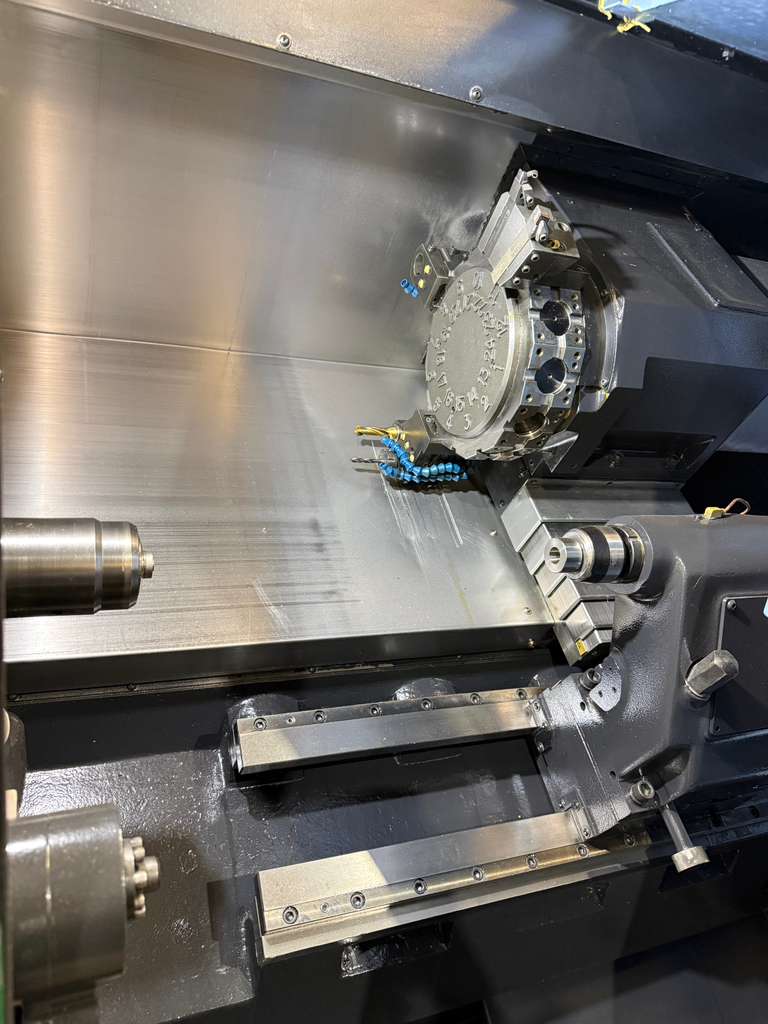

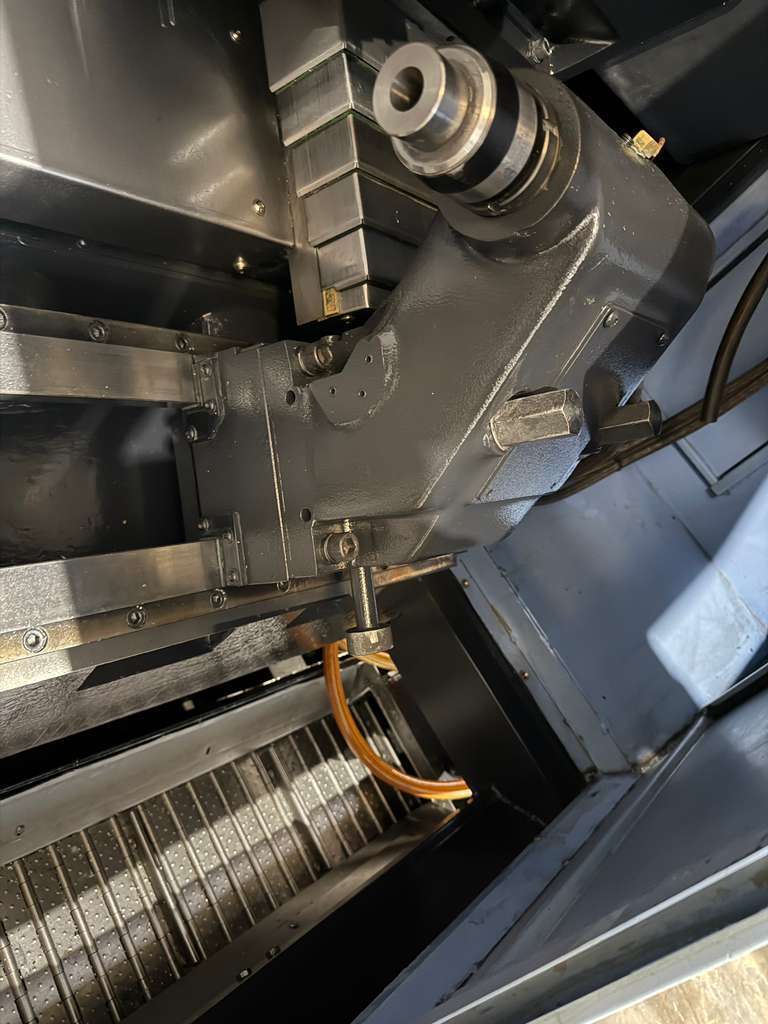

| 12-Station Turret (24 Position Index) |
| C Axis, Live Tool |

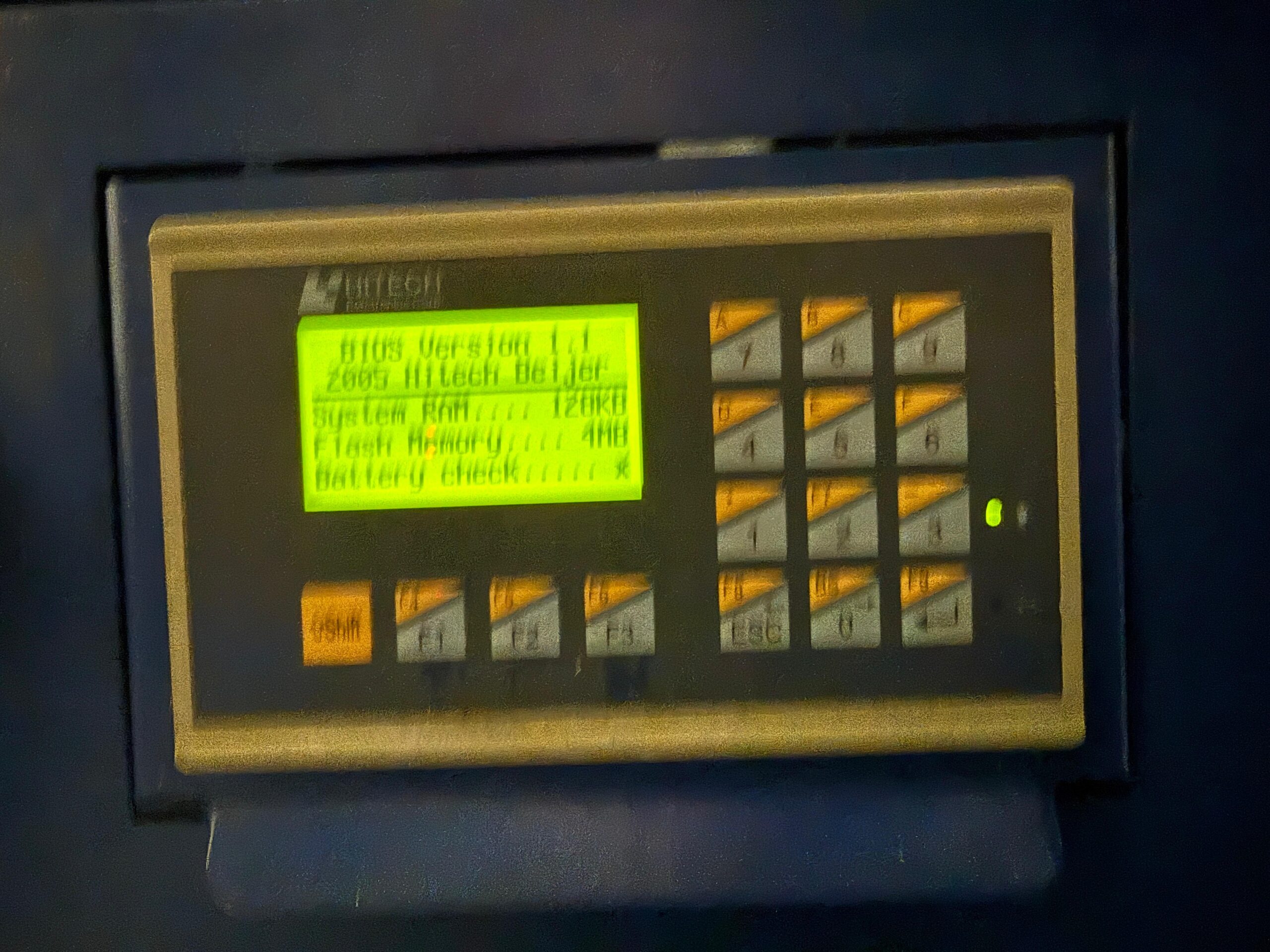

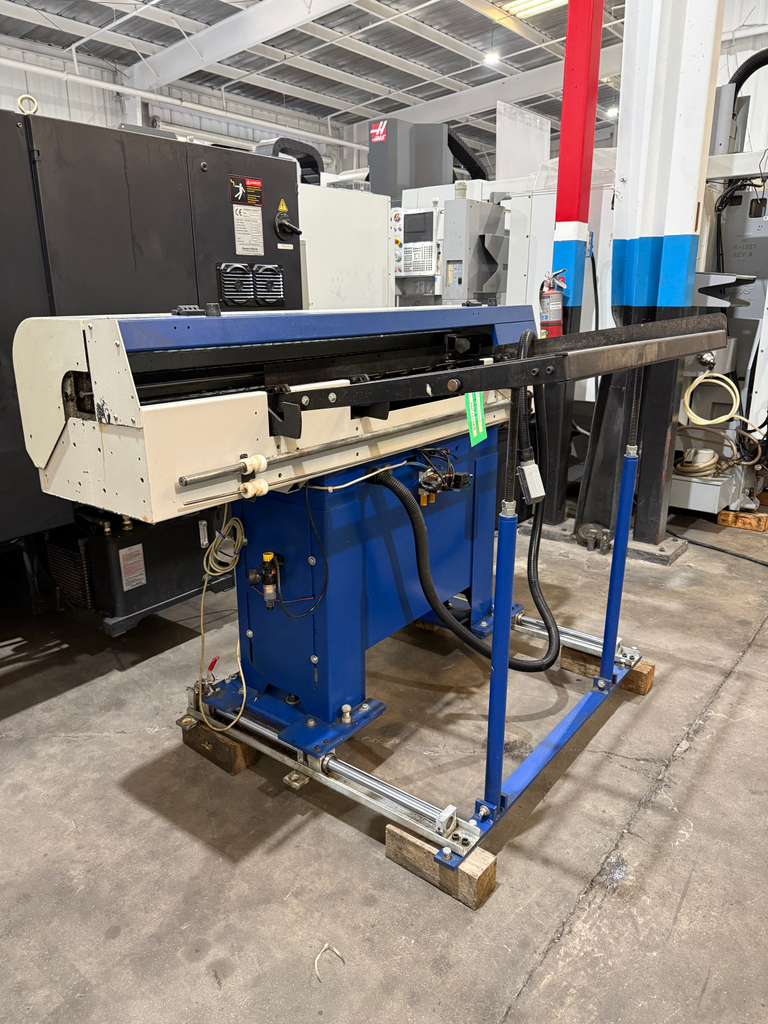

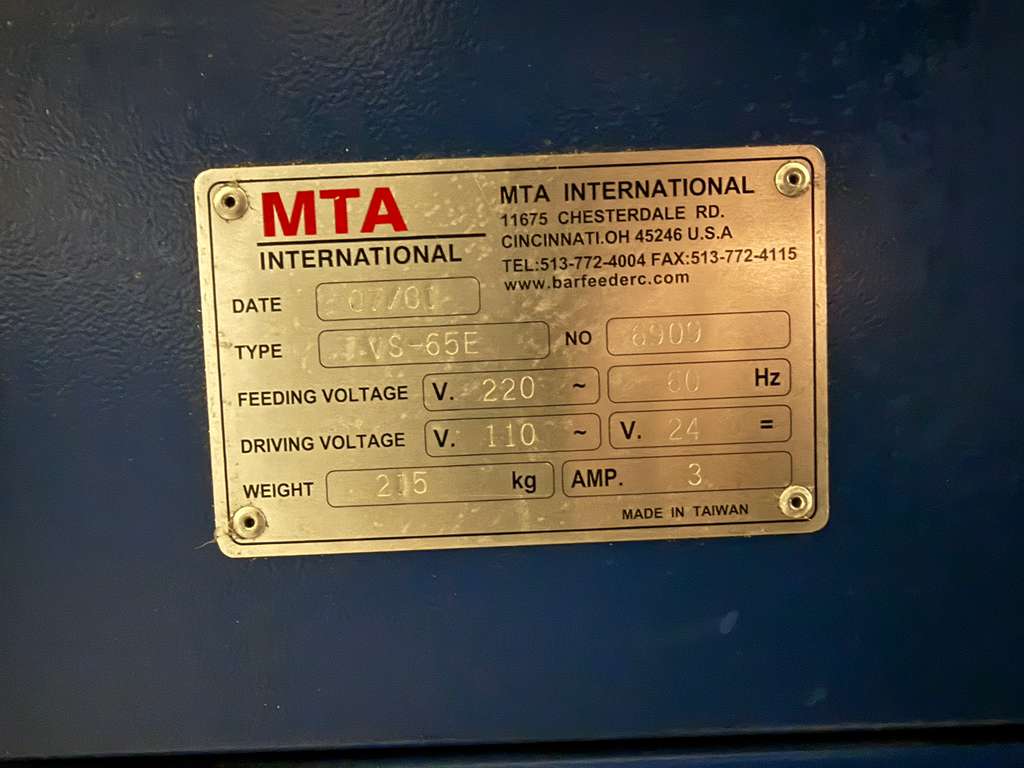

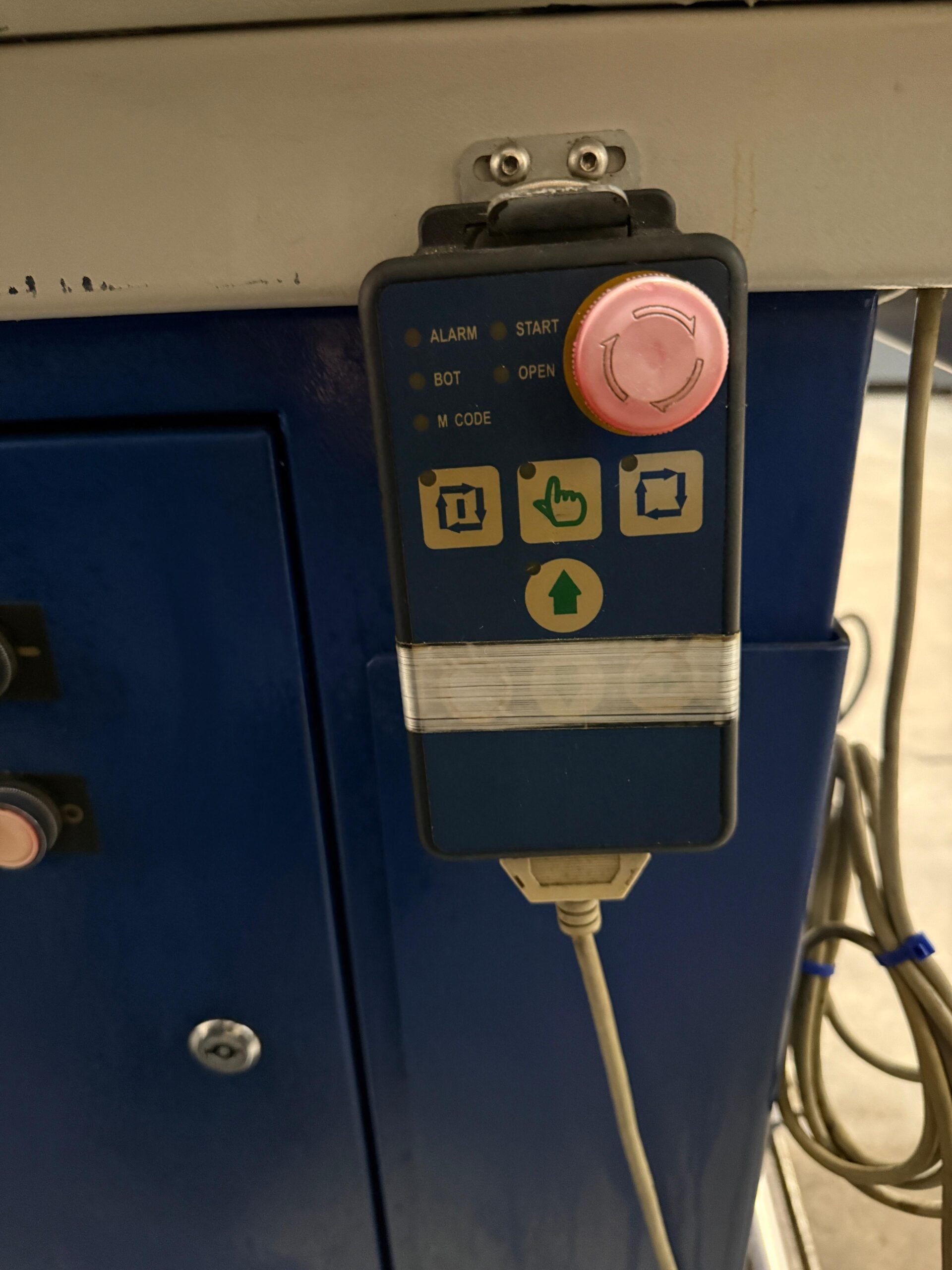

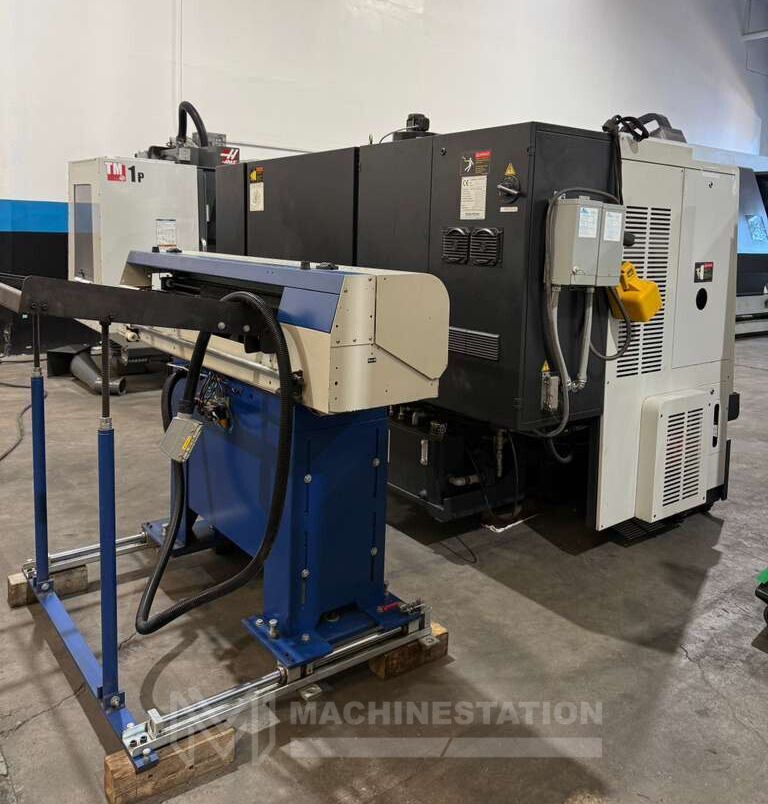

| MTA International VS-65E Bar Feeder |

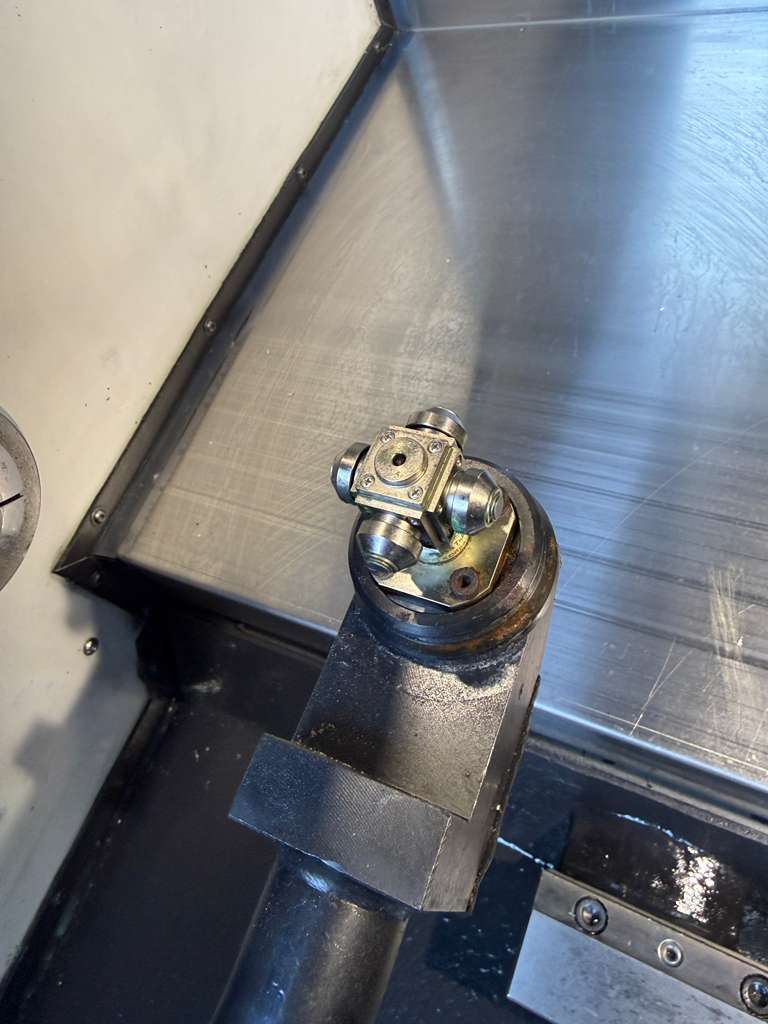

| Tool Presetter |
| Part Catcher |

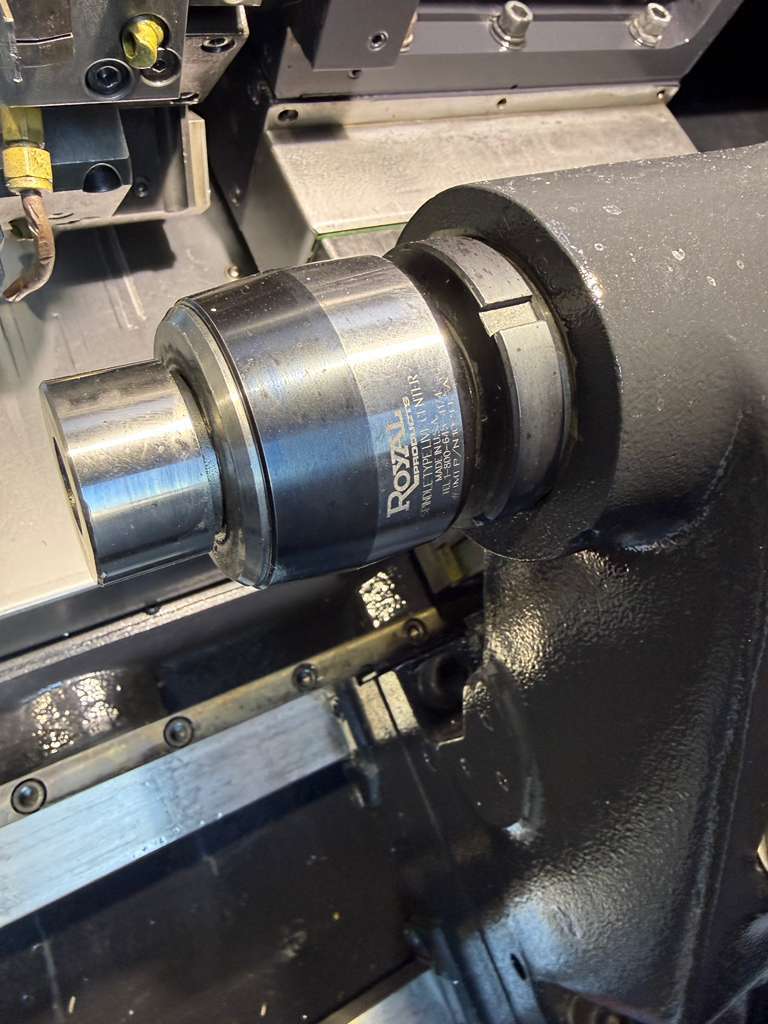

| Tailstock |
| Rigid Tapping |

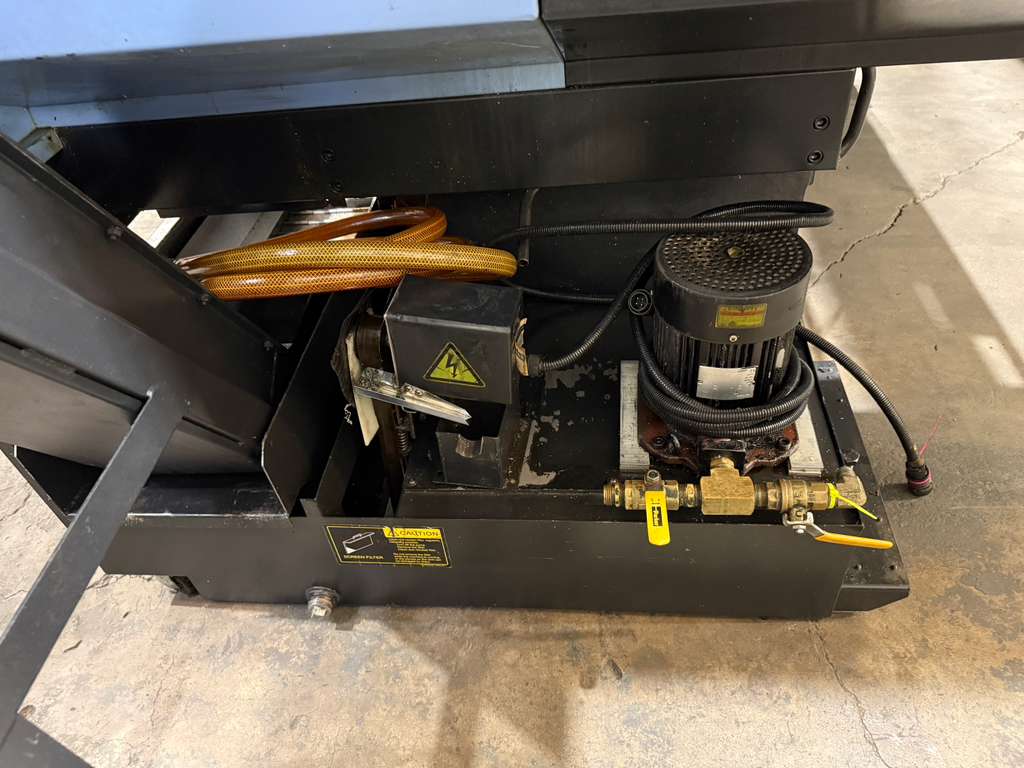

| Coolant System |
| Chip conveyor |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter: 9.8″ |
| Max Turning Length: 20.1″ |
| Max Bar Capacity: 2.0″ |
| Swing Over Bed: 20.1″ |
| Swing Over saddle: 11.4″ |
| Travels: |
|---|
| X Axis Travel: 6.9″ |
| Z Axis Travel: 21.7″ |
| C Axis : 0.001 Degree |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Spindle: |
|---|

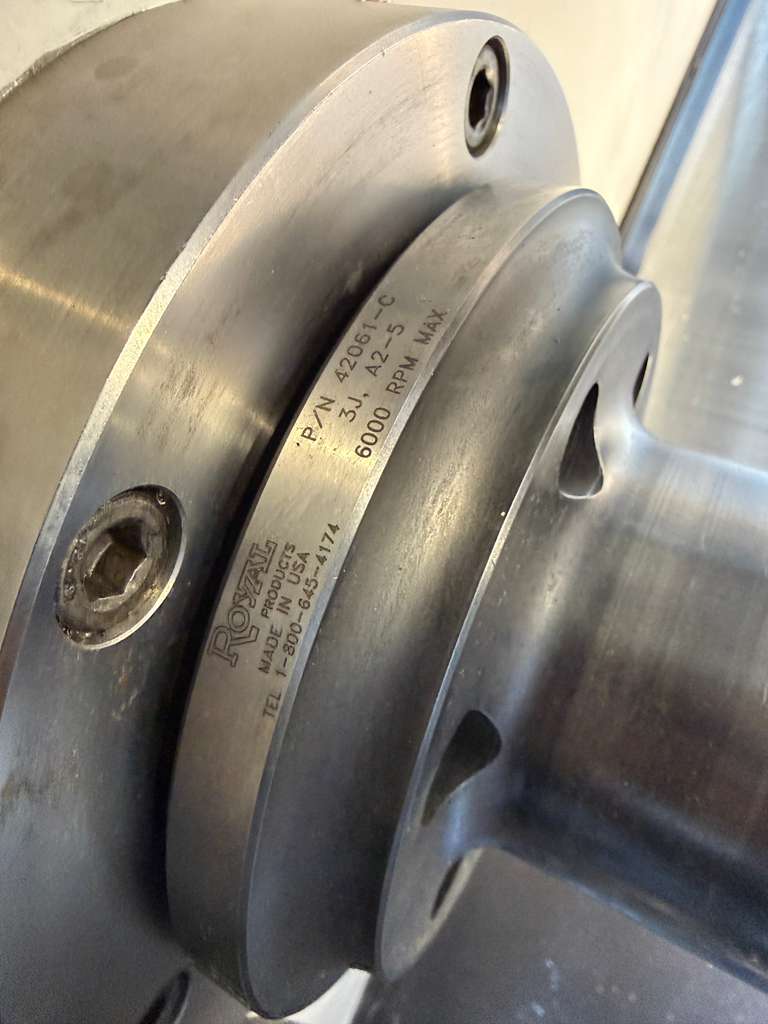

| Spindle Nose: A2-5 |
| Spindle Bore: 2.4″ |
| Spindle Speed: 6000 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|

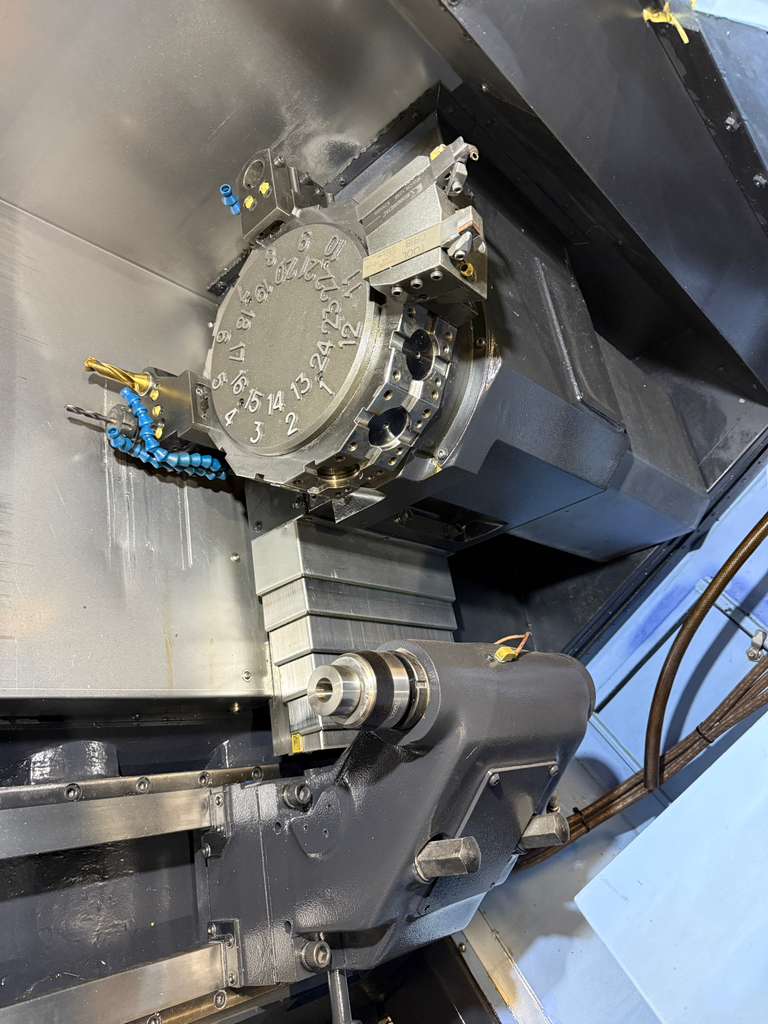

| Turret Capacity: 12 Stations (24 Position Index) |
| Turret Index Time: 0.11 Second |
| Tool Size: 0.8″ x 0.8″ |
| Max Boring Bar Size: 1.3″ |
| Live Tool Speed: 6000 RPM |
| Live Tool Power: 5 HP |
| Type: BMT-45 |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Diameter: 2.6″ |
| Tailstock Quill Travel: 3.1″ |
| General: |
|---|

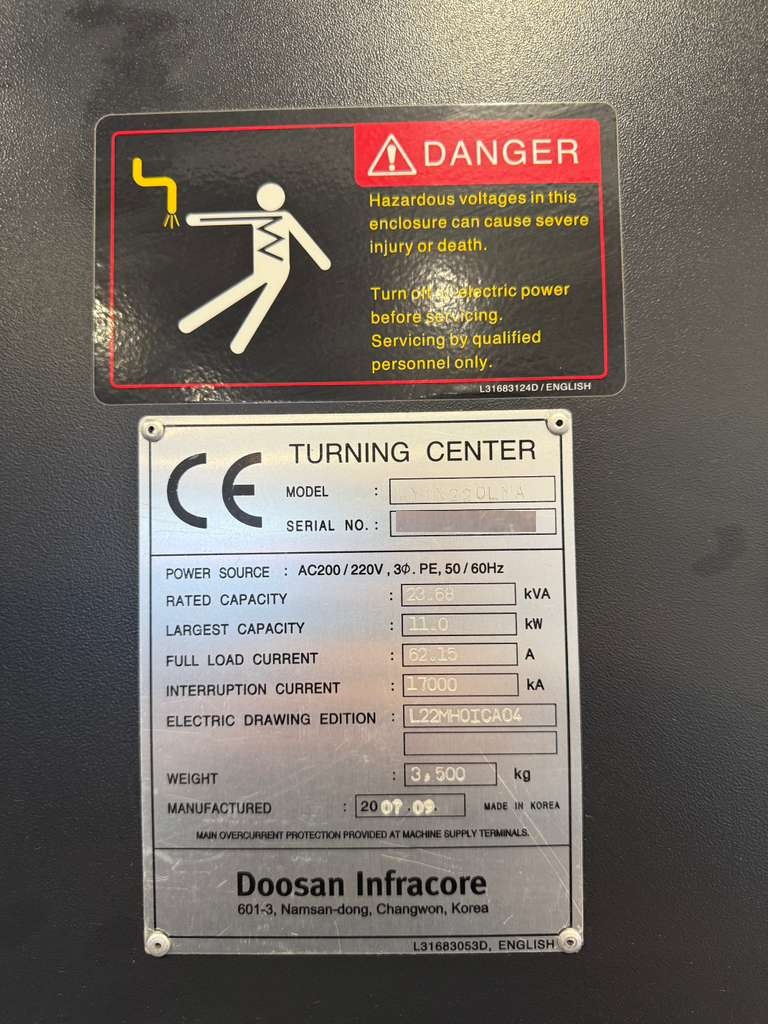

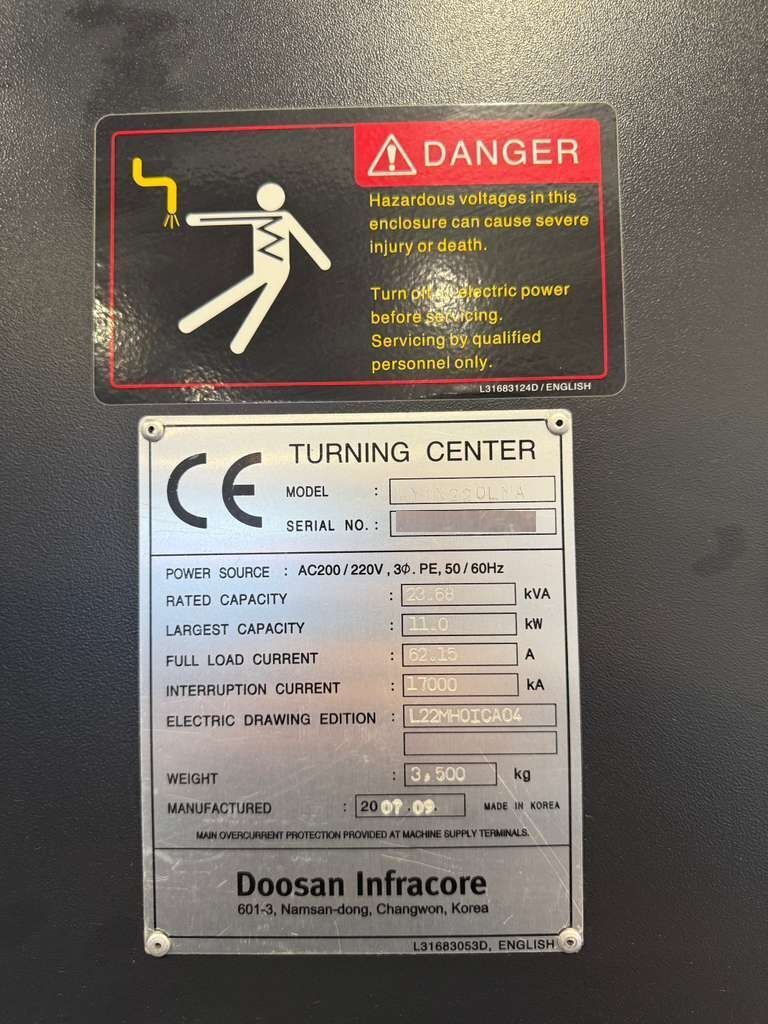

| Power: 23.68 kva / 220v / 3-Phase / 50/60Hz |
| Overall Dimensions: 103″ x 63″ x 65″ High Approx. |
| Weight: 7,275 lbs. Approx. |
