*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Dynamic Speed |
| Model: | ZX-1060 |
| Year: | 2006 |
| Condition: | Used – Good |

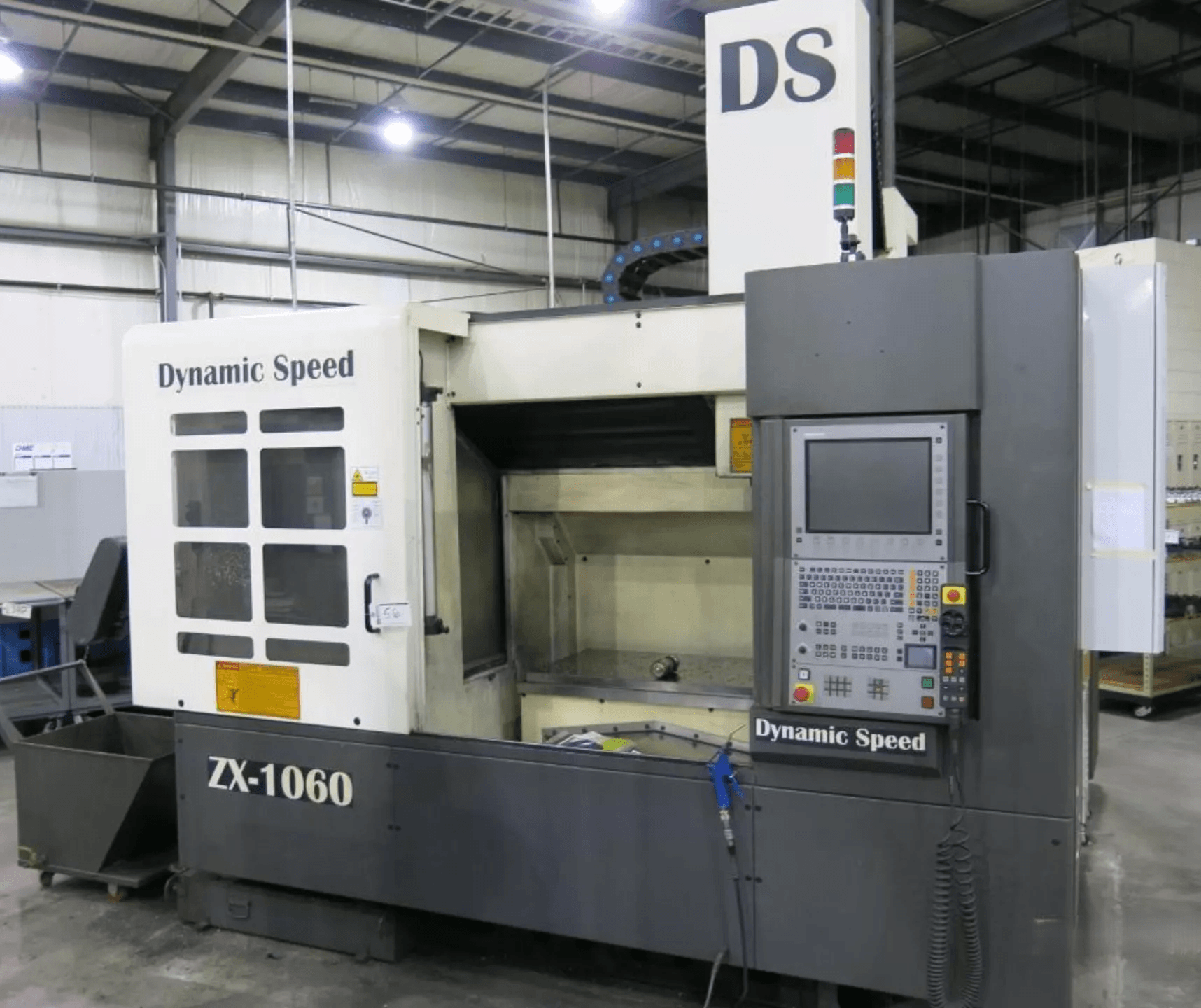

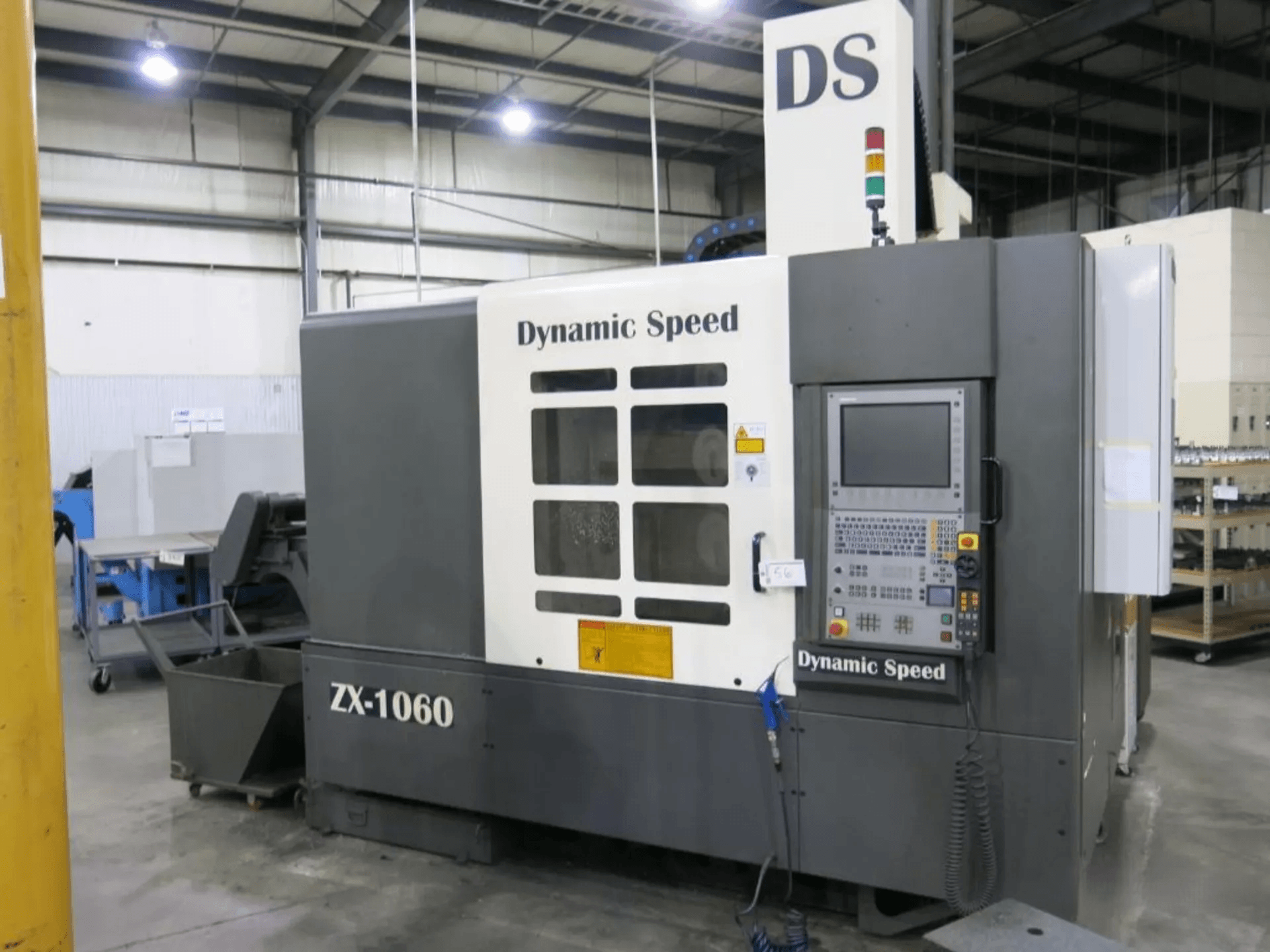

| Machine Type: | CNC Vertical Machining Center |
| Control: | Heidenhain iTNC 530 CNC Control |
| Features: |
|---|
| Heidenhain iTNC 530 CNC Control |
| 24,000 RPM High-Speed Spindle |
| BT40 Spindle Taper |
| 20-Position Automatic Tool Changer |

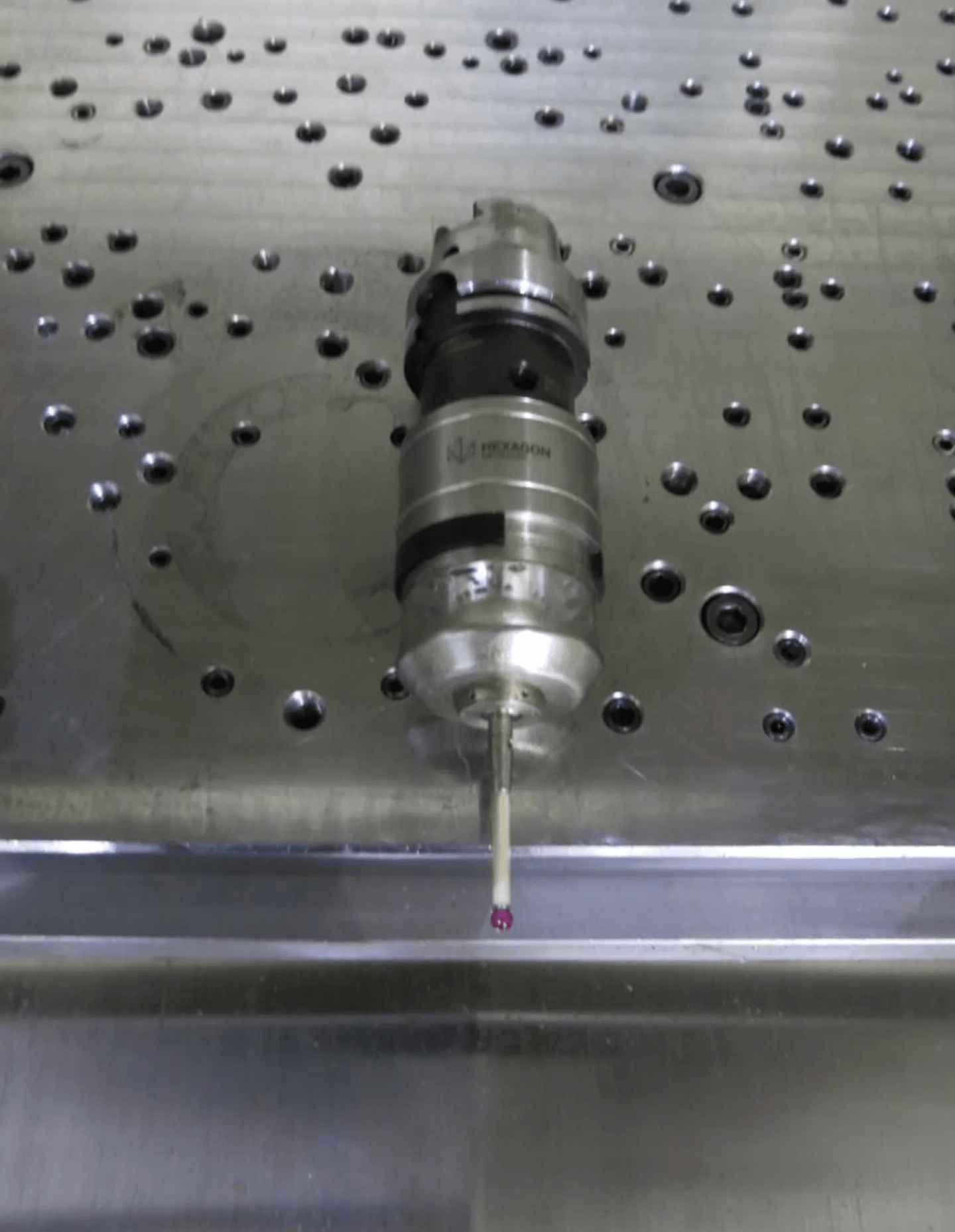

| Hexagon Metrology Ruby Tip Spindle Probe |
| Automatic Tool Setter |
| Chip Conveyor |
| Coolant System |
| Hydraulic Pump |
| Flood Coolant Nozzles |
| Automatic Lubrication System |
| Rigid Tapping |
| Electronic Handwheel |
| Work Light |
| Full Machine Enclosure |
| Associated Manuals Included |
| Capacity: |
|---|

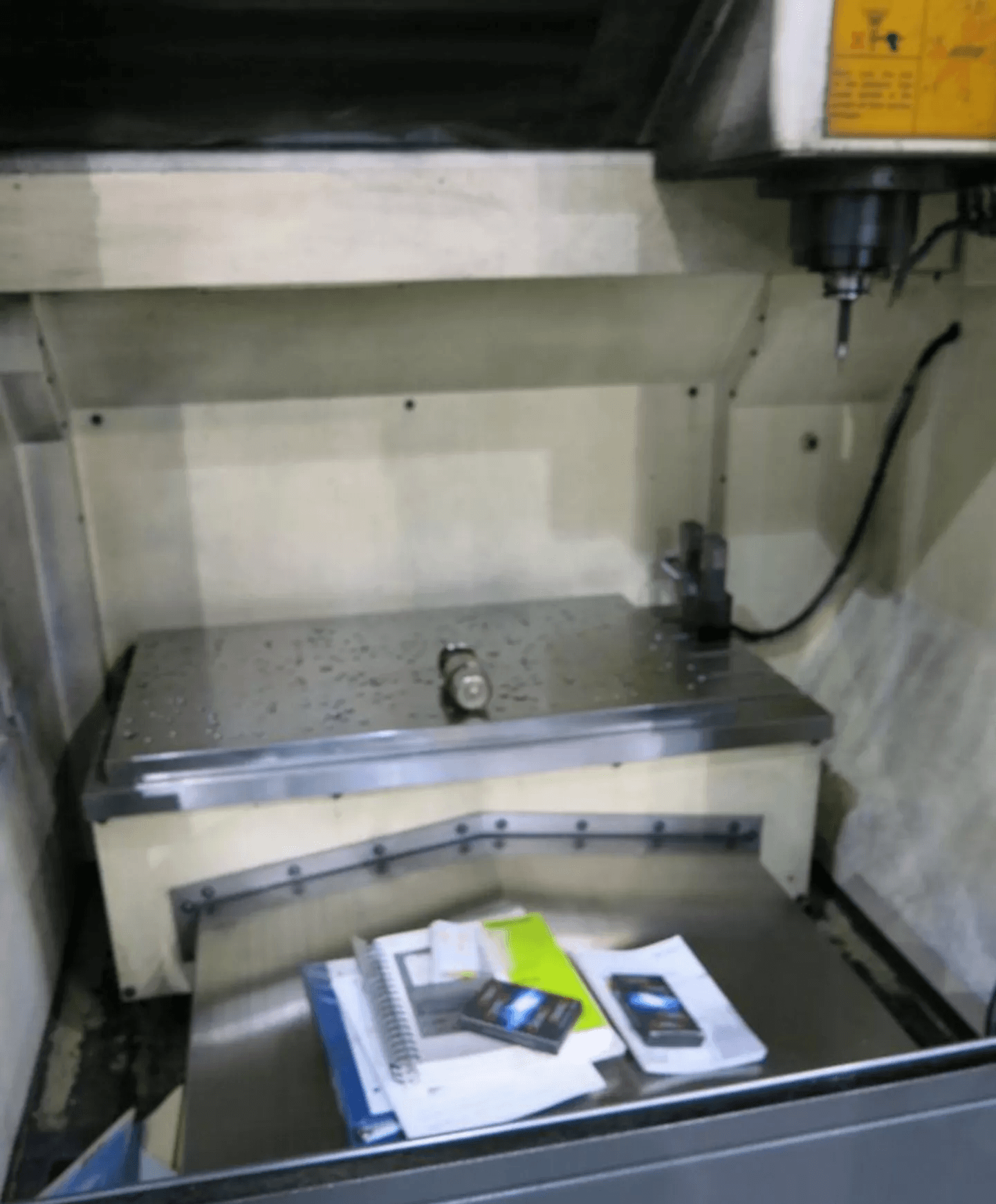

| Table Size: 43.00″ x 24.00″ |
| Maximum Table Load: 2,200 lbs |
| Travels: |
|---|
| X-Axis Travel: 39.37″ |
| Y-Axis Travel: 23.62″ |
| Z-Axis Travel: 19.68″ |
| Spindle Nose to Table: Approx. 5.91″ – 25.59″ |

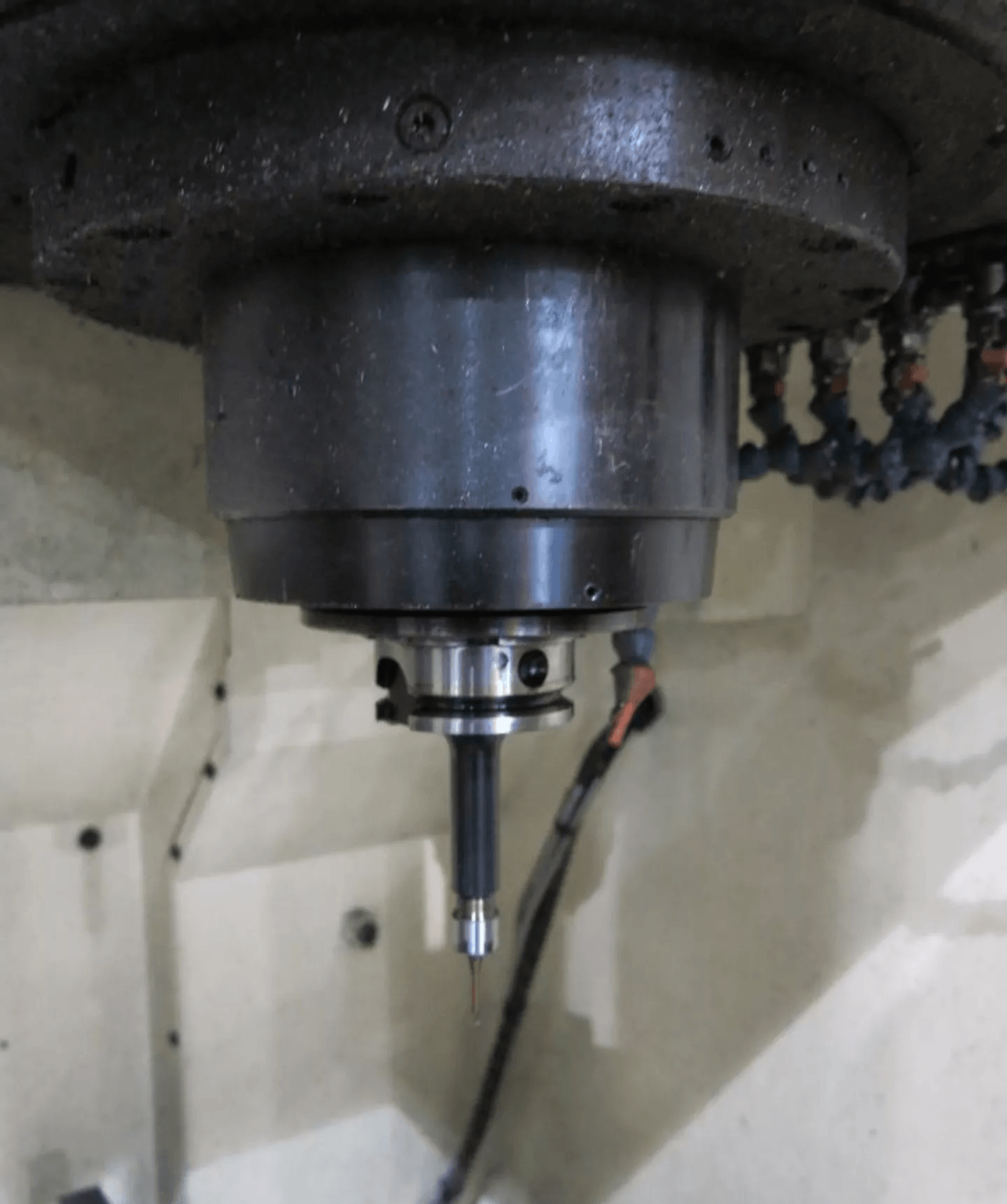

| Spindle: |
|---|
| Maximum Spindle Speed: 24,000 RPM |
| Spindle Taper: BT40 |
| Automatic Tool Changer: |
|---|
| 20-Position Carousel Automatic Tool Changer |
| Maximum Tool Diameter: 3.15″ |
| Maximum Tool Length: 11.80″ |
| Maximum Tool Weight: 15.40 lbs |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): Approx. 1,417 IPM |
| Cutting Feed Rate: Programmable |

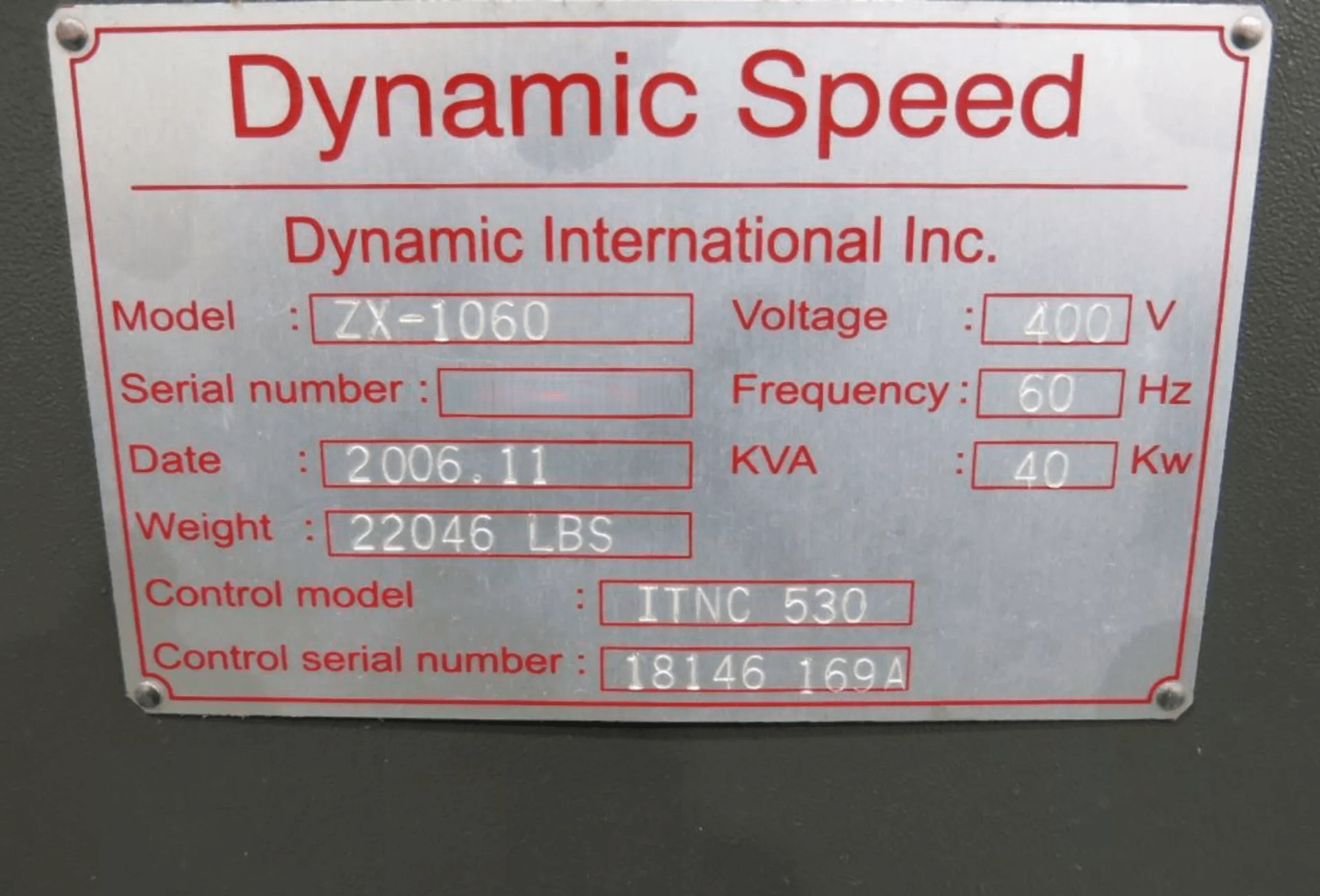

| Electrical: |
|---|
| Voltage: 400 Volts |
| Frequency: 60 Hz |
| Power Requirement: 40 KVA |
| Phase: 3 Phase |
| General: |
|---|
| Machine Weight: 22,046 lbs |
