*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Enshu |
| Model No.: | GE480H |
| Condition: | Used – Good |
| Machine Type: | CNC Horizontal Machining Center |

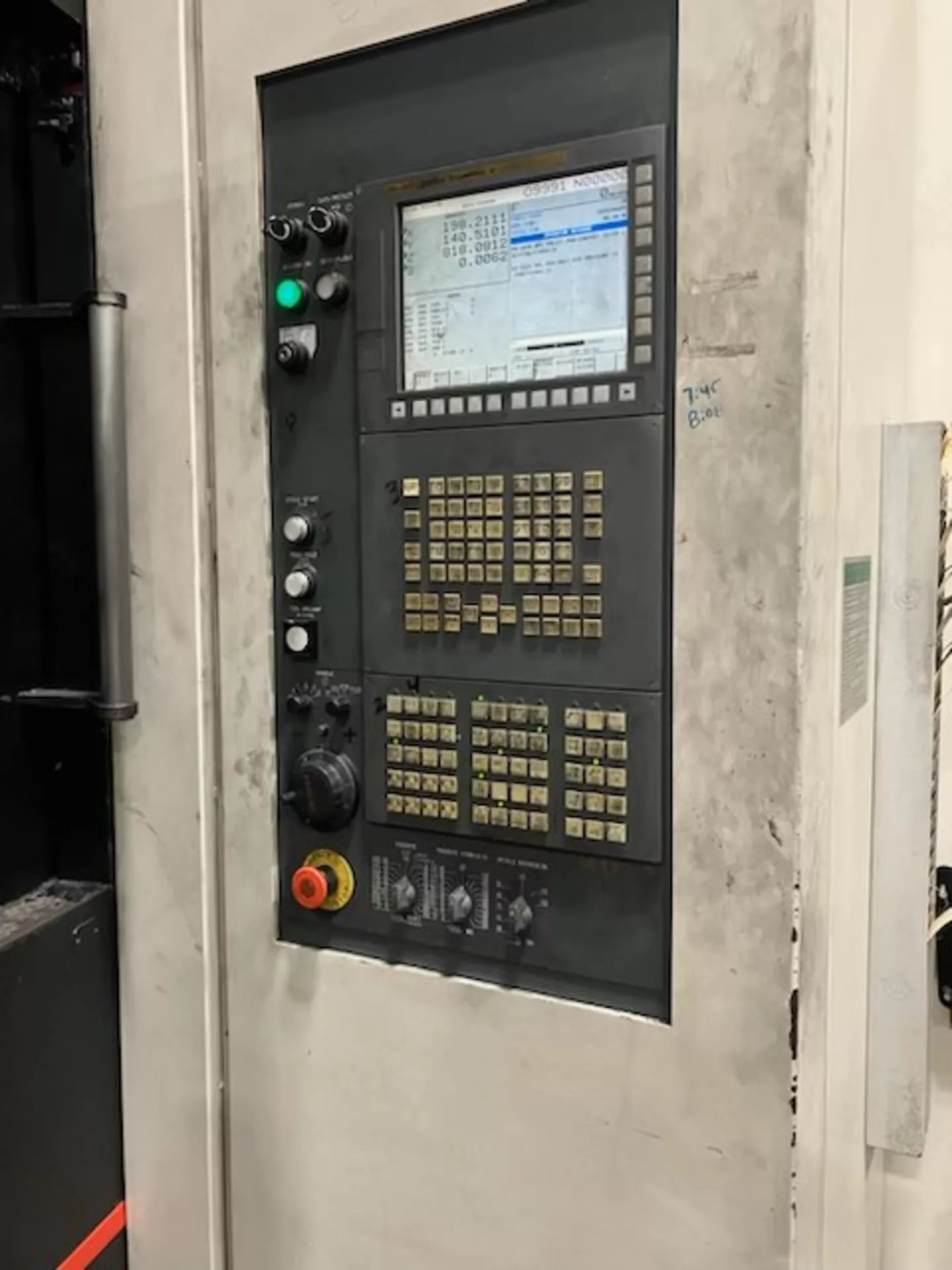

| CNC Control: | Fanuc 31i-B CNC Control |
| Equipped With: |
|---|
| Fanuc 31i-B CNC Control |
| 2-Pallet Automatic Pallet Changer |
| 60-Tool Automatic Tool Changer |
| CAT-40 Spindle Taper |
| 15,000 RPM High-Speed Spindle |
| 4th Axis NC Rotary Table |
| Renishaw OMP400 Probe |
| Helical Interpolation Capability |
| Coordinate System Rotation |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Pallet Size: 19.7″ × 19.7″ (500 × 500 mm) |
| Number of Pallets: 2 |
| Pallet Load Capacity: 1,100 lbs |
| Travel: |
|---|
| X-Axis Travel: 31.5″ |
| Y-Axis Travel: 31.5″ |
| Z-Axis Travel: 31.5″ |
| Spindle: |
|---|
| Spindle Speed: 15,000 RPM |
| Spindle Motor: 29.5 HP |
| Spindle Taper: CAT-40 |
| Tool Changer: |
|---|
| Tool Capacity: 60 Tools |
| Tool Changer Type: Automatic Tool Changer (ATC) |
| Feedrates: |
|---|
| Cutting Feed Rate: 1,574 IPM |
| Rapid Traverse (X / Y / Z): 3,543 IPM |
| General: |
|---|
| Floor Space: 110″ (R-L) × 232″ (F-B) |
| Machine Height: 119″ |
| Machine Weight: 27,000 lbs |
| Electrical: |
|---|
| Power: 50 HP |
| Transformer: 480V → 200V Stepdown Transformer |
| Features: |
|---|
| High-speed 15,000 RPM spindle for production machining |
| 2-pallet changer for continuous machining and reduced downtime |
| Large 60-tool magazine for complex multi-tool operations |
| Fanuc 31i-B control is known for reliability and precision |
