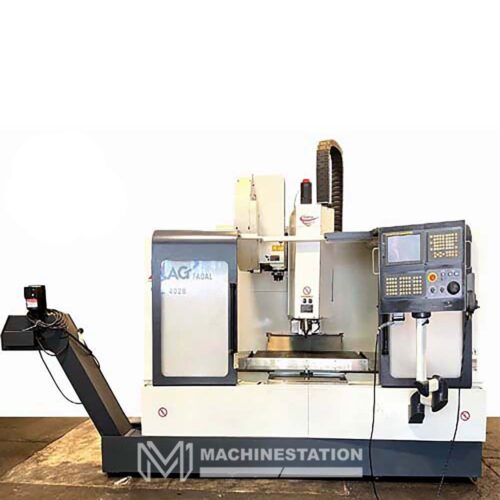

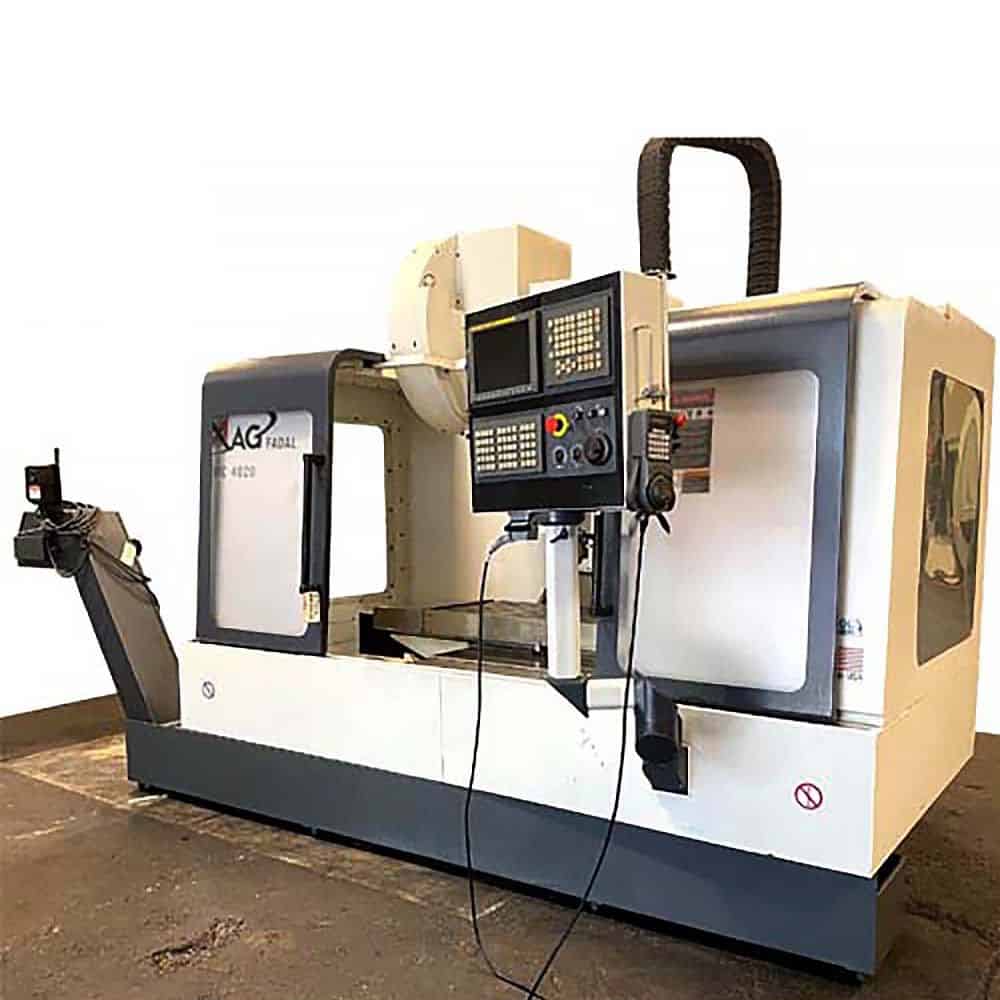

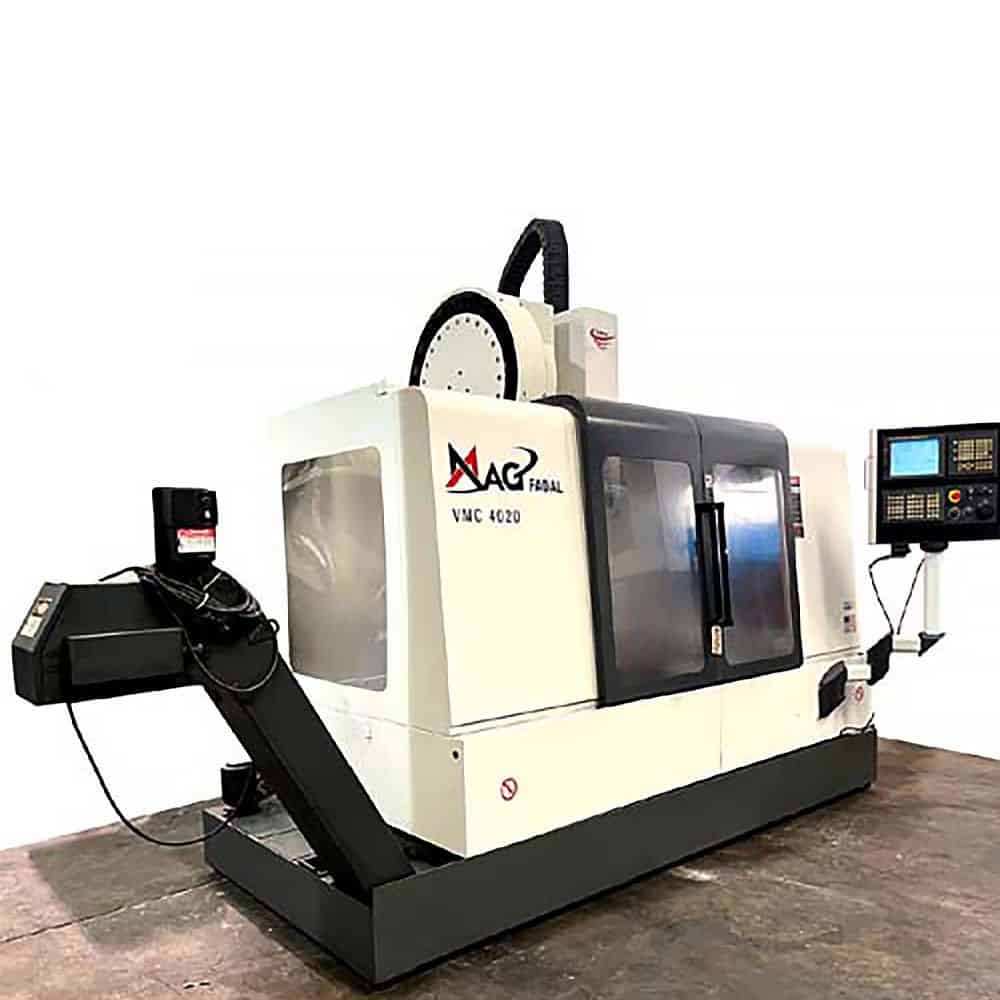

| SKU: | 2372 |
| Make: | Fadal |
| Model: | 4020HT |
| Serial: | 012008011370 |
| Year: | 2008 |
| Condition: | Good |
| Cutting Hours: | 6751 |
| Features: |
|---|
| Box Way construction |

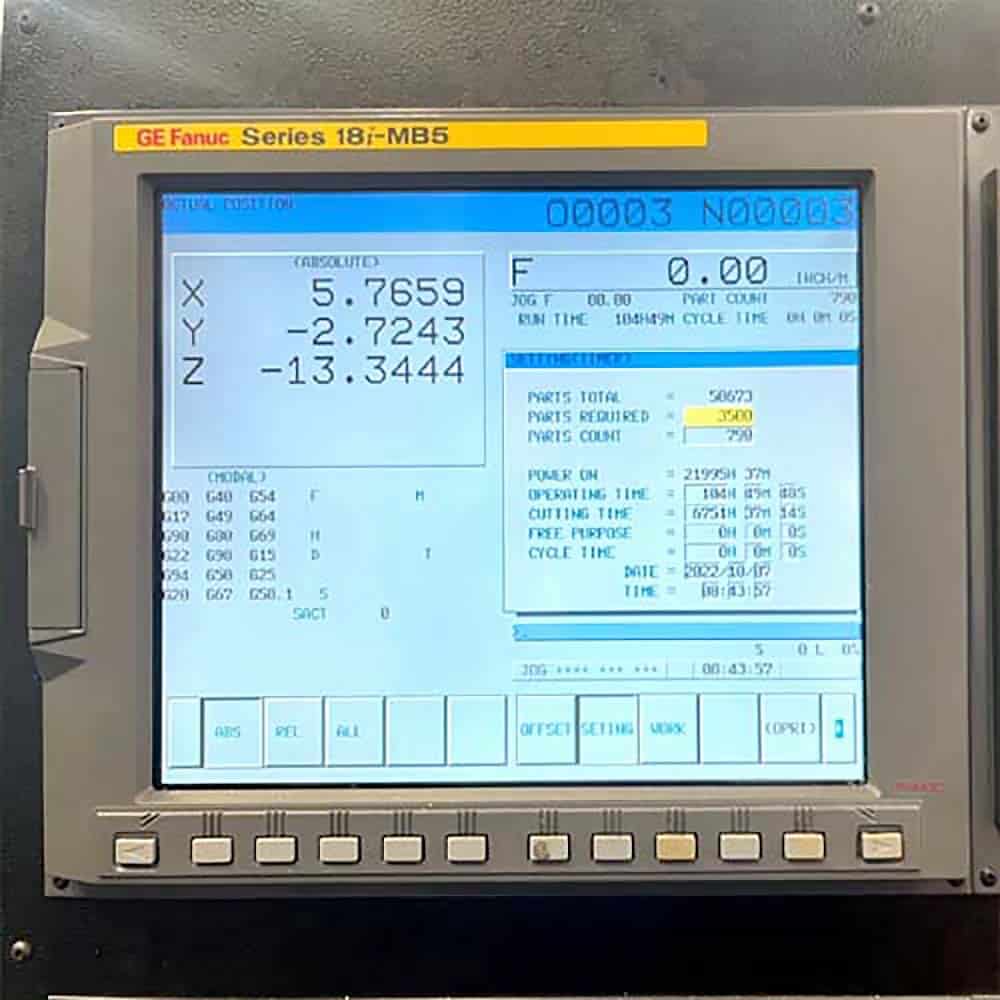

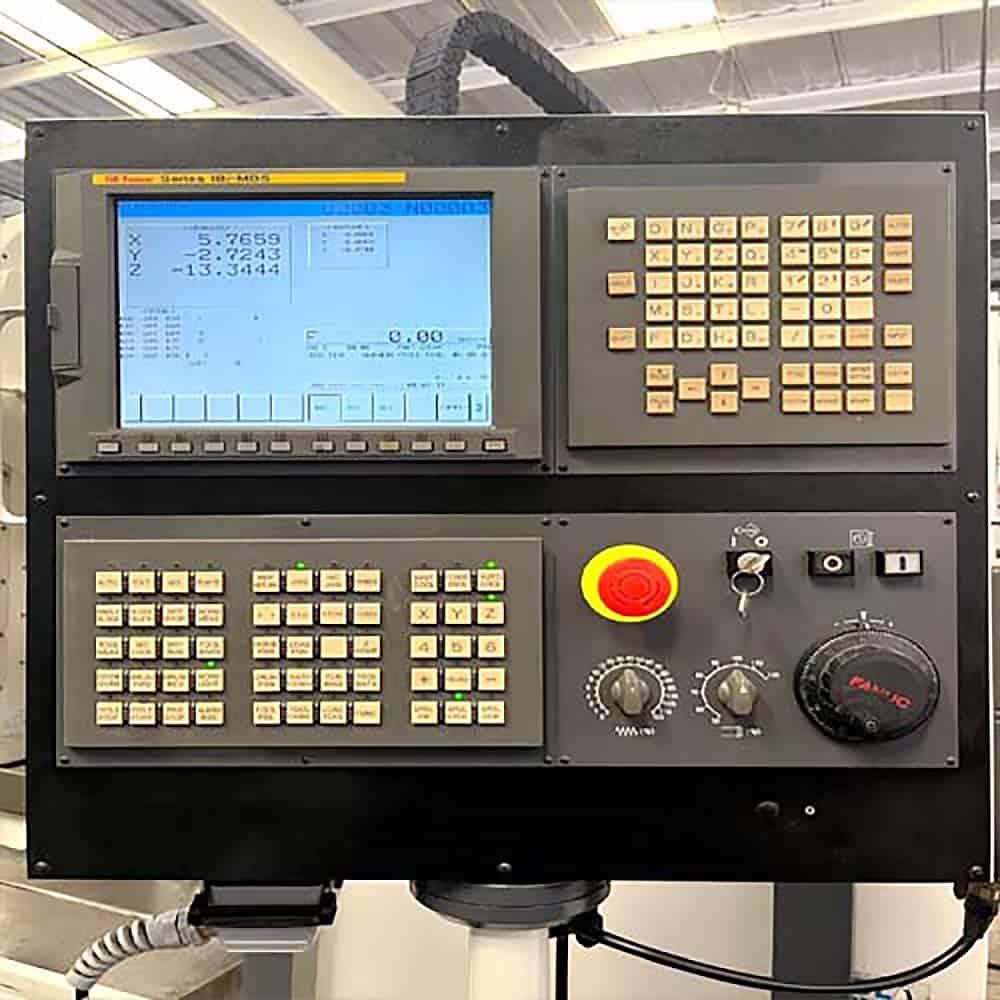

| Fanuc 18iMB5 series CNC Control |
| 24 Automatic high speed tool changer |
| 10,000 RPM High Torque Spindle |
| Through Spindle coolant |
| PCMCIA Card Slot |

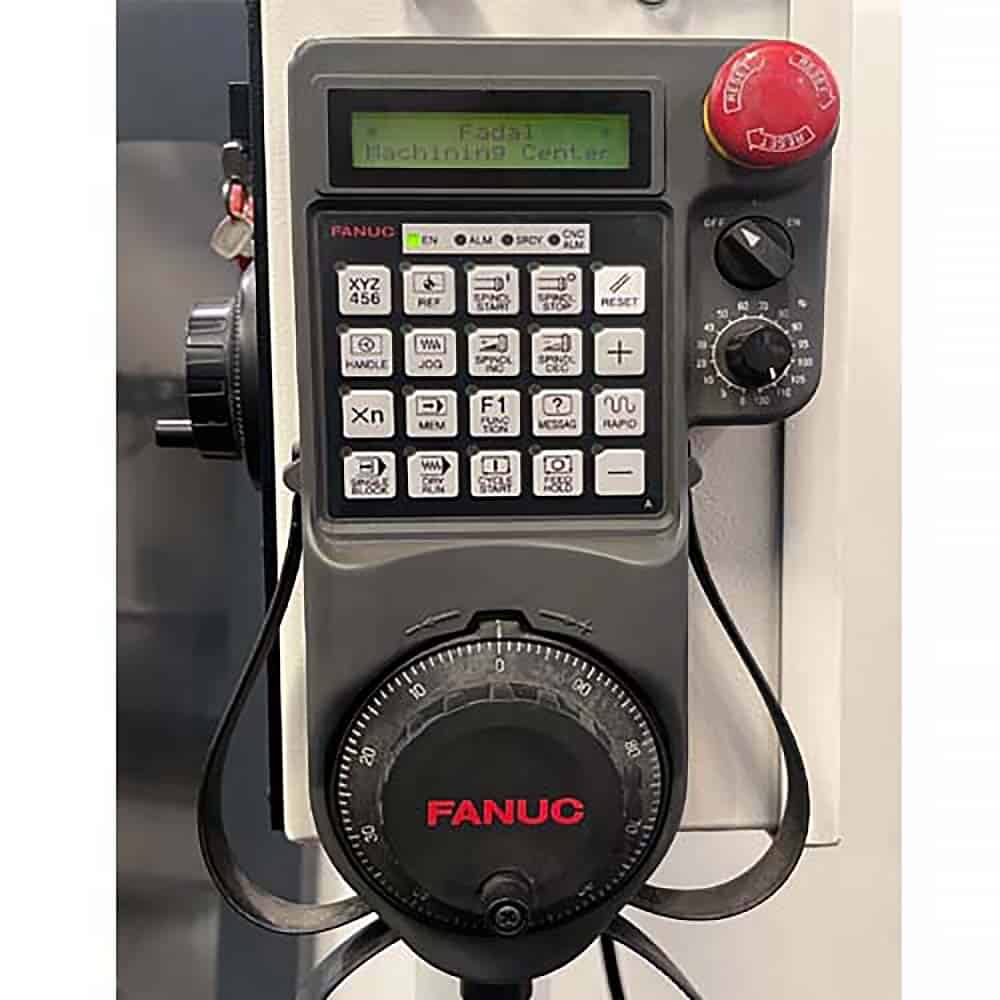

| MPG Control |
| Rigid Tapping |
| Telescopic way covers |
| Flood Coolant System |
| Oil Chiller |

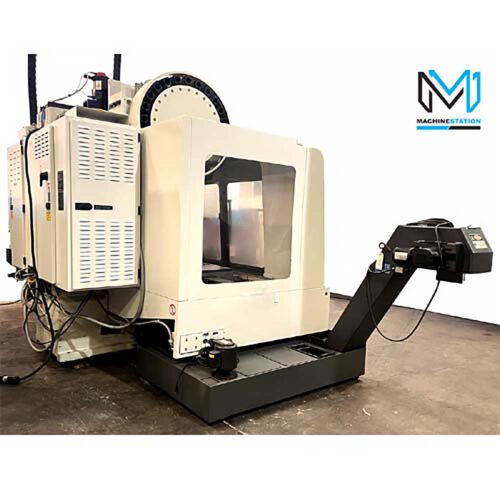

| Chip Conveyor |
| Feed rates: |
|---|
| Rapid Traverse rates: 900 IPM |
| Cutting Feedrate: 400 IPM |
| Travels: |
|---|
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 20″ |
| Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″ |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 22.5 HP |

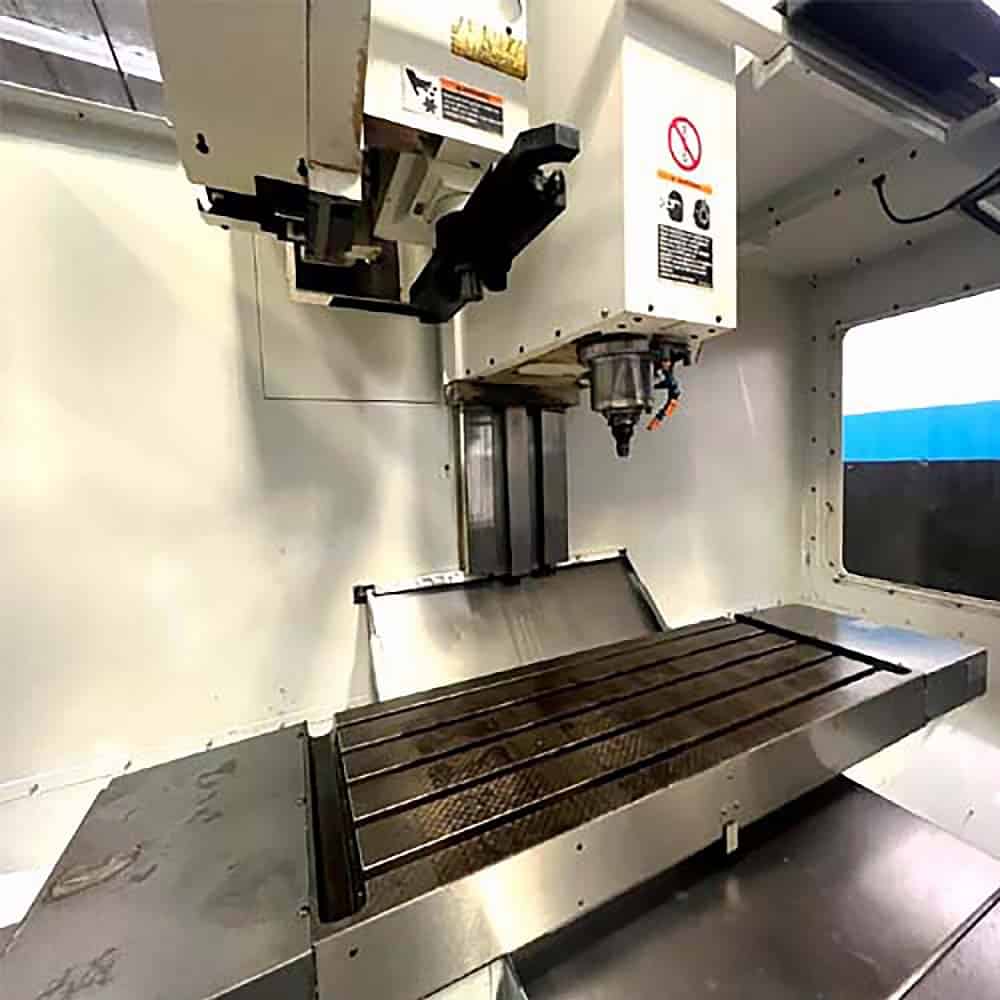

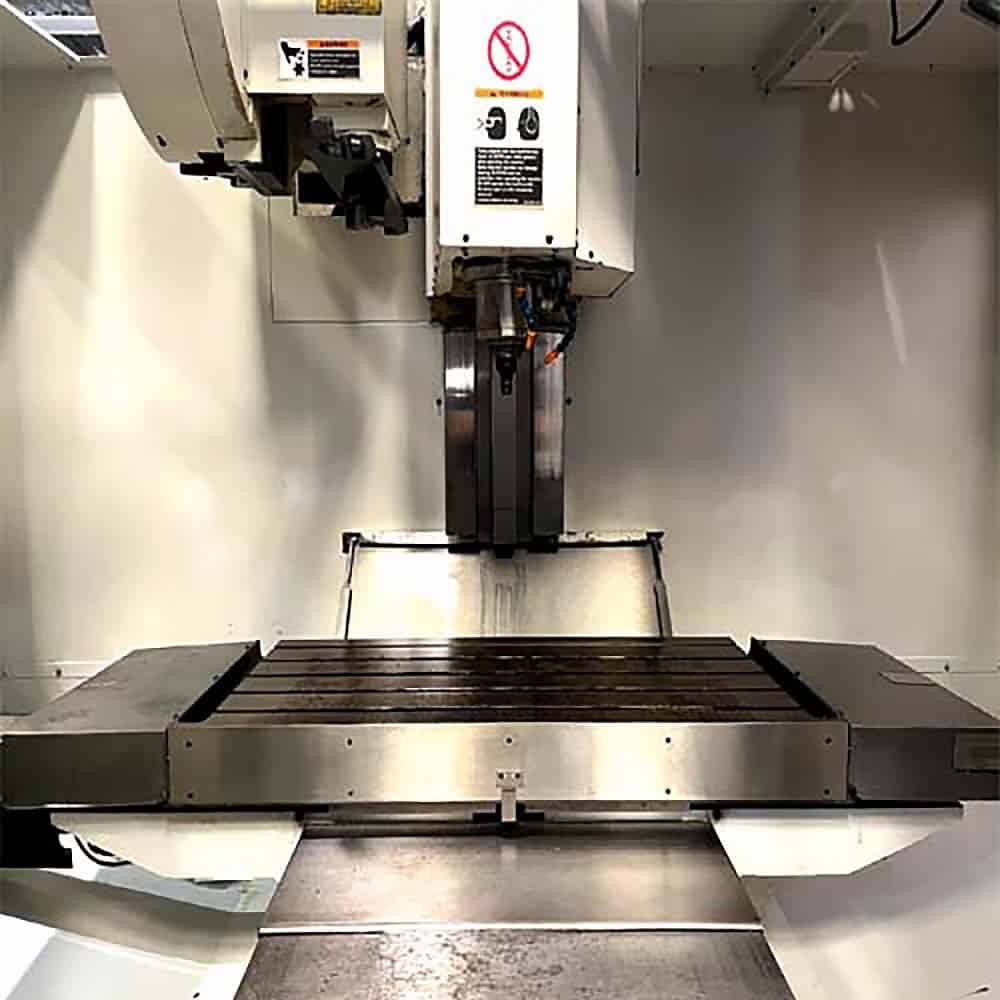

| Table : |
|---|
| Length: 48″ |
| Width: 20″ |
| Max Weight on Table: 3000 lbs |

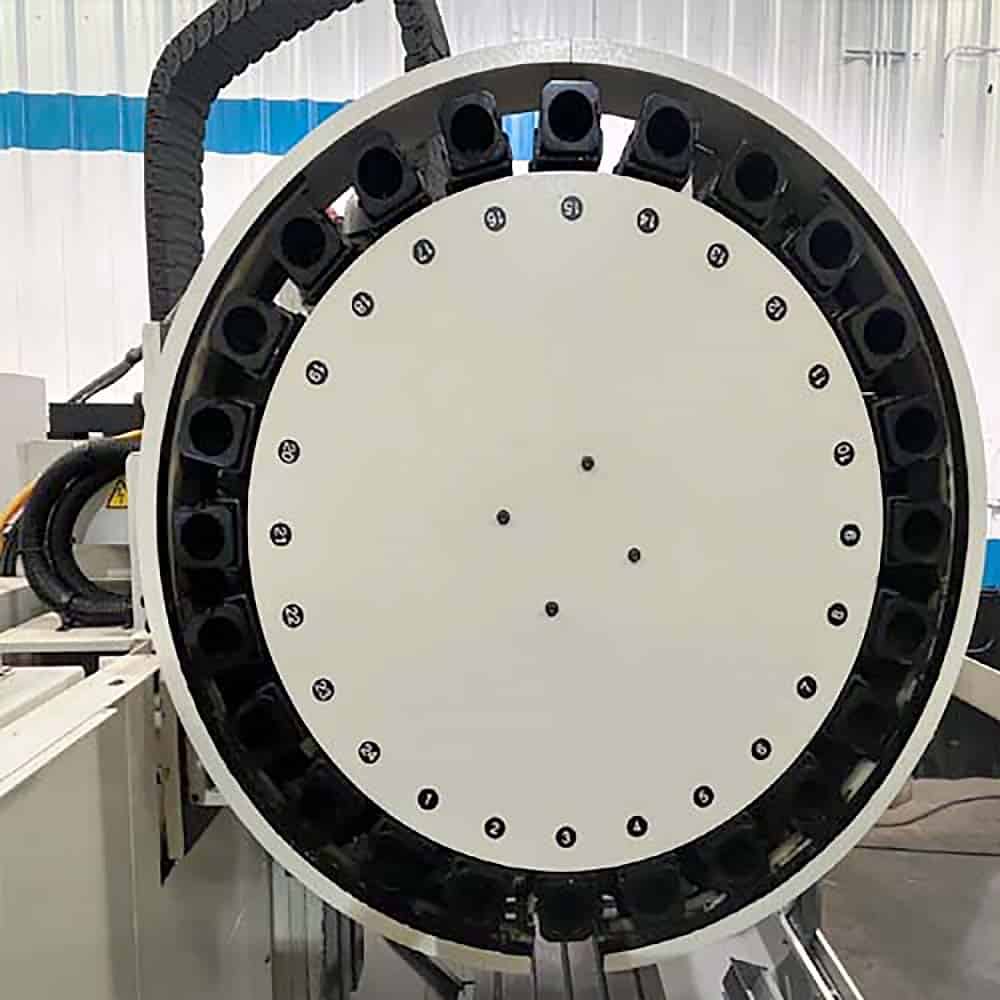

| Automatic Tool Changer: |
|---|
| 40 Taper |
| Capacity: 24 Station Side Mounted |
| Tool Weight: 15 lbs |
| Max Tool Length: 15″ |
| Max Tool Dia.: 4.33″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

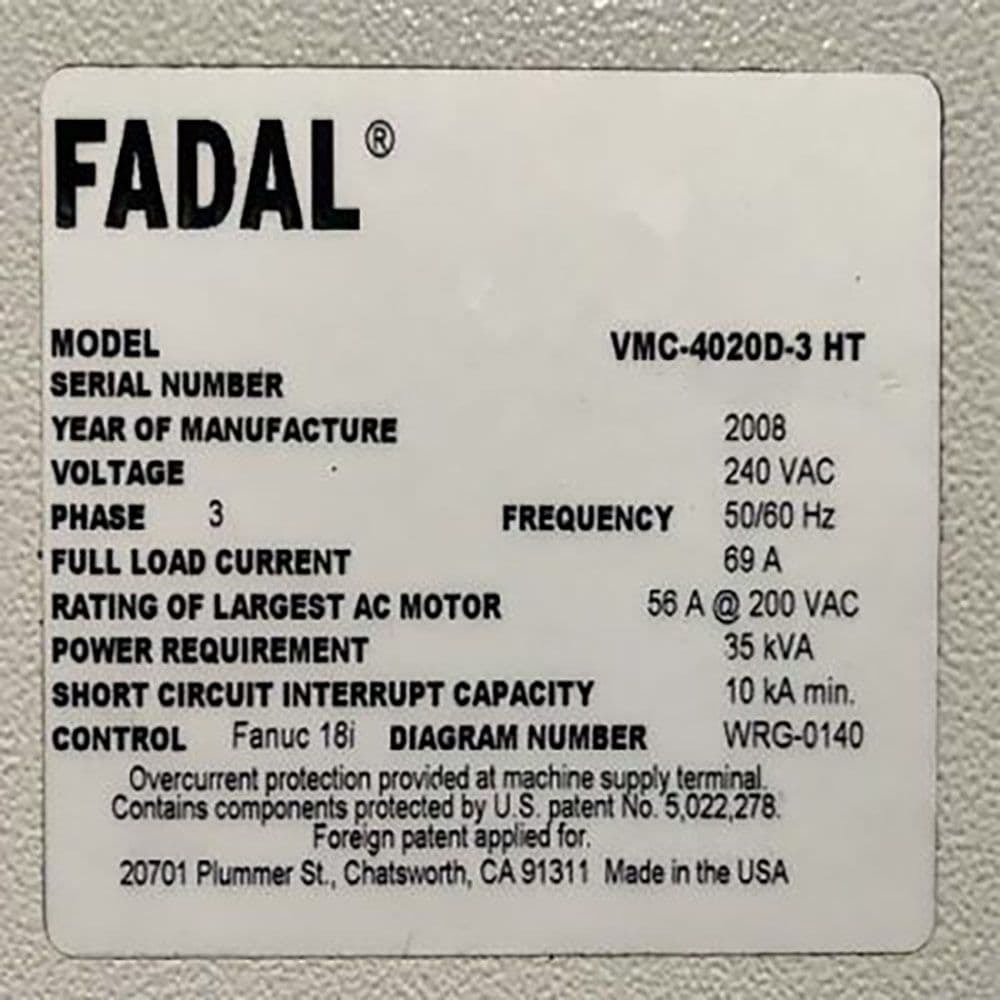

| Power: 220v / 3-Phase, 35 Kva |
| Overall Dimensions: 122″ x 100″ x 100″ High |
| Weight: 12,500 lbs |
