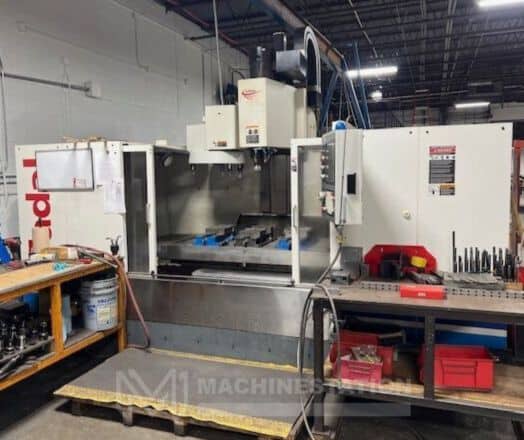

Fadal 6030HT CNC Vertical Machining Center

Fadal 6030HT CNC Vertical Machining Center – Mill

SKU 115008

Make/Model Fadal 6030HT

Year 2006

Condition Used - Good

Out of stock

SKU:	115008
Make/Model:	Fadal 6030HT
Year:	2006
Condition:	Used – Good

SKU: 115008

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Fadal
Model:	6030HT
Year:	2006

Features:
Fadal CNC Control
Box Way construction
20 Station Tool Changer
22.5 HP High Torque Spindle Motor
10,000 RPM High Precision Spindle
MPG Control
Rigid Tapping
Flood Coolant System

Travels:
X-Axis: 60″
Y-Axis: 30″
Z-Axis: 30″
Spindle Nose to Table (Min.- Max.): 5.5″ – 35.5″

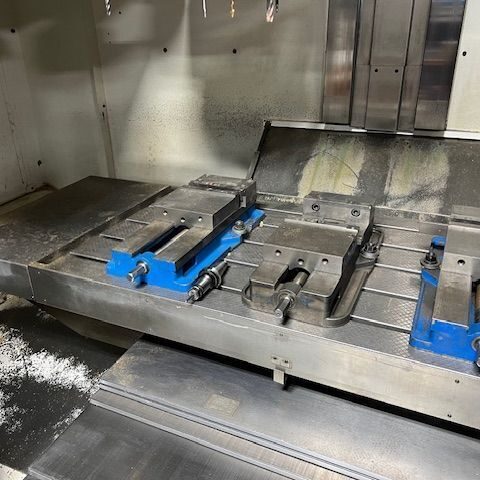

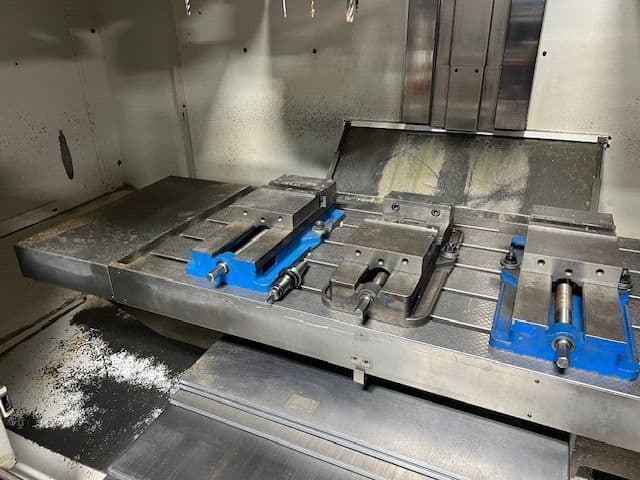

Table:
Length: 62.5″
Width: 30″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 4120 lbs

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 22.5 HP
Max Torque: 220ft-lb @ 500RPM

Automatic Tool Changer:
Capacity: 20 Station Umbrella Type
Max Tool Weight: 15 lbs
Max Tool Dia: 4.9″
Max Tool Length: 13.8″
Tool Changing Time: 4.2 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 480v / 3-Phase
Overall Dimensions: 162″ x 104″ x 125″ High
Weight: 17,000 lbs

Travels:
X-Axis: 1,524 mm
Y-Axis: 762 mm
Z-Axis: 762 mm
Spindle Nose to Table (Min.- Max.): 140 mm – 902 mm

Table:
Length: 1,588 mm
Width: 762 mm
Number of Std T-Slots: 5
T-Slot Width: 5/203 mm
Max Weight on Table: 4120 lbs

Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 22.5 HP
Max Torque: 220ft-lb @ 500RPM

Automatic Tool Changer:
Capacity: 20 Station Umbrella Type
Max Tool Weight: 15 lbs
Max Tool Dia: 124 mm
Max Tool Length: 351 mm
Tool Changing Time: 4.2 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 480v / 3-Phase
Overall Dimensions: 4,115 mm x 2,642 mm x 3,175 mm High
Weight: 17,000 lbs

Make	Fadal
Model	6030HT
Categories	Vertical Machining Center

Fadal CNC Control
Box Way construction
20 Station Tool Changer
22.5 HP High Torque Spindle Motor
10,000 RPM High Precision Spindle
MPG Control
Rigid Tapping
Flood Coolant System
