*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

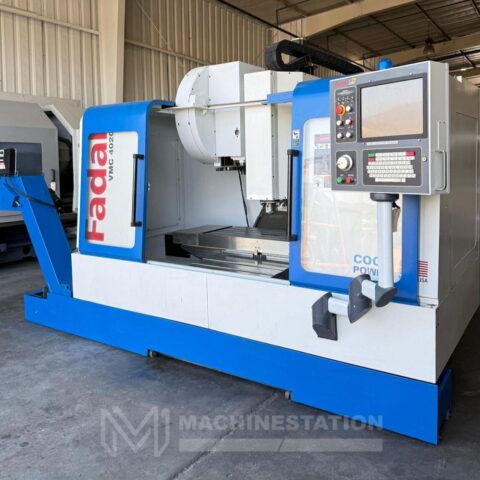

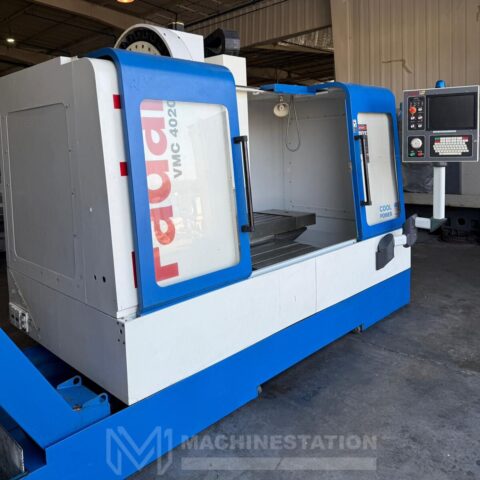

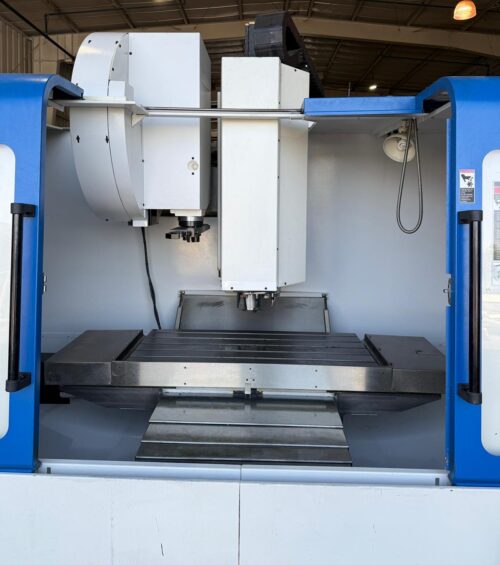

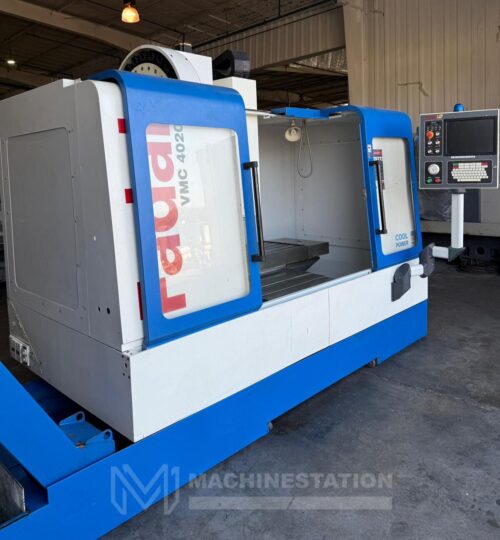

| Make: | FADAL |

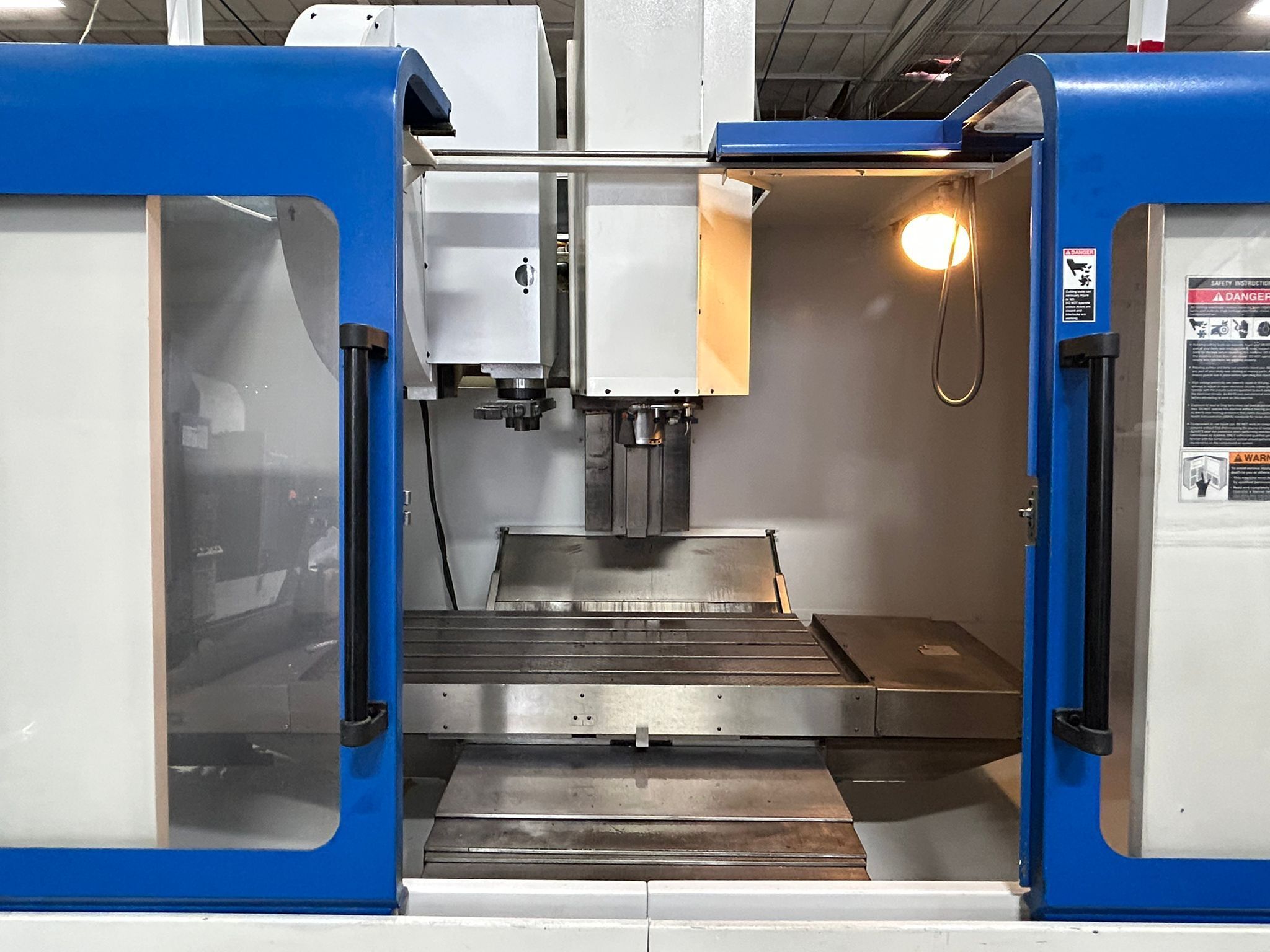

| Model: | VMC 4020 HT |
| Year: | 2006 |
| Features: |
|---|

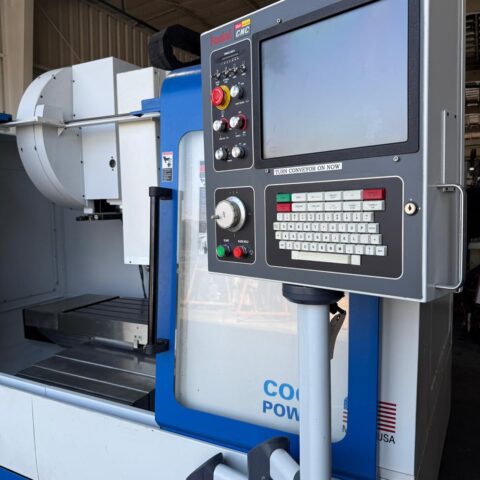

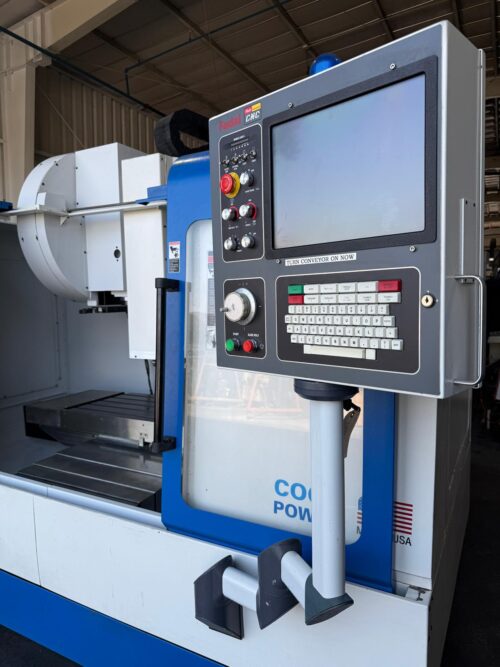

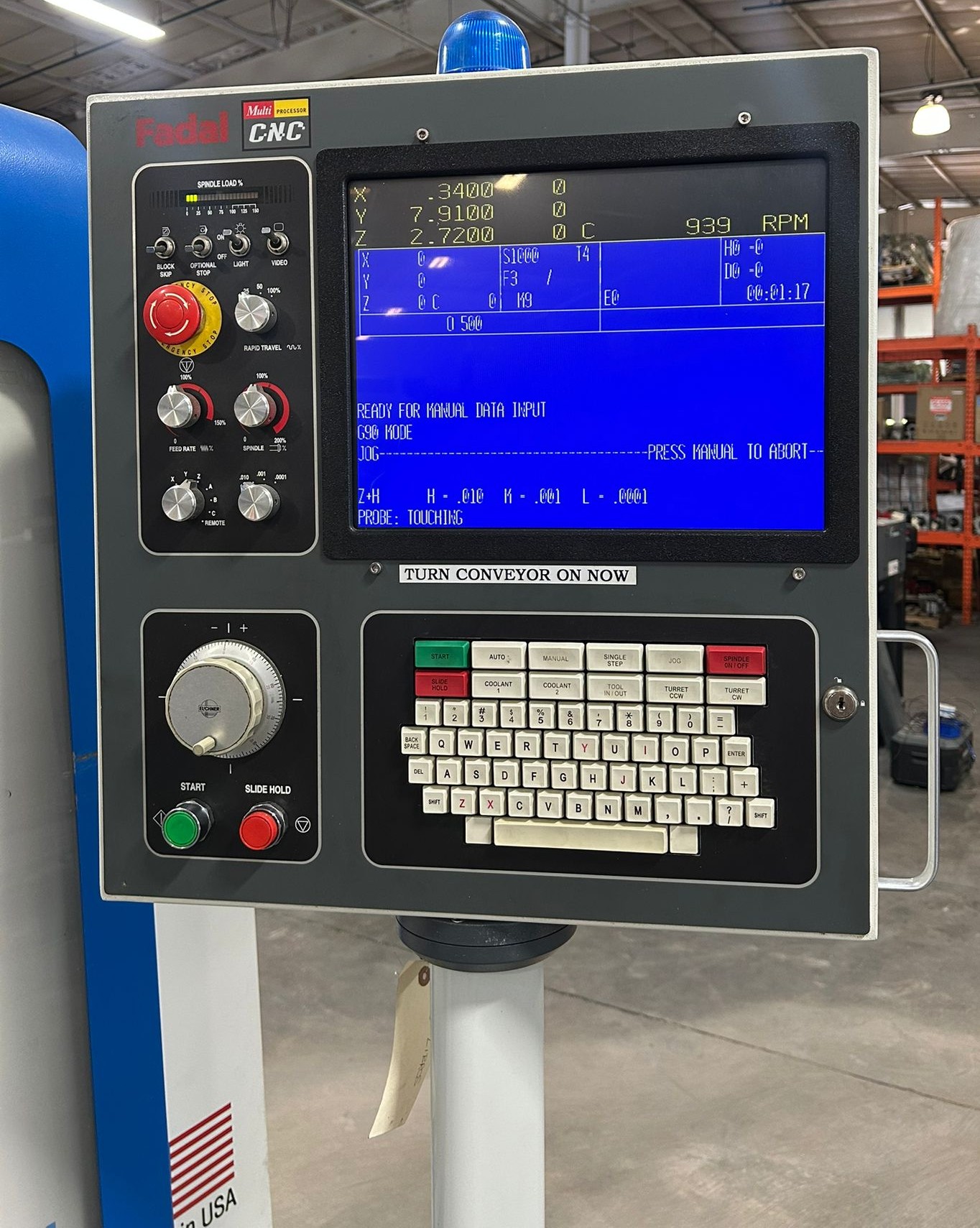

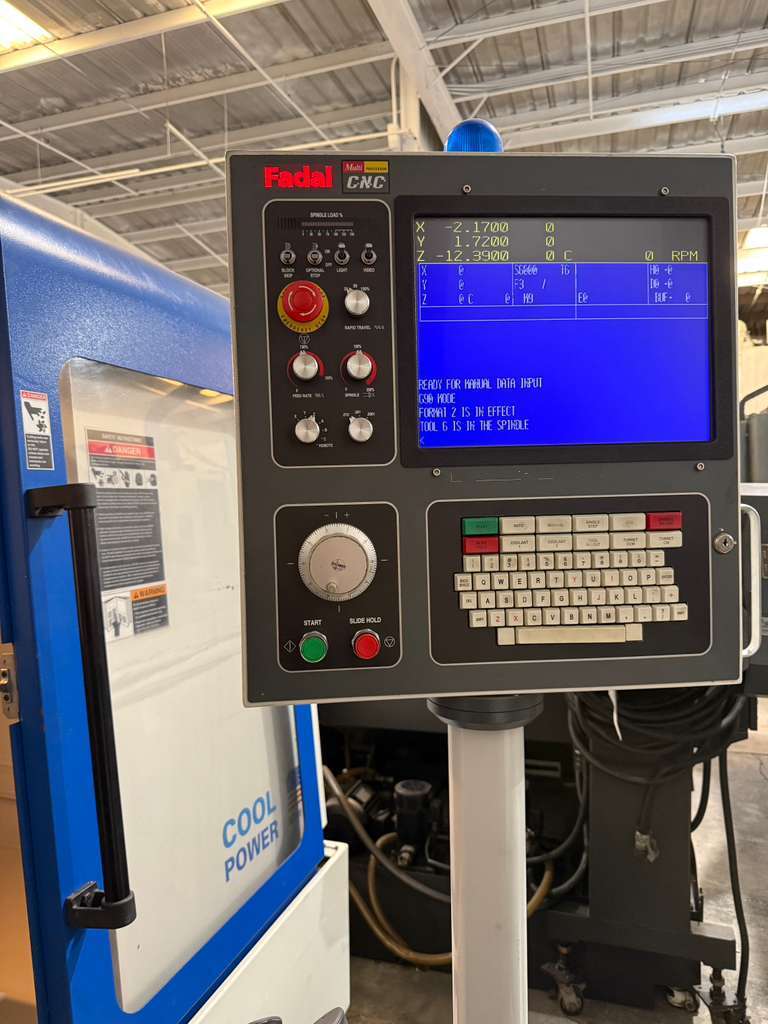

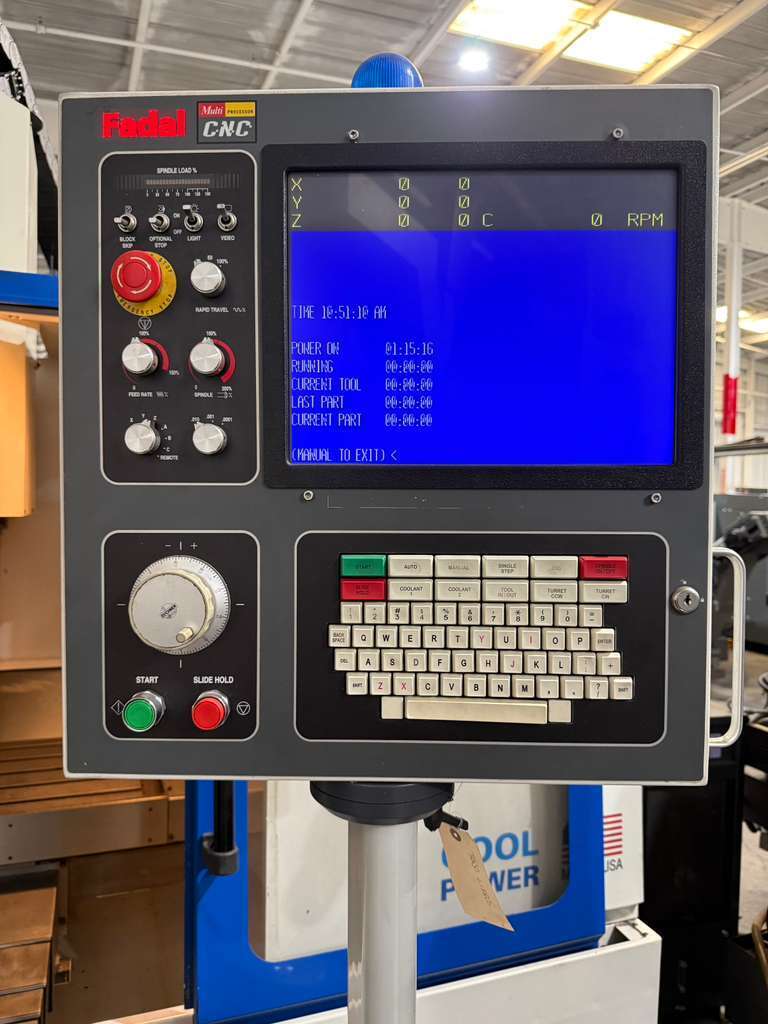

| Fadal CNC Control |
| Box Way construction |
| 10,000 RPM High Precision Spindle |

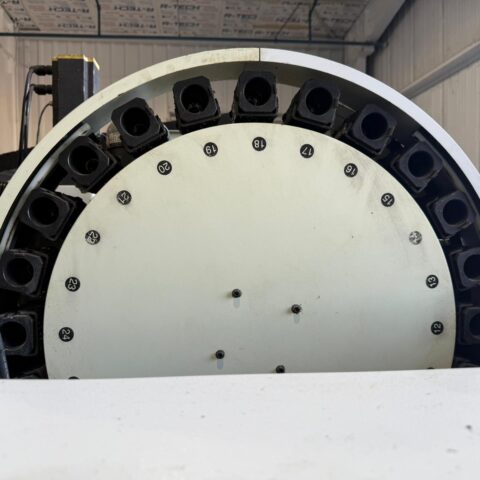

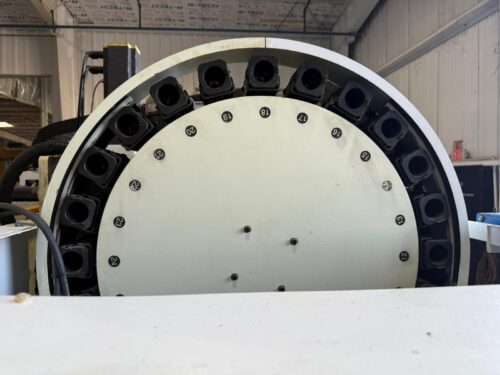

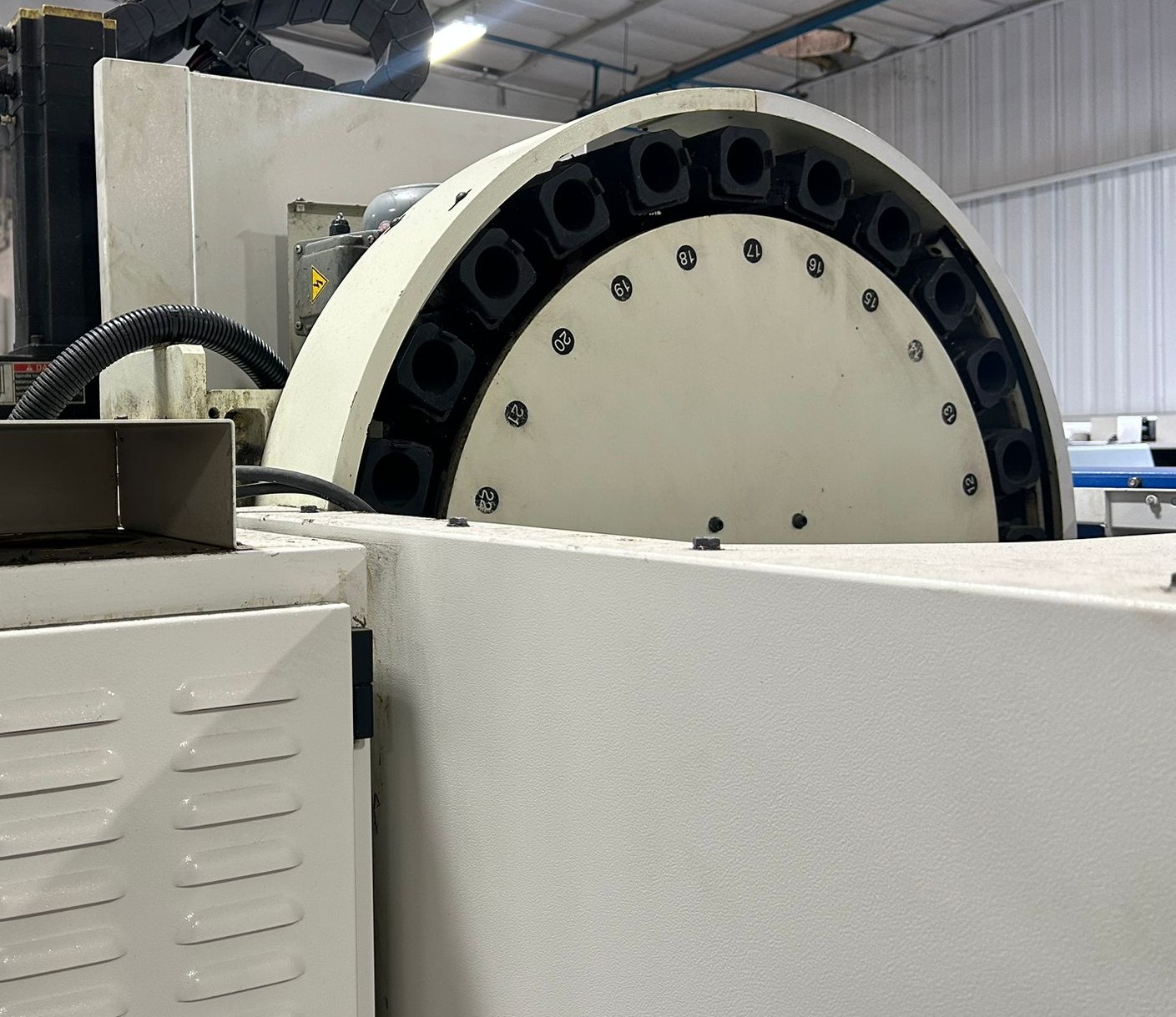

| 24 Station Side Mounted Automatic Tool Changer |
| MPG Control |
| Rigid Tapping |
| Telescopic way covers |

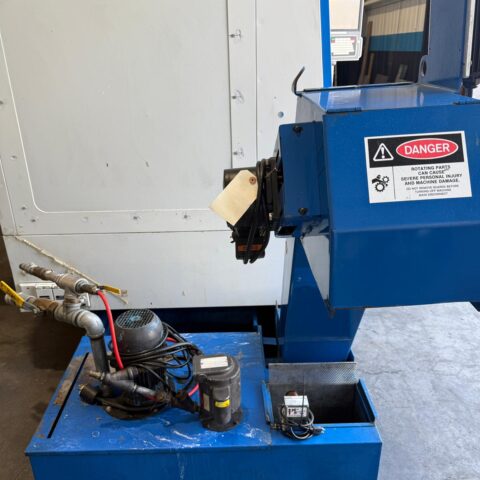

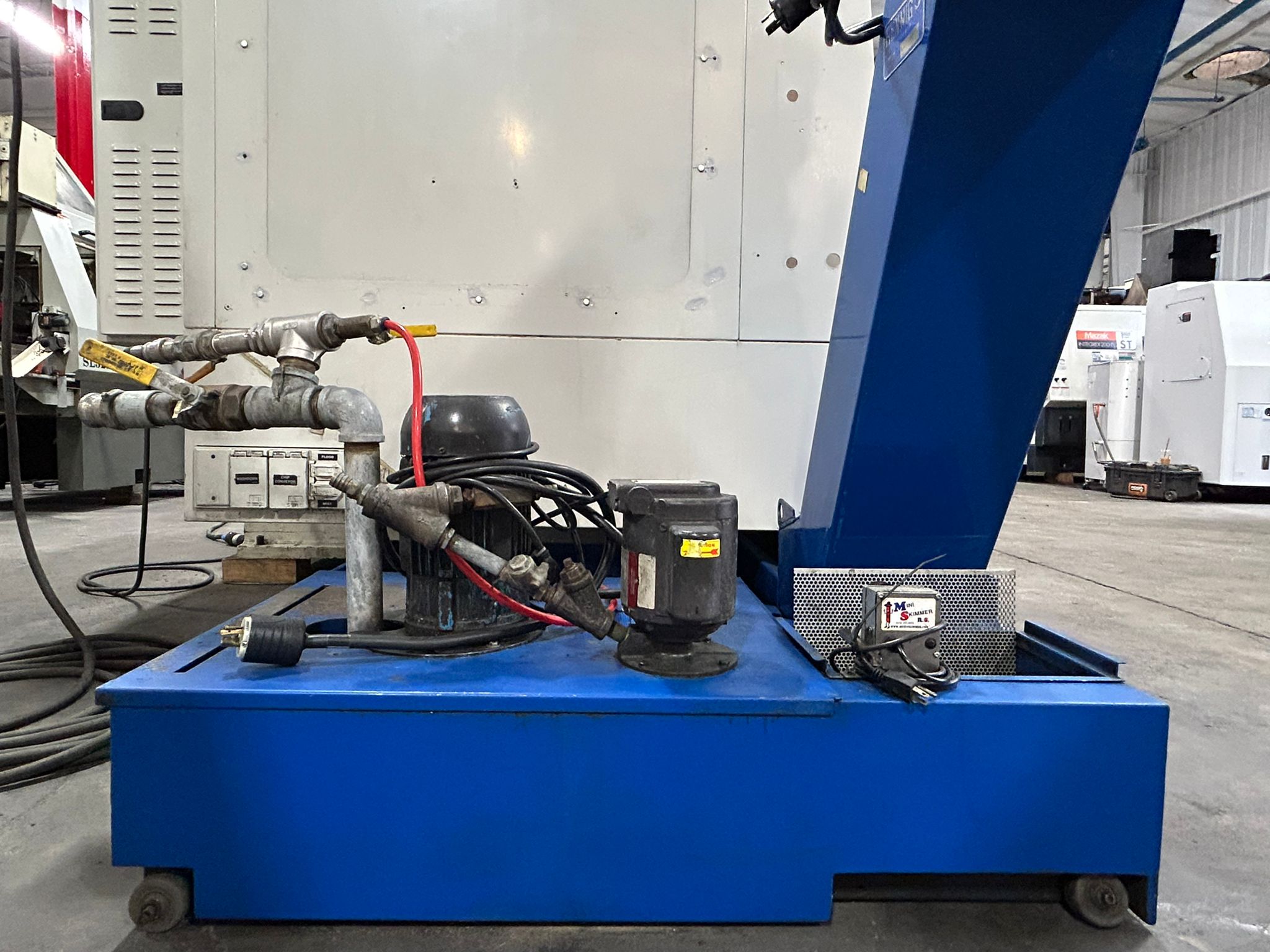

| Coolant System |

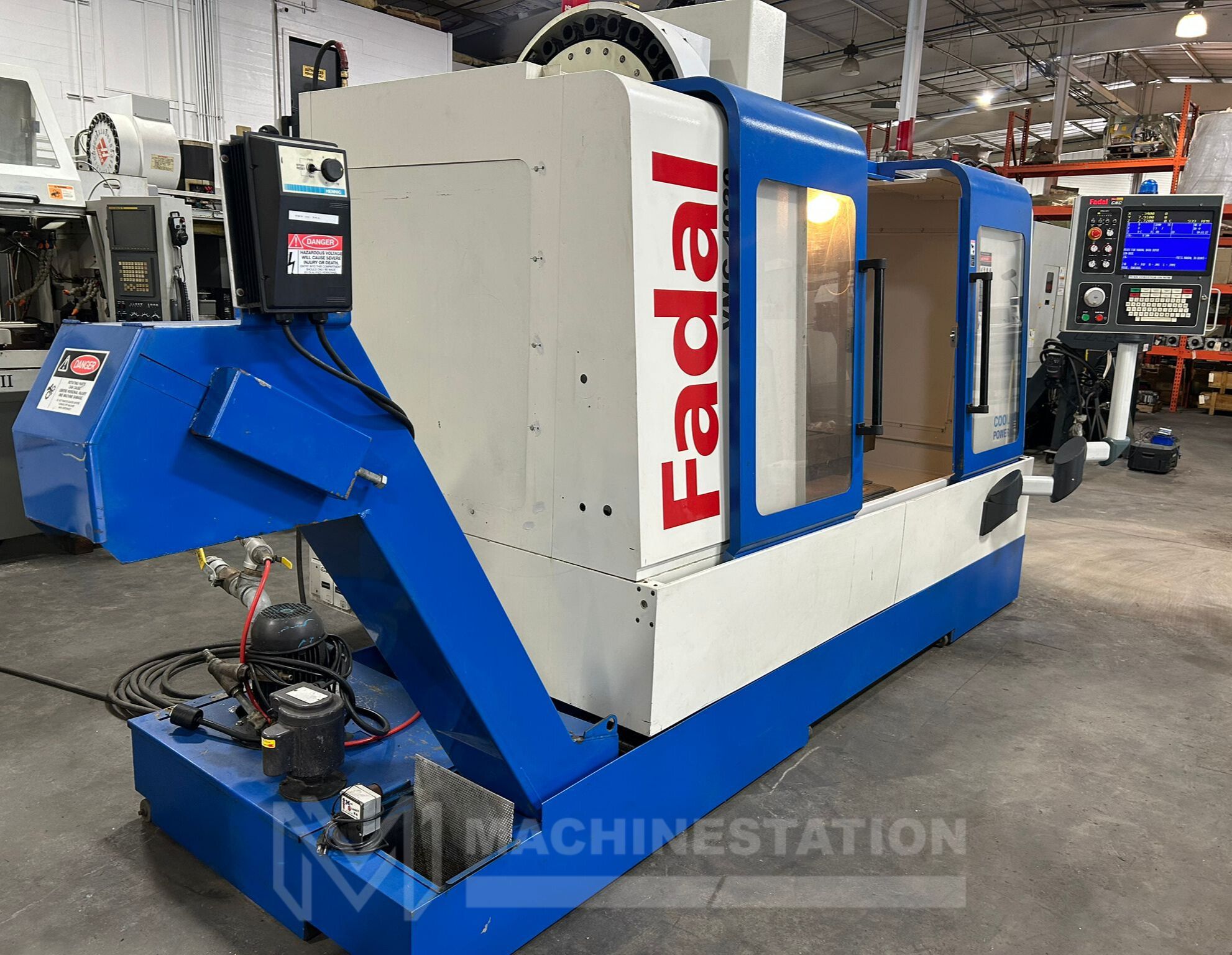

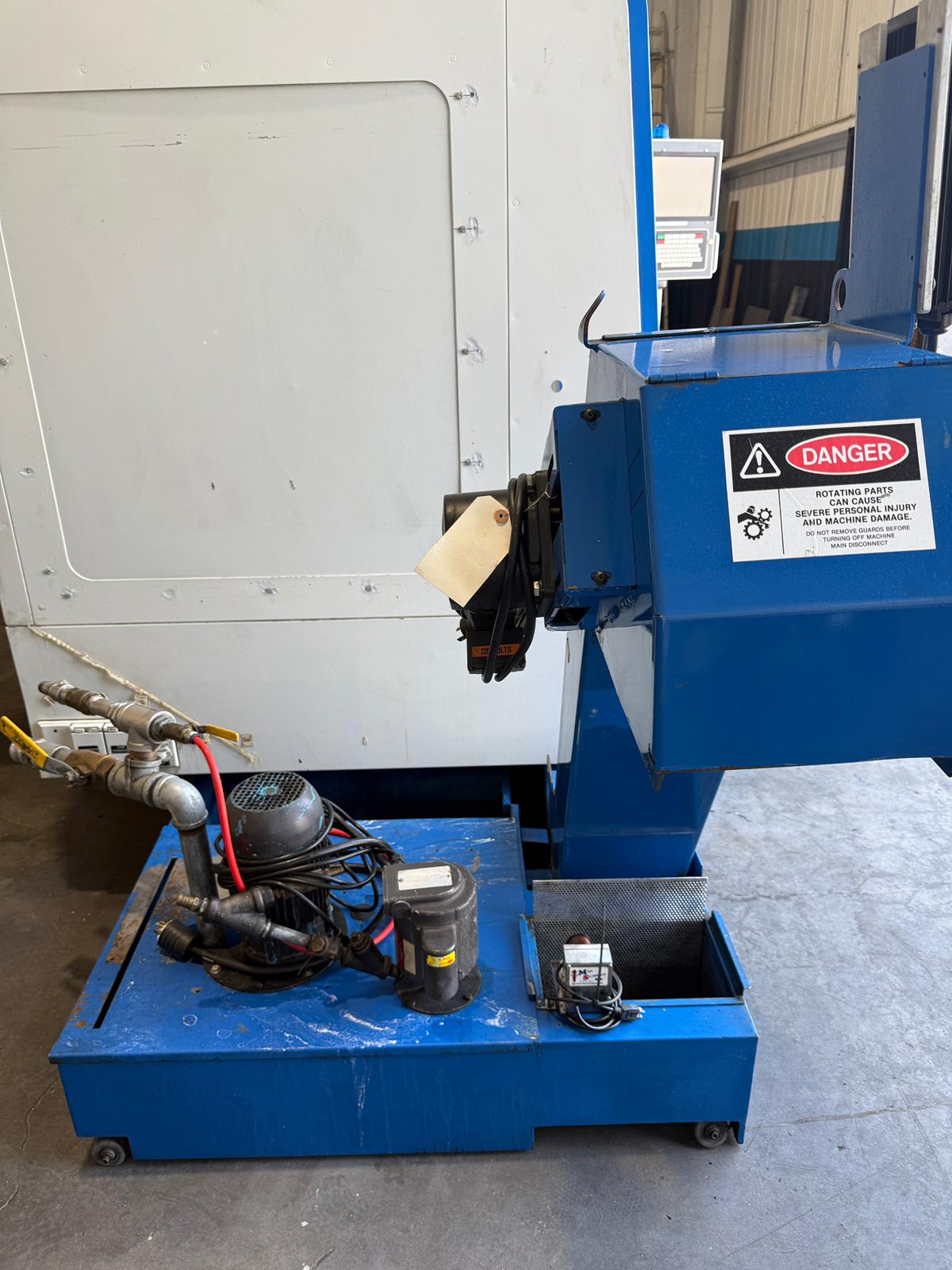

| Chip Conveyor |
| Travel: |
|---|
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 20″ |
| Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″ |
| Feed rates: |
|---|
| Rapid Traverse rates: 900 IPM |
| Cutting Feedrate: 400 IPM |

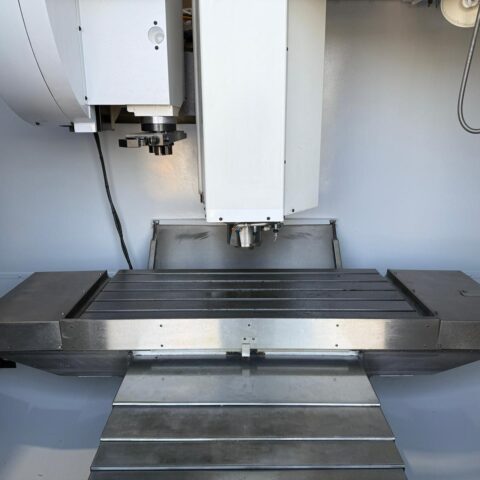

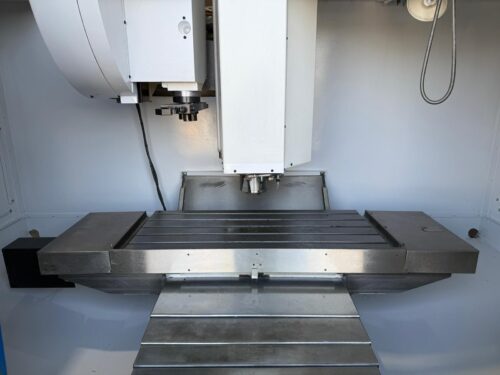

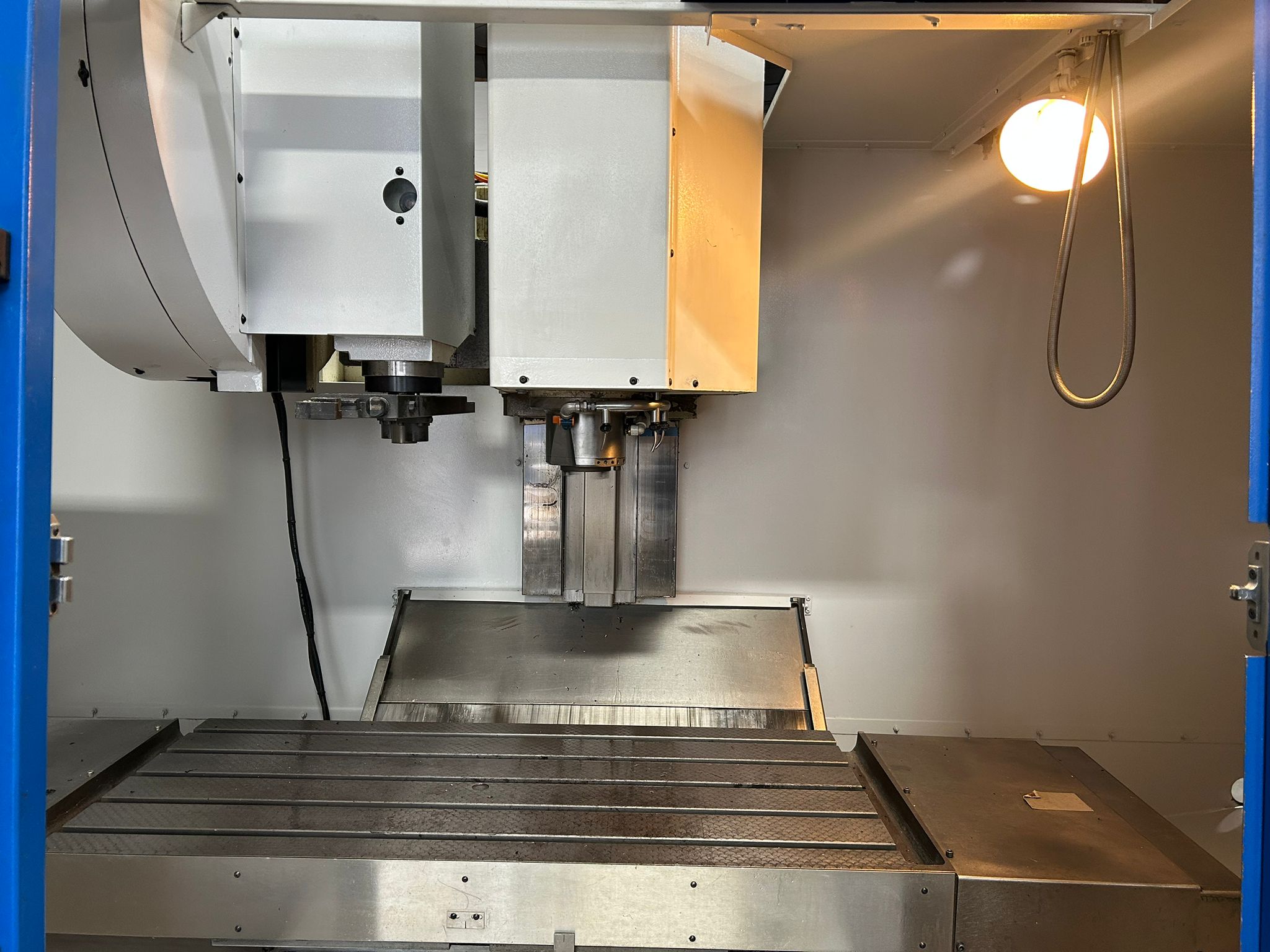

| Table: |
|---|
| Length: 48″ |
| Width: 20″ |
| Max Weight on Table: 3000 lbs |

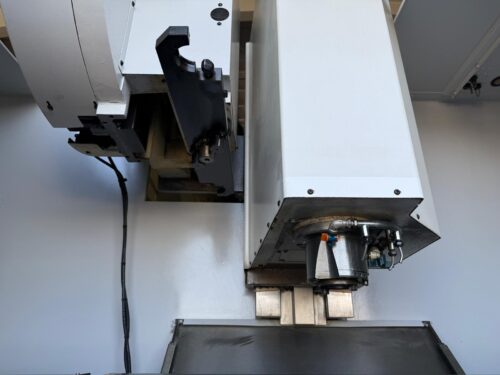

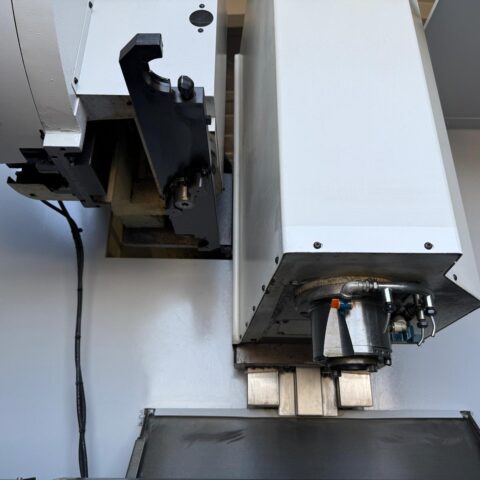

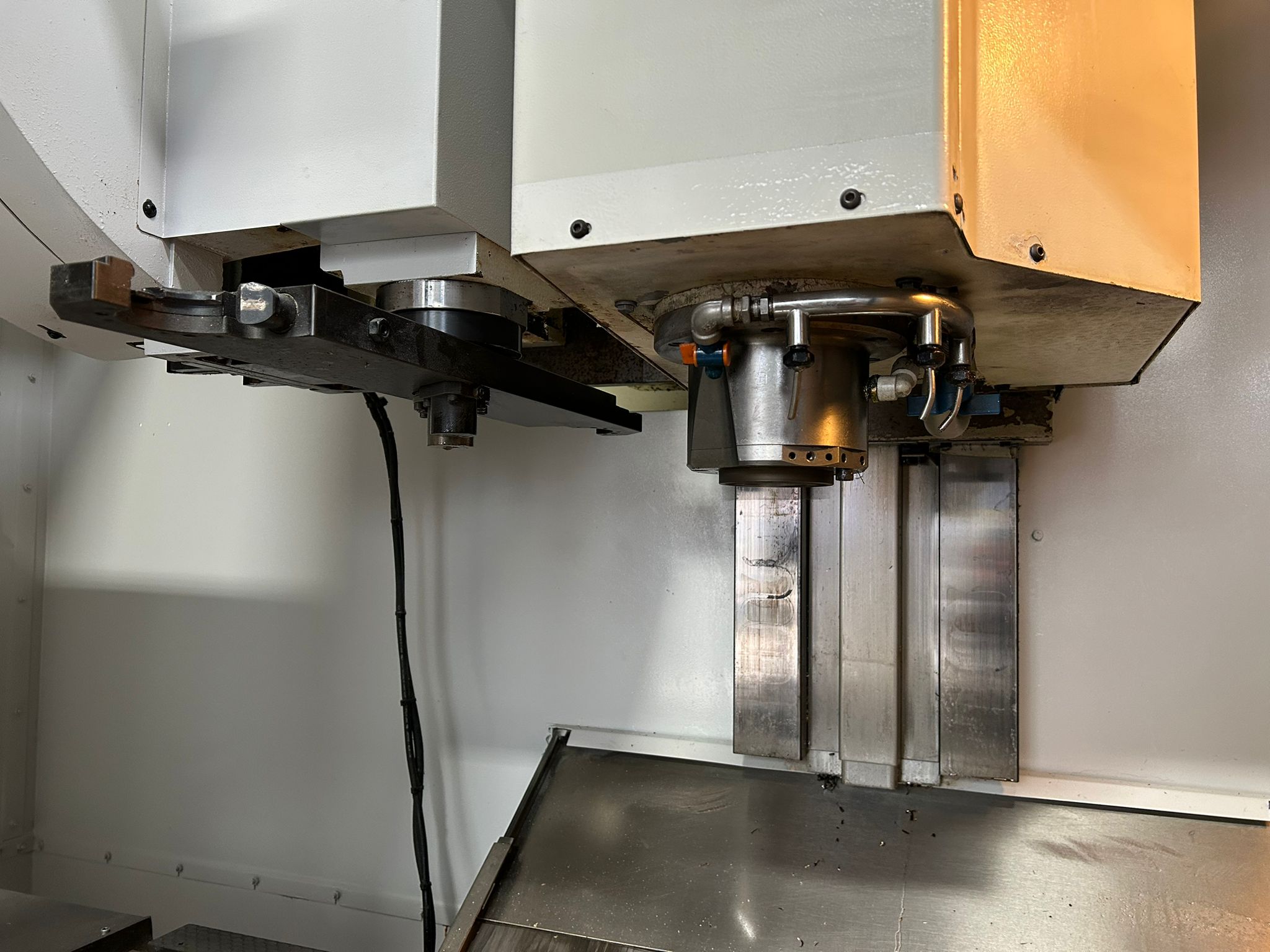

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Taper Size: 40 |
| Capacity: 24 Station Side Mounted |
| Tool Weight: 15 lbs |
| Max Tool Length: 15″ |
| Max Tool Dia.: 4.33″ |
| General: |
|---|
| Air Required: 80 psi 4 scfm |

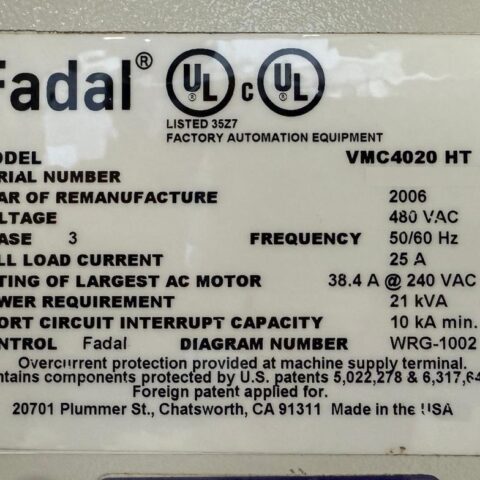

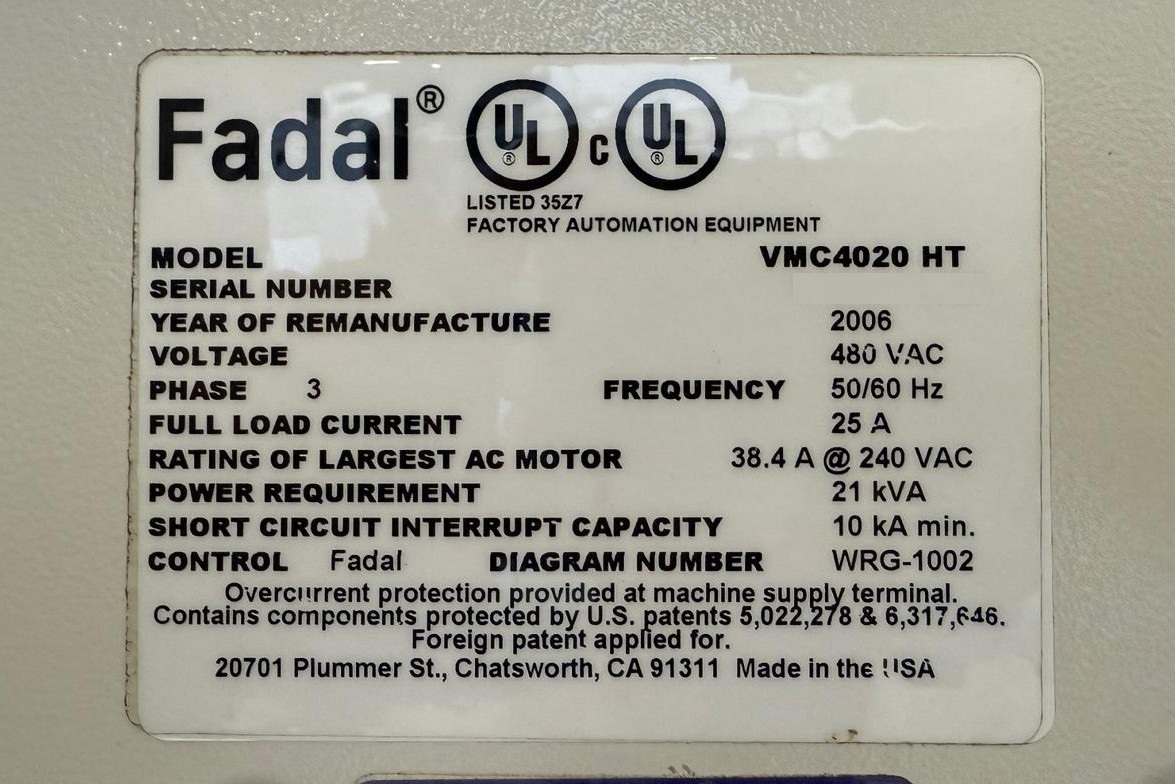

| Power: 480v / 3-Phase / 50/60 Hz / 21 kva |
| Overall Dimensions: 122″ x 100″ x 100″ High Approx. |
| Weight: 12500 lbs. Approx. |
