New Arrival

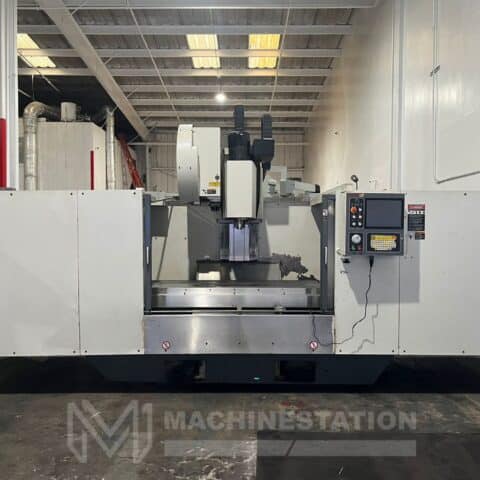

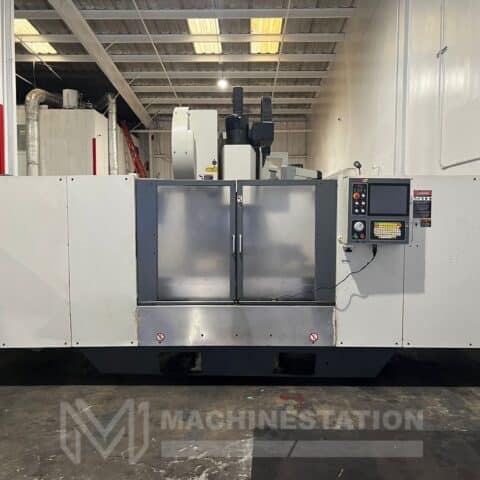

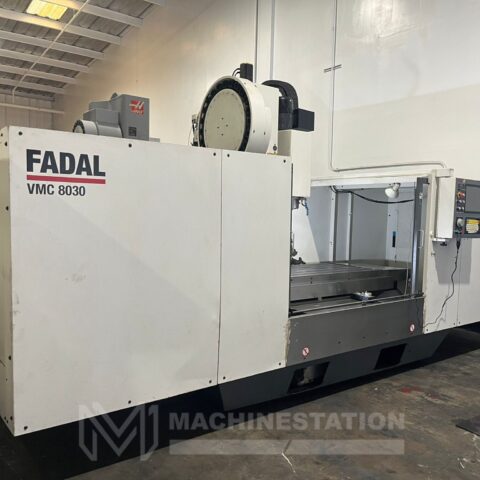

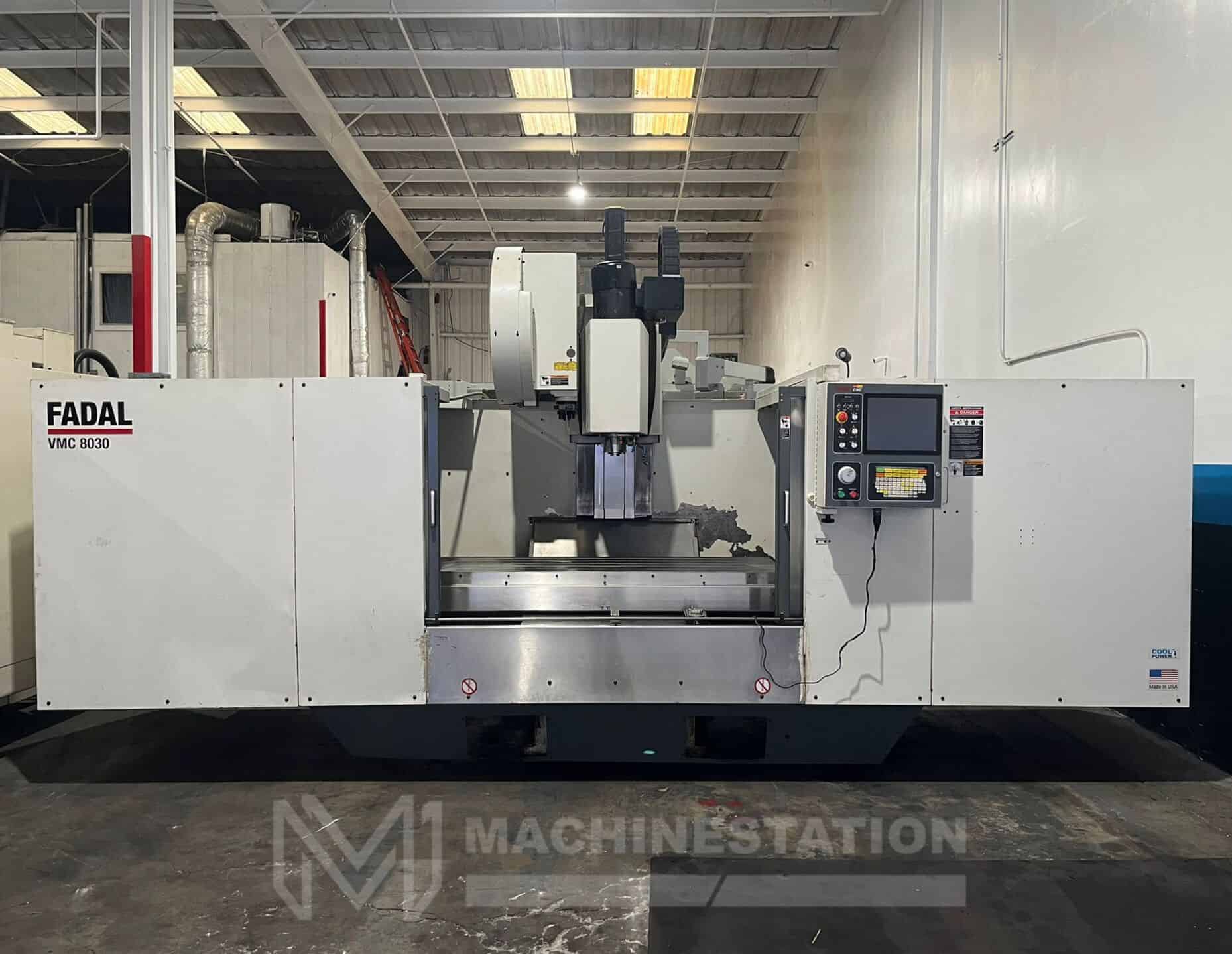

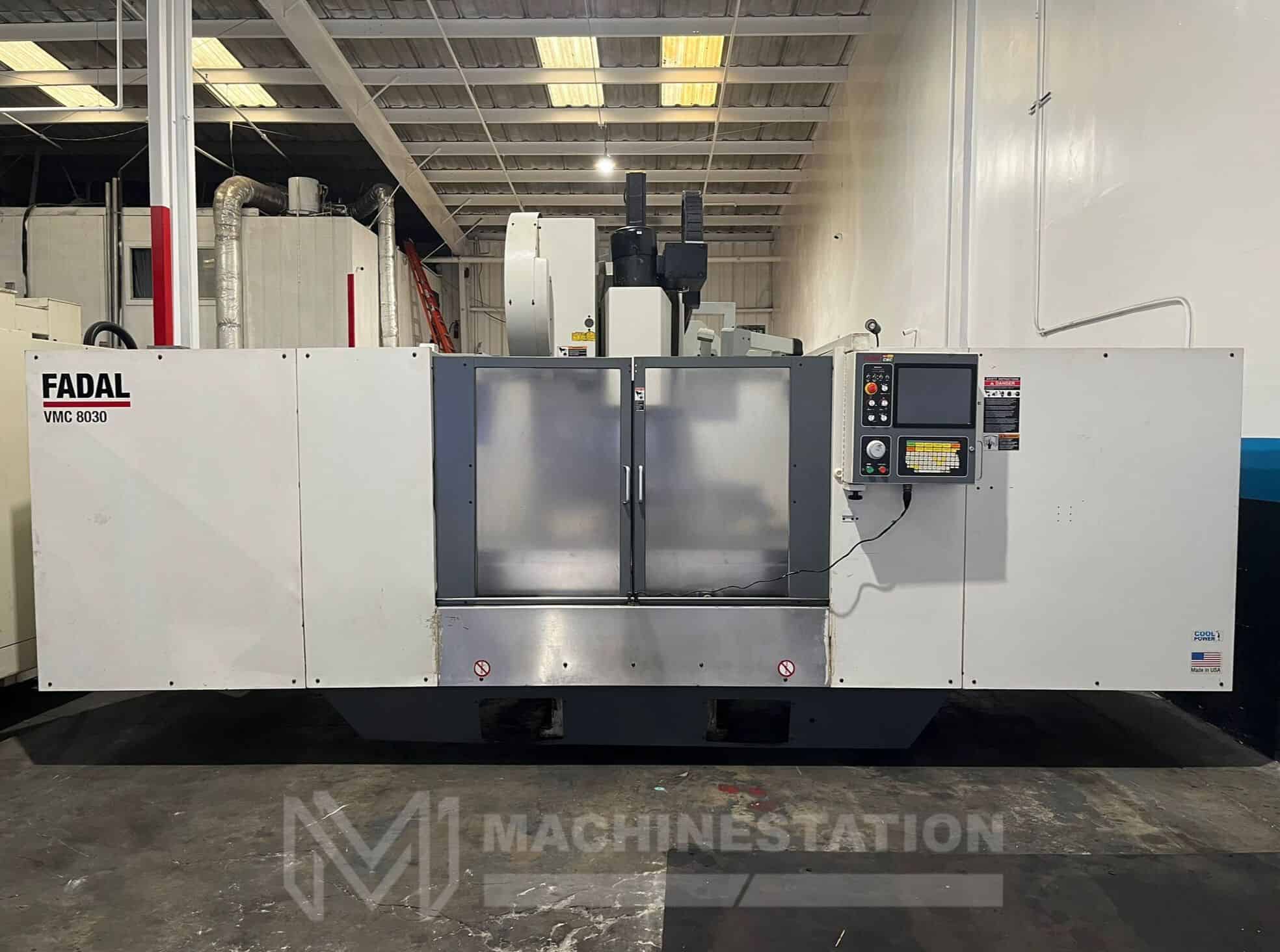

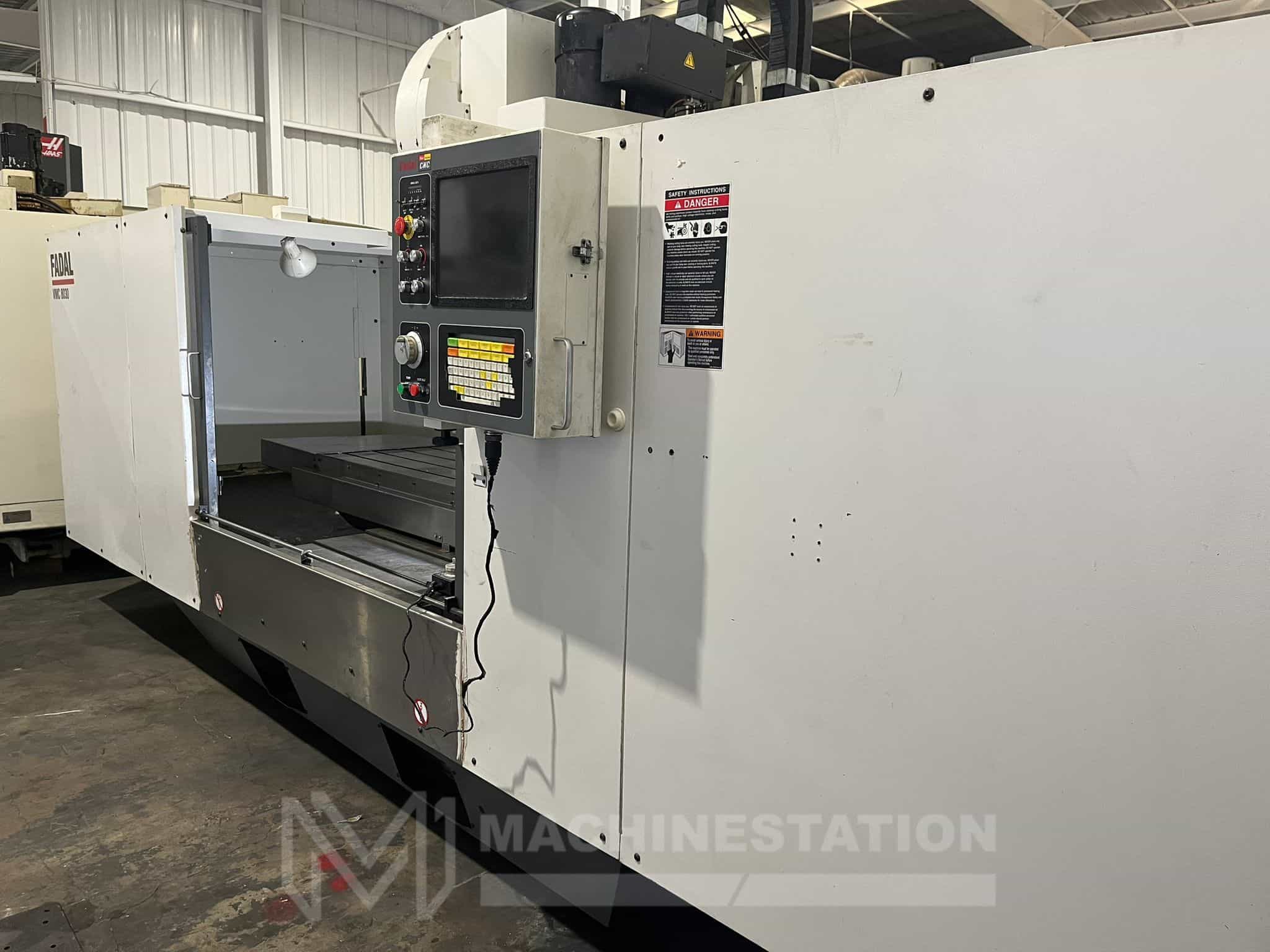

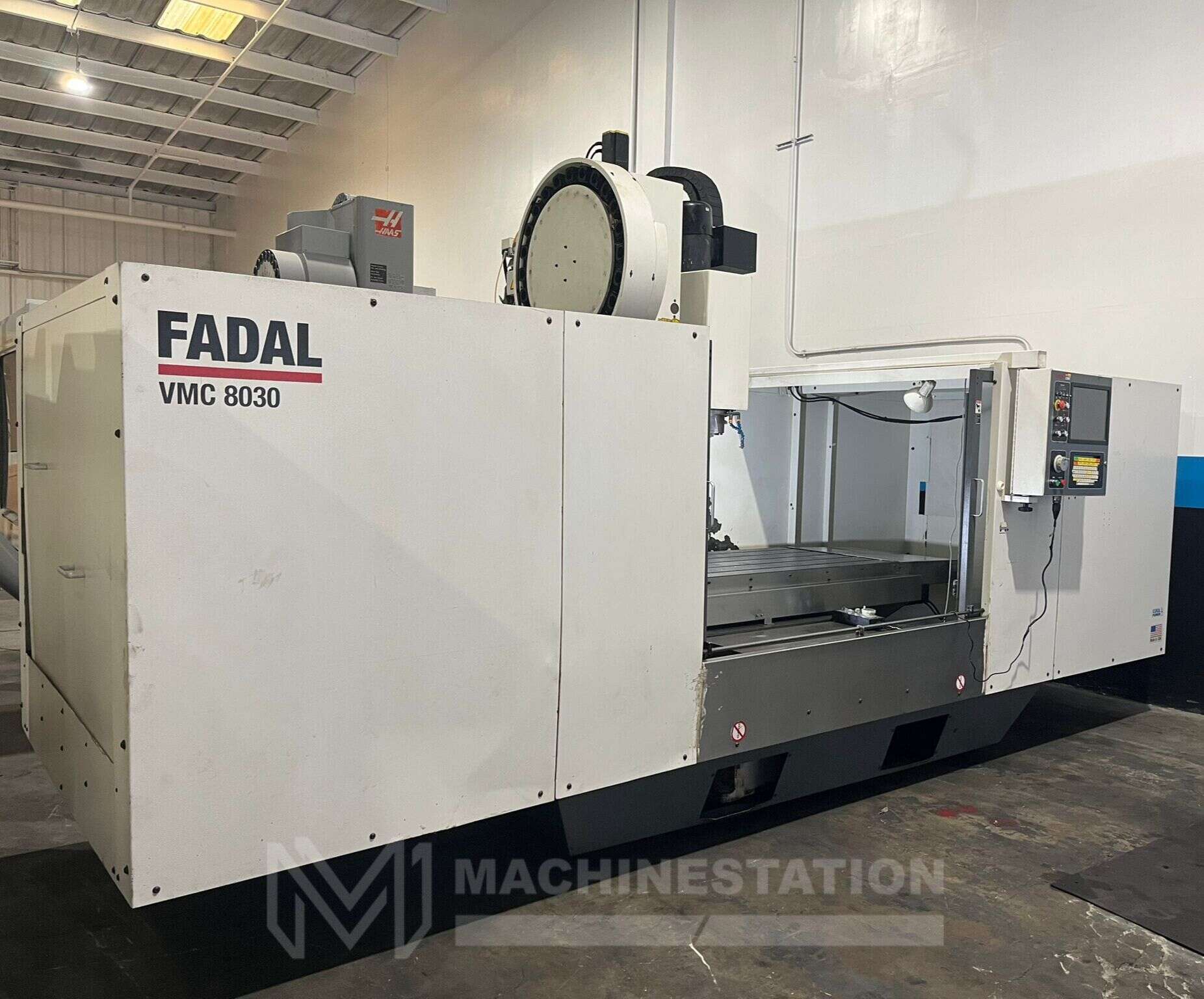

Fadal VMC8030 VHT CNC Vertical Machining Center – 4th Axis Ready Mill
$49,500
Monthly Price: $759
1 in stock
| Location: | Lake Elsinore, CA |
| SKU: | 112754 |
| Make/Model: | Fadal VMC8030 VHT |
| Year: | 2007 |
| Condition: | Used – Good |
| Video: | No Video |
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112754 |
| Make: | Fadal |
| Model: | VMC8030 VHT |
| Year: | 2007 |
| Features: |
|---|

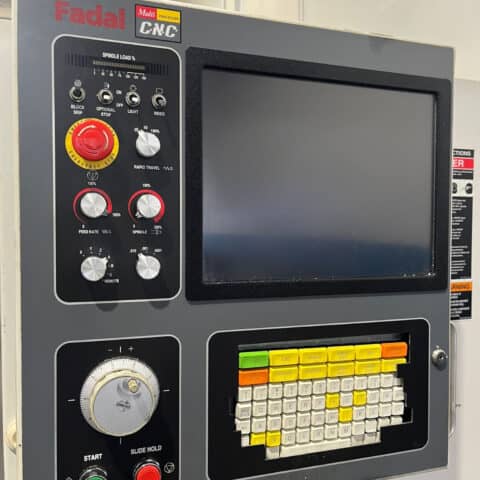

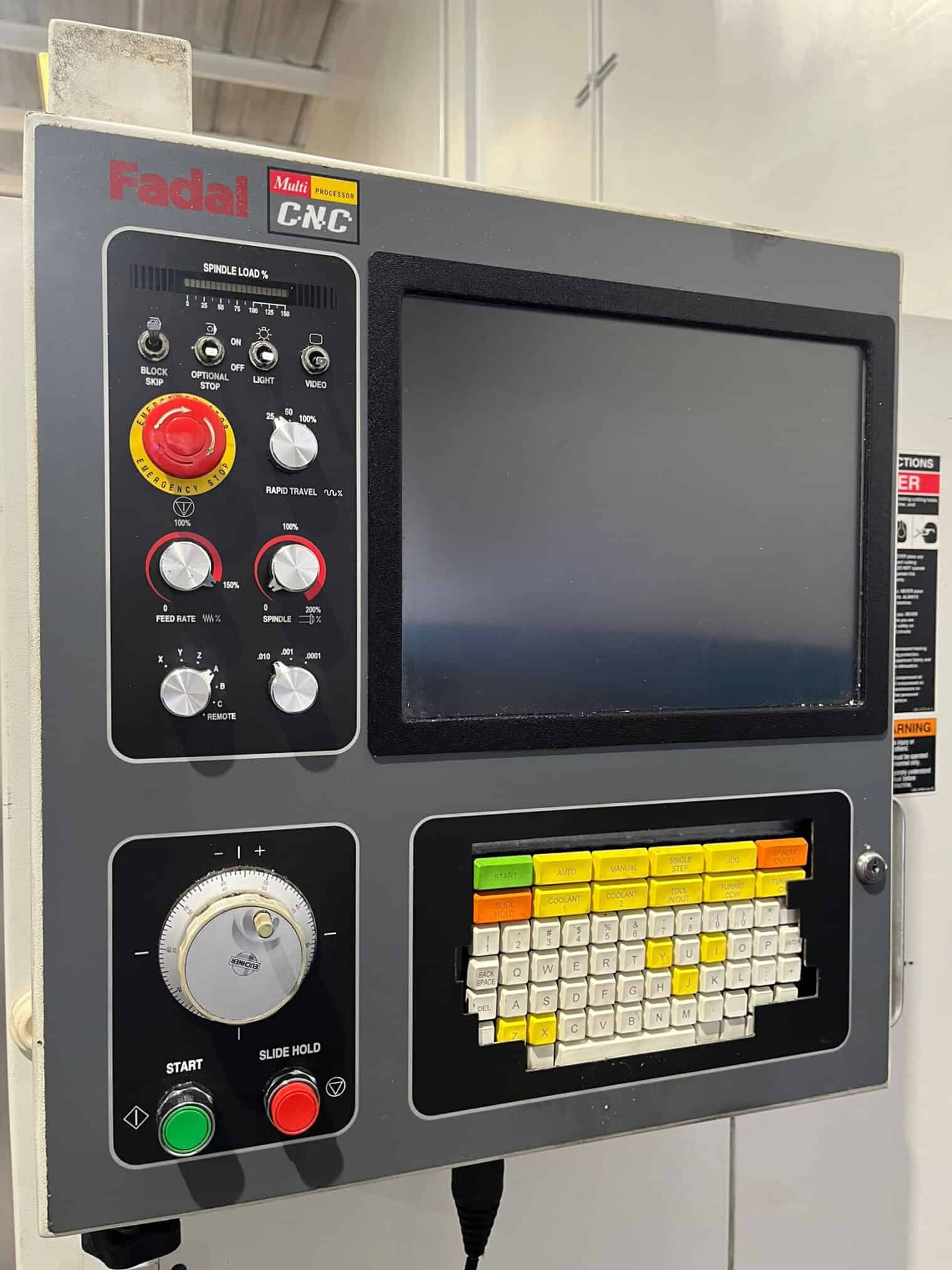

| Fadal Multi Processor CNC Control |
| Box Way construction |
| 4th Axis Ready |
| Through Spindle Coolant Ready |

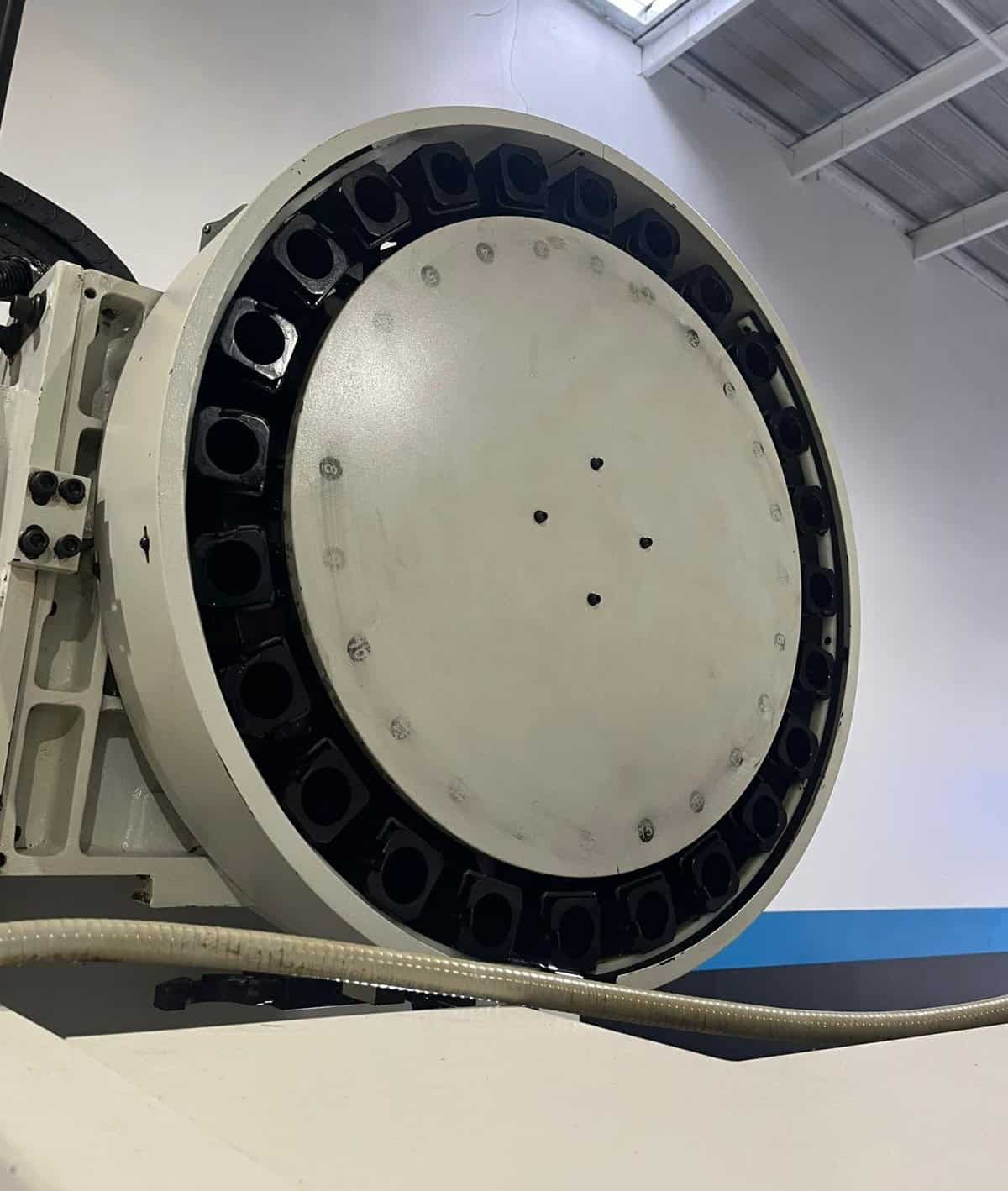

| 24 Station Automatic Tool Changer |
| 10,000 RPM High Precision Spindle |
| 30 HP High Torque Spindle Motor |
| MPG Hand Wheel Control |
| Rigid Tapping |
| Telescopic way covers |
| Coolant System |

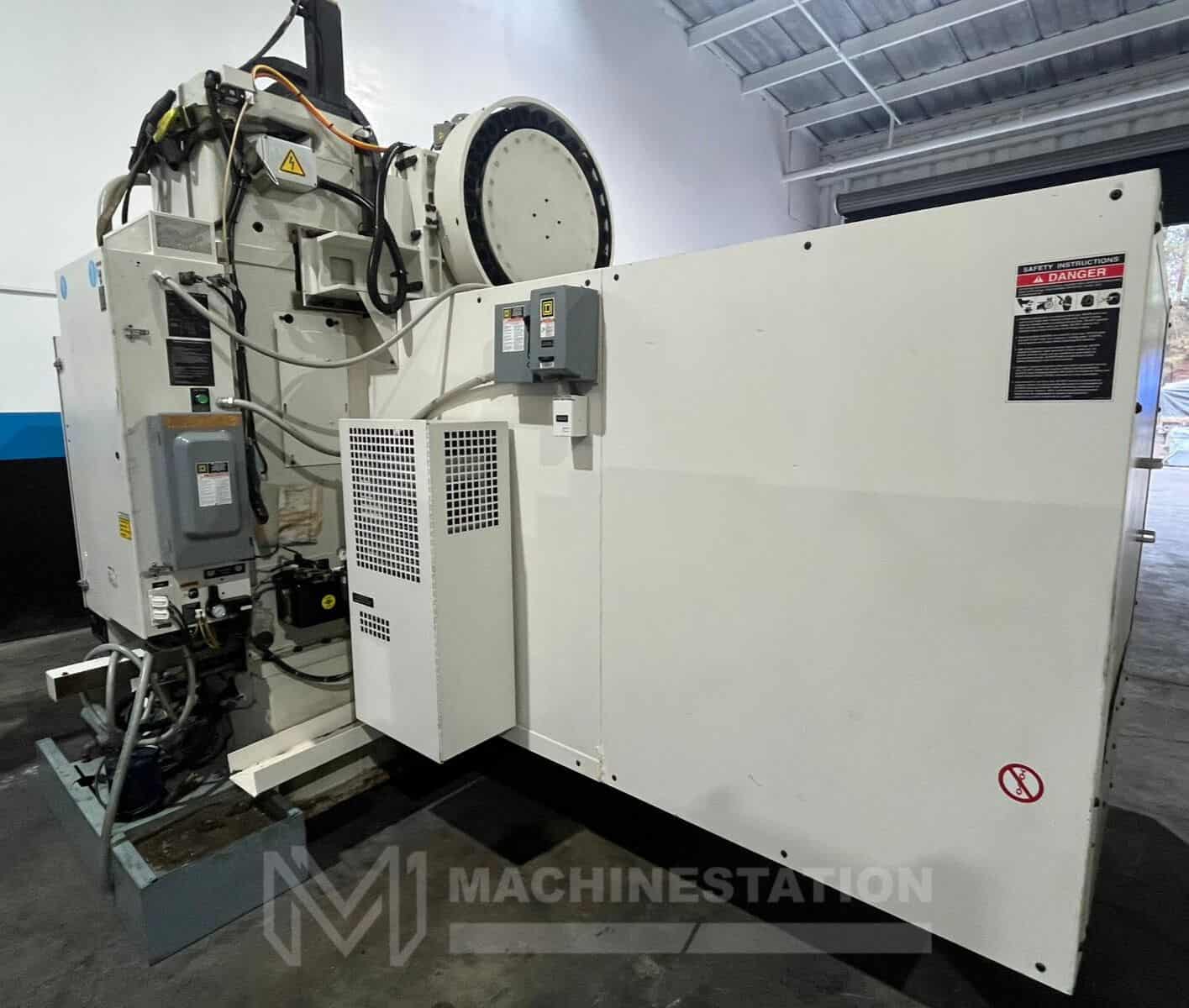

| Chiller Unit |
| Travels: |
|---|
| X-Axis: 80″ |
| Y-Axis: 30″ |
| Z-Axis: 30″ |
| Spindle Nose to Table (Min.- Max.): 5.5″ – 35.5″ |
| Feed rates: |
|---|
| Rapid Traverse rates X, Y & Z Axis: 400 IPM |
| Cutting Feedrate: 250 IPM |

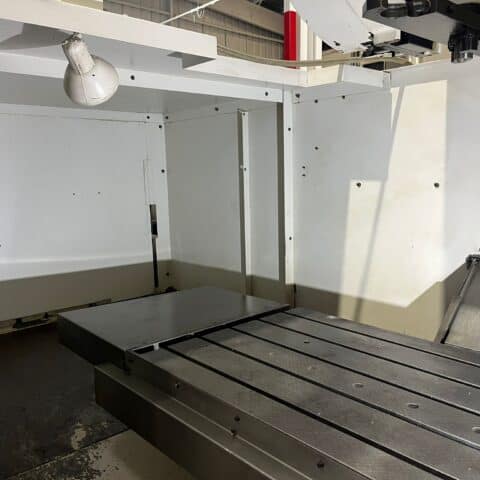

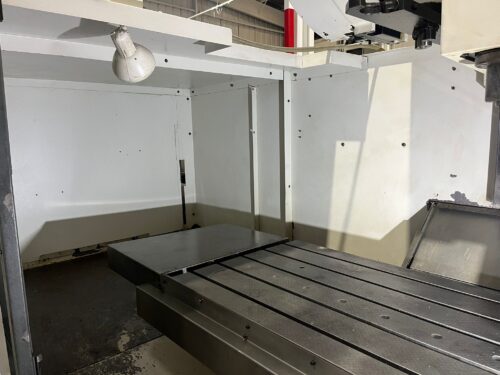

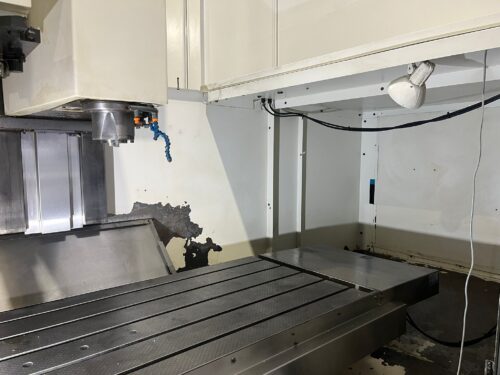

| Table: |
|---|
| Length: 82.5″ |
| Width: 30″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 3751 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10,000 RPM |
| Spindle Power: 30 HP |

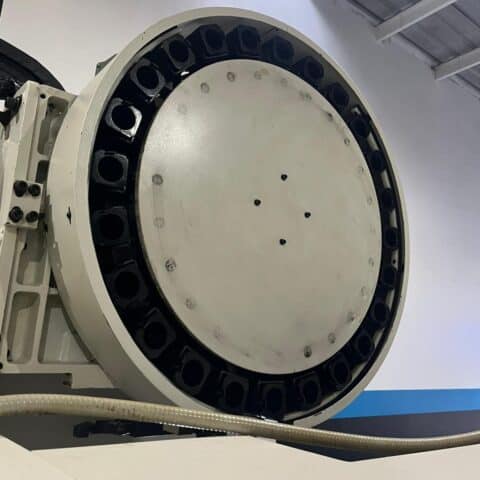

| Automatic Tool Changer: |
|---|
| Capacity: 24 Tools |
| Max Tool Weight: 15 lbs |
| Max Tool Dia: 6.0″ |
| Max Tool Length: 15.0″ |

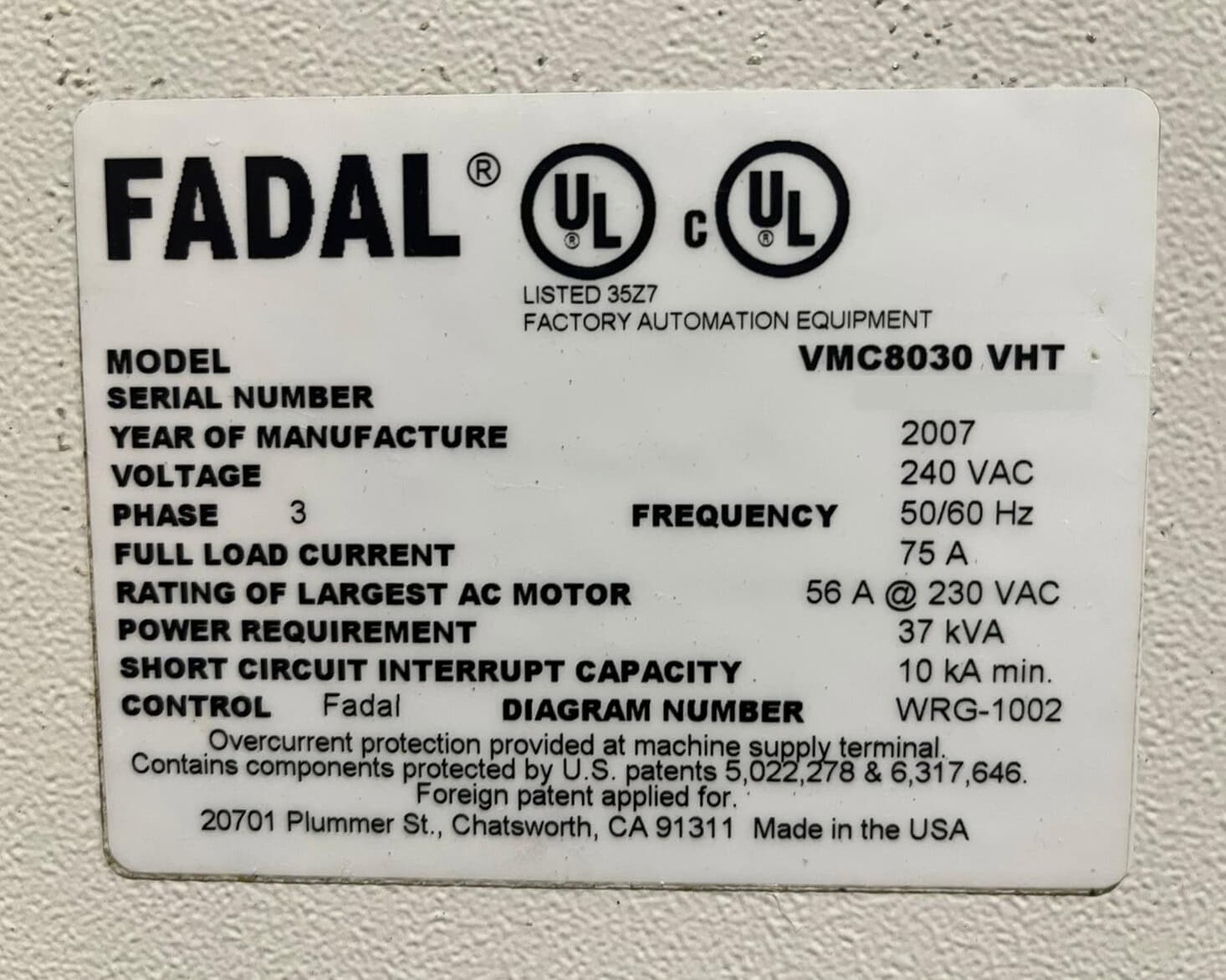

| General: |
|---|
| Air Required: 80 psi, 4 scfm |

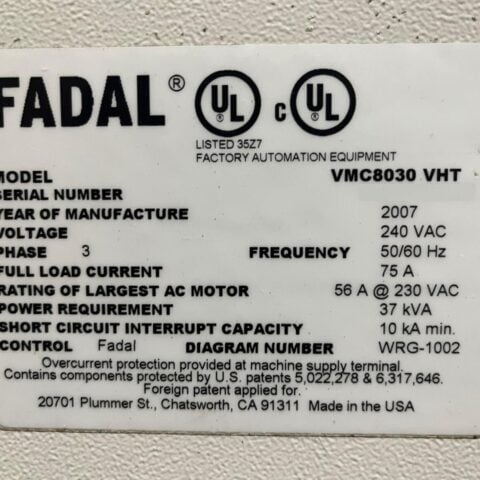

| Power: 240v / 3-Phase / 60 Hz / 37 Kva |
| Overall Dimensions: 218″ x 1118″ x 132″ High Approx. |
| Weight: 18,000 lbs Approx. |
| Make | |
|---|---|
| Model | VMC8030 VHT |
| Categories | Vertical Machining Center |
