Fanuc Robodrill α-D21LiA5 CNC Vertical Machining Center – Pallet Changer – 2014
Out of stock
| SKU: | 11205 |
| Make/Model: | Fanuc Robodrill α-D21LiA5 |
| Year: | 2014 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Fanuc |
| Model No.: | Robodrill α-D21LiA5 |
| Year of Manufacture: | 2014 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center (Drill & Tap) |
| CNC Control: | Fanuc Series 31i-Model B5 CNC Control |
| Equipped With: |
|---|
| Fanuc 31i CNC Control |

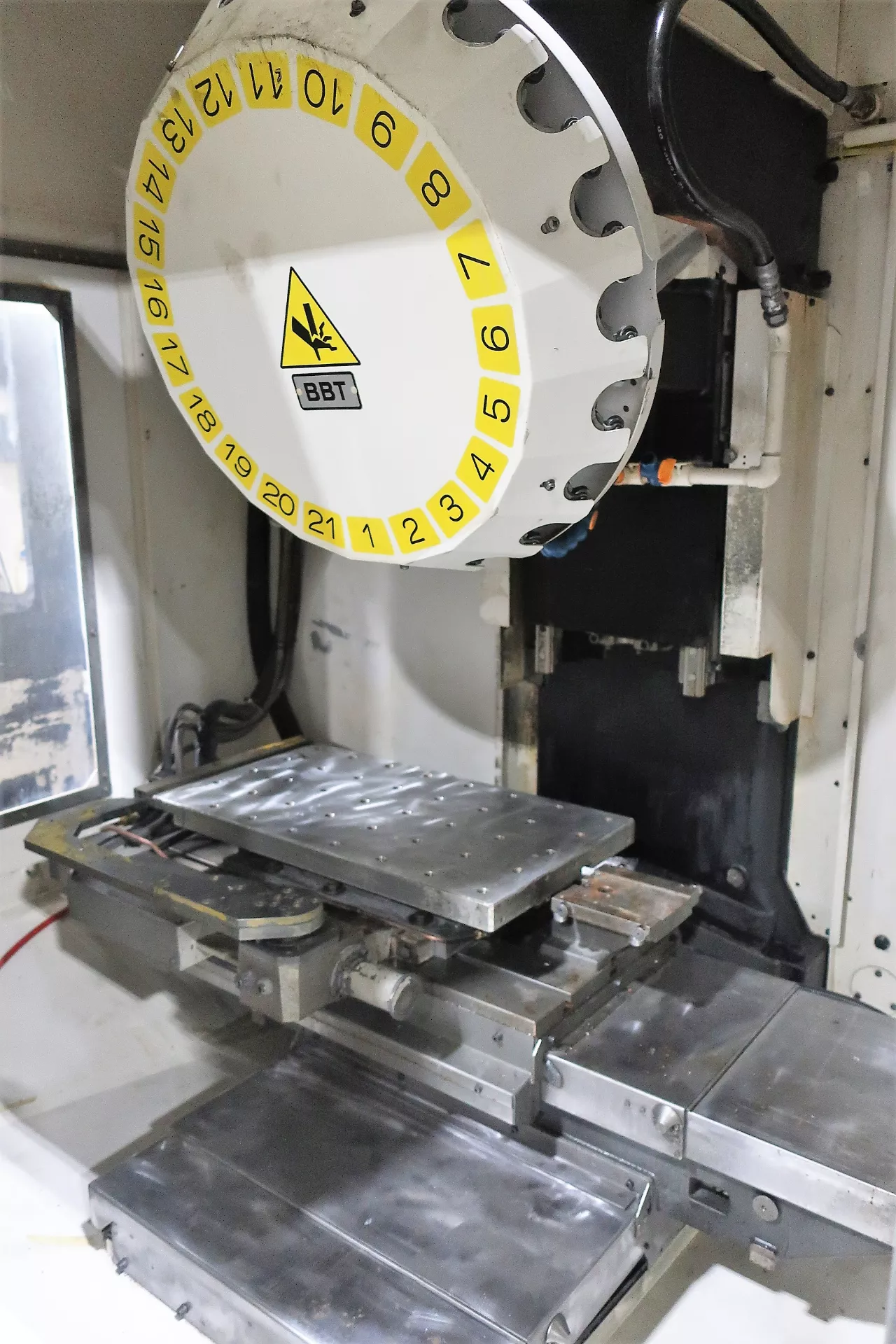

| A-B Pallet Shuttle System (2-Pallet Changer) |
| High-Speed BT30 Spindle |
| 21-Position Automatic Tool Changer |
| Chip Conveyor |
| Coolant System |
| Electrical Transformer |
| Rigid Tapping |
| High-Speed Machining Package |
| Manual Pulse Generator (Handwheel) |
| Capacity: |
|---|
| Table Size: 33.5″ × 16.1″ |
| Maximum Table Load: 661 lbs |
| Number of Pallets: 2 (A/B Shuttle System) |
| Travels: |
|---|
| X-Axis Travel: 27.5″ |
| Y-Axis Travel: 15.75″ |
| Z-Axis Travel: 12.99″ |
| Spindle: |
|---|
| Spindle Taper: BT30 |
| Spindle Speed: 10,000 RPM |
| Spindle Type: High-Speed Direct Drive |
| Tooling: |
|---|
| Tool Capacity: 21 ATC |
| Tool Change Time: 0.9 – 1.6 sec |
| Tool Type: BT30 |
| Feed Rates: |
|---|
| Rapid Traverse: 2,125 IPM |
| Cutting Feedrate: Programmable |
| Electrical: |
|---|
| Voltage: 200 – 220 V |
| Phase: 3-Phase |
| Frequency: 50/60 Hz |
| Power Requirement: 11 kVA |
| General: |
|---|
| Machine Dimensions: Approx. 110″ × 80″ × 96″ |
| Machine Weight: Approx. 6,000 lbs |
| Features: |
|---|
| High-speed drill & tap center with ultra-fast tool changes |
| The dual pallet system increases productivity and reduces downtime |
| Compact footprint with excellent machining efficiency |
| Reliable Fanuc 31i control for precision and ease of use |
| Ideal for high-volume production and small precision components |
| BT30 spindle optimized for high-speed machining applications |
