*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

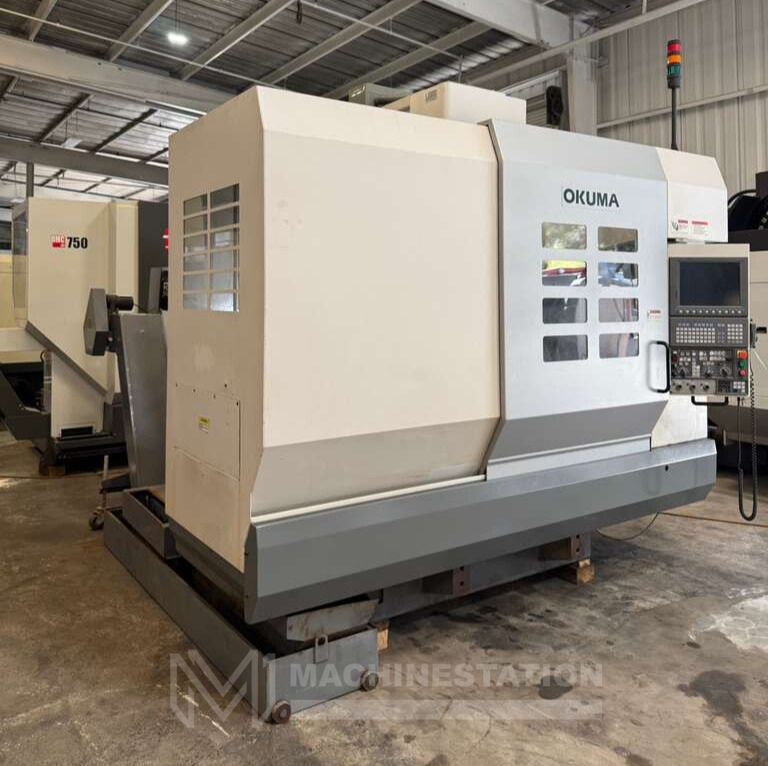

| Make: | Okuma |
| Model: | MC-V4020 |
| Year: | 2009 |

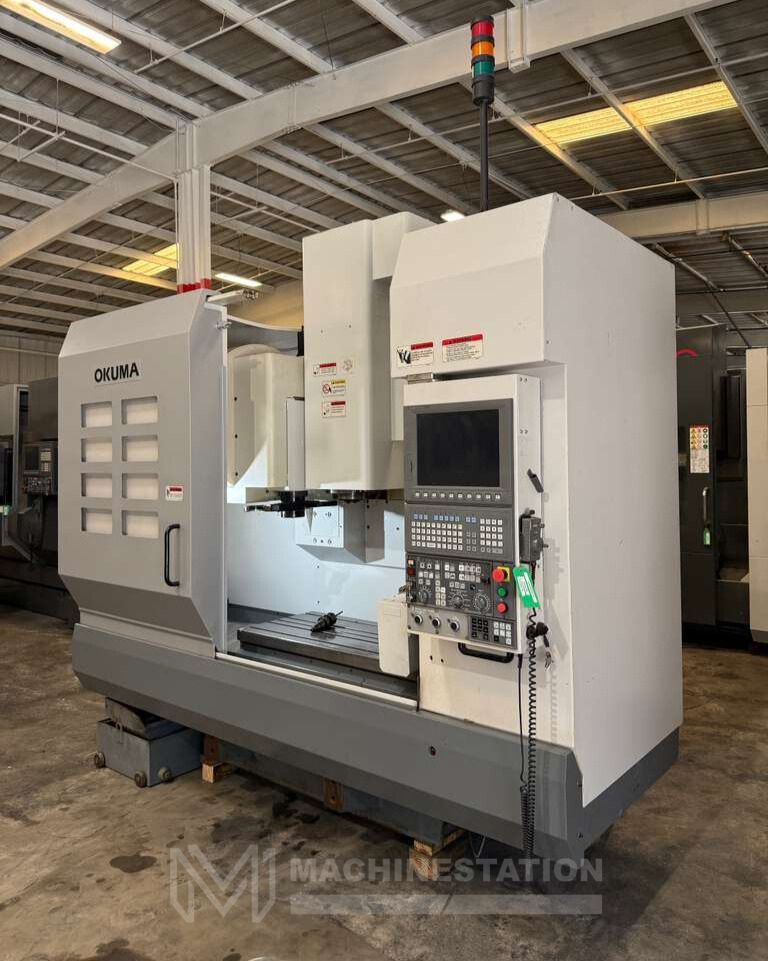

| Machine Type: | CNC Vertical Machining Center |

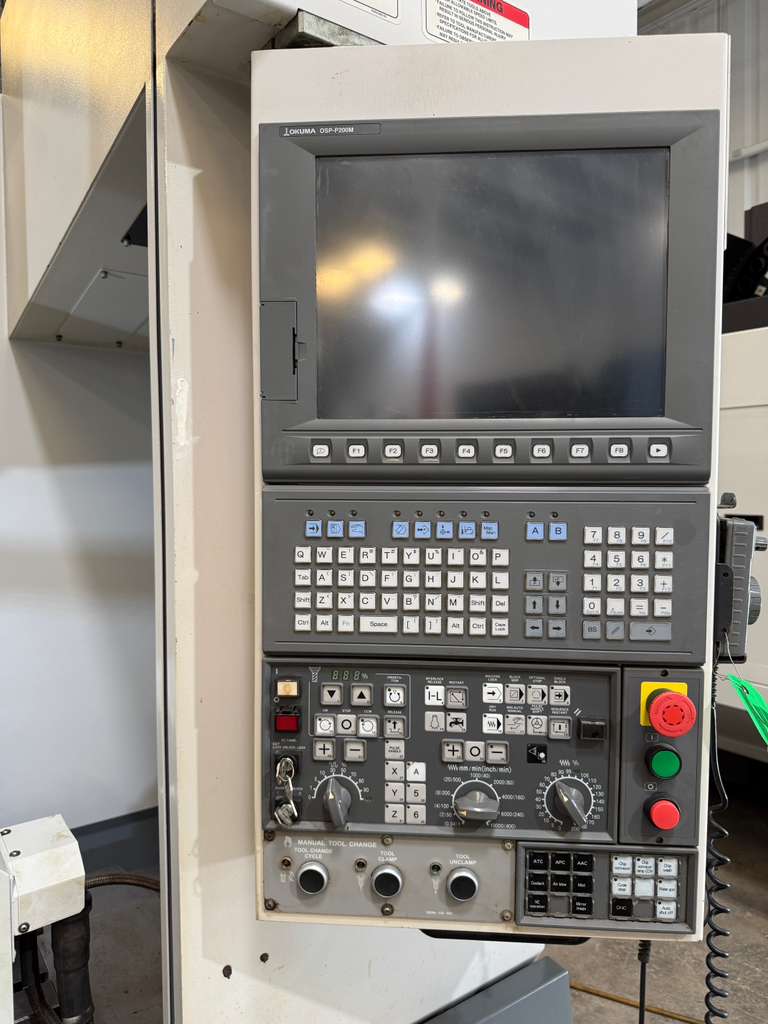

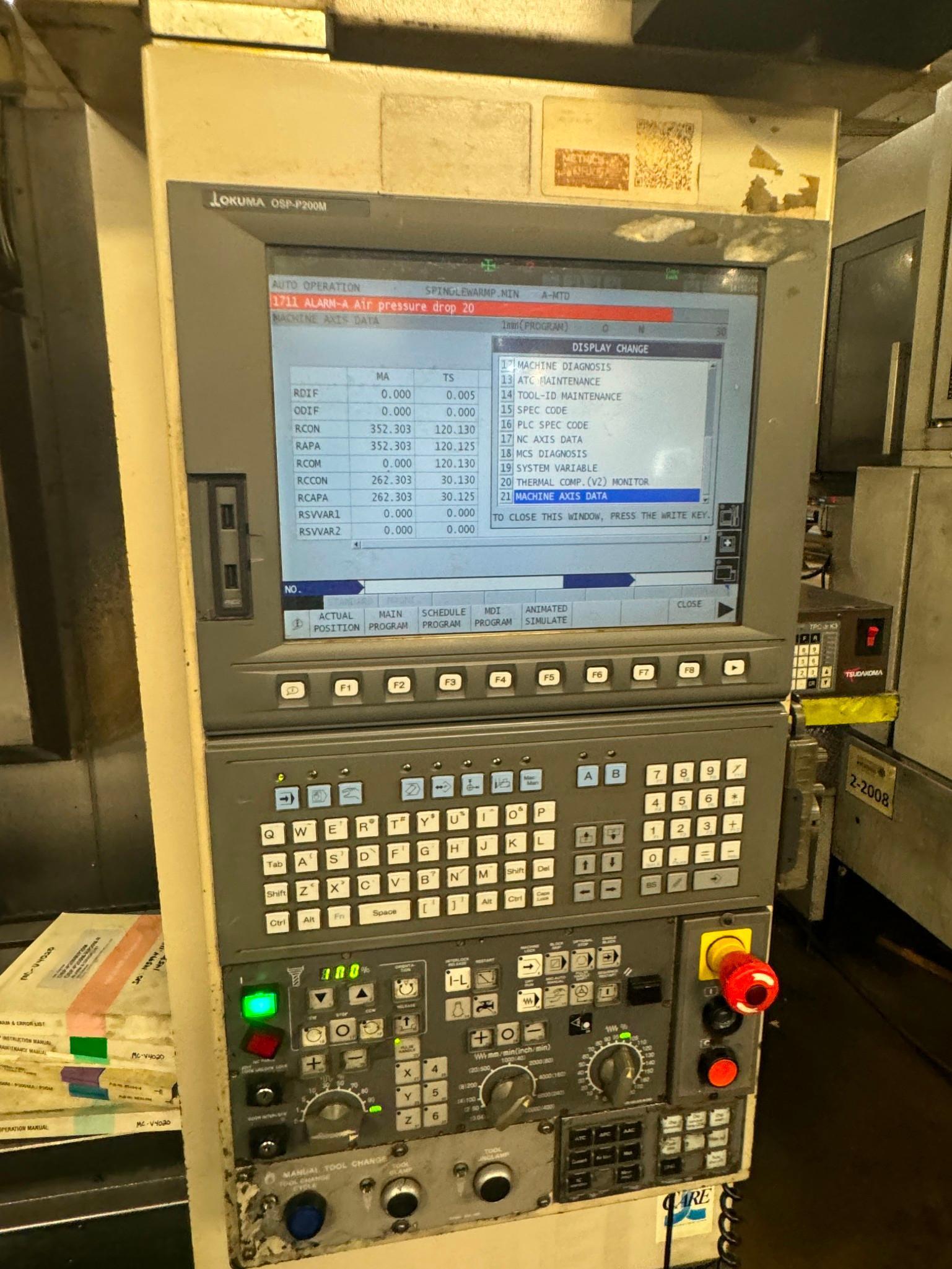

| CNC Control: | Okuma OSP-P200M |
| Features: |
|---|
| Okuma OSP-P200M CNC Control |
| 32-Station Automatic Tool Changer |
| CAT 40 Spindle Taper |

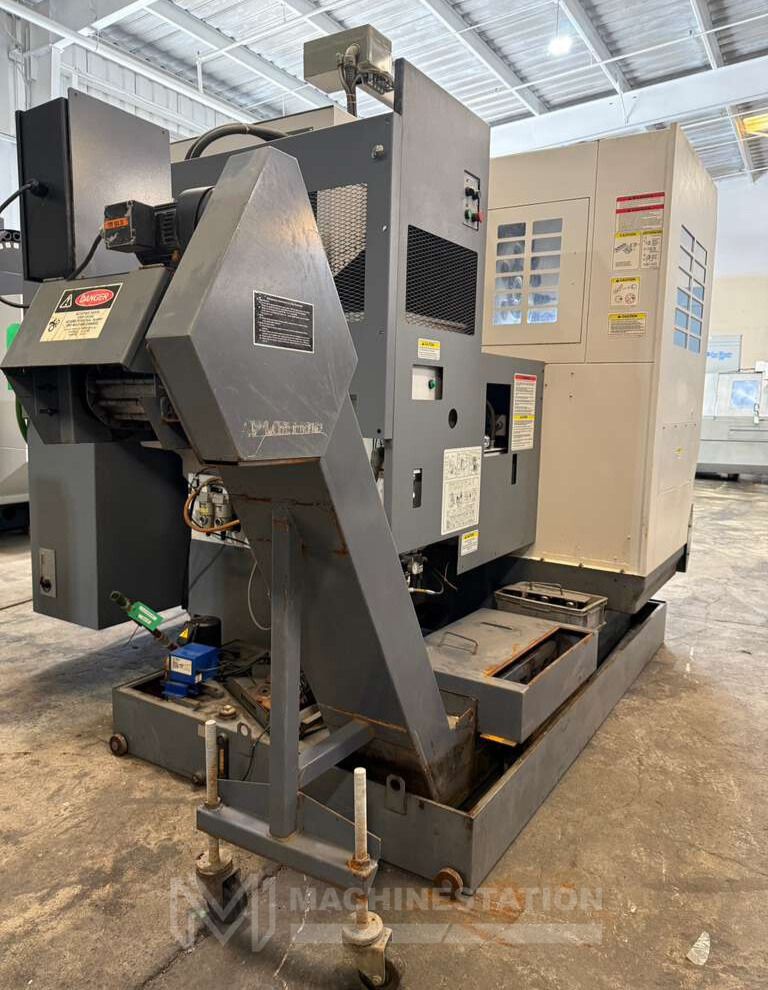

| Chip Conveyor |
| Coolant System |
| Full Enclosure |

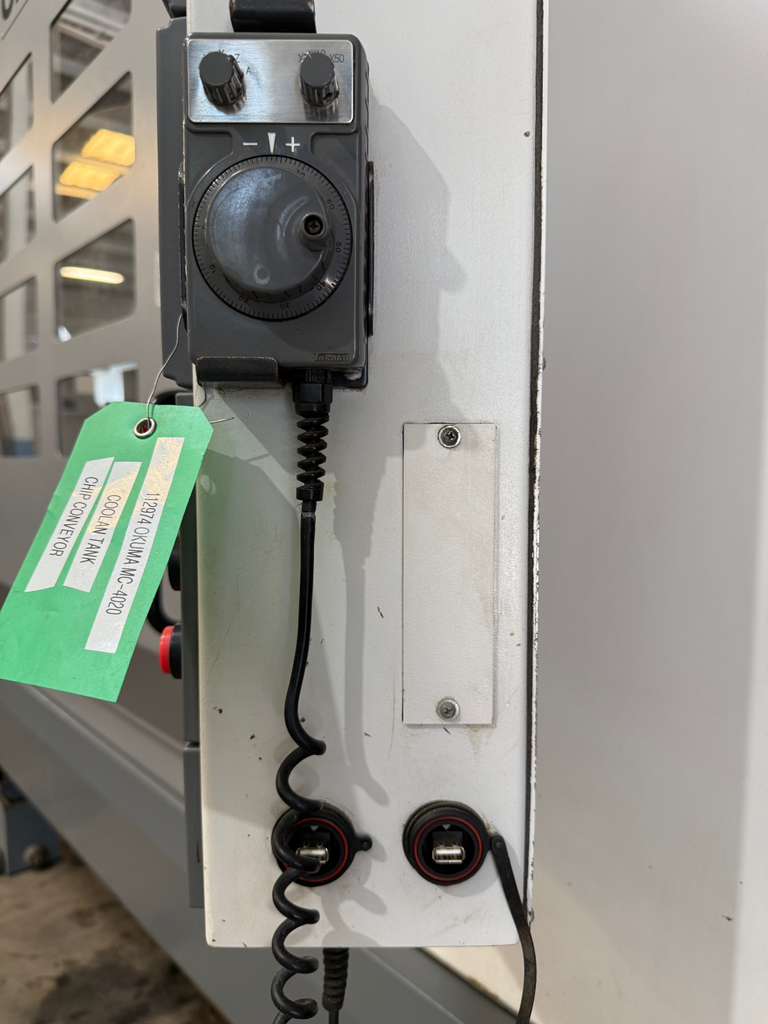

| Manual Pulse Generator |
| Capacity: |
|---|

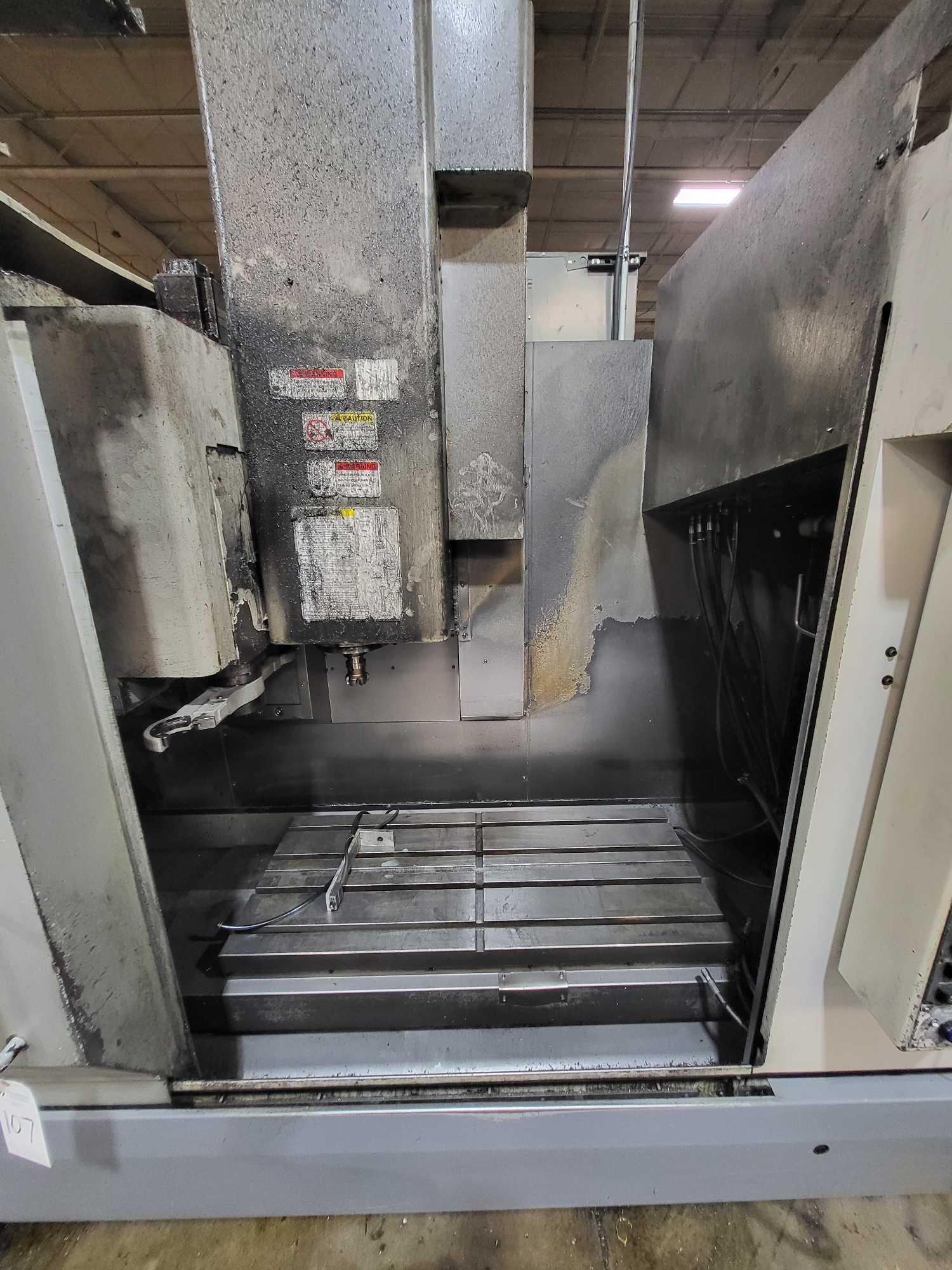

| Table Size: 48″ × 20″ |
| Maximum Table Load: 1,500 lbs. |
| Spindle Nose to Table: 6.3″–24″ |
| Travels: |
|---|
| X-Axis Travel: 40.0″ |
| Y-Axis Travel: 20.0″ |
| Z-Axis Travel: 17.72″ |
| X-Axis Rapid Rate: 1,417 IPM |
| Y-Axis Rapid Rate: 1,417 IPM |
| Z-Axis Rapid Rate: 1,191 IPM |
| Spindle: |
|---|
| Spindle Motor: 20 HP |
| Maximum Spindle Speed: 8,000 RPM |

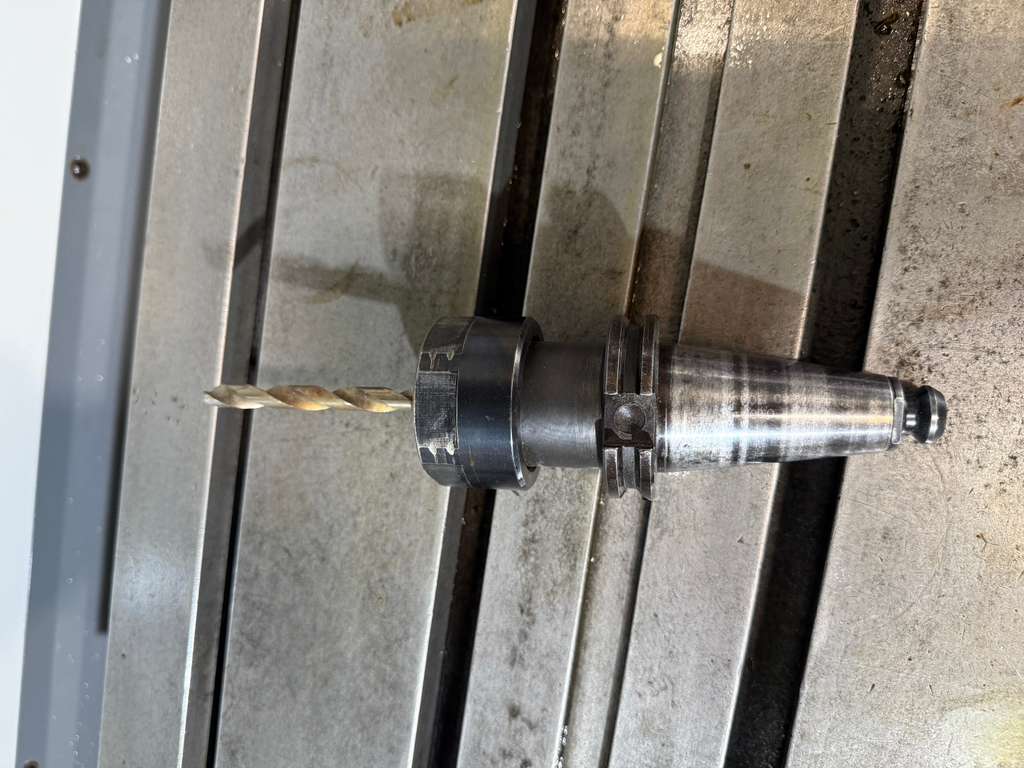

| Spindle Taper: CAT 40 |

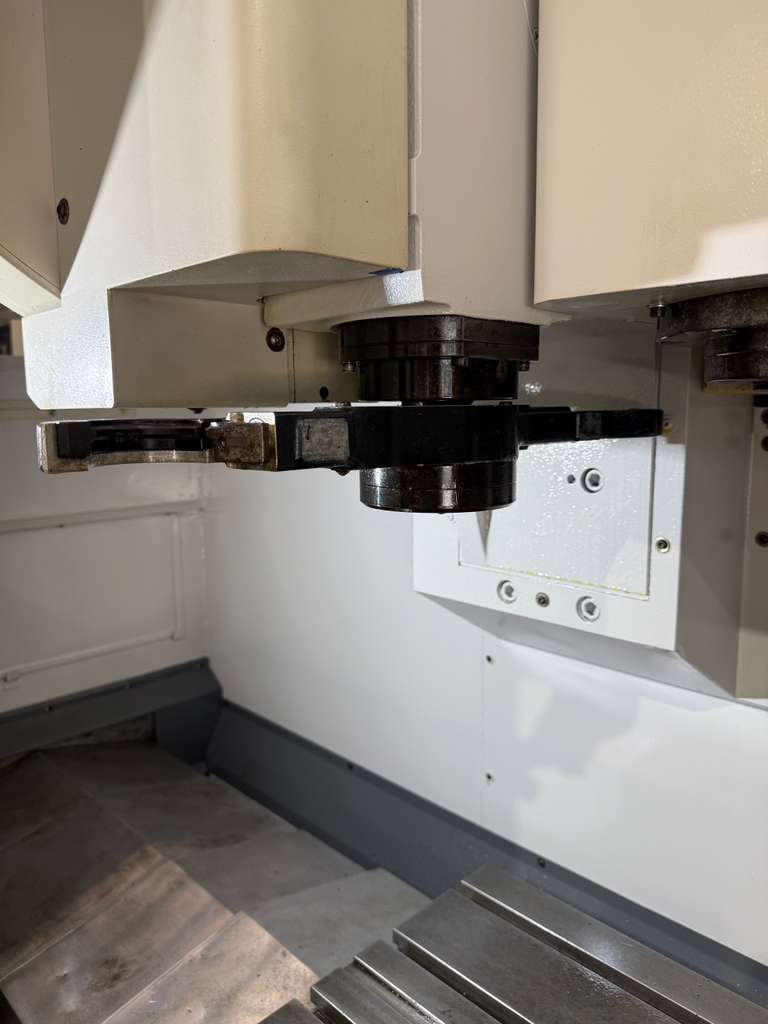

| Automatic Tool Changer: |
|---|

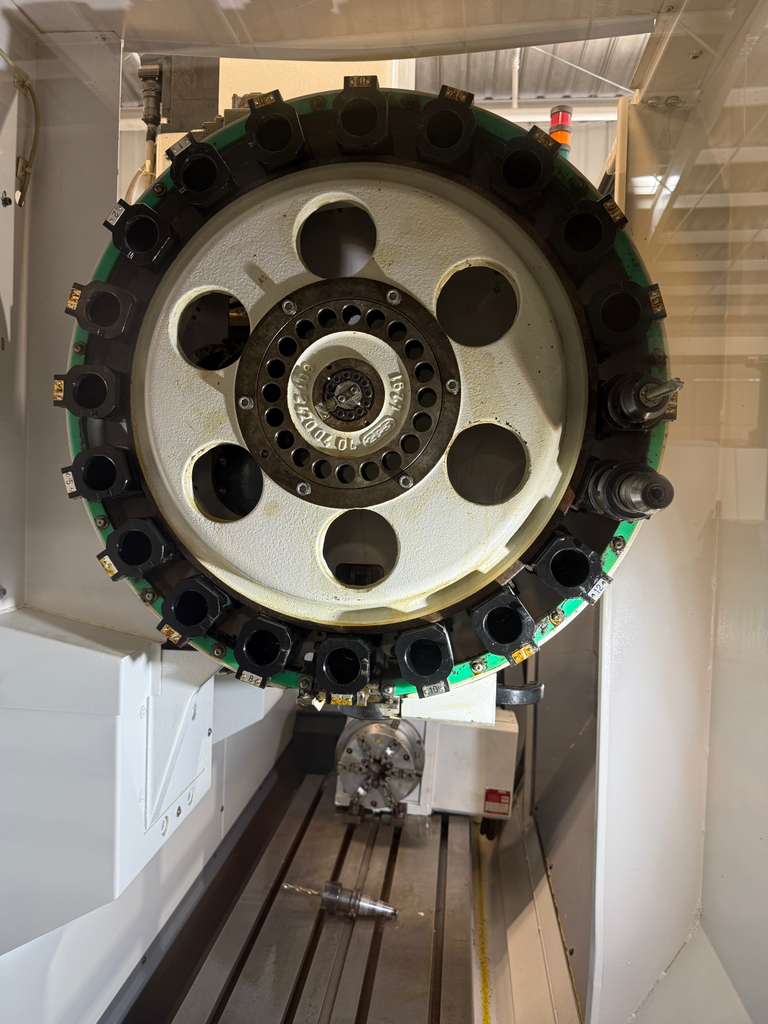

| Tool Changer Type: Automatic Swing-Arm ATC |
| Tool Changer Capacity: 32 Tools |
| Maximum Tool Weight: 17.6 lbs. |
| Maximum Tool Diameter: 3.54″–4.92″ |
| Tool Change Time: 1.5 sec. |
| General: |
|---|

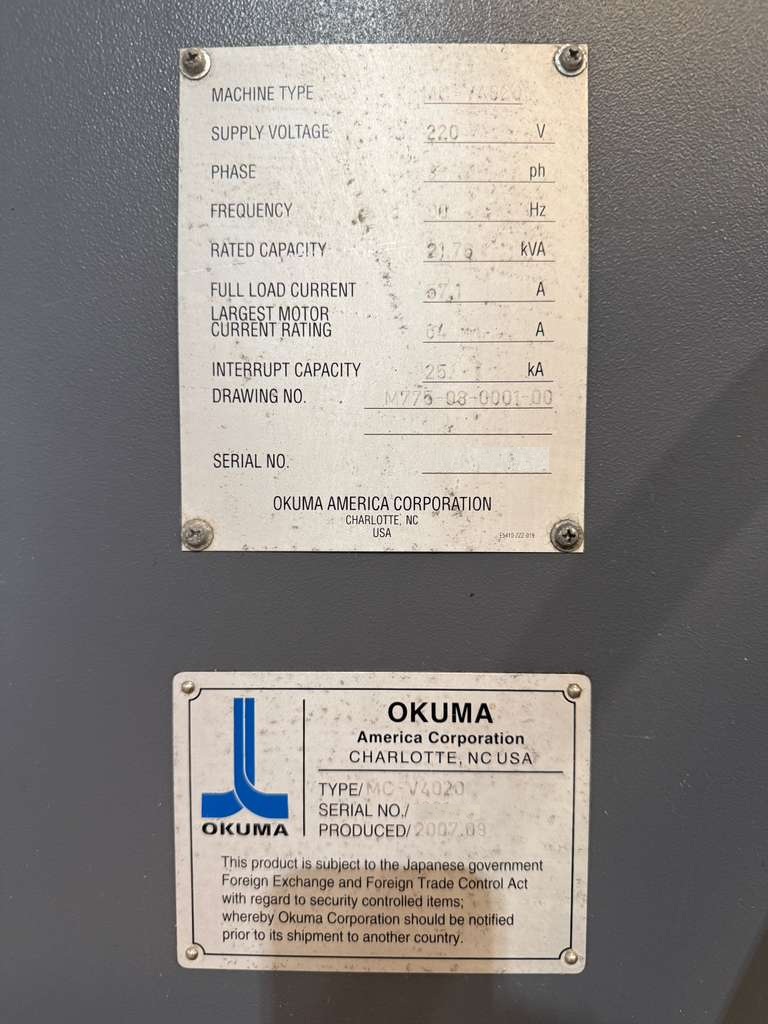

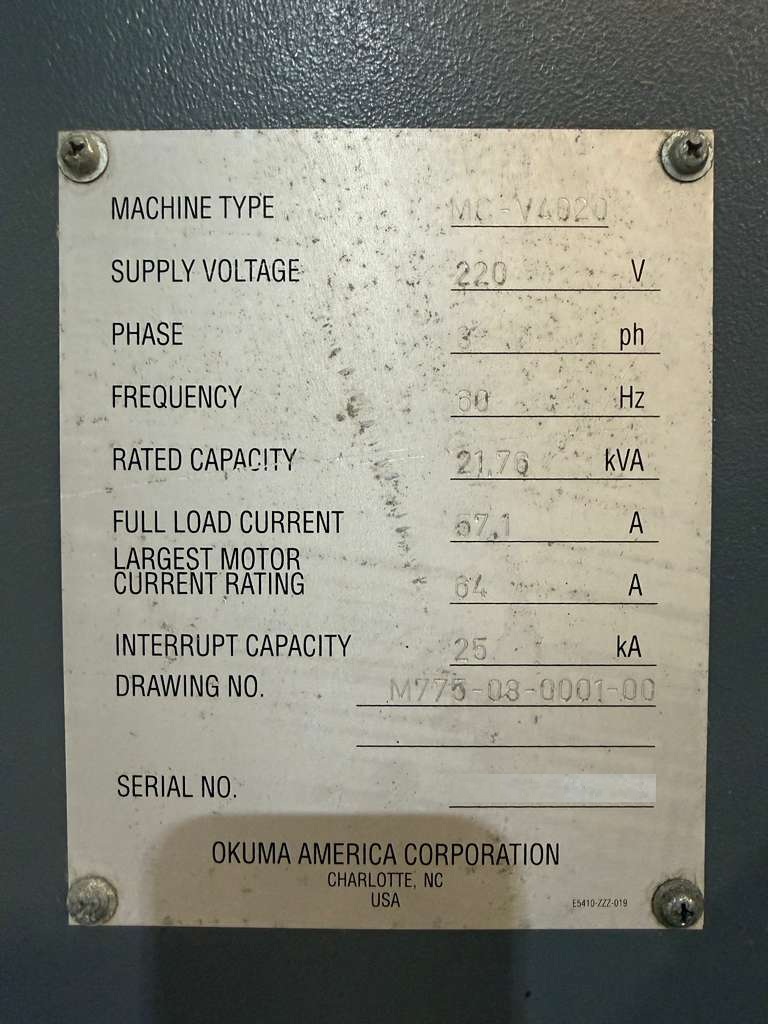

| Power Source: 220V / 3-Phase / 60 Hz |
| Machine Weight (Approx.): 15,000 lbs. |
| Machine Dimensions (Approx.): 114″ L × 111″ W × 104″ H |
