*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | FANUC |
| Model: | ROBODRILL α-D21MiB5 |
| Year: | 2021 |
| Condition: | Used – Excellent |
| Machine Type: | CNC Drill Tap Machining Center |

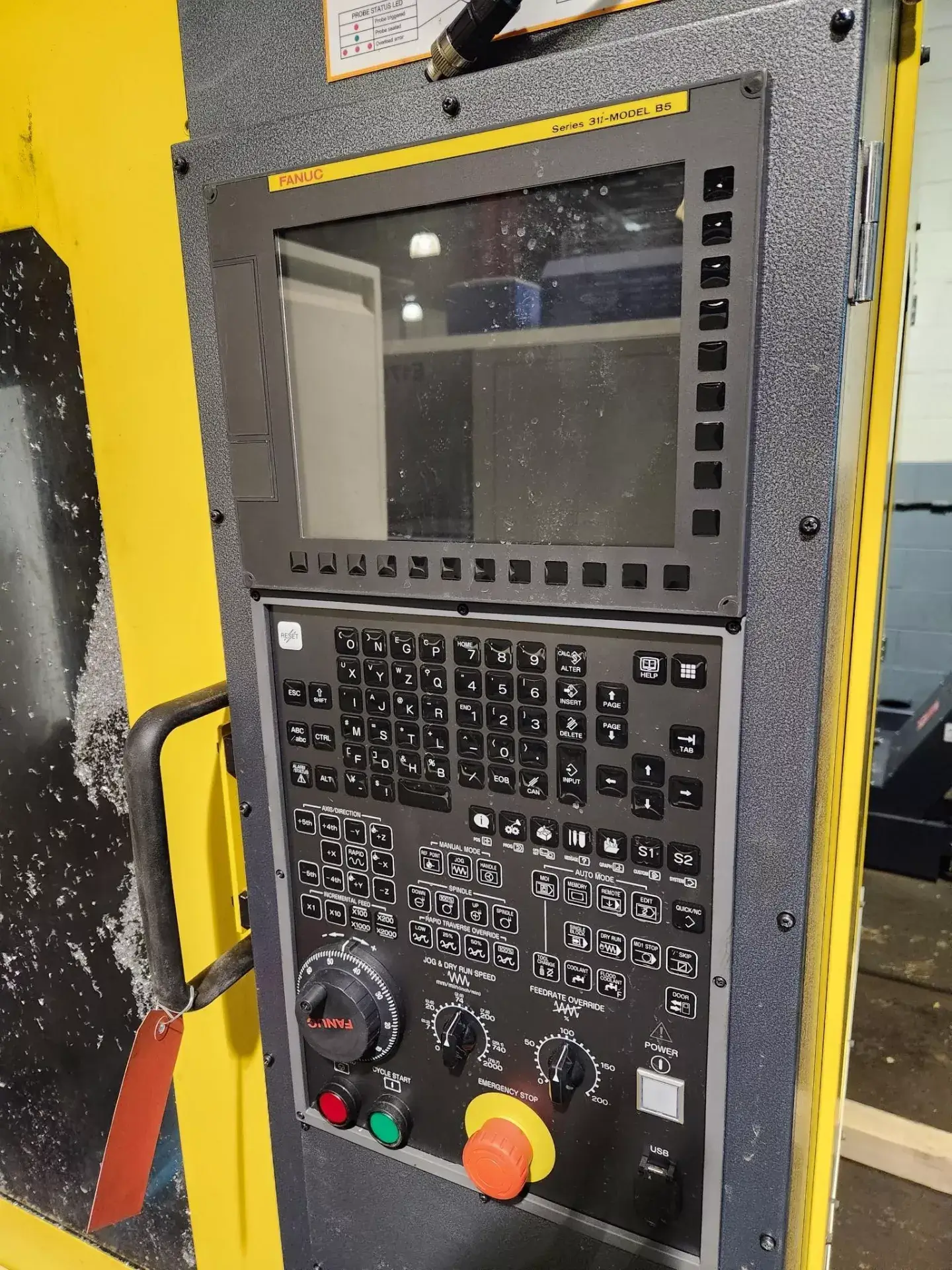

| Control: | FANUC 31i-B5 CNC Control |
| Equipped With: |
|---|
| FANUC 31i-B5 CNC Control |

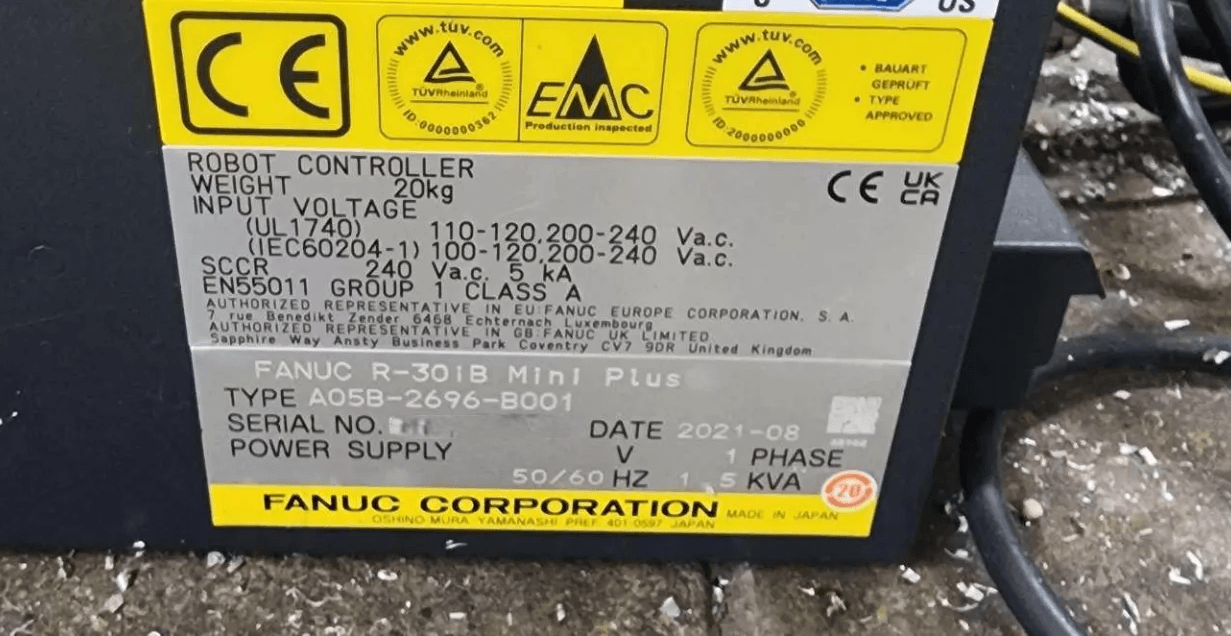

| FANUC CRX-10iA/L Collaborative Robot |

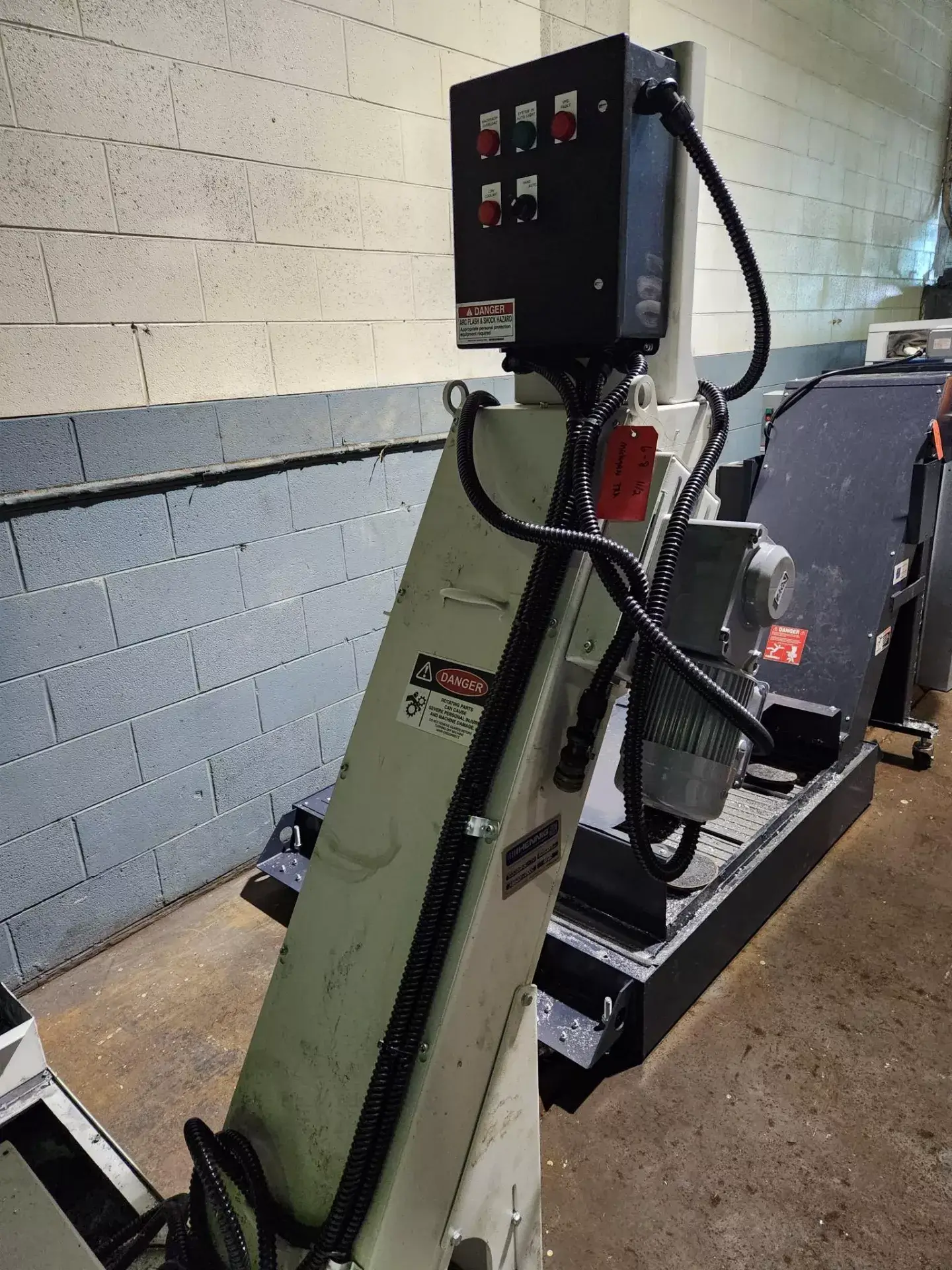

| Chip Conveyor |
| Renishaw RMP400 Probe System |
| Renishaw RTS Tool Setter |
| 227L Coolant Tank |
| Bed Flush System Mounted To Coolant Tank |
| DTTiB 4th Axis Double Torque Table |
| 110MM Column Riser |
| BT-30 Spindle |
| Fully Enclosed Splash Guard |
| Books & Manuals |
| Travels: |
|---|
| X-Axis Travel: 27.6″ Approx. |
| Y-Axis Travel: 15.7″ Approx. |
| Z-Axis Travel: 13.0″ Approx. |
| Spindle: |
|---|
| Spindle Speed: 10,000 RPM |
| Spindle Taper: BT-30 |
| Tool Changer: |
|---|
| Tool Changer Capacity: 21 Position Bi-Directional ATC |
| Coolant System: |
|---|
| Coolant Tank Capacity: 227L |
| Bed Flush Coolant System |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Made In: Japan |
