*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

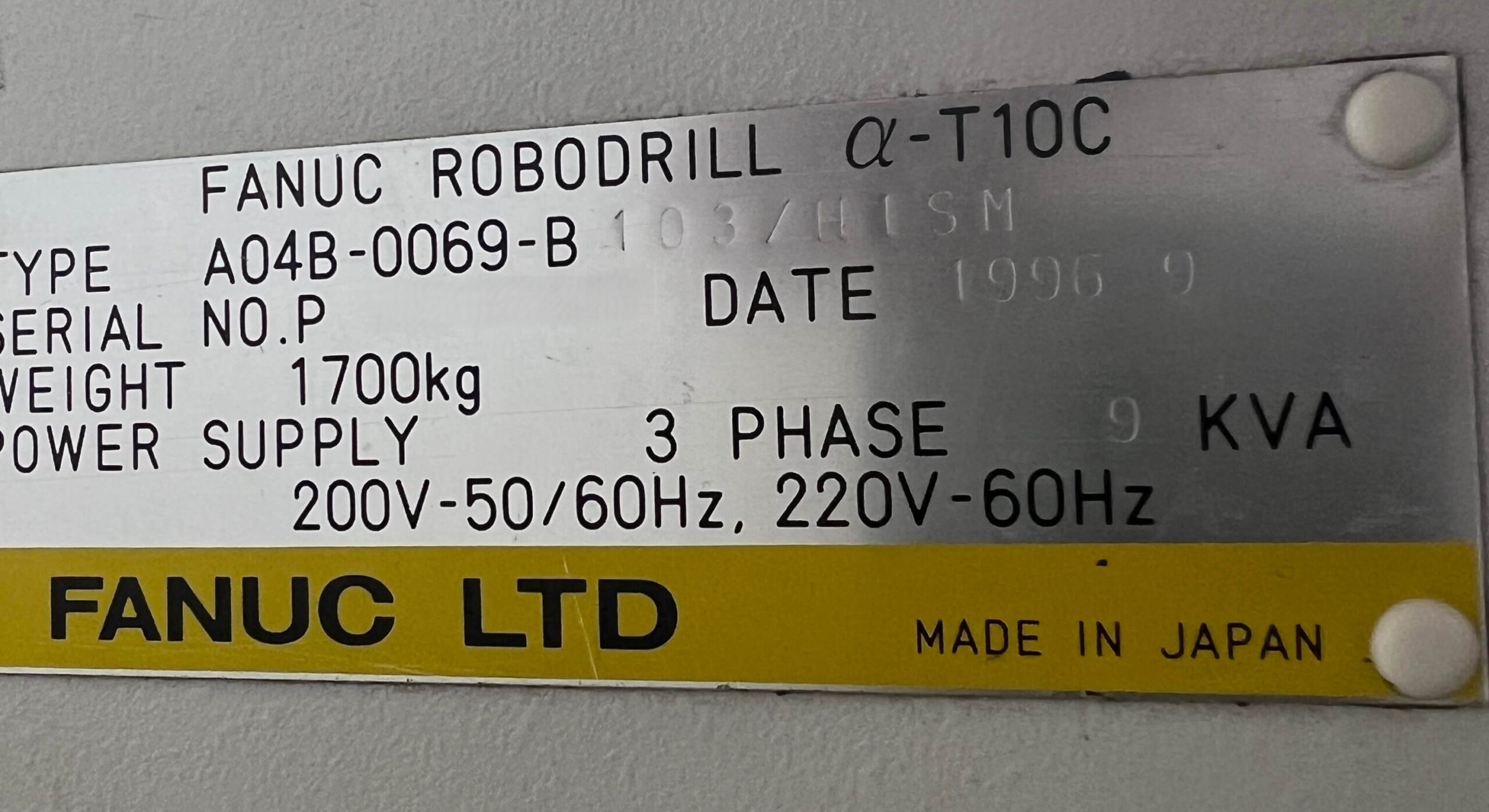

| Make: | FANUC |
| Model: | ROBODRILL α-T10C |
| Year: | 1996 |
| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | FANUC Series 16M CNC Control |
| Features: |
|---|
| FANUC Series 16M CNC Control |
| 10-Station Turret-Type Tool Changer |
| Pallet Changer |
| Manual Pulse Generator |
| Spindle Air Blast |
| Coolant Tank & Pump |
| Front Door Interlock |
| Rigid Tap |
| BT-30 Spindle |

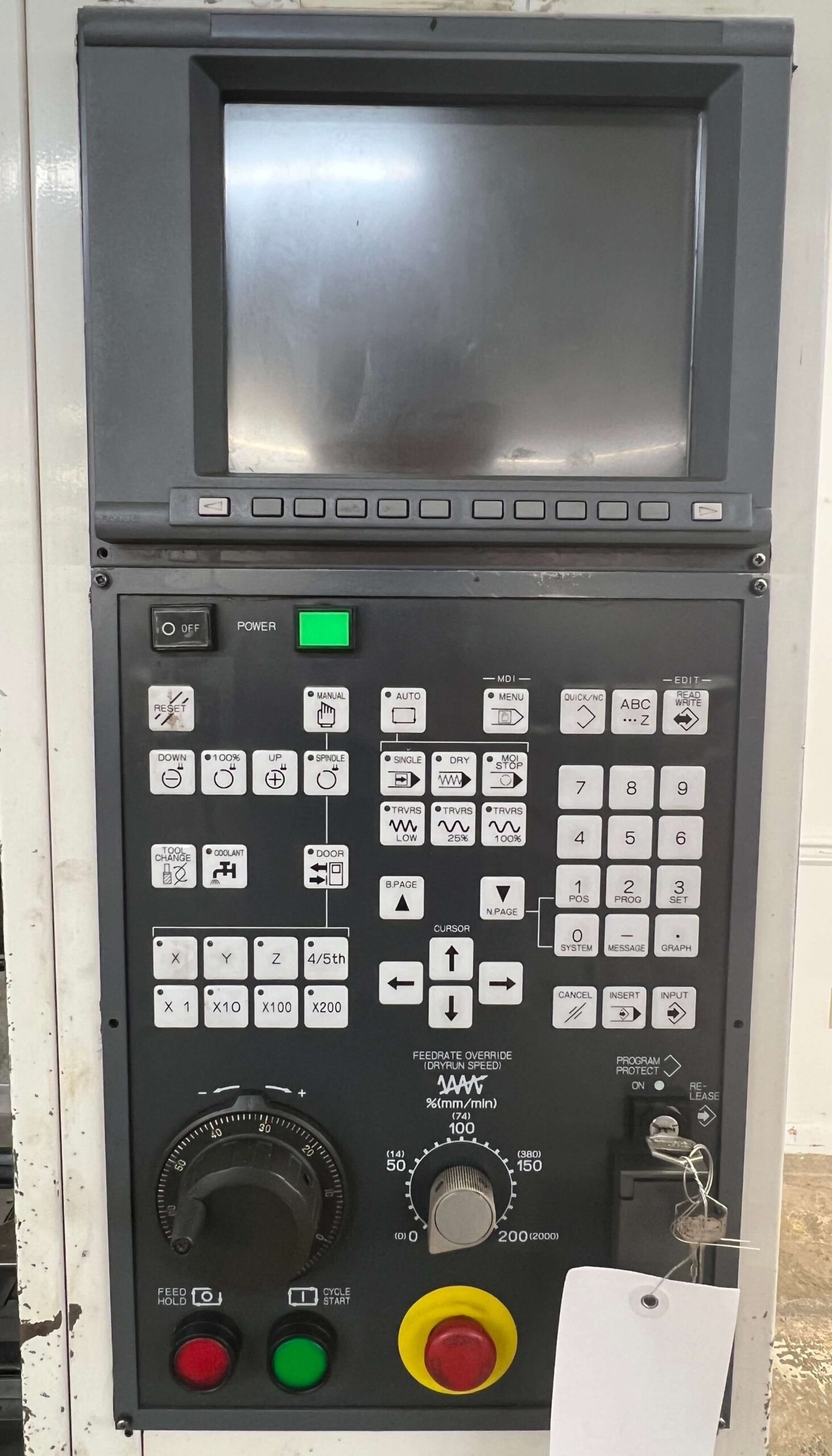

| Control Monitor & Keyboard |
| Capacity: |
|---|
| Table / Pallet Size: 25.6″ × 15.0″ |
| Table Load Capacity: 440 lbs. |
| Spindle Nose to Table: 5.9″ min. |
| Maximum Tool Length: 7.87″ |
| Maximum Tool Diameter: 3.15″ |
| Maximum Tool Weight: 6.6 lbs. |
| Travels: |
|---|
| X-Axis Travel: 19.7″ |
| Y-Axis Travel: 15.0″ |
| Z-Axis Travel: 11.8″ |
| Rapid Traverse X/Y/Z: 1,890 IPM |
| Maximum Cutting Feed Rate: 590 IPM |
| Spindle: |
|---|
| Spindle Taper: BT-30 |
| Maximum Spindle Speed: 8,000 RPM |
| Spindle Motor: 5 HP |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Turret-Type Automatic Tool Changer |
| Tool Changer Capacity: 10 Stations |
| Number of Tools: 10 |
| Tool Change Time: 1.1 sec. |
| General: |
|---|
| Power Supply: 200/220V / 3-Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 61.4″ L × 81.1″ W × 87.3″ H |
| Machine Weight (Approx.): 3,750 lbs. |
