*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

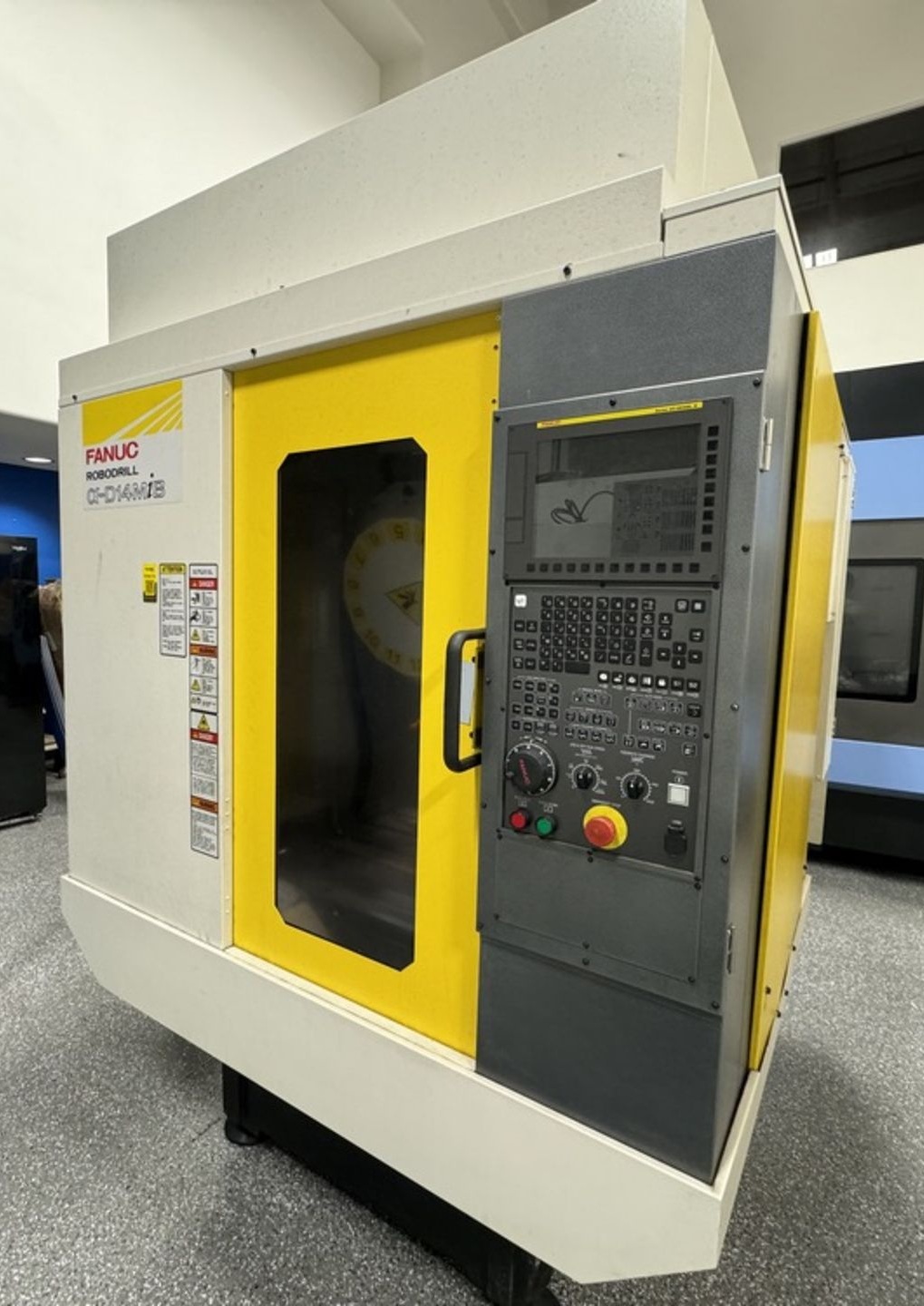

| Make: | FANUC |
| Model: | Robodrill A-D14MiB |
| Year: | 2021 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |
| Country of Origin: | Japan |
| Features: |
|---|
- High-Speed Compact Vertical Machining Center
- Ultra-Fast Tool Change & High Acceleration
- Rigid Tapping
- High-Speed Built-In Spindle
- Thermally Stable Machine Design
- Linear Guideways on All Axes
- Energy-Efficient Servo System
- Fully Enclosed Machining Area
- Compact Footprint for High Productivity
|
| Travels: |
|---|
- X-Axis Travel: 19.7″
- Y-Axis Travel: 15.7″
- Z-Axis Travel: 13.0″
- Spindle Nose to Table: 7.9″ – 20.9″
|
| Table: |
|---|
- Table Size: 25.6″ × 15.7″
- Max Table Load: 660 lbs
- T-Slots: 3 × 0.55″
|
| Spindle: |
|---|
- Spindle Taper: BT30
- Spindle Speed: 10,000 RPM (24,000 RPM Optional)
- Spindle Motor: 14 HP
- High-Speed Built-In Spindle
- Spindle Cooling System
|
| Feedrates: |
|---|
- Rapid Traverse X / Y / Z: 2,126 IPM
- Max Cutting Feedrate: 1,260 IPM
- High Acceleration: 1.5G
- High-Speed Precision Servo Drives
|
| Automatic Tool Changer: |
|---|
- Tool Magazine Type: Carousel
- Tool Capacity: 21 Tools
- Tool-to-Tool Time: 0.7 sec
- Chip-to-Chip Time: 1.6 sec
- Max Tool Diameter: 3.1″ (Adjacent) / 4.7″ (No Adjacent)
- Max Tool Length: 9.8″
- Max Tool Weight: 8.8 lbs
|
| Coolant System: |
|---|
- Flood Coolant System
- Through-Spindle Coolant: Optional
- Coolant Tank Capacity: 50 Gallons
- Coolant Gun & Air Gun
|
| Chip Management: |
|---|
- Chip Pan System
- Side Chip Discharge
- Mist Collector (Optional)
|
| CNC Control: |
|---|
- FANUC 31i-B5 CNC Control
- 15″ Color LCD Display
- High-Speed Look-Ahead
- Simultaneous 4-Axis Control (Optional)
- Ethernet, USB & Memory Card Interfaces
- Advanced High-Speed Machining Functions
|

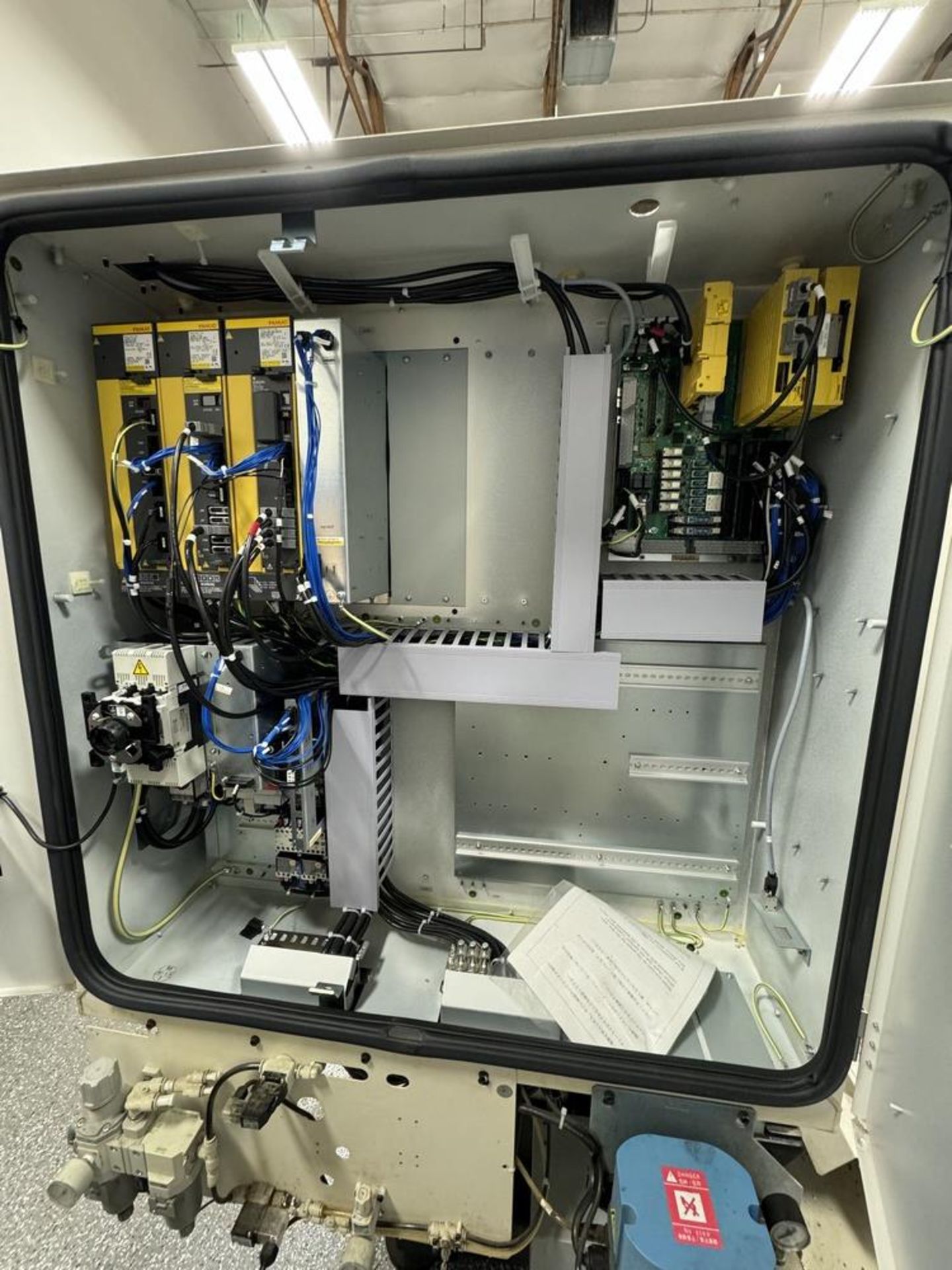

| Electrical & General: |
|---|
- Power Supply: AC 200–220V / 3-Phase / 50–60 Hz
- Connected Load: Approx. 18 kVA
- Machine Dimensions: 85″ L × 61″ W × 92.5″ H
- Machine Weight: Approx. 4,850 lbs
|
