*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Fanuc |
| Model: | Robodrill Alpha T21iFL A5 |
| Year: | 2010 |
| Features: |
|---|
| Fanuc Series 31i-A5 CNC Control |

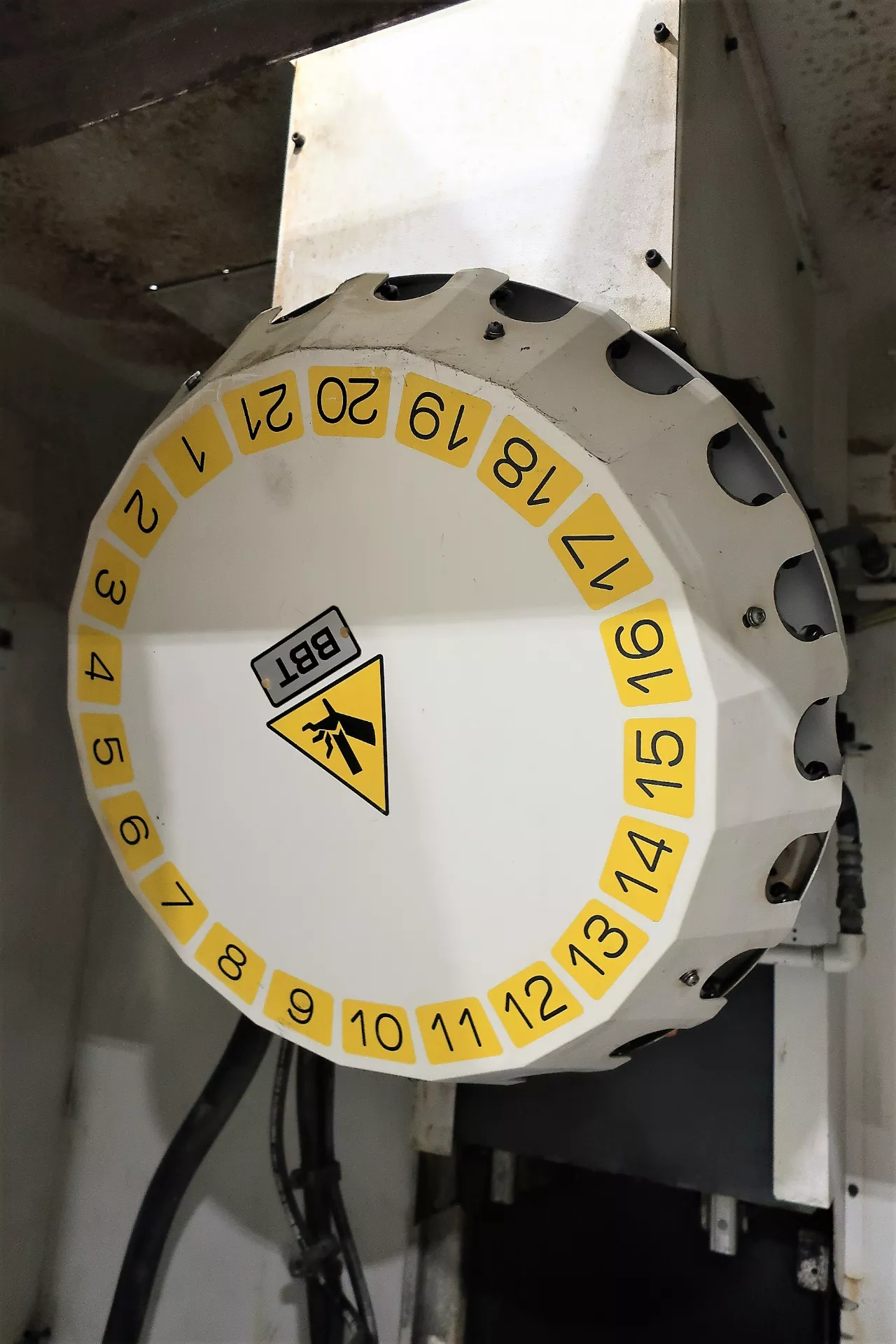

| 21-Position Automatic Tool Changer |
| A-B Pallet Shuttle Unit |
| 10,000 RPM BT30 Spindle |

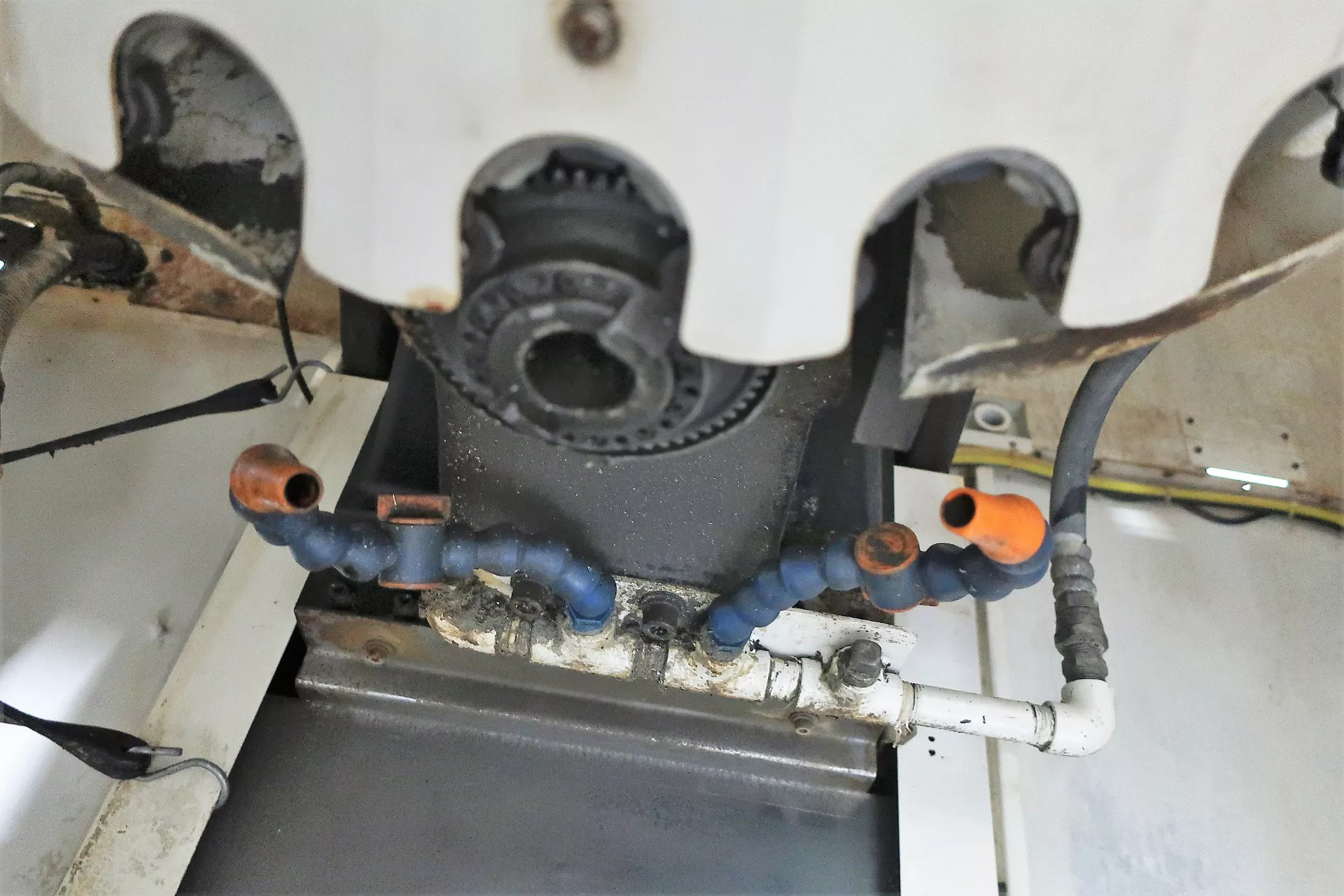

| Coolant System |
| High-Speed Rapid Traverse |
| Full Machine Enclosure |
| TRAVELS: |
|---|
| X-Axis Travel: 27.5″ |
| Y-Axis Travel: 15.75″ |
| Z-Axis Travel: 12.99″ |
| Rapid Traverse Rate: 2,125 IPM |
| TABLE: |
|---|
| Table Size: 33.5″ x 16.1″ |

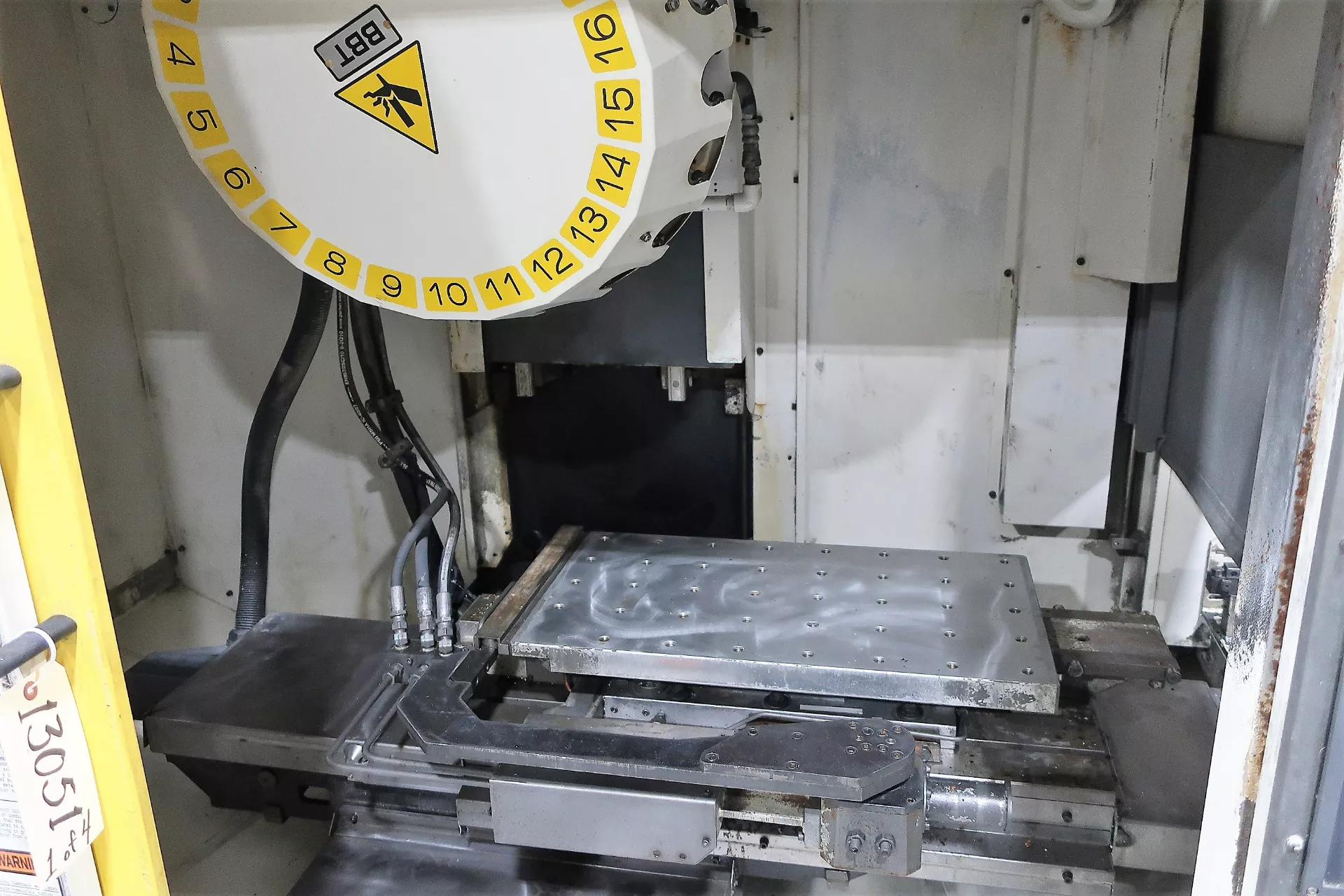

| A-B Pallet Shuttle System |
| SPINDLE: |
|---|
| Spindle Speed: 10,000 RPM |
| Spindle Taper: BT30 |
| AUTOMATIC TOOL CHANGER: |
|---|
| Tool Capacity: 21 Tools |
| Tool Change Time: 0.9 Seconds |

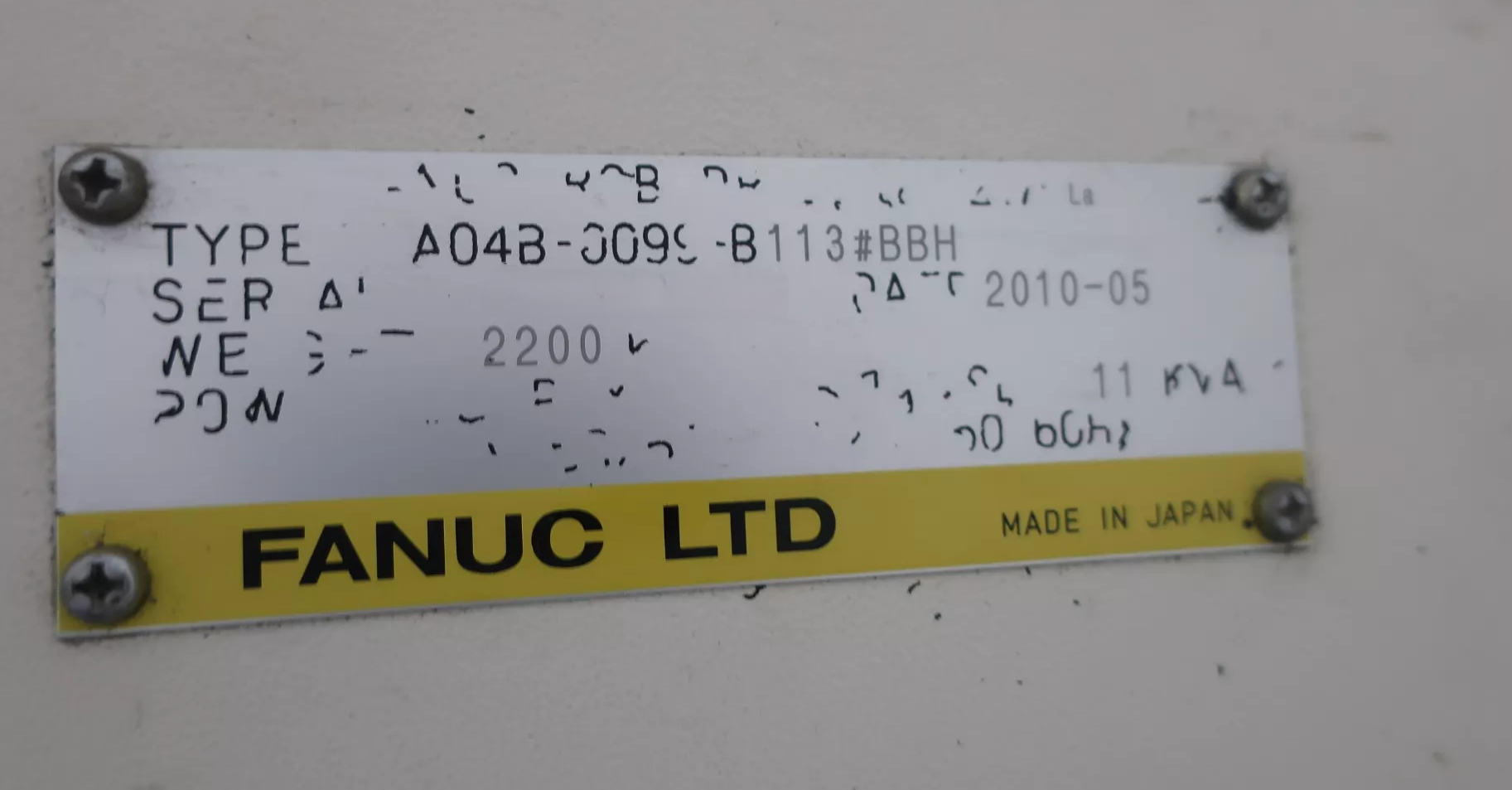

| ELECTRICAL: |
|---|
| Power Requirement: 220 Volt |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Power Consumption: 11 kVA |
| GENERAL: |
|---|
| Overall Dimensions (Approx.): 110″ x 80″ x 96″ |
| Machine Weight (Approx.): 6,000 lbs. |
| Made in Japan |
