*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
HAAS |
| Model: |
DM-2 |
| Year: |
2016 |
| Condition: |
Used – Excellent |

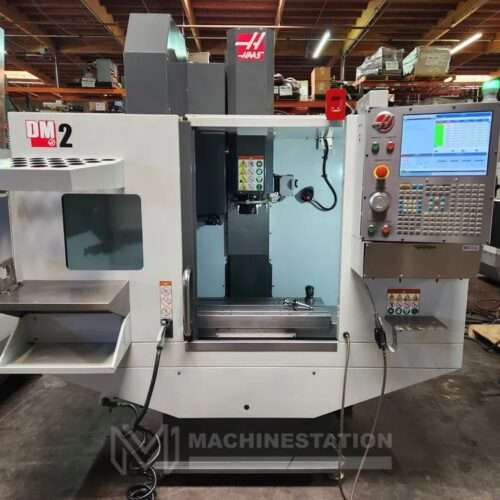

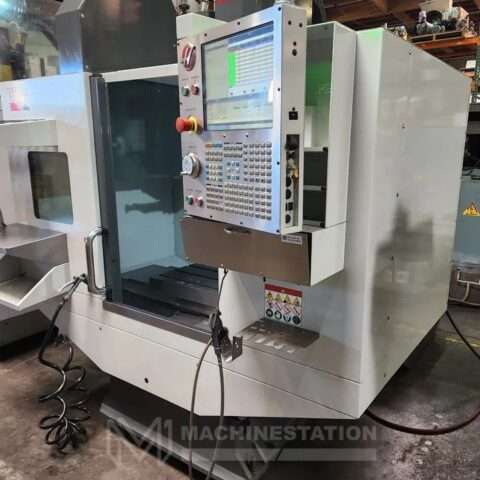

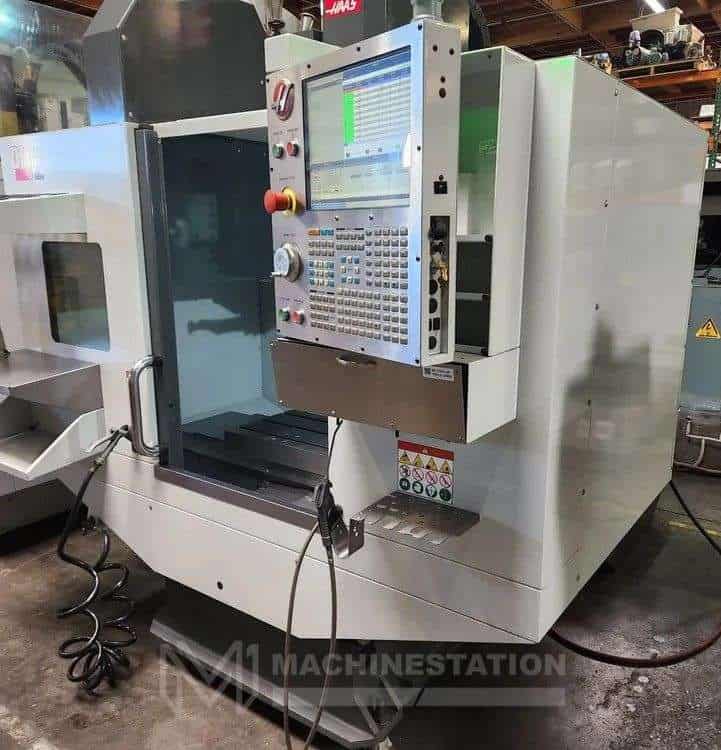

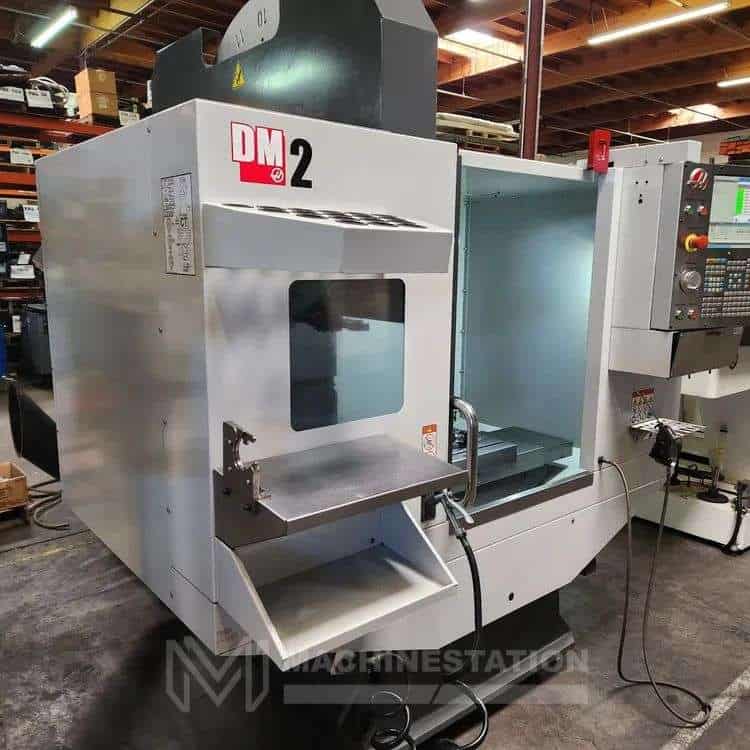

Key Features of the Haas DM-2:

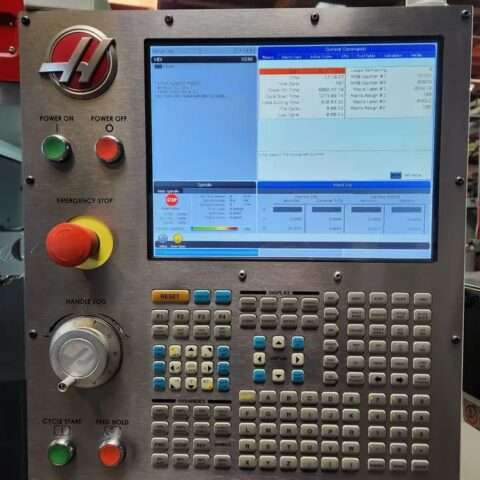

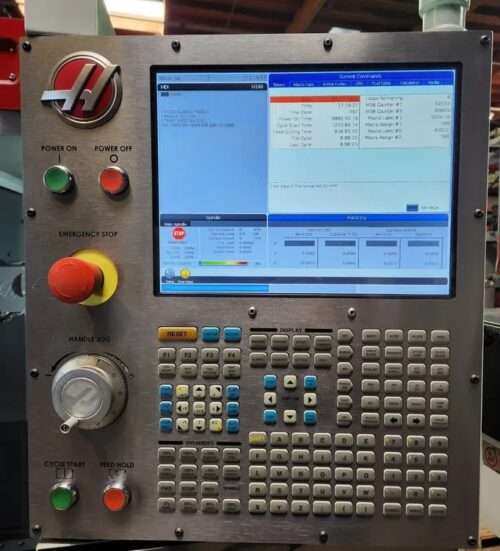

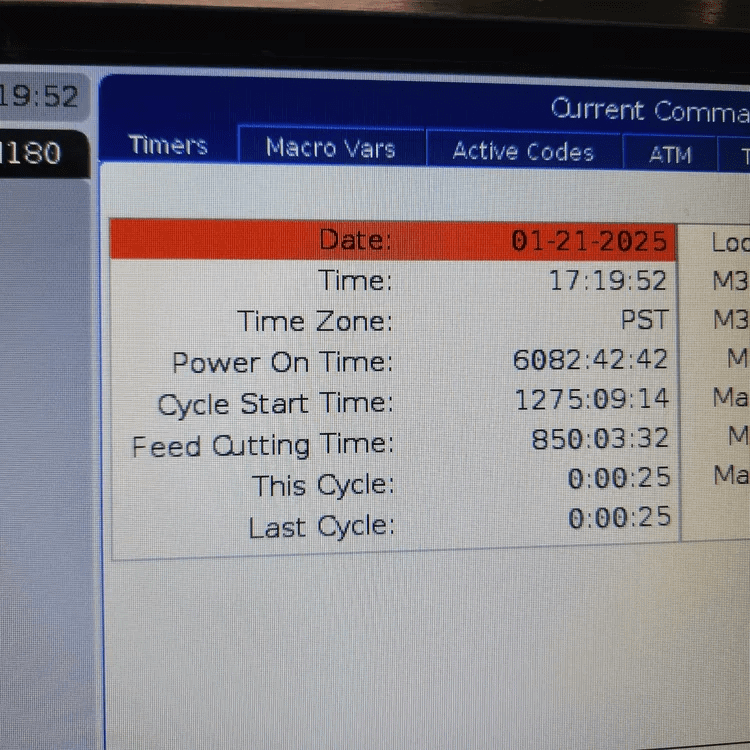

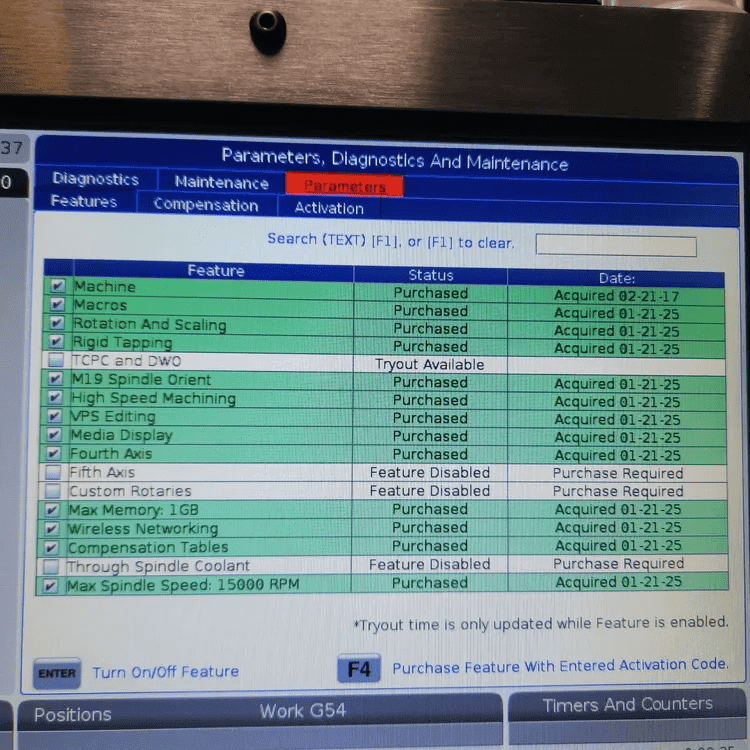

- Haas CNC Control
- 4th Axis Ready – Wiring and Drive (Upgraded $3,395 value Included)

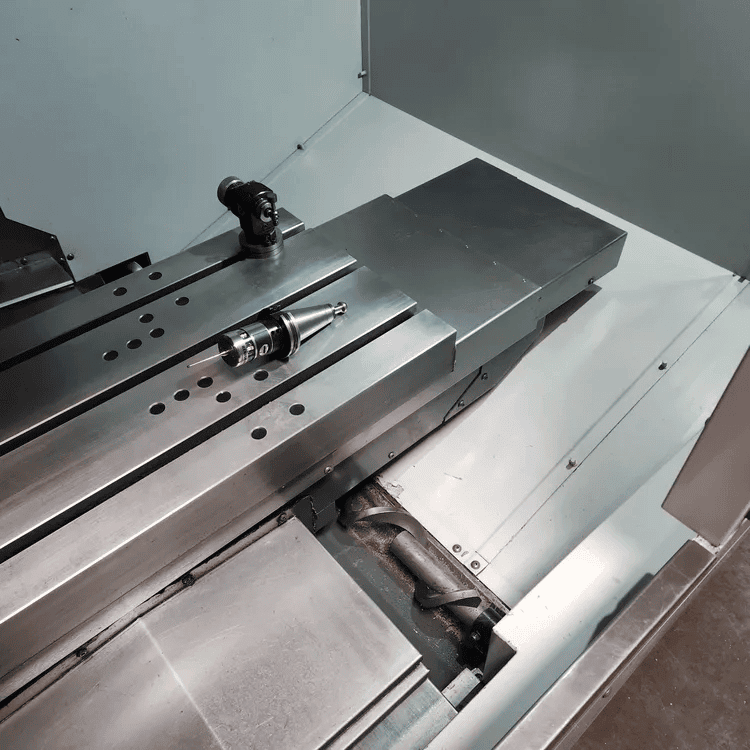

- Wireless Intuitive Probing System (Upgraded $6,095 value Included)
- Programmable Coolant Nozzle (Upgraded $2,195 value Included)
- 15,000 RPM Spindle (Upgraded $13,295 value Included)
- High Speed Machining (Upgraded $3,695 value Included)
- 18 Station Automatic Tool Changer
- Visual Part Programming System
- Spindle Orientation
- User-Definable Macros
- Coordinate Rotation and Scaling
- Rigid Tapping
- Flood Coolant System
- Chip Auger (Upgraded $3,895 value Included)
|
Travel:
- X-Axis: 28.0″
- Y-Axis: 16.0″
- Z-Axis: 15.5″
- Rapid Traverse Rates: 2400 Inch Per Minute
- Cutting Feed Rates: 1200 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 6″ – 21.5″
|

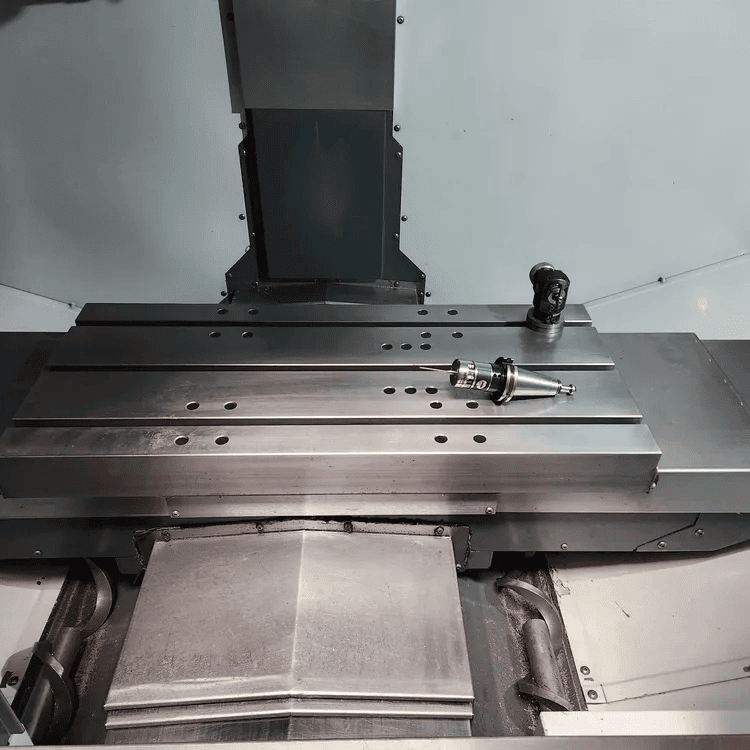

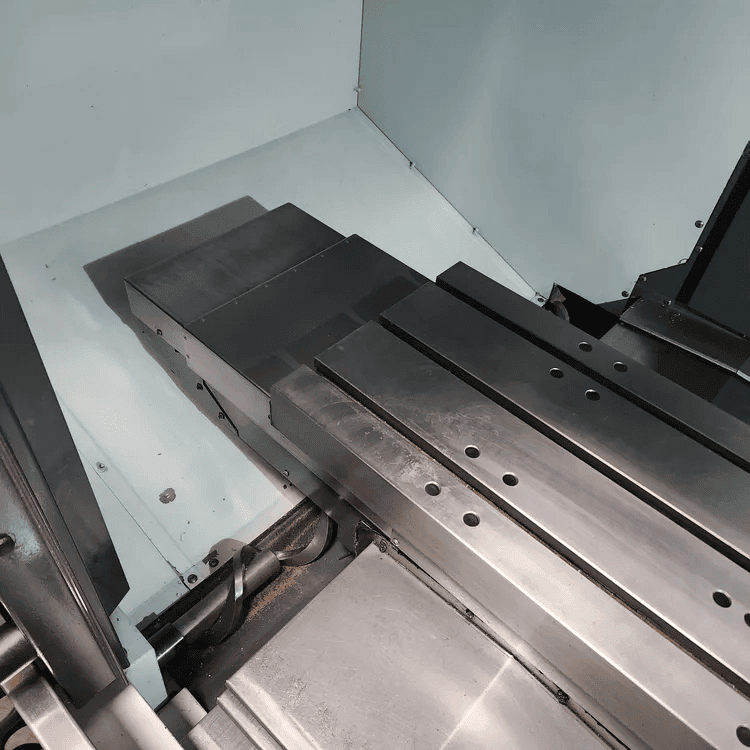

Table:
- Length: 34.0″
- Width: 15.0″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 500 lbs
|
Spindle:
- Taper Size: 40
- Speed Range: 15,000 RPM
- Spindle Power: 15 HP
|
Automatic Tool Changer:
- Capacity: 18 Stations Side Mounted
- Max Tool Weight: 12 lbs
- Max Tool Dia: 2.5″
- Max Tool Length: 7.0″
- Tool Changing Time: 1.75 Seconds
|
General:

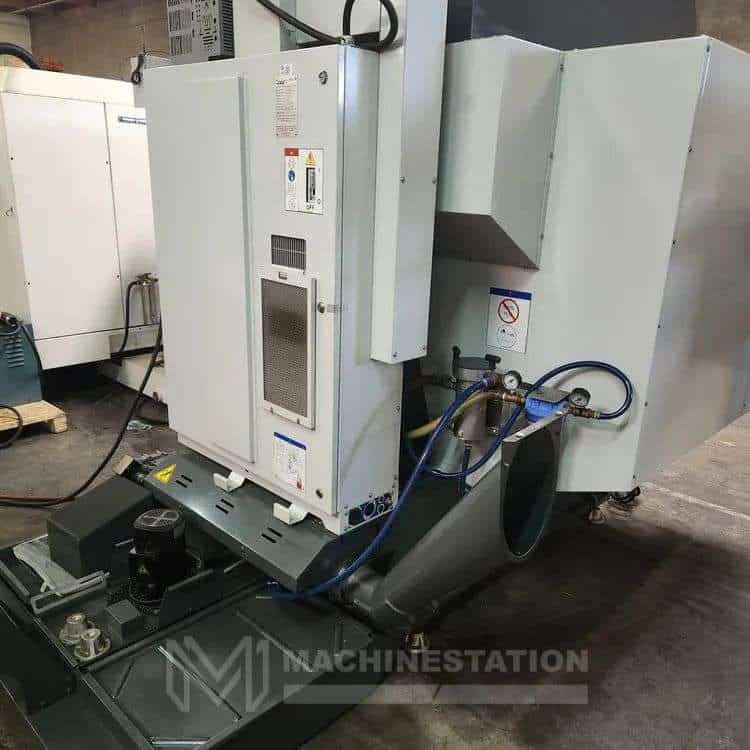

- Air Required: 100 psi 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 91″ x 100″ x 98″ High
- Weight: 5,350 lbs
|
