*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Haas |
| Model No.: |
EC-1600ZT |
| Year of Manufacture: |
2017 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Horizontal Machining Center |
| CNC Control: |

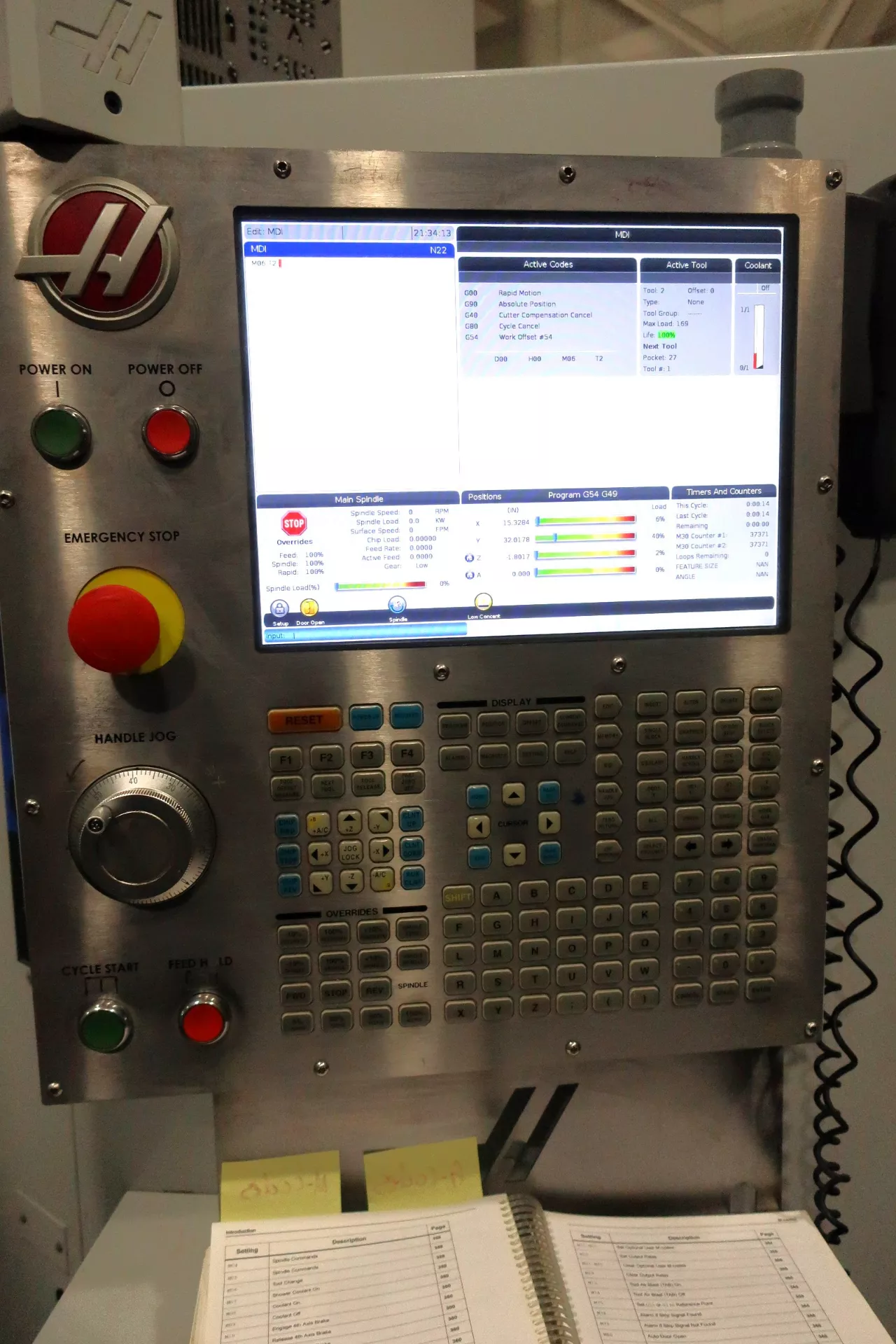

Haas CNC Control |
| Equipped With: |
| Haas CNC Control |
| Integrated 4th Axis Rotary Platter (B-Axis) |
| 50-Taper Spindle with 2-Speed Gearbox |
| Side-Mount Tool Changer (50+1 Tools) |
| Chip Conveyor |
| Coolant System (Flood / Optional TSC) |
| Remote Jog Handle |
| Rigid Tapping |
| Ethernet / USB Connectivity |
| Capacity: |
| Maximum Part Weight: 10,000 lbs (4,536 kg) |
| Table Size: 64″ × 36″ (Approx.) |

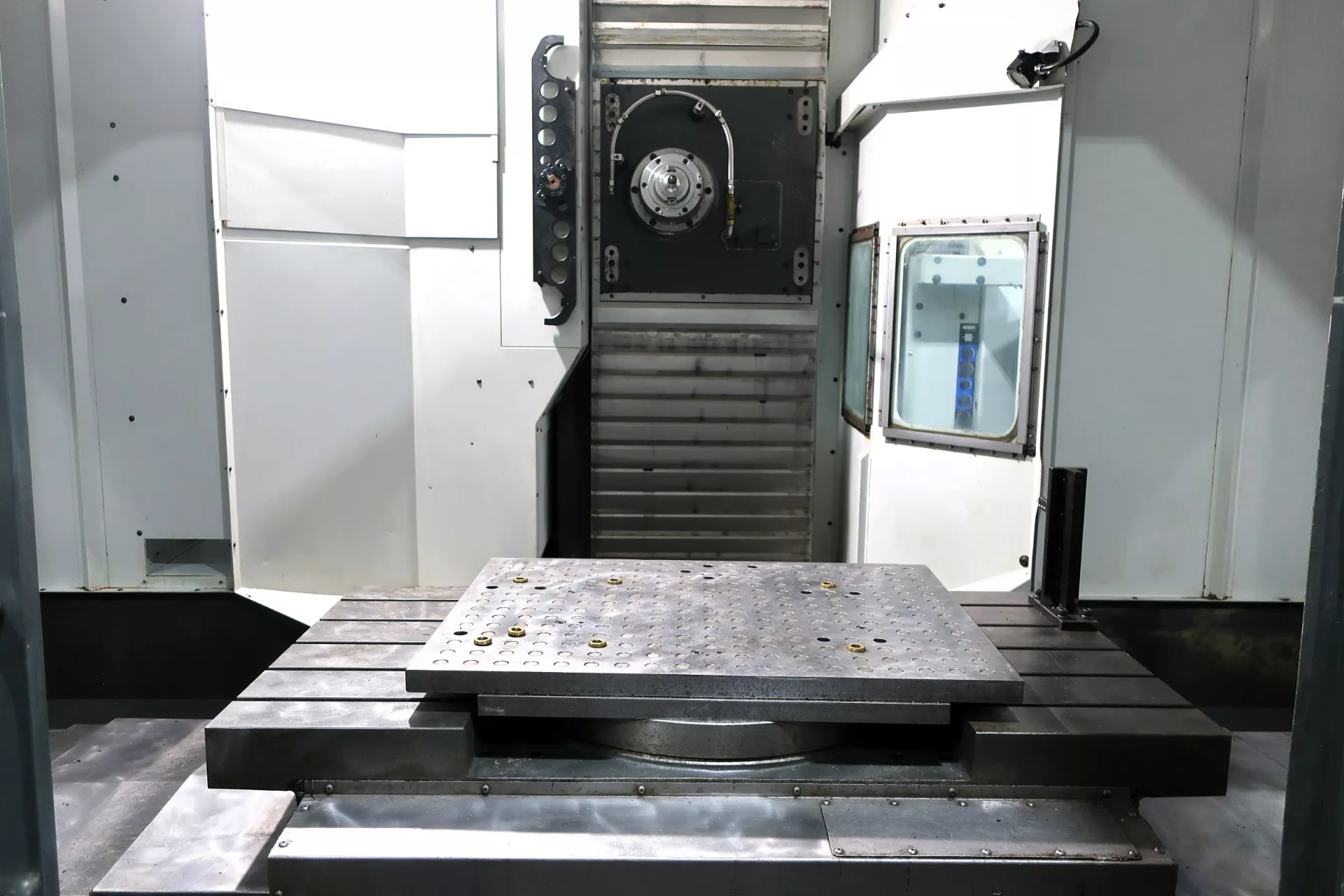

| Rotary Platter Diameter: ≈30″ |
| 4th Axis Rotation: 360° Continuous |
| Travels: |
| X-Axis Travel: 64″ (1,626 mm) |
| Y-Axis Travel: 50″ (1,270 mm) |
| Z-Axis Travel: 40″ (1,016 mm) (Extended Z Travel Model) |
| Spindle: |
| Spindle Taper: CAT 50 |
| Spindle Speed: 7,500 RPM |
| Spindle Motor: 30–40 HP |
| Gearbox: 2-Speed Geared Head |
| Tooling: |
| Tool Capacity: 50+1 ATC |
| Max Tool Length: 20″ |
| Max Tool Weight: 30 lbs |
| Tool-to-Tool Time: ≈8 sec |
| Feed Rates: |
| Rapid Traverse (X/Y/Z): ≈600 ipm (15.2 m/min) |
| General: |
| Machine Weight: ≈30,000 – 35,000 lbs |
| Floor Space: Approx. 192″ × 144″ × 136″ |

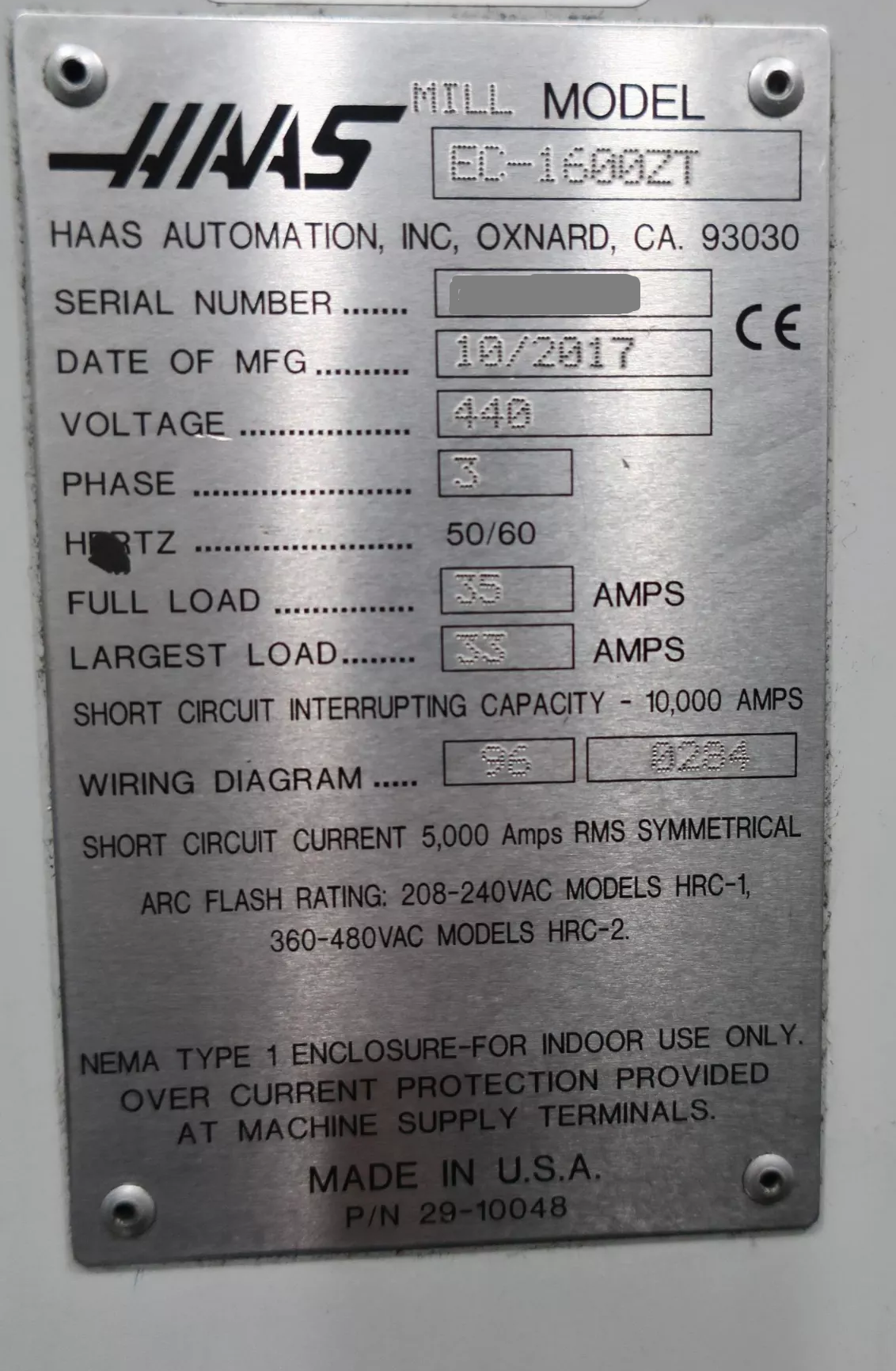

| Power Requirement: 220 / 440V, 3-Phase |
| Features: |
| Large work envelope for heavy-duty machining (up to 10,000 lbs capacity) |
| Integrated 4th-axis rotary table for multi-side machining |
| Extended Z-axis travel (ZT version) for tall parts |
| 50-taper geared spindle for high torque cutting |
| Ideal for oil & gas, aerospace, energy, and large component machining |
| Proven Haas reliability + easy maintenance platform |
