All specifications are approximations and are subject to verification.

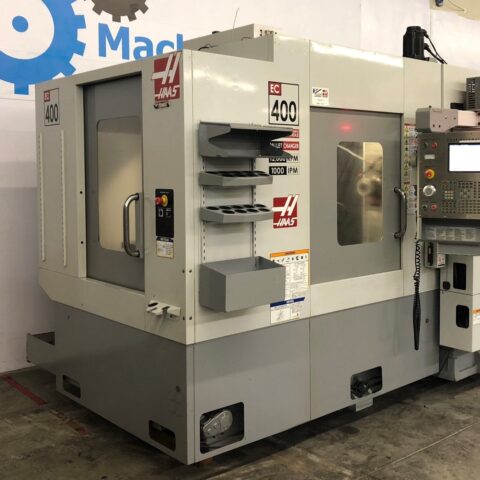

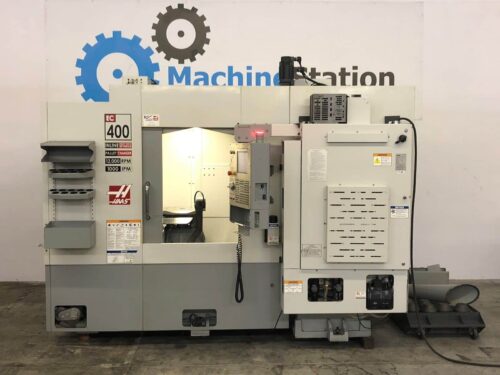

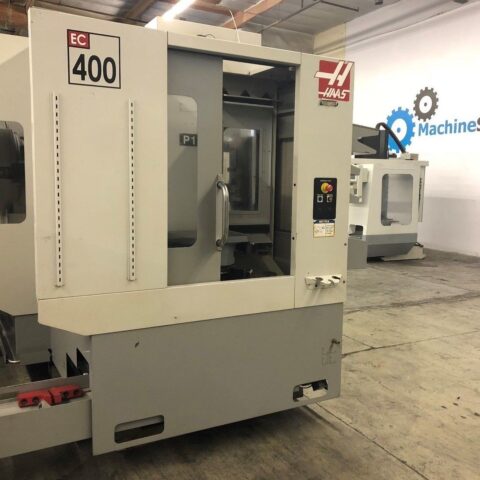

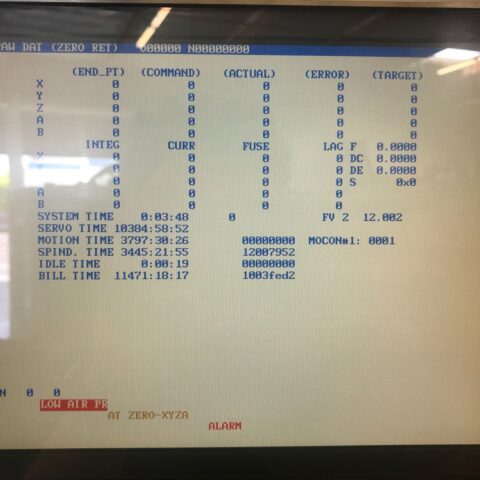

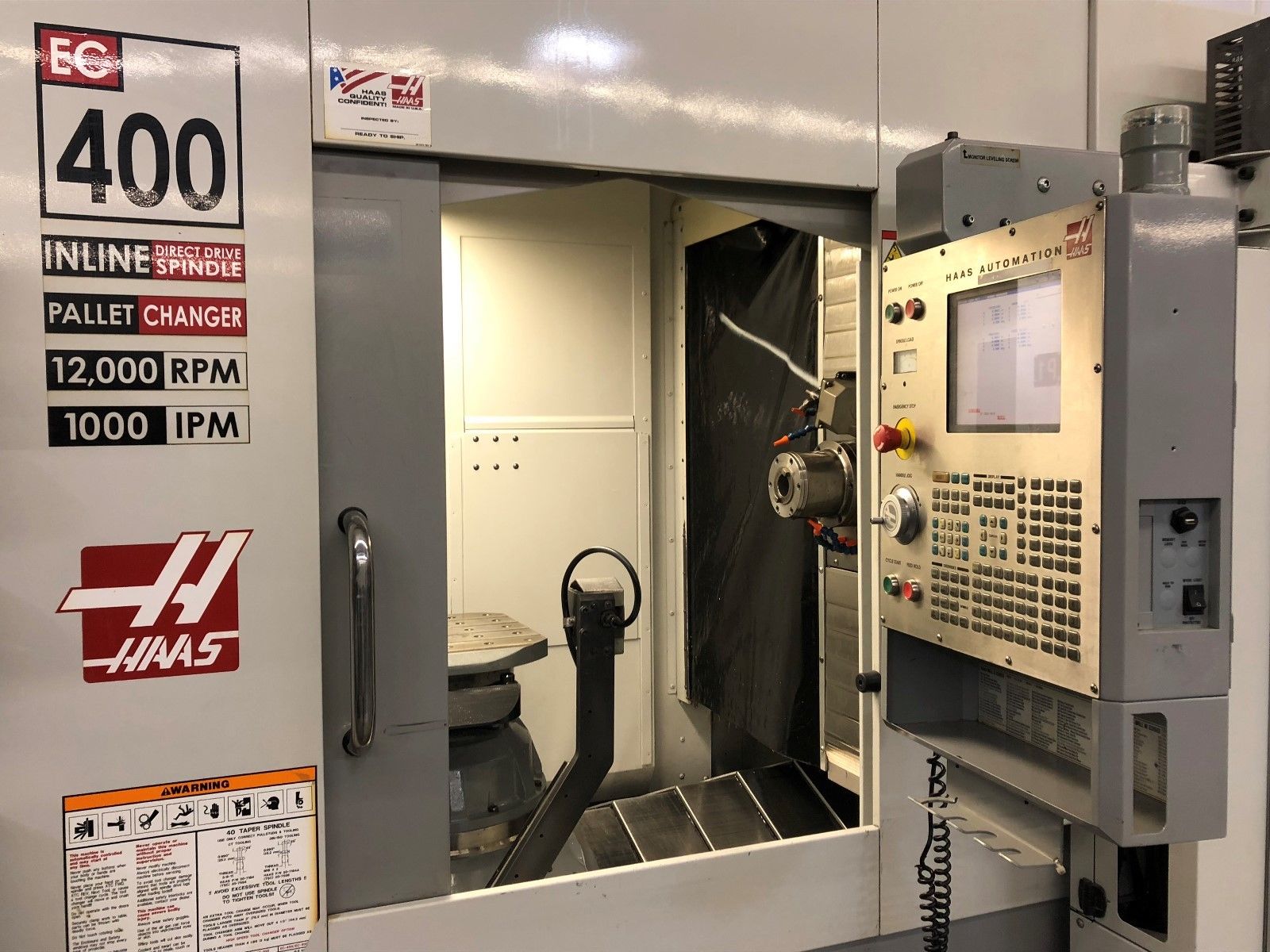

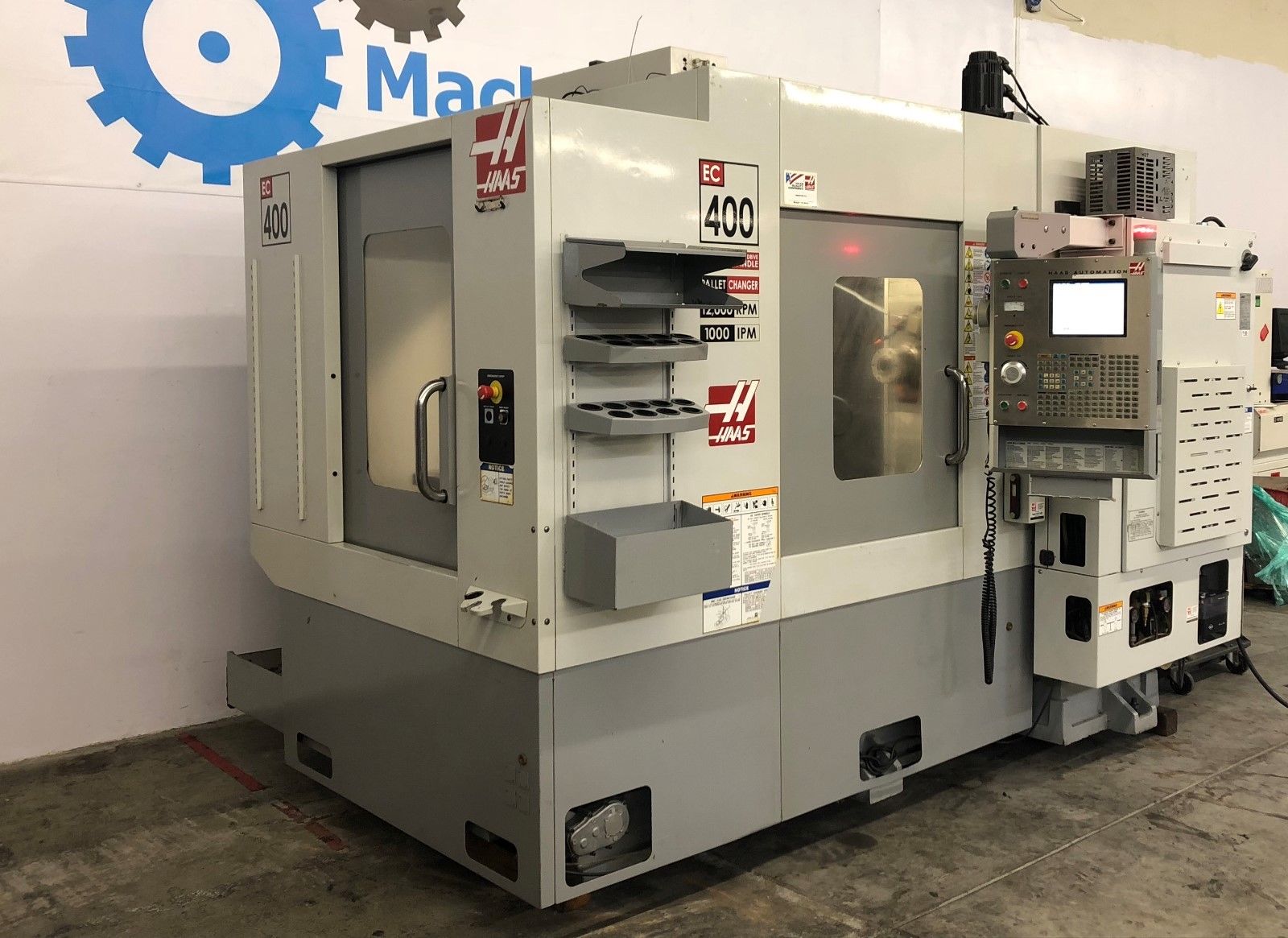

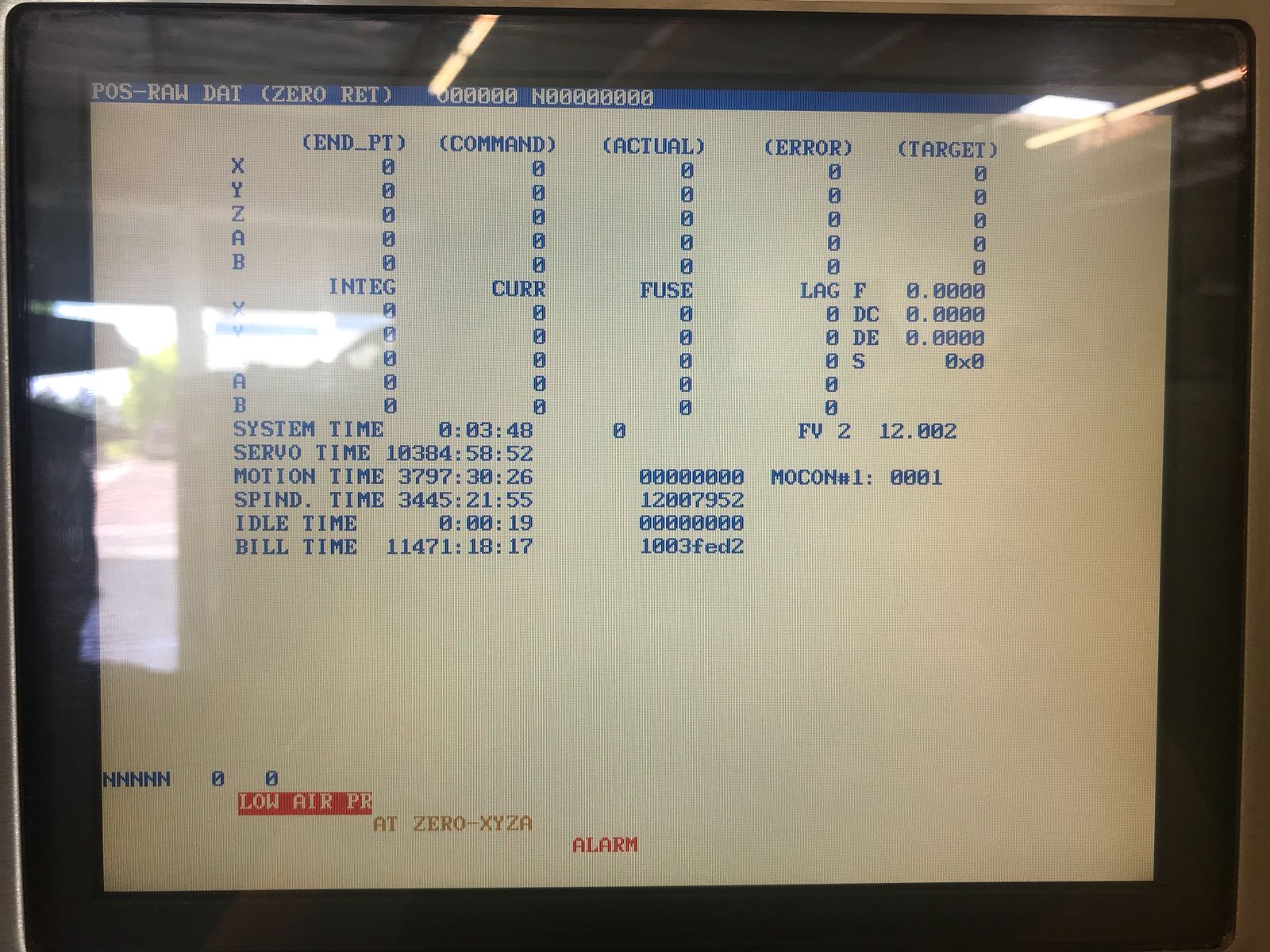

“This One Owner Machine has 12000 rpm Inline Spindle, 24 tool side mount tool changer, Probing System, High Speed Machining, USB. Only 3445 Spindle hours on this machine, On our Floor now, fully powered / tested & is in Great working condition.”
| Make | Haas |
| Model No. | EC400 4AX |
| Year of Manufacture: | 2006 |
| Serial # | 51714 |
| Condition | Very Good |

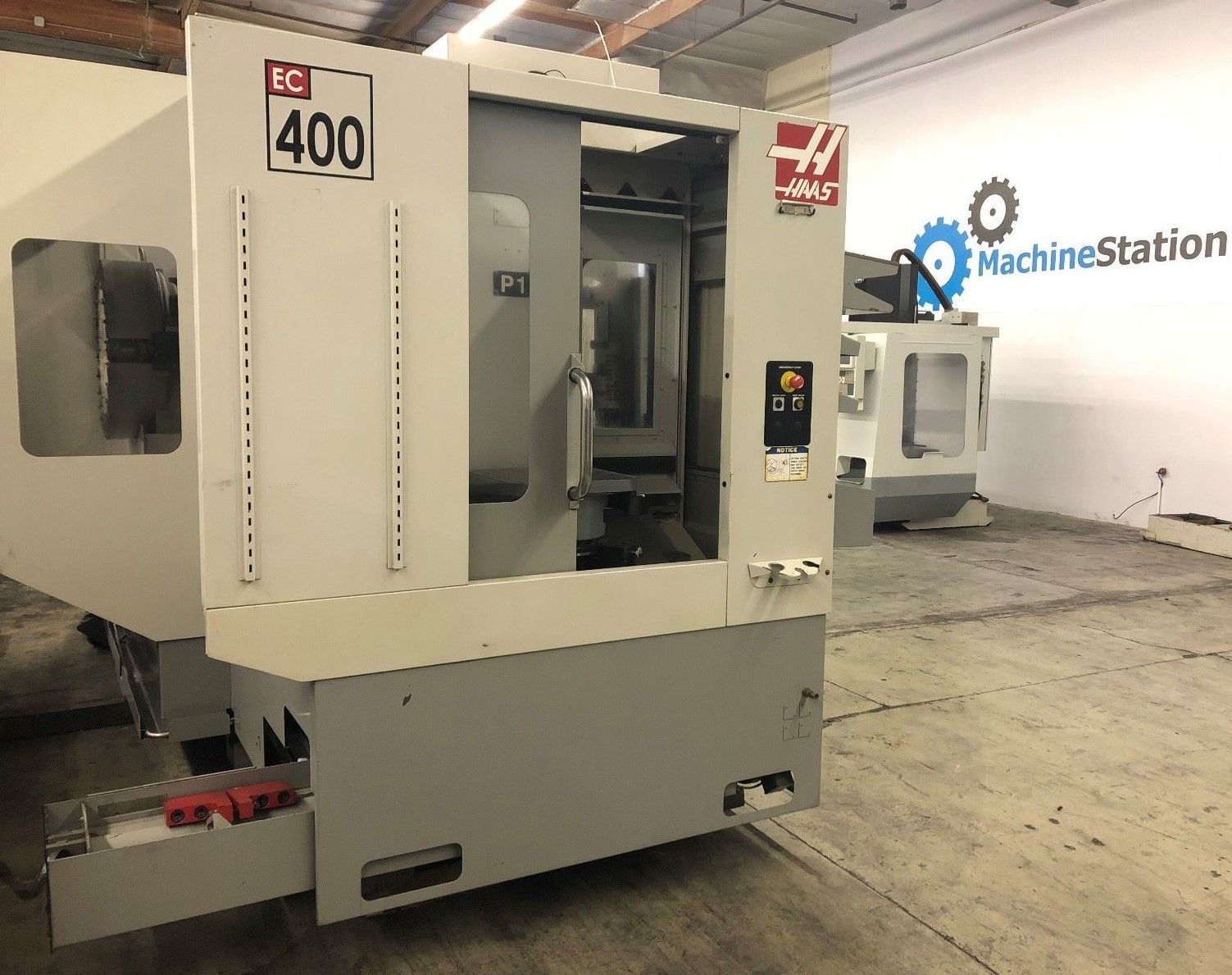

HAAS EC-400 4 AXIS Features:
- 12000 RPM Inline Direct Drive Spindle

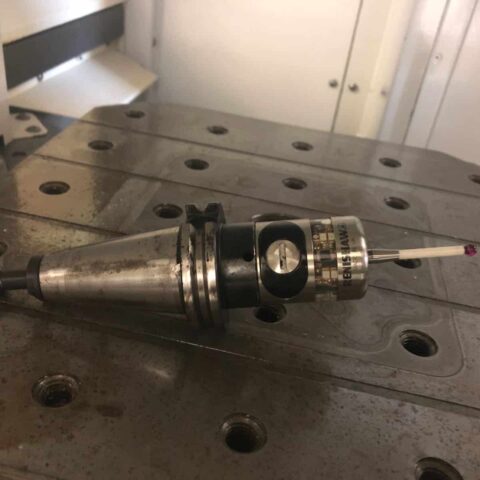

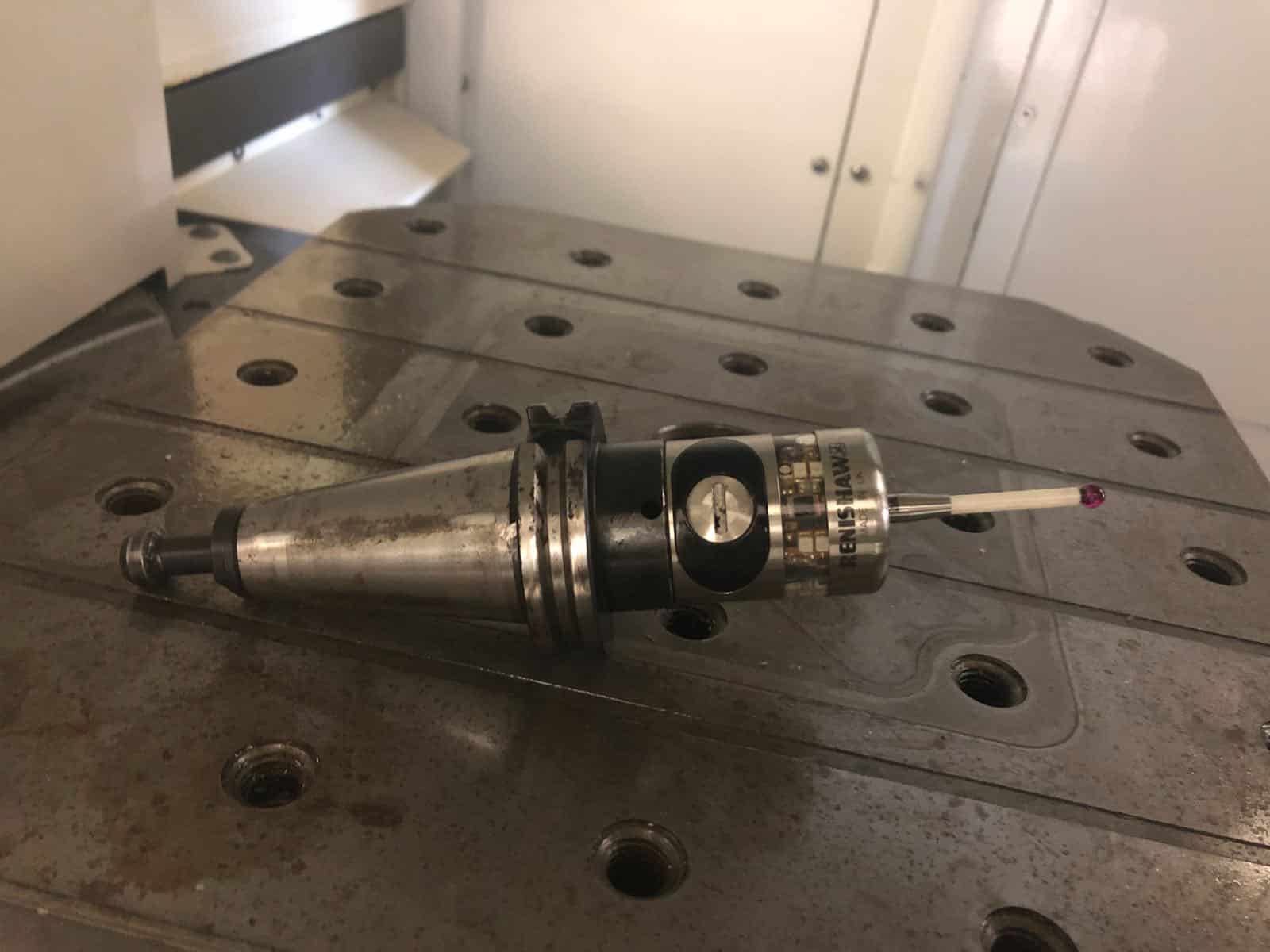

- VQCPS Probing System

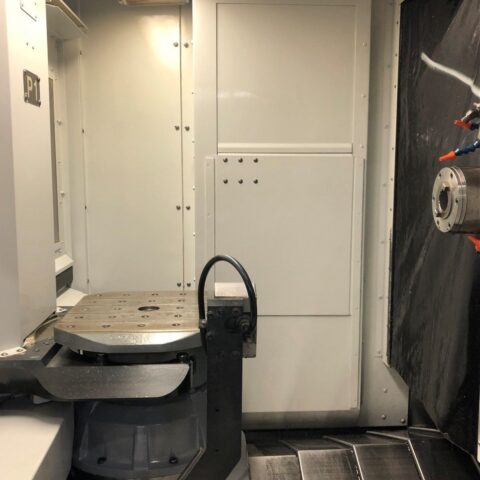

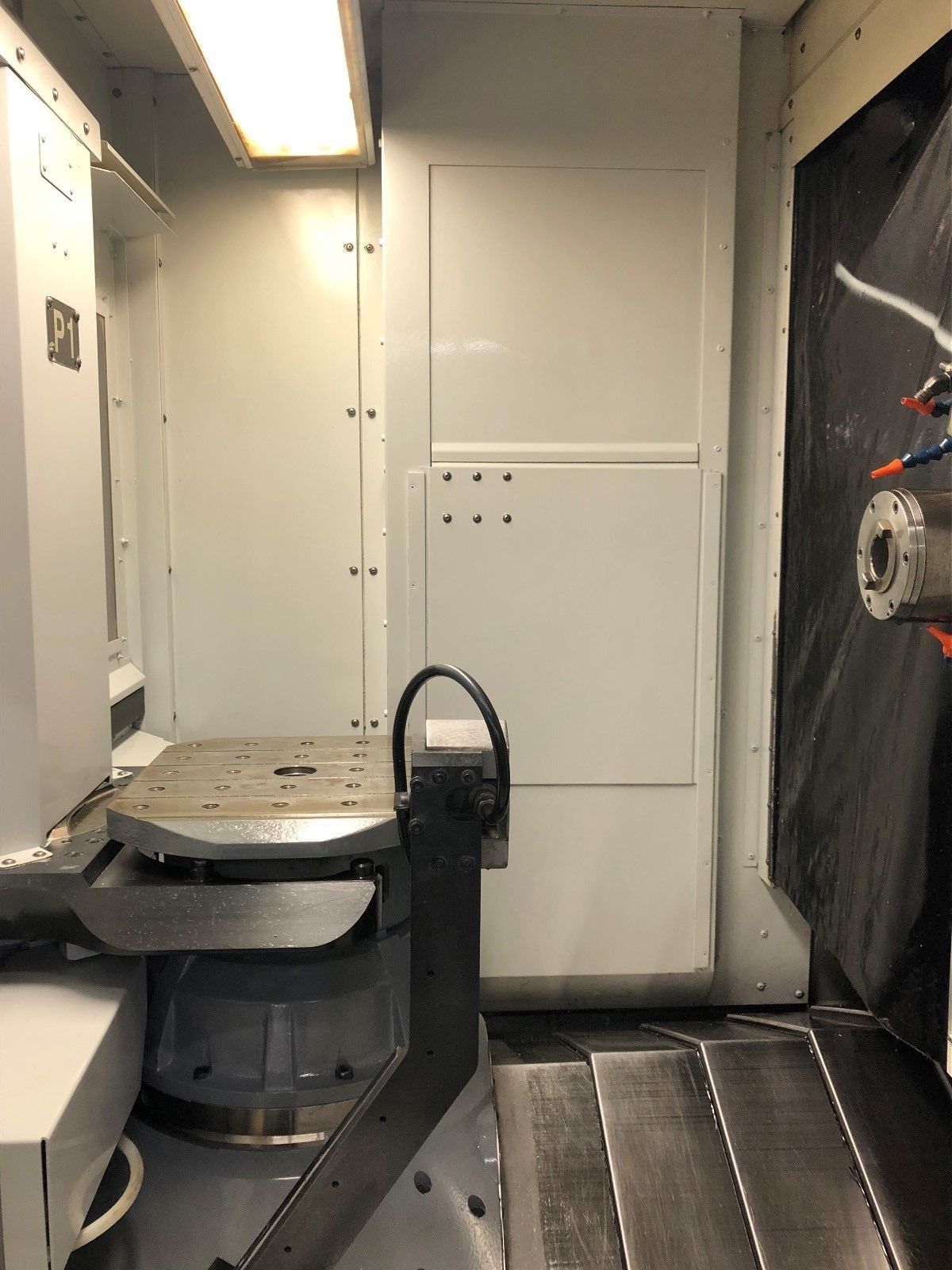

- Full 4th Axis Dual Pallet Changer

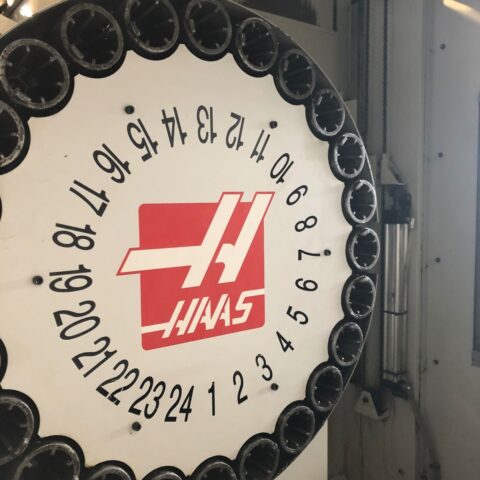

- 24 Tools Side Mount Tool Changer
- 16 MB Expanded Program Memory
- Remote Jog Handle
- Rigid Tapping
- USB Drive
- High Speed Machining
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling

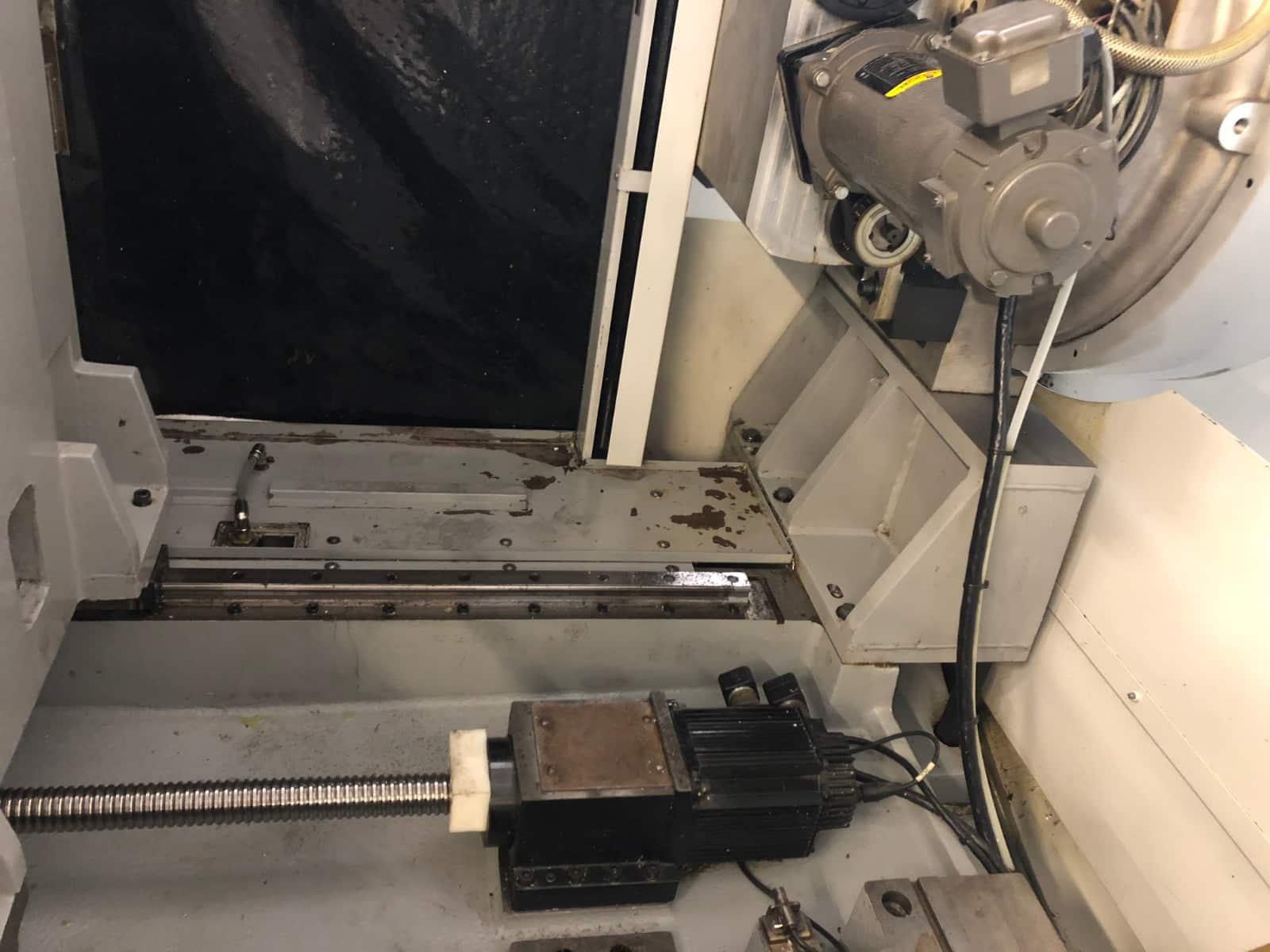

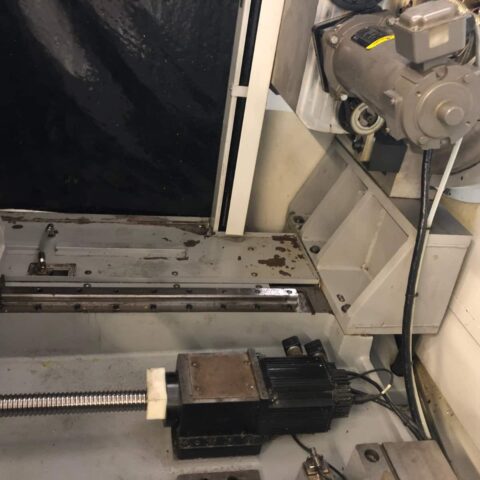

- Brush-type servo drive motors on all axis
- 15 Position Programmable coolant
- Telescopic way covers

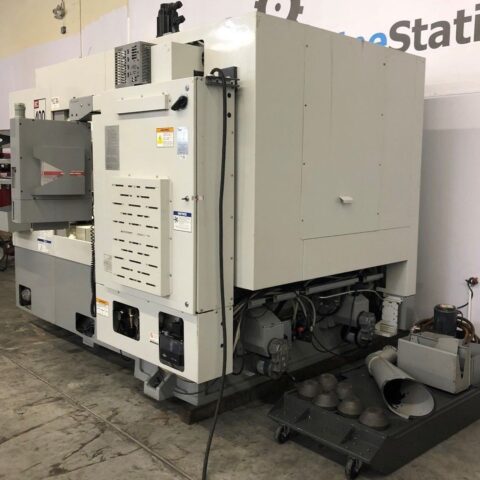

- Chip Conveyor
- Floppy Drive
- Tool Shelves
- High Pressure Coolant system
- Original Books
HAAS EC-400 4 AXIS Specifications:
- Travels:
- X-Axis: 20″
- Y-Axis: 20″
- Z-Axis: 20″
- Rapid Traverse Rates: 1000 Inch Per Minute
- Cutting Feed Rates: 710 Inch Per Minute

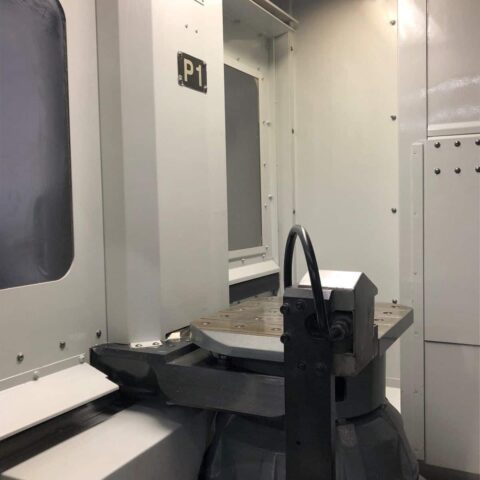

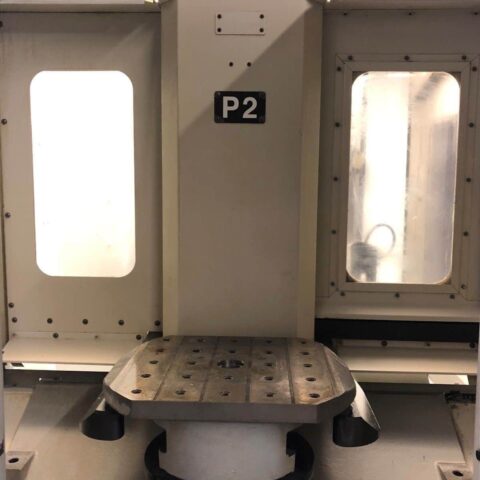

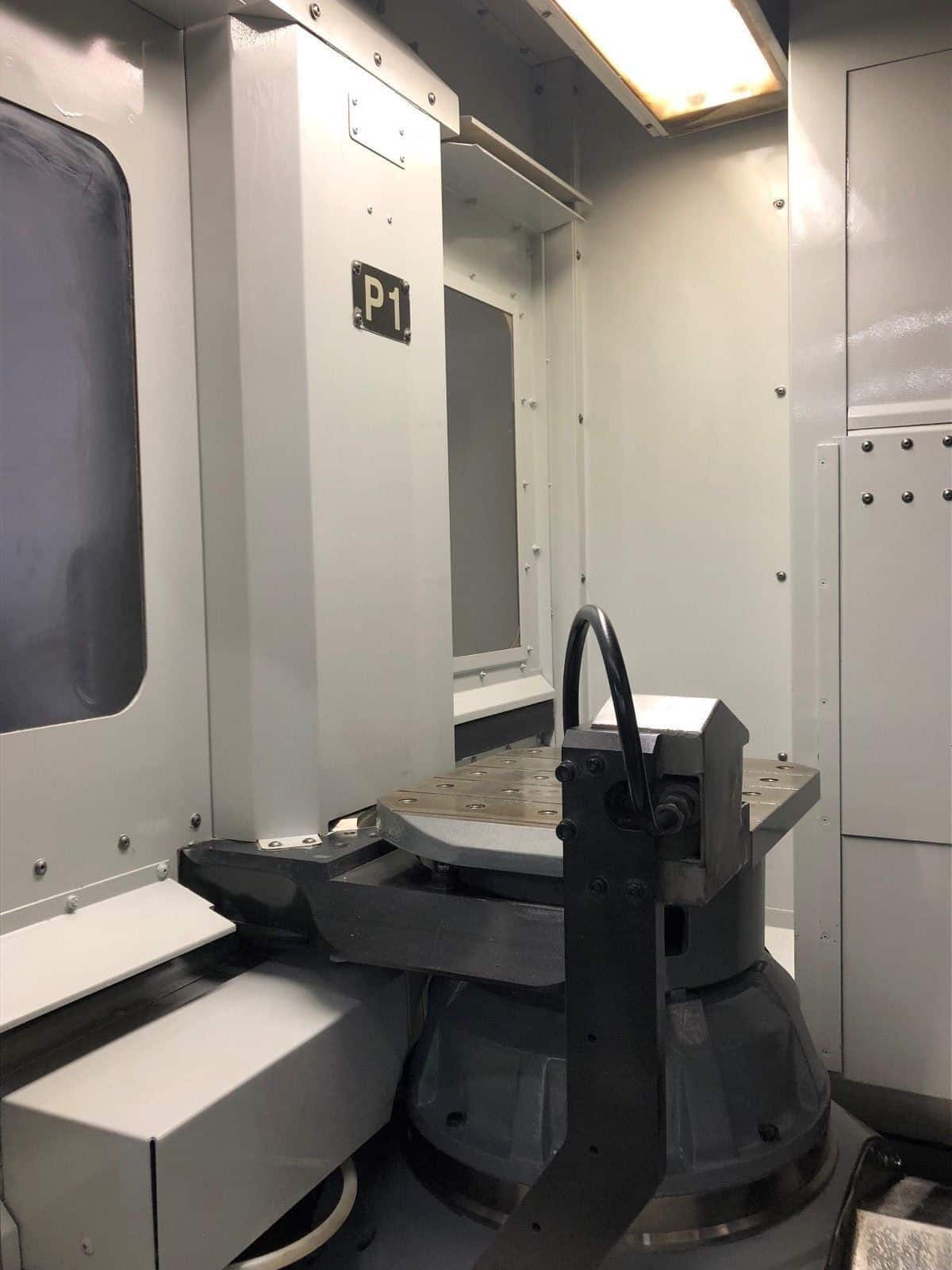

Pallet:

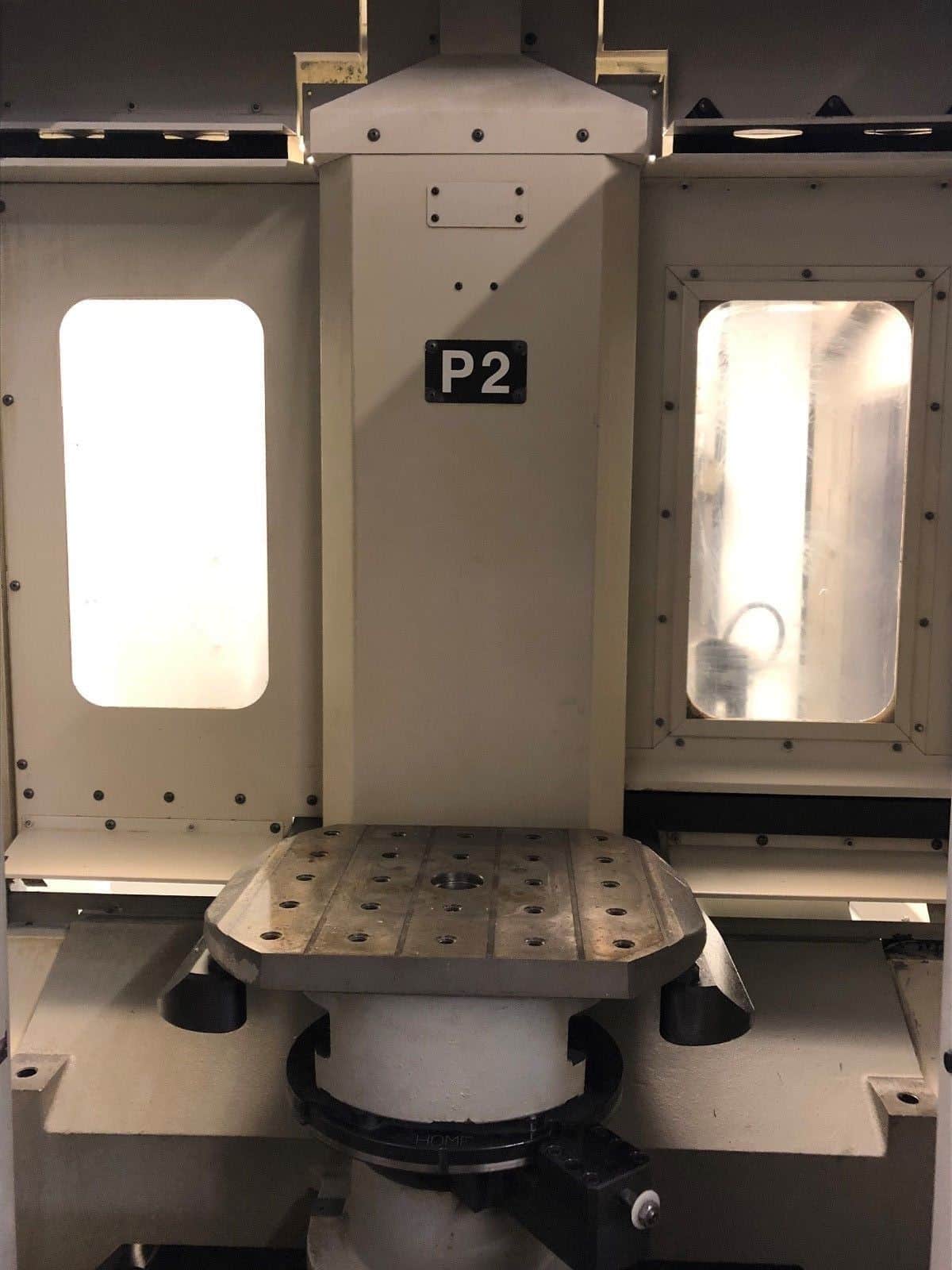

- Dual Pallet Changer
- Pallet Size: 15.75″ X 15.75″
- Pallet Change Time: 8 Seconds
- Weight on Table: 1000 lbs
Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 12000 RPM
- Spindle Power: 30 HP
- Max Torque: 90ft-lb @ 2000RPM

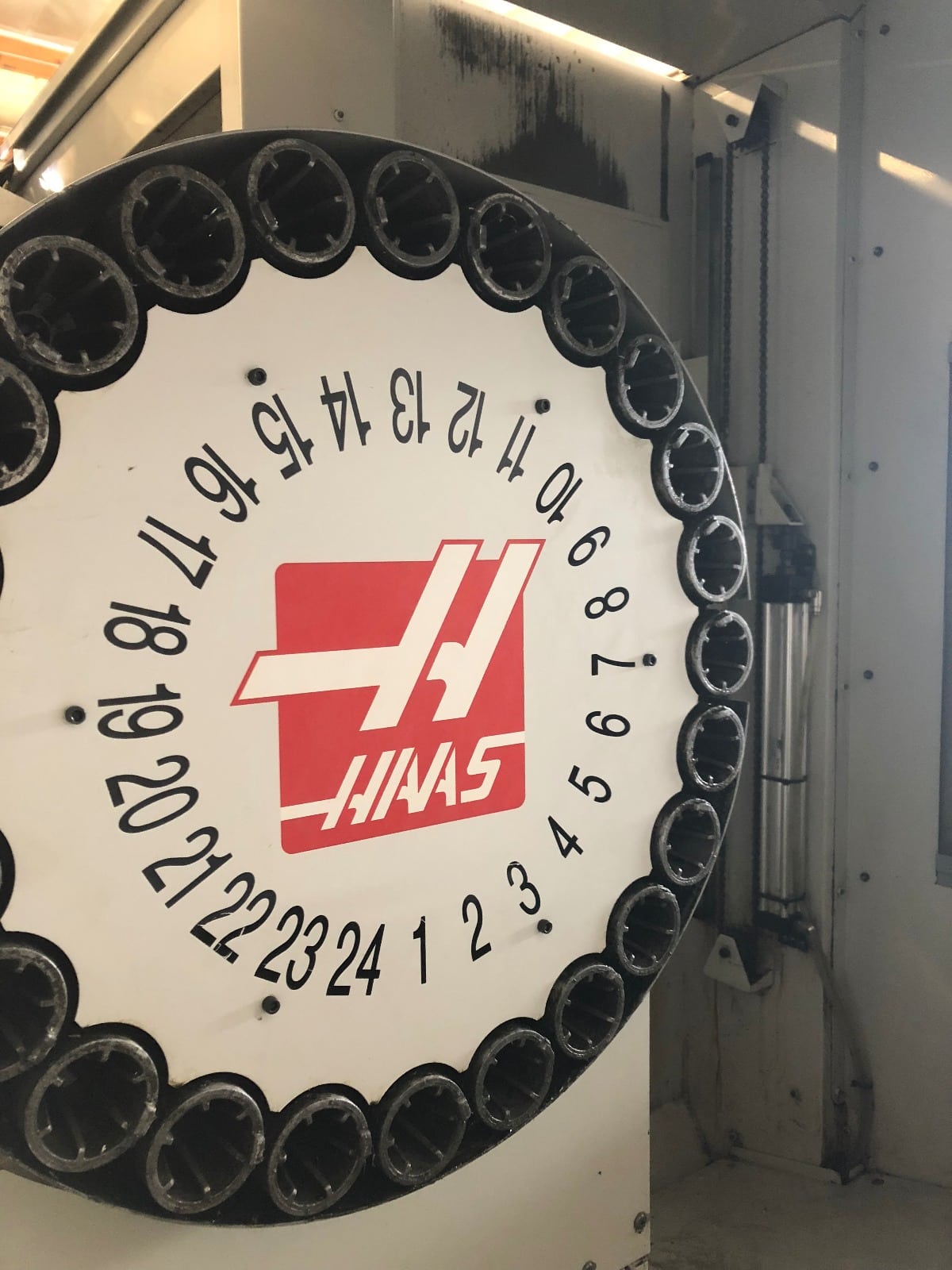

Automatic Tool Changer:
- Capacity: 24 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 6″
- Max Tool Length: 16″
- Tool Changing Time: 2.1 – 3.7 Seconds
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Shipping Dimensions: 150″ x 102″ x 95″ High ( Machine )
- Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
- Weight: 20,000 lbs
