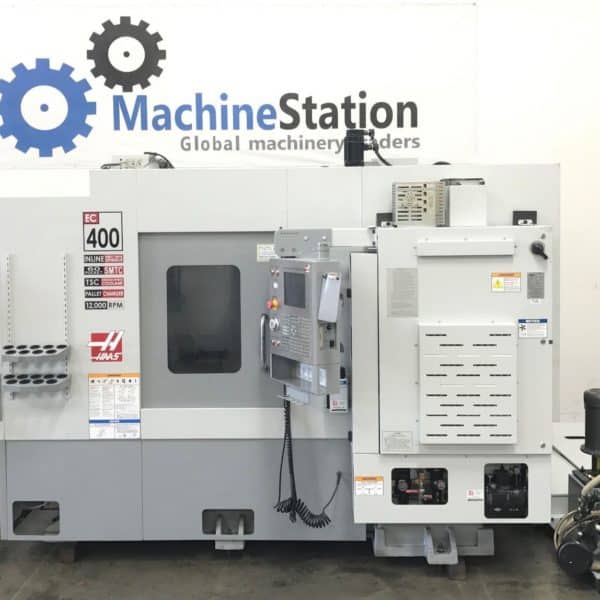

Haas EC 400 Horizontal Machining Center

Payments shown a 60 month term.*

Original Paint, One Owner Machine was Cutting Aluminium Only. Equipped with 12000rpm, 60 tool side mount tool changer, Through Spindle Coolant, Expanded Memory. Cutting Hours 4308 Only. On our Floor now, fully powered / tested & is in Great working condition.”

SKU:
1441
Categories: ,

Out of stock

Product Description

HAAS EC 400 HORIZONTAL MACHINING CENTER 12000RPM

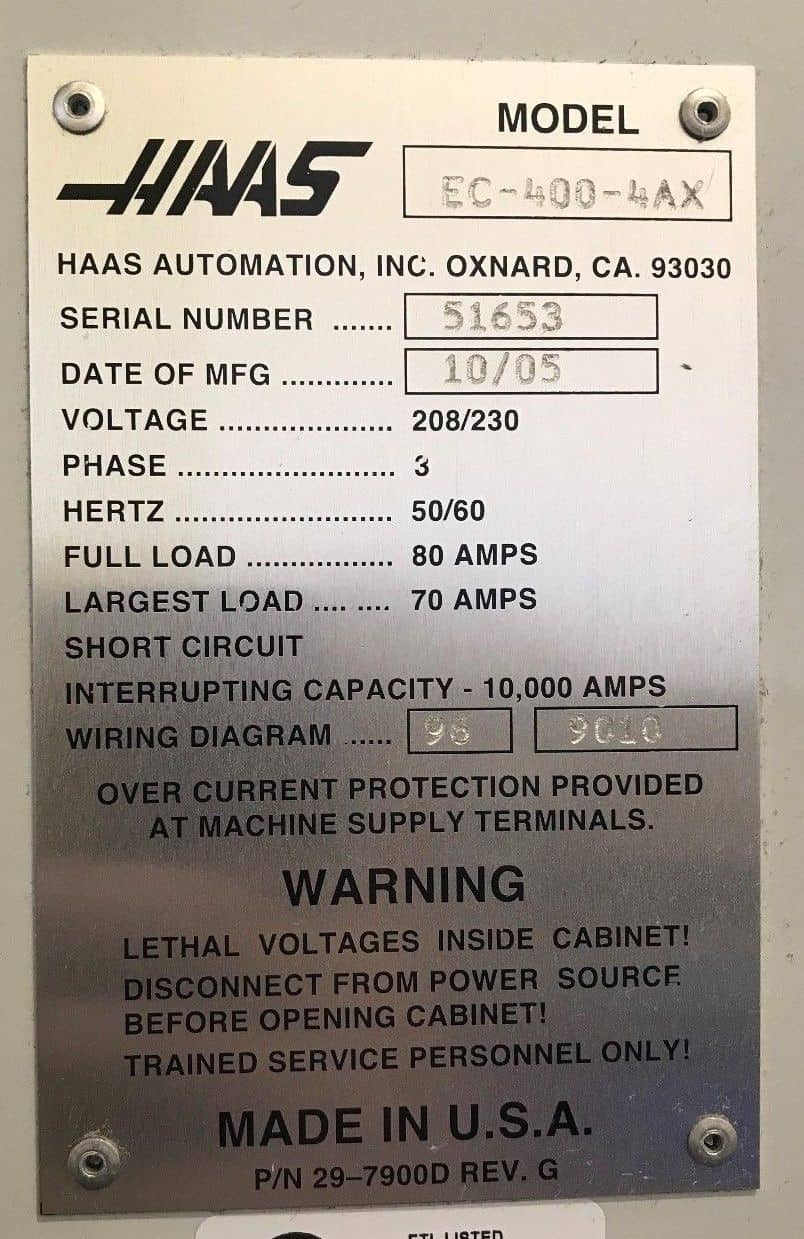

Make: Haas
Model No.: EC-400-4AX

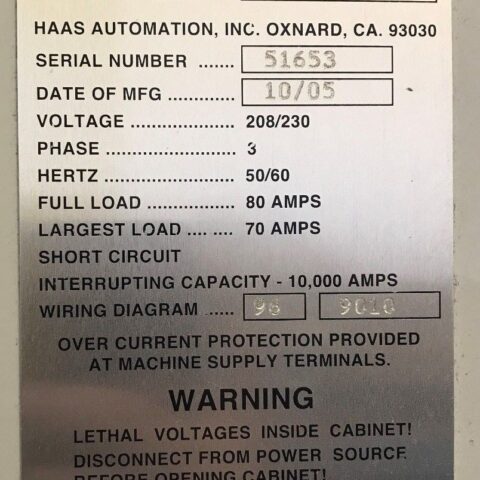

Serial No.: 51653
Year of Manufacture: 10/05
Condition: Excellent, Original Paint Machine

All specifications are approximations, and are subject to verification.

“Original Paint, One Owner Machine was Cutting Aluminium Only. Equipped with 12000rpm, 60 tool side mount tool changer, Through Spindle Coolant, Expanded Memory. Cutting Hours 4308 Only. On our Floor now, fully powered / tested & is in Great working condition.”
——————————————————-

HAAS EC 400 Features:

12000 RPM Inline Direct Drive Spindle
Through Spindle Coolant
VQCPS Probing System
Full 4th Axis Dual Pallet Changer

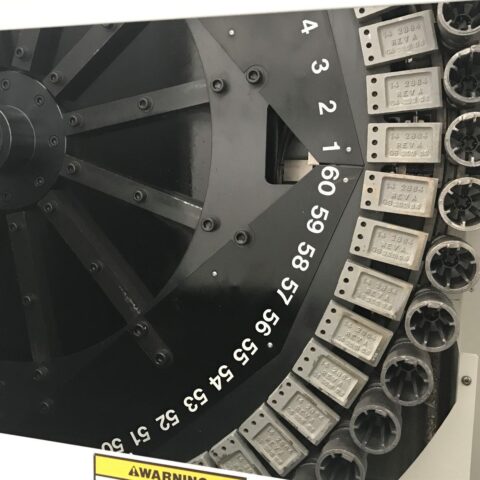

60 Tools Side Mount Tool Changer
16 MB Expanded Program Memory

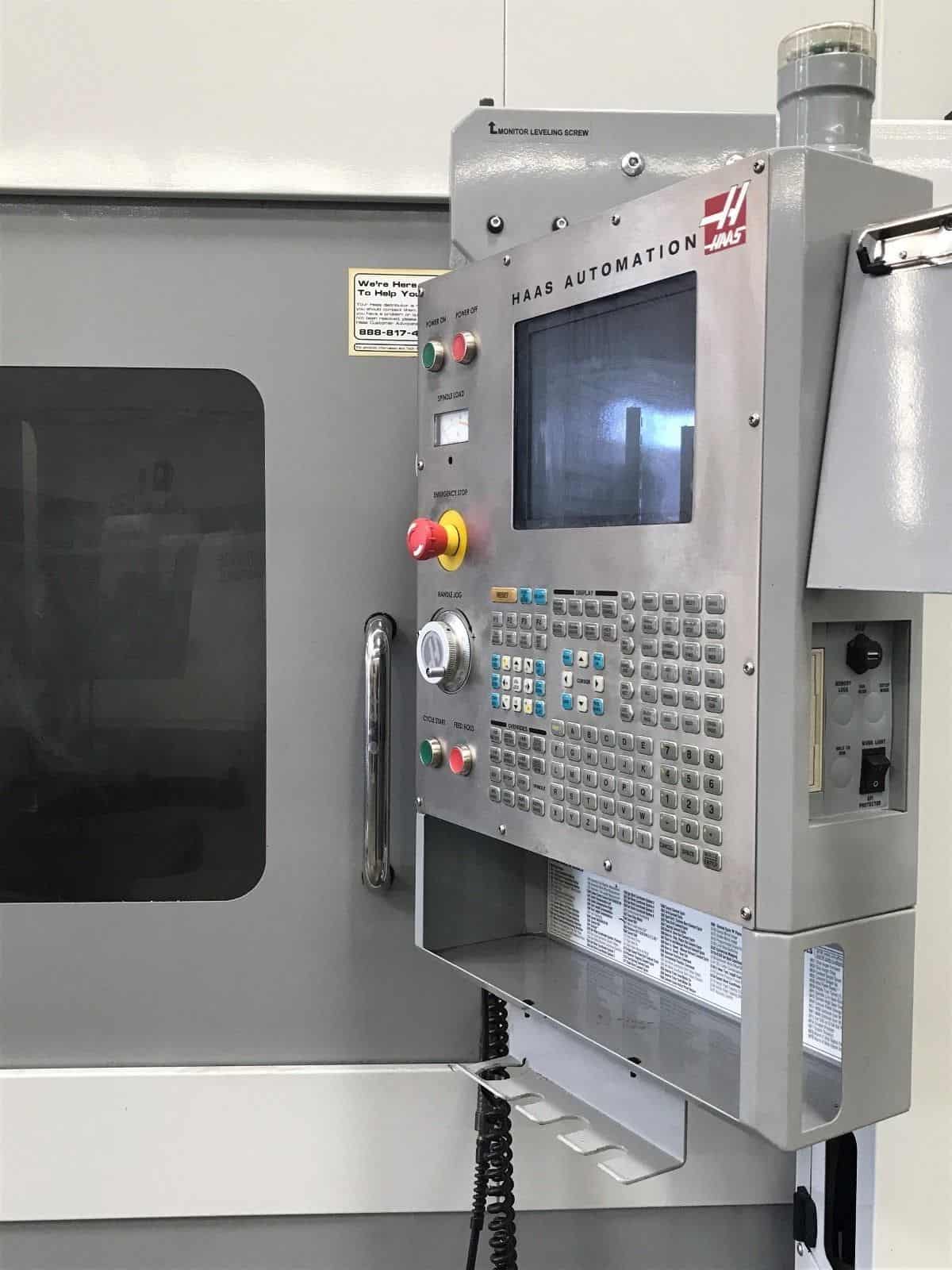

Remote Jog Handle
Rigid Tapping
USB Drive
High Speed Machining
Advanced Tool Management
Power Failure Detection Module
User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling

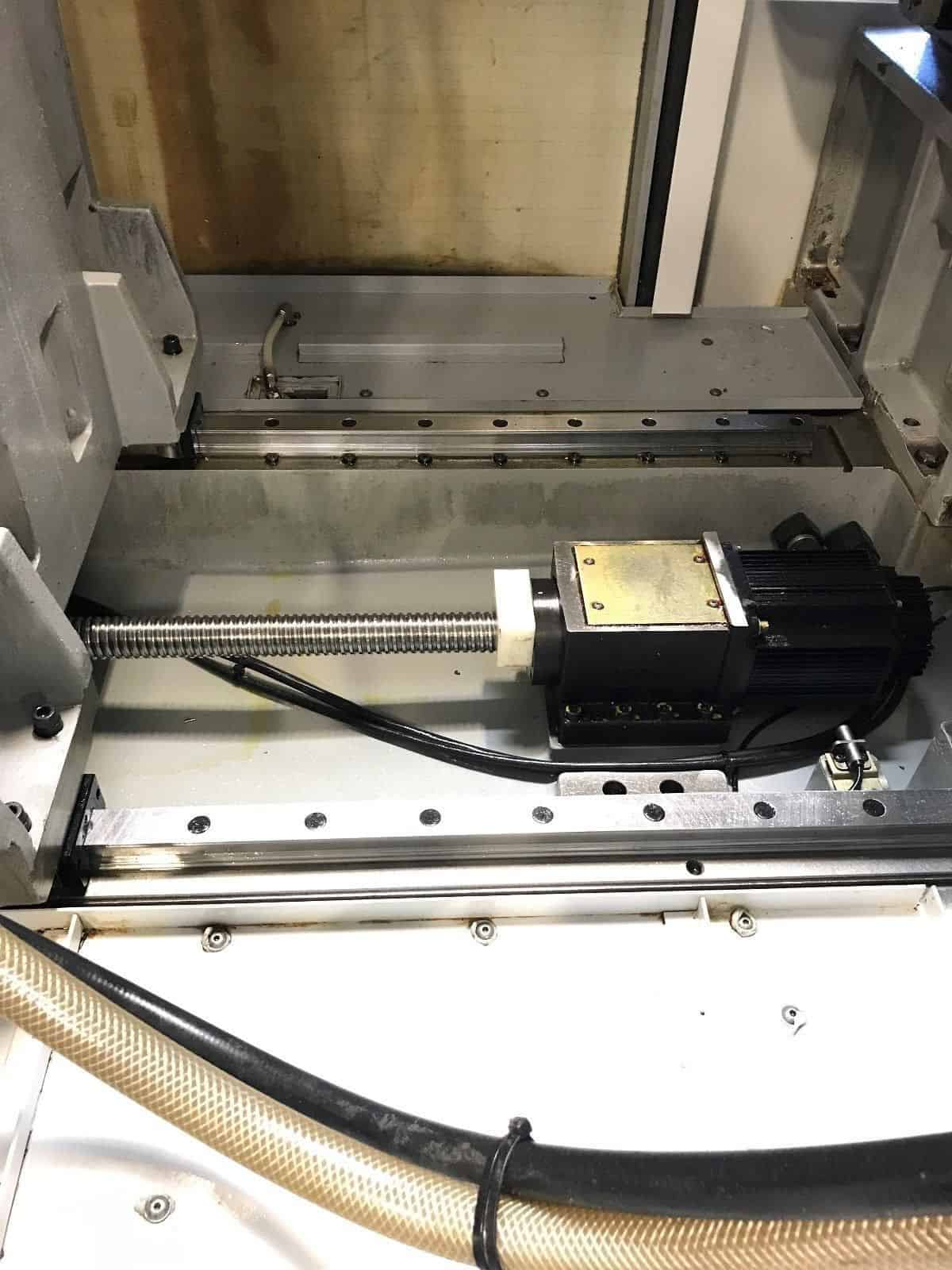

Brush-type servo drive motors on all axis
Programmable coolant
Telescopic way covers
Chip Conveyor
Floppy Drive
Tool Shelves
High Pressure Coolant system
Original Books
————————————————

HAAS EC 400 Specifications:

Travels:
X-Axis: 20″
Y-Axis: 20″
Z-Axis: 20″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 710 Inch Per Minute

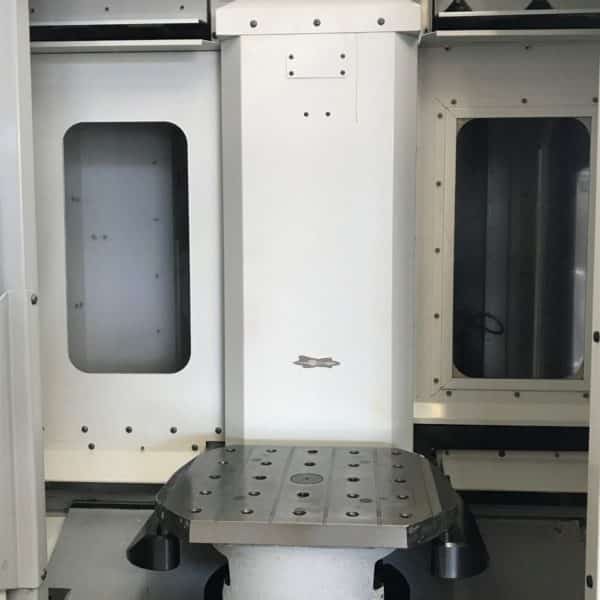

Pallet:
Dual Pallet Changer
Pallet Size: 15.75″ X 15.75″
Pallet Change Time: 8 Seconds
Weight on Table: 1000 lbs

Spindle:
Taper Size: CAT 40
Speed Range: 0 – 12000 RPM
Spindle Power: 30 HP
Max Torque: 90ft-lb @ 2000RPM

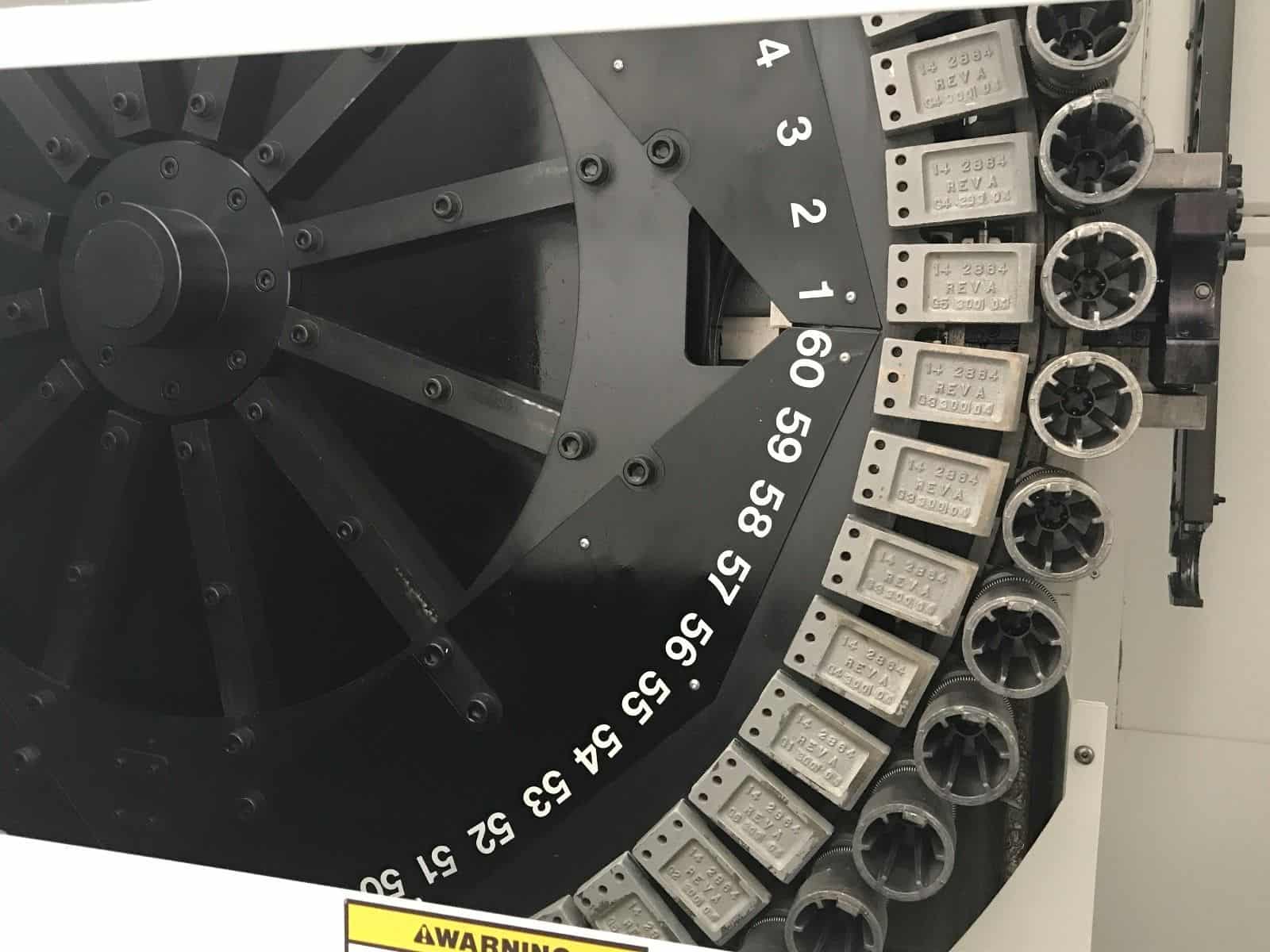

Automatic Tool Changer:
Capacity: 60 + 1
Max Tool Weight: 12 lbs
Max Tool Dia: 6″
Max Tool Length: 16″
Tool Changing Time: 2.1 – 3.7 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Shipping Dimensions: 150″ x 102″ x 95″ High ( Machine )
Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
Weight: 20,000 lbs

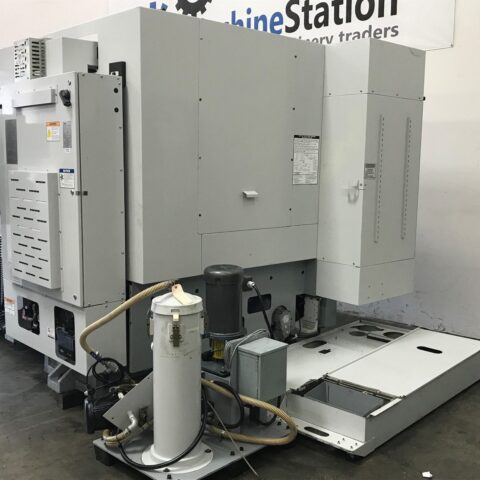

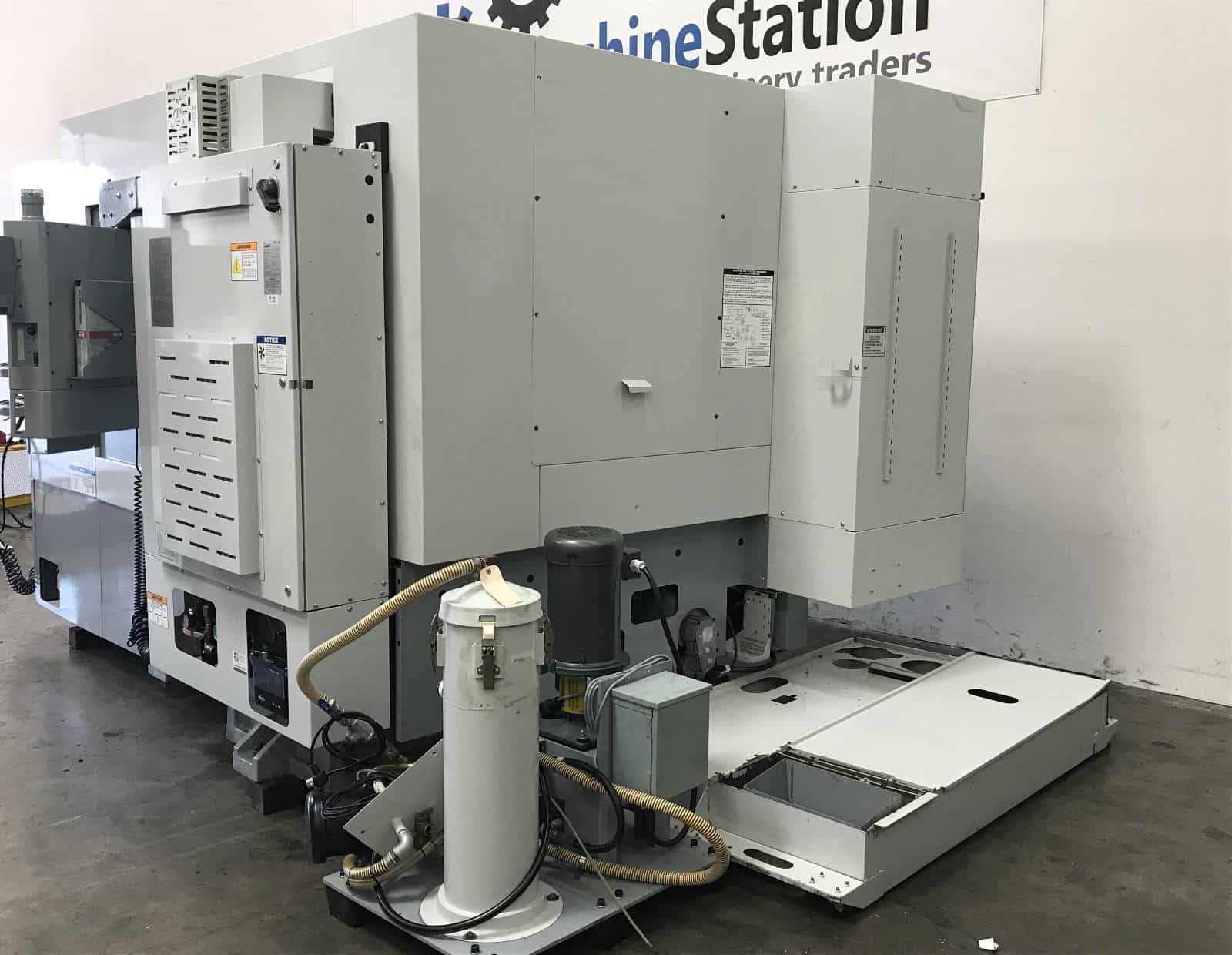

HAAS EC 400 Comes as shown in pictures..
