“This One Owner machine has 6″ Chuck, Tool Setter, Parts Catcher . On Our Floor fully powered / tested & is in Great working condition. Compact design ideal for Garage, small shops.”

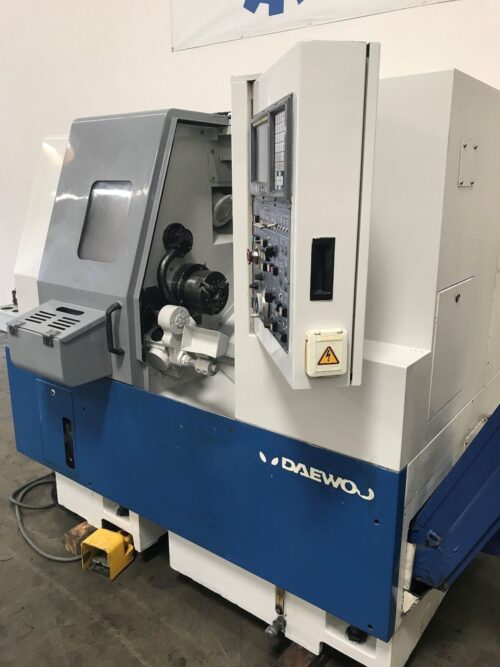

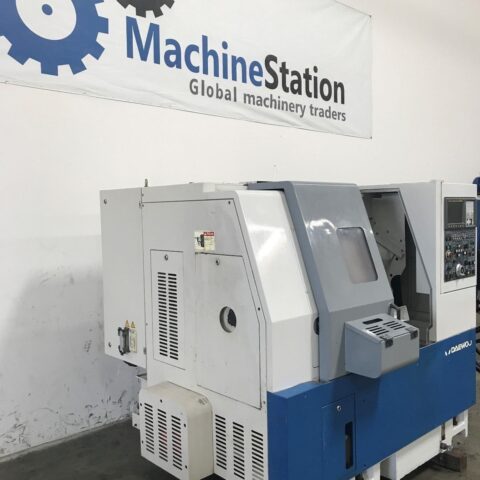

Daewoo Lynx 210 CNC Turning Center Lathe
Out of stock
Description

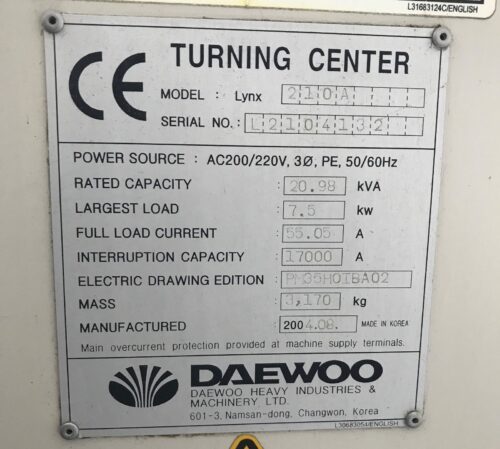

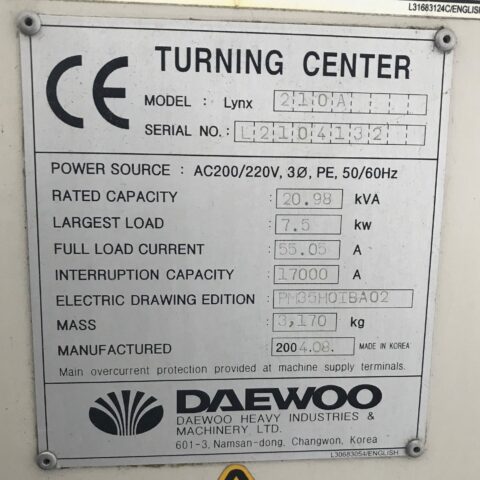

| DAEWOO LYNX 210 CNC TURNING CENTER LATHE | |
|---|---|
| Make | DAEWOO |
| Model No. | LYNX 210A |
| YOM: | 2004.08 |
| Serial # | L2104132 |
| Condition | Very Good |
Comes with 6″ Chuck, Tool Holders, Original Manuals and Chip Conveyor.
All specifications are approximations and are subject to verification.
“This One Owner machine has 6″ Chuck, Tool Setter, Parts Catcher . On Our Floor fully powered / tested & is in Great working condition. Compact design ideal for Garage, small shops.”
- DAEWOO LYNX 210 CNC Equipped With:
- Fanuc OiT CNC Control

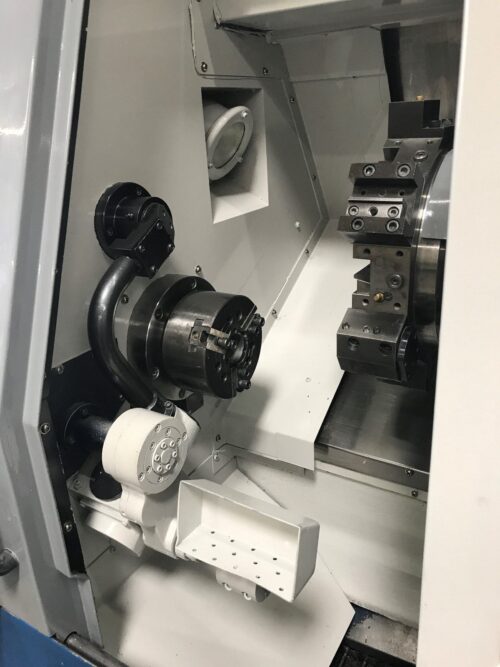

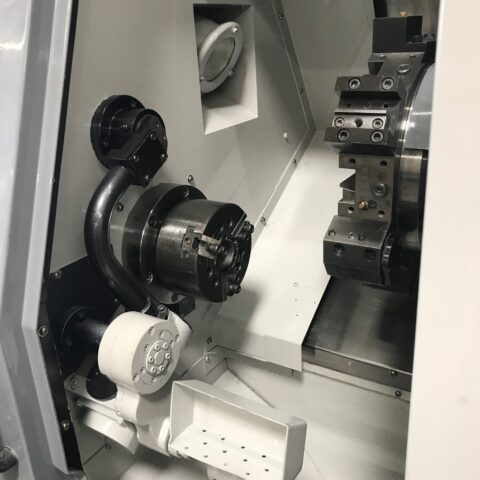

- 6″ 3 Jaw Hydraulic Chuck
- Tool Presetter
- Parts Catcher
- PC Flash Card Slot
- Coolant System
- Barfeed Interface

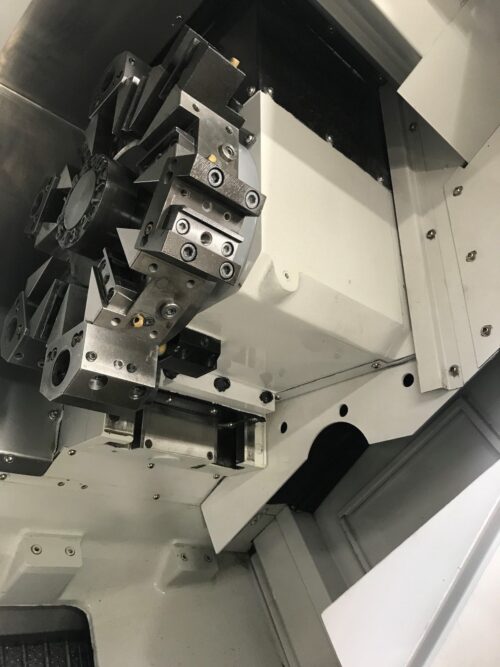

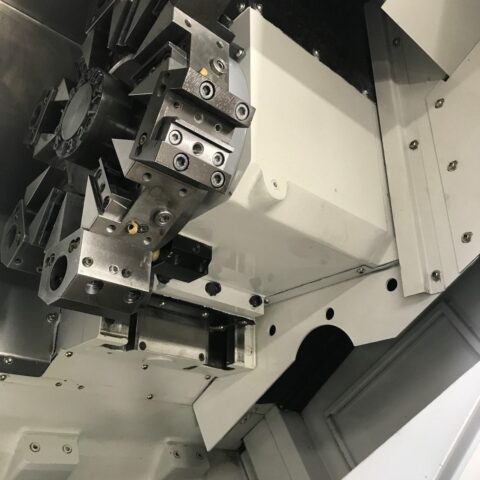

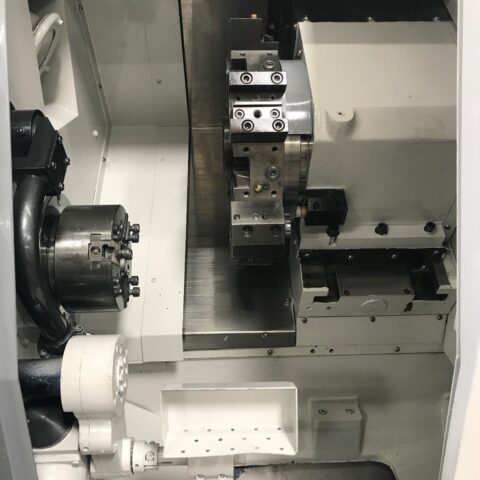

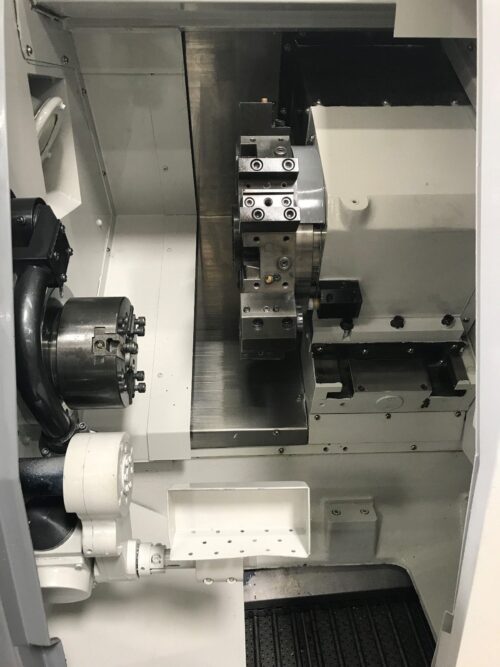

- 12 Station Automatic Turret
- Chip Conveyor
- Original Manuals
- Foot Pedal
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 76″ x 64″ x 69″ High
- Weight: 6500 lbs
- DAEWOO LYNX 210 CNC Specifications:
- Capacity:
- Max Turning Diameter: 11″
- Max Turning Length: 11.8″
- Max Bar Capacity: 1.75″
- Swing Over Bed: 18″
- X Axis Travel: 6.3″
- Z Axis Travel: 13.00″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 1000 IPM
- Spindle Nose: A2-5
- Spindle Bore: 2.00″
- Spindle Speed: 35 – 5000 RPM
- Spindle Motor: 10 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.1 Second

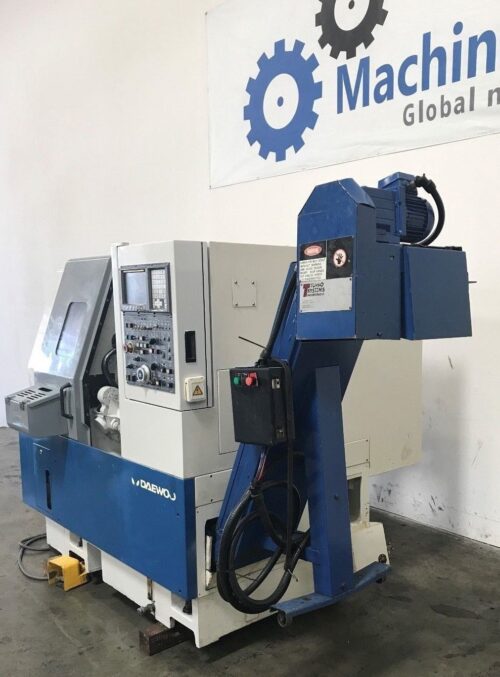

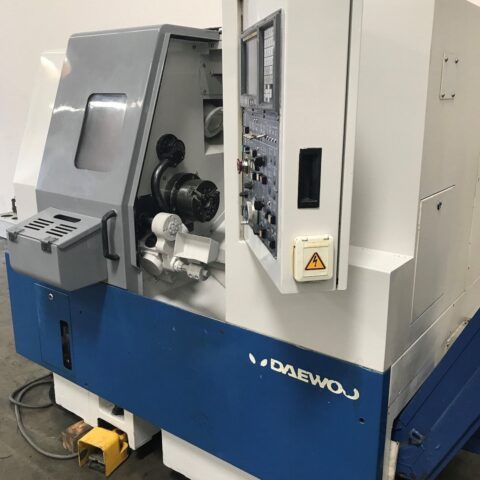

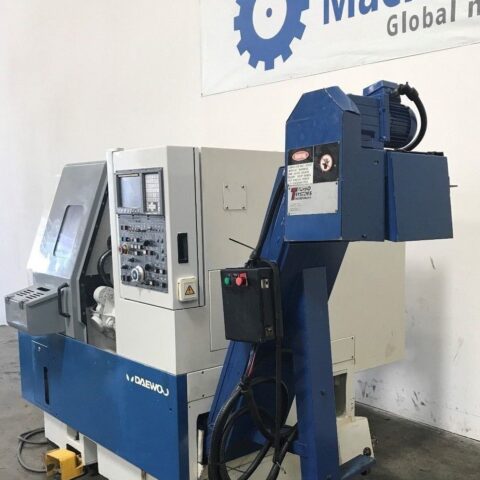

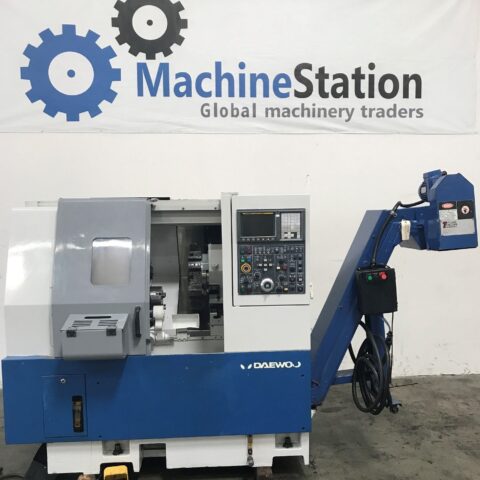

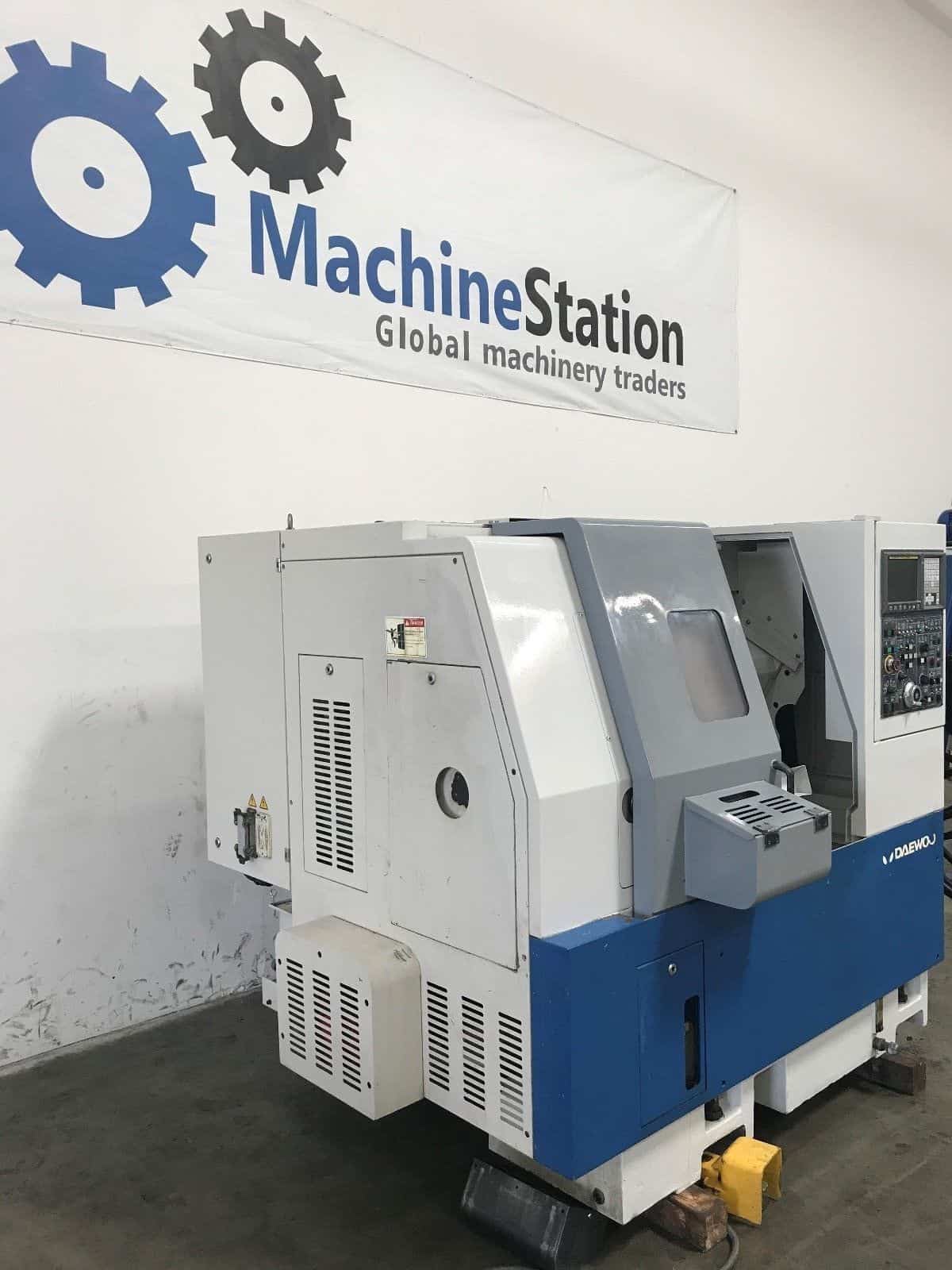

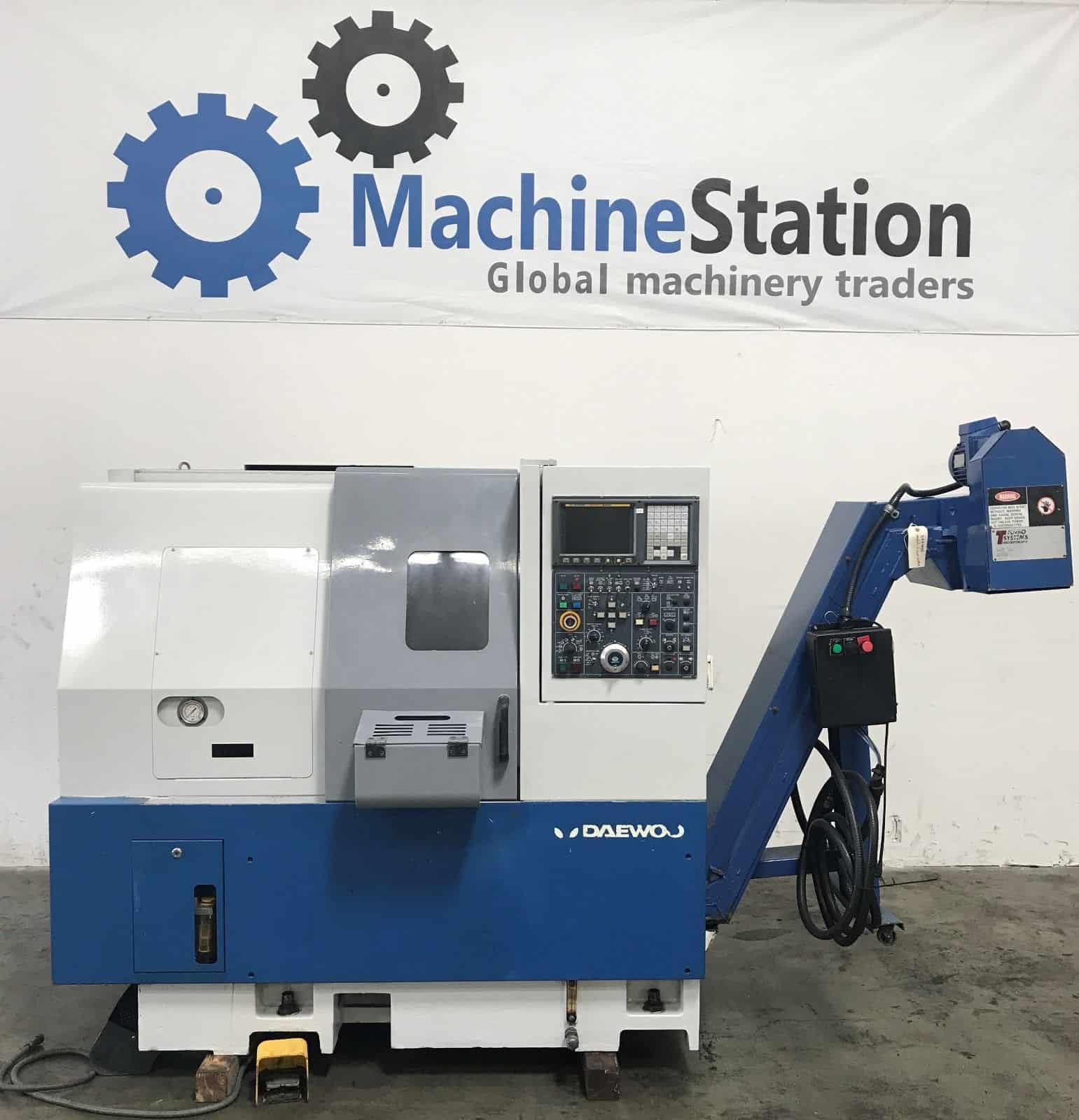

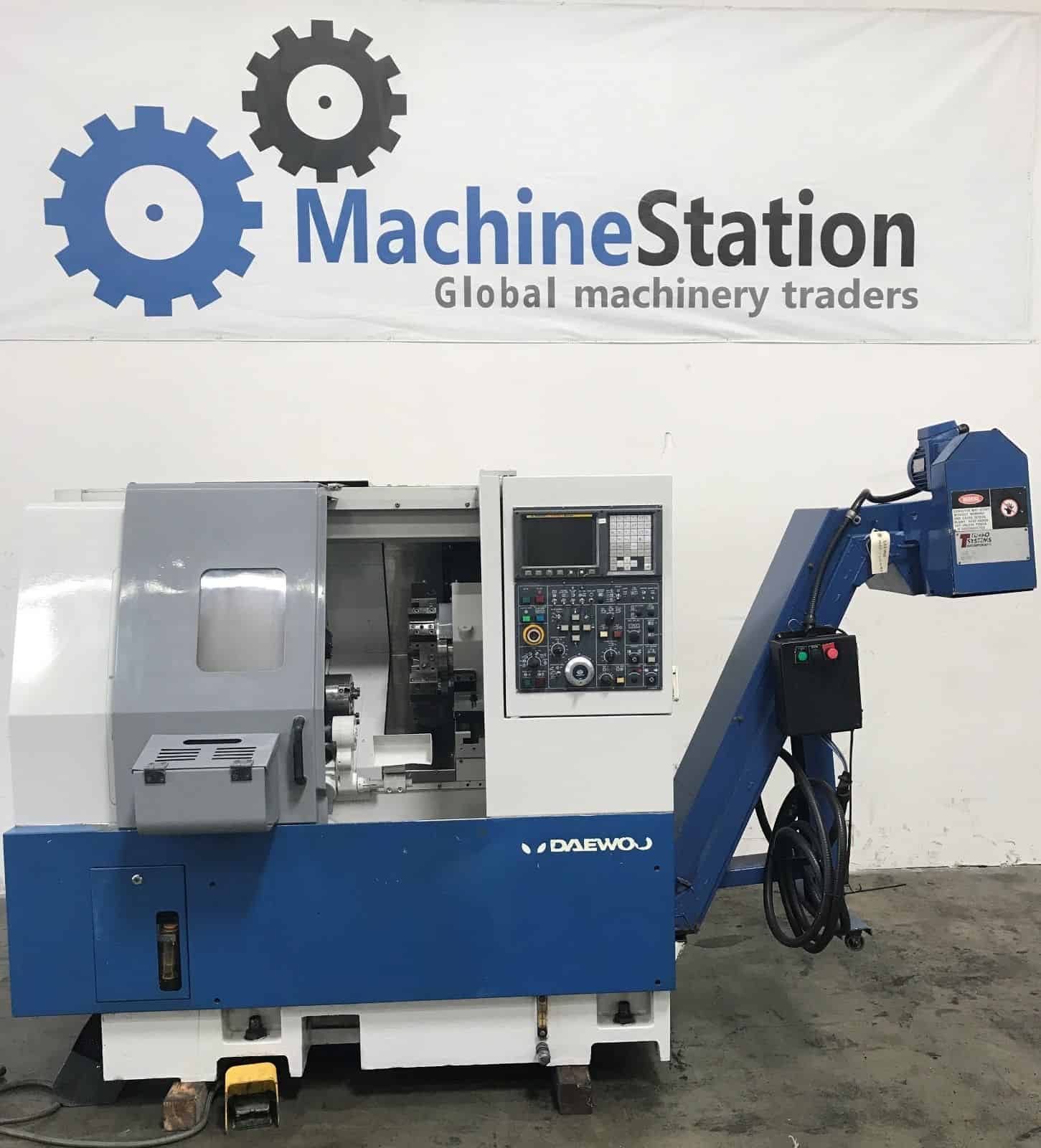

DAEWOO LYNX 210 CNC Comes as shown in pictures..
